post #1 of 53 Old 02-19-2012, 12:21 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Just bought an Epson 8100 and wanting to replace my WA DW screen with a gain of 1.2.

I am wanting to improve black and enhance color depth and details. There are many DIY options out there, but I chose neutral gray for a few reasons.

1) Room conditions: I have a dedicated room, with dark colors, and total light control so i don't ready need the ambient light enhancement of other diy paint mixes.

2) Cost: I like do things on a limited budget, and if I screwed up it won't be such a heartbreak to discard and start over.

3) Simplicity: What's easier then buying a can of paint and roll?

So let's start.......


Materials

4x8 6mm white Komatex $44
1 quart of Sherwin Williams unique gray paint $20
2 Purdy white dove 1/4" roller $12
2 tray liner $2
4 yards of syfrabrics triple black velvet $33 (purchased from forum member)
2 12ft pine baseboard moulding for screen borders $33

net cost ~$145
smokarz is offline
Sponsored Links
Advertisement

post #2 of 53 Old 02-19-2012, 12:24 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

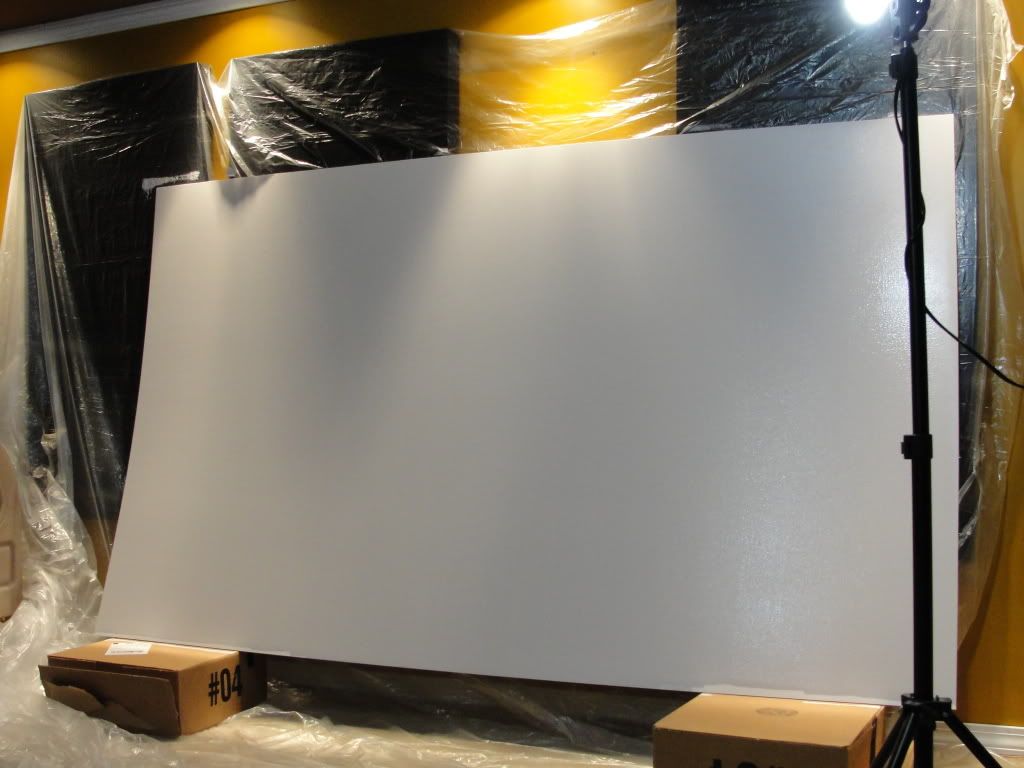

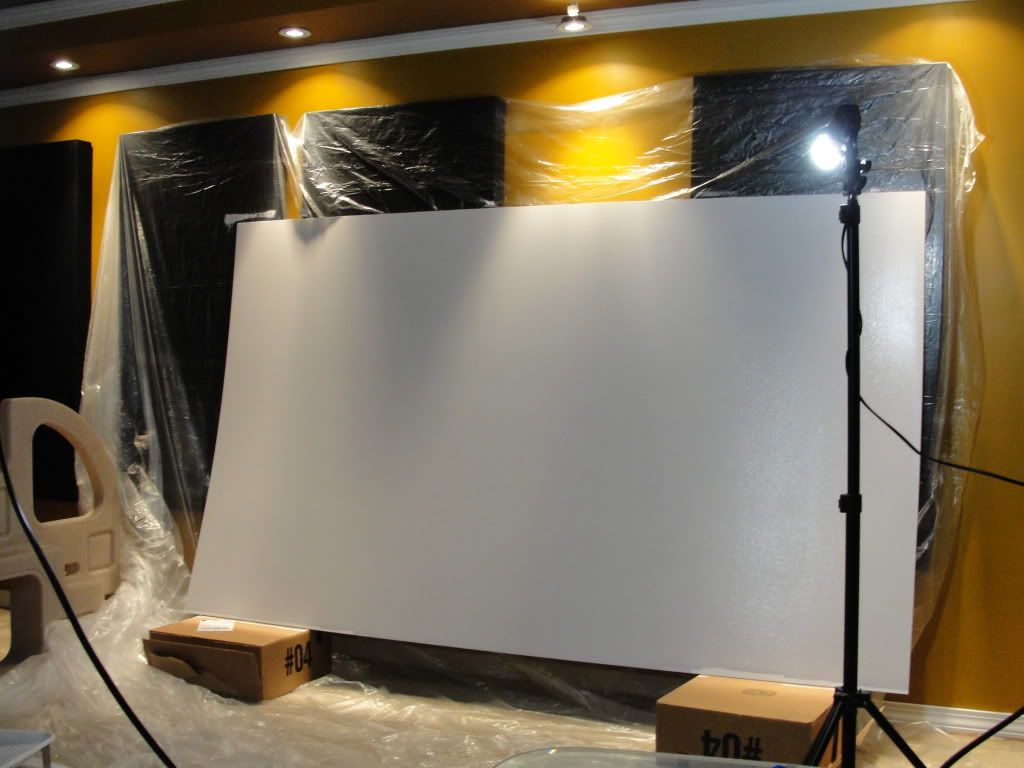

Komatex sheet cut to size and painted. Cut with brand new utility knife. Scored about 8-10 times with straight edge and snapped easily. Used 3M 220 grit sandpaper to smooth the cut edges.





smokarz is offline
post #3 of 53 Old 02-19-2012, 12:26 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

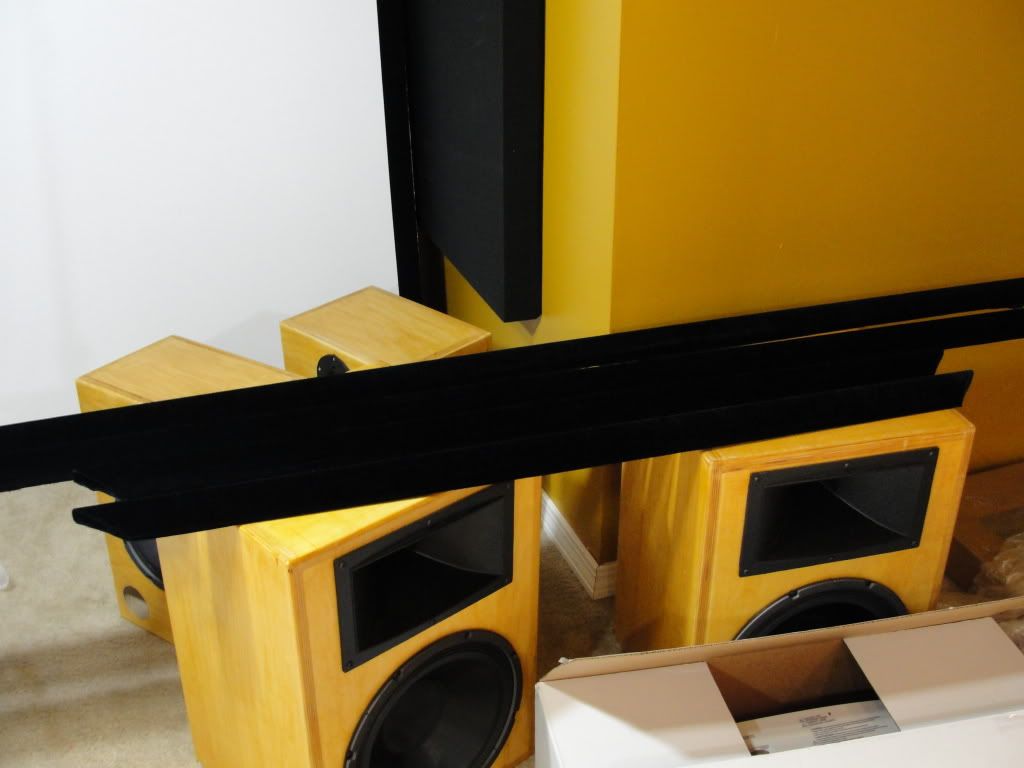

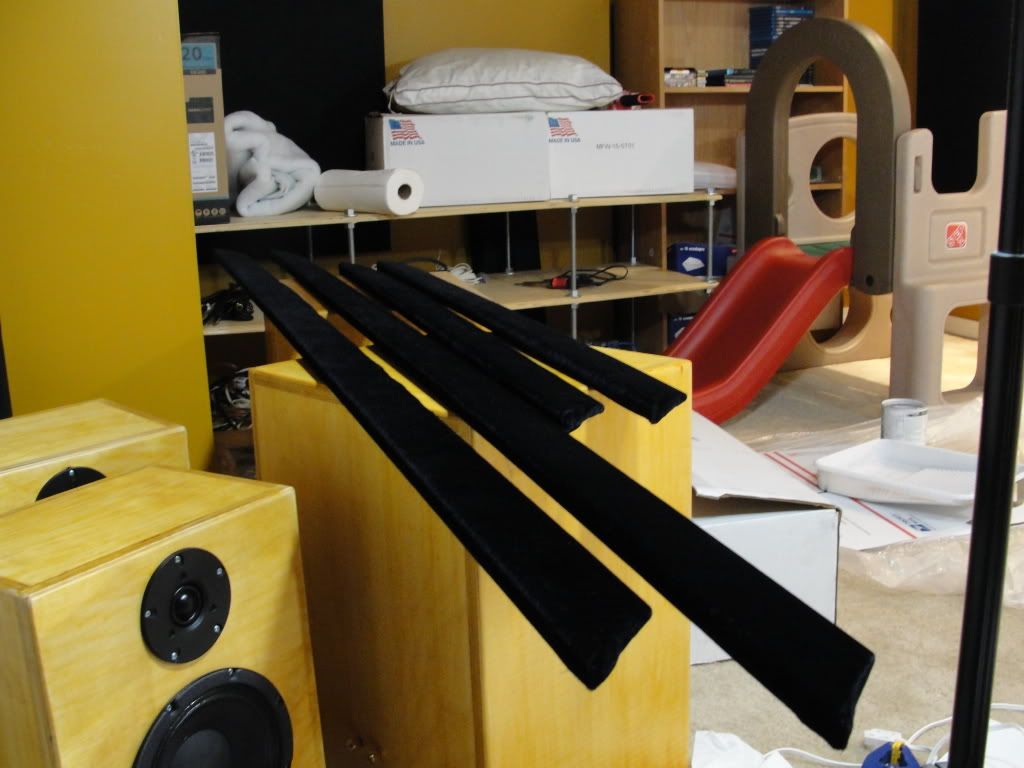

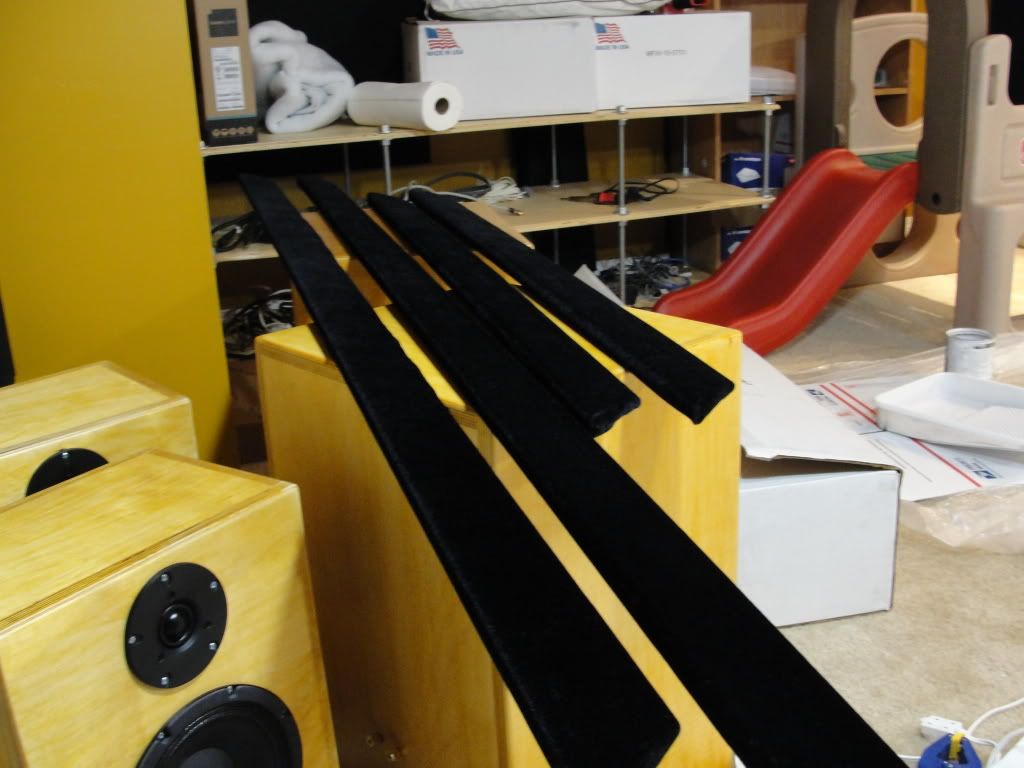

while waiting for paints to dry overnight. i worked on the screen borders. MM put together an exceptional tutorial on this. i really like the end results. needed to purchase a stapler from amazon for about $12.








smokarz is offline
post #4 of 53 Old 02-19-2012, 12:27 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

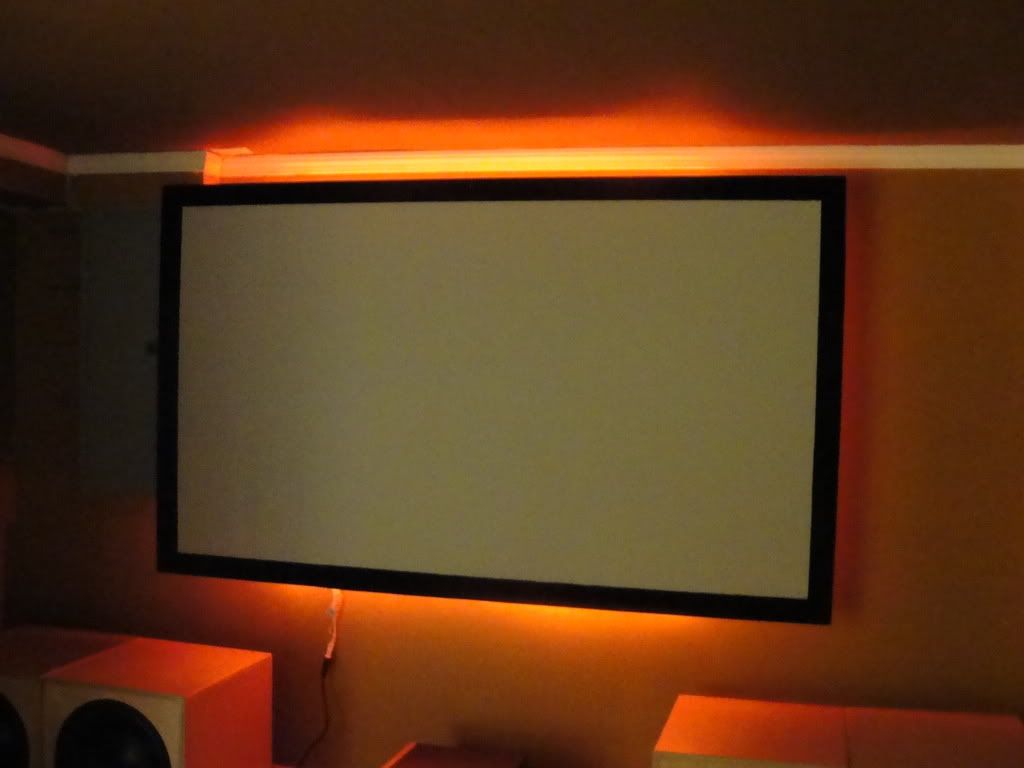

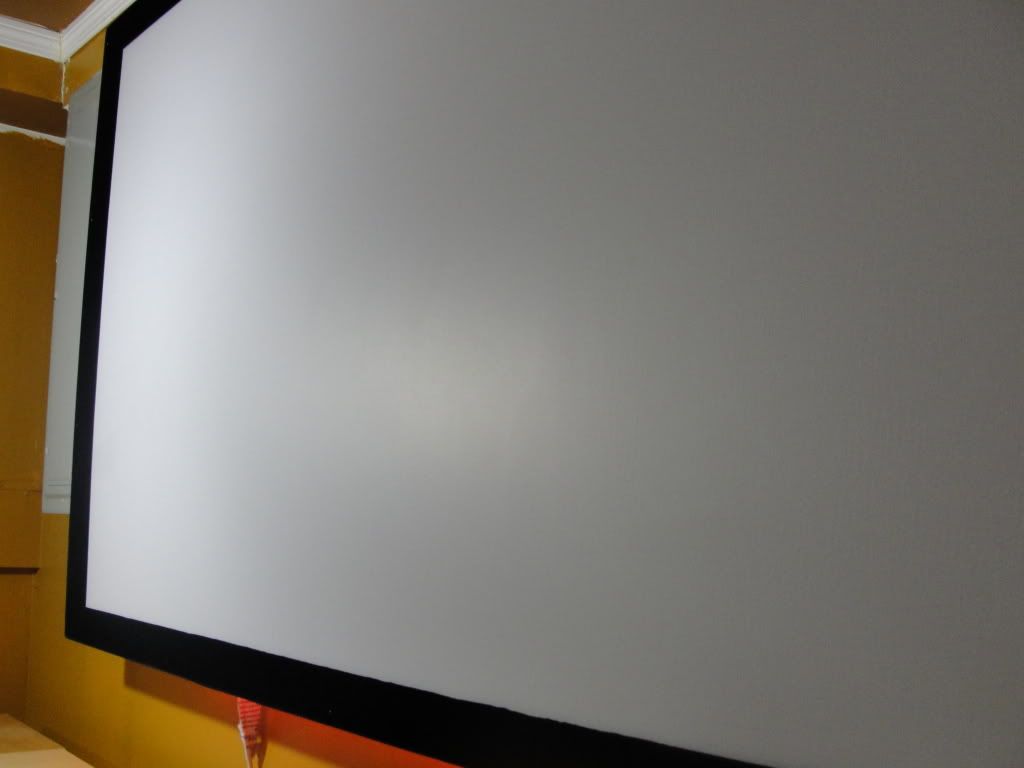

border trims attached and hanged on wall frame.





smokarz is offline
post #5 of 53 Old 02-19-2012, 12:28 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

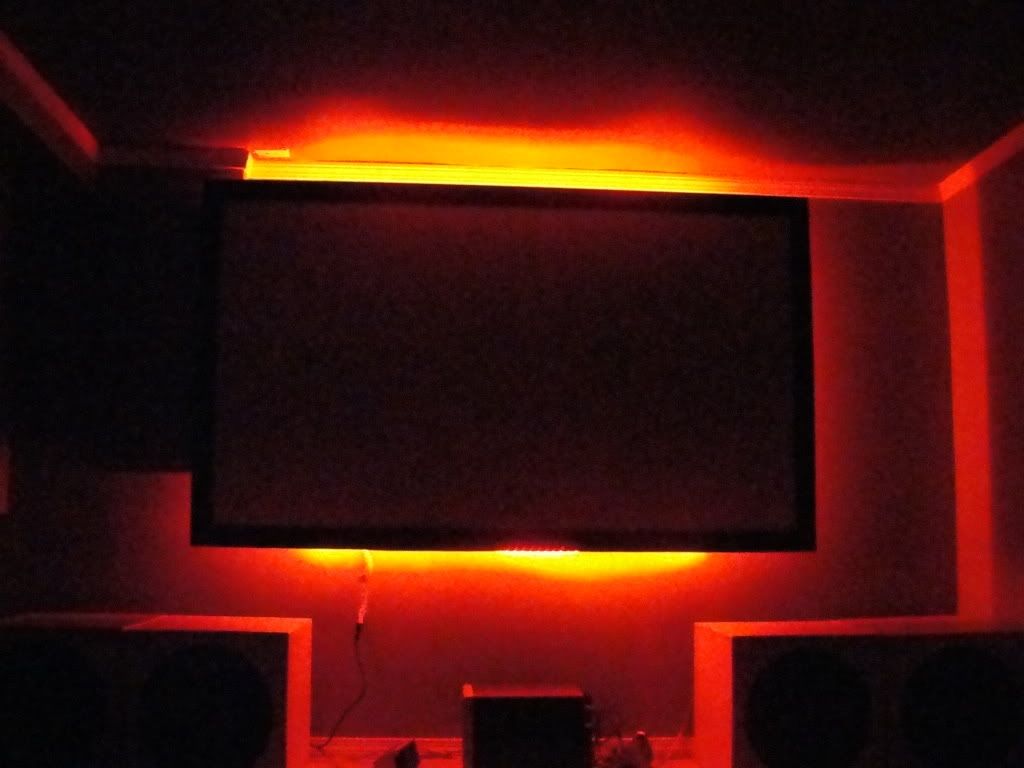

a few shots of screen with room lights off and back lighting.







smokarz is offline
post #6 of 53 Old 02-19-2012, 12:29 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

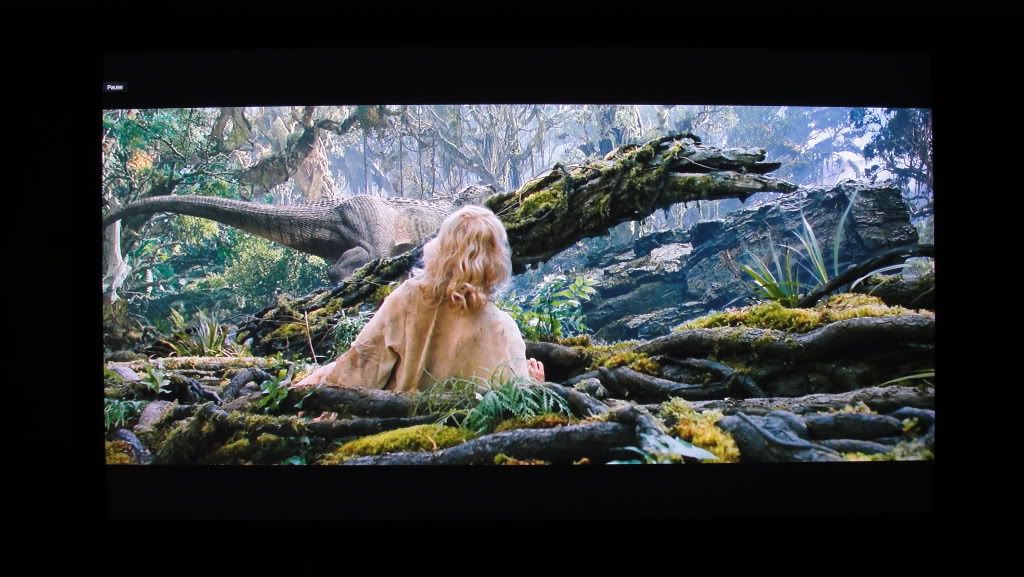

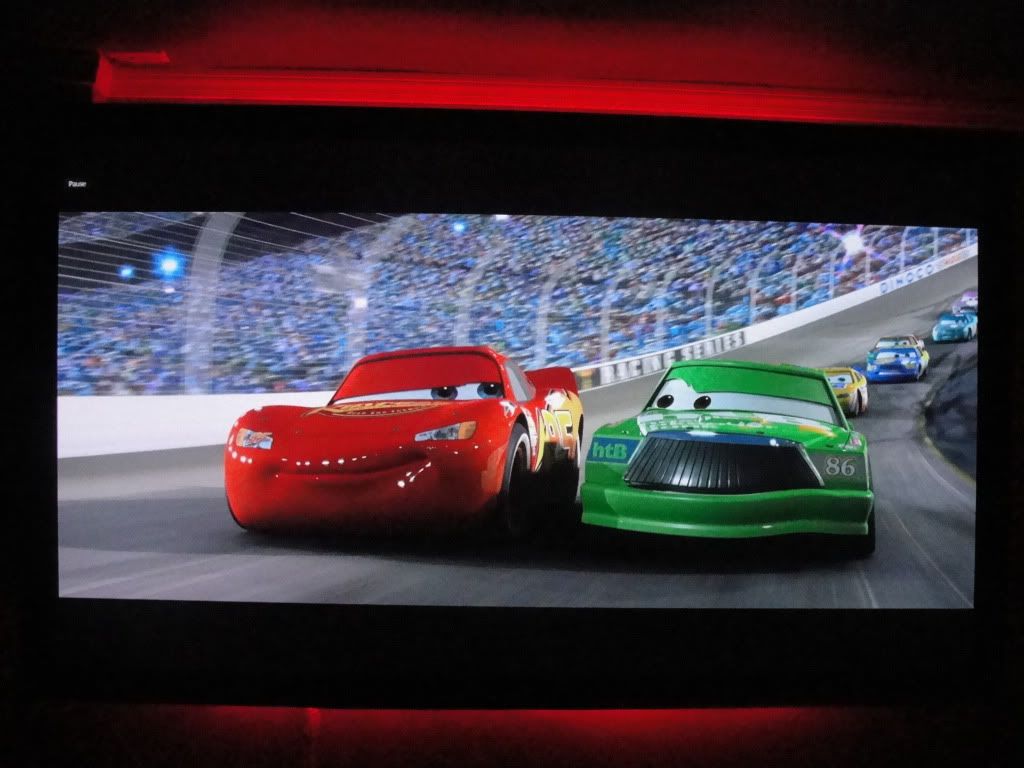

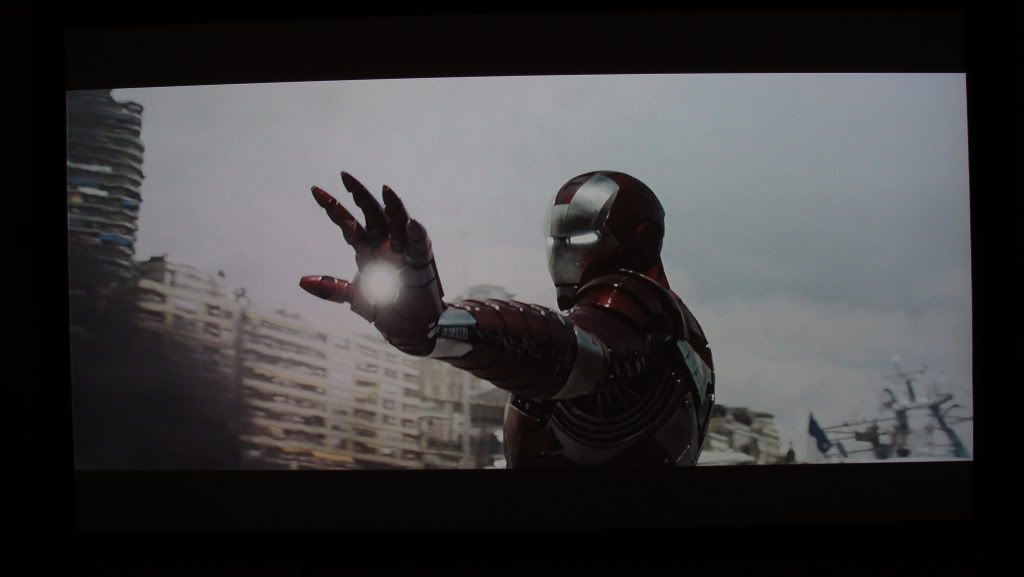

and finally some shots of the screen in action. sorry, my point and shoot camera is not very good and i have absolutely zero skills with picture taking.








smokarz is offline
post #7 of 53 Old 02-19-2012, 12:33 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
and there you have. a few days worth of work and a very decent screen for about $150. btw, screen size is 48x81 (88" diag).

the screen is definitely a touch darker than the the WA DW, but for my viewing habits (mostly blu-ray movies), i think it fits the bill quite well.

when i have a chance i am going to calibrate the pj and put up the left over piece of white Sintra (which have similar characteristics as the WA DW) for comparisons.

in the meantime i am going to enjoy a few movies and learn how to take better pictures with my Sony P&S camera as these pictures do not do justice to either the screen or the projector.
smokarz is offline
post #8 of 53 Old 02-22-2012, 01:34 AM
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Looks fanatastic....but I'm most jealous of your speakers
miahallen is offline
post #9 of 53 Old 02-22-2012, 05:37 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
thanks. i am quite proud of all them speakers. built them all myself, quite a bit of labor.
smokarz is offline
post #10 of 53 Old 02-22-2012, 06:43 AM
AVS Special Member

pb_maxxx's Avatar

Join Date: Aug 2005
Location: chicago
Posts: 2,384
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Quote:
Originally Posted by smokarz View Post

thanks. i am quite proud of all them speakers. built them all myself, quite a bit of labor.

what subwoofers did you use. are they active or passive. what crossover and/or amp did you use?
pb_maxxx is offline
post #11 of 53 Old 02-22-2012, 07:08 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Quote:
Originally Posted by pb_maxxx View Post

what subwoofers did you use. are they active or passive. what crossover and/or amp did you use?


Quote:
Originally Posted by pb_maxxx View Post

what subwoofers did you use. are they active or passive. what crossover and/or amp did you use?

they used the MFW-15" drivers.

3cf sealed boxes.

driven by an EP2500 power amp

crossed to my speakers at 90hz

build thread here.

http://www.avsforum.com/avs-vb/showthread.php?t=1334025
smokarz is offline
post #12 of 53 Old 02-22-2012, 10:58 AM
AVS Club Gold

MississippiMan's Avatar

Join Date: Nov 2002
Location: Byhalia, Mississippi. Waaaay down in the Bottoms
Posts: 14,658
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 51 Post(s)
Liked: 206
Gotta Love those Euro Powers !

To quote James T. Kirk;
"I'm laughing at the superior intellect"
MississippiMan is offline
post #13 of 53 Old 02-22-2012, 11:05 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
them euros give you the best bang for the bucks.
smokarz is offline
post #14 of 53 Old 02-23-2012, 08:38 PM
Member

dheflin83's Avatar

Join Date: Nov 2011
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Are those Econowave speakers? which version?
dheflin83 is offline
post #15 of 53 Old 02-23-2012, 09:16 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Quote:
Originally Posted by dheflin83 View Post

Are those Econowave speakers? which version?

this is a screen thread and yet people keep asking about speakers.

perhaps i should stick with building speakers.

those are CS-1 speakers from Bob Crites. Klipch Heresy clones.
smokarz is offline
post #16 of 53 Old 02-23-2012, 10:45 PM
AVS Special Member

Favelle's Avatar

Join Date: Dec 2004
Location: Victoria, BC, Canada
Posts: 3,786
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Nice work man! Well done!

In terms of LFE, size does matter!
Favelle is offline
post #17 of 53 Old 02-24-2012, 05:22 AM
Member

dheflin83's Avatar

Join Date: Nov 2011
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
what kind of internal wiring do you use in your speakers? (jk)
dheflin83 is offline
post #18 of 53 Old 02-24-2012, 06:20 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Quote:
Originally Posted by dheflin83 View Post

what kind of internal wiring do you use in your speakers? (jk)

i used 16awg. no need for anything bigger.

smokarz is offline
post #19 of 53 Old 02-24-2012, 09:03 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63

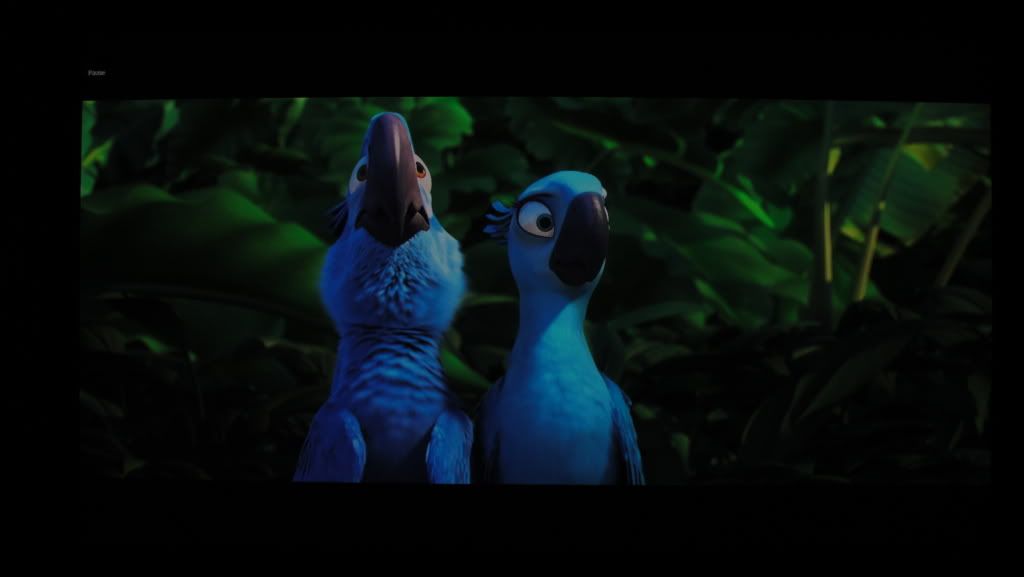

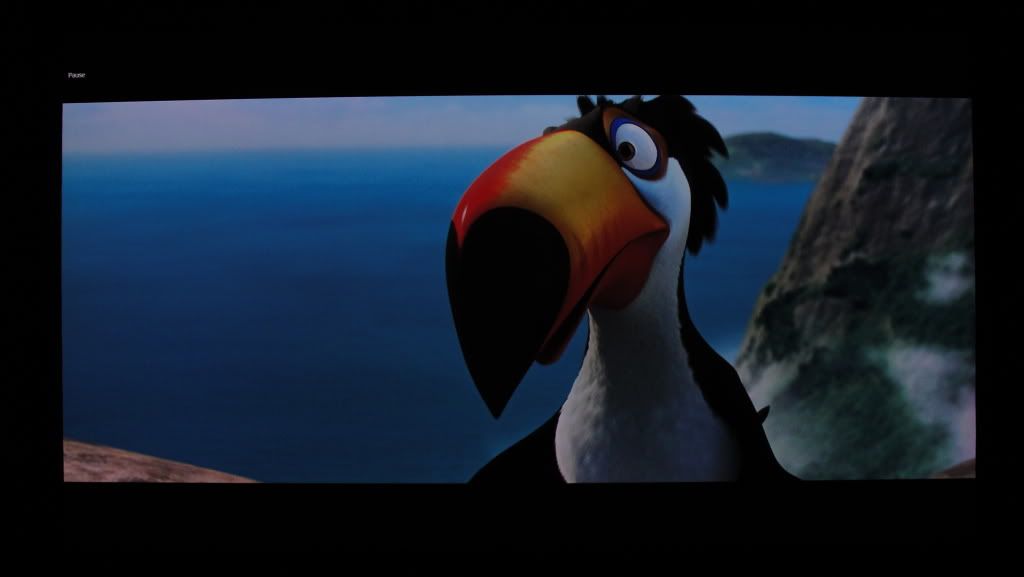

some more action shots of the screen, so we can take some attention off of the speakers.










smokarz is offline
post #20 of 53 Old 02-25-2012, 12:48 AM
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Did you use 7 or 11 ply Baltic Birch for those boxes (I'm kidding)

The screen looks great!
miahallen is offline
post #21 of 53 Old 02-25-2012, 05:18 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
13 ply BB.
smokarz is offline
post #22 of 53 Old 02-28-2012, 09:11 AM
AVS Club Gold

MississippiMan's Avatar

Join Date: Nov 2002
Location: Byhalia, Mississippi. Waaaay down in the Bottoms
Posts: 14,658
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 51 Post(s)
Liked: 206
You Sir, are not getting enough gain out of the Gray surface to allow the Camera to collect a decent amount of light. . Or....you are using too much Zoom and therein attenuating the light at the camera's iris..

Try stepping back to about 14', and using only enough Zoom (25% at most)to start. If it's still dim, then bump up the ISO setting to High (600-800) and still use the Zoom just a bit. Your first shots seem to have been done in that manner. When you take shots in complete darkness, distance and then Zooming is a must...but since you started out with a sub 1.0 Gain Gray, that would need to be accommodated for a bit more than with the Higher Gain applications.

In the end, some tinkering and experimentation should lead you to a point where what you see over the Top of the Camera should be represented in the Preview window...or at least in your PC's display.

There should never be an instance where someone has to post such dull shots. Especially when the clarity behind the dullness seems to be exceptionally good.

To quote James T. Kirk;
"I'm laughing at the superior intellect"
MississippiMan is offline
post #23 of 53 Old 02-28-2012, 09:36 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
hey MM, thanks for the tips.

i am no good with a camera.

i'll try the 'night' mode next. it seems that many have pretty nice shots using night mode on their P&S cameras.
smokarz is offline
post #24 of 53 Old 02-28-2012, 12:07 PM
AVS Club Gold

MississippiMan's Avatar

Join Date: Nov 2002
Location: Byhalia, Mississippi. Waaaay down in the Bottoms
Posts: 14,658
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 51 Post(s)
Liked: 206
Quote:
Originally Posted by smokarz View Post

hey MM, thanks for the tips.

i am no good with a camera.

i'll try the 'night' mode next. it seems that many have pretty nice shots using night mode on their P&S cameras.

Awww....just try Full Auto and the suggestions I made first. Night Mode will probably wind up washing out the center of the image.
Now I may be making that judgment based on my more normal experience with positive gain'ed Screens, but really though, one thing you don't want to do is"Automatically" increase the aperture and exposure times via a special program. Will it work? It might. Chances for success? Not so much.

Straight up, the images we post must represent exactly what we can confirm that we see ourselves. While there may be variables...it the image provided is even close...it serves as a valid conformation of performance.

To quote James T. Kirk;
"I'm laughing at the superior intellect"
MississippiMan is offline
post #25 of 53 Old 02-28-2012, 08:14 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
a few more shots. i think i am going to take a break from picture taking and actually go see some movies.
















smokarz is offline
post #26 of 53 Old 02-28-2012, 10:15 PM
AVS Club Gold

MississippiMan's Avatar

Join Date: Nov 2002
Location: Byhalia, Mississippi. Waaaay down in the Bottoms
Posts: 14,658
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 51 Post(s)
Liked: 206
Nothing shabby about those gems. Almost too bright.

Did you use Auto w/High ISO and Zoom Framing together? "BIG" difference...but to show best Contrast, you need to find your Camera's best Focal length where employment of the Zoom frames the image, and only attenuates the incoming light by a small percentage.

Now get the PJ calibrated to that Gray shade, and see how deep your Black Levels can go without your losing too much of the rest of the image dynamics. Most likely, in Cinema 1 and Low lamp, you'll be at the lowest end of your lumen output. That should show you if you can employ that level of adjustment, or if and when reasonable limits on visual trade-offs occur.

To quote James T. Kirk;
"I'm laughing at the superior intellect"
MississippiMan is offline
post #27 of 53 Old 02-29-2012, 12:33 AM
AVS Special Member

pb_maxxx's Avatar

Join Date: Aug 2005
Location: chicago
Posts: 2,384
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
yes, better than the rio pics.
just a bit over saturated on the reds thoughout though.
kong pics lack depth.
panda pics lack black levels.
like the rango pics.
pb_maxxx is offline
post #28 of 53 Old 02-29-2012, 06:44 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Quote:
Originally Posted by MississippiMan View Post

Nothing shabby about those gems. Almost too bright.

Did you use Auto w/High ISO and Zoom Framing together? "BIG" difference...but to show best Contrast, you need to find your Camera's best Focal length where employment of the Zoom frames the image, and only attenuates the incoming light by a small percentage.

Now get the PJ calibrated to that Gray shade, and see how deep your Black Levels can go without your losing too much of the rest of the image dynamics. Most likely, in Cinema 1 and Low lamp, you'll be at the lowest end of your lumen output. That should show you if you can employ that level of adjustment, or if and when reasonable limits on visual trade-offs occur.

Those pics were taken with the Camera in 'Twiglight' mode.

It was late, I was tired and lazy. So decided to put it in night mode and call it a day.

Once I have my PJ properly calibrated to the screen, I will have to try your camera suggestions.
smokarz is offline
post #29 of 53 Old 02-29-2012, 06:48 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,256
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 63
Quote:
Originally Posted by pb_maxxx View Post

yes, better than the rio pics.
just a bit over saturated on the reds thoughout though.
kong pics lack depth.
panda pics lack black levels.
like the rango pics.

i agreed the red was oversaturated. in these pics, i applied another member's calibration digits and immediately realized that it has a bit too much of red/purple'ish push to it.

i am waiting on the updated HCFR program and will be purchasing an i1 colorimter to really set up the pj/screen properly.
smokarz is offline
post #30 of 53 Old 02-29-2012, 06:50 AM
AVS Club Gold

MississippiMan's Avatar

Join Date: Nov 2002
Location: Byhalia, Mississippi. Waaaay down in the Bottoms
Posts: 14,658
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 51 Post(s)
Liked: 206
Quote:
Originally Posted by smokarz View Post

Those pics were taken with the Camera in 'Twiglight' mode.

It was late, I was tired and lazy. So decided to put it in night mode and call it a day.

Once I have my PJ properly calibrated to the screen, I will have to try your camera suggestions.


That explains why they look almost "Back Lit" in intensity.

Looking forward to seeing more....good work there, Bub!

To quote James T. Kirk;
"I'm laughing at the superior intellect"
MississippiMan is offline
Reply DIY Screen Section

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
