post #1591 of 16330 Old 10-25-2010, 11:34 AM
AVS Special Member

enricoclaudio's Avatar

Join Date: Aug 2005
Location: Houston
Posts: 1,125
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked: 163
Quote:
Originally Posted by zredsox View Post

I can't seem to be able to get to the FV15 specs page.

Does anyone have the weight and dimensions (grill on) off the top of their head or have another link?

I assume it is the same size as the HP version but wasn't sure about the weight.

Thanks.

That is a question that only Brian can answer, but as I remember, Brian wrote that the difference in weight between 370PEQ2 amp + DS1500 Driver and H600PEQ amp + DS1510 Driver is 12 lb.

Bye

Best Regards,

Enrico Castagnetti
Rythmik Audio



My Multimedia Room Gallery

enricoclaudio is offline
Sponsored Links
Advertisement

post #1592 of 16330 Old 10-25-2010, 11:44 AM
AVS Special Member

pbmpharmacist's Avatar

Join Date: Oct 2005
Posts: 1,802
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hey guys,

I'm trying to figure out which Rythmik sub would be best for Home Theatre (almost exclusively for HT use). There seem to be a number of different Rythmik subs and I'm not sure which one would be best. I need something that is a clear upgrade from my previous sub (HSU VTF-3 MK 2, specs: http://www.hsuresearch.com/products/vtf-3.html) Thanks in advance for the help!
pbmpharmacist is offline
post #1593 of 16330 Old 10-25-2010, 11:49 AM
Member

Bravo1's Avatar

Join Date: Sep 2009
Posts: 112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by pbmpharmacist View Post

Hey guys,

I'm trying to figure out which Rythmik sub would be best for Home Theatre (almost exclusively for HT use). There seem to be a number of different Rythmik subs and I'm not sure which one would be best. I need something that is a clear upgrade from my previous sub (HSU VTF-3 MK 2, specs: http://www.hsuresearch.com/products/vtf-3.html) Thanks in advance for the help!

I would say for HT the best would probably be http://www.rythmikaudio.com/FV15HP.html Unless if you prefer a sealed sound but overall a ported setup will probably work best.
Bravo1 is offline
post #1594 of 16330 Old 10-25-2010, 12:41 PM
Member

zredsox's Avatar

Join Date: Aug 2010
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Bravo1 View Post

Unless if you prefer a sealed sound but overall a ported setup will probably work best.

I'm suffering through a real internal battle right now. What are you losing (besides small form factor) by going with the FV15 vs. the F15 and what are you gaining?
Also, I am a little confused by how the mutli-tune works with the FV15/FV15HP (real sub novice here.) I am assuming it comes with a port plug and by plugging one of the ports you are able to achieve tune to a lower extension at the cost of output?
zredsox is offline
post #1595 of 16330 Old 10-25-2010, 12:59 PM
AVS Special Member

pbmpharmacist's Avatar

Join Date: Oct 2005
Posts: 1,802
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by zredsox View Post

I'm suffering through a real internal battle right now. What are you losing (besides small form factor) by going with the FV15 vs. the F15 and what are you gaining?
Also, I am a little confused by how the mutli-tune works with the FV15/FV15HP (real sub novice here.) I am assuming it comes with a port plug and by plugging one of the ports you are able to achieve tune to a lower extension at the cost of output?

I'd like this answered as well.
pbmpharmacist is offline
post #1596 of 16330 Old 10-25-2010, 02:22 PM
AVS Addicted Member

DaGamePimp's Avatar

Join Date: Jan 2001
Location: WA State
Posts: 15,493
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 153
Ported subs are usually considered over-all a more effective solution for HT due to more output (SPL) as well as generally being more efficient (and generally more cost effective). Ported subs will usually give more output at their tuning frequency(s) versus a similar sealed sub (similar meaning same size driver and amp power). Sealed subs will generally offer more consistent levels across the subs frequency range where as a ported/tuned sub can sound great around its tune but deficient at other frequencies (some are beasts down low with hardly any mid-bass while others are great for mid-bass but fall well short down low). Here is where the variable ports (Tunes) come in to play on a multi-ported sub, you can pick your preference, you want a little more oomph down low for movies then you can tune it that way while sacrificing output at other frequencies. However when it comes right down to it the room and placement are far more important than ported vs sealed (at least in my opinion).

It's all a compromise really as each has its benefits depending upon your wants & needs .

Jason
DaGamePimp is offline
post #1597 of 16330 Old 10-25-2010, 06:09 PM
Member

jedovaty's Avatar

Join Date: Apr 2010
Location: orange county, CA
Posts: 119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi, sorry, I have a newie question. The back of the f12se has 4 RCA jacks. Does that mean it takes stereo input from two sources, or one source that does some magical 4 way thing?

Where I'm going with this:
The receiver I am purchasing has only one RCA jack for a powered subwoofer, no red/white/stereo, so the cable I need would be a single splitting into stereo? Or single and plug it into any of the jacks?

Thank you for your time.
jedovaty is offline
post #1598 of 16330 Old 10-25-2010, 06:20 PM
AVS Special Member

rick240's Avatar

Join Date: Oct 2004
Location: Calgary, AB
Posts: 3,539
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 45
Quote:
Originally Posted by jedovaty View Post

Hi, sorry, I have a newie question. The back of the f12se has 4 RCA jacks. Does that mean it takes stereo input from two sources, or one source that does some magical 4 way thing?

Where I'm going with this:
The receiver I am purchasing has only one RCA jack for a powered subwoofer, no red/white/stereo, so the cable I need would be a single splitting into stereo? Or single and plug it into any of the jacks?

Thank you for your time.

The RCA jacks are input (from the pre-outs from your pre-amp) and output (to an amp). They would be more typically used in a 2 channel system.

In your situation you would connect the single RCA cable from your SubwooferOut to either of the L/R input RCAs. Just ignore the outputs.

rick240 is offline
post #1599 of 16330 Old 10-25-2010, 07:00 PM
Senior Member

Iain-'s Avatar

Join Date: Jul 2009
Location: UK
Posts: 479
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 37
"
Quote:
Originally Posted by jedovaty
Hi, sorry, I have a newie question. The back of the f12se has 4 RCA jacks. Does that mean it takes stereo input from two sources, or one source that does some magical 4 way thing?

Where I'm going with this:
The receiver I am purchasing has only one RCA jack for a powered subwoofer, no red/white/stereo, so the cable I need would be a single splitting into stereo? Or single and plug it into any of the jacks?

Thank you for your time.


The RCA jacks are input (from the pre-outs from your pre-amp) and output (to an amp). They would be more typically used in a 2 channel system.

In your situation you would connect the single RCA cable from your SubwooferOut to either of the L/R input RCAs. Just ignore the outputs."





.....or LFE output from AVR as well, right?
Iain- is offline
post #1600 of 16330 Old 10-26-2010, 09:29 AM
Member

jedovaty's Avatar

Join Date: Apr 2010
Location: orange county, CA
Posts: 119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Iain- View Post

.....or LFE output from AVR as well, right?

Some AVRs have an additional output for LFE? I don't think the one I'm looking at has it (denon 4311).
jedovaty is offline
post #1601 of 16330 Old 10-26-2010, 10:00 AM
AVS Special Member

monomer's Avatar

Join Date: Apr 2002
Location: up north
Posts: 1,767
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Apparently it has 11.2 pre-outs (according to the specs page on Denon's site) so you will have two Sub pre-outs to use, pick one.

"For deep bass, the listener is not really listening to the speaker, but rather, is listening to the room as it is being played by the speaker."
Juicy
Doggie Jabber
monomer is offline
post #1602 of 16330 Old 10-26-2010, 10:41 AM
AVS Addicted Member

sdurani's Avatar

Join Date: Oct 2001
Location: Monterey Park, CA
Posts: 18,724
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked: 595
Quote:
Originally Posted by jedovaty View Post

Some AVRs have an additional output for LFE?

Rare to nonexistant. Some of the Denon 58xx series flagship models had 3 subwoofer outputs: left, right, LFE. The latter was silent unless the source material had a .1 channel.
Quote:


I don't think the one I'm looking at has it (denon 4311).

You're right, it doesn't. It has 2 subwoofer outputs (combined LFE + redirected bass), but no dedicate LFE output like the older Denon flagships.

Sanjay
sdurani is online now
post #1603 of 16330 Old 10-26-2010, 10:58 AM
Member

jedovaty's Avatar

Join Date: Apr 2010
Location: orange county, CA
Posts: 119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Great, so with two f12se's (enroute!), I will get two RCA cables. Would it be better to get a split for each cable to plug into both L and R input of each sub, or just randomly choose L/R with the single cable?

One of the cable runs will be about 30ft. I hope the monoprice cables are good for this?
jedovaty is offline
post #1604 of 16330 Old 10-26-2010, 10:58 AM
Member

zredsox's Avatar

Join Date: Aug 2010
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Rythmik View Post

Naturally, customer would compare this with PB13 ultra. Ours is slightly smaller. However, that is intentional because it makes the maximum output extension to 18hz, just between the 3-port tune and 2-port tune of PB13 Ultra. If we can improve sound quality of sealed subwoofers with servo, we can also do that with vented subs.

So would it be fair to compare a FV15 with a PB13 Ultra in terms of frequency response, low-end extension, SPL and overall sound quality?
zredsox is offline
post #1605 of 16330 Old 10-26-2010, 11:23 AM
AVS Addicted Member

sdurani's Avatar

Join Date: Oct 2001
Location: Monterey Park, CA
Posts: 18,724
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 463 Post(s)
Liked: 595
Quote:
Originally Posted by jedovaty View Post

Great, so with two f12se's (enroute!), I will get two RCA cables.

Keep in mind that the Denon 4311 does something unique during auto-setup to take advantage of dual subs. It calibrates (sets levels and distances) for each sub independently, but does room correction (equalizing) for the interaction of both subs together (since that's what you'll be hearing anyway).
Quote:


Would it be better to get a split for each cable to plug into both L and R input of each sub, or just randomly choose L/R with the single cable?

You'll get double the signal if you use the L+R inputs on the sub compared to using L or R. But it won't be better or louder (will end up being calibrated to the same level).
Quote:


I hope the monoprice cables are good for this?

That's what I use.

Sanjay
sdurani is online now
post #1606 of 16330 Old 10-27-2010, 06:46 AM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73
I know these are overdue.

First, two port configuration with rumble filter set to ON. This is the position that we "ask" the customers to set for 2ports, tuned to 18hz. It is not an option. Here is the result with low pass filter (LPF) switch at AVR/12:



The phase shift is a bit high compared to a sealed sub. That is the trade-off between sealed and vented. For the least phase shift mode, we have 1 port tuning:




The above is the 1 port tuned to 12hz, same as the condition as 2port. But here we ask the customer to set the rumble filter to "OFF". The extension is not quite 12hz. The purpose of this configuration is to reduce as much phase shift as possible. As a result, I let it roll off more naturally. Notice the phase shift at 20hz is 180 degrees. Just 90 degrees higher than our sealed subs. Note that our sealed sub at 14hz/high damping has one of the lowest phase shift and group delay among all subs tested by Ilkka.

Rumble filter off position has a build-in FR contouring circuit such that the two FR (18hz and 12hz tune) will line up exactly, so customers do not need to run Audyssey or other room EQ program again when switching between the two as shown next.



As long as the customer keep the volume and extension filter setting the same, just 1) plug (or uplug) 1 of the port, 2) flip the rumble filter to the correct position, and the two FR will overlay exactly like above.

For those who believe extension up to 200hz is necessary to get good HT sound, we have LFE mode in selected models and this is FR of 2port in that mode.


We would recommend against using this because the port resonance of vented sub will be in the frequency range between 100hz and 200hz as seen in the above plot. We want to attenuate that as much as possible, not as little as possible. In addition, this type of port resonance is not unique to our vented subs, it is in fact in very vented sub because of the length of port(s) required by such low tuned frequency.
Rythmik is offline
post #1607 of 16330 Old 10-27-2010, 06:53 AM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73
Here is the FV12 single tune -- 20hz. It is -4db at 20hz. There will be no LFE option. For most applcaition this is sufficient.




FV12 should be available shortly before Xmas.
Rythmik is offline
post #1608 of 16330 Old 10-27-2010, 06:56 AM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73

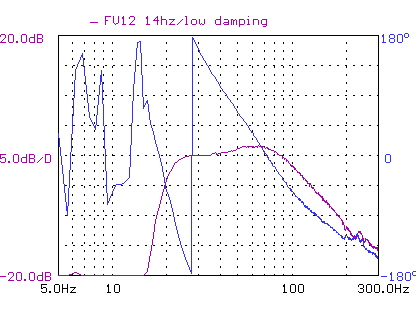

I have using 14hz low damping to get visually the max FR flatness setting (I don't need this is a Butterworth setting, it is definitely more like Chebychev with acceptable ripple). The high damping would have a more gradually attenuation and it would take out some of the ringing. In other words, we use low damping as the ceiling FR that we can accept without adding boominess that is common to vented subs, and all the other lower ringing setting just naturally fall into their places.
Rythmik is offline
post #1609 of 16330 Old 10-27-2010, 11:24 AM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73

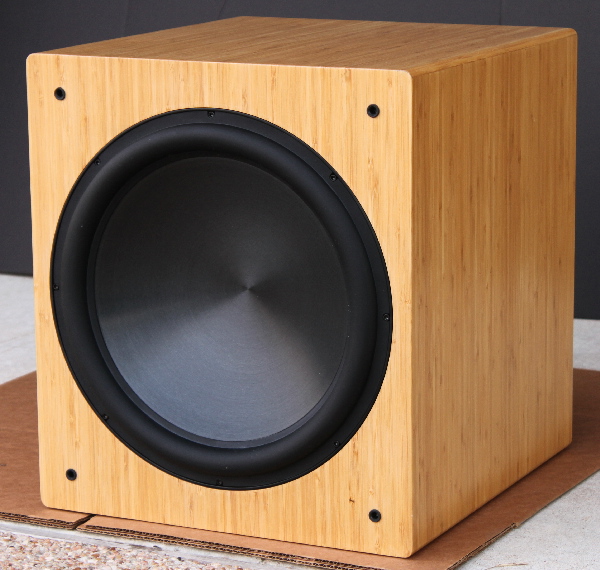

Here is the photo, an E15 bamboo.
Rythmik is offline
post #1610 of 16330 Old 10-27-2010, 12:08 PM
AVS Special Member

pbmpharmacist's Avatar

Join Date: Oct 2005
Posts: 1,802
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Does anyone know if Rythmik has ever offered specials around the holidays? Just wondering if now is a stupid time to buy or if delayed gratification might save me a few bucks.
pbmpharmacist is offline
post #1611 of 16330 Old 10-27-2010, 12:48 PM
AVS Addicted Member

cschang's Avatar

Join Date: Mar 2003
Location: Manhattan Beach, CA
Posts: 14,730
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 70
Quote:
Originally Posted by Rythmik View Post

Here is the photo.

That would match my natural bamboo Sierra-1's, stands, and floors perfectly!!

-curtis

Owner of Wave Crest Audio
Volunteer Mod at the Ascend Acoustics Forum
Like all things on the Internet, do your research, as forums have a good amount of misinformation.
Help beat breast cancer!

cschang is offline
post #1612 of 16330 Old 10-27-2010, 12:57 PM
Member

Zomby Woof's Avatar

Join Date: Oct 2006
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
My F15 creeps on the hardwood floor during high output sessions. It has gone so far as to pull the speaker wire molding off of the wall. The box is currently sitting directly on the floor. What can I mount it on to keep it stationary?
Zomby Woof is offline
post #1613 of 16330 Old 10-27-2010, 01:41 PM
AVS Addicted Member

cschang's Avatar

Join Date: Mar 2003
Location: Manhattan Beach, CA
Posts: 14,730
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 70
Quote:
Originally Posted by Zomby Woof View Post

My F15 creeps on the hardwood floor during high output sessions. It has gone so far as to pull the speaker wire molding off of the wall. The box is currently sitting directly on the floor. What can I mount it on to keep it stationary?

I haven't had this problem and I have my sub on furniture sliders.

If I had creeping problems, I would try some rubber feet.

-curtis

Owner of Wave Crest Audio
Volunteer Mod at the Ascend Acoustics Forum
Like all things on the Internet, do your research, as forums have a good amount of misinformation.
Help beat breast cancer!

cschang is offline
post #1614 of 16330 Old 10-27-2010, 03:51 PM
Senior Member

GaryMB's Avatar

Join Date: Jun 2003
Location: Winnipeg, MB, Canada
Posts: 241
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Rythmik View Post

Here is the photo.

Hi, Brian. It looks great, although I think I'll stick with piano black. At least you've finally posted a high-quality pic of an E15.
GaryMB is offline
post #1615 of 16330 Old 10-27-2010, 04:07 PM
Advanced Member

Ascend's Avatar

Join Date: Mar 2003
Location: San Clemente, CA
Posts: 589
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 76
Quote:
Originally Posted by Rythmik View Post

Here is the photo.

Wow -- looks like they did a fantastic job! I might want that unit, Brian

David Fabrikant

audio professional and soft spoken representative of www.AscendAcoustics.com

Ascend is offline
post #1616 of 16330 Old 10-27-2010, 05:12 PM
AVS Addicted Member

DaGamePimp's Avatar

Join Date: Jan 2001
Location: WA State
Posts: 15,493
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 153
Strange occurrence today...

WotW @ about 21:45 (during pod emergence) has some sub-sonics that put both of my 12" Rythmiks into protect at the same time, they are not hot at all, not even warm. This happens with my AVR at -12 so not really pushing them but the BFD does show a RED clip at that scene for a very brief moment (my understanding is this was ok but I guess the Rythmik amps are more sensitive to this, none of my other subs shut off during this scene). This is very odd because I have pushed these subs at reference with plenty of material but never had this happen. This scene just must be too low and too strong, although I played HTTYD with no problems and that has been reported to have content down to 2-3 Hz. The subs are calibrated almost perfectly flat and sound phenomenal no matter what I throw at them, these are using the older 300w servo amps. The system is calibrated about as perfect as it can be in my problematic room and I spent hours on the subs to get them 'just right'. Any idea's other than turn it down or lower the AVR LFE out, hehe. I have pushed these to +4 with some other material (BASS heavy music) and never had even one of them shut off (even when they were pretty warm).

Even the mighty lightning strikes don't exhibit this behavior at reference level and they send the RED light blinking on the BFD as well.

Anybody else had this happen?

Jason

WotW = "War of the Worlds" SE DVD with the DTS 5.1 track (this is not a full bit rate DTS track so I am wondering if maybe the blu ray of WotW would clean this up and prevent it... a reach I know )
HTTYD = "How to Train Your Dragon" Blu Ray with TrueHD 5.1 track

WotW played via PowerDVD 10 on my HTPC
DaGamePimp is offline
post #1617 of 16330 Old 10-27-2010, 06:29 PM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73
Quote:
Originally Posted by DaGamePimp View Post

Strange occurrence today...

WotW @ about 21:45 (during pod emergence) has some sub-sonics that put both of my 12" Rythmiks into protect at the same time, they are not hot at all, not even warm. This happens with my AVR at -12 so not really pushing them but the BFD does show a RED clip at that scene for a very brief moment (my understanding is this was ok but I guess the Rythmik amps are more sensitive to this, none of my other subs shut off during this scene). This is very odd because I have pushed these subs at reference with plenty of material but never had this happen. This scene just must be too low and too strong, although I played HTTYD with no problems and that has been reported to have content down to 2-3 Hz. The subs are calibrated almost perfectly flat and sound phenomenal no matter what I throw at them, these are using the older 300w servo amps. The system is calibrated about as perfect as it can be in my problematic room and I spent hours on the subs to get them 'just right'. Any idea's other than turn it down or lower the AVR LFE out, hehe. I have pushed these to +4 with some other material (BASS heavy music) and never had even one of them shut off (even when they were pretty warm).

Even the mighty lightning strikes don't exhibit this behavior at reference level and they send the RED light blinking on the BFD as well.

Anybody else had this happen?

Jason

WotW = "War of the Worlds" SE DVD with the DTS 5.1 track (this is not a full bit rate DTS track so I am wondering if maybe the blu ray of WotW would clean this up and prevent it... a reach I know )
HTTYD = "How to Train Your Dragon" Blu Ray with TrueHD 5.1 track

WotW played via PowerDVD 10 on my HTPC

The amp has several protection modes that can be the source of trigger: 1) over-current with SOA curve. SOA is safe operation area. It is a way ensure output transistors are not fried during high output current. SOA curve is frequency dependent. In short, the amp has almost no overcurrent protection at high frequency to increasing sensitive overcurrent protection and the most sensitive is at DC (limit to 3A each transistor for a total of 6A). So this is frequency dependent, 2) DC protection. There is no filter that passes DC and filter out all AC components. Just like there is no filter that will keep all AC components and remove just DC part. The attenuation is gradual. In short, the protection will trigger if the frequency is very low such as 1hz, 2hz, ... If the protection does not happen again WHEN YOU TURN ON RUMBLE FILTER or reduce bass extension, then you can be sure that it is ultra low frequency induced. Another concept that is important is prolonged clipping any where in the amplification chain actually introduce a DC component into the signal and that can become the source of DC protection.
Rythmik is offline
post #1618 of 16330 Old 10-27-2010, 07:48 PM
Advanced Member

BrownTown's Avatar

Join Date: Aug 2008
Location: Nashville
Posts: 611
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
found what I was asking on the website!

Proud owner of a Pioneer E-Lite 50" with ISF-Day/Night enabled!!
BrownTown is offline
post #1619 of 16330 Old 10-28-2010, 01:03 AM
AVS Addicted Member

DaGamePimp's Avatar

Join Date: Jan 2001
Location: WA State
Posts: 15,493
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 153
Quote:
Originally Posted by Rythmik View Post

The amp has several protection modes that can be the source of trigger: 1) over-current with SOA curve. SOA is safe operation area. It is a way ensure output transistors are not fried during high output current. SOA curve is frequency dependent. In short, the amp has almost no overcurrent protection at high frequency to increasing sensitive overcurrent protection and the most sensitive is at DC (limit to 3A each transistor for a total of 6A). So this is frequency dependent, 2) DC protection. There is no filter that passes DC and filter out all AC components. Just like there is no filter that will keep all AC components and remove just DC part. The attenuation is gradual. In short, the protection will trigger if the frequency is very low such as 1hz, 2hz, ... If the protection does not happen again, then you can be sure that it is ultra low frequency induced. Another concept that is important is prolonged clipping any where in the amplification chain actually introduce a DC component into the signal and that can become the source of DC protection.

I see, thank you for the insight Brian, very much appreciated. I may just have to try another calibration session and see what I come up with .

Jason
DaGamePimp is offline
post #1620 of 16330 Old 10-28-2010, 04:43 AM
Exclusively Servo

Rythmik's Avatar

Join Date: Aug 2005
Location: Austin
Posts: 1,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 73
Quote:
Originally Posted by DaGamePimp View Post

I see, thank you for the insight Brian, very much appreciated. I may just have to try another calibration session and see what I come up with .

Jason

Jason, I think I missed one important sentence in my previous post which I corrected now. Try turn on rumble filter or reduce the extension. Our A370PEQ2 amp does have a rumble filter, but A300 does not. If you can turn on rumble filter for instance on BFD or AVR and the protection is gone, then you know you have a low frequency induced protection.
Rythmik is offline
Reply Subwoofers, Bass, and Transducers

Tags
Rythmik , Rythmik Audio , Rythmik Audio F12 Direct Servo Subwoofer , Rythmik Audio F15 Subwoofer

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
