Smoothing FR with "lesser" subs?

I have 4 PSA XS15s in my ~5000 cubic foot living room. After many months of pushing subs around my room and measuring with REW I've finally got them setup to where I'm getting the output I needed (craved) but I've got a ~10db null at 60hz at the MLP, and my other two listening positions are kinda outa whack.

I've considered getting 1 or 2 more XS15s but that just ain't in the budget right now. I'm considering buying a pair of "lesser" subs and running them in the back of the room in hopes of smoothing my response and leveling out the seat-to-seat variance.

I have a MiniDSP that I could use to delay the rear subs and employ a HPF to keep the really low stuff out of them.

The subs I'm considering are the Dayton SUB-1200. If you see this post, they sure have a respectable FR (at least in that room).

Is this just crazy or do you think it would be worth a try? Looks like Parts Express would take them back without any issues, but I would have to pay return shipping (which could be pretty hefty, the subs are 45lbs. each).
Alan P is online now
Sponsored Links
Advertisement

post #2 of 40 Old 07-14-2014, 04:30 PM
AVS Special Member

dsrussell's Avatar

Join Date: Nov 2009
Location: Corona, CA.
Posts: 1,004
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 215 Post(s)
Liked: 326
If you mean less subs, it's worth a try. I don't see what a lesser sub would bring to the table. Before adding anything, have you thought about turning one of your subs off? It could be that one of the four subs is helping to cancel some of your frequency response. I'd try turning one off and keep switching which one is off until you've gone through all possibilities. Hey, it sure can't hurt to try.
dsrussell is offline
post #3 of 40 Old 07-14-2014, 04:47 PM
AVS Special Member

basshead81's Avatar

Join Date: Mar 2013
Location: Fort Wayne, IN
Posts: 6,029
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 1454
The sub1200's are going to introduce more distortion and limit the systems overall output. I would place the XS15's for best response and wait until you can upgrade further. Another option is to sell all 4 XS15's and go DIY. You can build a serious system with that money. 4 SI-18's and a Peavy IPR 2 7500
basshead81 is offline
post #4 of 40 Old 07-14-2014, 05:02 PM
AVS Special Member

derrickdj1's Avatar

Join Date: Sep 2011
Posts: 1,466
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 146
I have 4 subs and eventually moved the subs from nearfield to far apart. Two of the subs are 20 ft. from the MLP. The room response is more even and flat this way with no loss of tactile sensation. I run all speakers set to small. Also, adding additional subs beyond 4 don't do much for the room response. Where are your subs in the room? Is everything set to small?

Two subs will get the FR 75%, 3 subs 90%, and 4 subs 95% + on the room FR.

Klipsch RF 7 based HT 7.4, Pioneer SC 35, Acurus 200 Five, Dayton 18 Ultimxa Dual Sub Cab(2), Dayton 18 Ultimax Large Vented Sub Cab (2), on Berhinger I Nuke DPS amps, Samsung BDP F 7500, Asus/My Book Live HPC 4 TB

Yaquin VK 2100 amp, McIntosh XR 5 speakers, Samsung BDP F 7500

Last edited by derrickdj1; 07-14-2014 at 05:40 PM.
derrickdj1 is offline
post #5 of 40 Old 07-14-2014, 05:04 PM
Member

willymo's Avatar

Join Date: Aug 2013
Posts: 98
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
I have a Dayton sub 1500 and I think it's terrific...
willymo is offline
post #6 of 40 Old 07-14-2014, 05:32 PM
AVS Special Member

basshead81's Avatar

Join Date: Mar 2013
Location: Fort Wayne, IN
Posts: 6,029
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 1454
Quote:
Originally Posted by derrickdj1 View Post
I have 4 subs and eventually moved the subs from nearfield to far apart. Two of the subs are 20 ft. from the MLP. The room response is more even and flat this way with no loss of tactile sensation. I run all speakers set to small. Also, adding additional subs beyond 4 don't do much for the room response. Where are your subs in the room? Is everything set to small?
I think you missed the part where Alan said he had the subs placed every way possible over the last several months. Spreading them out (2 up front/ 2 in rear) yields the smoothest response, but leaves some headroom to be desired. Placing all 4 up front yields the most headroom at the expense of a 60hz null. The best solution is to go with 4 more powerful subs and place them where the response was good. That is why I suggested DIY being Alan is budget limited.


On a side note Alan, if you insist on the Dayton route I would go with at least a pair of Sub1500's.

Last edited by basshead81; 07-14-2014 at 05:42 PM.
basshead81 is offline
post #7 of 40 Old 07-14-2014, 05:52 PM
Advanced Member

andyc56's Avatar

Join Date: Feb 2013
Posts: 606
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 189
Quote:
Originally Posted by Alan P View Post
I've considered getting 1 or 2 more XS15s but that just ain't in the budget right now. I'm considering buying a pair of "lesser" subs and running them in the back of the room in hopes of smoothing my response and leveling out the seat-to-seat variance.

(...)

Is this just crazy or do you think it would be worth a try? Looks like Parts Express would take them back without any issues, but I would have to pay return shipping (which could be pretty hefty, the subs are 45lbs. each).
User kgveteran tried a similar thing and devoted a construction thread to it. He did have problems with the auxiliary subs not having enough output, but I don't think it was resolved whether it was due to the driver/box combo or just amplification. The latter is of course an easier problem to solve. I believe he moved out of that residence before reaching a final resolution.
andyc56 is offline
post #8 of 40 Old 07-14-2014, 08:43 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by basshead81 View Post
The sub1200's are going to introduce more distortion and limit the systems overall output. I would place the XS15's for best response and wait until you can upgrade further. Another option is to sell all 4 XS15's and go DIY. You can build a serious system with that money. 4 SI-18's and a Peavy IPR 2 7500
Once again BH you make a lot of sense....the only problem is that I don't think I stand a snowball's chance in **** of selling my PSAs locally. I live in a pretty small town (50K people) and I don't know a single person who would even consider a Dayton 1200, let alone quad XS15s.

I really really wish I woulda done more research before my current subs (not that the PSAs don't rock...they do), but what's done is done.

Quote:
Originally Posted by basshead81 View Post
I think you missed the part where Alan said he had the subs placed every way possible over the last several months. Spreading them out (2 up front/ 2 in rear) yields the smoothest response, but leaves some headroom to be desired. Placing all 4 up front yields the most headroom at the expense of a 60hz null. The best solution is to go with 4 more powerful subs and place them where the response was good. That is why I suggested DIY being Alan is budget limited.


On a side note Alan, if you insist on the Dayton route I would go with at least a pair of Sub1500's.
I most certainly do not insist on Daytons - was just a crazy idea really. I think if I got 2 more XS15ses I'd be in bass heaven....I'll just have to save my pennies until I can get there! In the meanwhile, the system sounds pretty dang good....in my seat at least.
Alan P is online now
post #9 of 40 Old 07-14-2014, 09:02 PM
AVS Special Member

derrickdj1's Avatar

Join Date: Sep 2011
Posts: 1,466
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 146
I did not know you had the 4 subs up front. BH is correct, to get the output and FR you will need more powerful subs.

Klipsch RF 7 based HT 7.4, Pioneer SC 35, Acurus 200 Five, Dayton 18 Ultimxa Dual Sub Cab(2), Dayton 18 Ultimax Large Vented Sub Cab (2), on Berhinger I Nuke DPS amps, Samsung BDP F 7500, Asus/My Book Live HPC 4 TB

Yaquin VK 2100 amp, McIntosh XR 5 speakers, Samsung BDP F 7500
derrickdj1 is offline
post #10 of 40 Old 07-15-2014, 02:08 AM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,922
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 840 Post(s)
Liked: 989
Quote:
Originally Posted by Alan P View Post
Once again BH you make a lot of sense....the only problem is that I don't think I stand a snowball's chance in **** of selling my PSAs locally. I live in a pretty small town (50K people) and I don't know a single person who would even consider a Dayton 1200, let alone quad XS15s.

I really really wish I woulda done more research before my current subs (not that the PSAs don't rock...they do), but what's done is done.



I most certainly do not insist on Daytons - was just a crazy idea really. I think if I got 2 more XS15ses I'd be in bass heaven....I'll just have to save my pennies until I can get there! In the meanwhile, the system sounds pretty dang good....in my seat at least.
you don't need to sell locally. yes you will lose quite a bit in shipping but the four PSA sub's will net you enough to build 4 diy sub's. four martycubes would be a substantial improvement and four minimartys would be devastating. can do 4 martycubes for 1500$ and four minimarty for 1800$. you would gain 10 dB's across from 17-35 hz. cmon join the dark side
chalugadp is online now
post #11 of 40 Old 07-15-2014, 05:39 AM
AVS Special Member

KidHorn's Avatar

Join Date: Nov 2003
Location: Derwood, Maryland
Posts: 2,890
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked: 206
Quote:
Originally Posted by Alan P View Post
I really really wish I woulda done more research before my current subs (not that the PSAs don't rock...they do), but what's done is done.

I think all of us have felt the same way at one time or another.


I think you need to figure out what's going on in your room before buying anything else. I would start with one sub and take some measurements and see what issues you have. Then add one sub back in at a time and measure after each sub is added. My gut feeling is you have the right hardware, you just need to figure out how to set it up.
sevenz likes this.
KidHorn is offline
post #12 of 40 Old 07-15-2014, 05:49 AM
AVS Club Gold

craig john's Avatar

Join Date: Oct 2003
Location: Lancaster, PA
Posts: 10,292
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked: 311
Alan,

It would be easy for you to add 2 more drivers at 60 Hz in your current system. You have Klipschorns, right? They'll easily do 60 Hz. Instead of crossing them at 80 Hz, try 60, or 50 or 40. It doesn't cost anything. Give it a try.

Craig

Lombardi said it:
Perfection is not attainable, but if we chase perfection we can catch excellence."


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

craig john is offline
post #13 of 40 Old 07-15-2014, 07:08 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by KidHorn View Post
I think all of us have felt the same way at one time or another.


I think you need to figure out what's going on in your room before buying anything else. I would start with one sub and take some measurements and see what issues you have. Then add one sub back in at a time and measure after each sub is added. My gut feeling is you have the right hardware, you just need to figure out how to set it up.
C'mon Kid, you don't think I've already done all that?

Quote:
Originally Posted by craig john View Post
Alan,

It would be easy for you to add 2 more drivers at 60 Hz in your current system. You have Klipschorns, right? They'll easily do 60 Hz. Instead of crossing them at 80 Hz, try 60, or 50 or 40. It doesn't cost anything. Give it a try.

Craig
Thanks Craig, that's a great suggestion! I've had my x-over set to 60hz before and didn't like the way it sounded so immediately dismissed it, but I've never made any measurements at 60hz. Gonna give this a go and see what happens!
Alan P is online now
post #14 of 40 Old 07-16-2014, 06:04 AM
Member

sevenz's Avatar

Join Date: Aug 2012
Posts: 88
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 24
Quote:
Originally Posted by dsrussell View Post
If you mean less subs, it's worth a try. I don't see what a lesser sub would bring to the table. Before adding anything, have you thought about turning one of your subs off? It could be that one of the four subs is helping to cancel some of your frequency response. I'd try turning one off and keep switching which one is off until you've gone through all possibilities. Hey, it sure can't hurt to try.
Quote:
Originally Posted by KidHorn View Post
I think you need to figure out what's going on in your room before buying anything else. I would start with one sub and take some measurements and see what issues you have. Then add one sub back in at a time and measure after each sub is added. My gut feeling is you have the right hardware, you just need to figure out how to set it up.
agree with russell and kidhorn.

If you are not happy with the sound, it may be due to integration of the 4 subs, and the calibration of your entire setup. The more subs, the more risk of cancellation points.

Adding 1 lesser sub is unlikely to solve your problem unless you know what is the root cause of the problem. And my guess is that it is likely to make it even more complicated.

I am on multiple sub setup myself and my experience is that it is not so simple to integrate subs. REW FR is one thing only. But maybe at your MLPs, there are phasing and timing issues?

Can i suggest that you post your room layout, equipment, AVR settings, sub settings here? Then we can help u, better.

And.... what exactly is the observation that you are not satisfied with now? not enough rumble? not enough thump in chest? too muddy? pls share more.

Last edited by sevenz; 07-16-2014 at 06:08 AM.
sevenz is offline
post #15 of 40 Old 07-16-2014, 07:52 AM
AVS Special Member

basshead81's Avatar

Join Date: Mar 2013
Location: Fort Wayne, IN
Posts: 6,029
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 1454
Alan has already found the best placement for his subs. He has a thread with all the information. The setup that offers a flat response down below 20hz gives up some headroom compared to stacking them up front. However stacking them up front causes a 60hz null. I do not believe he stated that sound quality was a issue. The problem is 4 15" sealed subs are not enough fire power in a huge room (4500^3+)when placed accordingly to smooth the response.
Quote:
Originally Posted by sevenz View Post
agree with russell and kidhorn.

If you are not happy with the sound, it may be due to integration of the 4 subs, and the calibration of your entire setup. The more subs, the more risk of cancellation points.

Adding 1 lesser sub is unlikely to solve your problem unless you know what is the root cause of the problem. And my guess is that it is likely to make it even more complicated.

I am on multiple sub setup myself and my experience is that it is not so simple to integrate subs. REW FR is one thing only. But maybe at your MLPs, there are phasing and timing issues?

Can i suggest that you post your room layout, equipment, AVR settings, sub settings here? Then we can help u, better.

And.... what exactly is the observation that you are not satisfied with now? not enough rumble? not enough thump in chest? too muddy? pls share more.
sevenz likes this.
basshead81 is offline
post #16 of 40 Old 07-16-2014, 07:57 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
agree with russell and kidhorn.

If you are not happy with the sound, it may be due to integration of the 4 subs, and the calibration of your entire setup. The more subs, the more risk of cancellation points.


Huh? I've always read that it is just the opposite....the more subs, the more room modes excited, the less cancellation.

Quote:
Adding 1 lesser sub is unlikely to solve your problem unless you know what is the root cause of the problem. And my guess is that it is likely to make it even more complicated.


It was 2 "lesser" subs....and, yeah I realize that it was probably a bad idea to begin with.

Quote:
I am on multiple sub setup myself and my experience is that it is not so simple to integrate subs. REW FR is one thing only. But maybe at your MLPs, there are phasing and timing issues?


You're telling me! I've had my PSA subs for almost a year and a half now and I'm still messing around.

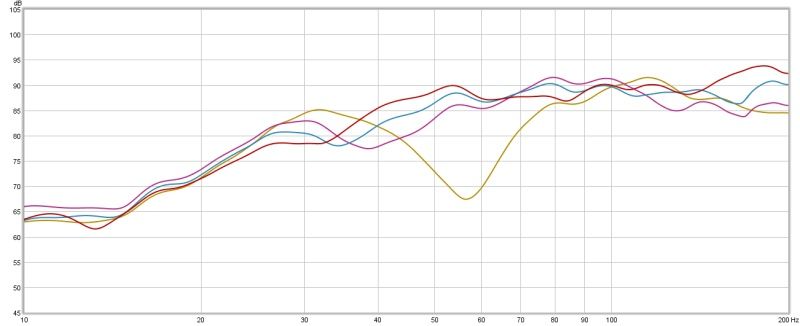

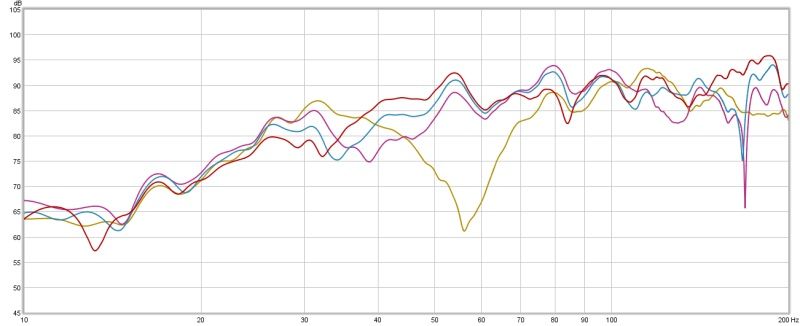

When I had the subs spread out around the room, I had the ability to take care of all phase and timing issues with my MiniDSP. The only problem I had with them spread out was a lack of headroom.

Quote:
Can i suggest that you post your room layout, equipment, AVR settings, sub settings here? Then we can help u, better.

And.... what exactly is the observation that you are not satisfied with now? not enough rumble? not enough thump in chest? too muddy? pls share more.


My room setup is below, but now all 4 subs are up front in 2 stacks of 2 next to the KHorns.

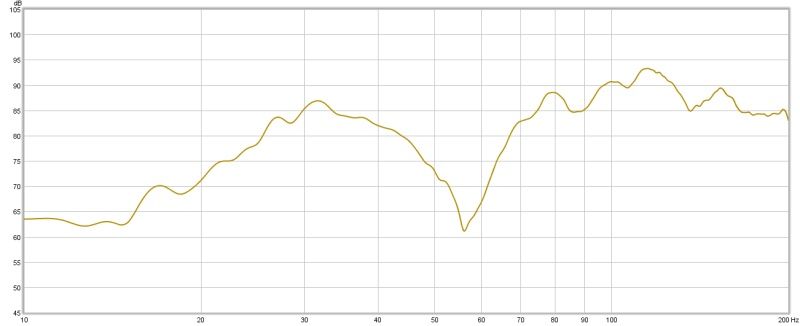

My only complaint with the way it's set up now is that I have a ~10db null around 60hz and my other two listening positions aren't looking as good as they did when I had the subs spread out.

I'm going to try Craig's suggestion and lower the x-over on the Khorns. Gonna do some measuring tonight and I'll post 'em up here.

Room is about 5000 cu. ft.
Alan P is online now
post #17 of 40 Old 07-16-2014, 08:02 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by basshead81 View Post
Alan has already found the best placement for his subs. He has a thread with all the information. The setup that offers a flat response down below 20hz gives up some headroom compared to stacking them up front. However stacking them up front causes a 60hz null. I do not believe he stated that sound quality was a issue. The problem is 4 15" sealed subs are not enough fire power in a huge room (4500^3+)when placed accordingly to smooth the response.
Thanks BH, you're too familiar with my issues dude...maybe I just complain too much.

BTW, I'm flat ('cept for that little issue around 60hz) down to about 8hz now.

The wife was out for about an hour last night so I had some time to really crank it up and it was pretty impressive. Put in Pacific Rim and cranked it up to reference - absolutely no headroom issues, my chair was shaking like an earthquake and the hair on my legs and arms was moving along with my clothing.

I think I almost got it.

EDIT: And this was with the subs only running 4db hot. When I had them spread out, I had to bump them by 8db to get the tactile sensation I wanted.

Last edited by Alan P; 07-16-2014 at 08:06 AM.
Alan P is online now
post #18 of 40 Old 07-16-2014, 08:04 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Oh, and I killed one of my overhead lights.

basshead81 likes this.
Alan P is online now
post #19 of 40 Old 07-16-2014, 08:09 AM
Senior Member

3ll3d00d's Avatar

Join Date: Sep 2007
Location: London, UK
Posts: 489
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked: 52
Quote:
Originally Posted by Alan P View Post
Huh? I've always read that it is just the opposite....the more subs, the more room modes excited, the less cancellation.
each individually located source will excite room modes differently but may also interact with the other sources to cancel those modes. This means you can end up using some of your output purely for cancellation purposes as opposed to useable output. You can get a brief overview of the mechanics here for example (there are no doubt other more detailed links).
3ll3d00d is online now
post #20 of 40 Old 07-16-2014, 09:45 AM
AVS Special Member

KidHorn's Avatar

Join Date: Nov 2003
Location: Derwood, Maryland
Posts: 2,890
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked: 206
Quote:
Originally Posted by Alan P View Post

EDIT: And this was with the subs only running 4db hot. When I had them spread out, I had to bump them by 8db to get the tactile sensation I wanted.

Why don't you spread them out and run them 8db hot?


It sounds like the problem is the gain is set too low.
KidHorn is offline
post #21 of 40 Old 07-16-2014, 10:25 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by KidHorn View Post
Why don't you spread them out and run them 8db hot?


It sounds like the problem is the gain is set too low.
They can't take it, not enough headroom.

If I never listened higher than -15db I'd be fine, but I'll be damned if I'm gonna do that!
Alan P is online now
post #22 of 40 Old 07-16-2014, 10:53 AM
AVS Special Member

derrickdj1's Avatar

Join Date: Sep 2011
Posts: 1,466
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 146
Quote:
Originally Posted by Alan P View Post
Oh, and I killed one of my overhead lights.

Alan I think you got the answer, getting the wife out of the house, lol. My wife just looks at me some of the time when she comes home and I am watching movie near reference level, he , he.

Klipsch RF 7 based HT 7.4, Pioneer SC 35, Acurus 200 Five, Dayton 18 Ultimxa Dual Sub Cab(2), Dayton 18 Ultimax Large Vented Sub Cab (2), on Berhinger I Nuke DPS amps, Samsung BDP F 7500, Asus/My Book Live HPC 4 TB

Yaquin VK 2100 amp, McIntosh XR 5 speakers, Samsung BDP F 7500
derrickdj1 is offline
post #23 of 40 Old 07-16-2014, 12:06 PM
AVS Special Member

KidHorn's Avatar

Join Date: Nov 2003
Location: Derwood, Maryland
Posts: 2,890
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked: 206
Quote:
Originally Posted by Alan P View Post
They can't take it, not enough headroom.

If I never listened higher than -15db I'd be fine, but I'll be damned if I'm gonna do that!

I guess if craigs suggestion of crossing at 60 doesn't work you need to add more subs.


The outlaw subs are on sale now.
https://www.outlawaudio.com/mofcart/electronics.html
KidHorn is offline
post #24 of 40 Old 07-16-2014, 01:21 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by KidHorn View Post
I guess if craigs suggestion of crossing at 60 doesn't work you need to add more subs.
Well, I don't NEED to but......
Alan P is online now
post #25 of 40 Old 07-17-2014, 06:21 AM
Member

sevenz's Avatar

Join Date: Aug 2012
Posts: 88
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 24
Quote:
Originally Posted by basshead81 View Post
Alan has already found the best placement for his subs. He has a thread with all the information. The setup that offers a flat response down below 20hz gives up some headroom compared to stacking them up front. However stacking them up front causes a 60hz null. I do not believe he stated that sound quality was a issue. The problem is 4 15" sealed subs are not enough fire power in a huge room (4500^3+)when placed accordingly to smooth the response.
oic... thanks for explaining bh. can a kind soul pls post that thread url here pls... =)
basshead81 likes this.

Last edited by sevenz; 07-17-2014 at 06:42 AM.
sevenz is offline
post #26 of 40 Old 07-17-2014, 06:52 AM
Member

sevenz's Avatar

Join Date: Aug 2012
Posts: 88
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 24
Quote:
Originally Posted by Alan P View Post
Huh? I've always read that it is just the opposite....the more subs, the more room modes excited, the less cancellation.

It was 2 "lesser" subs....and, yeah I realize that it was probably a bad idea to begin with.

You're telling me! I've had my PSA subs for almost a year and a half now and I'm still messing around.

When I had the subs spread out around the room, I had the ability to take care of all phase and timing issues with my MiniDSP. The only problem I had with them spread out was a lack of headroom.

My room setup is below, but now all 4 subs are up front in 2 stacks of 2 next to the KHorns.

My only complaint with the way it's set up now is that I have a ~10db null around 60hz and my other two listening positions aren't looking as good as they did when I had the subs spread out.

I'm going to try Craig's suggestion and lower the x-over on the Khorns. Gonna do some measuring tonight and I'll post 'em up here.

Room is about 5000 cu. ft.
Thanks! My room size is also around 4800 cubic feet. Using dual subs, 5.2 setup.

Can u share which AVR are u using?

And for the 'headroom' issue, could u help to describe/define a little bit more? Are u saying when there is a sudden demand of continuous heavy bass, you dont get that expected peak in thump/rumble? Thanks =)

Last edited by sevenz; 07-17-2014 at 07:01 AM.
sevenz is offline
post #27 of 40 Old 07-17-2014, 08:50 AM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Quote:
Originally Posted by sevenz View Post
Thanks! My room size is also around 4800 cubic feet. Using dual subs, 5.2 setup.

Can u share which AVR are u using?

And for the 'headroom' issue, could u help to describe/define a little bit more? Are u saying when there is a sudden demand of continuous heavy bass, you dont get that expected peak in thump/rumble? Thanks =)
Denon 2113ci.

I know I've ran out of headroom when I can hear the PSAs hitting their limiters (sounds like distortion/flapping drivers).



Had a revealing REW session last night....made me sad.

Graphs coming in a bit.
Alan P is online now
post #28 of 40 Old 07-17-2014, 02:06 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
OK, so last night I set up to do some measuring and to try some different crossovers on my mains per Craig's suggestion. Keep in mind this is the first time I've ever measured my mains by themselves...not sure why I'd never done it before, but whatever.

I found out that I'm sitting directly in the center of a giant 60hz null!

Check it out. This is just FL/R speakers, set to large, Audyssey off:



And here it is compared to some varying distances in front of my MLP. My MLP is currently 5' from the back wall where the picture window is:

2' in front of MLP - Magenta
3' in front of MLP - Blue
4' in front of MLP - Red



Smoothed to make it easier to compare:



Just to verify it's a null and not my speakers, here is the FR of the LFE only, same suck out right around 60hz:



So, it's no wonder I've been having headroom issues since Audyssey is boosting the sh*t out of 60hz....the distortion is 7.65% @ 60hz! Can't imagine how much amp power it's eating up for Audyssey to boost that region by ~10db. This is mains + subs, Audyssey on:




I tried moving the KHorns out of the corners about a foot or so and the null didn't change at all....seems like the only thing that is going to fix this is moving my MLP and that is just ruining my mood right now. The room just ain't gonna look "balanced" if I move everything forward (at least 2', but 4' would be better).

May have to think about rotating the whole setup so that the screen and mains are on the long wall....really don't want to do that though, it's a lot of work and it's really gonna mess with my feng-shui...especially if I end up in a similar situation and it was all for naught.

Not sure what I'm gonna do in the future, but for now I think I should run Audyssey a couple feet in front of the MLP just so it isn't boosting that null and straining my system.
Alan P is online now
post #29 of 40 Old 07-17-2014, 08:32 PM
AVS Special Member

basshead81's Avatar

Join Date: Mar 2013
Location: Fort Wayne, IN
Posts: 6,029
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 1454
Ahh yep I think you finally found the culprit. That massive boost in the 60hz is eating up some headroom. I think when you get that sorted and Audyssey does not need to apply so much eq, those 4 XS15's are going to sound night and day better.

I bet those Khorns will sound completely different too!! I have a pair in my shop office that is only 1200^3...needless to say they are amazing!! Wish I had the room for them in my house. They were a handed down from my grandfather along with a Adcom GFA-555II.
basshead81 is offline
post #30 of 40 Old 07-17-2014, 08:54 PM - Thread Starter
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,339
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 446 Post(s)
Liked: 242
Khorns too BH?? I swear, you could be my brutha from another mutha.
basshead81 likes this.
Alan P is online now
Reply Subwoofers, Bass, and Transducers

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
