Quote:
Originally Posted by Eksohek View Post
has anyone tried a prime A-lens, say the ISCO III S/L on a native 4K projector, such as the Sony one with 2.35 content ?
All these posts have lots of info, but as they go far back, it's difficult to say if anything's been tested for 4K.


Cheers
Ekso
I've went back and forth on this but after extensive testing with 4K downloads by way of sliding the lens in and out, I've gone back to leaving the lens in and scaling 4K. I see no resolution benefit, only the increase in light with the lens not in the light path on 16x9 compared to lens in and 16x9 scaled. Light is no longer an issue for me even with 3D due to the good light output at max zoom with my X500. I'm even more amazed by the 3L's transparency now. With the way things are appearing to play out this lens is going to be in my system for a long time to come.

Last edited by coolrda; 05-13-2015 at 09:24 PM.
coolrda is online now
Sponsored Links
Advertisement

post #632 of 653 Old 05-11-2015, 12:32 AM
Member

Eksohek's Avatar

Join Date: Nov 2001
Location: London,UK
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked: 12
thanks for the feedback. confirms my ISCO lens investment was good !
Eksohek is offline
post #633 of 653 Old 09-21-2015, 06:14 AM
Advanced Member

jh901's Avatar

Join Date: Jun 2010
Location: Pittsburgh
Posts: 998
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Liked: 147
This thread hasn't been bumped in a while. Have A-lens owner's remained satisfied? Does true 4K change anything?

HT: Panasonic BDT 460 | JVC RS600 | 106" x 45" Stewart ST 100 | Marantz AV7005 | NAD M27 | Elac Uni-Fi UF5, UC5, Debut B6 | Focal CMS Sub
Stereo: Cary Audio 306 SACD Pro | Cary Audio SLP-05 tube line level | Cary Audio SA-200.2 | Focal Diablo Utopia III
Den: Panasonic BDT 220 | 60" Panasonic VT60
jh901 is offline
post #634 of 653 Old 09-21-2015, 08:56 AM
AVS Special Member

Seegs108's Avatar

Join Date: Jul 2007
Location: Upstate New York
Posts: 9,230
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3747 Post(s)
Liked: 1760
Quote:
Originally Posted by jh901 View Post
This thread hasn't been bumped in a while. Have A-lens owner's remained satisfied? Does true 4K change anything?
Some say yes, but it doesn't really change a thing for me. I love my ISCO IIIL and I don't think I'd ever get rid of it.
coolrda likes this.
Seegs108 is online now
post #635 of 653 Old 09-21-2015, 12:15 PM
AVS Special Member

Cam Man's Avatar

Join Date: Feb 2000
Location: Tucson, AZ, Telluride, CO, & Los Angeles,CA, USA
Posts: 3,065
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Liked: 314
Quote:
Originally Posted by Seegs108 View Post
Some say yes, but it doesn't really change a thing for me. I love my ISCO IIIL and I don't think I'd ever get rid of it.
Same for me (Panamorph). I'm answering here because your question seemed more anamorphic in general rather than specifically cylindrical.
coolrda likes this.
Cam Man is offline
post #636 of 653 Old 09-21-2015, 02:16 PM
AVS Special Member

RapalloAV's Avatar

Join Date: Jan 2008
Location: Auckland, New Zealand
Posts: 3,205
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked: 248
Quote:
Originally Posted by jh901 View Post
This thread hasn't been bumped in a while. Have A-lens owner's remained satisfied? Does true 4K change anything?
Hasn't changed anything for me, I will never let my Isco IIIL lens go!
coolrda and jh901 like this.

Murray Thompson
X Owner RapalloAV
CinemascopE Home Cinema Build & 2014 rebuild
RapalloAV is offline
post #637 of 653 Old 09-28-2015, 06:51 PM - Thread Starter
AVS Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 2,704
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked: 509
Same here. As long as projectors use 16x9 chips I'll always use my lens. For everything. It doesn't matter the resolution or the projector, aspect ratio of content or source.
coolrda is online now
post #638 of 653 Old 09-29-2015, 03:20 AM
AVS Special Member

Andreas21's Avatar

Join Date: Aug 2007
Location: Norway
Posts: 2,022
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 810 Post(s)
Liked: 484
The same goes for me, I will never (never say never ) let go of my Isco 4XL and Cineslide.

Regards
Andreas
My Homecinema
Calibration software: Lightspace and Calman. TPG: Murideo Fresco SIX-G
Meters: Klein K-10 A and Jeti 1501. THX II certified.
Andreas21 is offline
post #639 of 653 Old 09-29-2015, 08:37 PM
AVS Special Member

CAVX's Avatar

Join Date: Aug 2005
Location: Brisbane, Australia
Posts: 8,782
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked: 70
I feel the same about my cylindrical lens. It is here to stay.

It seems some of the 4K SONYs have a 17:9 imaging chip, but they can be switched back to 16:9 for use with the 1.33x lens. The full 17:9 chip requires a 1.25x lens. I'll be staying with 1080 for a while yet, though I do believe my lens will pass the full detail of UHD when I eventually make the upgrade.

Mark Techer

I love my Constant Image Height system!
CAVX is offline
post #640 of 653 Old 09-29-2015, 08:37 PM
AVS Special Member

CAVX's Avatar

Join Date: Aug 2005
Location: Brisbane, Australia
Posts: 8,782
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked: 70
Double post

Mark Techer

I love my Constant Image Height system!
CAVX is offline
post #641 of 653 Old 09-29-2015, 10:09 PM
AVS Special Member

RapalloAV's Avatar

Join Date: Jan 2008
Location: Auckland, New Zealand
Posts: 3,205
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1172 Post(s)
Liked: 248
Quote:
Originally Posted by CAVX View Post
I feel the same about my cylindrical lens. It is here to stay.

It seems some of the 4K SONYs have a 17:9 imaging chip, but they can be switched back to 16:9 for use with the 1.33x lens. The full 17:9 chip requires a 1.25x lens. I'll be staying with 1080 for a while yet, though I do believe my lens will pass the full detail of UHD when I eventually make the upgrade.

Are there any 1.25x lenses available for HT?


I have tried the full chip on my VW1100 with my Isco IIIL lens and the image is wider than my scope screen, if one was to use it this way is the image distorted in anyway?

Murray Thompson
X Owner RapalloAV
CinemascopE Home Cinema Build & 2014 rebuild
RapalloAV is offline
post #642 of 653 Old 09-30-2015, 02:54 AM
AVS Special Member

Gary Lightfoot's Avatar

Join Date: Jun 2000
Location: Surrey, UK
Posts: 5,339
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked: 254
There are some 1.25 stretch ISCO lenses out there - I think ISCO DCI lenses, but they don't come up that often on ebay.

Gary

Quote:
Originally Posted by elmalloc
Who says Cameron is "right" and why do we care about him so much - lol!

I trust Gary Lightfoot more than James Cameron.
Gary Lightfoot is offline
post #643 of 653 Old 09-30-2015, 03:13 AM
Member

Dirk44's Avatar

Join Date: Aug 2007
Location: leipzig germany
Posts: 149
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Liked: 23
I have a ISCO 1.25 DCI Lens in Front of my VW 1100 works perfect together.
The Ring of Lens match in the Projector Frontring...like is made for this.
Dirk44 is offline
post #644 of 653 Old 09-30-2015, 09:21 AM
Scott Horton, techht.com

GetGray's Avatar

Join Date: Aug 2004
Location: Mid-South USA
Posts: 5,823
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 125
Quote:
Originally Posted by RapalloAV View Post
Are there any 1.25x lenses available for HT?


I have tried the full chip on my VW1100 with my Isco IIIL lens and the image is wider than my scope screen, if one was to use it this way is the image distorted in anyway?
Isco Cinema DLP 1.25x commercial lens. Lists for $17k. Just installed a pair of them on a Sony 1100 double stack not long ago. Nice lens.
GetGray is offline
post #645 of 653 Old 09-30-2015, 06:06 PM
AVS Addicted Member

R Harkness's Avatar

Join Date: May 2001
Location: Toronto, Ontario, Canada
Posts: 14,053
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Liked: 1492
Not a cylindrical, but on the subject of 4K affecting A-lens ownership....

I love my Panamorph A-lens, but my JVC projector gives me 4K-like pixel density and if I didn't need the A-lens to get the image width I require, I would sell it. (Same would go if I had a cylindrical, lens). I doubt a projector will come out any time with a significantly wider zoom ratio than my JVC, so I'll be needing my A-lens as far into the future as I can see. Luckily the A-lens allows for excellent quality images.
R Harkness is offline
post #646 of 653 Old 10-01-2015, 03:52 AM
AVS Special Member

Andreas21's Avatar

Join Date: Aug 2007
Location: Norway
Posts: 2,022
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 810 Post(s)
Liked: 484
Quote:
Originally Posted by RapalloAV View Post
Are there any 1.25x lenses available for HT?


I have tried the full chip on my VW1100 with my Isco IIIL lens and the image is wider than my scope screen, if one was to use it this way is the image distorted in anyway?
I just sold my Isco Cinema DLP 1.25x lens for 3500$, and it was in almost perfect condition. I now use a Isco 4XL with my X500.

Regards
Andreas
My Homecinema
Calibration software: Lightspace and Calman. TPG: Murideo Fresco SIX-G
Meters: Klein K-10 A and Jeti 1501. THX II certified.
Andreas21 is offline
post #647 of 653 Old 10-21-2015, 09:29 PM - Thread Starter
AVS Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 2,704
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked: 509
Quote:
Originally Posted by Andreas21 View Post
I just sold my Isco Cinema DLP 1.25x lens for 3500$, and it was in almost perfect condition. I now use a Isco 4XL with my X500.
Now if someone could jailbreak my Roku 4 so I could watch 4K movies. Was hoping for 4K/60 sync like I get with the Oppo 103D at least for unprotected 4K content.
coolrda is online now
post #648 of 653 Old 10-23-2015, 07:29 AM
AVS Special Member

Seegs108's Avatar

Join Date: Jul 2007
Location: Upstate New York
Posts: 9,230
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 3747 Post(s)
Liked: 1760
I'd be careful what you decide to watch. Always check IMDB technical info to see what's actually mastered in 4K because Edge of Tomorrow only has a 2K digital intermediate, which means the "4K" version you'd stream is simply upscale 2K.
Seegs108 is online now
post #649 of 653 Old 11-02-2015, 03:54 AM
AVS Special Member

CAVX's Avatar

Join Date: Aug 2005
Location: Brisbane, Australia
Posts: 8,782
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked: 70
Quote:
Originally Posted by RapalloAV View Post
Are there any 1.25x lenses available for HT?


I have tried the full chip on my VW1100 with my Isco IIIL lens and the image is wider than my scope screen, if one was to use it this way is the image distorted in anyway?
No "HT" lenses as far as I know. The ISCO lens is made for the D-Cinema projectors because they are 2048 or 4096 wide, not 1920 or 3840 wide.

I did discuss the possibility of getting 1.25x optics made with the supplier of the lenses in my A-Lens, but nothing came of that. It would be an awesome option to have though.

Mark Techer

I love my Constant Image Height system!
CAVX is offline
post #650 of 653 Old 11-02-2015, 05:48 AM
Scott Horton, techht.com

GetGray's Avatar

Join Date: Aug 2004
Location: Mid-South USA
Posts: 5,823
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 125
Yes, the "Cinema DLP lens" made by Isco (now Schneider). Just installed a pair of them with a Sony 1100 double stack recently. Very expensive. You see them on eBay in questionalbe condition about once or twice a year. You can get them new from me. We have to make the lens mount for them though which is also expensive.

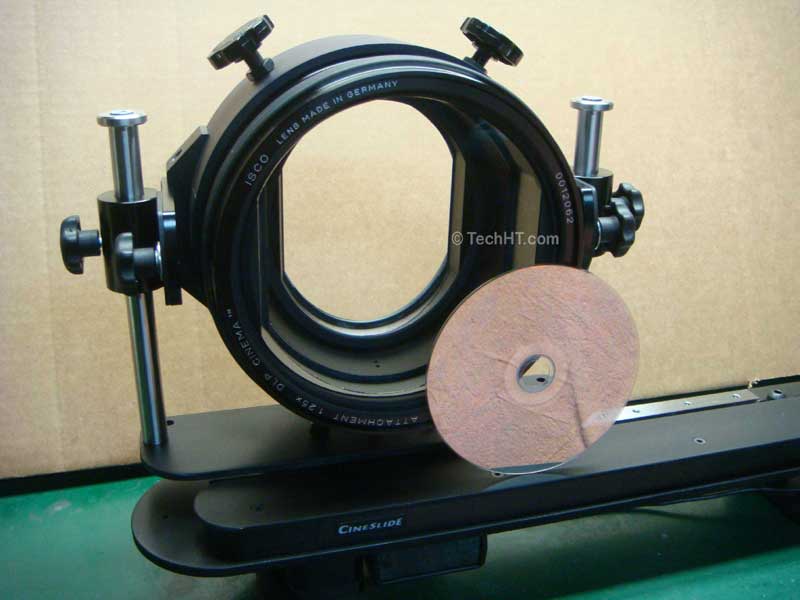

Here's an old photo with a discontinued lens mount. I make a replacement now that's better.

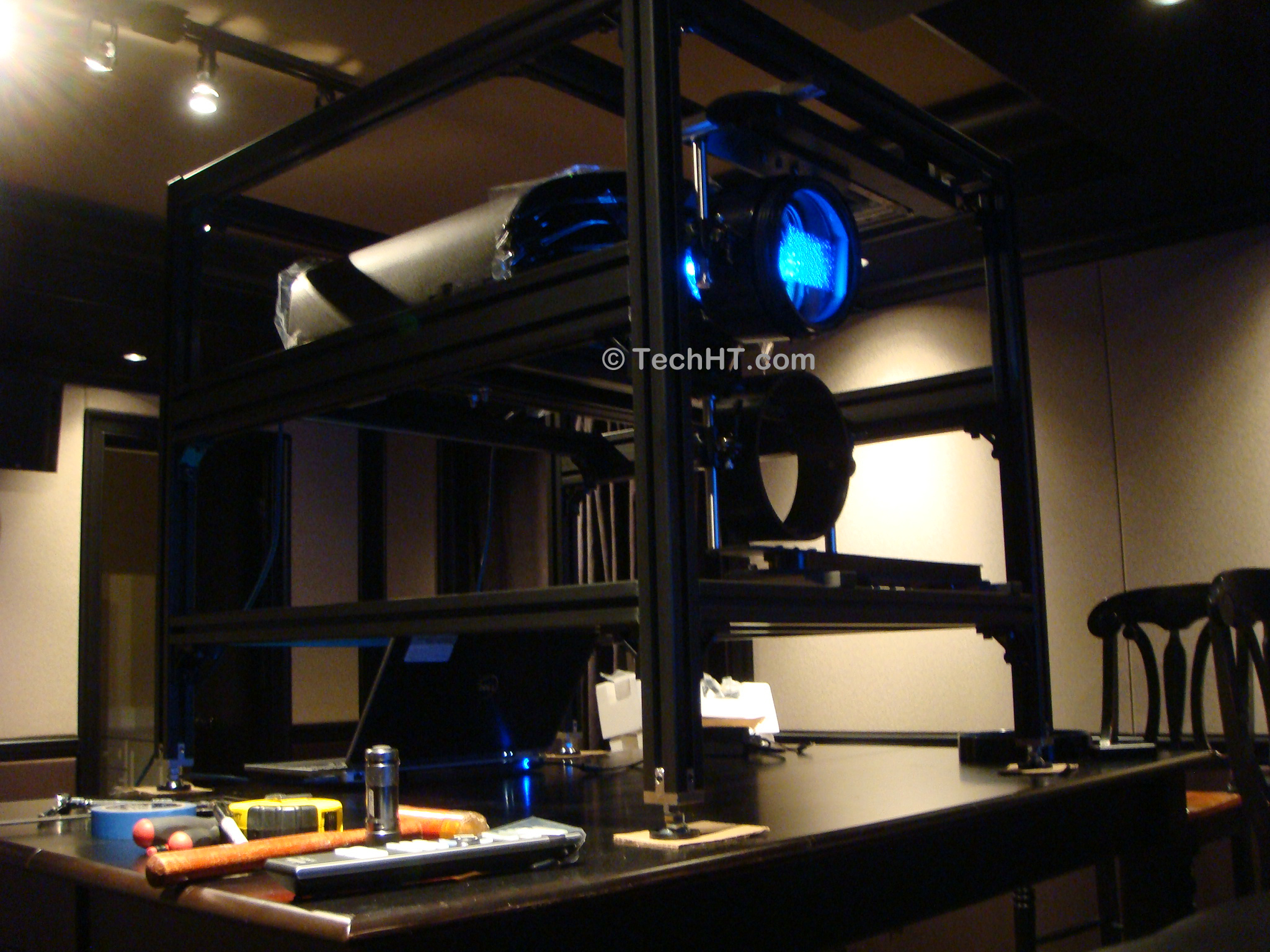

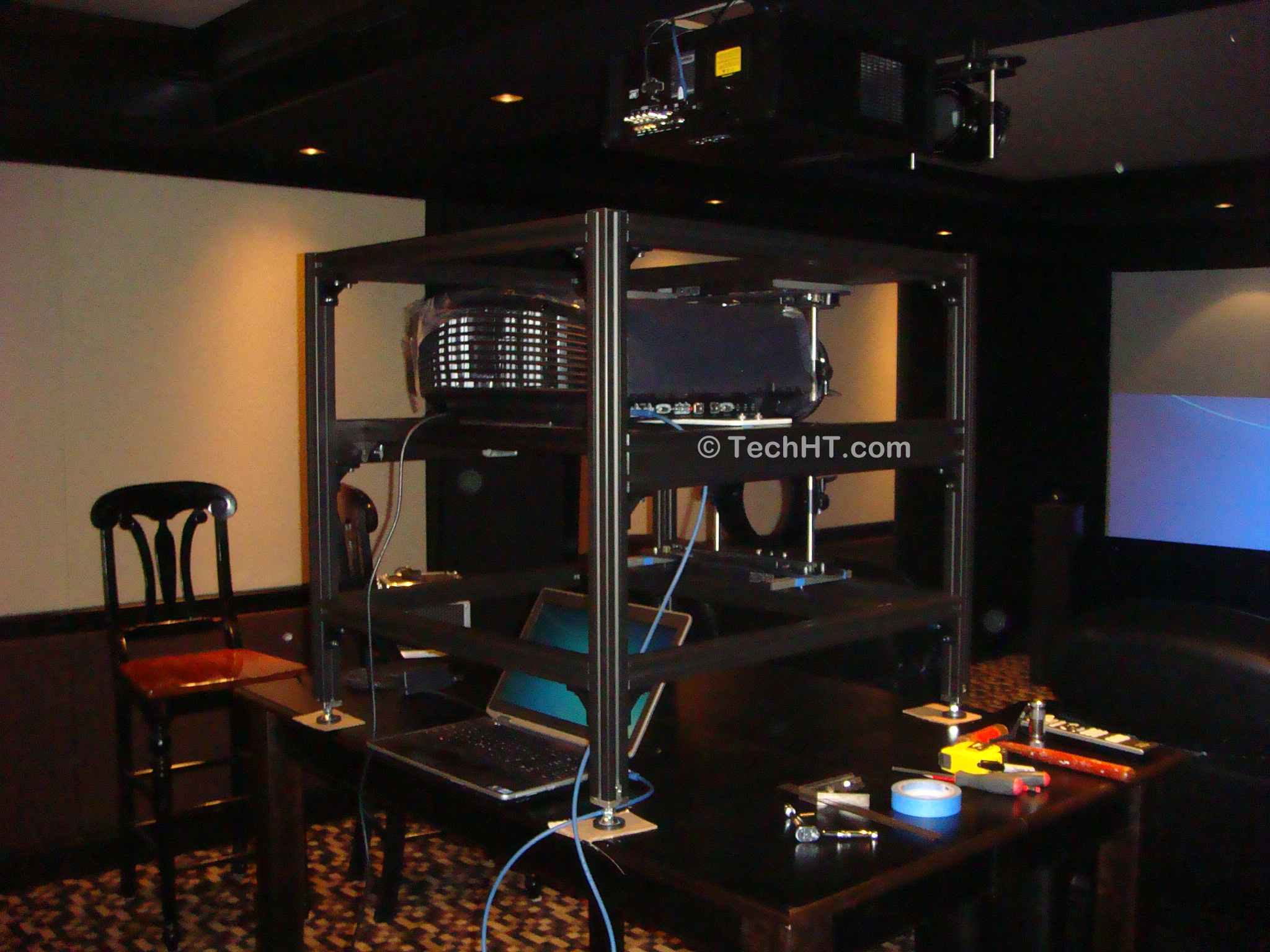

Here's a photo of the Sony 1100 doublestack rack (partially filled).





GetGray is offline
post #651 of 653 Old 11-02-2015, 12:11 PM
AVS Addicted Member

R Harkness's Avatar

Join Date: May 2001
Location: Toronto, Ontario, Canada
Posts: 14,053
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Liked: 1492
GetGray,

Can you manage to match the precision and clarity of a single Sony 1100 when you double stack them? I'd imagine it would be tough to impossible to get them perfectly aligned.
R Harkness is offline
post #652 of 653 Old 11-02-2015, 01:04 PM
Scott Horton, techht.com

GetGray's Avatar

Join Date: Aug 2004
Location: Mid-South USA
Posts: 5,823
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 125
It was tough, but they are aligned. The stand was designed to accommodate fine adjustments and be rock solid stable once aligned. Room to change bulbs on both PJ's without disturbing them. Ken Whitcomb did the install. It's even setup to account for thermal variations as the unit warms up. The nice thing about lenses is they don't change. This would be impossible with lens memories.
Gary Lightfoot and CAVX like this.
GetGray is offline
post #653 of 653 Old 11-02-2015, 08:48 PM
AVS Addicted Member

R Harkness's Avatar

Join Date: May 2001
Location: Toronto, Ontario, Canada
Posts: 14,053
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Liked: 1492
