post #1 of 1402 Old 06-19-2011, 11:14 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 211

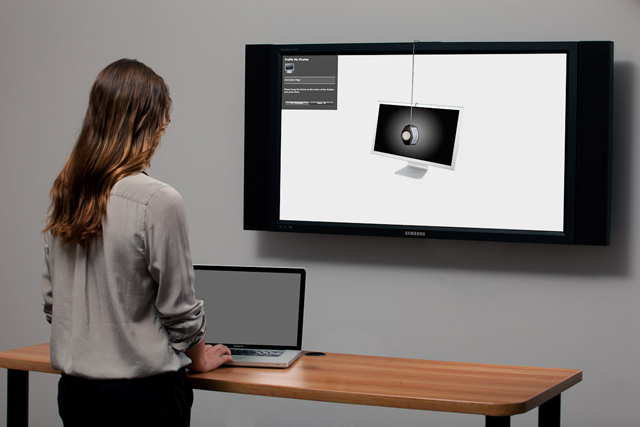

X-Rite has developed a new and I think ground-breaking colorimeter, the i1 Display Pro III, which most will probably refer to as simply the Display 3.

It is not simply an update to the Display 2. It is a completely different design with an unprecedented price/performance ratio.

For a full review and online demos, see the ChromaPure web site.


Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
Sponsored Links
Advertisement

post #2 of 1402 Old 06-20-2011, 06:10 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
Truly Amazing Performance For The Price! I Will Pre-Order it for sure!

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #3 of 1402 Old 06-20-2011, 06:23 AM
AVS Special Member

buzzard767's Avatar

Join Date: Dec 2005
Location: Naples, FL & Wausau, WI
Posts: 3,610
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 338
Quote:
Originally Posted by ConnecTEDDD View Post

Truly Amazing Performance For The Price! I Will Pre-Order it for sure!

Out of curiosity, I see in your signature line that you already have a Chroma 5. Is the increase in read speed your reason for a new meter?

Buzz
THX Certified Video Calibrator



buzzard767 is offline
post #4 of 1402 Old 06-20-2011, 06:49 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
Mainly, The Lower Light Reading & The Repeatabily @ Very Low Levels Is The Reason.

I Want To Set More Accurate The 1,2,3,4% Patterns For My Pioneer KURO Using AVFoundry VideoEQ PRO.

Using VideoEQ You Can Add Grayscale Control Points With RGB Control Whenever You Like. 0.5% (RGB Level 17), 1% (RGB Level 18)...etc...Anywhere You Can Control.

Setting Correct the Levels Of Grayscale 1-5% (Not Only To Be Visible Using Reference Brightness Patterns But Setting The Correct Luminance For Each Step Of These Levels, Then You Will Have An Image With Greater Depth.

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #5 of 1402 Old 06-20-2011, 06:56 AM
AVS Special Member

buzzard767's Avatar

Join Date: Dec 2005
Location: Naples, FL & Wausau, WI
Posts: 3,610
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 338
Quote:
Originally Posted by ConnecTEDDD View Post

Mainly, The Lower Light Reading & The Repeatabily @ Very Low Levels Is The Reason. I Want To Set More Accurate The 1,2,3,4% Patterns For My Pioneer KURO Using AVFoundry VideoEQ PRO.

Ah. Makes sense.

"The Chroma 5 is rated down to 0.01 cd/m2 and this seems about right. However, the Display 3 will read light that is one-third as bright."

Buzz
THX Certified Video Calibrator



buzzard767 is offline
post #6 of 1402 Old 06-20-2011, 07:11 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
With My KURO, I'm using Chroma 5 @ CRT Mode Only. I Have By Far Greater Repeatability @ Luminence Readings Using This Mode, More Stable.

Chroma 5 Reads 0.025-1000 cd/m2 Using CRT Mode.

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #7 of 1402 Old 06-20-2011, 07:13 AM
AVS Special Member

Chad B's Avatar

Join Date: Oct 2002
Location: Piqua, OH
Posts: 2,056
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked: 342
Chad B is offline
post #8 of 1402 Old 06-20-2011, 07:58 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #9 of 1402 Old 06-20-2011, 08:35 AM
Advanced Member

janos666's Avatar

Join Date: Jan 2010
Location: Hungary
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
How does it behave on WCG displays? Does it need unique correction matrices for the usual PDPs? I guess they do but who knows...

"DIY certified hobby-calibrator" (based on ChadB's "warning signs" list
janos666 is offline
post #10 of 1402 Old 06-20-2011, 08:42 AM
AVS Special Member

Chad B's Avatar

Join Date: Oct 2002
Location: Piqua, OH
Posts: 2,056
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked: 342
Tom, does it put much if any physical pressure on the screen when using the counterweight in contact mode? I'm wondering if it will be OK with sensitive LCD screens.
Chad B is offline
post #11 of 1402 Old 06-20-2011, 08:44 AM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 211
It is very light weight, so I doubt that this would be a problem. I would use it in the non-contact mode in any case to avoid the problem altogether.

Quote:
Originally Posted by Chad B View Post

Tom, does it put much if any physical pressure on the screen when using the counterweight in contact mode? I'm wondering if it will be OK with sensitive LCD screens.


Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #12 of 1402 Old 06-20-2011, 08:45 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
Quote:
Originally Posted by janos666 View Post

How does it behave on WCG displays? Does it need unique correction matrices for the usual PDPs? I guess they do but who knows...

I read these information about i1Display PRO @ Xrite Brochure....

Support for new & emerging display technologies: CCFL, White LED, RGB LED, Wide Gamut, New Future (field Upgradable)

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #13 of 1402 Old 06-20-2011, 08:48 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
Quote:
Originally Posted by Chad B View Post

Tom, does it put much if any physical pressure on the screen when using the counterweight in contact mode? I'm wondering if it will be OK with sensitive LCD screens.


Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #14 of 1402 Old 06-20-2011, 09:38 AM
Advanced Member

janos666's Avatar

Join Date: Jan 2010
Location: Hungary
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by ConnecTEDDD View Post

I read these information about i1Display PRO @ Xrite Brochure....

Support for new & emerging display technologies: CCFL, White LED, RGB LED, Wide Gamut, New Future (field Upgradable)

Sounds like I have a ColorMunki Photo to sell and a new toy to pick up.

It looks like their X-Rite product names are i1Display Pro and ColorMunki Display.
I wonder if there is any physical difference (between the Pro and non-Pro) except the case color. I don't wish to use their bundle software anyway.

According to this PDF, they use different software (no problem) but another difference that the faster measurement mode is only available with the Pro. But it still could be a limit on the software side (may be driver level) and I think I wouldn't use it anyway. (It's not a bad idea to give some time for the temporal dithering.)

"DIY certified hobby-calibrator" (based on ChadB's "warning signs" list
janos666 is offline
post #15 of 1402 Old 06-20-2011, 10:35 AM

AtDaBeach's Avatar

Join Date: May 2011
Posts: 1,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Whats the thought on selling an I1 pro, and using this model for 100% of the time?
AtDaBeach is offline
post #16 of 1402 Old 06-20-2011, 10:45 AM
AVS Addicted Member

millerwill's Avatar

Join Date: Apr 2004
Location: Berkeley, CA
Posts: 11,383
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 29
Tom, Will it still be advisable to do the 'color correction' step in ChromaPure, using an I1Pro to correct the Display3?
millerwill is online now
post #17 of 1402 Old 06-20-2011, 10:55 AM
Advanced Member

janos666's Avatar

Join Date: Jan 2010
Location: Hungary
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Does it have a temperature sensor?

"DIY certified hobby-calibrator" (based on ChadB's "warning signs" list
janos666 is offline
post #18 of 1402 Old 06-20-2011, 10:58 AM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 211
Quote:
Originally Posted by millerwill View Post

Tom, Will it still be advisable to do the 'color correction' step in ChromaPure, using an I1Pro to correct the Display3?

Couldn't hurt.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #19 of 1402 Old 06-20-2011, 11:01 AM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,399
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 211
Quote:
Originally Posted by janos666 View Post

Does it have a temperature sensor?

A non contact device has no need for this.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #20 of 1402 Old 06-20-2011, 11:05 AM

AtDaBeach's Avatar

Join Date: May 2011
Posts: 1,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I like the non contact design, and already have a tripod. I'd also prefer a meter that did not require profiling. I know you say "couldnt hurt", but do you feel it's everything the C5 is and better, and could actually allow a stand alone device for the $1200 and down group?
AtDaBeach is offline
post #21 of 1402 Old 06-20-2011, 11:36 AM
Advanced Member

janos666's Avatar

Join Date: Jan 2010
Location: Hungary
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by TomHuffman View Post

A non contact device has no need for this.

Yah, sure. I use even my colormunki in non-contact setup. But it requires a pitch black room.

"DIY certified hobby-calibrator" (based on ChadB's "warning signs" list
janos666 is offline
post #22 of 1402 Old 06-20-2011, 11:46 AM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
I saw that Tom has removed Chroma 5 Standard & PRO from ChromaPure Software Configuration Options and from Online Orders Page Also.

Maybe a benchmark of Klein K-10 vs. Chroma 5 & i1Display 3 will give a lot of answers to all for low light handling accurancy.

By-The-Way Does i1Display 3 include any certificate of performance like i1PRO?

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #23 of 1402 Old 06-20-2011, 12:33 PM
AVS Special Member

buzzard767's Avatar

Join Date: Dec 2005
Location: Naples, FL & Wausau, WI
Posts: 3,610
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 338
Are dark reading required?

Buzz
THX Certified Video Calibrator



buzzard767 is offline
post #24 of 1402 Old 06-20-2011, 12:40 PM
AVS Special Member

ConnecTEDDD's Avatar

Join Date: Sep 2010
Location: Athens, Greece
Posts: 2,273
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 87 Post(s)
Liked: 463
Quote:
Originally Posted by buzzard767 View Post

Are dark reading required?

http://www.chromapure.com/products-d3.asp

''It is also one of the easiest devices to use because it requires no dark reading calibration. ''.....Tom Huffman

Ted's LightSpace CMS Calibration Disk Free Version for Free Calibration Software: LightSpace DPS + CalMAN ColorChecker
S/W: LightSpace CMS, SpaceMan ICC, SpaceMatch DCM, CalMAN 5, CalMAN RGB, ChromaPure, CalPC, ControlCAL
Meters: JETI Specbos 1211, Klein K-10A, i1PRO2, i1PRO, SpectraCAL C6, i1D3, C5
ConnecTEDDD is offline
post #25 of 1402 Old 06-20-2011, 12:56 PM
AVS Addicted Member

millerwill's Avatar

Join Date: Apr 2004
Location: Berkeley, CA
Posts: 11,383
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 29
Tom, I don't understand the 'pricing': what I see is the Display3 bundled with CP software. Is this also the price if one already has the CP software (the Pro version)?
millerwill is online now
post #26 of 1402 Old 06-20-2011, 12:59 PM
AVS Special Member

buzzard767's Avatar

Join Date: Dec 2005
Location: Naples, FL & Wausau, WI
Posts: 3,610
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 338
Quote:
Originally Posted by millerwill View Post

Tom, I don't understand the 'pricing': what I see is the Display3 bundled with CP software. Is this also the price if one already has the CP software (the Pro version)?

$269 + $10 according to an email I received from Tom.

Buzz
THX Certified Video Calibrator



buzzard767 is offline
post #27 of 1402 Old 06-20-2011, 01:01 PM

AtDaBeach's Avatar

Join Date: May 2011
Posts: 1,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by buzzard767 View Post

$269 + $10 according to an email I received from Tom.

Nice. I'm thinking of selling the I1 and using this exclusively, in the Pro version.
AtDaBeach is offline
post #28 of 1402 Old 06-20-2011, 01:03 PM
AVS Special Member

buzzard767's Avatar

Join Date: Dec 2005
Location: Naples, FL & Wausau, WI
Posts: 3,610
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 338
Quote:
Originally Posted by AtDaBeach View Post

Nice. I'm thinking of selling the I1 and using this exclusively, in the Pro version.

In my case it makes more sense to sell my C5, not the i1Pro. The D3 is no more accurate than the C5 so will still need to be profiled.

Buzz
THX Certified Video Calibrator



buzzard767 is offline
post #29 of 1402 Old 06-20-2011, 01:04 PM

AtDaBeach's Avatar

Join Date: May 2011
Posts: 1,014
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thats what Im curious about. Is 0.006 splitting hairs, or substantial.
AtDaBeach is offline
post #30 of 1402 Old 06-20-2011, 02:03 PM
Advanced Member

janos666's Avatar

Join Date: Jan 2010
Location: Hungary
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by buzzard767 View Post

In my case it makes more sense to sell my C5, not the i1Pro. The D3 is no more accurate than the C5 so will still need to be profiled.

Is it a fact (did anybody compare the readings on a WCG display yet?) or only an assumption (based on the fact that it's a 3-stimulus colorimeter)?

I am wondering if the X-Rite software applies some kind of generic corrections for the given WCG-CCFL/LED/etc displays based on the EDID information? (Something like the Quato iColor software does?) Or it is really capable of working on WCG displays?


My i1LT was useless on my WCG-CCFL LCD display (Dell U2410 , > AdobeRGB or the integer encoded CIE Lab) but one of my friends had a freshly re-calibrated i1d2 (they just sent it back from Switzerland, it was about 2010.05.xx) which is actually worked on that display. It looked right and I could check it back some weeks later with my freshly bought ColorMunki. The WP showed an acceptable and usual deviance only (not bigger than a drift which could happen after I moved the display to a different location with different room temperature and some weeks passed...) So, I think these colorimeters could work relatively well on any display.
It could be a coincidence but I am optimistic about these new colorimeters. May be they will be accurate inside the integer encoded part of CIE Lab if not further.

But yah, may be everybody should wait with the "big online auction of the spectros" until it's tested on various displays.

"DIY certified hobby-calibrator" (based on ChadB's "warning signs" list
janos666 is offline
Reply Display Calibration

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
