post #3781 of 3872 Old 08-11-2011, 10:56 AM
Newbie

chruzek's Avatar

Join Date: Aug 2007
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by chruzek View Post

This time with the attachment.

Hi all. I am quite new to calibration. Yesterday I did an 'ISF Day' calibration using ControlCal and HDFR on my Panasonic VT25. I have attached the before and after files.

Can someone please tell me why my gamma is so low and why the red/green/blue gamma drop off so much at the higher end of the greyscale? Note: I used the gamma setting of 2.2 setting during the calibration.

Any guidance would be appreciated.
chruzek is offline
Sponsored Links
Advertisement

post #3782 of 3872 Old 08-12-2011, 04:33 PM
Member

Steve Kinkead's Avatar

Join Date: Jun 2000
Location: San Diego, CA, USA
Posts: 132
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by chruzek View Post
This time with the attachment.

Hi all. I am quite new to calibration. Yesterday I did an 'ISF Day' calibration using ControlCal and HDFR on my Panasonic VT25. I have attached the before and after files.

Can someone please tell me why my gamma is so low and why the red/green/blue gamma drop off so much at the higher end of the greyscale? Note: I used the gamma setting of 2.2 setting during the calibration.
I've never calibrated a plasma, but your plots look very similar to my first front projector calibration attempts. In the case of projectors, color drop off at the high end is corrected by reducing the contrast setting.

Try turning down your contrast control a few notches, then recalibrate the greyscale, and see if the dropoff is reduced. Gamma should also improve. Keep reducing contrast a few notches and recalibrating greyscale until you gamma is flat at 2.2 and there's no color dropoff at the high end of the greyscale.

Hope this helps.
Steve Kinkead is offline
post #3783 of 3872 Old 08-13-2011, 09:28 AM
Newbie

chruzek's Avatar

Join Date: Aug 2007
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Steve,

I tried your suggestion and it did help greatly on my DLP and somewhat on my plasma.

Thanks!
chruzek is offline
post #3784 of 3872 Old 08-14-2011, 09:22 AM
Member

AV-Freak's Avatar

Join Date: May 2011
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Is it possible to use a correction matrix with another colorimeters beside the HCFR?
Or soemthing similar.

I can get a i1 Pro for a week end and would like to compare it with my spider 3 and make an correction mattic. But I can't select that feature with my spider 3.

Any suggestions what to do?
AV-Freak is offline
post #3785 of 3872 Old 08-17-2011, 01:23 PM
AVS Addicted Member

JimP's Avatar

Join Date: Sep 2002
Location: Wetumpka, AL
Posts: 15,259
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 173
I have an i1 Display (predated the i1Display 2) and would like to get a calibration file usable in HCFR software.

I've tried a correction files suggested earlier in this thread and it got me a lot closer. Mine had a definate red push.

Does anyone know of a calibration service which will create a correction file that'll get me much closer? I've read about the guy in Canada but not sure his file will work on the HCFR. He appears to be creating files compatible with chromapure .

Thanks in advance.

Samsung 64F8500, Panasonic 65VT50, Oppo 95, Tivo Roamio for OTA, Dish VIP722, Marantz AV8801 preamp, Rotel Amps, Atlantic Tech 8200 speakers, Seaton Submersive HP, Calman 5, Chromapure, Accupel DVG-5000, i1Display3pro, i1pro2, eecolor colorbox.
JimP is online now
post #3786 of 3872 Old 08-17-2011, 11:04 PM
Newbie

elbowman7's Avatar

Join Date: Aug 2011
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
duplicate post
elbowman7 is offline
post #3787 of 3872 Old 08-17-2011, 11:04 PM
Newbie

elbowman7's Avatar

Join Date: Aug 2011
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
duplicate post!
elbowman7 is offline
post #3788 of 3872 Old 08-18-2011, 07:24 PM
AVS Special Member

fight4yu's Avatar

Join Date: Oct 2009
Location: SF Bay Area
Posts: 1,728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 42
Quote:
Originally Posted by AV-Freak View Post

Is it possible to use a correction matrix with another colorimeters beside the HCFR?
Or soemthing similar.

I can get a i1 Pro for a week end and would like to compare it with my spider 3 and make an correction mattic. But I can't select that feature with my spider 3.

Any suggestions what to do?

Yes, you can build a calibration file. Under Advanced --> Calibration File.. I think you can use 2 meter and profile one against another.
fight4yu is offline
post #3789 of 3872 Old 08-18-2011, 07:28 PM
AVS Special Member

fight4yu's Avatar

Join Date: Oct 2009
Location: SF Bay Area
Posts: 1,728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 42
Quote:
Originally Posted by JimP View Post

I have an i1 Display (predated the i1Display 2) and would like to get a calibration file usable in HCFR software.

I've tried a correction files suggested earlier in this thread and it got me a lot closer. Mine had a definate red push.

Does anyone know of a calibration service which will create a correction file that'll get me much closer? I've read about the guy in Canada but not sure his file will work on the HCFR. He appears to be creating files compatible with chromapure .

Thanks in advance.

Usually, calibration file is target for specific device and environment. So, you are at the mercy of how close your environment/device is compared to the other that created for you. Also, each i1D2 behave differently, so your "correction" might require more/less.. At the end, it is a guess-game.
The best is of course for you to get a reference meter and profile against your own display. There are i1D pro rental program, but you are also at the mercy of how the person store/handle the device.
At the end, depend on how picky you are..
fight4yu is offline
post #3790 of 3872 Old 08-19-2011, 03:50 AM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
hi all, i've spent a couple of late nights calibrating my 43d450 (low-end samsung plasma) and i'm getting there slowly. my main problem is my greens are neon! to get to the stage below in my images i've increased green gain and green offset quite alot. i read that you shouldn't really touch them, but without increasing them i couldn't get some of the reds and blues low enough when calibrating the greyscale. as soon as i adjusted the greens i got much closer to 100% for r,g & b. edit: you can click on the thumbnails for a bigger picture.

what should i do differently? if i drop the greens back to standard, my red and blue won't get near 100%.

current settings:
13 - cell light
87 - contrast
57 - brightness
54 - colour
50/50 - tint

30 - red offset
39 - green offset
20 - blue offset
08 - red gain
42 - green gain
08 - blue gain

warm 1
gamma 0

everything else off

(for reasons unknown i didn't bring the hcfr file to work, but a load of screen shots instead- first lesson learned.)

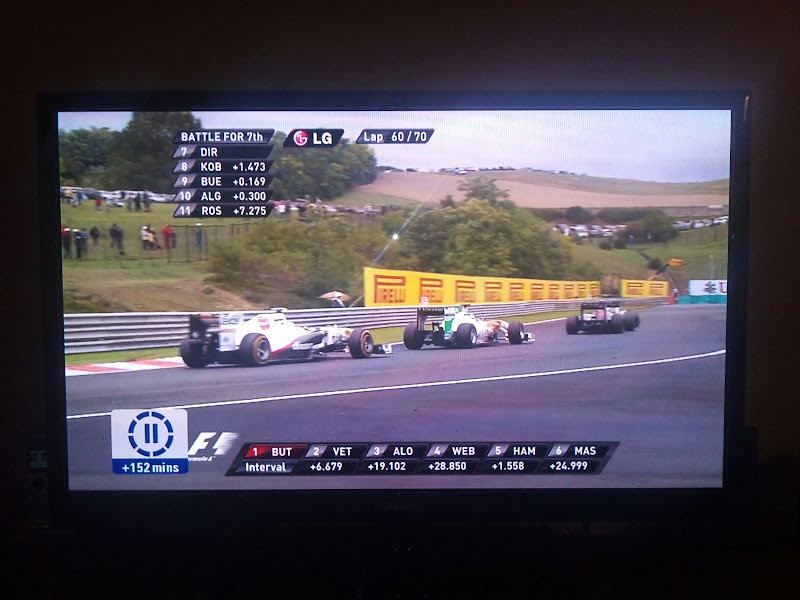

this is the original screenshot on standard samsung movie mode:


this is the calibrated screenshot (camera moved a bit so not as sharp, but you can see the lovely glowing shrubbery)


edit 20/08: tonights calibration... colour dropped from 54 to 51, tint changed to 52/48
kpm197 is offline
post #3791 of 3872 Old 08-19-2011, 06:53 AM
Member

AV-Freak's Avatar

Join Date: May 2011
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The luminance of your primaries is completely out of control.

red 23, green 88, blue 11, yellow 104, cyan 95, magenta 35, ...

Have you disabled all dynamic modes?
AV-Freak is offline
post #3792 of 3872 Old 08-19-2011, 06:57 AM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
yes everything has been turned off. what figure should i be aiming for?

should i try and calibrate without touching the green controls and go for a best efforts?
kpm197 is offline
post #3793 of 3872 Old 08-19-2011, 08:38 AM
AVS Special Member

catmother's Avatar

Join Date: Feb 2005
Location: La Jolla, CA
Posts: 1,703
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by kpm197 View Post

yes everything has been turned off. what figure should i be aiming for?

should i try and calibrate without touching the green controls and go for a best efforts?

You might want to start here:
http://www.avsforum.com/avs-vb/showp...postcount=1130
and follow the links as well.

The spreadsheet is quite handy and if you don't have Excel use the OpenOffice version, it is free.

Certified HDTV junkie and AVS addict
U.S. Army FA WWII
catmother is offline
post #3794 of 3872 Old 08-19-2011, 09:15 AM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
thanks ill take a look. i should add that you can click on the thumbnails in my post for a bigger pic
kpm197 is offline
post #3795 of 3872 Old 08-19-2011, 10:59 AM
AVS Special Member

fight4yu's Avatar

Join Date: Oct 2009
Location: SF Bay Area
Posts: 1,728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 42
When showing primaries/secondaries, click on the "down arrow" next to the "Editable data". That will show you "delta Luma" and you can see how much off you are.

Your luminance is off. Use this table for your reference. For Y, it is the % of White. In your case, If White Y=113.426, then your Green Y should be 0.7152*113.426 = 81.12 (you have about 87)
Blue Y should be 0.0722*113.426 = 8.19. (you have about 10.7)
Red Y should be 0.2126*113.426 = 24.11 (you have about 23.226)
So, you are about 10% too bright in Green, and about 20% too dim in Blue (hence the large DeltaE).

For primaries, get the luminance to be as close to each other...
If you have CMS, then try it. If not, you might need to reduce overall color down... it might affect your other color... but most device is a compromise. You should not expect you can get everything perfect, especially with a low-end device.
Other alternative is to get a video processor like lumigan or DUO or AVFoundry...

Rec. 709
x y Y
R 0.6400 0.3300 0.2126
G 0.3000 0.6000 0.7152
B 0.1500 0.0600 0.0722
Y 0.4193 0.5053 0.9278
C 0.2246 0.3287 0.7874
M 0.3209 0.1542 0.2848
W 0.3127 0.3290 1.0000
fight4yu is offline
post #3796 of 3872 Old 08-19-2011, 12:01 PM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
is the green too far off on the white control?
kpm197 is offline
post #3797 of 3872 Old 08-19-2011, 01:00 PM
AVS Special Member

angryht's Avatar

Join Date: Aug 2004
Location: Omaha, NE
Posts: 1,318
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Remember that the green gain and green offset are adjusting the gray scale. That isn't the same as the color. Your gray scale looks very good. The luminance of green seems a bit high, which is what is likely making everything that is green look too bright. Unless you have a color management system, you won't be able to do much other than reduce the color control (basic color). The other thing to check is whether or not color is being decoded properly. I ran into this with one of my displays taking rec709 (HD) source material and misconverting it. The display applied a color 'twist' which made green much brighter. What is your source and how are you feeding it to the display?

-Greg
angryht is offline
post #3798 of 3872 Old 08-19-2011, 01:10 PM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
ps3 via hdmi
hd burned to dvd
avs709
kpm197 is offline
post #3799 of 3872 Old 08-19-2011, 02:37 PM
AVS Special Member

fight4yu's Avatar

Join Date: Oct 2009
Location: SF Bay Area
Posts: 1,728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 42
Quote:
Originally Posted by kpm197 View Post

is the green too far off on the white control?

as angryht indicated, your grayscale is fine. No need to mess around with the RGB gain/offset anymore.

CMS is completely different. Your monitor might not even allow you to do this. YOu might need to search through the service menu or this forum to find out if your monitor have CMS or not.

Remember, the RGB gain/offset is to set the different RGB balance within the WHITE level.. Your Green looks too "bright"/neon because the individual color of GREEN is too bright. Most set do not include CMS.. you might try different color control (wide, standard, normal or something??) and that might help.
fight4yu is offline
post #3800 of 3872 Old 08-19-2011, 04:38 PM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
i've finished going over the colours and now the grass glows even more! i've edited post #3790 with the latest screenshot.

edit: i don't have CMS in the user menu (i've yet to check service menu) so adjustments done with colour and tint controls.

primary and secondary luminance:
red = 21.7 was 23 (target 24.4)
green = 81.7 was 88 (target 82.2)
blue = 9.6 was 11 (target 8.3)
yellow = 103.3 was 104 (target 106.7)
cyan = 90.5 was 95 (target 90.5)
magenta = 32.1 was 35 (target 32.7)

i concentrated on getting the green accurate at the expense of red (i tend to find images too warm anyway).

i even improved the greyscale before hand and gamma is now at 2.27 which was a nice surprise!

i've attached my hcfr file...

any more suggestions on how i can fix the neon grass?
i noticed that if i changed the image from WARM1 to WARM2 i can get much more accurate colours but at the expense of the greyscale.



Color_new_after.zip 4.4521484375k . file
kpm197 is offline
post #3801 of 3872 Old 08-19-2011, 04:45 PM
Member

kpm197's Avatar

Join Date: Dec 2009
Location: UK
Posts: 56
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by catmother View Post

You might want to start here:
http://www.avsforum.com/avs-vb/showp...postcount=1130

thanks, that spreadsheet helped
kpm197 is offline
post #3802 of 3872 Old 08-19-2011, 08:49 PM
AVS Special Member

alluringreality's Avatar

Join Date: Jul 2006
Posts: 3,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 30
Quote:
Originally Posted by kpm197 View Post
i don't have CMS in the user menu (i've yet to check service menu) so adjustments done with colour and tint controls.
If all you have are color and tint controls you're limited on what you can do.

Tint typically affects the location of the secondaries. If you subjectively think aiming for the 709 secondaries made the picture worse, then instead try to get the dotted lines on the CIE diagram to go from the primary, through white to the secondary. It looks like the dotted lines on the CIE diagram from the tint setting on the prior image were closer to white than on the latest chc file.

Color usually affects Y in comparison to white the most. If you're looking mainly at green, the delta luma line is basically dead on for Rec 709 on the chc file. The spreadsheet is under 1% for difference in Y for a custom color reference, so dropping color one setting may or may not be closer.

Note:
- Your measurements and evaluation video generally need to played from the same source. If you are playing the calibration video from a Blu-ray player, then you also need to use the Blu-ray player for evaluating other video. The reason for this stipulation is that the source can affect the video output, so if one of the sources modifies the video it will likely affect the resulting picture from another source. While ideally all digital sources should simply use matching video levels, that may or may not be the case, and you really don't know without further testing.
- When evaluating video it's a decent idea to use a few different videos, since it's unlikely to know how exactly grass was encoded with a single video.
alluringreality is offline
post #3803 of 3872 Old 08-19-2011, 09:05 PM
AVS Special Member

alluringreality's Avatar

Join Date: Jul 2006
Posts: 3,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 30
Quote:
Originally Posted by pb21uk View Post
dve hd basics

the gamma has an odd curve
Gamma measurements don't necessarily have much correlation with an actual on-screen image. If they did your measurements indicate that 60% would be darker than 50%, but if you look at a set of gray bars that probably isn't actually how your TV works. Anyway, it looks like the TV probably varies light output depending on the average picture level of the displayed image. You may get different Y readings by measuring a pattern that holds average picture level constant, and gamma is just a representation for Y values. This sort of variation may also affect Y values for color.
alluringreality is offline
post #3804 of 3872 Old 08-20-2011, 03:39 AM
AVS Addicted Member

JimP's Avatar

Join Date: Sep 2002
Location: Wetumpka, AL
Posts: 15,259
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 173
kpm197,

I hate to jump in here as I'm just now getting into display calibration.

One thing that may be a factor is if your colormeter has drifted. Mine has towards cyan. I can get the prettiest grayscale graph, yet the picture is fairly pink.

One thing that I see as a needed feature in display calibration is the ability to recalibrate the colormeter prior to use. I had a photography studio with an in house color lab. To check your process, you'd run control strips and measure them using an XRite reflection/transmission densitometer. Part of the routine would be to recalibrate the desitometer each time using an internal function that turned on a light of a know quality and having it reset itself to match that light output. Seems to me that there needs to be something similar in the display calibration field.

I'm aware that you can send some meters to have a calibration file created for certain color calibration software but what I'm speaking to is to have the self calibration as part of the device.

Samsung 64F8500, Panasonic 65VT50, Oppo 95, Tivo Roamio for OTA, Dish VIP722, Marantz AV8801 preamp, Rotel Amps, Atlantic Tech 8200 speakers, Seaton Submersive HP, Calman 5, Chromapure, Accupel DVG-5000, i1Display3pro, i1pro2, eecolor colorbox.
JimP is online now
post #3805 of 3872 Old 08-20-2011, 07:19 AM
AVS Special Member

catmother's Avatar

Join Date: Feb 2005
Location: La Jolla, CA
Posts: 1,703
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by kpm197 View Post
thanks, that spreadsheet helped
Attached is a list of four colorspaces showing the primaries and secondaries normalized to white (Y)
Rec 709 is the current HDTV standard.

Could not find the original and scanned from a printout and the OCR quit on me so attached the jpg instead.

Here is an old post, an early calibration of the LG 55LH90
http://www.avsforum.com/avs-vb/showp...91&postcount=4
LL

Certified HDTV junkie and AVS addict
U.S. Army FA WWII
catmother is offline
post #3806 of 3872 Old 08-20-2011, 07:24 AM
AVS Special Member

spongebob's Avatar

Join Date: Dec 2001
Location: San Jose, Ca.
Posts: 2,840
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by catmother View Post

Attached is a list of four colorspaces showing the primaries and secondaries normalized to white (Y)
Rec 709 is the current HDTV standard.

Could not find the original and scanned from a printout and the OCR quit on me so attached the jpg instead.

Which is colorspace 1 and 2?

bob
spongebob is offline
post #3807 of 3872 Old 08-20-2011, 07:39 AM
AVS Special Member

catmother's Avatar

Join Date: Feb 2005
Location: La Jolla, CA
Posts: 1,703
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by spongebob View Post

Which is colorspace 1 and 2?

bob

IIRC (SMPTE-C) is the REC 604 SD standard, EBU is the European Broadcasting Union and read about DCI here:
http://en.wikipedia.org/wiki/Digital_Cinema_Initiatives

Certified HDTV junkie and AVS addict
U.S. Army FA WWII
catmother is offline
post #3808 of 3872 Old 08-20-2011, 07:42 AM
AVS Special Member

serialmike's Avatar

Join Date: Jan 2005
Location: Florida
Posts: 2,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 17
Question on all that. I get the colors x,y. But its Y that I ask about.

For Y white is always 1.0. With the other colors R being .21, G being .71, and B being .08

Now does this mean that somehow I have to get my colors to be exactly 1, .71 and .08 or does this mean white on my set is lets say 90 in HCFR so red should be 18.9 and G should be 63.9, B should be 7.2

I dont see how I would ever get the W, R, G, B to produce 1, and low decimal readings.
serialmike is offline
post #3809 of 3872 Old 08-20-2011, 08:18 AM
AVS Special Member

catmother's Avatar

Join Date: Feb 2005
Location: La Jolla, CA
Posts: 1,703
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by serialmike View Post

Question on all that. I get the colors x,y. But its Y that I ask about.

For Y white is always 1.0. With the other colors R being .21, G being .71, and B being .08

Now does this mean that somehow I have to get my colors to be exactly 1, .71 and .08 or does this mean white on my set is lets say 90 in HCFR so red should be 18.9 and G should be 63.9, B should be 7.2

I dont see how I would ever get the W, R, G, B to produce 1, and low decimal readings.

The tables are normalized to white (Y=1) so as to be independent of which calibration software and measurement unit fl or cdm.
Hence if white measures 30 fl multiply the color values by 30.
The spreadsheet linked earlier should do that for you.

If my advice is wrong no doubt some expert will chime in.

Certified HDTV junkie and AVS addict
U.S. Army FA WWII
catmother is offline
post #3810 of 3872 Old 08-20-2011, 09:49 AM
AVS Special Member

HDTVChallenged's Avatar

Join Date: Jan 2002
Posts: 8,288
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 106
Quote:
Originally Posted by fight4yu View Post

Your luminance is off. Use this table for your reference. For Y, it is the % of White. In your case, If White Y=113.426, then your Green Y should be 0.7152*113.426 = 81.12 (you have about 87)
Blue Y should be 0.0722*113.426 = 8.19. (you have about 10.7)
Red Y should be 0.2126*113.426 = 24.11 (you have about 23.226)
So, you are about 10% too bright in Green, and about 20% too dim in Blue (hence the large DeltaE).

Those percentages are only correct if your primaries have perfect chromaticity (x,y). If not (99% of displays on the market) you need to compensate for any over/underage of saturation (and hue.) (Not to mention colorimeter crosstalk.) Minimizing dLuma will not always get to you the right answer.

In short, you can't correct just the polar origin point (D65 White) and not correct the remaining 99.9999% of color pallet. IOW, there is a reason why color filters have been used to set color/tint for decades ... think about it. If it turns out that your D65 White point actually contains 24% Red, 69% Green, 7% Blue then that's what you target, otherwise you no longer have a linear transformation.

Colorimeters are useful ... they can also be misused a/o misinterpreted.

The safest method is to use filters for all three colors. Get color/tint setting for Blue, Red, Green ... they will no doubt be different for each color. Once you have the settings for each color, simply take the average (mean) color setting and tint setting. This will get you to the optimum color/tint setting way faster than flailing around with a colorimeter. Then, if you have a working CMS and colorimeter/spectro, you can proceed to tinker further.

Note 1: You need a more robust color decoder pattern like the one from the AVS HD709 disk to get the best results from this method. The standard SMPTE style color-bar pattern is not the best choice here. Oh, normal color vision helps too.

Note 2: If you have to make a choice, it's better to optimize the Green-Yellow-Red side of the gamut triangle.

Edit: I suspect that I may not have explained things clearly enough ... go easy and try to clarify any misunderstandings ... engaging flame mode will get us nowhere.
HDTVChallenged is offline
Reply Display Calibration

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
