post #31 of 1936 Old 05-28-2007, 12:11 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Randy Tomlinson has a review of the HLS Samsung DLP rear projector in this edition of UltimateAV that comments extensively on its CMS. It's worth the read.

http://www.guidetohometheater.com/re...vs/507sam5688/

My only quibble is his insinuation that you simply can't do decent color correction without a $15,000 Photo Research spectroradiometer. Just silly.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
Sponsored Links
Advertisement

post #32 of 1936 Old 05-28-2007, 04:33 PM
Advanced Member

anbjornk's Avatar

Join Date: Jun 2002
Location: Stavanger, Norway
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The AE1000 has a functioning CMS. It has controls for Color, Tint and Brightness.
anbjornk is offline
post #33 of 1936 Old 05-28-2007, 04:54 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:


It has controls for Color, Tint and Brightness.

This is not what we mean by a Color Management System. The NTSC specification requires ALL displays to have adjustments for Color, Tint, Sharpness, Brightness, and Contrast. A CMS goes significantly beyond this.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #34 of 1936 Old 05-28-2007, 10:08 PM
AVS Club Gold

Bear5k's Avatar

Join Date: Feb 2006
Location: Houston, TX
Posts: 2,239
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by zoyd View Post

This agrees with krasmuzik's comment about shorting the color brightness slightly to get the best perceptual results(assuming you're starting from outside the triangle). I was also surprised to see that dE was such a strong function of L*

I missed this comment my first pass, but this is a point I tried to make a while ago here:
http://www.avsforum.com/avs-vb/showt...&&#post6637132

I have also posted a critique of the dE(u'v') method as going too far in the other direction, but that is for a different thread...

Bill

Color accuracy evangelist and CalMAN insider
Bear5k is offline
post #35 of 1936 Old 05-29-2007, 01:28 AM
Advanced Member

anbjornk's Avatar

Join Date: Jun 2002
Location: Stavanger, Norway
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:


This is not what we mean by a Color Management System. The NTSC specification requires ALL displays to have adjustments for Color, Tint, Sharpness, Brightness, and Contrast. A CMS goes significantly beyond this.

For EACH COLOR . (Sorry, I was a bit short there) One can store up to eight different colors per memory.
anbjornk is offline
post #36 of 1936 Old 05-29-2007, 07:55 AM
FGM
Senior Member

FGM's Avatar

Join Date: Jul 2001
Location: Quebec, Canada
Posts: 349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Tom,
The Optoma HD7100 has a full working saturation, tint and lightness adjustment per primary and secondary color. These adjustments are in the SM.
Despite all its adjustments, I do not seem to be able to get green to its theoretical x,y value in the gamut. Could this be a result of the grey screen I am using?
Any comments/suggestions?
Thanks a lot to you and all other contributors to this great thread.
Fermin
FGM is offline
post #37 of 1936 Old 05-29-2007, 11:44 AM
Super Moderator

Bob Sorel's Avatar

Join Date: Jan 2000
Posts: 8,453
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 102
Hi Tom,

Excellent write-up!!

And since I finally had a couple of free hours last night I decided to calibrate my Sharp Z12 using your exact procedure outlined above. For the most part everything worked great. I was able to adjust color and tint as you outlined, and only had to make minor adjustments to color bias and gain in order to get the tracking under dE of 3 across the board (except for 0 IRE, which I know is below the effective range of the EyeOne Pro). Then I finished up the color decoding by adjusting green and blue...so far so good.

The only problem I ran into with the Sharp was when it came to adjusting the gamut - Green was a problem, and because of the green problem, cyan is not right either. I was able to move all of the other colors so that they are right on the CIE targets, but green is undersaturated (if I am interpreting the chart correctly - green was originally outside the triangle, but lower than the green coordinate and way to the right), so I have no way to correct it (and cyan is undersaturated as well). Despite that little problem, I double checked everything else a second time and the color decoding is very, very good, as is the grayscale tracking.

My subjective impression is that most colors look absolutely dead accurate, though the greens looks a bit "pale". This might be because I know that green is not quite right, or it just may be due to viewing oversaturated greens for so long - I really don't know, but either way I am EXTREMELY happy with the results and the CMS functions of the Sharp. It was a real pleasure to have that much control over color!

Many thanks again!
Bob Sorel is offline
post #38 of 1936 Old 05-29-2007, 12:27 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Bob:

This sounds like mainly a hue problem. First, put the green controls back to their default. Second, adjust green hue until the measured point falls on a line between the white point and the target green point. Finally, adjust green saturation (which will move the measured point closer to or further from the white point) until it falls on the target.

You should be able to adjust this out. I don't know what you mean when you say that "I have no way to correct it".

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #39 of 1936 Old 05-29-2007, 12:35 PM
AVS Addicted Member

krasmuzik's Avatar

Join Date: Oct 1999
Location: NewPort, VA
Posts: 11,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by anbjornk View Post

For EACH COLOR . (Sorry, I was a bit short there) One can store up to eight different colors per memory.

That sounds like a color replacement system to me. You have to run the gamut tests to prove the entire gamut actually changes - not just one color.

A true color management system will do a 3x3 matrix transform to warp the gamut based on the editing of RGB parameters. Having a lookup table to remap a few colors is not at all the same thing.
krasmuzik is offline
post #40 of 1936 Old 05-29-2007, 01:51 PM
Super Moderator

Bob Sorel's Avatar

Join Date: Jan 2000
Posts: 8,453
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 102
Thanks, Tom, I'll give that a try tomorrow night (my next opportunity).
Quote:
I don't know what you mean when you say that "I have no way to correct it".

Since I don't have a chart to post, I'll try my best to explain it. The green primary was initially located to the far right (like half way between green and red horizontally) and slightly lower (vertically) than the targeted primary. When I tried increasing saturation, there was no change in the reading at all, but when I lowered saturation the point dropped lower by quite a bit. When I tried adjusting hue in one direction I could move the point to the left, but the very left most I could get it was on a line between the green and red targets, which is where I left it. Cyan acted similarly in that it was inside the triangle initially, and no amount of change would allow me to place cyan on the line between green and blue - it was and is still inside of the triangle. These observations were confirmed visually as I watched the 75% green and cyan windows from the Accupel. Green looks "pale" for lack of a better term and I could not get it to look any "greener".

I started with 6500k as a starting point. Maybe I will try measuring a few other temperatures to see if there is a better starting point for calibration. I'll also double check to see if I did something stupid in feeding the signal from the Accupel to the 12K's DVI input, especially since you got better results than I did.

Thanks again for all of your help!
Bob Sorel is offline
post #41 of 1936 Old 05-29-2007, 02:10 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:


I'll also double check to see if I did something stupid in feeding the signal from the Accupel to the 12K's DVI input, especially since you got better results than I did.

I think that's your best bet. The Accupel has so many settings for color space and phase, it's easy to pick one that doesn't work well with a given display.

What you describe just doesn't sound right to me. Either it's a measurement anomaly or the PJ is defective in some way.

The simplest way to do with would be with a test DVD. GetGray has some great patterns for this.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #42 of 1936 Old 05-29-2007, 02:13 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:


Despite all its adjustments, I do not seem to be able to get green to its theoretical x,y value in the gamut. Could this be a result of the grey screen I am using?

I doubt it. My guess is that the degree is error is larger than the range of adjustment.

See your PM.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #43 of 1936 Old 05-29-2007, 05:08 PM
Advanced Member

anbjornk's Avatar

Join Date: Jun 2002
Location: Stavanger, Norway
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
That sounds like a color replacement system to me. You have to run the gamut tests to prove the entire gamut actually changes - not just one color.

I have, and it's easy to move all colors into rec.709 coordinates.

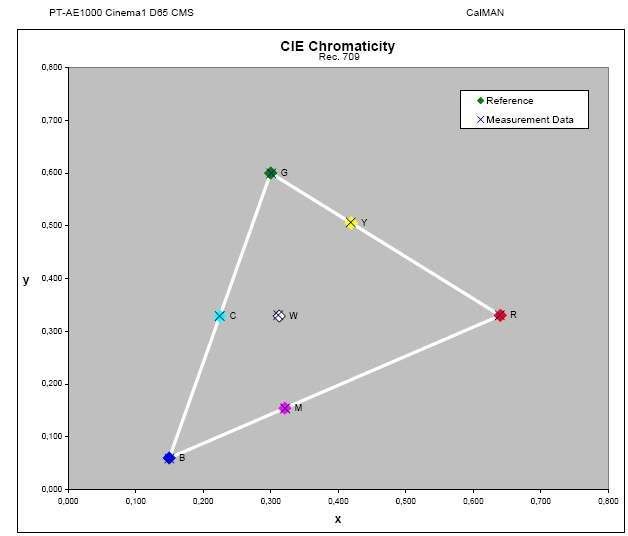

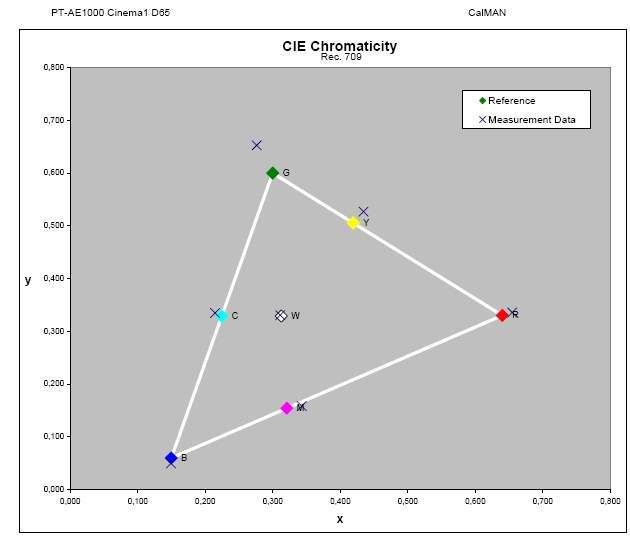

Before CMS:



After CMS:

anbjornk is offline
post #44 of 1936 Old 05-29-2007, 05:28 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
I think that Kraz's point, though he can speak for himself, is that a spot color replacement tool could achieve the result you show above by just using the primary and secondary colors as the targeted colors. However, it would not have changed the PJ's fundamental ability to render ALL color. A symptom of this is that it would have changed red, for example, but left orange unchanged.

The reason I'm suspicious that it's a color replacement tool and not a true CMS is that it allows the user to select up to 8 colors at random to adjust, rather than offering the primaries/secondaries as the only pre-defined alternatives, but I could be wrong.

Kraz, maybe you can explain how the gamut test works. I ran it. It gives a very long series of colors based on RGB combinations. I really don't see how to use this without knowing what the xy values of the colors are supposed to be.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #45 of 1936 Old 05-29-2007, 09:52 PM
AVS Addicted Member

krasmuzik's Avatar

Join Date: Oct 1999
Location: NewPort, VA
Posts: 11,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Tom are you talking about AVIA PRO's? There is a checkerboard display version of it that it is designed to be viewed on a PbPr component difference (or maybe was NTSC IQ?) vectorscope as grid. But knowing the target display is SMPTE-C and the DVD coding is REC601 you could do the matrix math to derive the xy from the geometry math for a regular stepped grid on a vectorscope (yes had they documented it would have been useful - one of these days I will write a MatLab program to figure the numbers out - Maybe Bill has some free time to R&D a CalMan gamut tester synced to AVIA PRO!). You are on the sequential version you step thru with window fields for making measures. But you can visually use the checkerboard version just to see what colors the adjustments impact. If you can't find it I will look up the menu path.

Certainly DisplayMate full gamut pattern http://www.displaymate.com/dwsct.html or any softwares full color CIE chart http://www.colorvision.com/images/Co...rumentCIE2.jpg is easier to see the results of color editing than making tedious measures. These smaller snaps may be hard to see - but those with these software should try it with the charts full screen.

anbjornk

Does editing red shift ALL colors with the red component - or like the Sanyo does it only shift a very narrow range of Red?. The Sanyo also has only enough framegrabber slots to get primaries, secondaries, and maybe a couple flesh tones. But look at the full color gamuts and you still see slivers of uncorrected colors.

I only see seven colors (RGBCMYW) on that CIE chart - and you have only x,y and thus missing Y data - which means it is very possible you compromised color brightness trying to get color gamut correct. But unless you look at a full color pattern - you cannot even prove that you fixed the gamut - you may have just fixed seven colors in it. The point is that while a CRS can remap any very limited set of colors - with a CMS you are editing the very locations of the RGB primaries the display produces to warp ALL of the colors - and some even further warp the secondaries.

Obviously it becomes crazy to measure orange, crimson, brick red, flesh tones, etc - so I am just saying just look at charts that have the full range of colors and play with the controls.
krasmuzik is offline
post #46 of 1936 Old 05-30-2007, 01:07 AM
Advanced Member

anbjornk's Avatar

Join Date: Jun 2002
Location: Stavanger, Norway
Posts: 563
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:


I think that Kraz's point, though he can speak for himself, is that a spot color replacement tool could achieve the result you show above by just using the primary and secondary colors as the targeted colors. However, it would not have changed the PJ's fundamental ability to render ALL color. A symptom of this is that it would have changed red, for example, but left orange unchanged.

The reason I'm suspicious that it's a color replacement tool and not a true CMS is that it allows the user to select up to 8 colors at random to adjust, rather than offering the primaries/secondaries as the only pre-defined alternatives, but I could be wrong.

Quote:


Does editing red shift ALL colors with the red component - or like the Sanyo does it only shift a very narrow range of Red?. The Sanyo also has only enough framegrabber slots to get primaries, secondaries, and maybe a couple flesh tones. But look at the full color gamuts and you still see slivers of uncorrected colors.

Actually, even though green supposedly has moved quite a lot in the CIE chart, I cant't actually see the difference in videomaterial. The shire in LOTR looks all the same. The only obvious change is in red/orange, where orange has been less orange. This can be seen easily on leloo's hair in the fifth element.

Btw. I used only the color and tint adjustments, and left brightness alone.

I think you guys are correct, it's a CRS rather than CMS.
anbjornk is offline
post #47 of 1936 Old 05-30-2007, 11:43 AM
AVS Addicted Member

krasmuzik's Avatar

Join Date: Oct 1999
Location: NewPort, VA
Posts: 11,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
This is why CIE L*u*v* is a better colorspace than xyY - green hues are not as easy to see as red and blue, even in video with green being brighter than red and blue! Whereas on your xyY chart you can barely even see the hue is off on red even though your eye could see it was too orange.
krasmuzik is offline
post #48 of 1936 Old 05-30-2007, 11:49 AM
Advanced Member

robbyc30's Avatar

Join Date: Mar 2002
Location: Laurel, Maryland
Posts: 657
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I can back up what Bob is saying about the greens on the 12k. I had the same exact experience.

Rob
robbyc30 is offline
post #49 of 1936 Old 05-30-2007, 01:48 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
I'm reasonably confident that after proper calibration one can get the Sharp 12K's colors very accurate. This confidence is based on 2 factors. First, the published reviews of the 12K are pretty consistent about its color performance. Second, my own experience with the 20K.

Here's WSR's measurement pre-calibration.



Post-calibration



This requires a little imagination, because unfortunately Greg Rogers choose this review to switch color spaces from xy to u'v' in midstream.

Here's HTM's measurement before calibration



Unfortunately, they don't provide an after but I'd be very surprised if this level of error was uncorrectable for the Sharp CMS. The main problem seems to be that green is too yellow.

I can report first hand that the 20K is capable of essentially perfect green.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #50 of 1936 Old 05-30-2007, 03:37 PM
Advanced Member

robbyc30's Avatar

Join Date: Mar 2002
Location: Laurel, Maryland
Posts: 657
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Here's the HCFR file with the Spyder2. While the red is purposely off the mark, the green and the blue could not be adjusted exactly to the standards. No matter what I did, I could not get the green any further to the left, without moving it significantly towards white. I got very similar results from the Xrite DTP-94, although the green was slightly closer.

Rob



spydercust1lcd.zip 0.94921875k . file
robbyc30 is offline
post #51 of 1936 Old 05-30-2007, 04:45 PM
FGM
Senior Member

FGM's Avatar

Join Date: Jul 2001
Location: Quebec, Canada
Posts: 349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by TomHuffman View Post

I doubt it. My guess is that the degree is error is larger than the range of adjustment.

See your PM.

Tom,
The attached gamuts are the before and after CMS. The default on saturation is 0 at its maximum. Green tint will move the green position into the triangle, under the green reference point. I don't know what can be done, if anything, to get the green color in its ideal place.
Readings made from the screen.
Any suggestions?
Anybody?
Thanks.
Fermin
LL
LL
FGM is offline
post #52 of 1936 Old 06-01-2007, 08:49 AM
Member

bsntn99's Avatar

Join Date: Dec 2006
Location: Fremont
Posts: 196
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Tom, first of all great thread and thanks for the tips! In the EMP-TW1000 thread you showed a post calibration chart. I am now going through and calibrating my Epson 1080 and if possible could you post or pm your settings to me to use as a reference so I can see how they compare. I known mine will be somewhat different.

Thanks !!!
bsntn99 is offline
post #53 of 1936 Old 06-01-2007, 09:48 AM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:
Originally Posted by robbyc30 View Post

Here's the HCFR file with the Spyder2. While the red is purposely off the mark, the green and the blue could not be adjusted exactly to the standards. No matter what I did, I could not get the green any further to the left, without moving it significantly towards white. I got very similar results from the Xrite DTP-94, although the green was slightly closer.

A couple of things. First, don't use the Spyder2 for this stuff. It really isn't accurate enough to provide numbers you can rely on. Second, what your numbers show is performance almost identical to the published results. The DTP-94 would have been even better. Here's what your calibration showed.



This is actually quite good. Bob Sorel's results were MUCH worse than this. There's something else going on in his case.

I'd be more concerned about the oversaturated red than the slightly yellow green. BTW, I really wish people would attach or post image files so everyone could see them, rather than HCFR calibration files.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #54 of 1936 Old 06-01-2007, 10:44 AM
Senior Member

sjschaff's Avatar

Join Date: Apr 2004
Posts: 393
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 13
Tom: thanks for your explanation and process.

One thing that I have been wondering - when altering the grayscale cuts/gains for each of the primaries, does changing each of the 6 controls have varying effects on the resulting x,y,Y numbers? And do these vary by display type/manufacturer/model?

I've been using the Spyder Platinum with the Ruby and CalMAN. Been a bit of shooting in the dark. I'm trying to get a better handle on what's happening as I apply changes, so I do this in a more intelligent manner. I've found that I can go down the wrong path with changing things (too much in one direction or another and impacting more distant IRE stimulus areas). Your approach of picking 30% and 90% works well. It's when I'm trying to move down to 20% -> 10% that I get into trouble (I won't even bother with 0% since I don't think the Spyder's up to it).

Any help would be appreciated.

Steve Schaffer
sjschaff is offline
post #55 of 1936 Old 06-01-2007, 11:35 AM
Advanced Member

robbyc30's Avatar

Join Date: Mar 2002
Location: Laurel, Maryland
Posts: 657
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Here's the gamut of the 12k with the DTP94. These are the same settings from the Spyder, that are shown in post #54 above. They are almost identical except for the green (and subsequently, the cyan), which measures worse. As with the Spyder, I could not get the green anymore to the left without moving in towards white. Considering these two graphs, I'd say the Spyder is a worthy contender considering how inexpensive it is. It's not perfect, but neither am I.

Rob
robbyc30 is offline
post #56 of 1936 Old 06-01-2007, 11:37 AM
Advanced Member

robbyc30's Avatar

Join Date: Mar 2002
Location: Laurel, Maryland
Posts: 657
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Sorry, here it is. See, I told you I wasn't perfect.

Rob
LL
robbyc30 is offline
post #57 of 1936 Old 06-01-2007, 11:47 AM
Super Moderator

Bob Sorel's Avatar

Join Date: Jan 2000
Posts: 8,453
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 102
Robbyc30, assuming that the white lines in your above graph are the measured values, then your gamut looks almost exactly like mine. Mine just looks worse because the the graph is larger and easier to read...
Bob Sorel is offline
post #58 of 1936 Old 06-01-2007, 11:54 AM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:
Originally Posted by robbyc30 View Post

Here's the gamut of the 12k with the DTP94. These are the same settings from the Spyder, that are shown in post #54 above. They are almost identical except for the green (and subsequently, the cyan), which measures worse. As with the Spyder, I could not get the green anymore to the left without moving in towards white. Considering these two graphs, I'd say the Spyder is a worthy contender considering how inexpensive it is.

That's actually not such a small difference, but a pretty significant one. Now your color measurements are beginning to look a lot more like Bob Sorel's. It's the difference between what I would consider an acceptable deviation to an unacceptable one.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #59 of 1936 Old 06-01-2007, 12:00 PM - Thread Starter
AVS Special Member

TomHuffman's Avatar

Join Date: Jan 2003
Location: Springfield, MO
Posts: 6,353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 204
Quote:
Originally Posted by sjschaff View Post

One thing that I have been wondering - when altering the grayscale cuts/gains for each of the primaries, does changing each of the 6 controls have varying effects on the resulting x,y,Y numbers? And do these vary by display type/manufacturer/model?

It can, and yes.

Quote:
Originally Posted by sjschaff View Post

I've been using the Spyder Platinum with the Ruby and CalMAN. Been a bit of shooting in the dark. I'm trying to get a better handle on what's happening as I apply changes, so I do this in a more intelligent manner. I've found that I can go down the wrong path with changing things (too much in one direction or another and impacting more distant IRE stimulus areas). Your approach of picking 30% and 90% works well. It's when I'm trying to move down to 20% -> 10% that I get into trouble (I won't even bother with 0% since I don't think the Spyder's up to it).

Any help would be appreciated.

I don't know that you need help. It sounds like you are doing just fine. Meters often start to lose accuracy below 30 IRE, especially if you are taking readings off the screen, so I wouldn't worry about that too much. See your PM.

Tom Huffman
ChromaPure Software/AccuPel Video Signal Generators
ISF/THX Calibrations
Springfield, MO

TomHuffman is offline
post #60 of 1936 Old 06-01-2007, 12:15 PM
Advanced Member

robbyc30's Avatar

Join Date: Mar 2002
Location: Laurel, Maryland
Posts: 657
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
So, is there something wrong with Bob's and my 12k? Is it possible my greyscale settings are affecting the gamut? My green gain is all the way down, at -30, twice as far as the red and blue. For the offsets, green and blue are in the -10 area, and red is -5. I can't see how I could raise the green gain much because if I raise the red gain, the high-mid IREs start getting pink. I have ordered another 12k because of a large, bright, sometimes flickering, hotspot just right of center screen. The new one should be here on Tuesday. I will report back if it has the same green problem.

Rob
robbyc30 is offline
Reply Display Calibration

Tags
X Rite Eodis3 I1display Pro , X Rite Cmundis Colormunki Display , X Rite Eye One Display Lt , Calman 4 0 Calibration Software Home License , Aemc Ca813 Peak Function Lightmeter 200 000 Lux Range 0 01 Lux Resolution 3 Accuracy
Gear in this thread

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
