I'm having a very difficult time finding "standard" dimensions for a bar on the internet. From the front of the bar rail, does anyone know how far the bar top typically overhangs the front of a bar? I'm thinking 10" - 12", but would appreciate any input.
gobble is offline
Sponsored Links
Advertisement

post #2 of 19 Old 03-24-2009, 07:04 PM
AVS Special Member

mbyrnes's Avatar

Join Date: Jan 2008
Location: Media, PA (outside Philly)
Posts: 3,415
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 161
It all depends on what YOU want. There isn't a standard that I have heard of. I have built several bars and none of them were the same. The height varies but I prefer a few inches above my belly button.

12" would be very wide. This would be more like a table as the stool would fit almost entirely under it. Closer to 4" would be more "normal". Larger than 6" is rare, at least in my experience.

Head out to a few bars and look at what they have. See what you like about theirs and improve on what you don't. Take a camera and notes. MANY people I know who have built bars regretted some aspect of it that would be too expensive to fix after.

You won't build a perfect bar the first time, but research can get you close.

Xbox Live: TheRealMaxPower --- PSN: TheRealMaxPower



Panasonic TC-P65VT60    Vienna Acoustic Mozart Grands    Onkyo TX-SR805   Sony BDP-S790

Astro Mixamp 2013   Schiit Modi    AKG K702 65th Anniversary   Antlion ModMic    Sennheiser PC360

Theater- Benq W1070    Elite 120" projection...

mbyrnes is offline
post #3 of 19 Old 03-24-2009, 08:08 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,721
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 233 Post(s)
Liked: 582
Height is 42-43 inches

Overhang is 10 on mine. You want to be able to sit on a stool put your feet on the foot rail and place you elbows comfortably on the bar top without having to lean way forward.

IMHO 4 may be OK for a stand at bar but wouldn't be a comfortable bar to sit at.



tmhouse likes this.
BIGmouthinDC is offline
post #4 of 19 Old 03-25-2009, 04:18 AM
Member

Tony_M's Avatar

Join Date: Dec 2007
Location: Lusby Md.
Posts: 67
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I agree with Big.

My bar is 42 inches high and my overhang is 10 inches. I wanted 12 but it could not work out with the materials I had ordered.

A small overhang like 4 inches will make sitting uncomfortable. Your knees will be against the bar and your upper body will be hunched over to reach the bar and your drink.
Tony_M is offline
post #5 of 19 Old 03-25-2009, 04:43 AM
AVS Special Member

HeyNow^'s Avatar

Join Date: Jul 2001
Location: Martinsburg, Wv USA
Posts: 2,720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I agree with the above. 10-12 inches minimum. Personal choice. I read somewhere while researching my bar that 42 inches is the preferred bar height if you were using the taller bar stools.
HeyNow^ is offline
post #6 of 19 Old 03-25-2009, 05:31 AM
AVS Special Member

jamis's Avatar

Join Date: Jan 2005
Location: Massachusetts
Posts: 1,919
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Another vote for 10-12 inches on the overhang.

We made our bar 44" (just slightly over the 'standard') high including the counter.
jamis is offline
post #7 of 19 Old 03-25-2009, 05:38 AM
Senior Member

LSWHO's Avatar

Join Date: Oct 2006
Location: Clarkston, Michigan
Posts: 456
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Mine is 6 1/2" and is comfortable but I think 10" would be the number to shoot for in my opinion. This way you do not have to worry about the size of stools and size of person that is sitting there. I have a friend who is 6' 3 / 250lbs and he does hit his knees on mine at the 6 1/2", 10" would have been a much better choice if I could do it over again.

[IMG][/IMG]

The Copper Pub /Corey Lane Cinema

"Sir, I'm going to have to ask you to exit the donut." IRONMAN 2
LSWHO is offline
post #8 of 19 Old 03-25-2009, 06:27 AM
HT1
Senior Member

HT1's Avatar

Join Date: Nov 2007
Location: Indiana
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I'm at the same stage as you. I want my bartop to be a little higher because I'm using the taller stools with arm rests. I have a 2 x 6 knee wall at 42" that my bartop will set on. This way the arms of the barstools will fit under the bartop when swiveled. As for the overhang, I want 3" on the bartender side and at least 10" on the barstool side. So I'm planning on a bartop that is 18" to 20" deep. I don't think there is a standard as far as the over hang is concerned. I believe it's more personal preference and what is comfortable for your situation.

I like this place!!!
HT1
Check Out Bar / Theater 1.0
HT1 is offline
post #9 of 19 Old 03-25-2009, 06:47 AM - Thread Starter
Member

gobble's Avatar

Join Date: Nov 2005
Posts: 192
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

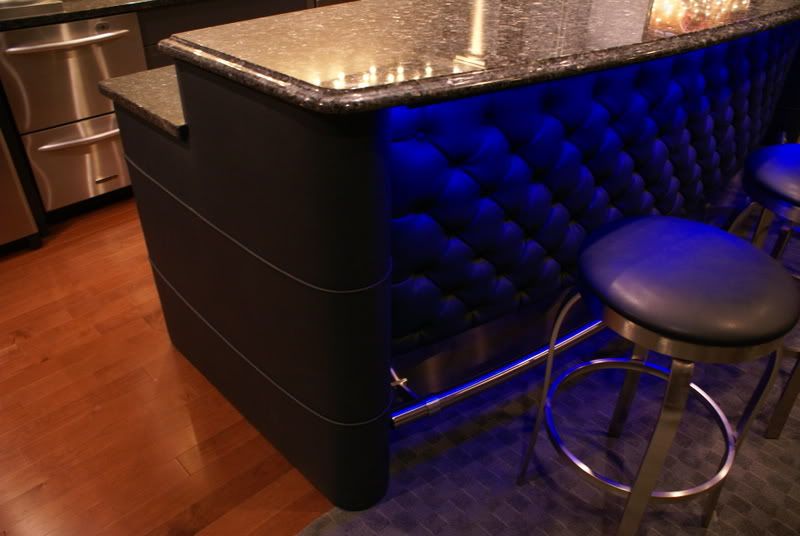

Wow. That looks very similar to my build so far.

I also have cabinets around the front of the bar with a granite countertop. The cabinets are the standard 36" height. In front of the cabinets is a 42" half wall. I've gone to a few bars and the most common measurement for the top width is bar rail plus 15". I'd like to have a front overhang of 10", but then I have an awkward situation where the back of the top hangs over the countertop something like 5" and the countertop space under the top isn't that useful. The solution is to either push the top farther towards the front of the bar or reduce the width of the top.

Thanks for all the replies so far. This is very helpful and I would appreciate any further comments.


LL
gobble is offline
post #10 of 19 Old 03-25-2009, 06:48 AM - Thread Starter
Member

gobble's Avatar

Join Date: Nov 2005
Posts: 192
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Would you guys mind replying with what your top width is excluding the bar rail?
gobble is offline
post #11 of 19 Old 03-25-2009, 07:29 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,721
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 233 Post(s)
Liked: 582
Mine is too large for reference because I sized it to hold the party buffet.
BIGmouthinDC is offline
post #12 of 19 Old 03-25-2009, 07:37 AM
AVS Special Member

HeyNow^'s Avatar

Join Date: Jul 2001
Location: Martinsburg, Wv USA
Posts: 2,720
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Mine is about a 12 inch bar field with a 4 inch drip tray.
HeyNow^ is offline
post #13 of 19 Old 03-25-2009, 08:58 AM
HT1
Senior Member

HT1's Avatar

Join Date: Nov 2007
Location: Indiana
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by BIGmouthinDC View Post

Mine is too large for reference because I sized it to hold the party buffet.

When I first started reading this I thought you were going to say you sized it to hold the party dancers.
I haven't built mine yet but I'm planning an at least 18" of bartop only. I will not have a drip tray but I will have 3" of overhang in the back. Take away the 5 1/2" for the 2 x 6 kneewall and that will leave me with 9 1/2" of just bartop overhang. After I add the rail I should be around 15" of total overhang.

I like this place!!!
HT1
Check Out Bar / Theater 1.0
HT1 is offline
post #14 of 19 Old 03-25-2009, 09:06 AM
Senior Member

LSWHO's Avatar

Join Date: Oct 2006
Location: Clarkston, Michigan
Posts: 456
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Mine is the same as HeyNow^'s - 12" wide with a 4" drip rail and I feel that is plenty of room.

The Copper Pub /Corey Lane Cinema

"Sir, I'm going to have to ask you to exit the donut." IRONMAN 2
LSWHO is offline
post #15 of 19 Old 03-25-2009, 04:33 PM
Advanced Member

Javatime's Avatar

Join Date: Jan 2007
Location: Cedar Brook, NJ
Posts: 952
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Mine is 42" H with a 13" overhang.
Javatime is offline
post #16 of 19 Old 03-25-2009, 07:05 PM
Member

Tony_M's Avatar

Join Date: Dec 2007
Location: Lusby Md.
Posts: 67
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Mine is 20 inches wide. I do not have a drip rail.

Tony_M is offline
post #17 of 19 Old 12-25-2012, 05:55 AM
Senior Member

hltr's Avatar

Join Date: Jun 2006
Location: Chicago area
Posts: 357
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Tony what wood species is that top?
hltr is offline
post #18 of 19 Old 11-11-2013, 01:53 PM
Newbie

rhoadhouse's Avatar

Join Date: Nov 2013
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

Hi, my wife and I are building out our basement and your bar is similar to what we were wanting. Could you tell me what company you used to install the cabinets and bar surface?  Could you send or  post pictures of the other side of the bar?

rhoadhouse is offline
post #19 of 19 Old 11-11-2013, 08:14 PM
AVS Special Member

fierce_gt's Avatar

Join Date: Sep 2008
Posts: 3,613
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked: 751
mine's just a prefab deal, but it's about 6-7inches.

to be honest, I've never really sat at it, it was never intended to be a place to sit and eat/drink, it's a place to prepare food/drinks and then leave.

for my use, it's good. more of an overhang would just waste space(i don't have a lot to begin with).

if your custom building though, i would get the foot rail installed, pull up a chair and figure out what's comfortable, then grab a piece of wood/cardboard to be the top and slide it back and forth until you've found the overhang you like best. i'm sure the distance your foot rail extends will also greatly affect how much overhang you want. you don't want the top to be touching your stomach while your feet don't reach the foot rail
