Hello all! First post!

I just ordered a set of four theater seats from Roman. Roman is awesome! From a couple of other sites I ordered two pairs of Aura Bass Shaker Pros and a 100W mono sub amp. I plan to hook them up in series-parallel.

Now I am curious to know what to expect when I get ready to mount the Bass Shakers. Would any of you please take a picture of whatever Buttkicker / Bass Shaker / other transducer installation you have? I don't care whether it's ugly or polished. I just want to know how it's done. Previous threads on this subject seem either to have scant pictures posted or the picture host has expired the pictures.

Why do so many people mount on particle board? The particle board has to screw into the chair somewhere; why not just mount the transducer directly to the spot where the particle board is mounted? Does anyone have any special considerations specific to the Berkline 12003 Reno line of theater seating?

I think pictures will really help answer these questions, as well as questions I can't think to ask yet. Holy jeez I can't wait till my toys all arrive!
calraith is offline
Sponsored Links
Advertisement

post #2 of 14 Old 02-09-2010, 11:31 AM
Member

djn312's Avatar

Join Date: Nov 2005
Location: Grand Rapids Michigan
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I will try to post some pics later of the hook up and mount but u will love the bass shakers! It make everything u watch a whole lot better. I have one on each of my 6 recliners and love it.


Doug's Home Theater
djn312 is offline
post #3 of 14 Old 02-09-2010, 11:36 AM
Senior Member

Spartan94's Avatar

Join Date: Mar 2005
Location: The Middle of Michigan
Posts: 350
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Spartan94 is offline
post #4 of 14 Old 02-09-2010, 11:47 AM - Thread Starter
Member

calraith's Avatar

Join Date: Feb 2010
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Spartan94 View Post

I hope to do this to my set of 12003 someday!

4 bass shaker pros + amp were very reasonably priced, even with shipping. The shakers came from avappliance, and the amp is an SMP60 from outdoor speaker depot. Anyway, I justified it to myself by telling myself, "Self? You know, $xx per seat including the amp is a really good deal for such an impressive addition to your setup. Aaannnnd the wife has been asking what I want for Valentine's Day...."
calraith is offline
post #5 of 14 Old 02-09-2010, 01:13 PM
Advanced Member

jpdeuce's Avatar

Join Date: Jun 2009
Location: NOVA
Posts: 635
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by calraith View Post

Aaannnnd the wife has been asking what I want for Valentine's Day...."

The proper response was HER shaking HER butt, not something to shake yours.

The above is merely one person's opinion and is probably worth as much as you paid for it.
My Basement HT/Family Hang Out
jpdeuce is offline
post #6 of 14 Old 02-10-2010, 08:52 AM
AVS Special Member

cuzed2's Avatar

Join Date: Nov 2006
Location: Chicago Area
Posts: 4,403
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 63
Quote:
Originally Posted by calraith View Post

4 bass shaker pros + amp were very reasonably priced, even with shipping. I'd share the places I got them if I had 3 posts. Well, the shakers came from avappliance, and the amp is an SMP60 from outdoor speaker depot. That's about the best I can tell you while my rookie status prevents me from posting links. Anyway, I justified it to myself by telling myself, "Self? You know, $xx per seat including the amp is a really good deal for such an impressive addition to your setup. Aaannnnd the wife has been asking what I want for Valentine's Day...."

edit: In browsing other threads, apparently I'm not supposed to mention pricing. Oops. Fixed though.

Calraith,

I have done almost exactly what you are after. However what I did:

I came across 4 of the Aura bass shakers cheap, and found a simple but effective way to mount them to my 4 Berkline 99s, using some plywood and (believe it or not) some zip ties. I'll try to remember to flip one of my berks over and get a photo for you tomorrow.

The Aura's were 4 ohms each. I wired them in series as 2 separate sets. I am powering them from the stereo main speaker outputs; from an old unused Dolby receiver i had laying around (~80 watts per channel going into 8 ohms).

I simply T'd into the LFE output from my main HT receiver, and used a Y cable to drive a pair of auxillary stereo inputs on my re-purposed old receiver.

Hope that was clear...?

Cuzed2
Check out a video of my theater here
CuznEddy Cinema
Officially Hanesamatized on 8/1/09

cuzed2 is offline
post #7 of 14 Old 02-10-2010, 08:12 PM - Thread Starter
Member

calraith's Avatar

Join Date: Feb 2010
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by cuzed2 View Post

Calraith,

I have done almost exactly what you are after. However what I did:

I came across 4 of the Aura bass shakers cheap, and found a simple but effective way to mount them to my 4 Berkline 99s, using some plywood and (believe it or not) some zip ties. I'll try to remember to flip one of my berks over and get a photo for you tomorrow.

The Aura's were 4 ohms each. I wired them in series as 2 separate sets. I am powering them from the stereo main speaker outputs; from an old unused Dolby receiver i had laying around (~80 watts per channel going into 8 ohms).

I simply T'd into the LFE output from my main HT receiver, and used a Y cable to drive a pair of auxillary stereo inputs on my re-purposed old receiver.

Hope that was clear...?

Aye, clear as mud. Since I'm expecting a mono amp, I'm going to go with a series/parallel wire-up -- two pairs wired in series for 8 ohms per pair, then that pair of pairs wired in parallel to end up with a 4 ohm load.

I have tons of zip ties. It seems to me to be a good way to mount the shakers to metal, but I imagine there might be some play in the mounting, somewhat degrading the effectiveness of the shakers. You have no complaints, though?

Can't wait to see pics. My chairs are scheduled for delivery tomorrow, but I have a sneaking suspicion that they're still in Jersey, snowed in. Stupid snow! The amp's not supposed to arrive till Monday, and the shakers are still marked as not shipped / cc as not processed. Seems I have a few days to plan my attack, at any rate.
calraith is offline
post #8 of 14 Old 02-11-2010, 07:39 AM
AVS Special Member

cuzed2's Avatar

Join Date: Nov 2006
Location: Chicago Area
Posts: 4,403
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 63
Calraith,

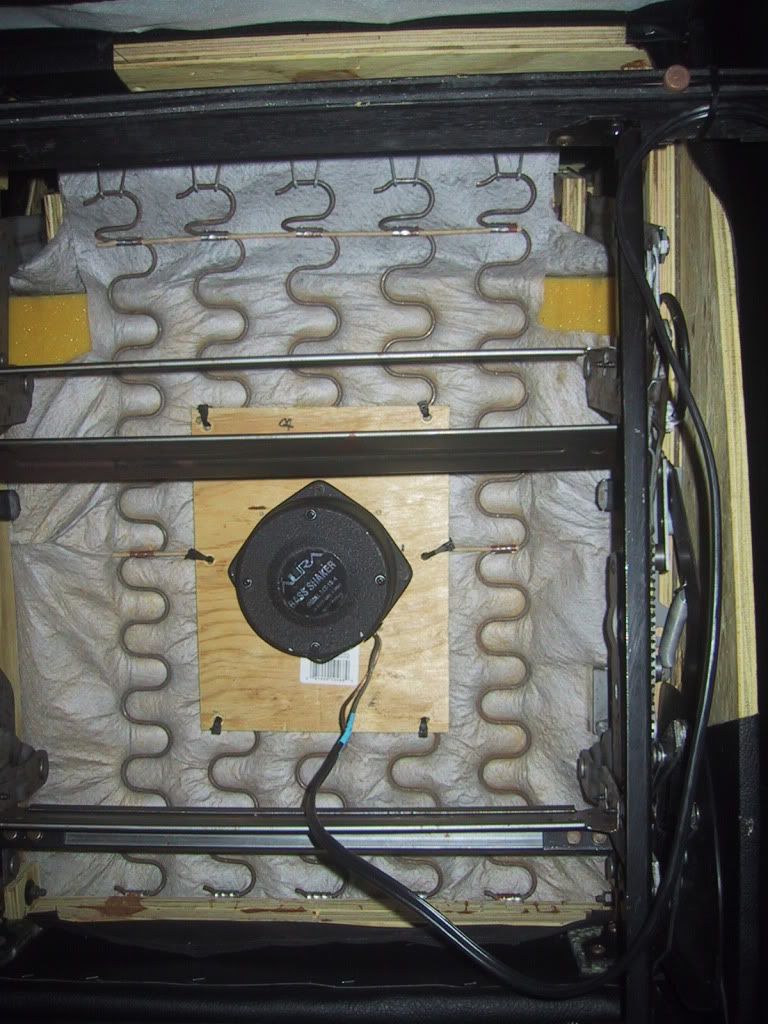

OK here is what I did, used 3/4" plywood:
For this photo I tipped the chair forward, the chair back is at the top of the photos, and the footrest at the bottom.


Other thoughts:
You're wiring plan sounds fine. However; I hope you have enough power to drive all 4 shakers to the level of vibration you are hoping for? I am running 2 pair in series, with 80 watts available to each pair, although I seldom go past 50% on the throttle (I would guess in average situations > I'm hitting the 4 chairs with about 70 watts total into 4 shakers) .

No doubt a real frame mounting solution would probably be more efficient and would also provide more uniform shaking through the entire chair, as opposed to be concentrated on the butt area. However I rigged mine as a temporary test, and it works well enough, (knowing my lazy ways) it will probably become permanent.

Let me know how this turns out for you?

Cuzed2
Check out a video of my theater here
CuznEddy Cinema
Officially Hanesamatized on 8/1/09

cuzed2 is offline
post #9 of 14 Old 02-11-2010, 02:21 PM - Thread Starter
Member

calraith's Avatar

Join Date: Feb 2010
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by cuzed2 View Post

Other thoughts:
You're wiring plan sounds fine. However; I hope you have enough power to drive all 4 shakers to the level of vibration you are hoping for? I am running 2 pair in series, with 80 watts available to each pair, although I seldom go past 50% on the throttle (I would guess in average situations > I'm hitting the 4 chairs with about 70 watts total into 4 shakers) .

No doubt a real frame mounting solution would probably be more efficient and would also provide more uniform shaking through the entire chair, as opposed to be concentrated on the butt area. However I rigged mine as a temporary test, and it works well enough, (knowing my lazy ways) it will probably become permanent.

Let me know how this turns out for you?

Thanks a ton for the pic! I will definitely post pics and give my impressions once I get them installed myself. I think 100w @ 4 ohms, divided among 4 shakers will be plenty. I'll mount directly to the frame if I can find a good spot to do so (such as the black painted wood at the back of the base as shown in the top of your picture, if our chairs are built similarly); and I'm not looking to vibrate someone out into the floor with them. I want them to be a subtle augmentation of my existing bass, rather than a theme park ride.

Though I've always heard that higher wattage != louder. Higher wattage = cleaner and less distortion. A 250w amp probably would've been better for me, but I like bargains too much to pass up the 100w I found. Oh well. We'll see what happens.
calraith is offline
post #10 of 14 Old 02-19-2010, 07:56 AM - Thread Starter
Member

calraith's Avatar

Join Date: Feb 2010
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I got my bass shakers last night! I started a new thread. See http://www.avsforum.com/avs-vb/showt...php?p=18166571

And thanks for the ideas! cuzed2, I'll have you know that I ran out of machine screws and had to use a zip tie on one of my mounts. You're a genius!
calraith is offline
post #11 of 14 Old 03-06-2010, 08:26 AM
Newbie

pedronery's Avatar

Join Date: Mar 2010
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi everyone

does anyone have a diagram of how to connect everything?
I have 2 aura bass shakers and im ordering an amp of 100 watts. i want to connect it to my pc's soundcard (subwoofer output)...
I dont understand much of frequencies or ohms
Please help anyone?
Thanks!
pedronery is offline
post #12 of 14 Old 03-06-2010, 08:11 PM
Senior Member

RobG5589's Avatar

Join Date: Dec 2009
Location: W. Sac, CA
Posts: 442
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by pedronery View Post

Hi everyone

does anyone have a diagram of how to connect everything?
I have 2 aura bass shakers and im ordering an amp of 100 watts. i want to connect it to my pc's soundcard (subwoofer output)...
I dont understand much of frequencies or ohms
Please help anyone?
Thanks!



http://www.bcae1.com/spkrmlti.htm
RobG5589 is offline
post #13 of 14 Old 12-14-2011, 03:01 PM
Newbie

laratta's Avatar

Join Date: Dec 2009
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi Cuzed,
I saw your picture of your set up. I was just wondering what do you use to attach the 3/4 board to the bottom of the seat?
http://www.avsforum.com/avs-vb/showthread.php?t=1225448
What kind of clamp is that, where can I get it? Does it attach well to the spring? Consider all the vibration. Anybody know, please answer my question.
Thanks
LaRatta
laratta is offline
post #14 of 14 Old 02-07-2012, 05:35 PM
Member

Onkyoinked5's Avatar

Join Date: Aug 2011
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by cuzed2 View Post

Calraith,

"No doubt a real frame mounting solution would probably be more efficient and would also provide more uniform shaking through the entire chair, as opposed to be concentrated on the butt area. However I rigged mine as a temporary test, and it works well enough, (knowing my lazy ways) it will probably become permanent.

Let me know how this turns out for you?

Hi, I wonder how you find it now in the long term? I have used a longer plywood for my bigger sofa with 2x Auro pro bass shaker and each is attached to a 3/4 plywood on both ends of the sofa, I think the vibration is so much better.

I have two more attached on an Ikea Poang chair, also in Series powered by a used Onkyo AMP, with 100W per channel. I have to adjust the Bass Shaker so that it does not hit my butt, but instead there is enough space between my chair and the plywood. So when the movement happens the frame of the chair moves and it does not just focus on my butt.

Hope this helps.

br,
Norberto
Onkyoinked5 is offline
