Good day gents! I am currently in the process of closing on my new home (yay! no more apt!) and will be having a man room. This will not be a dedicated theater but will definitely have most of the characteristics of a theater. Let's say it shall be the focal point.

I would like to clarify that I am very open to constructive criticism and advice, so PLEASE do not hold back.

PINTO PLACE shall contain the following equipment and features -

Items to be included -

HOME THEATER
Khanspires (front left and right)
Dayton RS Center channel (center, duh )
MARKK 225/28A's (surrounds)
EMOTIVA XPA-3 (power for front stage)
EMOTIVA UPA-2 (power for surrounds)
ONKYO 876 (for now the processing...will change down the road)
Projector (researching currently)
110" diagonal screen
substage including Elemental Designs 19Os and 13As (may change)
Lighting system, acoustic treatments and room treatments

Mini Wet Bar ( the closet will be converted)

Foosball table

Arcade Authentic Galaga machine (maybe with Ms. Pac-Man, still considering a custom unit with emulators)

Poker Table (custom built)

I shall post the current blue print I have been working on and some pics of the actual space as the seller had it.

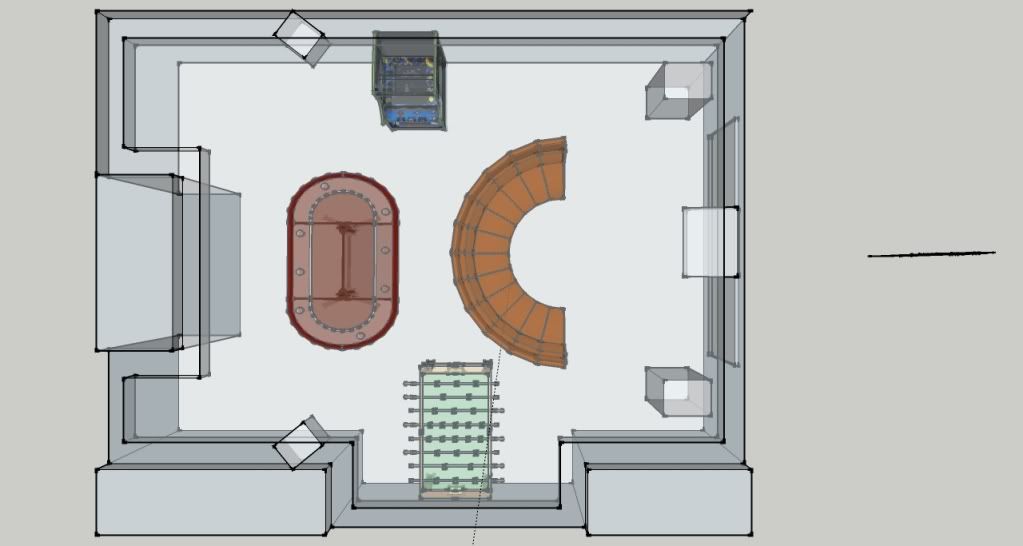

Blueprint -


Pics -
From the doorway/hallway


Screen wall


Left wall


Rest of left wall


Back wall


Right wall


Rest of the right wall
joeybutts is offline
Sponsored Links
Advertisement

post #2 of 94 Old 02-13-2012, 11:44 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
My first area of concern is soundproofing. The room is above the garage, has an attic above, and the hallway and bathroom back up to the room. Pics below show the room above the garage -



and behind the closet in the man room is the master bath and beside the closet is the second full bath(easy place to tap into water and what not for the wet bar).

So I was unsure if I should gut the entire room and start from scratch or if I could get by doing the ceiling and back wall. This is where the expertise of the forum really comes in handy. I don't want to tear out the whole room and then be told, "oh you could have just done...."
joeybutts is offline
post #3 of 94 Old 02-14-2012, 06:15 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
First time with sketchup! Trying to get a better idea of how things will go.

Coming along
joeybutts is offline
post #4 of 94 Old 02-14-2012, 02:43 PM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
some more work done in sketchup. slowly but surely getting the hang of it. Re did the speakers so they are components, and added a couch, similar to what I would like.



joeybutts is offline
post #5 of 94 Old 02-14-2012, 02:47 PM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Just thought about this. Center viewing position is about 10ft back. I would have to severely angle the center channel to be focused in that position. I think I may be better off putting it on a riser on the floor since I will only have one row of seating.

What doth thee say?
joeybutts is offline
post #6 of 94 Old 02-15-2012, 06:44 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Almost perfect in layout. Only thing it looks like I am going to have to compromise on is the walk through between the foosball table and the couch. Unless I offset the couch or tighten up the space between the foosball table and the offset near the hallway into the room. Or just live with the ~8" gap.



joeybutts is offline
post #7 of 94 Old 02-16-2012, 06:36 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Wet bar under construction, repositioned the center channel and keep changing my mind on the couch.







Also am 90% sure I'll be picking up a U Line bar fridge with ice maker.
joeybutts is offline
post #8 of 94 Old 02-16-2012, 08:32 AM
Advanced Member

Scout's staff's Avatar

Join Date: Jan 2011
Location: Massachusetts
Posts: 590
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 21
That room is going to feel pretty small with all that stuff in there. I'd pull out the poker table and move the couch back a few more feet. After adding chairs around the table, I think it will feel very cramped. just my 2 cents. good luck

Oh, and toss the Yankees stuff too..... ; )
Scout's staff is offline
post #9 of 94 Old 02-16-2012, 09:34 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Quote:
Originally Posted by Scout's staff View Post

That room is going to feel pretty small with all that stuff in there. I'd pull out the poker table and move the couch back a few more feet. After adding chairs around the table, I think it will feel very cramped. just my 2 cents. good luck

Oh, and toss the Yankees stuff too..... ; )

Thanks Scout! I am a little concerned about how it will feel in there when I get stuff in there. Thankfully I am going to do each piece as I go. So I will be able to measure and lay out and get a feel before I spend the money buying and building.

I am thinking about making a narrow poker table, so only about 3' wide instead of the one in the pic that is almost 4' wide.

No worries on the stuff in the room. That's the sellers stuff.
joeybutts is offline
post #10 of 94 Old 02-19-2012, 07:22 PM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Just about done with the planning unless in looking at other build threads I find something to pull from them.









Let me know if you guys see some thing that is WAY out of place or you think would be better.
joeybutts is offline
post #11 of 94 Old 02-20-2012, 06:43 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Ok, first question. Soundproofing.

The room is above the garage at the end of the house, only connected to the rest of the house by the backwall (the wall behind the surrounds) and the attic. I was planning on using WC and Hat channel on the entire room, but can I get away with just doing the back wall and ceiling? I started using estimator for how many I would need and it would be cut by about 70% if I do just the back wall and ceiling. I will be doing DD + GG on the entire room as well.
joeybutts is offline
post #12 of 94 Old 02-22-2012, 06:24 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Soundproofing thread for the space -
http://www.avsforum.com/avs-vb/showthread.php?t=1395492
joeybutts is offline
post #13 of 94 Old 02-23-2012, 06:25 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Another piece has been acquired! Say hello to my new Bar fridge!

http://www.u-line.com/products/2000-...o-co2175f.html

It is the older model, the 2075, not the 2175, but is supposedly minty fresh.
joeybutts is offline
post #14 of 94 Old 02-23-2012, 11:16 AM
Newbie

inyouratmosphere's Avatar

Join Date: Jan 2012
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
WOW. This is one serious "Man Cave". Looks like it will be very cool. My fiance will be jealous when I show him your sketches. I am curious if perhaps with all the big furniture pieces in the room, it might feel too small. What if you move the Foosball table so that it sits horizontal to that wall instead of perpendicular to it. Obviously you would want to leave some room along the wall so someone can squeeze behind it to play that side. Maybe this will give you more walking space past the couch?
inyouratmosphere is offline
post #15 of 94 Old 02-23-2012, 11:27 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Thanks IYA! That spot between the foosball table and couch is the only one I feel is going to be a little tight. When I get in the space after redoing the room I am going to see if I can slide the table a bit toward the back wall to free up some room. If not, I can handle compromising there.

In regards to the poker table, I feel the chairs that I put around it are going to be the ultimate deciding factor on what the room feels like. Tons of "free" space in front of the couch, I think i measured a bit over 2ft between the corner of the couch and the arcade game, and I am building a custom poker table that will only be 3 ft wide instead of the typical 4, which will give on average 2.5 ft on each side of it. Obviously when people are playing poker it will be a bit tight to walk around there, but I don't propose a lot of people will be up and moving in the middle of a tourney, and if they are no one will really be watching the projector.

I'm hoping it doesn't feel too tight, but think i am right at the line of comfortable and too close.

I've done some thinking about the cabinets and can't wait to build those. Going to carry some nice architectural/geometric cues in the door panels for the upper cabinets. I'm crazy excited to start. Only 6 more days till I get keys for the house!
joeybutts is offline
post #16 of 94 Old 02-27-2012, 10:56 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Next phase of planning. Lighting.

What would you guys suggest to keep this looking clean. I like the 4" lights most people are using right now for under the soffitts, but am concerned about the poker table and general light. Would you go with sconces in this type of room? ceiling light fixture?

The only lights I am set on are LED's on the faces of the soffitt behind/on top of the lower molding and the 4" lights under the soffit.

Give me some ideas here........pics would be nice.

Just thought about it...or is it as simple as 2 more 4" recessed above the poker table and two above the foosball table? I will be using a Grafik-Eye.
joeybutts is offline
post #17 of 94 Old 03-19-2012, 06:27 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Finally had an opportunity in the midst of moving into the new home and having the whip cracked on me to get things done, I was able to clean up a bit in the man room and get a chair, my old 55" TV, my Khanspires and Dayton RS Center hooked up and running.

The room is actually very well sealed off from the rest of the house. With the hollow core door closed, the SPL level immediately outside the door is at a normal level while the system is playing at reference level. Obviously I don't have the subwoofers in there yet, but has me optimistic on how well it will be soundproofed when I get done treating it. Downstairs you can just make out noise, I'd say it is whisper level.

And actually, The most sound I hear outside of the room is actually outside of the house! I think that is because the venting for the attic is right above Pinto Place.

I'm going to do as someone else did....I can't remember who it was, but they sealed the holes in the hollow core and then filled it with sand and the door weighed in excess of 100 lbs they said. So I'm going to try that out first and see what happens, along with gasketing the door frame to completely seal it. Cheap and quick way to see just what I am working with.
joeybutts is offline
post #18 of 94 Old 03-22-2012, 05:47 AM - Thread Starter
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13

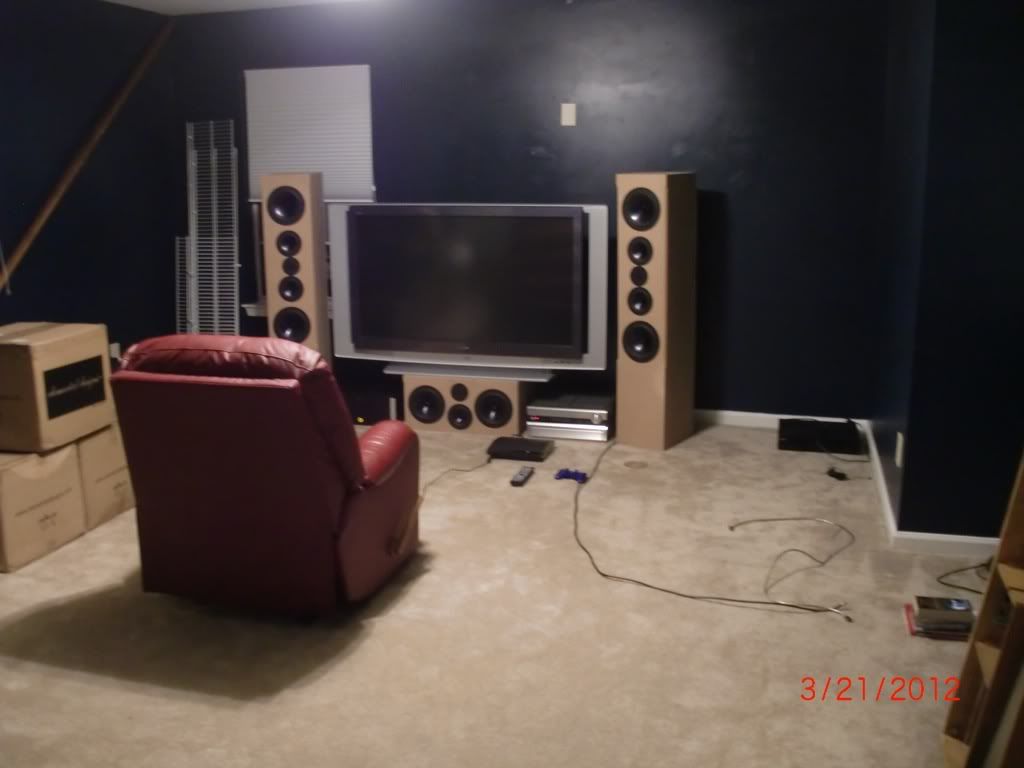

Temporarily setup, more so that I have places to put things for now so I can get situated and moved in. Things will get moved out in a short while for the gutting and reworking, but for now enjoying the space.
