Hey everyone I am a new poster but a long time looker for a while now. I am looking to redo my basement as our new family room. I have controlled lighting but there is ambient lighting coming through windows(I plan on getting dark matte black shades to go around the whole room for now to cover the windows and white walls)...

I was wondering if installing a projector to the ceiling with a mount. I ask this because my local store does not carry the model projector I will be getting and I don't know of they will install if I don't get it there..on the same not I was going to get a motorized drop down screen...I'm not new to installing things around the house or construction work in general, I just wanted to get your guys thoughts if I should try and find someone to install
lclacrosse28 is offline
Sponsored Links
Advertisement

post #2 of 8 Old 04-27-2012, 10:22 AM
Advanced Member

lewke's Avatar

Join Date: Feb 2007
Location: Mountain View, CA
Posts: 544
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Install yourself...you'll be fine.....
lewke is offline
post #3 of 8 Old 04-27-2012, 10:41 AM
AVS Special Member

tlogan6797's Avatar

Join Date: Feb 2005
Location: Northern VA
Posts: 4,834
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 36
How do you plan to run the wiring? You need an AC outlet AND low voltage (HDMI, component, etc) for the projector.

Tom Logan
Everytime I reply the thread ends
Need motivation? Get LOGANED

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


An as-yet un-named theater designed by Big-WarrenP-BritInVA
tlogan6797 is offline
post #4 of 8 Old 04-27-2012, 11:18 AM
AVS Special Member

jayn_j's Avatar

Join Date: Aug 2002
Location: Milwaukee, WI
Posts: 1,240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 28
Well, the ceiling mount is the toughest one to do right. It still isn't bad, but I would consider a couple of things.

First, how big is the room? If it is 20' or less deep, you might want to consider shelf mounting on the back wall. It is easier, and has the advantage that the projector doesn't drop down into where it might get bumped around. Which leads to...

Second, how high are the ceilings. It simply isn't going to work if you are planning on hanging it from a 7' ceiling above a 12" riser. Basically, make sure the projector isn't going to interfere with traffic patterns or sight lines.

If the ceiling doesn't have drywall yet, preplan for the cable runs. You will need power and a low voltage box near the projector for data lines. You will need to run an HDMI cable over to your equipment, so either pre-wire, or consider the joist runs carefully. You will also need to run low valtage wiring to the screen to handle the auto-retract feature.

Also, buy a GOOD mount, like a chief. The cheap mounts won't stay in place and will wiggle any time anyone moves. Trust me on this one, or you can buy my cheap mount...very cheap!
jayn_j is offline
post #5 of 8 Old 04-28-2012, 05:49 AM
AVS Special Member

psgcdn's Avatar

Join Date: Sep 2006
Location: Prov. of Quebec, Canada
Posts: 4,451
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 199
What kind of mount or shelf really depends on the projector's range of throw-distance and vertical (and maybe horizontal) offset. You can even mount it upside-down on the ceiling (as it were sitting upside-down on a shelf) as a DIY solution that looks better (to me anyway) than an expensive mount sticking out of the ceiling (it's cheaper too).

Remember, it's called "AV Science"!

My HT
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Peter

psgcdn is offline
post #6 of 8 Old 04-28-2012, 09:54 AM - Thread Starter
Newbie

lclacrosse28's Avatar

Join Date: Oct 2011
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thanks for the replies so far guys...I forgot to mention my basement has a drop ceiling...would I be able to mount it to the wood above the ceiling? It's about a 7 1/2 ft high ceiling
lclacrosse28 is offline
post #7 of 8 Old 05-01-2012, 05:03 AM
Member

glend123's Avatar

Join Date: Oct 2007
Location: Grayslake, IL
Posts: 68
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11

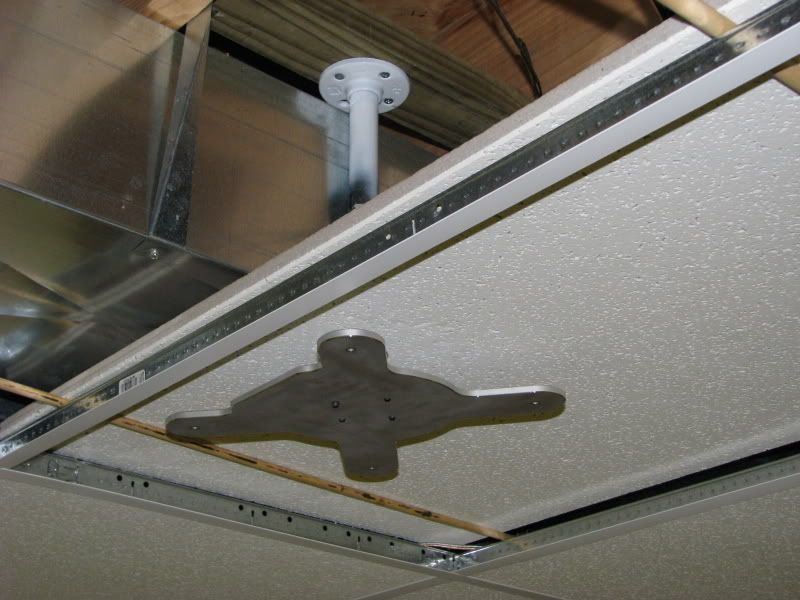

Here's how I mounted mine to a 2 x 4 screwed between the ceiling joists with a galvanized pipe and fittings from the hardware store. The aluminum projector mount is custom made.
glend123 is offline
post #8 of 8 Old 05-01-2012, 05:29 AM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,790
Mentioned: 4 Post(s)
Tagged: 1 Thread(s)
Quoted: 260 Post(s)
Liked: 606
If you use a Chief mount system with the down pipe you can just put a round pole through a hole in a ceiling tile and their is no need for a custom plate.
