I remodel one room of my 1975 home per year and this year it is the living room on the main floor, which is the primary room we use to relax, watch TV and movies, listen to music, entertain guests. My goal in the remodel of this room is to put as much of the good stuff from a dedicated HT into the main room of our home without it looking any different than a "normal" room - stealthy, if you will. I have some decent gear that I have put together so far that sounds pretty nice. This gear is copious and huge, which represents the first challenge of this project, which is to make it inconspicuous. I have finished the first part of this project, building it. Now it's time to finish and dial in the a/v gear, automation, room treatments.

The main goals and needs for this room are:
1) WAF
2) reference 9.2 audio with "stealth" integration
3) hardwood floors
4) family functional


Challenges
1) reflections from the new hardwoods
2) vaulted ceilings
3) large bass-traps, diffusers, ect. are not wife approved
4) multiple openings into the room.
5) rattles
6) cost

Before:



This wall gets removed, an island goes where the subs are


This will be the new screen wall with the a/v rack built in to the wall on the right




The fireplace gets covered in stone veneer


Now
d_c is online now
Sponsored Links
Advertisement

post #2 of 121 Old 05-28-2014, 09:59 AM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Equipment:
Onkyo 818 a/v receiver
DIYsoundgroup Volt V8 ported surrounds
Bwaslo's AE TD12M and SEOS/DNA-360 mains
2 Gjallarhorn subs with TC Sounds LMS-U 5400
MiniDSP
Sanway fp14000 sub amp
Vizeo 60 LCD
Insteon lighting control
LED lighting
Jrule integration
JRiver audio and video files

Future additions:
tab tensioned 120" motorized PJ screen
TBD projector
OPPO 103



So far we have two of these


In two of these




6 of these


in 6 of these
d_c is online now
post #3 of 121 Old 05-28-2014, 04:05 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I had already decided to put the giant subs in the attic, firing down into the room. Where in the attic was the issue. I thought that the corners would be the natural place, but turns out not.

One of the very first things I did was to do a reverse "sub crawl," where I put a sub in the proposed LP and moved the mic around the room to find the best response. I also used REW's Room Simulator to find the best positions in relation to my LP. The open floorplan makes things tricky, and so does trying to simulate two subs that are in the air on an angle. I put the subs on the floor in the proposed positions and they sounded and measured pretty nice. So I began demo.







d_c is online now
post #4 of 121 Old 05-28-2014, 04:12 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I decided the wall between the two doors in the above photo needed to go to open up the kitchen. This would require a long header to support the ceiling in part of the kitchen on the other side of the wall. The ceiling only has 24" center 2x6 studs and 1/2" drywall, so I researched and found that I could make it instead of using expensive microlam since the weight is light and is not a weight-bearing floor above - only attic space.

The kitchen ceiling rests on this beam, so my new beam will have to support this one. It currently sets on the wall I'm removing.
d_c is online now
post #5 of 121 Old 05-28-2014, 04:15 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
The kitchen beam was supported by some ceiling jacks and then the wall between the rooms was removed. I cut out a space for the new beam.




Then I built my new one out of two 2x14 with OSB sandwiched between with glue and about a million nails





d_c is online now
post #6 of 121 Old 05-28-2014, 04:17 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
The new beam was lifted to place and secured to the other beam with something that resembles a heavy duty joist-hanger. Ceiling jacks removed and on to the sub placement. My wife was very happy with the new wide open space. We do a lot of entertaining, so this will hopefully facilitate people not having the need to all jam in to the kitchen when we have parties.



d_c is online now
post #7 of 121 Old 05-28-2014, 04:32 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
The next step was to get the 350 pound subs into the attic and then scoot them back and forth until I find the smoothest response in a room that is not drywalled. I used the rough cedar beams that I tore down from the ceiling and built a ramp to the attic. I used another and built another beam in the attic to attach an engine winch to. Thank you Archaea for loaning me this!!!

I ran several 2x6 across the top of the ceiling joists where the subs would sit. These also serve the purpose of sliding the subs back and forth for placement.

I strapped the sub to a furniture dolly and used climbing webbing and gear to get these heavy beast up safely. Luckily I had a few friends to help, but 99% of the work was done by the winch. It was a breeze!









d_c is online now
post #8 of 121 Old 05-28-2014, 06:54 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
One of the goals is to keep the audio gear hidden, yet be reference capable from 15hz up flat. One thing I am worried about is my lack of options for room treatments. Building some open top soffits is a good way to add 4 rolls of R16 (pink fluffy) to help trap some bass and ease reflections. I decided on using metal stud channel and 2x4 to build this floating soffit around the room, and for the peak as a cloud to add some more treatment area and to cover an ugly rough cedar beam. I spent a lot of time getting these things level, and I'm so glad that I did. Every step after is much easier if the foundation pieces are square. I'm within 1/8" all the way around, btw smile.gif





d_c is online now
post #9 of 121 Old 05-28-2014, 07:06 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Next up is installing the surrounds. I'll add a link to the build and discussion above, but in a nutshell, I decided on the DIYSG V8 ported coaxial design because of it's relatively small enclosure for the ported alignment, wide axis, and incredible sound for a ridiculous price. I followed the THX charts for surround placement for rears, sides, front wides, and LCR. Each enclosure uses a different angled front baffle to aim the speaker just over the head of the MLP, which means that I had to design 3 different boxes for each location. Once finished, I cut away a section of the metal channel and slid them in their place in the soffit. The boxes were designed and built before the soffit, so the installation was fairly easy fastening them in to place.











d_c is online now
post #10 of 121 Old 05-28-2014, 07:11 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
The ceiling joists received some more bracing and some Baltic Birch wrap on the inside of the joists. These give support and are the backing for some speaker grills that will be flush with the wall.

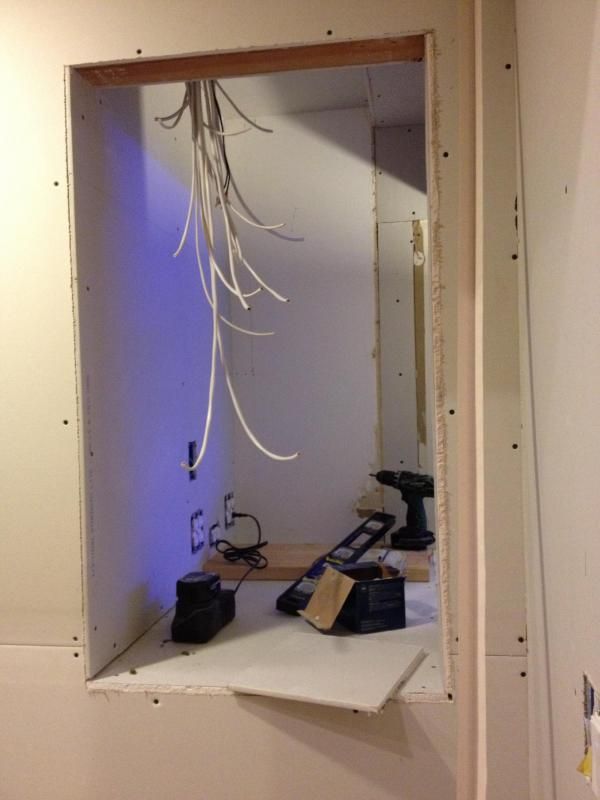

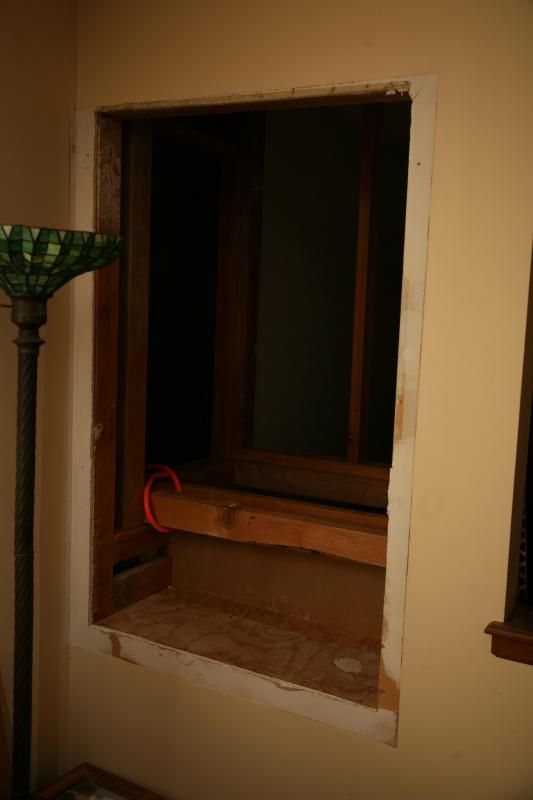

This is the back of the a/v cabinet freshly framed in. This is over the stairs that go down to our basement so, free real estate gained there. I installed 4 outlets on a 20 amp line, dedicated 30 amp line, cat5, coax, and every other wire I thought I could ever need. Also 16g wire to all of the surrounds, 12g wire to the two subs directly overhead, and 3 additional sub runs for rear corners and near field.

d_c is online now
post #11 of 121 Old 05-28-2014, 07:40 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I broke down and paid the man to hang the drywall for me. They were not impressed with all of the angles and such, and charged accordingly. I'm picky about finish work, so I opted to finish it myself and save some dough. They did an OK job and hung it all in a day and installed the outside corners.









the a/v closet didn't fit in the budget, so I did this myself with the leftovers
d_c is online now
post #12 of 121 Old 05-28-2014, 07:47 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
After countless hours of finishing all of these angles and corners, I rolled on PVA primer, then sprayed on two coats of ceiling white with my airless sprayer.

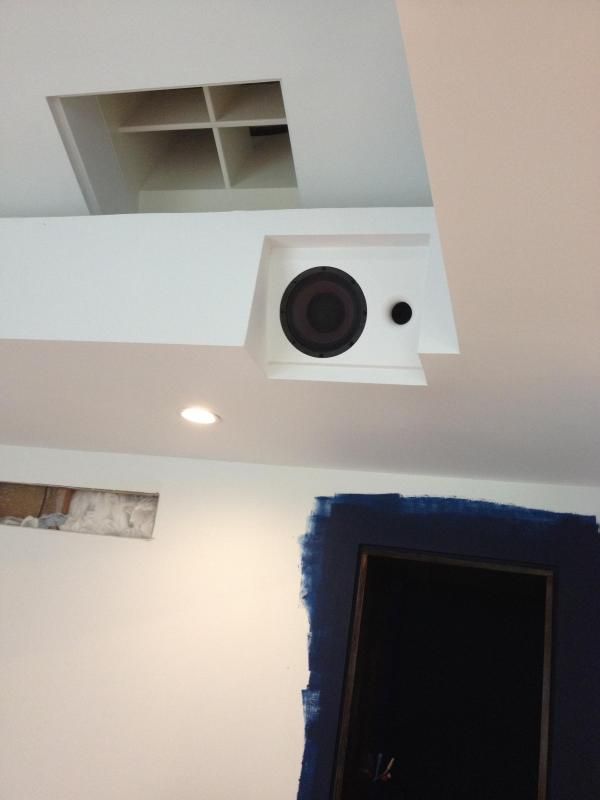

I had to install the surrounds to make sure they sound good - they do. So I hooked up the subs too. These will all be covered with an L-shaped grill so that they disappear in to the soffit.

d_c is online now
post #13 of 121 Old 05-28-2014, 07:50 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I decided to use the pros again for flooring and the guy came out and installed white oak in this room and in the hallway. We chose Provincial as the stain.




d_c is online now
post #14 of 121 Old 05-28-2014, 08:33 PM
Advanced Member

steve1022's Avatar

Join Date: Feb 2009
Location: KC Metro
Posts: 575
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 33
Wow, nice job so far.

PSN: ROLL_mf_TIDE

Vizio M601D-A3R w/ Vizio VSB207BT soundbar | Vizio M501D-A2R | PS3 Slim | PS4 | Harmony 650 Remote | DirecTV Genie WHDVR | Sony S5100 BD Player
steve1022 is offline
post #15 of 121 Old 05-29-2014, 06:30 AM
Advanced Member

djearl81's Avatar

Join Date: Jan 2005
Location: Midwest
Posts: 725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 20
Heavy duty stuff DC. Looks great so far.

I'm confused too.

djearl81 is offline
post #16 of 121 Old 05-31-2014, 09:01 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Thanks guys - notice the photo quality gets worse as I progress since I lost the SD card for the 5d.

I stuffed a roll of R16 in each side of the soffit. It is amazing how the echoes disappeared with just a couple of hours of work. The one at the vault is also stuffed with about a half a roll.

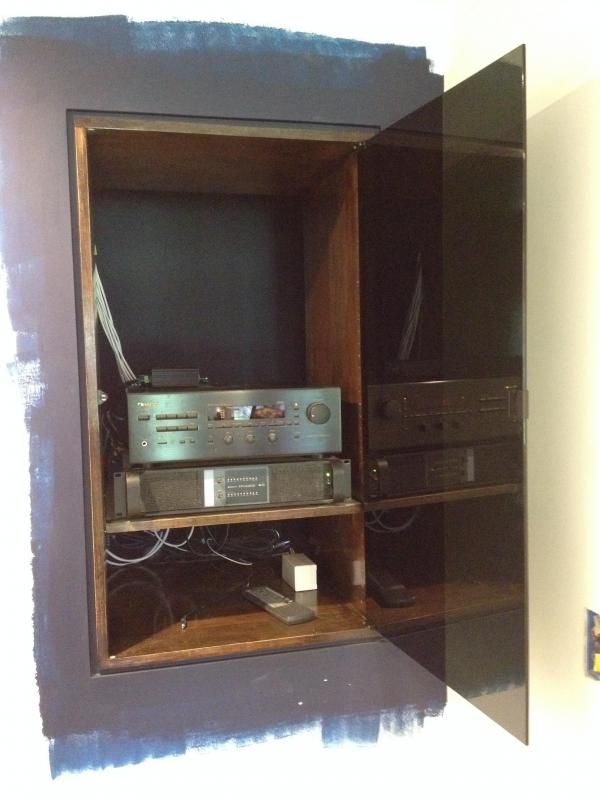

I used some maple ply for the a/v rack and iron-on veneer for the edges. The blue around it will be the color of the screen wall.









d_c is online now
post #17 of 121 Old 05-31-2014, 09:07 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
The next big project for the room is to rock veneer over the fireplace and cover the top with drywall. We don't care for the inverted V, so that gets covered up. I wanted to do a granite hearth, but we decided on poured concrete since I could do that on the cheap and it would be better a hiding dust when we are feeling lazy.







d_c is online now
post #18 of 121 Old 05-31-2014, 09:08 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
d_c is online now
post #19 of 121 Old 05-31-2014, 09:13 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I did the hearth next because the stone sits on top of it. The forms are from http://concretecountertopsolutions.com/ and are very easy to work with. Cut them to fit with your mitre say and screw them in to a concrete board base with 1/2" screws, duct tape the corners, fill 'er up. They just snap off once the concrete cures.



d_c is online now
post #20 of 121 Old 05-31-2014, 09:14 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Fill it 1/3 of the way up with mortar mix with acrylic fortifier and insert some wire mesh or rebar






I used a diamond pad to take some of the shine off of this after it cured up for a few days
d_c is online now
post #21 of 121 Old 05-31-2014, 09:18 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Playing Tetris

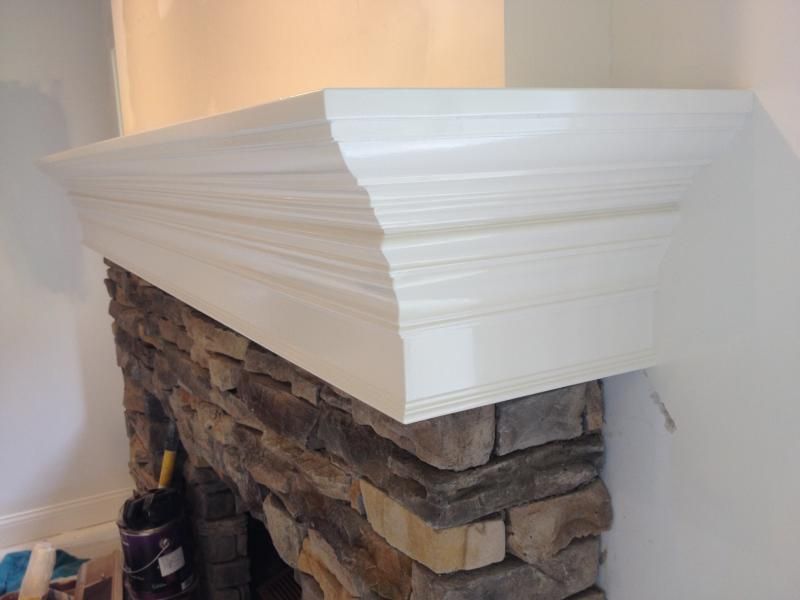

The mantle gets reworked with 4 different pieces of trim and a pine plank top

The front door gets a new round of trim

Crown for the soffit
d_c is online now
post #22 of 121 Old 05-31-2014, 09:22 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I use Kilz oil through my airless sprayer for all of the woodwork. I also installed base all the way around and sanded down 9 solid panel doors to paint at the same time. My house looked like one of Dexter's kill rooms.



Yesterday I hit a major benchmark: spraying the top coat of enamel. It's all easy stuff from here on out. I spent 14 hours sanding, filling holes that weren't quite flat, and caulking. My wife helped me with some caulking at the end of the night and then finished 6 sides of the doors while I was at work for the next two days, which really helped me out. It is VERY tedious work to do right. She wouldn't let me take a photo of her working on them to put of Facebook that says, "Mary sure knows her way around the caulk." She did a great job and I wanted to brag, so what's the big deal? wink.gif

I use Sherwin Williams 50% Vellum ProClassic semi-gloss enamel for all my trim. It lays down awesome with the airless. I am very happy with how it turned out - zero runs, which is a near-miracle for me with this much product

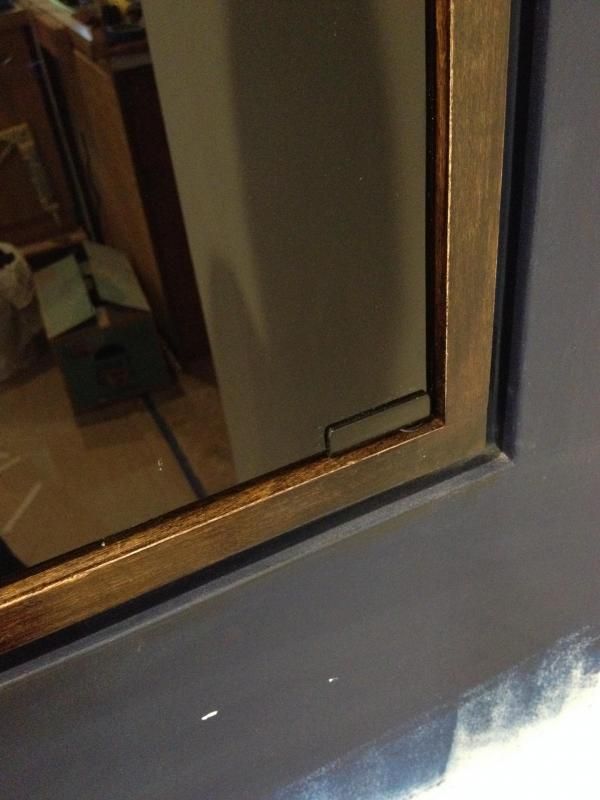

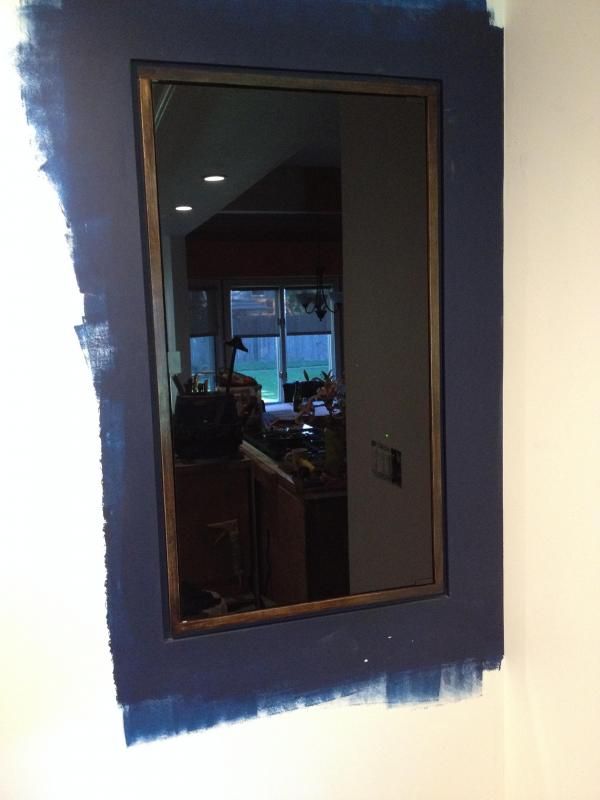

My glass for the a/v rack door was delivered as I was spraying, so I installed this after I cleaned everything up and recovered from the vapors. I can't wait to get the good gear all loaded up in the rack and watch some movies!



I bought this today and will be here in 7 days, so I have some painting of walls to do

d_c is online now
post #23 of 121 Old 05-31-2014, 10:00 PM
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Some phenomenal work in here. Great job!
joeybutts is offline
post #24 of 121 Old 06-01-2014, 12:42 AM
Advanced Member

kevings's Avatar

Join Date: Dec 2001
Location: Anaheim / Orange
Posts: 725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 198
kevings is offline
post #25 of 121 Old 06-03-2014, 07:29 AM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Lots of painting going on this week. The floor guy is buffing and adding the final coat right now. We were up late getting the paint finished so I could get the paper off the floor.

d_c is online now
post #26 of 121 Old 06-03-2014, 02:30 PM
Advanced Member

steve1022's Avatar

Join Date: Feb 2009
Location: KC Metro
Posts: 575
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 33
Quote:
Originally Posted by d_c View Post

Lots of painting going on this week. The floor guy is buffing and adding the final coat right now. We were up late getting the paint finished so I could get the paper off the floor.


Amazing job on that fireplace.

PSN: ROLL_mf_TIDE

Vizio M601D-A3R w/ Vizio VSB207BT soundbar | Vizio M501D-A2R | PS3 Slim | PS4 | Harmony 650 Remote | DirecTV Genie WHDVR | Sony S5100 BD Player
steve1022 is offline
post #27 of 121 Old 06-04-2014, 12:09 PM
Senior Member

joeybutts's Avatar

Join Date: Mar 2008
Posts: 367
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 13
Is that a sanway I see tucked in that cabinet??
joeybutts is offline
post #28 of 121 Old 06-04-2014, 12:56 PM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,074
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by d_c View Post


With the wall gone, how are you planning to vent the stove? I can see the original hole for the vent in this picture, but I have not seen a picture from this angle since.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #29 of 121 Old 06-04-2014, 04:59 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
I
Quote:
Originally Posted by joeybutts View Post

Is that a sanway I see tucked in that cabinet??

It sure is. I had a bridged ep4000 for each Gjallarhorn while I was building the room, but I had to try out the clone once the surrounds were in. I'm glad I did. The bigger amp is a game changer for those monsters.
d_c is online now
post #30 of 121 Old 06-04-2014, 05:01 PM - Thread Starter
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 746
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked: 103
Quote:
Originally Posted by BeerParty View Post

With the wall gone, how are you planning to vent the stove? I can see the original hole for the vent in this picture, but I have not seen a picture from this angle since.

Nope, no vent. Not yet. If it causes an issue, I will install a vent directly above and assign a switch with the Insteon system, but I don't think we will need it. We aren't greasy cooks, unless we are talking about meat candy (bacon).
d_c is online now
Reply General Home Theater & Media/Game Rooms

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
