I always thought that HDMI was too big to fit into a standard keystone jack... but I found this:

http://www.vpi.us/keystone-inserts.html

Is this for real? If I can do HDMI into a keystone I would much rather do that than the "decora" plates... I want to squeeze as much as I can into one single gang wall plate.

Will this work?
ajbowman is offline
Sponsored Links
Advertisement

post #2 of 87 Old 01-03-2008, 02:28 AM
Newbie

JohnBurger's Avatar

Join Date: Sep 2006
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Too good to be true? Possibly.
HDMI has VERY strict impedence rules, and a coupler like that may very well break them.
Plus, of course, you'll need two of them: one to get into the wall cavity, and then again to get out again. I guess that's why the Decora plates are so expensive - they impedence match very well (and I like their 90-degree back-plate!)

However, for $7.50 each, it's probably worth the experiment. I'd buy them, but connect them outside of the walls first, using the three cables you were going to use between the source and TV/projector. Check for HDMI "sparklies" - if you don't know what they are, you'll know as soon as you experience them!

The best thing about these? You don't need to wire to fussy panel connectors.
The worst thing? Pulling ready-made $200+ cables throiugh walls, trying not to stretch them, let alone break them!
JohnBurger is offline
post #3 of 87 Old 01-25-2008, 02:22 PM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
I have just purchased 2 of these HDMI Keystone Jacks:

http://www.trianglecables.com/hdmi-key.html

Here is the link for a Carlon SC300PRB Recessed Dual Voltage 3 Gang Old Work Plate
Along with this old work 3 gang box for behind my plasma <- UPDATED LINK TO VOLTAGE PLATE 1/11/10

I will let you know how they work out.

Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #4 of 87 Old 01-28-2008, 07:53 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Please do let us know. I am getting ready to install a plasma in the next 2-3 weeks and would love to go ahead and run 3 HDMI cables terminated like this. That recessed box is teh win!

XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #5 of 87 Old 02-01-2008, 04:42 AM
Newbie

the_Brayn's Avatar

Join Date: Mar 2007
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I'm very interested in finding out how these work as well. The Keystone inserts seem to be a much better price than the decora plates that I have seen.
the_Brayn is offline
post #6 of 87 Old 02-01-2008, 05:36 AM
Advanced Member

Maverickster2's Avatar

Join Date: Jul 2007
Posts: 803
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Crap! If these work, I'm gonna be irritated. I spent a week planning how to piece this together and a lot of my problem was that my two-port HDMI decora plate took up a whole slot (incidentally, Brayn, check out Monoprice for the decora plate, they're pretty cheap)! This would have been A LOT easier if I'd have been able to throw it in a keystone.



--Mav


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Maverickster2 is offline
post #7 of 87 Old 02-01-2008, 08:50 AM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
OK well I got the inserts and tested them last night. Here are the results:

1) Do they fit a keystone insert? Yes. The HDMI port will be this way | not - when mounted in a normal wall plate orientation.

2) I connected my two HDMI devices (HD DVD and HD Cable) to my plasma out of the wall for testing - Monoprice port saver -> 30' Monoprice CL2 rated HDMI cable -> HDMI keystone insert -> 3' Monoprice HDMI cable

When I first looked at the picture it was blocking all over the place and the sound was dropping in and out. I thought to myself..oh crap they suck. However my keen troubleshooting skills found out that the issue was that the coax cable going into the HD cable box was loose (this only took 40 min ). Anyway I am happy to report that with the fixed coax cable everything is fine. I have no picture quality issues with either the HD DVD or HD cable using the hookups I listed above. I will post a picture of my mockup this weekend.

If anyone has any questions let me know and I will try and answer them.

EDIT -

I am only running at 1080i resolution not 1080p or 720p. I don't know if that makes a difference or not but I wanted to be clear exactly what was tested.

Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #8 of 87 Old 02-01-2008, 09:05 AM
Newbie

the_Brayn's Avatar

Join Date: Mar 2007
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Yeah, the Monoprice ones aren't too bad but I was actually looking at staying away from the flexible extension cables. I've been trying to find cheaper outlets that have the 90 degree exit port. I've heard of some picture quality loss sometimes with those flexible extension cables which I would like to avoid if possible.

Jeff, that sounds great. I may have to try these out.
the_Brayn is offline
post #9 of 87 Old 02-07-2008, 01:36 PM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
Okies time to bump this up with some pictures As promised here are the pictures of everything, including the super neat recessed panel:











Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #10 of 87 Old 02-08-2008, 07:49 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I am building mine up this weekend and will post some pictures also. I ordered my HDMI keystones from the VPI inc link and they are not quite as nice looking as the ones you used from Triangle Cables. The VPI units are open in the front as opposed to having a piece of plastic the close it off. Not really a huge deal since they are going to be behind equipment and never seen, but I am anal I guess.


Also, I found a source for a double gang 12 port plate in one piece, so it will be interesting to see the differences. http://www.stayonline.com/detail.aspx?ID=5169

EDIT: They stopped carrying it. Looks like the same place at Parts express: http://www.parts-express.com/pe/show...number=151-196

The same place also has the power inlet part of the powerbridge for $10 plus shipping if anyone is interested. http://www.stayonline.com/detail.aspx?ID=4421

I am so happy you posted the link for the wall box though. That thing is the ultimate flat panel wall plate IMO.

XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #11 of 87 Old 02-08-2008, 01:06 PM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
I looked at those 12 port plates as well but I already had the speaker wall plate. I just decided to heck with it and made it all match with the Decora style. The one thing I do like about the double gang plates is that the connectors are spaced out more and the whole thing is a bit more sturdy.

I look forward to your pictures. I like pictures

Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #12 of 87 Old 02-11-2008, 07:01 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I will have to post pictures later, one thing I will say is that with the 12 port plates, I had to use a utility knife and cut about 1/8" off each side of the opening in the box for it to fit. Nothing major, but the extra space you mentioned comes at a small price.

XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #13 of 87 Old 02-11-2008, 02:15 PM
Member

BigJPDC's Avatar

Join Date: Oct 2007
Location: NoVa
Posts: 143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I was just going to post this very same question about the HDMI inserts. The geniuses that did my a\\v wiring left me with very little slack so I am going to do two keystone plates now.

Anyways, is there any kind of preference regarding speaker connections - banana vs. binding post?

thank you,
jp
BigJPDC is offline
post #14 of 87 Old 02-14-2008, 12:46 PM
Newbie

ashug987's Avatar

Join Date: May 2007
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Where you guys are getting the 6 port keystone decora style insert plate and 6 port decora style hole plate? I can't find them in my local homedepot/lowes/radioshack? Any online place where I can get it for cheap without paying much for the shipping?
ashug987 is offline
post #15 of 87 Old 02-28-2008, 06:09 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
OK, here are some pics of mine.

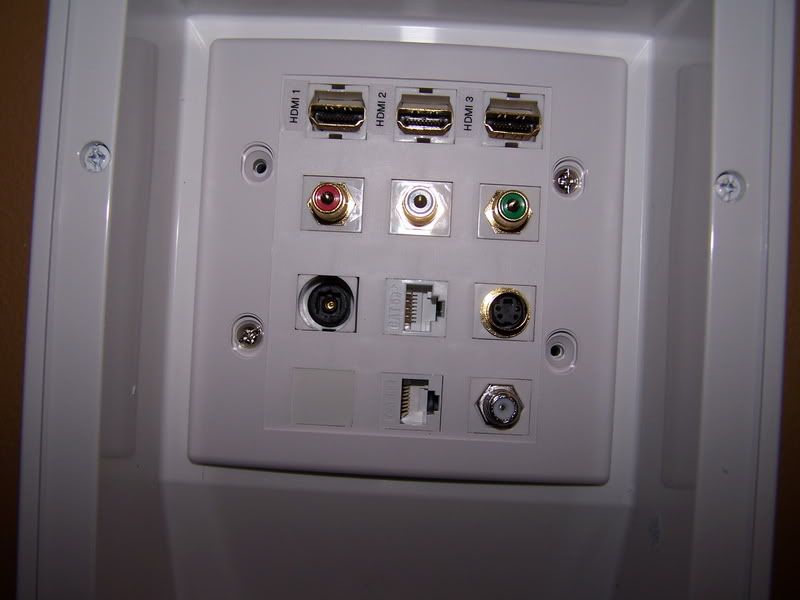

Front before everything was in. My wife is a label freak and insisted on making them for me.

Back - Man, that F connector was kind of recessed.

OK, I promise the box is not crooked, I was snapping these shots pretty quickly as I was working.

I ended up doing 3 HDMI, the F connector for an antenna feed to the TV, The Toslink for digital out from the TV, S-Video for my Laserdisc player , Component and a couple of Cat 5 runs for whatever. I might end up putting a IR repeater at the top of the TV and I figured I could use une for that, plus I know some TV's already have Ethernet jacks and figure it will be more likely in the future.

Yes, more drunken camera work evidently.


I had to run it vertically due to framing constriants. Because this wall backs up to stairs the studs are close together at at irregular intervals due to extra framing to catch the landing. It was nice knowing I was hitting 4 studs with teh TV mount though.



Oh, this one shows how the 12 port plate does not quite fit in the box, problem was solved in 5 minutes using a utility knife.


XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #16 of 87 Old 02-29-2008, 10:57 AM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
Great pictures Lee! I still have not mounted my in the wall yet. I am waiting on the shelves for the equipment and one electrical circuit. GRRR! How are the HDMI inserts working for you? Any issues?

As to the question about the speaker connections. The ones I get can do both. I generally use the binding post option for the in wall side and the banana plug option for the speaker side.

I got my 6 port Decora plate from Smarthome along with some other items so I was not concerned about the shipping cost.

Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #17 of 87 Old 03-03-2008, 08:12 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
So far, the HDMI are wrking perfectly with no issues, but I have only used a 1080i source. As soon as Panasonic gets off their rear and releases their new Profile 2.0 Blu Ray, I will let you know how 1080p does.

Of course, I have what seems like 50 pounds of cable hanging off the back there, even with only a 6 foot run for everything. I had to end up being pretty carefull about how I bundled it all so the cables fed out at the right places and I screwed a deck screw into the stud and tie wrapped the wire bundle to that to give me some strain relief.

XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #18 of 87 Old 03-04-2008, 10:15 AM
Member

__Tango's Avatar

Join Date: Sep 2007
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
ARGH. That 3 gang old-work box and the hdmi keystones are exactly what i needed about 2 months ago when i hung my plasma. I wish i had seen this before.
__Tango is offline
post #19 of 87 Old 03-05-2008, 10:26 AM
AVS Special Member

Erik Garci's Avatar

Join Date: Oct 1999
Location: Durham, NC, USA
Posts: 4,770
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Has anyone found HDMI keystone inserts with a locking nut?

I found this module, but it only works for "Euromod" wall plates in the UK.
http://www.aldoussystems.co.uk/acata..._Module-1.html


This lets you use HDMI cables with a locking screw, such as these:
http://www.gefen.com/kvm/cables/hdmi_dvi.jsp#hdmil
http://www.lindy.co.uk/hdmi-connector-lock/37399.html
http://www.partsexpress.com/pe/showd...number=181-729


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Erik Garci is offline
post #20 of 87 Old 03-07-2008, 11:06 AM
Member

Dave_n_debt's Avatar

Join Date: Nov 2007
Location: Windsor, CT
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Lee L View Post

So far, the HDMI are wrking perfectly with no issues, but I have only used a 1080i source. As soon as Panasonic gets off their rear and releases their new Profile 2.0 Blu Ray, I will let you know how 1080p does.

Of course, I have what seems like 50 pounds of cable hanging off the back there, even with only a 6 foot run for everything. I had to end up being pretty carefull about how I bundled it all so the cables fed out at the right places and I screwed a deck screw into the stud and tie wrapped the wire bundle to that to give me some strain relief.

Lee,

First thanks for pointing out the source. I used this setup for my ceiling mounted projector. I think the recessed jacks have a cleaner look than surface mounting everything.

I have a two and three meter cable with an inline booster in the middle. I found I needed the booster to get a reliable signal from my PS3 (even when hooking it up direct to the projector). I now use a Panny dmp-bd10 to watch movies and have both the PS3 and The Panny going through the switched circuit on my receiver over the 5 meters of cable with a booster in the middle and terminating with the HDMI keystone insert. I ordered a 1.5 foot cable from monoprice have no problems using 1080p.

Dave

David
------------------------------------

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Dave_n_debt is offline
post #21 of 87 Old 03-09-2008, 12:17 PM
Member

jonkras's Avatar

Join Date: Nov 2005
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Question to everyone -- Are you using the keystones/decora plates because it complies w/electrical code and provides a firebreak? Seems to me that it is always better to use one cable instead of three. It will save money and improve the quality of the connection. What is wrong with using a product like this?

http://www.datacommelectronics.com/product.php?ID=431
jonkras is offline
post #22 of 87 Old 03-09-2008, 08:02 PM
Advanced Member

[/quote]'s Avatar

Join Date: May 2003
Posts: 800
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jonkras View Post

Question to everyone -- Are you using the keystones/decora plates because it complies w/electrical code and provides a firebreak? Seems to me that it is always better to use one cable instead of three. It will save money and improve the quality of the connection. What is wrong with using a product like this?

http://www.datacommelectronics.com/product.php?ID=431

People use the plates here to make a nice neat termination, finish it off so to speak.

In reality, what you linked to is perfectly fine to use, some people will say it's better since it's a solid line instead of having so many breaks.
[/quote] is offline
post #23 of 87 Old 03-10-2008, 11:53 AM
Advanced Member

Maverickster2's Avatar

Join Date: Jul 2007
Posts: 803
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jonkras View Post

Question to everyone -- Are you using the keystones/decora plates because it complies w/electrical code and provides a firebreak? Seems to me that it is always better to use one cable instead of three. It will save money and improve the quality of the connection. What is wrong with using a product like this?

http://www.datacommelectronics.com/product.php?ID=431

Nothing wrong with it as far as I'm concerned. Some people have those cable "pass through"-type plates on "both sides" (1 cable); some people like the "finished" look of the wall plates, so have plates on both sides (3 cables); and some people (like me) compromised and "finished it off" with a wall plate behind my A/V rack and used a "pass through"-type plate behind the TV (2 cables). Whether having 3 properly connected cables (rather than 1) affects the quality of a digital signal is still up for debate, I think; and the question of whether it affects the quality of an analog signal will vary wildly depending on things like the length of the run, the gauge of the cable, etc., etc.

--Mav


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Maverickster2 is offline
post #24 of 87 Old 03-16-2008, 01:31 AM
Member

LEVEL4's Avatar

Join Date: Feb 2008
Location: Hollywood-Burbank Entertainment Industrial Complex
Posts: 149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jonkras View Post

Question to everyone -- Are you using the keystones/decora plates because it complies w/electrical code and provides a firebreak? Seems to me that it is always better to use one cable instead of three. It will save money and improve the quality of the connection. What is wrong with using a product like this?

http://www.datacommelectronics.com/product.php?ID=431

A couple questions, since I'm doing my in-wall wiring right now. Plus, I'm a strong proponent of the "one-cable" method . . .

• That looks like a manufacturer's site, not a retail site—where can you buy those recessed plates?
• Does anyone know if those are an acceptable method of passing low voltage cable into/out of sheetrock, according to the current National Electrical Code?

Thanks!

LEVEL4
LEVEL4 is offline
post #25 of 87 Old 03-17-2008, 08:53 AM
AVS Special Member

eq_shadimar's Avatar

Join Date: Jul 2001
Location: Plano, TX USA
Posts: 1,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 25
Quote:
Originally Posted by LEVEL4 View Post

A couple questions, since I'm doing my in-wall wiring right now. Plus, I'm a strong proponent of the "one-cable" method . . .

That looks like a manufacturer's site, not a retail sitewhere can you buy those recessed plates?
Does anyone know if those are an acceptable method of passing low voltage cable into/out of sheetrock, according to the current National Electrical Code?

Thanks!

From forum sponsor Monoprice:

http://www.monoprice.com/products/su...09&cp_id=10425

Scroll down to the bottom of the product list. They even have them in black.

Laters,
Jeff

...wake up to find out that you are the eyes of the world...

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

XBL = eqshadimar
eq_shadimar is offline
post #26 of 87 Old 03-18-2008, 05:03 AM
Member

LEVEL4's Avatar

Join Date: Feb 2008
Location: Hollywood-Burbank Entertainment Industrial Complex
Posts: 149
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by eq_shadimar View Post

From forum sponsor Monoprice:

http://www.monoprice.com/products/su...09&cp_id=10425

Scroll down to the bottom of the product list. They even have them in black.

Laters,
Jeff

Cool! Yes, of course, I'm a HUGE Monoprice fan! THANKS! Appreciate you taking the trouble to embed the link for me, as well! Even cooler . . . they even have them in GRAY! (My display-wall is 18% neutral gray) Woo hoo!

LEVEL4
LEVEL4 is offline
post #27 of 87 Old 04-07-2008, 11:04 AM
Newbie

TheSpiessman's Avatar

Join Date: Feb 2007
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Where is you find that recessed plate? It is exactly what I have been looking for. Any help would be great Thanks
TheSpiessman is offline
post #28 of 87 Old 04-08-2008, 08:32 AM
AVS Special Member

Lee L's Avatar

Join Date: Oct 2000
Location: Morrisville, NC USA
Posts: 2,090
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
http://www.galesburgelectric.com/Car...te-p-8606.html This is the recessed combo box. It was posted above, but is not easy to realize what it was. It is a Carlon proiduct so it is possible you can find it a a local place also.

XBOX Live: SheriffTruman

Do you want a nice Keystone Jack panel behind your TV with HDMI, and Toslink? Check
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Lee L is offline
post #29 of 87 Old 04-08-2008, 11:28 AM
Senior Member

T Morris's Avatar

Join Date: Apr 2003
Location: Duluth, GA
Posts: 272
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I was surprised to find that the Menards store near me carried the Carlon SC300PRB recessed outlet. It's $9 more than the mail order site but with shipping it's pretty close to a wash so I picked one up the other day for my media room build out that's in process.

There's also the Arlington recessed TV BOX that's available. Not sure if anyone here has tried it though.

I also ran across this site that carries VGA keystone inserts that are dual-wide and fit into plates they carry. I may go that route for filling in the CArlon box.
T Morris is offline
post #30 of 87 Old 05-20-2008, 06:09 AM
Member

kitabata's Avatar

Join Date: Apr 2008
Posts: 39
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Can anyone tell me what I'd need to do to insert the power outlet on the flat end and a 6 port keystone plate on the slanted end? I'm hoping I can use something like this as the power outlet:

http://www.monoprice.com/products/pr...seq=1&format=2
kitabata is offline
Reply General Home Theater & Media/Game Rooms

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
