Robert,
If it doesn't work out, there's always this box to build. It'll cut back on your boredom for a bit

You know you want to, LOL

Regards,
Dan
NEO Dan is offline
Sponsored Links
Advertisement

Old 07-06-2008, 11:37 AM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Robert,
I'd think the MJ series 18" would be similar to the original driver
You should measure the DCR of the coil with a DMM to see what you've got. Maybe you'll find the source of the buzzing while your in there

Regards,
Dan
NEO Dan is offline
Old 07-06-2008, 07:17 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
It sounds like it has a loose spider or something. At moderate excusion, sounds like a "flap, flap". I took the woofer out, but I see no visible problem.
Just trying to make a decision before the salegoes off.

Thanks,

Robert
robertcharles is offline
Old 07-06-2008, 07:23 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Has anyone used the mj18. I looked it up, and it looks to be just what I probably need.

Thanks,

Robert
robertcharles is offline
Old 07-06-2008, 07:29 PM
Senior Member

matt5112's Avatar

Join Date: Aug 2006
Posts: 358
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I havn't seen any mention of it but the MJ-18 has been replaced by the MJ-18M. It has a bit more of the usual (Xmax, power handling) and a lower FS for a slightly higher price. Check it out here.
matt5112 is offline
Old 07-06-2008, 07:33 PM
AVS Special Member

armystud0911's Avatar

Join Date: Jul 2006
Location: Cincinnati
Posts: 4,423
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Yeah, I saw that a few days ago, very sad for me, thankfully, they still have the old ones at SSA, who knows when they'll run out, I'd love if it they put them on clearance though, I'd buy me up an army of my favorite subs of all time.
armystud0911 is offline
Old 07-06-2008, 07:39 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Robert,
looks like you've got about ~12 hours to find the noise. Have you run the driver while out of the box yet? Usually easy to locate the source of noise at this point. Flapping is usually a torn or stretched spider oil-caning.

You should measure the resistance of the coil, if it turns out the stock driver is 8 ohm I'd put in 8 ohm MJ 18" since they are still available @ $116.

The Maelstrom drivers are quite a deal, but your boxes are 100l or less, they will work but more space is necessary for optimum performance. If you'd consider building the Maelstroms boxes down the road I say pull the trigger and look forward to another project.

Regards,
Dan
NEO Dan is offline
Old 07-06-2008, 07:53 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
No driver test today. Too much activity around here to do any kind of testing and disassembly. Just trying to use this time to get some ideas going and see if I shold do the sale woofers. If I don't get the sale woofers, I am in no rush. I could take my time. I seem to be creating projects way faster than I can get them accomplished.

Thanks,

Robert
robertcharles is offline
Old 07-06-2008, 07:54 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
robertcharles is offline
Old 07-06-2008, 08:12 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Robert,

It's calling to you
can you hear it? It's saying click me and buy me for $116 shipped

Regards,
Dan
NEO Dan is offline
Old 07-06-2008, 08:41 PM
AVS Special Member

Looneybomber's Avatar

Join Date: Sep 2006
Location: Lawrence, KS
Posts: 4,668
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 23
Quote:
Originally Posted by NEO Dan View Post

I've also ordered the EP2500 so I can get to the bottom of the SSF issue, now that i'll be able to use the power.

Again just incase someone didn't catch my drift


$325 Delivered
Kevin's got them on 4th of July special
Details: Here

Ok, I decided NOT to buy one...Wow that was a very hard decision to make.

YID DIY
Looneybomber is offline
Old 07-06-2008, 10:04 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I tried to model the mj18 but can't find bl. I modeled the maelstrom and want to compare the 2. Do you have thhe bl figure available?

Thanks,

Robert
robertcharles is offline
Old 07-06-2008, 10:49 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Robert,
something is not right with the params
If mms and cms are correct the params are:

and that's a shot in the dark

Regards,
Dan
NEO Dan is offline
Old 07-06-2008, 11:02 PM
Advanced Member

auburnu008's Avatar

Join Date: Jun 2004
Location: Auburn, AL
Posts: 887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 37
Hey I have 4 MJ18's that have been used lightly for sale. I know most people say that their subs were lightly used when they sale them, but these really have. They are about 6 months old. PM me if you are interested.
auburnu008 is offline
Old 07-06-2008, 11:13 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
bl is pretty high. What do you think? Tried to model it and got a graph but the program won't allow me to adjust the input signal and it does not change.

Thanks,

Robert
robertcharles is offline
Old 07-06-2008, 11:21 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Robert,
now I after looking at that I see the Maelstrom is several dB more sensitive @2.83v due to being 4Ω and just plain being better in that small a$$ box ~100l.
The 8Ω MJ18 looks pretty lame but it's probably OK. The original driver was probably just as mediocre.

But without the original driver params I've got no idea what to expect. And that amp will probably have a LT circuit.

So in the end I think the Maelstrom would be bass heavy on the low end, and possibly kill the amp due to the 4Ω load if driven too hard.

I know that wasn't much help, and that's sort of the point
I don't think the Maelstrom makes a good band-aid

But if you buy Maelstroms, in the end you can have good bass if you go DIY and build cabs.


I'm having a tough time not ordering 2 more Maelstroms as I type this

Regards,
Dan
NEO Dan is offline
Old 07-16-2008, 05:00 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
I just finished putting one together 5 pillows = 9.3466Hz tune. I ran a very high level sine wave below tuning to check for port noise, the suspension makes far more noise than the port. There are people in the house so I'm gonna listen to at lower level to get a feel for it's sound. When the house clears out, I'll open it up and see what it's got. So far I like what i see and hear, I was modualting the door in it's frame rather hard down to about 7.5Hz = 2" p-p excursion.

Regards,
Dan
NEO Dan is offline
Old 07-16-2008, 09:11 PM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
Dan, that is simpy too impressive for words!!!

Now I want to rebuild my TC2K ported subs!

I should have picked up those X-mals on sale....oh the itch!!

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
Old 07-16-2008, 09:14 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Close Mic response:
Red=Driver
Blue= Port
Green= Average offset +15dB

I don't have a SPL meter so SPL is NOT actual

Response at LP looks like the blue port trace but with my huge 36Hz room mode bump, hopefully the second sub evens it out some. I may take out a pillow to raise the tuning.

This takes all the K1 has with no distortion, I've never been able to light the clip indicators without worry before. The EP2500 is scheduled to arrive in the morning

Regards,
Dan
NEO Dan is offline
Old 07-16-2008, 09:15 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
the above response includes the K1's 8hz 3rd order double integrated filter, will try again with EP2500 ASAP

same as previous measurements

Regards,
Dan
NEO Dan is offline
Old 07-17-2008, 06:33 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
UPS strikes again going 2 for 2 dammaged in shipping
I think I'm going to glue the torrid to the chassis and call it a day

http://s111.photobucket.com/albums/n...t=DSCN3546.flv


Full Res 6.1megs on SkyDrive: http://cid-25586ae8216fdb6f.skydrive...e/DSCN3546.MOV

Regards,
Dan
NEO Dan is offline
Old 07-17-2008, 06:43 PM
Advanced Member

Rightbrained's Avatar

Join Date: Jun 2008
Location: LA , Lower Alabama that is
Posts: 818
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Dan ,
Sorry to hear about your UPS woes with the EP2500. Mine arrives here tomorrow also via UPS so I hope mine is in good shape.

If at first you dont succeed , get a bigger hammer !
Rightbrained is offline
Old 07-17-2008, 07:15 PM
Advanced Member

kingpin111's Avatar

Join Date: Jan 2006
Location: Oshawa, Ontario Canada
Posts: 594
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked: 85
You guys are lucky your not getting things all the way up here in Canada.
I had 3 broken 10" midranges out of 4 when they were shiooed to me. Thank god PE is a pleasure to deal with.

My ep2500 came to me in one piece......................except 1 of those little bags for moisture with the little plastic pellets broke loose and I had to take the amp apart to make sure they were all out of the inside. Burning plastic is not something I am fond of.

Mike

Quote:
MKtheater -I just saw 300 tonight, great movie. I literally wanted to spear people after the show
My speaker build PROJECT OVERKILL WWMTMSS
Photobucket link to build photos
Photobucket link to Project Overkill cut down
kingpin111 is offline
Old 07-17-2008, 07:24 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Today is definitely not my day. I just got out the second Maelstrom-X and was going to put it in my cabinet, the frame is cracked and bent. Looks like the driver was trying to chew it's way out of the box. At least it doesn't rub.

13.5megs full res hosted on SkyDrive: http://cid-25586ae8216fdb6f.skydrive...e/DSCN3548.MOV

This is ********, makes me wanna go postal, but my delivery drivers are cool, so I got no one to be pissed at. I really feel for Kevin in a situation like this, personally I'm wouldn't want to deal with this type of crap. I spoke with Kevin earlier today about something that didn't require a RMA or damage claim, and He is great to deal with.

Regards,
Dan
NEO Dan is offline
Old 07-17-2008, 08:25 PM
AVS Special Member

robertcharles's Avatar

Join Date: Jul 2007
Location: New Orleans
Posts: 1,658
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I thought my 5400's had a rough ride. I just don't know why, if the job is to deliver things, why can't or don't the shipping companies either do it right or just charge the right price to deliver it correctly the first time. Just shoving heavy boxes on a conveyer, and dropping them regardless of fragility or not seems to be disrespectful to the customer both purchaser and supplier. I feel for you Dan. Did you get the ED situation corrected?

Good luck,

Robert
robertcharles is offline
Old 07-17-2008, 09:02 PM
AVS Special Member

Kanaris's Avatar

Join Date: Nov 2006
Location: Montreal,Canada
Posts: 1,225
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
How was your Maelstrom-X packed? I know when I ordered my Tempests from CreativeSound they shipped them packed in premolded Styrofoam ... there was very little chance of them getting damaged...

Kanaris is offline
Old 07-17-2008, 09:59 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
Quote:
Originally Posted by Kanaris View Post

How was your Maelstrom-X packed? I know when I ordered my Tempests from CreativeSound they shipped them packed in premolded Styrofoam ... there was very little chance of them getting damaged...

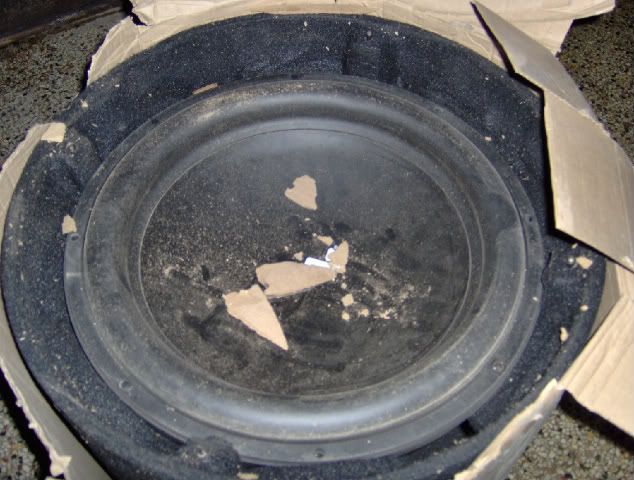

It's some die cut foam, looks nice actually:


apparently it took a hit that split the layers allowing the driver to chew it's way out

I'm not looking to send it back unless Kevin wants to make a DHL claim or it behaves badly.

Regards,
Dan
NEO Dan is offline
Old 07-17-2008, 10:06 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17
I took out a pillow and went ahead and mounted the second driver after sweeping it for params


I sat very quietly to avoid disturbing this sweep



Regards,
Dan
NEO Dan is offline
Old 07-17-2008, 10:59 PM - Thread Starter
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,988
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 17

Turquoise= Average +15dB
Gold= Port
Magenta= Driver
Blue= LP -10dB


absolute SPL is useless

Regards,
Dan
NEO Dan is offline
Old 07-18-2008, 10:58 AM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,155
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked: 248
Sorry to hear about the run of bad luck Dan! Reminds me of when I got my first XXX. UPS apparently dropped it down a flight of steps or something. I mean it was 114lbs in a wooden shipping tube and it was so damaged that there were screws floating around in the tube that got attached to the VC. I just got it back from RE Audio from reconeing it ($350)






Hey your measurements look pretty good in that box. The gold plot for your port looks interesting. Is the peak at about 170hz the first port resonance, if so that's not bad for a 50+" vent? I wonder whether it will compress with the Maelstrom at high volume?
Ricci is offline

Thread Tools


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
