post #61 of 208 Old 08-27-2009, 12:41 PM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Hey guys, I don't use any eq whatsoever. I did not boost the low end, that is with my lfe settings about 10 db's lower than my other speakers. I have what you call crazy room gain down low. That is the reason I went sealed. Look where the peak is, 7-25 hz. Room gain is great down there because that is the infrasonic stuff.

NEO Dan, I could only assume that my processor lets the lfe go up higher than 20 hz and full range so I have some overlap and why it peaks around 20 hz then add my room gain which is significant. My question is it possible to bring that down or bring my other speakers up. It sounds fantastic on full range with more clarity than ever. I gained more defined punch but lost spl in the punch area. Any suggestions?
MKtheater is offline
Sponsored Links
Advertisement

post #62 of 208 Old 08-27-2009, 02:41 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by MKtheater View Post

Hey guys, I don't use any eq whatsoever. I did not boost the low end, that is with my lfe settings about 10 db's lower than my other speakers. I have what you call crazy room gain down low. That is the reason I went sealed. Look where the peak is, 7-25 hz. Room gain is great down there because that is the infrasonic stuff.

NEO Dan, I could only assume that my processor lets the lfe go up higher than 20 hz and full range so I have some overlap and why it peaks around 20 hz then add my room gain which is significant. My question is it possible to bring that down or bring my other speakers up. It sounds fantastic on full range with more clarity than ever. I gained more defined punch but lost spl in the punch area. Any suggestions?

It depends on what your goals are but the easiest way to flatten the combined response would be to move the crossover back up above where your room gains starts, say 60Hz or higher. Then you'd only need a single EQ on the subs to flatten them out -- IF that's what you want. I'm not a big fan of a 'house curve' that boosts the lows but some people like it.

Dennis H
catapult is offline
post #63 of 208 Old 08-27-2009, 03:05 PM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Is a house curve typical of boosting 7-Hz or higher than that? Can EQ tame 7-20 Hz?

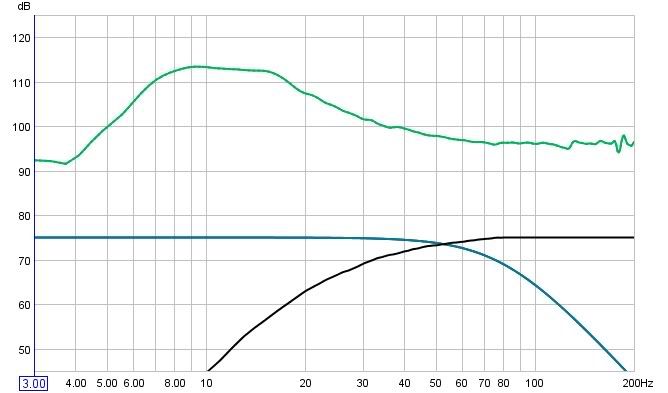

My graph for my crossover at 80 Hz and all speakers small.



BTW I tried lowering the bass(sub out) 10 more dB's and it did flatten out. What makes it weird is that it makes my subs or sub out's trim level 25 db's less than my other speakers which is far from flat when using test tones.
MKtheater is offline
post #64 of 208 Old 08-27-2009, 04:52 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by MKtheater View Post

Can EQ tame 7-20 Hz?

Sure, your response is flat from 7-20. You just need to adjust the stuff from 20-60 to match it and then set the sub level so the overall response is flat. If you're using pro amps for the subs, you can use their gain controls to help balance things if you don't have enough trim control in the prepro/receiver.

Dennis H
catapult is offline
post #65 of 208 Old 08-27-2009, 06:11 PM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Yes, I have done this since(with processor trim lower) my last post.
MKtheater is offline
post #66 of 208 Old 08-27-2009, 09:04 PM
Advanced Member

DL86's Avatar

Join Date: Jan 2006
Posts: 537
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by MKtheater View Post

I could only assume that my processor lets the lfe go up higher than 20 hz and full range so I have some overlap and why it peaks around 20 hz then add my room gain which is significant. My question is it possible to bring that down or bring my other speakers up. It sounds fantastic on full range with more clarity than ever. I gained more defined punch but lost spl in the punch area. Any suggestions?

Pro audio woofers like the ones used in your mains are of better quality than the ones in your subs.

So your room is 100% sealed with nuclear submarine like doors? How do you get oxygen in there? lol

Can't you just increase the gain for all your other channels leaving the subwoofer channel intact on your processor? I had a problem with using a yamaha PA speaker as a center, it was way too efficient needed to bring all my other speakers up and had the PA speaker at the lowest possible setting, about 9db difference.

To improve the black level performance of your projector: Shine bright light into your eyes every 5 minutes.
DL86 is offline
post #67 of 208 Old 08-27-2009, 09:06 PM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 29
MK's gain is really because his room pressurizes very easily. Sealed rooms have that trait....to tame it he should maybe keep the doors open.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #68 of 208 Old 08-27-2009, 09:19 PM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Penn, Great suggestion, I will open the doors and then take another measurement, too late right now for high spl sine wave test, shakes the house more than movies since very low frequencies are guarenteed. I did lower my LFE trim and it did reduce the 7-20 hz level anyway. My processor can lower the trim of anyway speaker as far as need be so I don't have to touch the gain on my amps.
MKtheater is offline
post #69 of 208 Old 08-27-2009, 09:31 PM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Hey Chucky, I checked on the parts for a DIY clone of my speaker and I would save some coin but how does one get the parts for the price actually listed by JBL? The dealer I usually use charges twice as much.
MKtheater is offline
post #70 of 208 Old 08-27-2009, 09:55 PM
AVS Special Member

NEO Dan's Avatar

Join Date: Jul 2006
Location: North East Ohio
Posts: 2,984
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 12
Thanks DL
I think you'll be just fine with those drivers, especially since you intend to HPF.

MK,
can you post just LFE and just fronts, that may make things easier to look at.
Also take care not to go too low or high with the digital trims you can run into SQ problems at either end of the adjustment ranges, digital clipping and muting if you drop below the least significant bit(noise floor).

We are really jacking this thread, should we relocate these posts to one of your threads?

Regards,
Dan
NEO Dan is offline
post #71 of 208 Old 08-28-2009, 04:46 AM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by MKtheater View Post

Hey Chucky, I checked on the parts for a DIY clone of my speaker and I would save some coin but how does one get the parts for the price actually listed by JBL? The dealer I usually use charges twice as much.

Call the parts department.
So that they don't catch on, I usually order in waves. First the waveguides, then the xover, then some of the drivers, then some more drivers, etc.
chucky08016 is offline
post #72 of 208 Old 08-28-2009, 11:23 AM
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked: 420
Thanks, that makes sense.

NEO Dan, I agree. I posted all over the place to get some info. Thanks
MKtheater is offline
post #73 of 208 Old 09-01-2009, 08:00 AM
Advanced Member

DL86's Avatar

Join Date: Jan 2006
Posts: 537
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Still thinking about going the JBL 2226H route, prefer US made speakers. I could build a single 15 with a big horn with an active crossover and possibly acheive better performance with a smaller box although more costly. What do you people think?

To improve the black level performance of your projector: Shine bright light into your eyes every 5 minutes.
DL86 is offline
post #74 of 208 Old 09-01-2009, 08:04 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 29
Quote:
Originally Posted by DL86 View Post

Still thinking about going the JBL 2226H route, prefer US made speakers. I could build a single 15 with a big horn with an active crossover and possibly acheive better performance with a smaller box although more costly. What do you people think?

Why not TD15Ms? US made, John is an AVS member and we have the measurements for them.

Are you following Augerpro's build? He did a 12" but there is no reason a 15" couldnt be used.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #75 of 208 Old 09-01-2009, 09:32 AM
Advanced Member

DL86's Avatar

Join Date: Jan 2006
Posts: 537
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by penngray View Post

Why not TD15Ms? US made, John is an AVS member and we have the measurements for them.

Are you following Augerpro's build? He did a 12" but there is no reason a 15" couldnt be used.

Not really following anyone, I just want a LOUD distortionless speaker system with good frequency response, but augerpro's build is something along the lines of what I want, doesn't need to be as good looking I just want imposing black box's. But I do want 15 inch woofer's, they look more bad ass than 12's and ofcourse they need to do less work.

I like the JBL 2226H because of its reputation, I keep hearing about it everywhere and the praise it gets. The 2.5 inch voice coil on the TDM15m's is sort of ticking me off, the JBL has a nice big 4" coil. What are peoples thoughts on the JBL 2226H and TDM15m? I don't mind either one if I can be convinced their both as good as each other regardless of voice coil size.

To improve the black level performance of your projector: Shine bright light into your eyes every 5 minutes.
DL86 is offline
post #76 of 208 Old 09-01-2009, 10:33 AM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked: 54
Quote:
Originally Posted by DL86 View Post

Still thinking about going the JBL 2226H route, prefer US made speakers.

The Euro brands are also excellent, such as BMS, B&C, Beyma, 18Sound, RCF and many offer comparable or better performance depending upon the driver and application.
A9X-308 is offline
post #77 of 208 Old 10-14-2009, 12:38 PM
Newbie

jrbrodie77's Avatar

Join Date: Oct 2009
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi Guys,

My names is John Brodie, I am a Loudspeaker Engineer for QSC Audio and I designed the horns that you guys are using. Just thought I would say 'Cool Stuff' and make a few comments. First off, the primary role of our service parts store is for supporting QSC products, although we are aware that a few people are buying the parts for DIY. Provided that the numbers are small, buying a few parts shouldn't be a problem. Please be aware that we don't stock huge quantities of each part. QSC prides itself on being a good citizen within the audio world and "doing things right", but the amount of support we can give this kind of project is obviously limited (but I couldn't help chime in).

A few notes regarding the HPR horns and DIY in general:

- All of our components are designed for use in very specific products. We have the luxury of designing and selecting all of the components as a system. For instance, in the HPR series, we have precise control over the EQ, crossover and limiting on each driver's band. This systems approach yields great results, but the individual components might be harder to use for DIY than parts that are designed expressly for DIY use. It's a good idea to buy the SC-2150 crossover and matching drivers and horns. NONE of our crossovers are even close to 'off-the-shelf', they are all designed using lab measurements, good software and many hours of listening. Don't expect to drop in a stock catalog crossover and get good results.

- We buy drivers from several manufacturers, including Celestion. A few of these drivers are standard catalog parts, but most of them are designed by our in-house transducer experts. 100% of the drivers that we use are measured at the end of the production line and checked against rigorous standards.

- Buy some measurement equipment. Given the choice between 1000$ in parts and no measurement capability, or 200$ in parts and 800$ to spend on a microphone and analyzer (and books). The analyzer, combined with proper knowledge and skill will win every time (and be more fun). CLIO, Praxis etc. will all get you there with a little practice.

Best regards,

John Brodie
QSC Audio Products
jrbrodie77 is offline
post #78 of 208 Old 10-14-2009, 03:31 PM
AVS Special Member

Looneybomber's Avatar

Join Date: Sep 2006
Location: Lawrence, KS
Posts: 4,668
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 23
Mr. Brodie, welcome to AVS and thank you for chiming in. There's a lot of attention here towards QSC products, particularly wave guides. I hope you decide to stay a while because I'm sure there will be plenty of folks (including me) that can learn a thing or two from you.

YID DIY
Looneybomber is offline
post #79 of 208 Old 10-14-2009, 03:32 PM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,252
Mentioned: 1 Post(s)
Tagged: 1 Thread(s)
Quoted: 216 Post(s)
Liked: 480
Quote:
Originally Posted by jrbrodie77 View Post

Hi Guys,

My names is John Brodie, I am a Loudspeaker Engineer for QSC Audio and I designed the horns that you guys are using. Just thought I would say 'Cool Stuff' and make a few comments. First off, the primary role of our service parts store is for supporting QSC products, although we are aware that a few people are buying the parts for DIY. Provided that the numbers are small, buying a few parts shouldn't be a problem. Please be aware that we don't stock huge quantities of each part. QSC prides itself on being a good citizen within the audio world and "doing things right", but the amount of support we can give this kind of project is obviously limited (but I couldn't help chime in).

Best regards,

John Brodie
QSC Audio Products

It's always nice to hear from another professional here on the forum. If you guys ever decide to closeout certain models and have spare stuff left over for old build designs......let us know on the forum. I'm sure there are many guys here that would be interested in purchasing some of it for DIY projects.
Erich H is online now
post #80 of 208 Old 10-14-2009, 05:03 PM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by jrbrodie77 View Post

Hi Guys,

My names is John Brodie, I am a Loudspeaker Engineer for QSC Audio and I designed the horns that you guys are using. Just thought I would say 'Cool Stuff' and make a few comments. First off, the primary role of our service parts store is for supporting QSC products, although we are aware that a few people are buying the parts for DIY. Provided that the numbers are small, buying a few parts shouldn't be a problem. Please be aware that we don't stock huge quantities of each part. QSC prides itself on being a good citizen within the audio world and "doing things right", but the amount of support we can give this kind of project is obviously limited (but I couldn't help chime in).

A few notes regarding the HPR horns and DIY in general:

- All of our components are designed for use in very specific products. We have the luxury of designing and selecting all of the components as a system. For instance, in the HPR series, we have precise control over the EQ, crossover and limiting on each driver's band. This systems approach yields great results, but the individual components might be harder to use for DIY than parts that are designed expressly for DIY use. It's a good idea to buy the SC-2150 crossover and matching drivers and horns. NONE of our crossovers are even close to 'off-the-shelf', they are all designed using lab measurements, good software and many hours of listening. Don't expect to drop in a stock catalog crossover and get good results.

- We buy drivers from several manufacturers, including Celestion. A few of these drivers are standard catalog parts, but most of them are designed by our in-house transducer experts. 100% of the drivers that we use are measured at the end of the production line and checked against rigorous standards.

- Buy some measurement equipment. Given the choice between 1000$ in parts and no measurement capability, or 200$ in parts and 800$ to spend on a microphone and analyzer (and books). The analyzer, combined with proper knowledge and skill will win every time (and be more fun). CLIO, Praxis etc. will all get you there with a little practice.

Best regards,

John Brodie
QSC Audio Products

Hi John, welcome to AVSForum!!!

I have to say... you guys at QSC specifically in tech / parts support are truly the best!!! Never has a call or an email gone unanswered. After the SC-2150 clone build, as long as you guys are operating, I will never go anywhere else for pro-audio whether it be parts or fully built units.

Keep up the great work!!

Guys, I think that the sentence that I highlighted above is key. Let's make sure that we don't abuse this resourse.

Quote:
Originally Posted by Erich H View Post

It's always nice to hear from another professional here on the forum. If you guys ever decide to closeout certain models and have spare stuff left over for old build designs......let us know on the forum. I'm sure there are many guys here that would be interested in purchasing some of it for DIY projects.

John, yes please!! Should you guys at QSC closeout certain models and have parts left over that will not be needed, please let us know. I'm pretty sure alot of us would purchase.
chucky08016 is offline
post #81 of 208 Old 10-14-2009, 08:10 PM
Senior Member

dykz34's Avatar

Join Date: Jan 2007
Location: Chicago, IL
Posts: 338
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Hey Chucky, very cool build! I was pricing out the parts on QSC's store and two of the part numbers you listed didn't return any results. Did you have to call to order them? The two were for the crossover and the terminal plate (Crossover Part #: PA-000210-00 & Terminal Plate Part #: WP-002157-00).
dykz34 is offline
post #82 of 208 Old 10-15-2009, 06:22 AM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by dykz34 View Post

Hey Chucky, very cool build! I was pricing out the parts on QSC's store and two of the part numbers you listed didn't return any results. Did you have to call to order them? The two were for the crossover and the terminal plate (Crossover Part #: PA-000210-00 & Terminal Plate Part #: WP-002157-00).

The xover and the terminal plate have to be ordered directly by calling QSC.

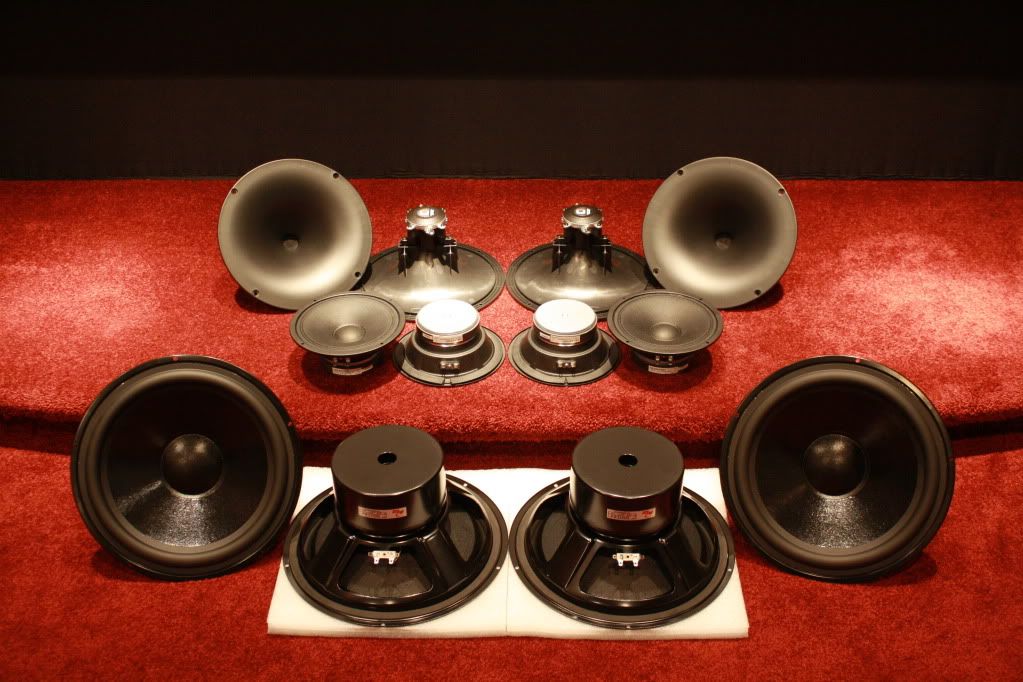

All of the drivers can be ordered from any of the following websites:

Woofers and mid:
http://www.musiciansfriend.com/navig...=100001+201322

Compression Driver:
http://www.sjmediasystem.com/cdx1-1425.html
http://www.markertek.com/Audio-Equip.../T5344-P.xhtml

I say save QSC for ordering the waveguides, xovers, and anything else you cannot find.
chucky08016 is offline
post #83 of 208 Old 10-15-2009, 07:55 AM
Senior Member

dykz34's Avatar

Join Date: Jan 2007
Location: Chicago, IL
Posts: 338
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by chucky08016 View Post

The xover and the terminal plate have to be ordered directly by calling QSC.

I say save QSC for ordering the waveguides, xovers, and anything else you cannot find.

Good point. Can you comment on the cost of the crossover and terminal plate?
dykz34 is offline
post #84 of 208 Old 10-15-2009, 02:41 PM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by dykz34 View Post

Good point. Can you comment on the cost of the crossover and terminal plate?

Approx $60 to $65 each.
chucky08016 is offline
post #85 of 208 Old 10-16-2009, 09:35 AM
Newbie

jrbrodie77's Avatar

Join Date: Oct 2009
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hi Guys,

Thanks for the enthusiastic response. I'll keep an eye on the forum from time to time.

cheers,

John
jrbrodie77 is offline
post #86 of 208 Old 10-16-2009, 11:00 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 29
Quote:
Originally Posted by jrbrodie77 View Post

Hi Guys,

Thanks for the enthusiastic response. I'll keep an eye on the forum from time to time.

cheers,

John

Thanks for posting, any free advice is welcome

Have you read Augerpro's thread, he did some great measurements and it shows the QSC waveguides having the qualities that Geddes talks about in his designs! Or my Waveguide thread, its a general waveguide discussion?

I have the waveguides/CDs from your HPR-152i and HPR-122i speakers and Im currently building both but I will use a DCX for my crossover (with measurements).

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #87 of 208 Old 10-18-2009, 03:52 PM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13

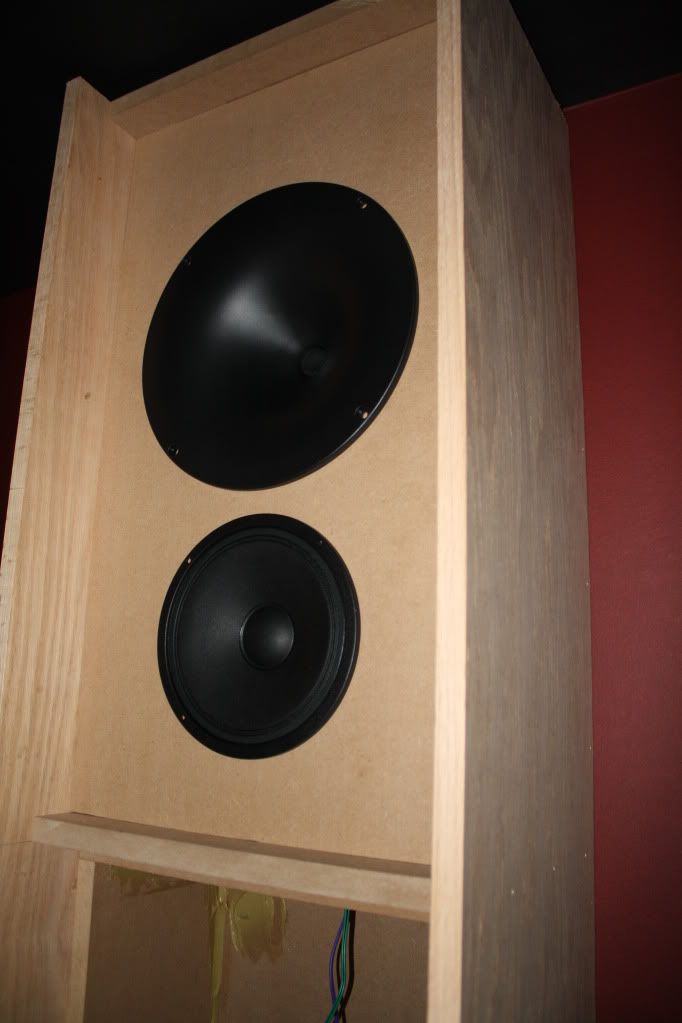

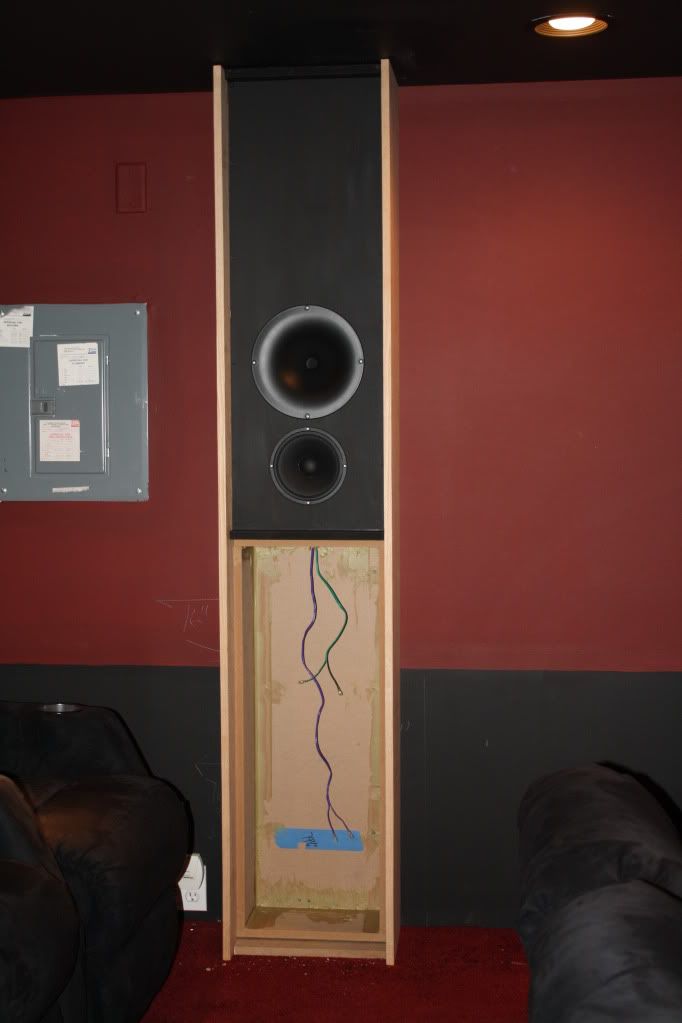

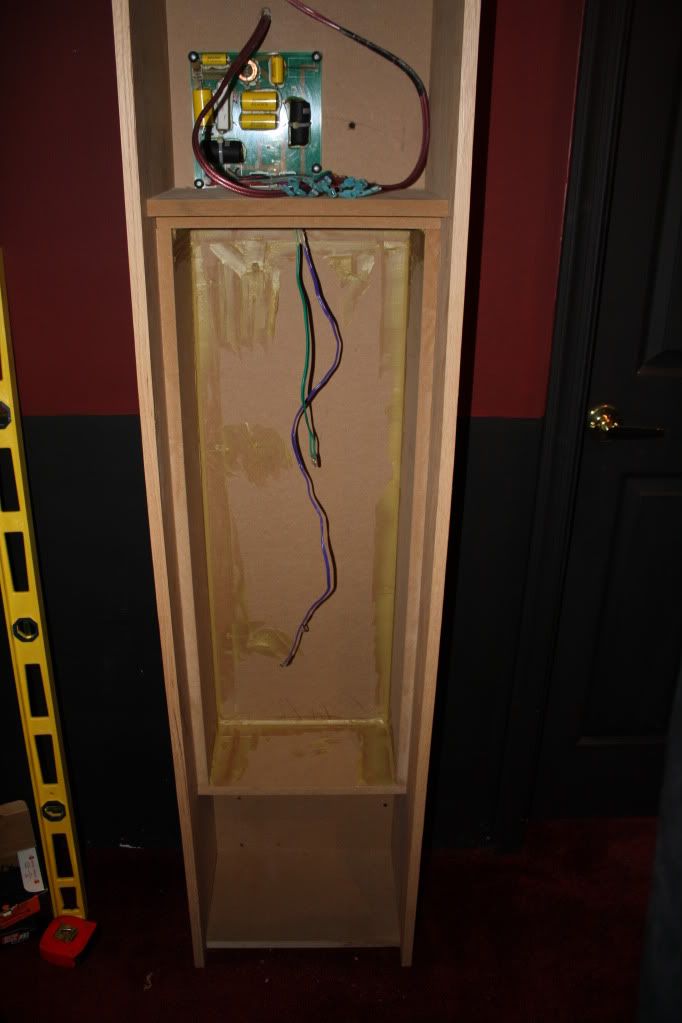

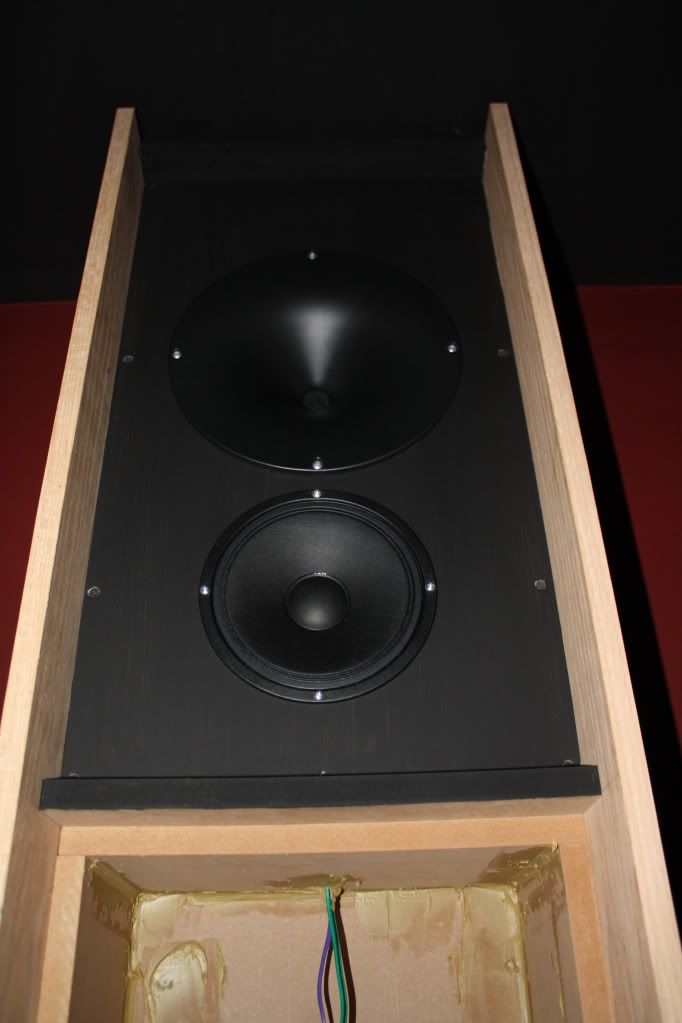

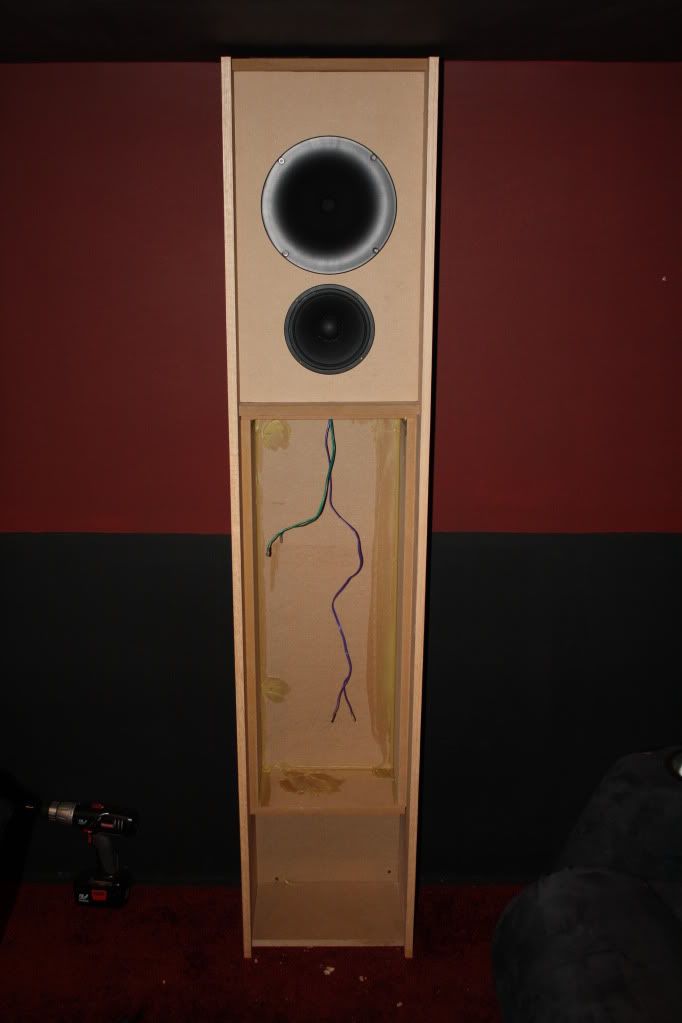

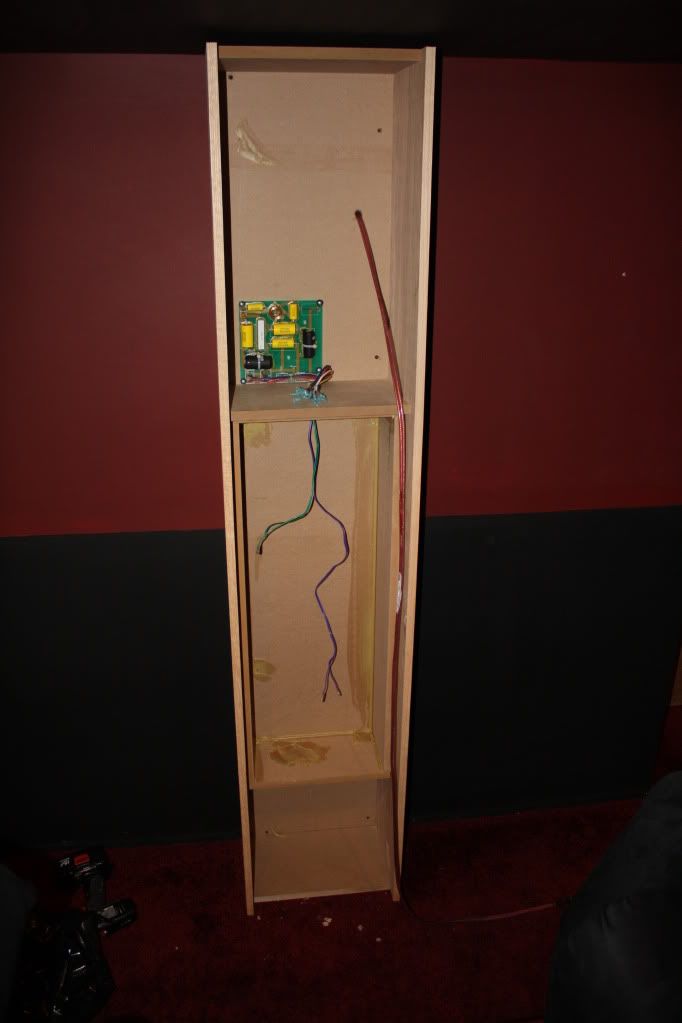

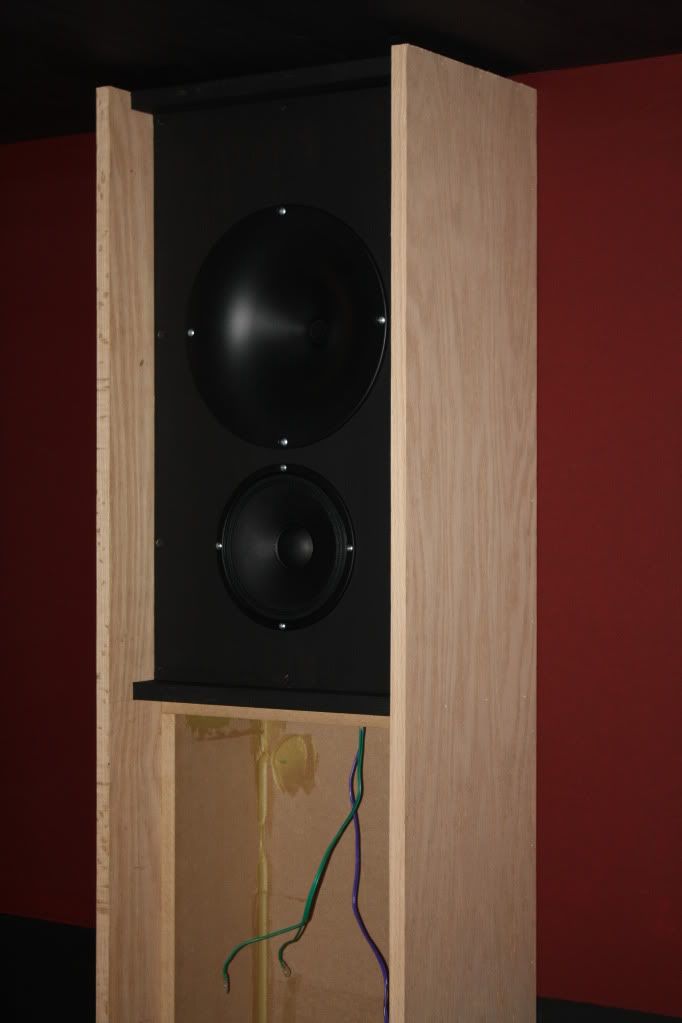

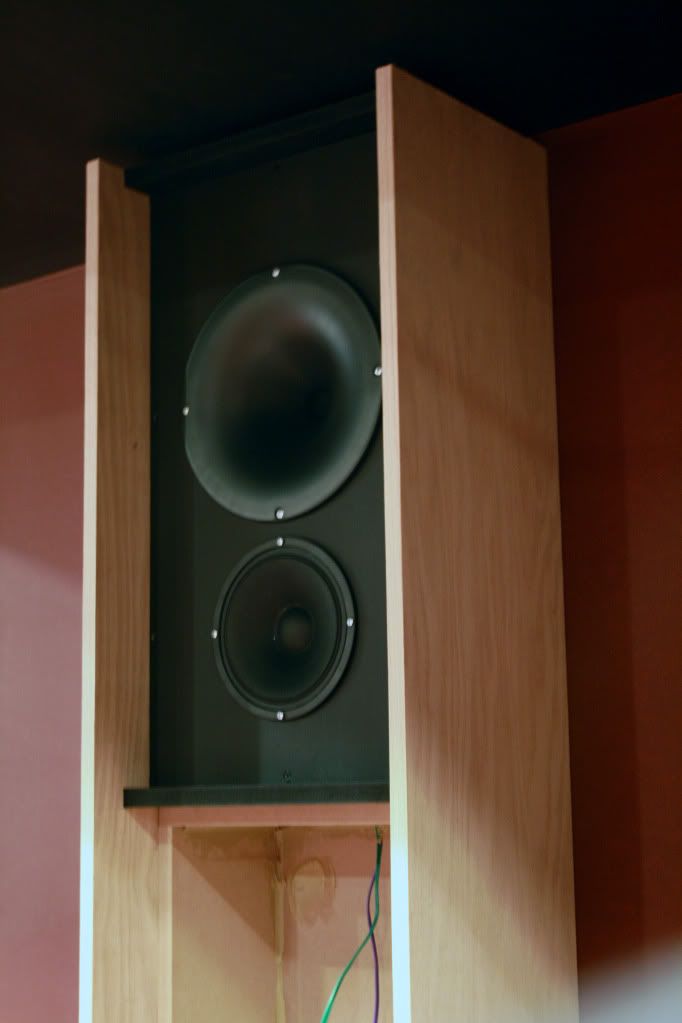

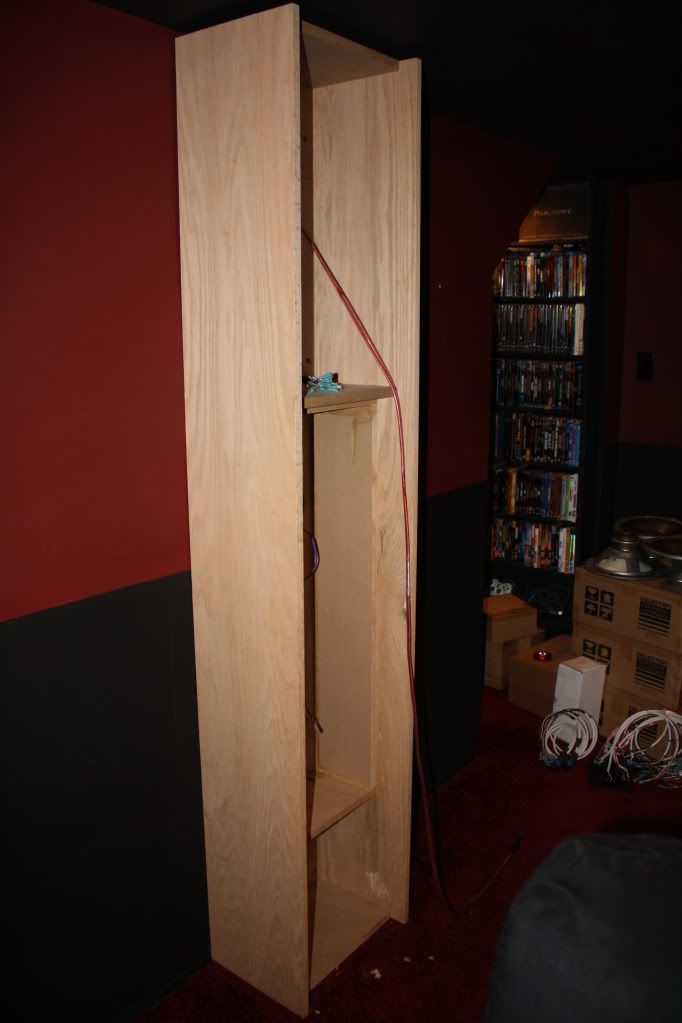

Here are some progress pics from the rear surround build. The xovers, comp. drivers, and mid are from the SC-2150. The waveguide is from the HPR-122i. The woofers are Dayton 12" DVC's.

The woofer portion will now be sealed since I'm dealing with small enclosures (< 1.8" cu. ft.) and needed to be retrofit into the existing columns. Also, all columns will have black fabric grills inside from top to bottom to protect and fully conceal the speakers.

Again, please pay no mind to unfinished theater. There's ALOT missing including fabrics on wall, star ceiling, trim, treatments, etc... basically all of the good looking stuff. Walls are temp painted.

More details to follow.

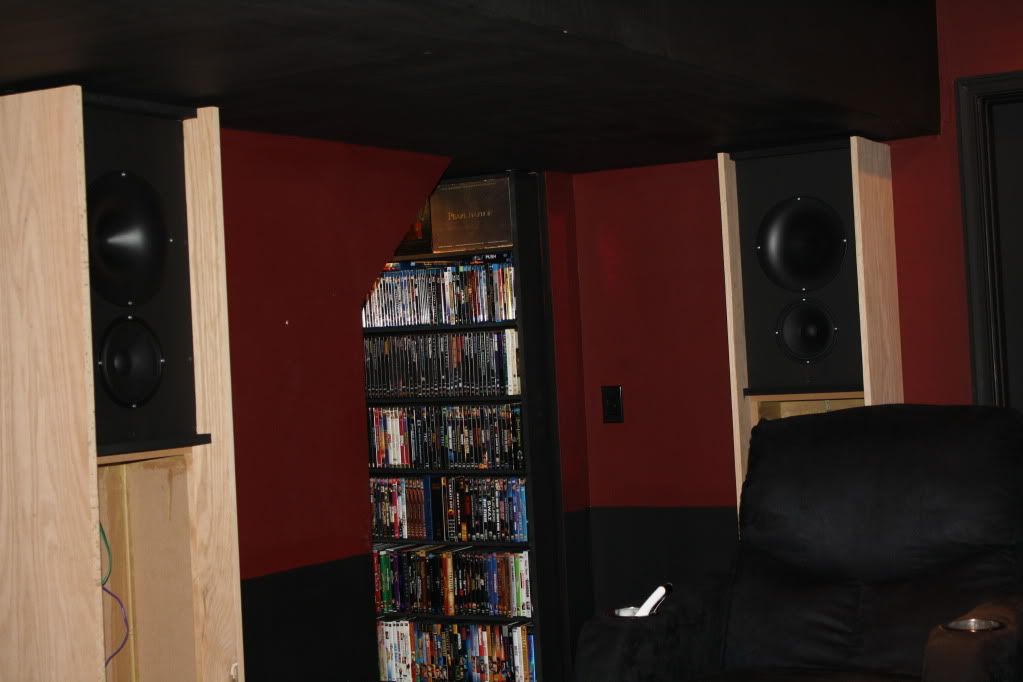

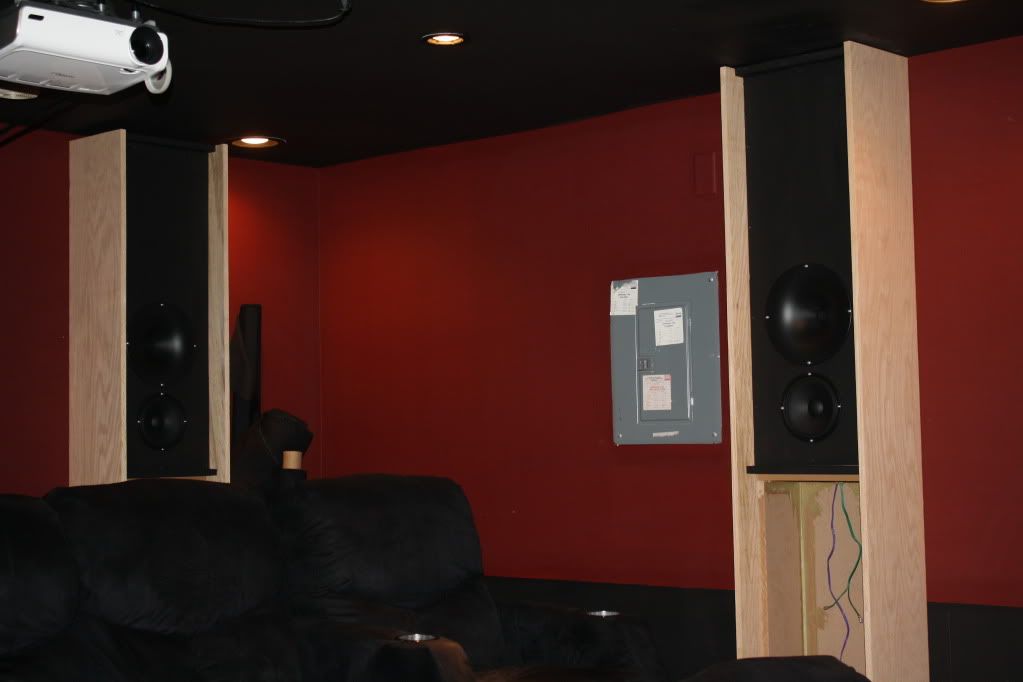

Rear Surround Speakers












chucky08016 is offline
post #88 of 208 Old 10-19-2009, 10:18 AM
Senior Member

mikela's Avatar

Join Date: Nov 2002
Location: Los Angeles
Posts: 241
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hi chucky08016,

From the photos, it looks like you intend to use the QSC2150 crossover for your surrounds. If so, you may want to rethink that as the crossover needs to be designed for a specific enclosure and set of drivers. But maybe I'm missing something.

Mike
mikela is online now
post #89 of 208 Old 10-19-2009, 10:52 AM - Thread Starter
Advanced Member

chucky08016's Avatar

Join Date: Oct 2005
Posts: 708
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by mikela View Post

Hi chucky08016,

From the photos, it looks like you intend to use the QSC2150 crossover for your surrounds. If so, you may want to rethink that as the crossover needs to be designed for a specific enclosure and set of drivers. But maybe I'm missing something.

Mike

Hi Mike,

Thanks for looking out.

I'm working within the limitations that I have and I didn't want to incur the added expense of having new xovers created just for the rear surrounds.

So far, the surrounds blend perfectly with the front mains and sound great without any adverse effects from changing enclosures and woofers. Even the woofer chosen blends perfectly.

I understand that alot of people will look at this thread and not agree with some of the design choices... that's ok... for me, as long as the end result sounds great and the speakers disappear then I've succeeded.

Trust me, after demoing unreal soundtracks such as Transformers 2 (BD), Star Trek (BD) or musicals like Moulin Rouge (DTS DVD) I can truly say that this setup is a keeper!!

DVD-A music such as Linkin Park's Reanimation (5.1 surround) is not just music anymore, it's an event unmatched on this setup.
chucky08016 is offline
post #90 of 208 Old 10-19-2009, 10:56 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 29
btw, Im a fan of your appoarch!!! I love it, I have many of the same QSC parts. Sadly, Im extremely slow at building on my speakers to redo my HT room Im stuck worrying about finishes instead of just getting them all built.

Do you like those Celestion CD/10" round waveguides?


btw, I was looking to get Linkin Park this week I need to upgrade my collection, we like the same music. Foo Fighters Live in London is what I have listened too the most in my room actually. I only have about 10 music DVDs....and about 10,000 songs ripped.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
