post #61 of 243 Old 12-09-2009, 03:33 PM
Advanced Member

Air Supply's Avatar

Join Date: Feb 2007
Location: Ballwin, Missouri
Posts: 900
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
If you guys had to chose, which would you buy?

Yamaha P2500S

or

EP2500

Add your favorite bass-heavy movies here; http://lfemovies.pbworks.com/
Air Supply is offline
Sponsored Links
Advertisement

post #62 of 243 Old 12-09-2009, 03:43 PM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 131
EP2500. More configurable in the future.

JSS
maxmercy is offline
post #63 of 243 Old 12-09-2009, 03:48 PM
Advanced Member

Air Supply's Avatar

Join Date: Feb 2007
Location: Ballwin, Missouri
Posts: 900
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Damn, that Yamaha is so perdy though.

So, EP2500 it is.

You had mentioned the EQ2.2 and something else. What would you recommend for that? I'm just blind buying these parts because I have no idea what they do

Add your favorite bass-heavy movies here; http://lfemovies.pbworks.com/
Air Supply is offline
post #64 of 243 Old 12-09-2009, 04:20 PM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 26
Quote:
Originally Posted by Air Supply View Post

If you guys had to chose, which would you buy?

Yamaha P2500S

or

EP2500

Personally, Yamaha. But that's just me being ornery about Behringer copying the EP design from QSC... it's a terrific design for sub duty. That said, I don't run either one - I have a QSC RMX-1850HD, which is the very design copied by the EP (actually the RMX-2450 would be the equivalent).

That said, the EP2500/4000 and my RMX do not have the variable speed fan controller the Yamaha does. If you find the fan noise objectionable, you'll have to either fanmod it or run it in another room as I do.

I should also mention I've never tried the Yammie in person. I've had experience with their gear, but not this particular amp line. Not exactly sure how it does below 20Hz compared to the RMX design.
Oklahoma Wolf is offline
post #65 of 243 Old 12-09-2009, 04:39 PM
Advanced Member

zora's Avatar

Join Date: Nov 2003
Location: Walla Walla, WA
Posts: 803
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
You might want to try to find the older Yamaha CP2000, it is a very solid design and sounds great.
zora is offline
post #66 of 243 Old 12-09-2009, 08:20 PM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 131
Quote:
Originally Posted by Air Supply View Post

Damn, that Yamaha is so perdy though.

So, EP2500 it is.

You had mentioned the EQ2.2 and something else. What would you recommend for that? I'm just blind buying these parts because I have no idea what they do

Only thing that drives me away from Yammy is 18Hz highpass You can get output below 18Hz with the THT that the Yammy will rob you of.

The ED eQ.2 has an adjustable boost and highpass (down to 5Hz). This way you will be able to get the flattest freq response down low with your THT, or the most output, just by moving a couple of knobs.

JSS
maxmercy is offline
post #67 of 243 Old 12-09-2009, 08:37 PM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 26
Quote:
Originally Posted by maxmercy View Post

Only thing that drives me away from Yammy is 18Hz highpass

Are you referring to the CP2000 or P2500S? I can't find the info on the former, but the manual for the latter states that the high pass is adjustable down to 25Hz and can be defeated.

Just wondering if you spotted something about it my sleep deprived and overcaffienated brain missed
Oklahoma Wolf is offline
post #68 of 243 Old 12-09-2009, 11:16 PM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,336
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 131
I thought someone had mentioned an un-defeatable 18Hz highpass...in that case, I retract the statement, either amp is fine...

JSS
maxmercy is offline
post #69 of 243 Old 12-12-2009, 07:36 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

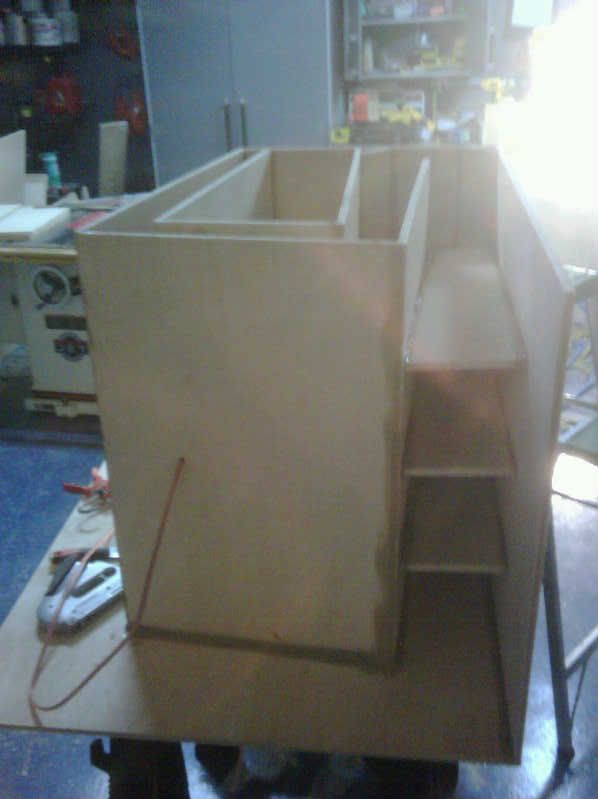

I am routing the speaker wire through the horn to attach to the binding posts at the bottom of the THT (THT will have short feet on it to accomodate spikes, so there will be a small amount of space under the THT to run wire from amp)
superedge88 is offline
post #70 of 243 Old 12-12-2009, 07:38 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

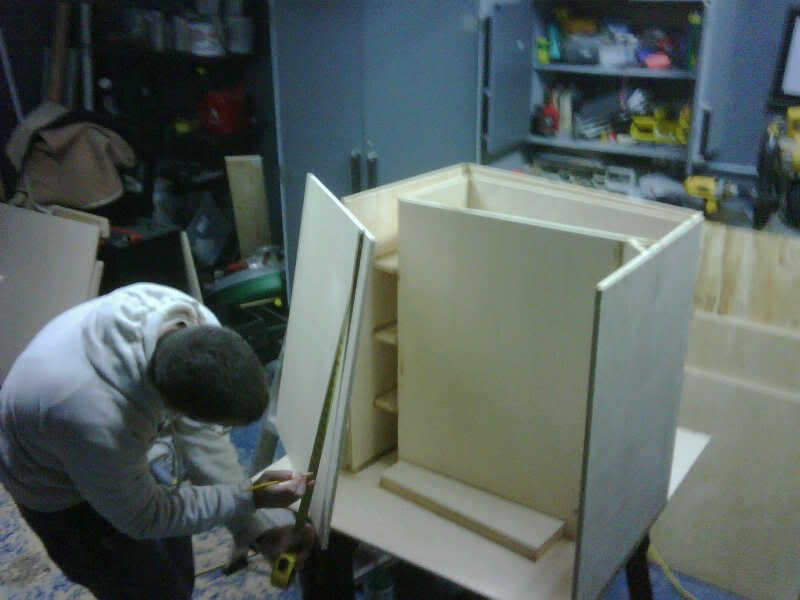

The horn is really starting to take shape now! This being the 30" wide version it sure does sit tall when piecing it together!
superedge88 is offline
post #71 of 243 Old 12-12-2009, 07:39 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Super,

It's looking... well Super!


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #72 of 243 Old 12-12-2009, 07:40 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Another pic.

This is where we stopped for the night, after the next build session we should be just waiting for glue to dry then actually be able to test this SUPER THT!!
superedge88 is offline
post #73 of 243 Old 12-12-2009, 07:41 AM
Advanced Member

Rightbrained's Avatar

Join Date: Jun 2008
Location: LA , Lower Alabama that is
Posts: 818
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
coming along nicely

If at first you dont succeed , get a bigger hammer !
Rightbrained is offline
post #74 of 243 Old 12-12-2009, 07:42 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I may be seeing things, but.... Did you cut the driver hole? I can't see it, maybe it's because it's the 30" version?

Edit: RB you beat me to it! LOL!

dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #75 of 243 Old 12-12-2009, 07:43 AM
Advanced Member

Rightbrained's Avatar

Join Date: Jun 2008
Location: LA , Lower Alabama that is
Posts: 818
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Yeah then I went back and edited my post.... I had to go back to the first page. Like you , I was thinking of our 24" builds.

If at first you dont succeed , get a bigger hammer !
Rightbrained is offline
post #76 of 243 Old 12-12-2009, 07:47 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by dbldare View Post

I may be seeing things, but.... Did you cut the driver hole? I can't see it, maybe it's because it's the 30" version?

Edit: RB you beat me to it! LOL!

dbl

LOL, yes it is because this is the 30" wide version that from this angle the driver hole can not be seen. If you look at the past pictures I posted you can see the driver hole in at least one of them. EDIT: I see you already saw that as I was typing.

A BIG TIP: For thos wanting to build a THT, make sure that you seal on the under side of the T nuts really well, I am sure that there is a good possibility of air leaking if you don't have them quite glued in very well. I used epoxy to glue mine in, then used PL around the edges of each T nut to make sure that absolutely no air can leak around them. Better to be safe than sorry, it would be a huge pain to have to try and seal on the horn side once this thing is all put together and glued.
superedge88 is offline
post #77 of 243 Old 12-14-2009, 09:03 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

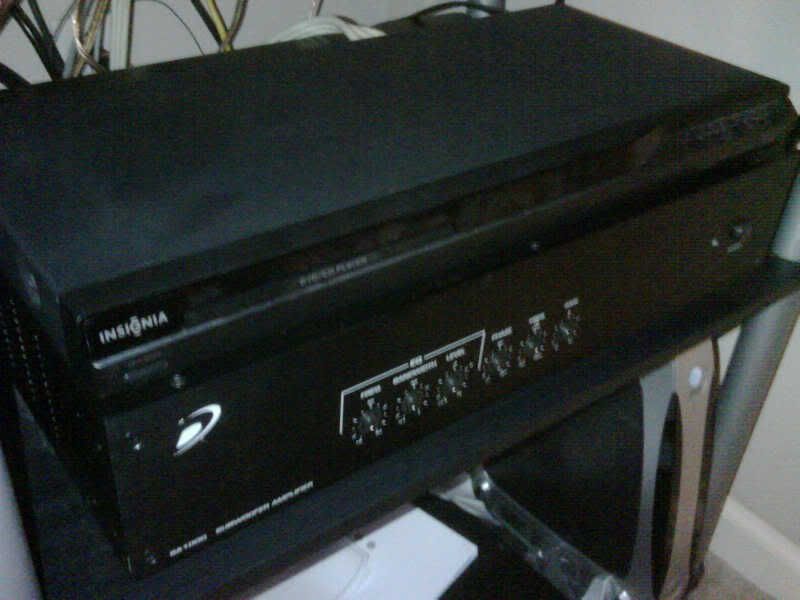

Finally got my amplifier delivered today, and I should be able to finish the THT on Friday and could then test it out as early as Sunday (after letting the PL dry of course) Here is a pic of the Dayton amplifier sitting in its temporary spot on the audio rack, this thing is a beast.
superedge88 is offline
post #78 of 243 Old 12-19-2009, 02:53 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Back at it again!
superedge88 is offline
post #79 of 243 Old 12-19-2009, 02:55 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Just one more turn to make!
superedge88 is offline
post #80 of 243 Old 12-19-2009, 02:56 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

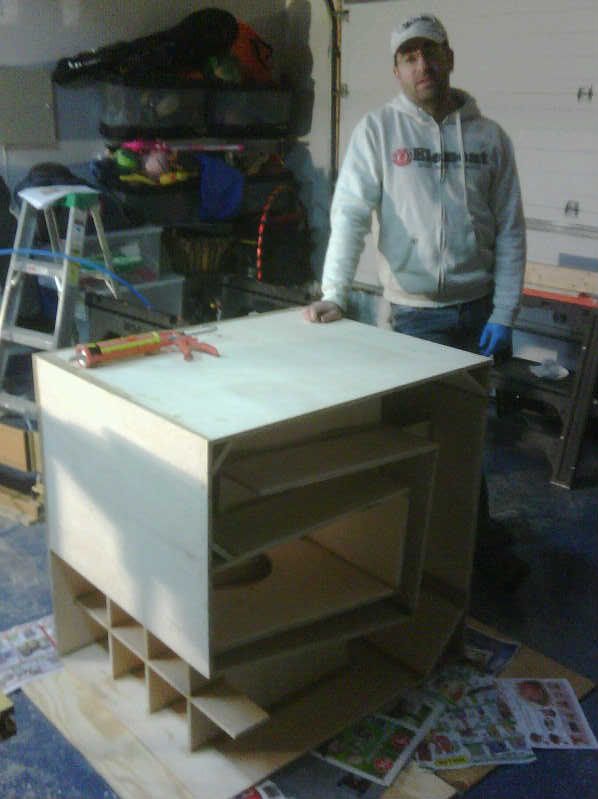

Starting to look like a true beast!
superedge88 is offline
post #81 of 243 Old 12-19-2009, 02:57 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

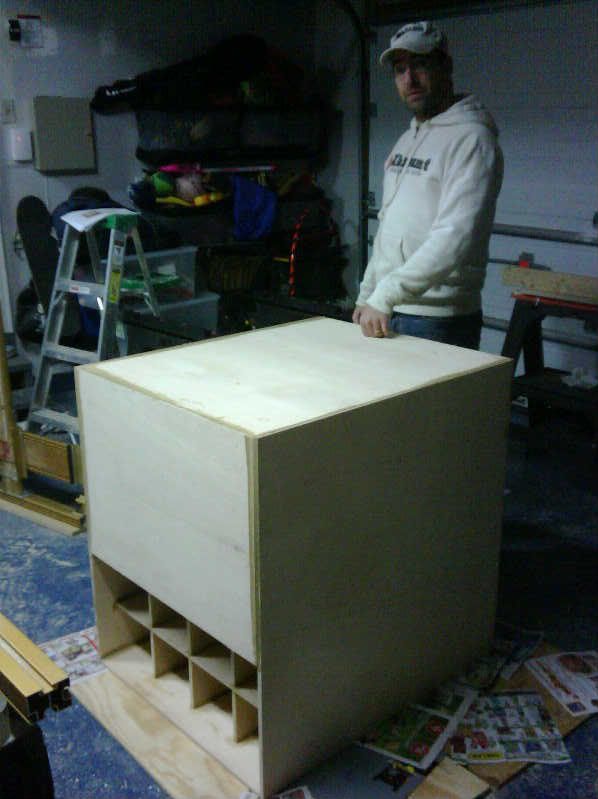

And now we realize that this doesn't really double as a coffee table, but instead a drink table! What a monster! Just for size reference, Joe is 8 feet tall
superedge88 is offline
post #82 of 243 Old 12-19-2009, 05:09 AM
Member

jreaves1637's Avatar

Join Date: Nov 2009
Location: Hoover, Al
Posts: 79
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
awesome work, can't wait to hear how you like it
jreaves1637 is offline
post #83 of 243 Old 12-19-2009, 05:15 AM
AVS Special Member

reecew's Avatar

Join Date: Feb 2009
Location: Wichita, KS area
Posts: 2,035
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
It looks great. I hope i can get mine to look half as put together as yours and i would be happy.

List your favorite BASS movies here...http://lfemovies.pbworks.com/FrontPage
reecew is offline
post #84 of 243 Old 12-19-2009, 06:11 AM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 26
Very nice
Oklahoma Wolf is offline
post #85 of 243 Old 12-19-2009, 06:50 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
I must have really screwed up on mine because if he's 8 feet tall then mine is nowhere near that size!!!

Nice work! I like the cross brace in the mouth!


Dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #86 of 243 Old 12-19-2009, 07:14 AM
Advanced Member

Air Supply's Avatar

Join Date: Feb 2007
Location: Ballwin, Missouri
Posts: 900
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Son of a........ that thing is a mutant.

Add your favorite bass-heavy movies here; http://lfemovies.pbworks.com/
Air Supply is offline
post #87 of 243 Old 12-19-2009, 08:28 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by Air Supply View Post

Son of a........ that thing is a mutant.

At 8 feet, the guy or the sub? LOL!


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #88 of 243 Old 12-19-2009, 08:36 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
You guys are hilarious. I couldn't believe how much PL we went through! Just finished using the 8th tube and will have to use part of a 9th one for the access panel assembly. This 30" version really uses a ton of adhesive!
superedge88 is offline
post #89 of 243 Old 12-19-2009, 08:53 AM
AVS Special Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 9,536
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1292
Quote:
Originally Posted by superedge88 View Post

This 30" version really uses a ton of adhesive!

Only because you're using three times what you need to. The smallest continuous bead you can apply is all you need, but too much is better than not enough.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is online now
post #90 of 243 Old 12-19-2009, 09:28 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by Bill Fitzmaurice View Post

Only because you're using three times what you need to. The smallest continuous bead you can apply is all you need, but too much is better than not enough.

Gotcha, I guess my paranoia got the best of me, wanted to make sure things were sealed up REALLY good!
superedge88 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
