Ok, so I am building a Tuba Home Theater subwoofer using the plans from Billfitzmaurice. I have maxmercy and myn to thank for their great advice and especially myn for his VERY detailed build thread! This build thread will not be anywhere near as detailed because I am working with my friend Joe who is a Professional woodworker with a degree in Furniture design = he is a woodworking genius! So since he is such a good wood worker, he works much faster than I would if I tried to do this build myself, so their will be very few brakes to actually sit back and take pictures.
I am building with Joe's help the THT 30" version because my wife is amazing and is letting me build one of the larger versions of this impressive subwoofer.
Here is a pic of the Dayton woofer I am using, it is the one that Bill recommends in the plans.

Here is Joe getting started on making cuts on his beautiful table saw, the magical tool that makes this build SOOOOOO much easier than with a circular saw!

Here is Joe doing the plunge cuts for the woofer access panel.

Here are all the major pieces minus bracing and deflectors

More to come in the coming week.
superedge88 is offline
Sponsored Links
Advertisement

post #2 of 243 Old 11-15-2009, 12:42 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,181
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked: 944
very cool.

Listen. It's All Good.
LTD02 is online now
post #3 of 243 Old 11-15-2009, 06:55 AM
Member

djginwis's Avatar

Join Date: Sep 2008
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Nice saw. Is that Baltic Birch? I am very happy with my Fitz Table Tuba, dual 8
" variety. The THT should rock.
djginwis is offline
post #4 of 243 Old 11-15-2009, 08:15 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
It is Birch and is the best looking plywood I have ever seen!
superedge88 is offline
post #5 of 243 Old 11-15-2009, 08:49 AM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 26
Quote:
Originally Posted by superedge88 View Post

It is Birch and is the best looking plywood I have ever seen!

As far as I'm concerned, void free plywood like this is the only way to go around here. My lungs won't stand for MDF dust, and the finished product ends up being lighter.

Looking forward to seeing how this one turns out too. I'm slowly getting to the point of deciding that if I want to learn horn design, I should start with building something already proven awesome and learn by doing. It also doesn't hurt that Solen carries the driver for us Canadians without having to deal with ordering PE stuff across the border.
Oklahoma Wolf is offline
post #6 of 243 Old 11-15-2009, 10:11 AM
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 15
Nice! 30" FTW!

That birch looks great. You going to finish it with stain or ?

Looking forward to watching this build. If I can be of any help, let me know.
mynym is offline
post #7 of 243 Old 11-15-2009, 12:37 PM
AVS Special Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 9,542
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1295
Quote:
Originally Posted by superedge88 View Post

Here is Joe doing the plunge cuts for the woofer access panel.

He'd get a far more accurate and straight cut by using a guideboard or saw sled. It would be safer too. Fingers and saw blades are a bad combination.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is offline
post #8 of 243 Old 11-15-2009, 01:24 PM
AVS Special Member

Favelle's Avatar

Join Date: Dec 2004
Location: Victoria, BC, Canada
Posts: 3,786
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Sweet! But what's the freaky-looking thing in the corner?

In terms of LFE, size does matter!
Favelle is offline
post #9 of 243 Old 11-15-2009, 01:40 PM
Advanced Member

Rightbrained's Avatar

Join Date: Jun 2008
Location: LA , Lower Alabama that is
Posts: 818
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
its a cat

If at first you dont succeed , get a bigger hammer !
Rightbrained is offline
post #10 of 243 Old 11-15-2009, 02:14 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by Bill Fitzmaurice View Post

He'd get a far more accurate and straight cut by using a guideboard or saw sled. It would be safer too. Fingers and saw blades are a bad combination.

I don't tell Joe what to do, he's the master wood worker. Cuts turned out great. Thanks for the heads up though.
superedge88 is offline
post #11 of 243 Old 11-15-2009, 02:14 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by Favelle View Post

Sweet! But what's the freaky-looking thing in the corner?

He's my sphynx cat.
superedge88 is offline
post #12 of 243 Old 11-15-2009, 02:17 PM
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 15
hehe. Cats LOVE horn's. I'll let MaxMercy tell his story about his cats and what he did to keep them out of the throat of the horn .
mynym is offline
post #13 of 243 Old 11-15-2009, 04:14 PM

mjg100's Avatar

Join Date: Dec 2006
Posts: 9,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by Bill Fitzmaurice View Post

He'd get a far more accurate and straight cut by using a guideboard or saw sled. It would be safer too. Fingers and saw blades are a bad combination.

If that saw catches it will not run toward his hand. It is a worm-drive saw. The blade turns the opposite direction from a regular skil-saw. Nice strong saw, but they are heavy.
mjg100 is offline
post #14 of 243 Old 11-15-2009, 04:25 PM
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 15
Quote:
Originally Posted by mjg100 View Post

If that saw catches it will not run toward his hand. It is a worm-drive saw. The blade turns the opposite direction from a regular skil-saw. Nice strong saw, but they are heavy.

Regardless, Bill's right. Those plunge cuts need to be as straight as possible and a guide board would guarantee the straight cut. Keep in mind that the access panel cover is cut out and used from those 4 cuts as well as the opening for the driver from the side panel. Very very important cuts .
mynym is offline
post #15 of 243 Old 11-15-2009, 05:37 PM

mjg100's Avatar

Join Date: Dec 2006
Posts: 9,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by mynym View Post

Regardless, Bill's right. Those plunge cuts need to be as straight as possible and a guide board would guarantee the straight cut. Keep in mind that the access panel cover is cut out and used from those 4 cuts as well as the opening for the driver from the side panel. Very very important cuts .

Not arguing that at all. All I was pointing out was his fingers toward the front of that saw are not in danger. That saw will kick back not forward. I doubt that many here are familiar with a worm-drive.
mjg100 is offline
post #16 of 243 Old 11-15-2009, 05:58 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by mynym View Post

Regardless, Bill's right. Those plunge cuts need to be as straight as possible and a guide board would guarantee the straight cut. Keep in mind that the access panel cover is cut out and used from those 4 cuts as well as the opening for the driver from the side panel. Very very important cuts .

I fail to see why they have to be as straight as possible, in my understanding the seal is actually made with the trim pieces that the access panel actually sits down on to. We are actually making a panel to exact dimensions as the hole, not using the wood that was cut out when making the access hole. We are designing fake door panels to go over the access panel, we are making this THT into a piece of furniture that will look like an end table... a very big end table.
superedge88 is offline
post #17 of 243 Old 11-15-2009, 06:29 PM
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 15
Quote:
Originally Posted by superedge88 View Post

I fail to see why they have to be as straight as possible, in my understanding the seal is actually made with the trim pieces that the access panel actually sits down on to. We are actually making a panel to exact dimensions as the hole, not using the wood that was cut out when making the access hole. We are designing fake door panels to go over the access panel, we are making this THT into a piece of furniture that will look like an end table... a very big end table.

The access panel flanges sit flush against the interior panels 1, 2 ,3 and 4. As long as those 4 panels are flush against the edges of the access hole the flanges should be golden. If though the access hole is cut sloppy there may be some over/under hang. Sorry I should have explained it better.

This may explain it better:



MaxMercy stained his THT. It turned out really well. Are you going to add any additional flare to the outside of the THT to make it look an end table?
mynym is offline
post #18 of 243 Old 11-15-2009, 07:29 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
I see what you mean, I will make sure that things are within the tight tolerances. The plan so far is to add crown molding along the top and bottom edge, use granite tile for the top, make fake doors and a drawer to cover the access panel (but still be removable) with brushed stainless steel handles and paint the whole THT a dark charcoal gray. I will draw up a sketch of what I want it to look like and post it.
superedge88 is offline
post #19 of 243 Old 11-16-2009, 04:44 AM
AVS Special Member

mynym's Avatar

Join Date: Nov 2004
Location: Columbus, OH
Posts: 1,184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 15
Quote:
Originally Posted by superedge88 View Post

I see what you mean, I will make sure that things are within the tight tolerances. The plan so far is to add crown molding along the top and bottom edge, use granite tile for the top, make fake doors and a drawer to cover the access panel (but still be removable) with brushed stainless steel handles and paint the whole THT a dark charcoal gray. I will draw up a sketch of what I want it to look like and post it.

WAF +10. Very cool
mynym is offline
post #20 of 243 Old 11-16-2009, 06:04 PM
Member

halo71's Avatar

Join Date: Nov 2009
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
This looks like a cool build off to a good start!

But that cat reminds me of Pet Cemetary.
halo71 is offline
post #21 of 243 Old 11-18-2009, 03:50 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12

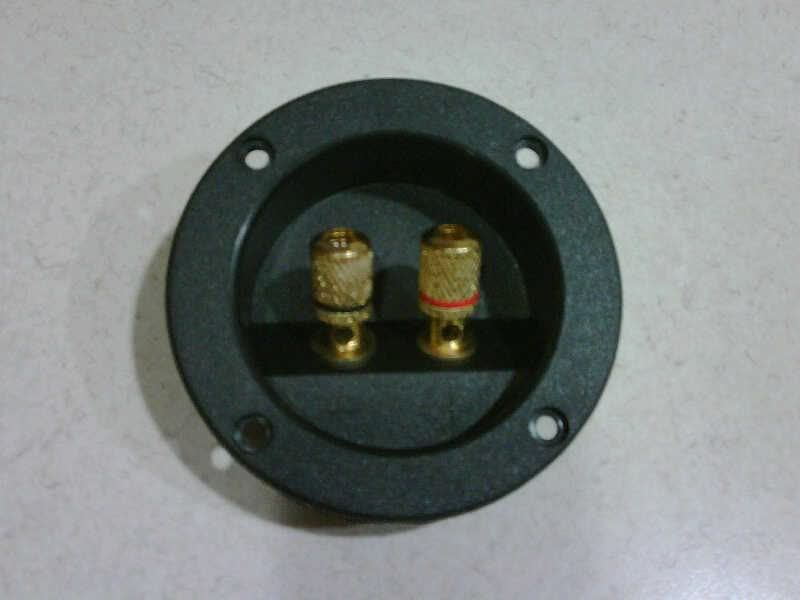

I received my speaker terminals in the mail for about 6 bucks shipped! Gonna get back to work on the build in the next couple of evenings.
superedge88 is offline
post #22 of 243 Old 11-18-2009, 08:51 PM
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Rightbrained View Post

its a cat

that is an awesome lookin sphynx!
kryptonitewhite is offline
post #23 of 243 Old 11-18-2009, 09:31 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Quote:
Originally Posted by kryptonitewhite View Post

that is an awesome lookin sphynx!

Thanks, that's very nice of you to say! I have three sphynx cats, they are the most personable cat breed you can find because from a very young age they learn that they have to come to humans for warmth!
superedge88 is offline
post #24 of 243 Old 11-18-2009, 10:23 PM
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by superedge88 View Post

Thanks, that's very nice of you to say! I have three sphynx cats, they are the most personable cat breed you can find because from a very young age they learn that they have to come to humans for warmth!

are they rather spendy? how well "trained" rather domesticated? I'll be moving into my own home soon, so no more "no pets!" and that cat is beautiful!

just to stay "on topic" more pics! I know, you've got a builder and not much time to snap away, just had to say it
kryptonitewhite is offline
post #25 of 243 Old 11-19-2009, 08:46 AM
AVS Special Member

steve71's Avatar

Join Date: Nov 2006
Posts: 1,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 14
Nice to see another horn build! I have a worm drive saw, but didn't realize they turned the opposite way. At any rate they are heavy, but it's nice to be able to see what you're cutting without having to lean over the saw.
steve71 is offline
post #26 of 243 Old 11-19-2009, 01:05 PM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
SO I am debating on what amplifier to get now, was sold on the Oaudio 500 watt, but now with everyone saying how efficient this subwoofer is should I just go ahead and get the Oaudio 300 watt version?
superedge88 is offline
post #27 of 243 Old 11-19-2009, 03:05 PM
AVS Special Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 9,542
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1295
Quote:
Originally Posted by superedge88 View Post

SO I am debating on what amplifier to get now, was sold on the Oaudio 500 watt, but now with everyone saying how efficient this subwoofer is should I just go ahead and get the Oaudio 300 watt version?

It's unlikely you'll ever use more than 100 watts. 300 would have plenty of headroom.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is offline
post #28 of 243 Old 12-04-2009, 10:34 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Here is a pic of the start of the horn being built, I am so glad that Joe is helping me out with this build, he is a woodworker, I am definitely not!
superedge88 is offline
post #29 of 243 Old 12-04-2009, 10:36 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Not really that great of a pic, but here it is anyways.
superedge88 is offline
post #30 of 243 Old 12-04-2009, 10:38 AM - Thread Starter
Senior Member

superedge88's Avatar

Join Date: Aug 2009
Posts: 406
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 12
Here is a picture of a dork next to the project (me) to give scale, this thing is HUGE!!! (that's what she said)
superedge88 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
