I decided if I don't do anything, I won't ever get a sub built.

So I've decided that I will order a driver within the next week or two.

History: Within the past years I've had different designs, but I never managed to get the money together. One time it was 8 Aurasound NS18s when I thought I was going to be able to do that. Of course, I never got the money together. It was once 4 Fi 18s (one per corner), before the NS18 thought. Now I'm back to a single 18" driver.

Basic idea: My current plan is to use a single Fi Q18 (maybe with a small change, depends on the e-mail I get back) in a large enclosure with a tuning around 13-15 hertz.

The source of power will start out as my old receiver (probably 200-250 watts) until I can afford the next part. If I decide I want more even response with a bit more SPL (or less distortion), I will build a duplicate of the original enclosure and use more channels to get 400-500 watts and place them to get best response. If I decide I just want it louder, I will buy an amp to bring it up to about 2kW. Then after that, I plan to bring in the one I didn't do first (so if I decided on the amp, I'd build the second sub).

The Area: The full area I will consider this to be filling is about 8000 cubic feet, but the listening area only takes up a third of that. The current speakers all have 12" woofers and I am currently planning to do a crossover around 60hz. I am using a Pioneer Elite VSX91-TXH for the receiver (which was bought with the store credit of a blown sub I returned).

It's better to have a single sub on limited power than no sub at all.

Tastes/Material: Usually I'm listening to music, but a movie tends to creep in every other day. The music is usually metal, such as Metallica (and KoRn), but I listen to a lot of different styles.

Current experience: I am unimpressed by the low end on my system, and music sounds thin. In movies, the explosions are there, and I can feel gunshots etc.. but it's obviously missing the sub 30-35hz content and sounds thin.


...

Any suggestions are welcome on these decided things, although I may or may not take them to heart.


The box plan is 2x3x5 (driver on 2x5 side, sub standing on 2x3 side, port likely on top). The current plan is to be able to hook the driver up in different coil configurations on the back of the cabinet, to make things easier.


Current undecided/unknown things: Cloth for cover, build difficulty, exact EQ, safety of pictures on wall.

Thanks!

EDIT: This thread contains the most recent information on page three, a jump of over a year.

...
arande2 is offline
Sponsored Links
Advertisement

post #2 of 144 Old 11-27-2009, 03:02 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11

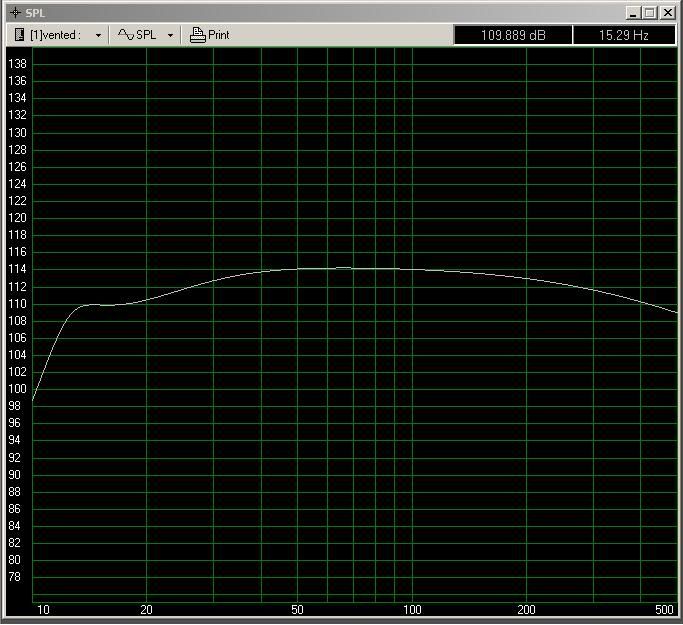

14hz tune, 24 cubic feet, 250 watts in

...
arande2 is offline
post #3 of 144 Old 11-27-2009, 02:30 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I'm trying to stay a bit open-minded still on possibilities..

What about transmission lines specifically? Anyone tried them with large drivers?

...
arande2 is offline
post #4 of 144 Old 11-27-2009, 04:57 PM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:
Originally Posted by arande2 View Post

I'm trying to stay a bit open-minded still on possibilities..

What about transmission lines specifically? Anyone tried them with large drivers?

To get the kind of "tuning" you want with a TL would mean a HUGE box. A lot larger than what you are wanting. The graph that you posted looks like a good honest goal. I was the same way you were for about a month not having a proper amp for the sub. I ran it from both channels of an old pioneer 5.1 receiver in stereo. Be sure to use "direct mode" if you use the old receiver. If you don't you'll have some unwanted EQ added that can mess with the sound of the sub.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #5 of 144 Old 11-29-2009, 02:41 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Thanks for the support, and I'm guessing it worked OK for the time-being.

As for the sub, I've decided to go Sono, and the same basic design still applies.

Unless someone convinces me otherwise, that is the direction I am headed.


Kinda funny going from no sub to a large 18" EBS Sonosub, and probably a second in the future.

...
arande2 is offline
post #6 of 144 Old 11-29-2009, 03:28 PM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
It did work for the short time I used it, but with such little power the receiver that I was using as an amp would clip and shut off. This would happen obviously in a big scene during a movie and would really ruin the moment. It happened the first time I watched The Dark Knight a couple of times.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #7 of 144 Old 11-30-2009, 01:20 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I had a "650-watt RMS" 10"er at one point, and it didn't seem to do much at all. I blew it quickly. The dB meter read 100dB at higher freqs, and 90dB at lower freqs at max output (down to 28hz), less than 1M away. It didn't do much below 28hz. It sounded okay. Piece of crap for $1000.

I expect this to be quite an improvement, even at 200w input.

Also, the 2Pi space F3 with my current design is 13hz, likely a bit overpowering in my room. A change in tuning down to 13.3hz would bring F3 to 21hz and F6 to 11.3hz. Any lower and I have to switch to 8" port, a choice I am not willing to make.

...
arande2 is offline
post #8 of 144 Old 11-30-2009, 04:38 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Your second scenario looks better. I would advise an 8" port though. Check your port air velocity with a 6" port and my guess with that low of a tune it would be pretty high. An 8" port would help that out but may cause the port to be too long making some unwanted resonances. You could always go bigger on the enclosure and that may help.

What's the t/s specs for the driver you are using?


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #9 of 144 Old 11-30-2009, 04:24 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Fi Q18

Qms, 5.73; Qes 0.63; Qts 0.567
Vas 268 l; fs 23.87hz
RE 2.8ohm; BL 15.1
Le: ~1.5mH
Sd: 1210cm^2

27mm xmax

I model it at 26.13 cubic feet with a single 10" non-flared port tuned to 13.84hz (exactly 3 feet long, and sonotube exactly 6 feet long). The Qa is set to 20 to take into account some absorption of the damping material. << Because of a little bit of damping the tuning may also shift down a little.

The port resonance is around 190hz.

Comparing with a sealed enclosure of the same size, the phase/delay characteristics don't really change until below 25hz.

The 10" is the only port that manages low enough velocity.

...
arande2 is offline
post #10 of 144 Old 12-02-2009, 08:32 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I've ordered the driver to set this in stone

I don't plan on having a "bottom plate" below the driver, but instead sitting the sub directly on the legs/feet.

I can cut 4 ~30" circles out of a sheet of 8'x4' MDF, right? I can just alternate them to get it to fit them all.

The current idea is to make sure I know what I'm doing now Lots of reading ahead of me..

...
arande2 is offline
post #11 of 144 Old 12-03-2009, 04:07 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,536
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 383 Post(s)
Liked: 1049
:-( since it has only been one day, maybe you can call and cancel. that is not the driver you need.

you need a driver with high efficiency. 21lw1400 is a good one.

there is a build around here, i forget where, comparing the 21lw1400 ported to an svs ultra. 21lw1400 won in attack.

metallica is on of my favorites.

here are some plots of spectral content of their songs:

whiskey in the jar


king nothing


enter sandman


very little relative under 40hz, yet the drive that you purchased is a sub 40hz king kong.

i'd rethink things in terms of a jbl 2242 or at a miminum 18sounds 18lw1400.

...or a horn sub.

just don't want to see you end up disappointed man. we are one in the same.

edit: green is peak spl, red is average spl.
LL
LL
LL

Listen. It's All Good.
LTD02 is online now
post #12 of 144 Old 12-03-2009, 07:50 AM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,100
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked: 216
You said that you are mostly a music guy (metal) and movies are much less. You have a limited budget right now and limited power. You want as much efficiency as possible, so I think LTD02 is on the better track. Use a big pro woofer like the 21LW1400 or a B&C TBX100 18 and port that dude to about 25-30hz. Goa head and model it versus the Fi Q on 250w.

Another option may be the Bill Fitzmaurice THT horn using the Dayton 15 DVC that everyone is high on right now (apparently me too now). It gets down close to 20hz and should be very efficient and have a lot of output and is also very affordable to build. The enclosure will be more difficult but the plans are detailed and you could pay someone to help construct the enclosure with saved money.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Ricci is online now
post #13 of 144 Old 12-03-2009, 08:33 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I am currently at school, so I cannot model it, but here are my thoughts:

I listen to a lot of music like Pirates of the Caribbean, NIN, and other stuff as well that has <20hz content along with it. My current system already achieves 110dB SPL above 40hz

I am planning on increasing to 2kW of power pretty soon, 200w for a short time only. I model 118dB 2Pi space with 2kW (within driver limits). Then I also plan on adding a second sub (lower freq) and better speakers to handle the upper freqs later on.

I understand why you recommend a different driver, but what I'm going for is the ability to reproduce the ELF that I am currently missing in TV/Movies/Music (some music I should say). If I do not end up being as satisfied as I had hoped for, it only means I need to re-evaluate a bit, do some testing, and add in the missing component.

Even so, do you still feel the same?



Thanks for thoughts. The last "sub" I had was good to 28hz, but I blew it. I actually liked it, but it just did not go low enough, and movies were not improved by turning it on, but were actually worse, as is just sounded bad. FWIW, it maxed out at 100dB at 40hz and up (down to 90dB at 25), and that was with 16% THD. It did manage 1% THD at 90dB at 80hz, climbing fast below that.

?

...
arande2 is offline
post #14 of 144 Old 12-15-2009, 05:37 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I have the driver. It arrived today.

Of course I initially hooked it up with the coils out-of-phase. Trying to test the driver obviously caused the amp to shut down due to lack of excursion. I was like "What?"

Then, of course... I fixed the wiring. Testing reveals that the amp doesn't like more than 80w and shuts down at any higher of a level.

Of course there won't be much output without an enclosure, but the amp barely moves the cone on Bass, I Love You. Definitely going to be quite a difference between 80w () and 1800w ( ).

I noticed the basket has enough spots for a quad coil. I also noticed the suspension is much stiffer than I've seen before. Another thing I noticed is that it's lighter than I expected, and also a little smaller.

Question:

How much mechanical noise should the driver have? I can hear the noise easily with sine waves, but not music.

Mounting? I don't see how it's supposed to be mounted. The holes don't go through?


Thanks. It looks like it'll do what I am planning on. It already rattles the floor pretty badly with a few mm excursion

...
arande2 is offline
post #15 of 144 Old 12-17-2009, 08:10 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
As of now, I have obtained the Sonotube, one half for now and one half for possibly later (as I bought a full 12 1/4 section).

I haven't seen the camera and don't have access to it right now, but I know pictures would be nice, even if it is an 'old' thing (Sonotube), and not all the rage now (THT)

I figured out mounting, luckily. The holes just don't go all the way through since the rubber was attached without any pre-drilling. It makes sense now. I just make the holes myself, as the holes ARE in the frame itself.

...
arande2 is offline
post #16 of 144 Old 12-18-2009, 06:45 AM
Advanced Member

Th3_uN1Qu3's Avatar

Join Date: Oct 2008
Location: Bucharest, Romania
Posts: 714
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by arande2 View Post

Question:

How much mechanical noise should the driver have? I can hear the noise easily with sine waves, but not music.

I think that your little amp is clipping, that's why you hear noise. Amp clipping on sine waves sounds a lot like mechanical noise.

Quote:
Originally Posted by Ivan Beaver
The nice thing about standards is that there are so many to choose from.
Th3_uN1Qu3 is offline
post #17 of 144 Old 12-18-2009, 03:48 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Th3_uN1Qu3 View Post

I think that your little amp is clipping, that's why you hear noise. Amp clipping on sine waves sounds a lot like mechanical noise.


I don't know.. If I turn it down really low so that I can barely hear it, I can hear the noise if I put my ear close. I am going to do some testing to find out

...
arande2 is offline
post #18 of 144 Old 12-18-2009, 04:55 PM
Advanced Member

Th3_uN1Qu3's Avatar

Join Date: Oct 2008
Location: Bucharest, Romania
Posts: 714
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
A little mechanical noise is normal for every speaker. If it's not audible at listening position i wouldn't worry.

Quote:
Originally Posted by Ivan Beaver
The nice thing about standards is that there are so many to choose from.
Th3_uN1Qu3 is offline
post #19 of 144 Old 12-22-2009, 01:39 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Well luckily after a while the VERY NOTICEABLE everywhere mechanical noise seems to have disappeared.

Hopefully it stays that way. Now I can't really hear anything except harmonics with my ear by the cone. They're VERY faint as well, on lower freqs.

I also tested it by purposefully clipping the amp (reached 160w, definitely clipping) and noted how it sounded when the amp clipped. It sounds like a high frequency ringing, and it should. I didn't test clipping at low freqs.

Now I'm convinced it'll be great as soon as I get the enclosure built.

For now, it's all testing.

...
arande2 is offline
post #20 of 144 Old 01-01-2010, 02:15 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11

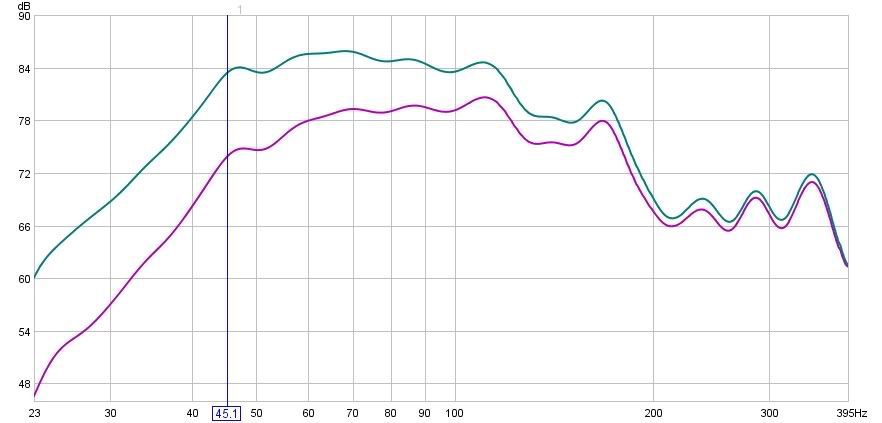

Here is my current bass response. Now you should be able to see very obviously why I think it sounds thin.

These were taken with a mic I had lying around (so it is no doubt off) and my sound card has a high noise level (no line in), likely lowering my actual peaks and dips. I plan on fixing that soon. Smoothed 1/3 Octave.



The upper measurement is with bass boost enabled and the lower one without. Really I don't use the bass boost as it's battery powered and I would have to replace a lot of batteries if I did. I found it weird that the response drops at higher freqs.

...
arande2 is offline
post #21 of 144 Old 01-01-2010, 05:27 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Are you planning on using your subwoofer crossed over that high?


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #22 of 144 Old 01-01-2010, 06:16 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I am confused? Crossed over that high? Where did I reference the crossover? Sorry if I am being stupid...

After some thinking, I am guessing about 80hz will be best for my situation.

...
arande2 is offline
post #23 of 144 Old 01-01-2010, 07:06 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
You graph just looks pretty strong above 100Hz, up to about 120ish.


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #24 of 144 Old 01-01-2010, 07:39 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:
Originally Posted by dbldare View Post

You graph just looks pretty strong above 100Hz, up to about 120ish.


dbl

That's why I was asking about your crossover. It looks good up to a little over 100 hz. If you are going with an 80 hz crossover you will be fine. A little more on the low end will help so your new sub will be worthy of that.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #25 of 144 Old 01-01-2010, 08:45 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by brandonnash View Post

That's why I was asking about your crossover. It looks good up to a little over 100 hz. If you are going with an 80 hz crossover you will be fine. A little more on the low end will help so your new sub will be worthy of that.

Yes, I would say 50-80hz needs some help, and then a nice 2-octave range increase

I have not measured my surrounds (too lazy to disconnect the mains), but I believe that they go a bit lower than the mains, and their drivers have more throw.

...
arande2 is offline
post #26 of 144 Old 01-02-2010, 04:35 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Yesterday, I got a circle cut, but I don't have a camera or a cell phone. I will try to get some pics, though..

We are working on changing a few things so we can do this 'smarter' instead of harder.

The final idea is, I believe, double thick on top, and then triple thick on bottom, with another 'plate' for the bottom.

...
arande2 is offline
post #27 of 144 Old 01-02-2010, 09:24 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
When you say double thick on top triple on bottom do you mean the baffle and back of enclosure? I would double the baffle yes but the back being tripled would be of little use. If you wanted to add I would just double the back but that's really not absolutely necessary.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
brandonnash is offline
post #28 of 144 Old 01-02-2010, 12:19 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Sonotube, bottom endplate tripled up to 2.25, top endplate doubled to 1.5, and then a bottom plate 0.75.

We are currently deciding on how to do the legs as we are cutting the circles.

So far, so good.

We called a friend and he recommended we just use a jig rather than get a router since this is a one-time deal.

Honestly, I have never done any woodworking, but I am enjoying learning as I go (having someone else cut for now).

...
arande2 is offline
post #29 of 144 Old 01-03-2010, 11:00 AM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
It snowed.

Normally, this wouldn't be a problem, but we have to do the cutting outside due to no space indoors. It will be 20 or below all week, so I am going to try and clear out the snow so that I can continue.

I have it mostly cleared, but that last bit is hard to remove. I am not salting because of possible damage.

I will NOT let weather slow me down.

...
arande2 is offline
post #30 of 144 Old 01-04-2010, 03:33 PM - Thread Starter
Advanced Member

arande2's Avatar

Join Date: Jan 2007
Location: Omnipresent
Posts: 508
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Today we finished the main circles in 10 degrees

Now we need to cut the driver/port holes and binding post inserts..

Then sand.. glue..

Then go through the painting process..

Make sure it all works.. Test mount, glue..

Put together.. add carpet/sock to Sonotube..

Attach amplifier leads to binding posts...

The moment of truth..

...
arande2 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
