post #31 of 92 Old 01-02-2010, 01:44 AM
AVS Special Member

SteveCallas's Avatar

Join Date: Jun 2004
Posts: 6,867
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
Liked: 43
Now this is nice to see.

Rarely are a manufacturer's goals and compromises the same as the enthusiast's, so the true long term potential of a bass horn will be unlocked by enthusiasts. I already see some good work being done to minimize the ragged FRs, gain extension, and bank on corner loading. This is the right path.

I'll stand back to watch and learn a while longer and then perhaps try my hand.
SteveCallas is offline
Sponsored Links
Advertisement

post #32 of 92 Old 01-02-2010, 02:40 PM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Excellent work!!! Fun to watch and learn.


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #33 of 92 Old 01-02-2010, 03:04 PM
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,194
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 18 Post(s)
Liked: 87
A basic tapped horn tutorial is posted as a separate thread.

Folding, construction, and measurement tutorials are also coming (slowly...)
lilmike is offline
post #34 of 92 Old 01-03-2010, 03:10 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
I thought I would add some info about phase here as well.

A normal/od horn should have a 90deg phase shift over its usable passband. This can be -90 to 0, or -45 to 45.

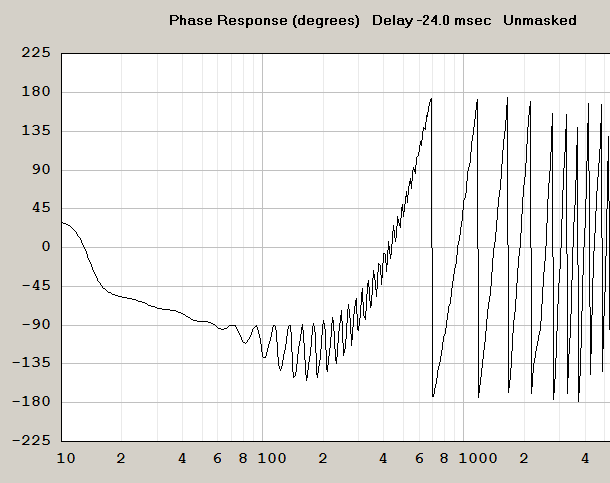

Here is an example:
Normal horn, single 15" driver w/ 15-80Hz bandwidth

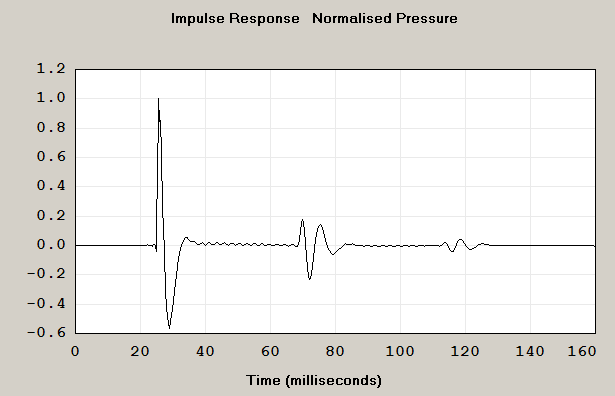

It is also possible to get a pretty flat impulse response:


EDIT: Another note:
The Auto Phase in the program sometimes picks the wrong delay settings. Take your raw horn path length and convert it from cm to feet. Then check the delay time. There should be a negative second for every foot.

If it is way off you can manually set the delay of the phase graph in the tool tab.
soho54 is offline
post #35 of 92 Old 01-03-2010, 04:19 PM - Thread Starter
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,375
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 43 Post(s)
Liked: 147
Updated post #1 with the tapped horn tutorial link...

JSS
maxmercy is offline
post #36 of 92 Old 01-03-2010, 06:56 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
If anyone want to see the math behind this stuff explained, here are two papers that are pretty straight forward form Leach and Keele.

http://users.ece.gatech.edu/~mleach/.../HornPaper.pdf

http://www.xlrtechs.com/dbkeele.com/...TS%20Paras.pdf

Here is one from Bjorn:
http://www.scribd.com/Loudspeaker-Ho...rt-1/d/9778607
soho54 is offline
post #37 of 92 Old 01-04-2010, 07:32 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
I don't have hornresp in front of me now but I did mess with it for a very few minutes last night. Is there any way to change the distances in the s1, s2 etc into inches instead of cm? Or a horn program that let's you use different values?
brandonnash is offline
post #38 of 92 Old 01-04-2010, 07:40 AM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,751
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 28
Not that I was able to find. I've been trying to get used to it - I do my wood cutting in metric anyway.
Oklahoma Wolf is offline
post #39 of 92 Old 01-04-2010, 07:42 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Guess I will just get used to it also. I really can't get a good grasp on liters.
brandonnash is offline
post #40 of 92 Old 01-04-2010, 07:59 AM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,751
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 28
Heh - I've been in Canada since I was seven years old and I'm still having trouble with the metric system. Mostly from converting back and forth.

That reminds me - there's a fantastic freeware unit conversion program called Converber floating around out there... I don't know what I did without it.
Oklahoma Wolf is offline
post #41 of 92 Old 01-04-2010, 10:11 AM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by brandonnash View Post

I don't have hornresp in front of me now but I did mess with it for a very few minutes last night. Is there any way to change the distances in the s1, s2 etc into inches instead of cm? Or a horn program that let's you use different values?

With v25
Click on the box of interest then hit F6.

With v24
Right Click the label
soho54 is offline
post #42 of 92 Old 01-04-2010, 10:29 AM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
soho54 is offline
post #43 of 92 Old 01-04-2010, 05:14 PM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:
Originally Posted by soho54 View Post

With v25
Click on the box of interest then hit F6.

With v24
Right Click the label

Thanks. Will try that tonight after I get my stuff done around the house.
brandonnash is offline
post #44 of 92 Old 01-04-2010, 05:59 PM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,751
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 28
That explains why I couldn't find it - I only went up to v25 yesterday
Oklahoma Wolf is offline
post #45 of 92 Old 01-07-2010, 08:37 AM
Advanced Member

LHD21's Avatar

Join Date: Feb 2008
Location: Chantilly VA
Posts: 985
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Just wanted to tag this thread to read later.

Quote:
Originally Posted by vasyachkin
Even i, the genius, only vaguely understand what i am saying here.
LHD21 is offline
post #46 of 92 Old 01-07-2010, 08:40 AM
AVS Special Member

tsloms's Avatar

Join Date: Dec 2005
Location: Wisconsin
Posts: 1,025
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 25
Quote:
Originally Posted by LHD21 View Post

Just wanted to tag this thread to read later.

FYI. You can also subscribe to it through Thread Tools tab at the top right of the page.
tsloms is offline
post #47 of 92 Old 01-07-2010, 09:15 AM
Advanced Member

LHD21's Avatar

Join Date: Feb 2008
Location: Chantilly VA
Posts: 985
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Dont mind if I do.

Quote:
Originally Posted by vasyachkin
Even i, the genius, only vaguely understand what i am saying here.
LHD21 is offline
post #48 of 92 Old 01-07-2010, 10:22 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:
Originally Posted by Oklahoma Wolf View Post

That explains why I couldn't find it - I only went up to v25 yesterday

I was using v23. I downloaded v25 last night but didn't get to play around with it. If the game gets out of hand tonight I am going to try a few more drivers. The lab12 is a staple and also pretty affordable. Once I get a good base with the lab12 I will start looking at bigger better drivers and see if there is some killer unknown combo to use in size and driver.
brandonnash is offline
post #49 of 92 Old 01-07-2010, 10:35 AM
AVS Special Member

steve71's Avatar

Join Date: Nov 2006
Posts: 1,203
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 15
Nice work on the tutorial Max!
steve71 is offline
post #50 of 92 Old 01-07-2010, 10:59 AM
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,194
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 18 Post(s)
Liked: 87
Quote:
Originally Posted by brandonnash View Post

Guess I will just get used to it also. I really can't get a good grasp on liters.

I find it much easier to get a grasp on pints myself....

Seriously - there are 28.32 liters in a cubic foot, so 115 liters ~4 cubic feet
lilmike is offline
post #51 of 92 Old 01-07-2010, 01:17 PM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,131
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 242
I think of it as 283L is 10 cu ft. Don't know why it helps me remember.
Ricci is online now
post #52 of 92 Old 01-07-2010, 02:06 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I love the Google calculator and unit converter. Type

3 ft * 125 cm * .01 furlongs in cubic yards

into the search engine (note the keyword "in") and it returns

(3 ft) * (125 cm) * (.01 furlongs) = 3.00743657 cubic yards

How cool is that?

Dennis H
catapult is offline
post #53 of 92 Old 01-07-2010, 02:21 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
It works with fractions too.

45 7/16 inches * 28 1/4 inches * 15 7/8 inches in liters

((45 7/16) inches) * ((28 1/4) inches) * ((15 7/8) inches) = 333.9241 liters

Dennis H
catapult is offline
post #54 of 92 Old 01-07-2010, 02:50 PM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:
Originally Posted by Ricci View Post

I think of it as 283L is 10 cu ft. Don't know why it helps me remember.

That's at least a start. 28.3L per cubic foot helps me out then.
brandonnash is offline
post #55 of 92 Old 01-07-2010, 04:25 PM - Thread Starter
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,375
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 43 Post(s)
Liked: 147
Lab12 in a 17Hz horn, 2.83V in, corner loaded: see attached.

JSS



lab12.txt 0.376953125k . file
Attached Files
File Type: txt lab12.txt (386 Bytes, 18 views)
maxmercy is offline
post #56 of 92 Old 01-07-2010, 04:42 PM - Thread Starter
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,375
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 43 Post(s)
Liked: 147
Compare to a smaller Cinema Basshorn (see attached): You step up only 60L in size, but gain some output.

JSS



av15cin2.txt 0.4052734375k . file
Attached Files
File Type: txt av15cin2.txt (415 Bytes, 18 views)
maxmercy is offline
post #57 of 92 Old 01-19-2010, 02:56 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17

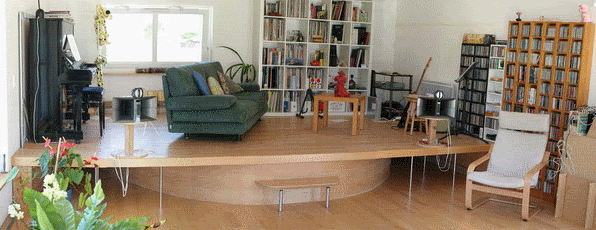

I thought this thread could use a bump, and some inspiration.

Who shall build AVS's first floor horn?
soho54 is offline
post #58 of 92 Old 01-19-2010, 03:05 PM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,751
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 28
I would, but I'm fond of not hitting my head on the drop ceiling here

Cool picture.
Oklahoma Wolf is offline
post #59 of 92 Old 01-19-2010, 07:59 PM
Member

lacrojx's Avatar

Join Date: Aug 2009
Location: NorthWest Fort Worth
Posts: 63
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
As they say, "Build it and they will come". If someone were to build the first DIY in floor THT, I can only imagine the line that will be in front of the home that has it and the admission that could be charged to hear it! I almost want to say... I DARE SOMEONE, but I know better. Someone would...and then they would be liquidating their gear to pay for the divorce!

A bigger hammer is only better until you hit your thumb with it.
lacrojx is offline
post #60 of 92 Old 01-19-2010, 08:05 PM
AVS Special Member

snickel's Avatar

Join Date: Dec 2007
Location: South central Kansas
Posts: 1,158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Well I am short and not married but my house is to small for that.
snickel is offline
Reply DIY Speakers and Subs



Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
