Old 02-17-2010, 09:42 AM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
Just one driver per enclosure, but it is probably best to use these in pairs. The Tang Band W6-1139 also works according to the model, but not quite as well as the Anarchy. Total volume is closer to 3 cubic feet than I wanted, but there is 1/2 a cubic foot of wood inside the cabinet as dividers for 13.5 feet of tapped horn all folded up in there. With 1/2" material it is 20.125" X 30" X 8.25" external, and there is zero wasted space inside.

I will post the modeled predictions and comparisons to the actual measurements when I am done. If worthy, rest assured I'll post drawings, plans, details, and a cutlist so that anyone else can play along at home. If my measurements are not what I expected, I will post what I did and what I found so that we can all work together and try to figure out what went wrong so that others do not make the same mistakes.

I have not posted much about this yet because I do not consider my designs done until they are built, measured, and proven. I don't want to waste other people's time with something that may not work.
lilmike is offline
Sponsored Links
Advertisement

Old 07-31-2010, 12:08 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,514
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 18
Just to update things a little.

The phase response in Hornresp was tweaked awhile ago, and is now correct for THs. You can still get the odd false delay error, but it is a lot less frequently.
soho54 is offline
Old 07-31-2010, 12:17 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,514
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 18
It also seems it was let out that the front chamber between the cone and horn at the throat created by the gap in the baffle needs to be add to the HR model.

To do this here you need to add a Vtc of 636, and Atc of 532. This will shift the FR down a few Hz to match the measured response.

It was worked out in PM, but never updated here for you guys.
soho54 is offline
Old 07-31-2010, 02:45 PM
AVS Special Member

Oklahoma Wolf's Avatar

Join Date: Nov 2006
Location: Eastend, SK, Canada
Posts: 1,772
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 28
Quote:
Originally Posted by soho54 View Post

You can still get the odd false delay error, but it is a lot less frequently.

I thought something seemed different lately

Quote:
Originally Posted by soho54 View Post

It also seems it was let out that the front chamber between the cone and horn at the throat created by the gap in the baffle needs to be add to the HR model.

I had a feeling this was the case, but assumed it didn't make too much difference in the final result unless I doubled up on the wood or something. I knew it would have an effect on the TB horn due to the 18mm thick wood, but decided to just not worry about it at the time. I don't think it really has had much effect on the final result, though the woofers act like the corner is around 15.5 Hz now.

Good to have some actual numbers I can use in future designs... I plan to keep using the 18mm shop birch as long as it stays as cheap as it has been.
Oklahoma Wolf is offline
Old 08-26-2010, 05:17 PM
Newbie

lamia1's Avatar

Join Date: Nov 2009
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
This must be a dumb question because I've read a lot on tapped horns/hornresp and don't see how to translate a model to actual dimensions for building. What am I missing?
lamia1 is offline
Old 08-26-2010, 06:09 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 19,886
Mentioned: 277 Post(s)
Tagged: 1 Thread(s)
Quoted: 2031 Post(s)
Liked: 2258
here is a mockup of a tapped horn that i did for ricci using a 21" drive.

maybe it will help. should get you pretty close.


LL

Listen. It's All Good.
LTD02 is online now
Old 09-06-2010, 09:26 AM
Newbie

NcHalfrican's Avatar

Join Date: May 2010
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Extremely helpful tutorial!
NcHalfrican is offline
Old 09-19-2010, 05:15 PM
Member

rexxxlo's Avatar

Join Date: Jul 2010
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
im studying this and getting it slowly thanks to the wizard phew

only thing i cant seem to get is the width of the horn ?

does it matter ?

i see most of them are just wider than the drivers frame, what effects does this have and is it better to use multiple identical horns in one instance or more than one driver per horn ?

i think i read that if you put 2 drivers in the length of the horn it smooths out the response is that correct?
rexxxlo is offline
Old 09-19-2010, 06:25 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
Width is up to you.

Pretty much the only criteria on setting a width is that the driver needs to fit. I like at least an inch extra, but I have cut things a little closer.

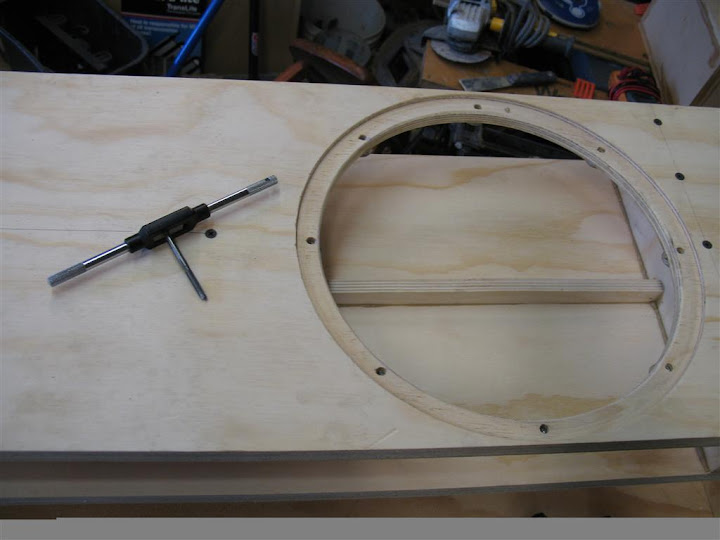

There is about 1/8" of wood left outside the rabbet on this one. As it was, the driver was a snug fit depth-wise, so I needed to design the horn a little bigger.

As far as smoothing things out with multiple drivers - Yes - to a degree would be my qualified answer. I am a big fan of multiple smaller drivers for music applications. For home theater, I have yet to find a small driver that will do the sub-20 Hz stuff at reference level without running into excursion issues, even with 4 in a cabinet. Most run out of gas at around 30 Hz. For these applications, a single larger driver is usually a better choice. The little ones just can't do the lower stuff at high enough SPLs to make it worth my while. Additionally, when you're using 4 of them, the cost adds up pretty quick, and may wind up more expensive than a larger driver that is better suited to the job.

By the way - HornResp now models parabolic flares, which is what 99.99% of us wind up building regardless of what we actually modeled. Select it the same way as conical, just choose "Par".
lilmike is offline
Old 01-19-2011, 06:52 PM
AVS Special Member

CZ Eddie's Avatar

Join Date: Nov 2000
Location: Austin TX, USA
Posts: 7,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked: 32
Guys, I'm trying to teach myself to build a couple of 16hz slim tapped horns, probably about 9" or 10" wide and 48ish" tall by X" long.

Figured I'd start by learning how to re-do the little SPUD. But I must be doing something wrong because the response looks pretty bad?

Here's the t/s parameters for the W8-740P:

http://www.parts-express.com/pdf/264-854s.pdf
LL
LL



spudth74.txt 0.37890625k . file

"The boom is dead, long live the bass"
CZ Eddie is offline
Old 01-19-2011, 07:36 PM
AVS Special Member

CZ Eddie's Avatar

Join Date: Nov 2000
Location: Austin TX, USA
Posts: 7,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked: 32
Also, does anyone know how to run multiple instances of hornresp at once? I can only have one open at a time. Makes comparison between designs difficult.

"The boom is dead, long live the bass"
CZ Eddie is offline
Old 01-19-2011, 09:33 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
It will get complicated to keep track of what design is where, but it is easy to do. Just copy all the files into another directory, like C:\\Hornresp2. I do this all the time. I've had 4 instances running at the same time, plus akabak...

Yeah, I'm not well....
lilmike is offline
Old 01-20-2011, 04:36 AM
AVS Special Member

CZ Eddie's Avatar

Join Date: Nov 2000
Location: Austin TX, USA
Posts: 7,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked: 32
Sheesh, can't believe I didn't think of that. Thanks.

"The boom is dead, long live the bass"
CZ Eddie is offline
Old 06-13-2011, 09:39 PM
Newbie

usrich's Avatar

Join Date: Jun 2011
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Guys i'm new to tapped horns.

I was a little curious about the theory in the danley white paper where it says how at 1/4th wave-length, or corner freq, the wave has 1/2 a wavelength to travel. What i don't get is, where does the rest of the 1/2 go? Am i correct to assume that i have to count both sides of the drivers displacement, since the rear will be radiating 1/4 the WL into the throut and back while the front of the driver will act like a vaccum aswell, does this make sense? I am believing that 1/2 of the rear radiation does not emit out of the mouth at 1/4WL.
usrich is offline
Old 06-14-2011, 02:31 PM
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,514
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 18
Quote:
Originally Posted by lilmike View Post

I've had 4 instances running at the same time, plus akabak...

Yeah, I'm not well....

Whoa, maybe there needs to be a 12-step program.

I have done 2 HRs at the same time along with AkAbak, but I normally have at least 3 horns going in AkAbak at all times, so it may be a little worse.
soho54 is offline
Old 06-14-2011, 06:01 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
12 steps to the fridge, get a beer. 12 steps to the desk, model more horns...repeat. Is that what you were thinking of?

I had to put all four cores to use....

As far as the number of open sims in AkAbak??? That gets ugly fast. At least in a virtualized environment things crash gracefully......
lilmike is offline
Old 08-26-2013, 06:24 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 31,720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked: 2533
What kind of PC gear are you running ?

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
Old 08-26-2013, 07:49 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
Quote:
Originally Posted by Mfusick View Post

What kind of PC gear are you running ?

Current rig?
Core i5, 2500K, clocked at 4.6, water cooled.
16 GB of RAM
256 SSD for boot, 3 TB pool for storage

I currently run Win 7 X64 as an OS, and XP as a VM through XP mode. About 8 concurrent akabak sessions will typically kill it. I've considered stepping up to a proper virtualization environment, but just lack the motivation at the moment - this rig just works, I'll wait till it breaks.
lilmike is offline
Old 08-29-2013, 11:50 AM
Member

davece's Avatar

Join Date: Apr 2013
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by lilmike View Post

Width is up to you.


Pretty much the only criteria on setting a width is that the driver needs to fit. I like at least an inch extra, but I have cut things a little closer.





There is about 1/8" of wood left outside the rabbet on this one. As it was, the driver was a snug fit depth-wise, so I needed to design the horn a little bigger.


As far as smoothing things out with multiple drivers - Yes - to a degree would be my qualified answer. I am a big fan of multiple smaller drivers for music applications. For home theater, I have yet to find a small driver that will do the sub-20 Hz stuff at reference level without running into excursion issues, even with 4 in a cabinet. Most run out of gas at around 30 Hz. For these applications, a single larger driver is usually a better choice. The little ones just can't do the lower stuff at high enough SPLs to make it worth my while. Additionally, when you're using 4 of them, the cost adds up pretty quick, and may wind up more expensive than a larger driver that is better suited to the job.


By the way - HornResp now models parabolic flares, which is what 99.99% of us wind up building regardless of what we actually modeled. Select it the same way as conical, just choose "Par".

so width wont affect it that much ?i was wondering how u figured out the width for a given hornpath myself
davece is offline
Old 08-29-2013, 12:15 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
Quote:
Originally Posted by davece View Post

so width wont affect it that much ?i was wondering how u figured out the width for a given hornpath myself

Area is the number that matters.

Baffle width fixes one of the two components in calculating area, and as it is generally consistent in a typical fold, that allows me to calculate the separation of the baffles when I lay out the fold.
lilmike is offline
Old 08-29-2013, 12:18 PM
Member

davece's Avatar

Join Date: Apr 2013
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by lilmike View Post

Area is the number that matters.

Baffle width fixes one of the two components in calculating area, and as it is generally consistent in a typical fold, that allows me to calculate the separation of the baffles when I lay out the fold.

ok i think i have alot more reading to do before i really play around with hornsrep lol winisd i get but hornsrep is stil confusing the hell out of me
davece is offline
Old 06-22-2014, 08:53 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 31,720
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked: 2533
I'm bumping this so I can find it easy; and also say thanks for a great thread!

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
Old 06-23-2014, 09:00 PM
Member

martinq's Avatar

Join Date: Nov 2006
Location: ON, Canada
Posts: 103
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked: 16
First post needs to be updated:

http://www.hornresp.net/
Mfusick likes this.
martinq is offline
Old 06-25-2014, 08:42 PM - Thread Starter
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,272
Mentioned: 29 Post(s)
Tagged: 1 Thread(s)
Quoted: 53 Post(s)
Liked: 150
Quote:
Originally Posted by martinq View Post
First post needs to be updated:

http://www.hornresp.net/
Done.

Thanks for the reminder.
Mfusick and martinq like this.
lilmike is offline
Old 05-25-2015, 04:53 PM
Member

PorkchopExpr3ss's Avatar

Join Date: Sep 2014
Location: Gods waiting room.(Boca Raton)
Posts: 159
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked: 34
wow thanks, hornresp was in chinese before this. im modeling a tc epic 8. i have 8 18s, this is just for fun.
PorkchopExpr3ss is offline
Old 10-02-2015, 02:50 PM
Newbie

teknophile's Avatar

Join Date: Feb 2008
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
lilmike,

Thanks for this thread. I have been trying to model my own tapped horn enclosure for the past three weeks using the guidance from here but I am still at a loss with some pieces. I tried pm'ing you but I don't have enough posts for that
teknophile is offline
Old 10-02-2015, 06:57 PM
GPM
Senior Member

GPM's Avatar

Join Date: Feb 2004
Location: Chamblee, Ga.
Posts: 382
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 15
Such as? Please post here as others may benefit.

GM

Loud is Beautiful if it's Clean! As always though, the usual disclaimers apply to this post's contents.
GPM is offline
Old 10-03-2015, 12:13 AM
Newbie

teknophile's Avatar

Join Date: Feb 2008
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by GPM View Post
Such as? Please post here as others may benefit.

GM
*First edit: After posting this and continued research it appears my design may in fact be a tapped transmission line...I welcome corrections*

*Second edit: I verified the enclosure I was trying to model is a tapped transmission line. Sorry for confusing it with a horn.

Last edited by teknophile; 10-03-2015 at 01:29 AM.
teknophile is offline
Old 10-03-2015, 12:55 PM
GPM
Senior Member

GPM's Avatar

Join Date: Feb 2004
Location: Chamblee, Ga.
Posts: 382
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked: 15
OK, so you're saying you answered your own Qs?

GM

Loud is Beautiful if it's Clean! As always though, the usual disclaimers apply to this post's contents.
GPM is offline
Old 10-03-2015, 01:02 PM
Newbie

teknophile's Avatar

Join Date: Feb 2008
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by GPM View Post
OK, so you're saying you answered your own Qs?

GM
Not necessarily. I only verified that the enclosure I was trying to model is highly likely a type of tapped transmission line. Although it looked similar to a horn all designs I could find for a horn were for single or at most two drivers in an enclosure. The paths of most horn designs were also much longer than what I was trying to mimic.

Also, this is for an enclosure in a vehicle environment and this thread was mostly geared toward HT. Despite that I noticed that alot of horns were designed anechoic?

For reference I was trying to model this enclosure (my previous enclosure)


to accomodate six 12 inch subwoofers. The previous enclosure was designed for six 8 inch subwoofers and the designer is now on hiatus for personal reasons.

The enclosure I had used a parallel plane for woofer mounting as opposed to an angled plane most horns use to start the throat I believe. Also, most path lengths I have seen for horns are much longer compared to my previous enclosure.

If anyone feels they may have some insight on how I can model this type of enclosure for six 12 inch subwoofers as opposed to six 8 inch subwoofers that would be truly appreciated.

I can model most any enclosure in sketchup and I can build them as well with no problems. I just can't figure out hornresp enough at this point to know if a tapped horn is what my previous enclosure was (I doubt it) or how to model a transmission line.

Last edited by teknophile; 10-03-2015 at 01:06 PM.
teknophile is offline
Sponsored Links
Advertisement


Thread Tools


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
