After much thought and reading. I thought I'd document the process.

First, why build a THT?

Output vs cost (bang for the buck)
From what I hear, you'll spend megabucks on a commercial sub with this sort of output.

Should I build a THT - Is it hard?
I see this question asked in the forums. Since the word "hard" can be left to interpretation, I'll just say this: Building a THT takes much attention to detail. And it takes ALOT of work and time. I came to the table with some rough wood working skills and no knowledge of subwoofers. That lack of knowledge is telling. I have, now that I've figured out I can not build it in a couple of evenings, settled down into the project and changed my focus from "geterdone" to a more "getitright" approach. If you wish to go out and hammer something together in a couple of hours, the THT is not for you. But the learning experience in both wood working and finishing and subwoofer design and testing is worth it to me.



Now, what size THT to build?

The THT, by it's nature is big. Very big! Everyone seems to be happy with the 24w x 36t x 36d model which allows for a 15" subwoofer. You can also get this one thru the doorway. But it's still huge!

Now to order the plans.
This is the plan I ordered for 15.00. Maybe he'll make a paypal clickable link to simplify this someday..
http://www.billfitzmaurice.com/THT.html

Order Parts w/Parts Express Part Numbers
1 260-309 Gold Recessed 5-Way Banana Speaker Terminal Rectangle $4.87
1 295-190 Dayton DVC385-88 15" DVC Series Subwoofer $149.76
1 260-776 Cast Frame #10-32 Speaker Mounting Kit $3.39
1 260-542 Speaker Gasketing Tape 1/8" x 1/2" x 50 ft. Roll $6.48
1 260-283 Round Speaker Terminal 2-7/8" Gold Binding Post $4.98

As you can see, I've not made up my mind on the Round or square Speaker terminals.

Screws or Brads:
Screws - If you use a cheaper plywood such as Arauco (More prone to warpage, you may want to use screws. Especially if you do not have several large clamps. This may limit you to a painted type of finish.

Brads - Nice for a stained finished look. If you have lot's of clamps and good straight plywood, brads will speed up the build.

Clamps
2 - hand-held
2 - 36"

Lock and a flat washers for the 10/32 bolts.

An AMP - I'm going with a rack mount so I will be able to drive more than one subwoofer off of it and can simply run speaker wires only to it rather than a subwoofer cable. It's also suggested ground-loop hum may not be an issue this way.. I chose the EP4000 Europower 349.00 (I had first thought this mean non-US style of power plug.

3 Sheet's of 1/2 Plywood 5-Ply
Note: Have been warned against 5-ply birch that has 3 ply's, then a thin veneer ply on both sides. Better to use 5 equal size ply's. Stay away from AC Fir or BC Yellow Pine because of warpage.
NOTE: You can check the big box stores stock online.
15/32" 4X8 ARAUCO PLYWOOD ACX from lowes is cheap at 24.00, but does have a bit of a warpage issue. You may have to sort thru a few sheets.

5 tubes PL Primium adhesive from HomeDepot
Gloves (PL Primium is hard to get off of you and/or anything else.

1 1/4 and 1" drywall screws. (I have a brad nailer, but am scared of sqeaks using any sort of nail)

A plywood blade for the saw.


Tips from other threads

Air tight is a MUST!

Use 10/32 screws on the woofer to give yourself some play.

Do NOT wipe smooth PL Premium on exposed surfaces. Let it dry, then chip it off with a wood chisel. (It does NOT sand off well)

We may need to use hot glue or something on the subwoofer gasket

Use something like 5 minute epoxy on the t-nuts. Gorrilla glue may not hold!

WAF
Be aware of the "wife approval factor". For me, this is not an issue. I'd shown her one the other day where the guy knocked a hole in the wall. This morning, she had a yard stick on and was messing measuring around with it. Turned to me and asked, "Which wall were you knocking out?" Umm, I'm not knocking out a wall honey..

Notes to write on the pages of the plans:

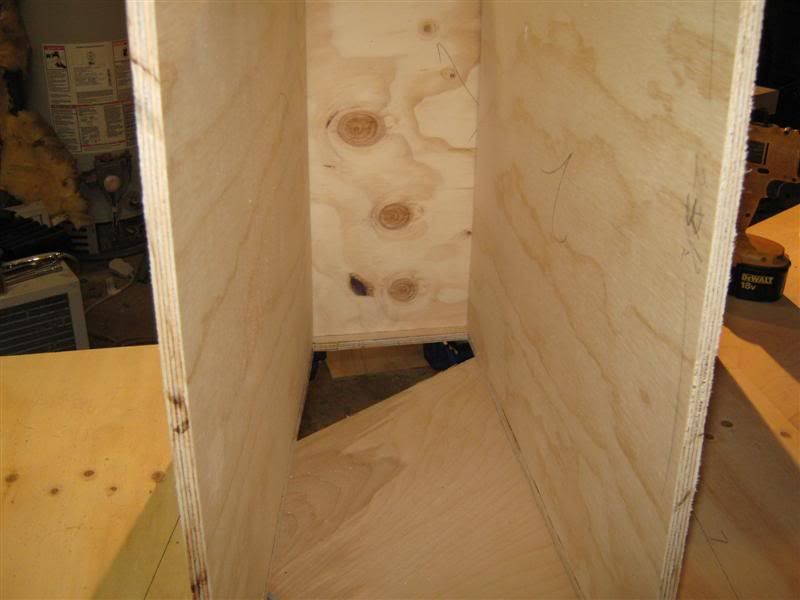

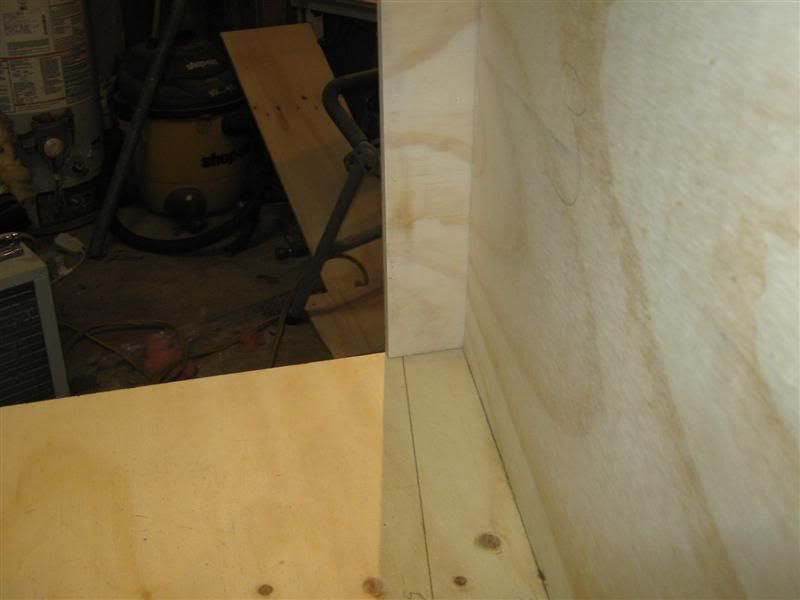

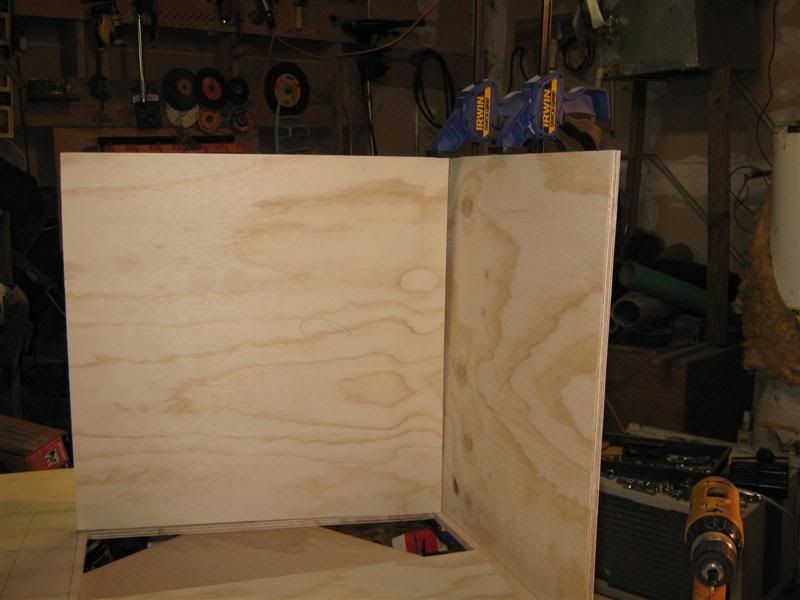

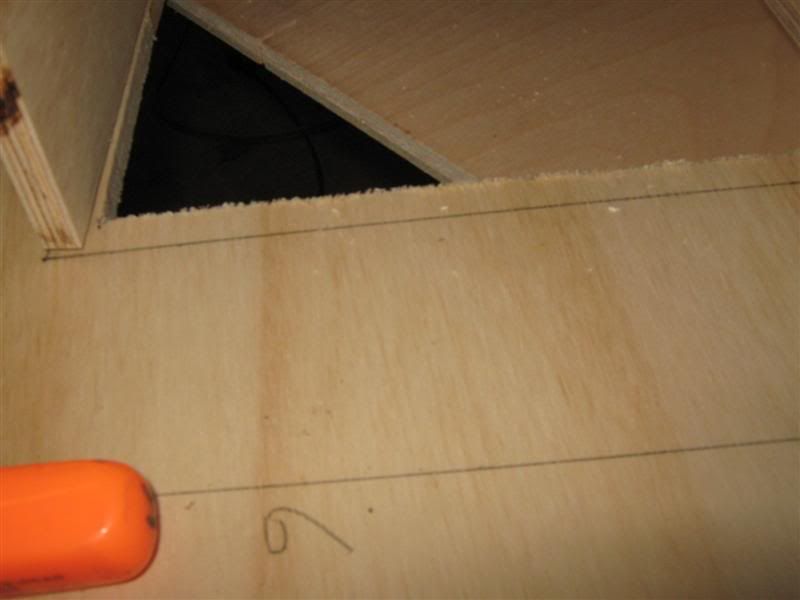

Page 10 - Panel 4 install - Be aware panel 2 goes to the line, but panel 3 is flush with the cutout so panel 4 will underlap panel 2 and overlap panel 3. LOOK AT THE PICTURE!

The reflectors (corner braces) are differant sizes for a reason. I overlooked this and made them all the same size.. An example of a quick assumption on my part and a lesson learned.

Breaking in the SUB:
You do not HAVE to break in the driver (speaker). But many believe you should and you can do that while building the THT.
You can use a volt meter and touch the wires where they connect to the sub. Your looking for less than 10 volts at 20hz. Run that way for 24 hours. You can download test tones to play at the 20hz.
You should see movement of about 3/8" during this period.


I will edit this later as I come up with more stuff.
dragonslayr is offline
Sponsored Links
Advertisement

post #2 of 155 Old 02-01-2010, 12:09 PM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
I like your approach.

This thread will serve as a nice resource for future builds and answer many common questions.

jpmst3 is online now
post #3 of 155 Old 02-01-2010, 12:17 PM
Advanced Member

goku14139268520's Avatar

Join Date: Jun 2008
Location: Wichita, Kansas
Posts: 585
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by jpmst3 View Post

I like your approach.

This thread will serve as a nice resource for future builds and answer many common questions.

+1,

Very nice compilation of infinitely useful info. Looking forward to this build.
goku14139268520 is offline
post #4 of 155 Old 02-01-2010, 12:35 PM
AVS Special Member

zero the hero's Avatar

Join Date: Aug 2004
Location: NJ
Posts: 1,360
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by dragonslayr View Post

An AMP - I'm going with a rack mount so I will be able to drive more than one subwoofer off of it and can simply run speaker wires only to it rather than a subwoofer cable. It's also suggested ground-loop hum may not be an issue this way.. Though the EP4000 is proving difficult to find. (Other than the europower)


EP4000 IS called EuroPower... that might make your ability to find it easier
zero the hero is offline
post #5 of 155 Old 02-01-2010, 12:43 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thanks guys, Your making me edit it already..
Europower, to me, meant a funny looking plug end. Should have kept reading I guess.
dragonslayr is offline
post #6 of 155 Old 02-01-2010, 12:45 PM
AVS Special Member

stgdz's Avatar

Join Date: May 2002
Location: MNsnowta in april :(
Posts: 2,188
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Get some long 36" clamps, at least two. I had two and it made it easy to deal with the warped arauco.
stgdz is offline
post #7 of 155 Old 02-01-2010, 12:52 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by stgdz View Post

Get some long 36" clamps, at least two. I had two and it made it easy to deal with the warped arauco.

I have loads of clamps of all sorts, but will adjust the page to reflect which ones I used on the build.
dragonslayr is offline
post #8 of 155 Old 02-01-2010, 01:52 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I do have a question. Would putting the thing upstairs, cutting a hole in the floor, then a vent of some sort in the ceiling work? Then, it could be a table upstairs..

On the down side, I'd expect sitting in that room would be really loud? Or would most the sound go down the vent as I'd like it to..
dragonslayr is offline
post #9 of 155 Old 02-01-2010, 01:56 PM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
Quote:
Originally Posted by dragonslayr View Post

I do have a question. Would putting the thing upstairs, cutting a hole in the floor, then a vent of some sort in the ceiling work? Then, it could be a table upstairs..

On the down side, I'd expect sitting in that room would be really loud? Or would most the sound go down the vent as I'd like it to..

You could do what you are proposing.

The waves exit the mouth. Extending the horn by adding length should lower the tuning point slightly, I suspect actually improving the response.
If you seal the space around the opening upstairs it should not be all that loud.

jpmst3 is online now
post #10 of 155 Old 02-01-2010, 01:59 PM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
By the way,
When using a pro amp (ala EP4000) that does not have adjustable input voltage you may need to add something to boost the signal from the receiver to amp.

Most people use:

Art Cleanbox
or
Samson S-convert

I recommend the Samson as it does not require a mod to make the low end response flatter like the Cleanbox does.

jpmst3 is online now
post #11 of 155 Old 02-01-2010, 02:12 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jpmst3 View Post

By the way,
When using a pro amp (ala EP4000) that does not have adjustable input voltage you may need to add something to boost the signal from the receiver to amp.

Most people use:

Art Cleanbox
or
Samson S-convert

I recommend the Samson as it does not require a mod to make the low end response flatter like the Cleanbox does.

I did not realize this. I don't know if my Panasonic VSX-1019AHK will need something like this or not..
dragonslayr is offline
post #12 of 155 Old 02-01-2010, 02:32 PM
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 406
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 24
Quote:
Originally Posted by dragonslayr View Post

Do NOT wipe smooth PL Premium on exposed surfaces. Let it dry, then chip it off with a wood chisel. (It does NOT sand off well)

+1
I made this mistake when assembling my DTS-10, big time! what a pain!

I think we're the demons.
soundemon is offline
post #13 of 155 Old 02-01-2010, 02:53 PM
AVS Special Member

t6902wf's Avatar

Join Date: Aug 2008
Location: SE Michigan
Posts: 1,671
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by soundemon View Post

+1
I made this mistake when assembling my DTS-10, big time! what a pain!

I actually scraped the PL off when it was wet. Worked well for me.

T6

Clearwave 4TSE and 4CC build thread
http://www.avsforum.com/avs-vb/showt...1#post19489740
t6902wf is offline
post #14 of 155 Old 02-01-2010, 03:18 PM
AVS Special Member

zero the hero's Avatar

Join Date: Aug 2004
Location: NJ
Posts: 1,360
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by dragonslayr View Post

I did not realize this. I don't know if my Panasonic VSX-1019AHK will need something like this or not..

the THT may have enough output that you won't notice. I'm using the Behringer mic2200, which has the bonus of having a built in high-pass filter and a one band PEQ per channel.
zero the hero is offline
post #15 of 155 Old 02-01-2010, 04:09 PM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Dragon,

First off, congrats on the new build!

You may want to hold off on buying a pre-amp. You may not need it, but you can always buy it after the build. Personally I use the Mic2200.

I'll be following your build. Nice start to your thread!

dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #16 of 155 Old 02-01-2010, 05:49 PM
AVS Special Member

snickel's Avatar

Join Date: Dec 2007
Location: South central Kansas
Posts: 1,158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
My ep2500 works fine with no pre-amp with a Denon receiver.
snickel is offline
post #17 of 155 Old 02-01-2010, 09:45 PM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
Quote:
Originally Posted by dragonslayr View Post

I did not realize this. I don't know if my Panasonic VSX-1019AHK will need something like this or not..

Notice, I said MAY. You won't know until you try it. Some receivers send enough to work well, others do not. See what happens.

I forgot about the Mic2200. I have not seen it tested like the other two I mentioned so I am not sure what the freq response is.

jpmst3 is online now
post #18 of 155 Old 02-01-2010, 10:35 PM
AVS Special Member

mj79's Avatar

Join Date: Dec 2008
Posts: 1,255
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by dragonslayr View Post

I did not realize this. I don't know if my Panasonic VSX-1019AHK will need something like this or not..

pioneer?
mj79 is offline
post #19 of 155 Old 02-01-2010, 11:16 PM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,522
Mentioned: 4 Post(s)
Tagged: 1 Thread(s)
Quoted: 415 Post(s)
Liked: 700
Quote:
Originally Posted by dragonslayr View Post


As you can see, I've not made up my mind on the Round or square Speaker terminals.


These are so easy to install.





I saw someone use them on a pair of speakers and I was sold. They look nice, not too expensive, and take 3 minutes to install both. Here's the link:

http://www.parts-express.com/pe/show...umber=091-1245
Erich H is online now
post #20 of 155 Old 02-02-2010, 07:29 AM
Member

NCDaveD's Avatar

Join Date: Dec 2009
Posts: 95
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Erich H View Post

These are so easy to install.





I saw someone use them on a pair of speakers and I was sold. They look nice, not too expensive, and take 3 minutes to install both. Here's the link:

http://www.parts-express.com/pe/show...umber=091-1245

+1

I used them on my amp box and will be using them in my TT.


NCDaveD
LL
NCDaveD is offline
post #21 of 155 Old 02-02-2010, 10:47 AM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
Those are the binding posts that I always use.

OK, let's get this build started and get some step by step picks!

jpmst3 is online now
post #22 of 155 Old 02-03-2010, 12:54 AM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by jpmst3 View Post

Those are the binding posts that I always use.

OK, let's get this build started and get some step by step pics!

I have to confess, I got all the panels cut and the access panel cut and didn't take pictures yet. I'm not much of a camera person, but will try to get the wife to take some for me. She'd better hurry though. This thing is going together quick because I'm really excited about getting it working.

I did, however, update the first post to reflect the arauco plywood and the clamps I used so far.
dragonslayr is offline
post #23 of 155 Old 02-03-2010, 06:40 AM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,209
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 205
Quote:
Originally Posted by dragonslayr View Post

I have to confess, I got all the panels cut and the access panel cut and didn't take pictures yet. I'm not much of a camera person, but will try to get the wife to take some for me. She'd better hurry though. This thing is going together quick because I'm really excited about getting it working.

I did, however, update the first post to reflect the arauco plywood and the clamps I used so far.

Good job on the updates.

You better get some pictures or it never happened!

jpmst3 is online now
post #24 of 155 Old 02-03-2010, 07:24 AM
AVS Special Member

Kanaris's Avatar

Join Date: Nov 2006
Location: Montreal,Canada
Posts: 1,224
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
You open a build thread and it has no pics...

Kanaris is offline
post #25 of 155 Old 02-03-2010, 07:38 AM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Kanaris View Post

You open a build thread and it has no pics...

Ok, picture taking person is on board now.. Coming up.. Stay tuned..
dragonslayr is offline
post #26 of 155 Old 02-03-2010, 07:20 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
No time this evening, but I did sortof dry-fit a couple of panels.

See panel 1 is still rough cut about 1/2" to long


Panels 1 2 and 3 look good. Note: the overlapping of panel 3 and underlapping of panel 2 thru me off a bit. I'll note that on the first page.


Notice I cut the hole with a jig saw. It should sand down just fine.


A table saw is a godsend on these cuts. Makes me look good.


As you can make out the metel blades in the background, I'm much better setup to work on metel rather than wood. I had to buy tools for this finished wood adventure..
dragonslayr is offline
post #27 of 155 Old 02-03-2010, 07:36 PM
AVS Special Member

mj79's Avatar

Join Date: Dec 2008
Posts: 1,255
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by dragonslayr View Post

No time this evening, but I did sortof dry-fit a couple of panels. I also screwed up. When I placed panel two, I saw it was longer than the line. Remembering these were "rough" cuts, I shaved it down about 1/2". Then comes panel 3 which fit perfectly. Then comes panel 4. It was way to wide to fit in between panel two and three.. So I cut it down. About the time I was fitting it back in, I realized my bad. So now, panel 4 fits between 2 and 3 rather than overlaping panel 3. Probably makes no differance..

Yea ppl have said on quite a few occasions if your off an 1/8 here or there its not going to make a noticeable difference.. I noticed all my cuts were exacty to the plans but some didnt match the lines on the main layout panel.. I think panel 4 and 5 were about an 1/8th off, I was tired of messing with it so I just let it go
mj79 is offline
post #28 of 155 Old 02-04-2010, 07:06 AM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I removed this part of my post because I realized I was looking at it wrongly. The short reply is, I cut panel 3 down to the size it was supposed to be and all was well. As I mentioned, I'm going to create an area on the first page for "notes to make on the plans". On this particular page, it will say something like this: " Be aware panel 2 goes to the line, but panel 3 is flush with the cutout so panel 4 will underlap panel 2 and overlap panel 3. LOOK AT THE PICTURE!"
dragonslayr is offline
post #29 of 155 Old 02-04-2010, 07:30 AM
AVS Addicted Member

Bill Fitzmaurice's Avatar

Join Date: Nov 2009
Location: New Hampshire
Posts: 10,129
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 1650
Quote:
Originally Posted by dragonslayr View Post

LOOK AT THE PICTURE!

And look at the Sketchup model. You can see every joint in exact detail, from any angle, even from the inside of the sheets of plywood. An hour or two spent learning how to use Sketchup and thoroughly reviewing the model will save you many times that when you start building.

Bill Fitzmaurice Loudspeaker Design

The Laws of Physics aren't swayed by opinion.
Bill Fitzmaurice is online now
post #30 of 155 Old 02-04-2010, 02:40 PM - Thread Starter
Member

dragonslayr's Avatar

Join Date: Dec 2009
Posts: 93
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Hmm, I got the sub in. Got the amp in.
Something tells me I needed to order a cable to go between the rca looking jack on the back of the reciever to the amp.
dragonslayr is offline
Reply DIY Speakers and Subs



Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
