I started my first DIY sub about 6 weeks ago and I thought I would bring you guys up to date. First off I won this Amazing driver from Exodus Audio and hometheatershack. I wanted to build an encolsure that would emphasize the how big the M-21 is. I started with some design concepts.


Then Kevin sent me the 21" beast and it was a sight to behold.




So I started with a stack of 3/4" sanded pine plywood.
corock is offline
Sponsored Links
Advertisement

post #2 of 732 Old 03-28-2010, 12:03 AM
AVS Special Member

greg_mitch's Avatar

Join Date: Dec 2004
Location: IA
Posts: 1,369
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
...the size of that sub is sick! Good luck with the project. Looks fun!
greg_mitch is offline
post #3 of 732 Old 03-28-2010, 12:41 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

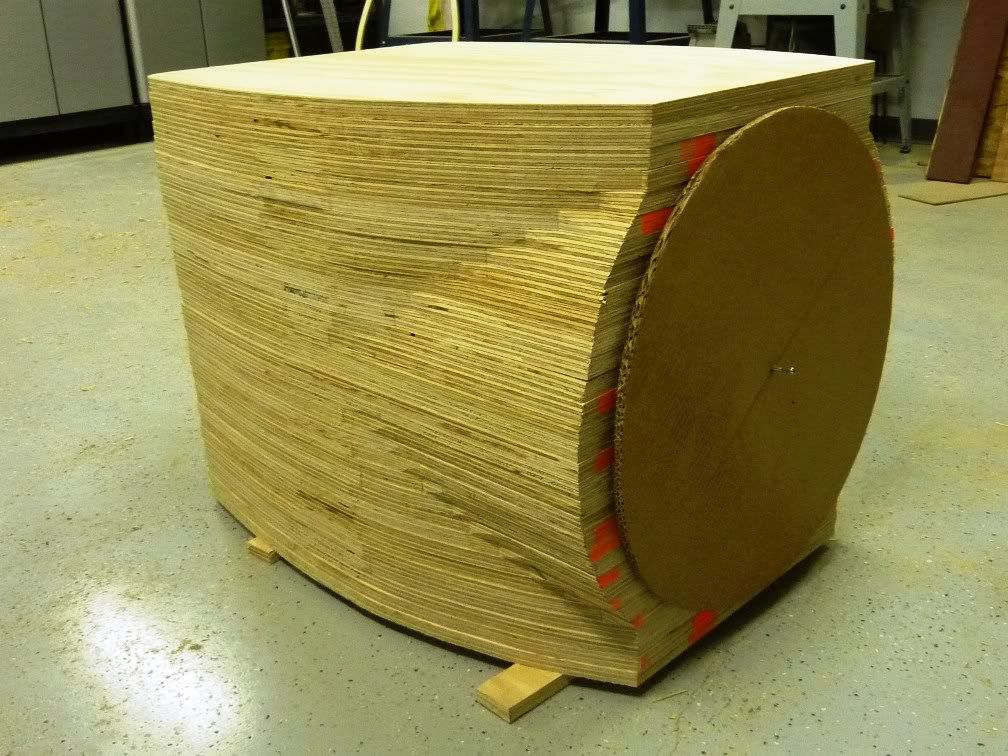

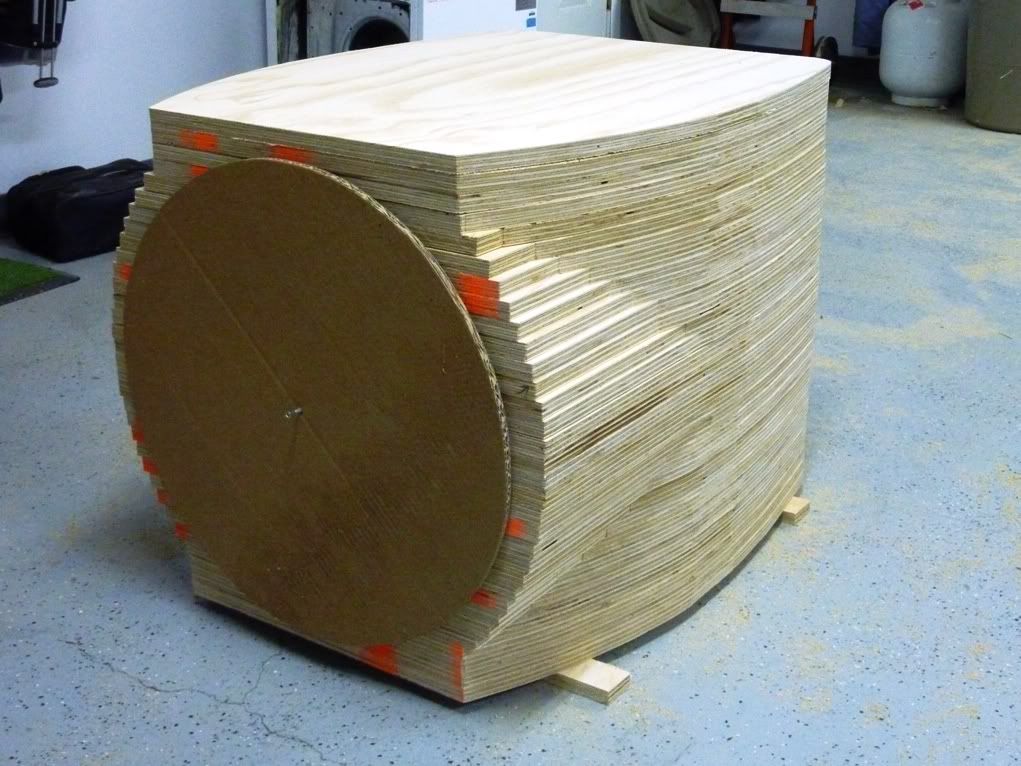

First thing I had to do was get the design off sketchup and onto the wood.

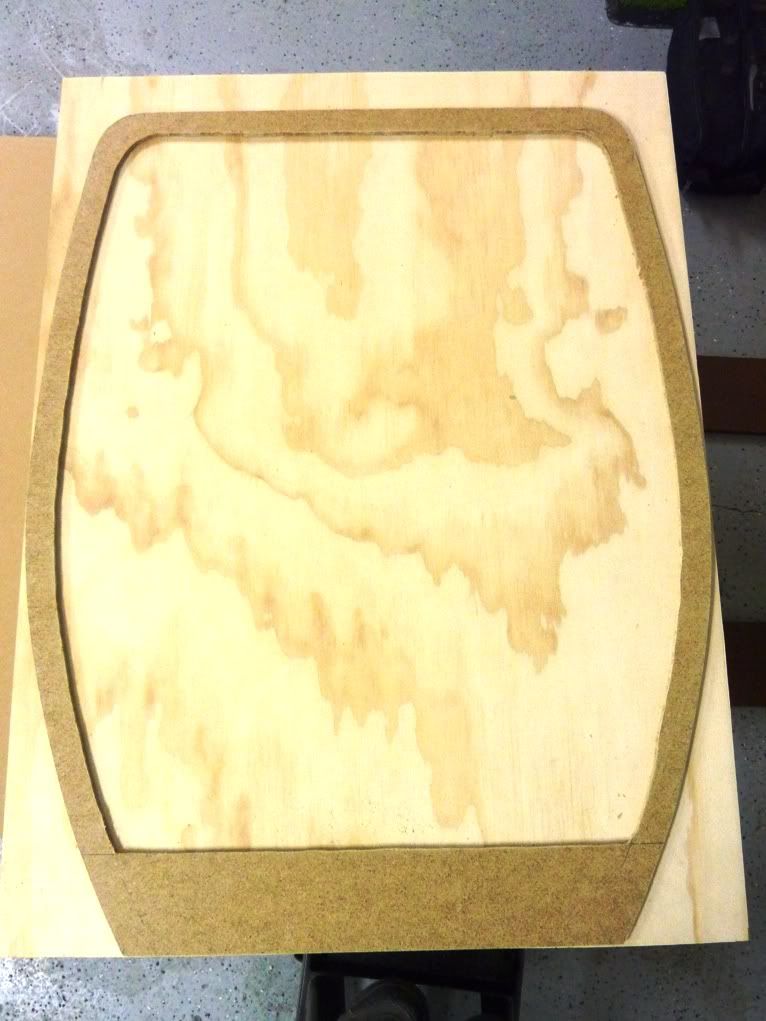

Then I created a template of the basic box.

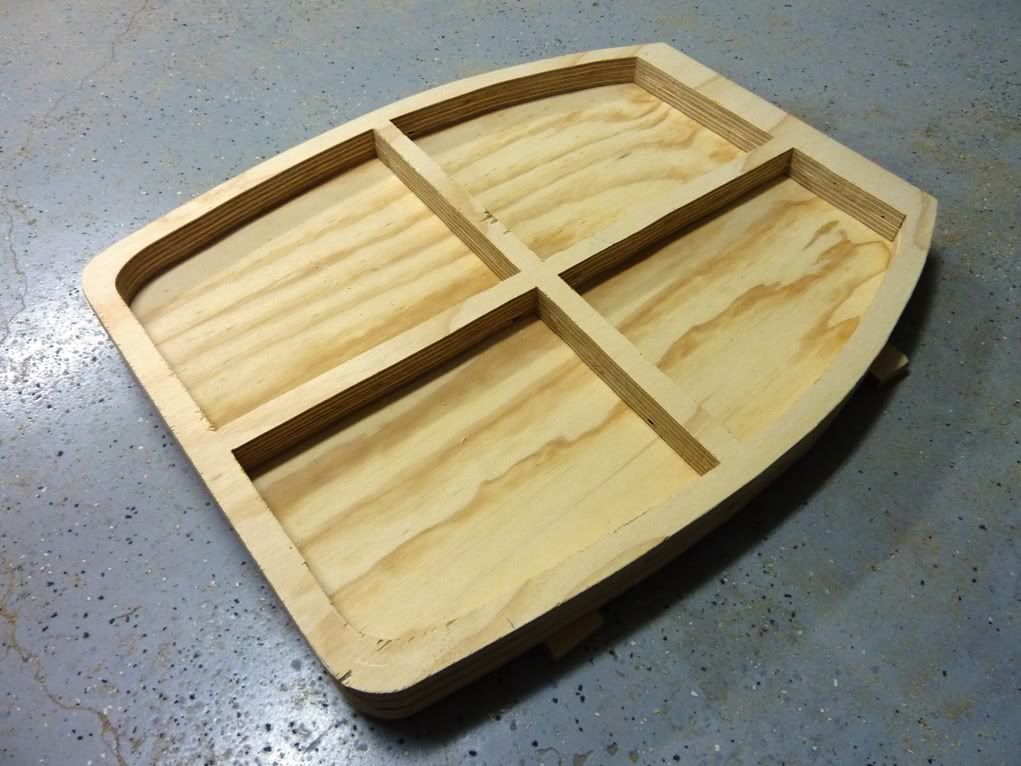

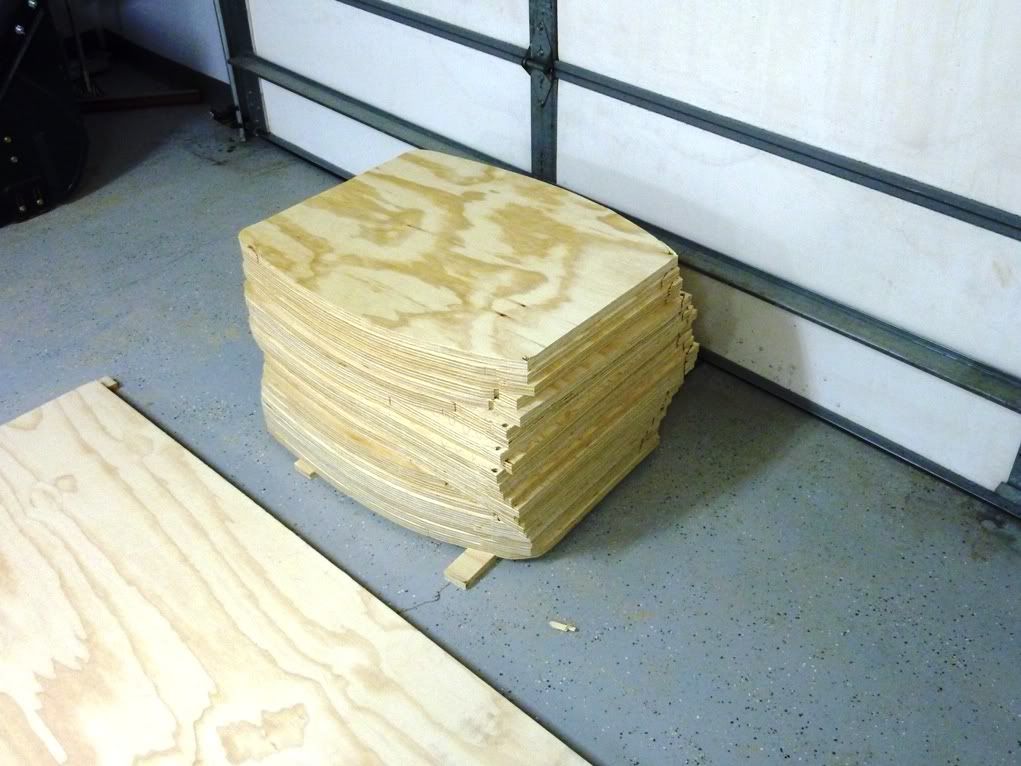

Next was to cut the different layers of plywood to create the cone shape.

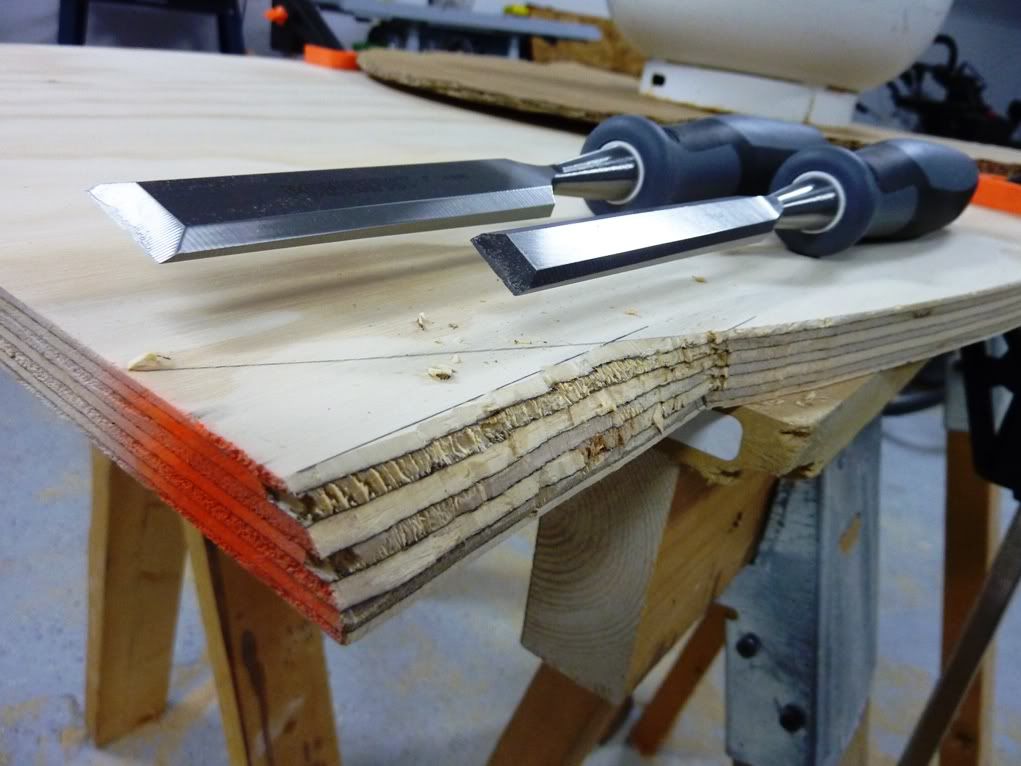

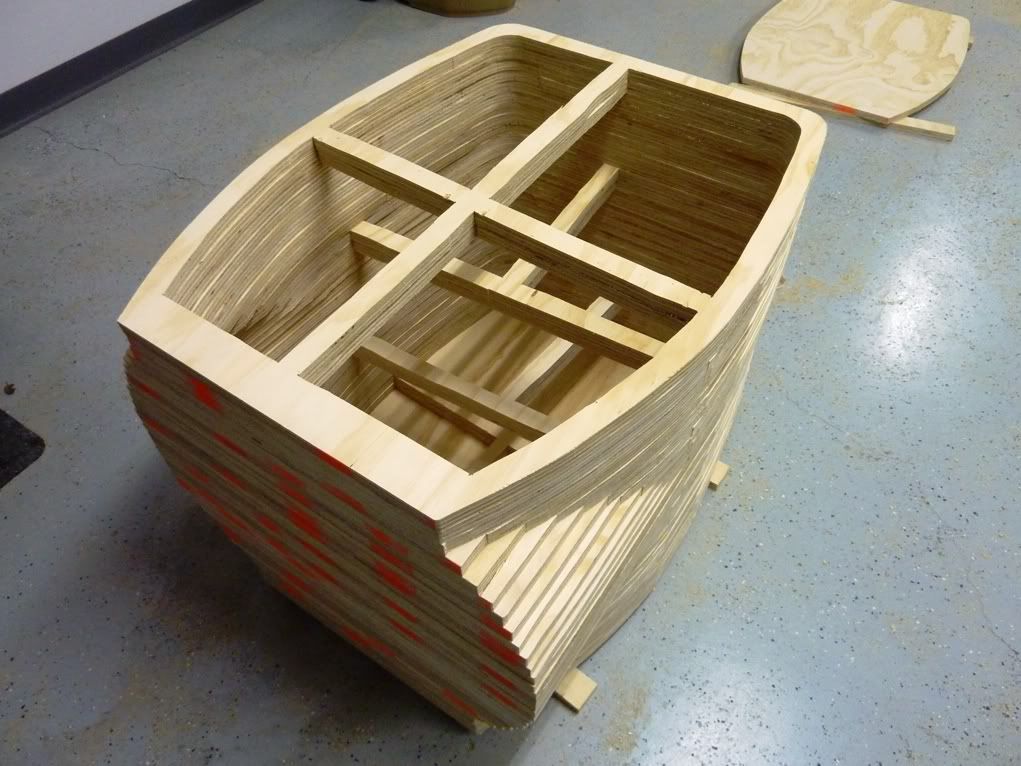

Once all the outside cuts were done I started on cutting out the inside.

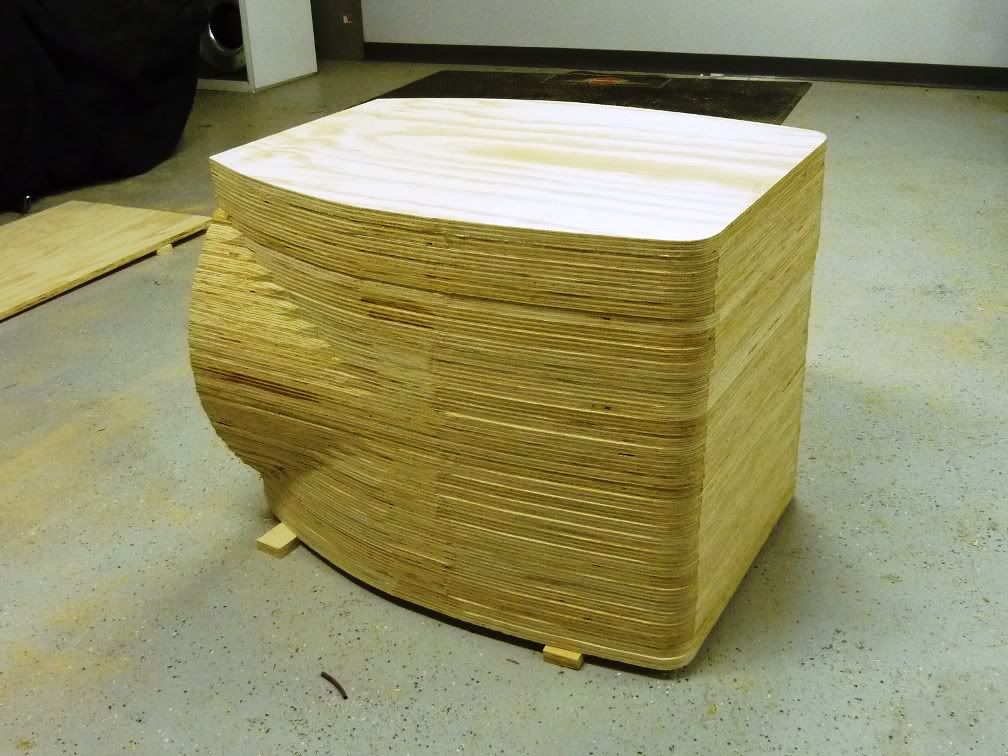

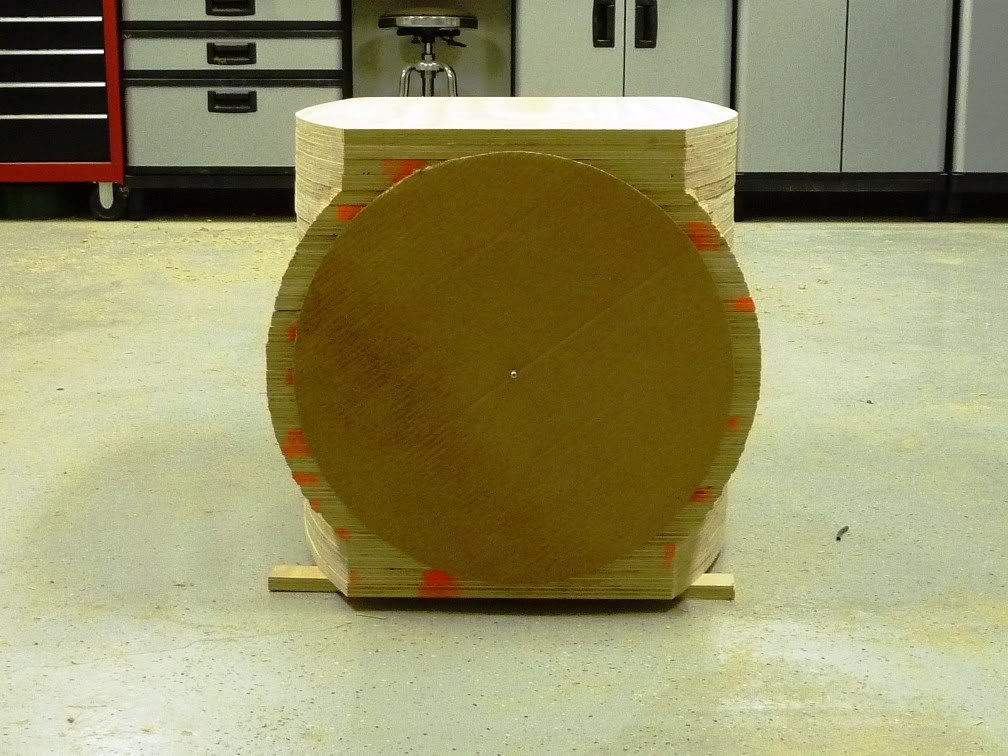

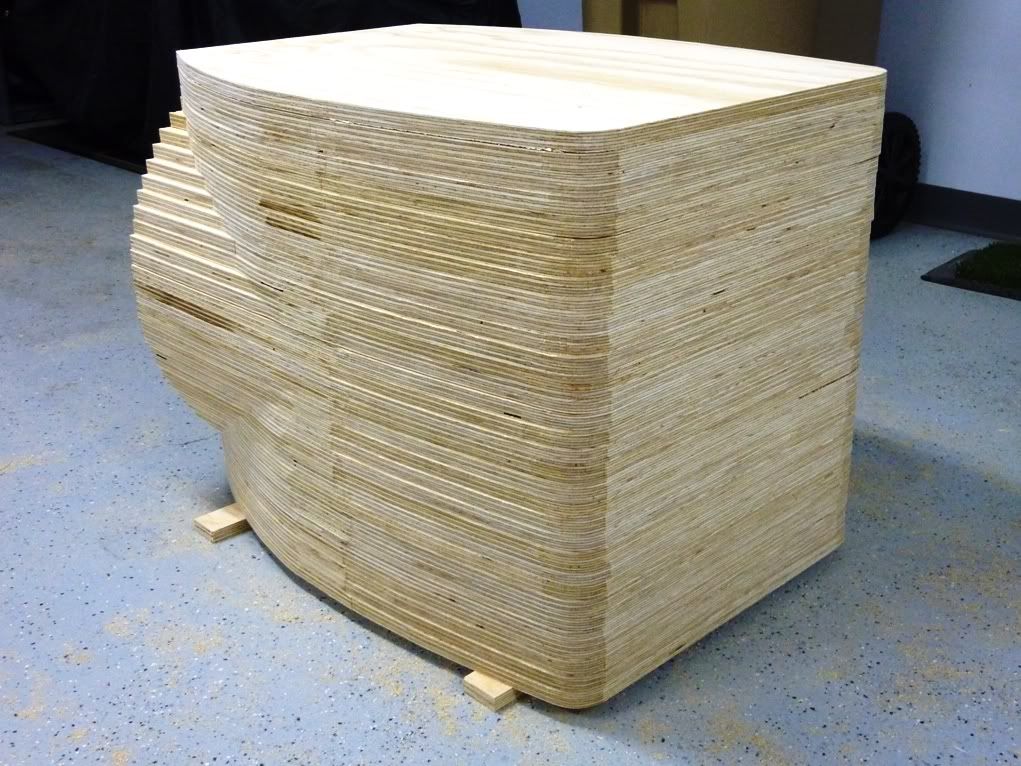

Now That the basic shape of the box was complete I had to start refining it. First job was to take down the corners of the plys around the cone. I used a wood chisel to take those down by hand.


That's were I'm at today. The basic shape of my enclosure.




Next step is to glue it all together so I can start the long process of carving down that excess wood where the cone meets the cube and then sanding the whole thing smooth
corock is offline
post #4 of 732 Old 03-28-2010, 12:49 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,066
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked: 330
I just finished reading your thread over there. Any ETA on completion or when you'll have the driver mounted?

Also, very impressive. That's a lot of work =]
notnyt is online now
post #5 of 732 Old 03-28-2010, 12:52 AM
Senior Member

s_carter's Avatar

Join Date: Sep 2009
Location: Portland, OR
Posts: 352
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Damn, that looks good so far. I will definitely be waiting to see how your setup turns out. Looks like a LOT of time, glue, and clamps though... Not to mention saw blades.

I just assembled my 18" LLT, and am overall very pleased with it. I can't imagine what a 21" driver would sound like. Even with a cheap 18" in an 8 cubic foot ported box, and about 400 watts, I get enough output to give me a headache in the low 30 hz range, and enough SPL to make my blinds flutter at 10 hz, and they are in between two sets of well sealed windows.

How big is the box, and it looks like you are going to go with a sealed enclosure, correct? With a driver like that and plenty of power, I wouldn't see a need to go with a ported design, unless your bass crazy like me.

Sam Carter
Custom Sounds NW
Custom enclosures, service and installation of mobile electronics and home theater equipment.
Featured in CAE
My Home Page
DIY Dual 18" Sub Project (MK II)

s_carter is offline
post #6 of 732 Old 03-28-2010, 12:53 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
No eta really. Taking off that excess wood where the cone and cube meet is a real unknown. I have to free hand that part of the build with very little room for error. I don't know how hard or easy that will be thus no idea how long it will take. I'm try to keep patient while at the same time very anxious to see what the driver will look like mounted.
corock is offline
post #7 of 732 Old 03-28-2010, 12:56 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by s_carter View Post

Damn, that looks good so far. I will definitely be waiting to see how your setup turns out. Looks like a LOT of time, glue, and clamps though... Not to mention saw blades.

I just assembled my 18" LLT, and am overall very pleased with it. I can't imagine what a 21" driver would sound like. Even with a cheap 18" in an 8 cubic foot ported box, and about 400 watts, I get enough output to give me a headache in the low 30 hz range, and enough SPL to make my blinds flutter at 10 hz, and they are in between two sets of well sealed windows.

How big is the box, and it looks like you are going to go with a sealed enclosure, correct? With a driver like that and plenty of power, I wouldn't see a need to go with a ported design, unless your bass crazy like me.

The box is going to come in just under 7 cu ft. I'm going to power it with a Behringer EP4000 bridged at 4 ohms. I went sealed because I wanted to keep the box a sane size and do something unique with the shape.
corock is offline
post #8 of 732 Old 03-28-2010, 12:57 AM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,163
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 42
Sweet looking design, but I don't envy you the sanding and shaping. I'll watch with interest as I have an idea for a trans-lam design with some compound curves too. Muchos pics please.

I presume it's sealed? What's the internal volume?
A9X-308 is offline
post #9 of 732 Old 03-28-2010, 01:12 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,066
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked: 330
I'd suggest a rotary tool and a sanding bit, just take your time.
notnyt is online now
post #10 of 732 Old 03-28-2010, 01:18 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I've already got the Dremel ready to go
corock is offline
post #11 of 732 Old 03-28-2010, 01:20 AM
Troll

ufokillerz's Avatar

Join Date: Sep 2003
Location: NYC Area
Posts: 1,534
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 44
wow, very impressed, the work so far must have taken a whole lot of time!!, big pile of scrap wood for next winter i bet too
ufokillerz is offline
post #12 of 732 Old 03-28-2010, 01:31 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by ufokillerz View Post

wow, very impressed, the work so far must have taken a whole lot of time!!, big pile of scrap wood for next winter i bet too

I've put in a lot of hours, and yeah, you might say there's been some scrap



corock is offline
post #13 of 732 Old 03-28-2010, 05:30 AM
AVS Special Member

flyng_fool's Avatar

Join Date: Aug 2009
Location: Frisco, TX
Posts: 3,422
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 71
Wow! You are one dedicated man! I look forward to seeing how this monster looks and performs.

Dumb enough to spend lots of cash on this junk!
flyng_fool is offline
post #14 of 732 Old 03-28-2010, 06:24 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Looks awesome! I'm sub'd....


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #15 of 732 Old 03-28-2010, 07:00 AM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,142
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Liked: 426
Nice looking design and cool execution too. Can't wait to see the finished product.
Erich H is offline
post #16 of 732 Old 03-28-2010, 07:59 AM
AVS Special Member

tsloms's Avatar

Join Date: Dec 2005
Location: Wisconsin
Posts: 1,022
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 25
What do you anticipate the finished enclosure to weigh when finished? Like the others say that is just a sh!t ton of work but should turn out very nice when done. What kind of finish are you planning for it?
tsloms is offline
post #17 of 732 Old 03-28-2010, 08:56 AM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
First impression is the enclosure would be about 60 lbs, but that's a just a guess. I'm going to use a transparent finish so all the plys show. My plan is to do a french polish, the traditional meathod of finishing piano's and other wood instruments. But, that's a first for me too, so I'll have to do some practicing to see if I can actually do it good enough to do it on the box.
corock is offline
post #18 of 732 Old 03-28-2010, 10:18 AM
AVS Special Member

gperkins1973's Avatar

Join Date: May 2009
Posts: 1,519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Corock,

I found you over too. I have just realised you are doing a 21" Maelstrom. I don't know why I thought you were doing a 18" one. Doh! I really can't wait to see the finished thing and with that EP4000 bridged into 4ohms you are really in for a nice treat.

Well done!


cheers

Graham
gperkins1973 is offline
post #19 of 732 Old 03-28-2010, 10:36 AM
AVS Special Member

zero the hero's Avatar

Join Date: Aug 2004
Location: NJ
Posts: 1,360
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
unbelievable!
zero the hero is offline
post #20 of 732 Old 03-28-2010, 11:07 AM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,115
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 186
Damn that is sweet!

I always wanted to do he curved design that way.

Not to mention that I love the pure wow factor that the Mal 21 provides!

Nice!

jpmst3 is offline
post #21 of 732 Old 03-28-2010, 11:44 AM
Senior Member

titch--'s Avatar

Join Date: Oct 2005
Location: Cnd Prairies
Posts: 375
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wow, very nice build!

Nice monster sub. Its even bending the heck out of your little stand.



cheers

Trevor
titch-- is offline
post #22 of 732 Old 03-28-2010, 01:53 PM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

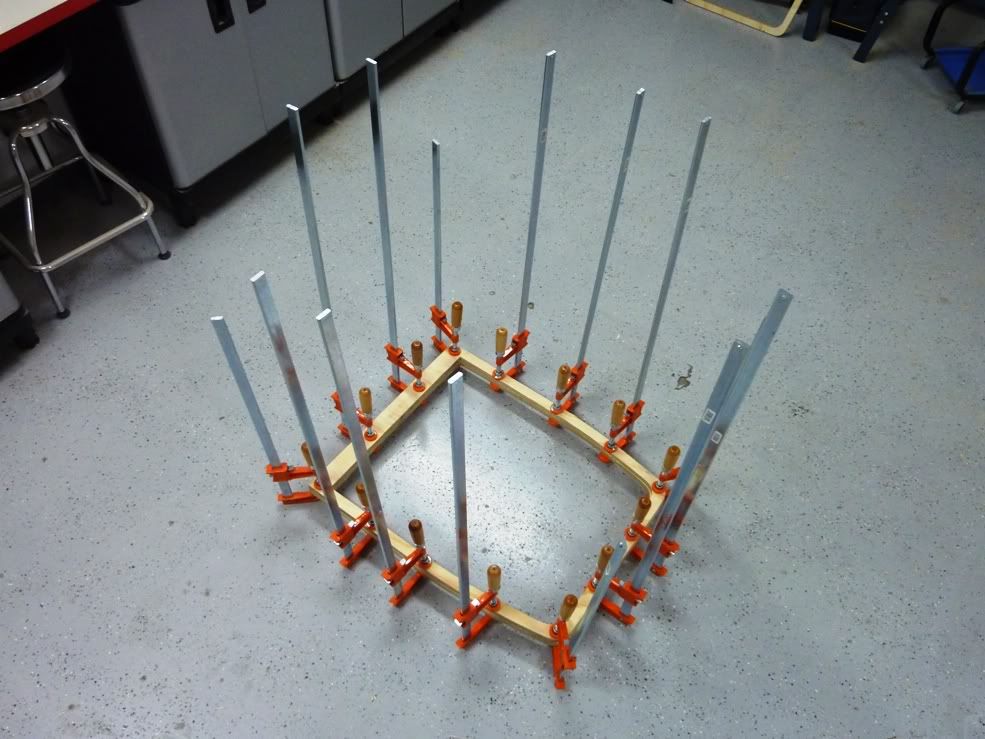

I started the gluing process today.

corock is offline
post #23 of 732 Old 03-28-2010, 02:18 PM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Quote:
Originally Posted by corock View Post

I started the gluing process today.


That's gonna be a funny pic in a few days...


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #24 of 732 Old 03-28-2010, 03:40 PM
AVS Special Member

Favelle's Avatar

Join Date: Dec 2004
Location: Victoria, BC, Canada
Posts: 3,786
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Wow man, what an impressive design! Actually, everything is impressive. Amount of work, design, craftsmanship.... WOW!

In terms of LFE, size does matter!
Favelle is offline
post #25 of 732 Old 03-28-2010, 04:26 PM
Advanced Member

Starkiller4299's Avatar

Join Date: Jan 2007
Location: SW MI
Posts: 526
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I think you need moar clamps .

I can't even begin to imagine how much of a pain in the butt that must have been to cut. Do I count 30 layers!? Very nice job.

We love overkill. -- gperkins1973
My fuse box is my HPF. -- kryptonitewhite

2x18 Ficar IB3 Infinite Baffle Manifold Install
Starkiller4299 is offline
post #26 of 732 Old 03-28-2010, 04:46 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,066
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked: 330
notnyt is online now
post #27 of 732 Old 03-28-2010, 04:50 PM
AVS Special Member

Kanaris's Avatar

Join Date: Nov 2006
Location: Montreal,Canada
Posts: 1,223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Neat design.... Why don't you clamp up more layers at a time?

Kanaris is offline
post #28 of 732 Old 03-28-2010, 05:02 PM
AVS Special Member

kgveteran's Avatar

Join Date: Apr 2004
Location: Rochester NY
Posts: 5,663
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 38
So, this is a sealed 21" freakin monster !!! What amp and what EQ, if sealed. What is the volume of the box, so to speak. This looks pretty cool so far. Pics are great.

KG
kgveteran is online now
post #29 of 732 Old 03-28-2010, 05:07 PM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Starkiller4299 View Post

I think you need moar clamps .

I can't even begin to imagine how much of a pain in the butt that must have been to cut. Do I count 30 layers!? Very nice job.

The cutting was a bit of a pain, but it was fun watching the shape of the enclosure form. I estimate I cut about 7000 inches with a jig saw. There are 32 layers, makes it 23.5" high x 24" wide x 30" deep.

I'm only gluing one layer at a time because its too hard to get more layers to line up when they start slipping around on the glue.
corock is offline
post #30 of 732 Old 03-28-2010, 05:09 PM - Thread Starter
Senior Member

corock's Avatar

Join Date: Oct 2007
Posts: 268
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by kgveteran View Post

So, this is a sealed 21" freakin monster !!! What amp and what EQ, if sealed. What is the volume of the box, so to speak. This looks pretty cool so far. Pics are great.

KG

Behringer EP4000 bridged at 4 ohms, BFD 1124p eq, box will come in between 6.5 and 7 cu ft.
corock is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
