post #1 of 106 Old 10-21-2010, 10:24 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Here is an Excel spreadsheet that will help you design a few different things in Hornresp. It will model a single/multiple driver horn in TH, Nd, and OD configurations, in 3 or 4 sections. It will also do a BP type of quarter-wave resonator, and a T-TQWT.

The following few posts will show how to use the program, and what to expect.


Before I forget, let's thank Marshal Leach, Richard Long, and Tom Danley. They did all the real work.
The majority of the math I used can be found here: http://users.ece.gatech.edu/~mleach/.../HornPaper.pdf
Thanks go out to David McBean as well. Without his program there would be no need for this.




The Open Office file is a little outdated, but I hope to have it updated to the current build soon.



Easy Horn v8ca1 Excel.zip 37.216796875k . file



Easy Horn v5c OpenOffice.zip 40.0634765625k . file
soho54 is offline
Sponsored Links
Advertisement

post #2 of 106 Old 10-21-2010, 10:25 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
I tried to make the program as easy to use as possible. To that end all cells that the user can change are colored yellow. All normal outputs are light blue cells with dark blue writing.

Everything you generally need to use the program is shown in the picture in the first post. I tried to centrally locate as much functionality as possible.

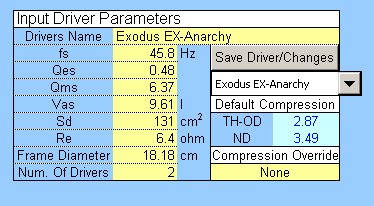

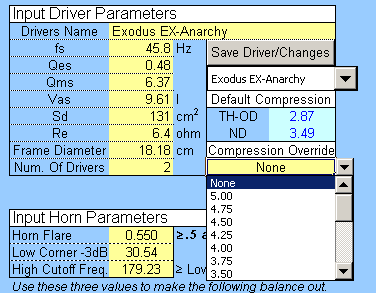

The first thing you want to do is to input the needed Driver parameters. You can find these cells here:


You can use the dropdown menu to pick a previously saved Driver, or enter a new Driver by filling in the yellow cells. There are around 60 driver pre-entered into the Data Bass right now. You can then click the Save Driver button to save it into the sheet. If you need to change something just alter the yellow cell in question. If you want to save the new change, just click the Save Driver/Changes button again.

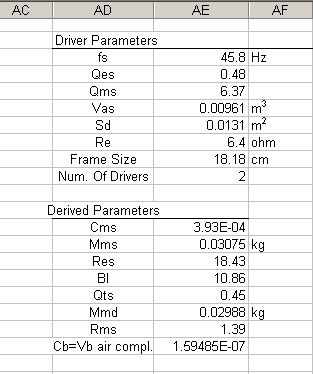

If you scroll down some you will find a new area to enter even more Driver info. It is partly there to allow you to create a detailed driver data base for your own use, and some of the info will be needed in future updates.


Some have found the parameter inputs a little lacking, as there are some major parameters not input. The reason for this is that the sheet calculates them to the right of the main section for you.
soho54 is offline
post #3 of 106 Old 10-21-2010, 10:26 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17

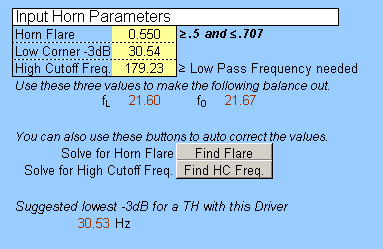

Now it is time to start setting up the enclosure. This is done here:


All three input can be input manually, or you can input two and calculate the third.

The first parameter is the Horn Flare. The is the "m" parameter from the Leach paper. It determines the rate of change of the horns area as it moves between the throat and mouth. The specified range to the right is the range in which the Reactance Annulling math should be correct. As you get further way from this range it gets less accurate. This is were Hornresp would be used to alter things slightly to pull things back inline.

The Low Corner -3dB is just what you thing it is. This is the -3dB point below the Low Corner. It is most accurate with THs, as that is what everything is geared for. With the other alignments you will find the LC a little below this figure.

High Cutoff Freq. is the -3dB figure on the high side. This pertains to the horn loading, so is more inline with power response.

Below these three you see two cells named fL and fO. These are used to set the horns Reactance Annulment. fL is based off you Low Corner. You alter the Horn Flare and High Cutoff to adjust fO to equal fL as close as you feel is needed.

Further down you will find two buttons, Find Flare and Find HC Freq. Find Flare takes the LC and HC you input above, and finds the Horn Flare that fits them. Find HC Freq uses the LC and Horn Flare to find the correct HC for the pair.
soho54 is offline
post #4 of 106 Old 10-21-2010, 10:26 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17

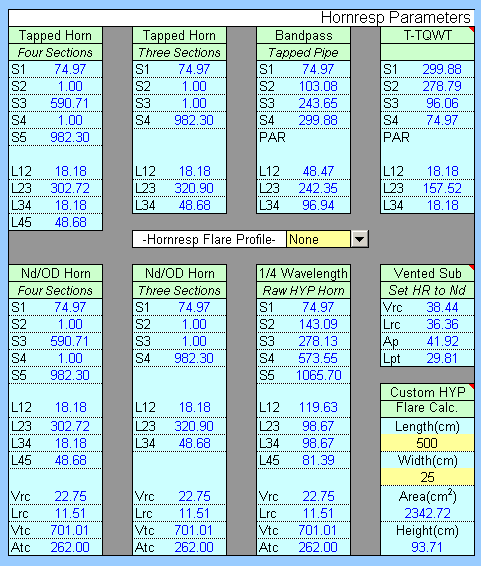

It's now time to start looking at the enclosure outputs (Hornresp Inputs.)


If you notice the default Horn Flare Profile in the center is None. This is a hold over from the first versions of the sheet. It was designed to allow you to get into the Loudspeaker Wizard as fast as possible, and as such it gives you 1's in the cells that HR will auto calculate for you from the others. The new version of HR may have me taking this option out.

You can change this by clicking into the None cell. This will allow you to pick the Hornresp Con, Exp, or Par options.


If you look back to the left at the Compression cells, and it is higher than you want it (or lower,) you can also click on the None there to engage the Compression Override. This will alter the horn parameters for you.


The Vented Sub outputs are there for a quick comparison/reality check on your horns in Hornresp.

The Custom HYP Flare Calc is there to allow you to pick your own distances between point with the Length parameter. It allows you to enter a Width, and outputs a Height as well if you want to do some thing outside of Hornresp.
soho54 is offline
post #5 of 106 Old 10-21-2010, 10:26 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Sometimes you can get something like this to happen:


It happens when you start trying to tune an enclosure with a high LC Freq.

If you are doing a Nd/Od horn just input the parameters, and move on.

If you are after a TH the horn cutoff is too high, and the physical horn path is not long enough to place the Rear Tap the right distance from the throat. If you really want to make this combo work you will have to input it "as is" in Hornresp, and play with the Loudspeaker Wizard.

In the T-TQWT you can just substitute 1cm for the negative number. I'll have it automatically do that in a future update.

The Vented Sub is just tuned too high for the enclosure space.

The 1/4 Wavelength Horn is always good.
soho54 is offline
post #6 of 106 Old 10-21-2010, 10:41 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17

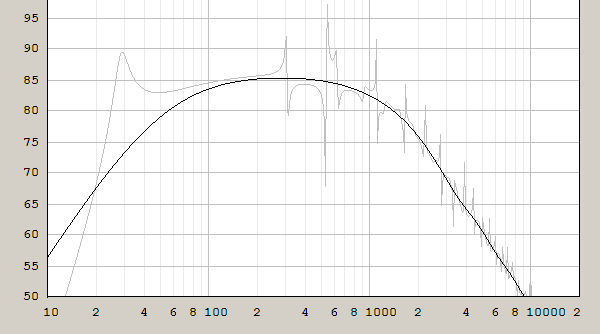

For comparisons sake here is a sealed, and vented FR graph for a pair of 35l enclosures (not including the port area.)

soho54 is offline
post #7 of 106 Old 10-21-2010, 11:30 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Just a note...

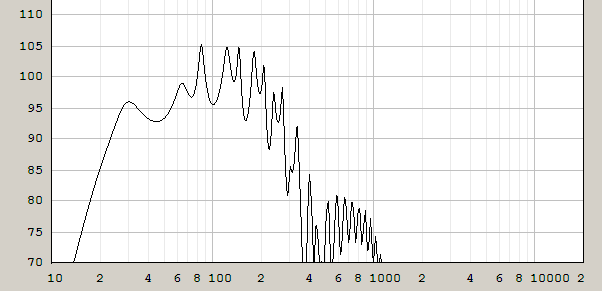

If you are expecting something like this:

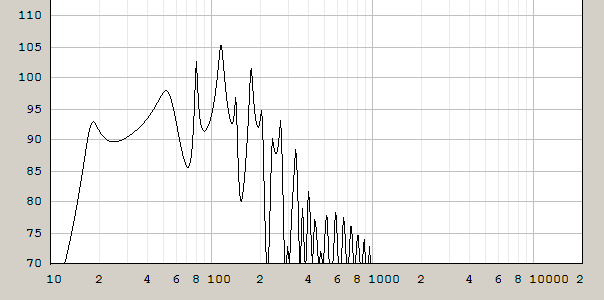

and you end up with this:


The compression is to high for that driver. 2 is too much for some.

The really raised Low Corner, and it's thick triangle shape is a dead giveaway.

On the flip side, go to low and you will get this.


This is not a normal occurrence though.
soho54 is offline
post #8 of 106 Old 10-22-2010, 12:27 AM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
soho54 is offline
post #9 of 106 Old 10-22-2010, 12:59 AM
Senior Member

Antripodean's Avatar

Join Date: Apr 2009
Location: The Antripodes (OZ)
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hi Soho

Amazing stuff!! Tried it out with a TB W8 740P and it gets a bug with the Qes at .303

Driver Parameters
Fs 28
Re 3.2
Le 3.18
Vas 22.86
Qes 0.303
Qms 10.53
Qts 0.3
BL 13.35
Sd 220
Frame Size 21
# of Drivers 1

Horn Parameters
m 0.51 >.49 & <.708
Low Corner 20 -3dB Point
High Corner 80 -3dB Point
14.3 -Make Equal- -387.5

Any suggestions?

explore the music
Antripodean is offline
post #10 of 106 Old 10-22-2010, 03:05 AM
Senior Member

mwmkravchenko's Avatar

Join Date: Jul 2009
Location: Perth Ontario Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 26
Works with open office. You just have to turn on macros.

Mark

Mark Kravchenko



Consultant and Designer



www.kravchenko-audio.com

mwmkravchenko is offline
post #11 of 106 Old 10-22-2010, 06:30 AM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by Antripodean View Post

Hi Soho

Amazing stuff!! Tried it out with a TB W8 740P and it gets a bug with the Qes at .303

Horn Parameters
m 0.51 >.49 & <.708
Low Corner 20 -3dB Point
High Corner 80 -3dB Point
14.3 -Make Equal- -387.5

Any suggestions?

Your HC is giving you a negative in C20, and the VB script will not reach "zero" with the negative number is all it is.

Just click "end" to close the window (no needed to debug,) and put 163 in as the HC.

This is a driver that wants a higher compression horn, which may be more than it can handle. Once input, and with Horn-S2 Variable on you can raise S1 to get it into a more driver friendly range.
soho54 is offline
post #12 of 106 Old 10-22-2010, 06:36 AM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by mwmkravchenko View Post

Works with open office. You just have to turn on macros.

Mark

Thanks for the confirmation.

None of my optics sheets ever work in OOffice if I've used any VB, so I assumed this would be the same. Good to know.
soho54 is offline
post #13 of 106 Old 10-22-2010, 10:16 AM
AVS Special Member

lilmike's Avatar

Join Date: Dec 2009
Location: Pacific Northwest
Posts: 2,184
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 13 Post(s)
Liked: 80
Thanks for sharing this, this is a very helpful tool.
lilmike is offline
post #14 of 106 Old 10-22-2010, 10:30 AM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
EDIT: From v5 on you get .10 not negatives. There is no real fix for a TH, you need to change things. If doing a ND/Od use the 1/4WL HYP horn parameters.

If you end up with a negative in the last segment length don't worry (anywhere else is a problem,) this is what you do...

With a TH...
Enter everything in, and input the negative number as ".1" Now when you enter the Wizard with the Horn-S2 Variable on increase the last segment until it equals L12. The end of the horn will be a little off, but close.

With an Nd/OD...
Enter everything in, and input the negative number as ".1" and that's it. Same end problem as above.

Later, when the enclosure/cut sheet portion is done, I'll fix this to work automatically.
soho54 is offline
post #15 of 106 Old 10-22-2010, 11:56 AM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
I've been getting some questions about why you would use a 4 Section horn, it's a bit tough to explain. The simple answer is that you can get a better horn that way.

It seems like it would make folding a pain, but not really. If you look you will see that I have the third section length tied to the drivers diameter. All you have to do is fold from the mouth, and use the last two section to define your depth.

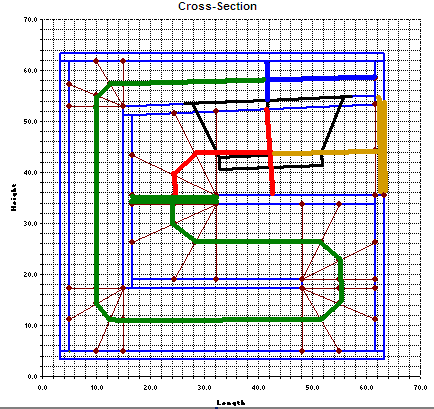

He is a pic from Brain Steele's Stepped TH spreadsheet to help the explanation out: http://www.diysubwoofers.org/misc/Stepped-TH.zip


If your rear tap point was further in than the front one from the throat by much, you just turn the throat around to fire to the right first, instead of the left as seen in the pic.

You can also still do the long folds, you just have to add in some filler wood to part of the longest fold.
soho54 is offline
post #16 of 106 Old 10-22-2010, 12:50 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by lilmike View Post

Thanks for sharing this, this is a very helpful tool.

Thanks, I hope someone will get some use out of it.

I've had it on the back burner for a year now. Brain's sheet gave me the kick start to finish it up. I had been trying to figure out how to automate the stepped conversion for awhile with nothing, and one day there it was. He added in my path length protocols, and that got the fires going again. Now to mix it all together...
soho54 is offline
post #17 of 106 Old 10-22-2010, 01:36 PM
Senior Member

Antripodean's Avatar

Join Date: Apr 2009
Location: The Antripodes (OZ)
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by soho54 View Post

Your HC is giving you a negative in C20, and the VB script will not reach "zero" with the negative number is all it is.

Just click "end" to close the window (no needed to debug,) and put 163 in as the HC.

This is a driver that wants a higher compression horn, which may be more than it can handle. Once input, and with Horn-S2 Variable on you can raise S1 to get it into a more driver friendly range.

Thanks for the detailed reply. One other question, how important is it to "make equal"? I have this so far:

Horn Parameters
m 0.5 >.49 & <.708
Low Corner 20 -3dB Point
High Corner 163 -3dB Point
14.3 -Make Equal- 14.5

Close enough?

explore the music
Antripodean is offline
post #18 of 106 Old 10-22-2010, 03:18 PM
Senior Member

mwmkravchenko's Avatar

Join Date: Jul 2009
Location: Perth Ontario Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 26
Hey Soho

I've been playing some more. The thread helps alot.

How far have you delved into the math? Complete reactance annuling? Cause some of what I'm seeing looks pretty good.

Kind of gets close in some types of horns but needs further optimization on others. But it is so cool to get to a point of tweeking with such ease!

Mark

Mark Kravchenko



Consultant and Designer



www.kravchenko-audio.com

mwmkravchenko is offline
post #19 of 106 Old 10-22-2010, 03:26 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by Antripodean View Post

Thanks for the detailed reply. One other question, how important is it to "make equal"? I have this so far:
----
Close enough?

You really want to make them match if you can, and you should be able too. As long as the whole numbers match you should be good.

It isn't the end of the world if it doesn't, it will still sim fine enough it they don't match, but the devil's in the details.
soho54 is offline
post #20 of 106 Old 10-22-2010, 06:17 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by mwmkravchenko View Post

Hey Soho

I've been playing some more. The thread helps alot.

How far have you delved into the math? Complete reactance annuling? Cause some of what I'm seeing looks pretty good.

Kind of gets close in some types of horns but needs further optimization on others. But it is so cool to get to a point of tweeking with such ease!

Mark

There is complete reactance annulling with the original Hyperbolic flare in the horns. (The BP, and T-TQWRs need tweaking for personal preference.) That is what you are setting when matching up the two blue cells. When you section it up, and use CON, PAR, or EXP it alters things a little. That is why some driver/horn combos hold it better than others.

The section lengths are determined for the most efficient/easy 4 Section TH folding, and aren't at the very best positions for the transformation from HYP either. If you sim them up as a single flare HYP Nd horn you can check it out. The cut off will sim .1Hz higher in HR as it uses 344m/s, and I used 343m/s. If you sim for driver in HR and use the HC, and left blue cell it will pull up the same front and rear chamber within 1%, if you had figured out the ideal setup. I just checked, and the default horn pulls up with an "m/T" of .5, so I was close.

The whole idea is to have the horns pretty much good to go out of the box, with minimal tweaking needed. Glad to hear someone else appreciates the ease.
soho54 is offline
post #21 of 106 Old 10-22-2010, 06:40 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked: 912
what a contribution soho! [two thumbs up]

Listen. It's All Good.
LTD02 is online now
post #22 of 106 Old 10-22-2010, 07:04 PM
Senior Member

mwmkravchenko's Avatar

Join Date: Jul 2009
Location: Perth Ontario Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 26
Add my thumbs.

Can't wait for the folding side of things. That would be a real time saver.

Are you actually going to go for the gold and fold horns to?

I have been doing horns for so long I can home in on very similar designs in Hornresp quite quickly. This will make tweeking a real challenge. As in what to do to improve on the basic calculations. But it is a tool. And tools are most useful when you figure out how to use them.

Thanks for the clarification in the reactance annulling questions. That has always been a sore point for me when I work through designs. It is not always that easy to setup the compression ratios correctly. I always look at the impedance plots and the shape of the response to determine what is going down. But should be a bit easier now.

Mark

Mark Kravchenko



Consultant and Designer



www.kravchenko-audio.com

mwmkravchenko is offline
post #23 of 106 Old 10-22-2010, 07:46 PM
Senior Member

Antripodean's Avatar

Join Date: Apr 2009
Location: The Antripodes (OZ)
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by soho54 View Post

You really want to make them match if you can, and you should be able too. As long as the whole numbers match you should be good.

It isn't the end of the world if it doesn't, it will still sim fine enough it they don't match, but the devil's in the details.

Thanks again Soho. Corrected everything and dropped it into HR and voila ;-)
LL

explore the music
Antripodean is offline
post #24 of 106 Old 10-22-2010, 08:08 PM
Senior Member

mwmkravchenko's Avatar

Join Date: Jul 2009
Location: Perth Ontario Canada
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 26
Did you actually measure your woofers?

Cuz I have some in front of me and I have run them recently. They do not meet specs. Mine were bought about a year ago.

I attach the file below. It radically changes what you get in the way of frequency response.

Tang Band has become infamous for there complete lack of quality control. In fact some runs had part substitutions midway without the buyer being told about it. More than one of the driver designers I interact with have stopped using them as a supplier.

Mark



Tang Band W8-740P measured.pdf 28.4833984375k . file

Mark Kravchenko



Consultant and Designer



www.kravchenko-audio.com

mwmkravchenko is offline
post #25 of 106 Old 10-22-2010, 08:55 PM
Senior Member

Antripodean's Avatar

Join Date: Apr 2009
Location: The Antripodes (OZ)
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by mwmkravchenko View Post

Did you actually measure your woofers?

That's something I'm working on. Trying to find someone in Melbourne, OZ, with a WT3 or similar. I dropped a note to John at DIY to see if he had anymore jigs left (BTW do you think it's same/better than the WT3?) as you did. I'm not planning anymore builds after my bass horns so it seems a tough ask to buy something without trying all other options first

explore the music
Antripodean is offline
post #26 of 106 Old 10-22-2010, 09:44 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by mwmkravchenko View Post

Add my thumbs.

Can't wait for the folding side of things. That would be a real time saver.

Are you actually going to go for the gold and fold horns to?

It's in the works. It will take a little time though.

I had some free time this week, and thought I would push to get the horn design portion pretty much done, and get it out to see if anything funny happens. Another idea was as you mentioned, it takes a little while to get accustomed to a new tool/program. By the time the rest is ready there will be a few people accustomed to the sheet, and they will be able to move right into the whole thing without missing a step.

Right now I'm working on adding a driver database, thinking of adding Nd/OD sections based on the Keele figures for those inclined, and starting to layout the new format where everything can work together. At the same time working on defining the parameters of the fold types I intend to include.

Actually, I'm having fun.

Please keep asking questions, and posting anything that seems off. Questions, comments, and criticisms are very welcome.
soho54 is offline
post #27 of 106 Old 10-22-2010, 10:20 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,115
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked: 912
"Questions, comments, and criticisms are very welcome."

a very refreshing comment.

Listen. It's All Good.
LTD02 is online now
post #28 of 106 Old 10-23-2010, 06:55 AM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,088
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 192
Haven't had time to keep up with much lately but this looks interesting. Good stuff...
Ricci is offline
post #29 of 106 Old 10-24-2010, 12:26 AM
Senior Member

Antripodean's Avatar

Join Date: Apr 2009
Location: The Antripodes (OZ)
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Decided to have another run with the spreadsheet. Haven't tweaked anything but I can say it gets me a long way quickly to a reasonable design. Particularly like how the spreadsheet is suggesting the low corner. For me this is definitely worth knowing as it's all about the bass Now I need to know more about what to tweak / what to look for in an optimal design (be it tapped horn or otherwise). I'm sure there are a few more tutorials that I can now go back to with more confidence
LL
LL



td10s.txt 0.4013671875k . file

explore the music
Antripodean is offline
post #30 of 106 Old 10-26-2010, 02:47 PM - Thread Starter
AVS Special Member

soho54's Avatar

Join Date: Sep 2005
Posts: 3,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
I just updated the OP with the new v5.



I just finished an overhaul, and removed a lot of old cells, and code that were hold overs from other versions. I also redid a little to streamline things, and re-tweaked the Rear Tap equation constants. The second page now includes a box to alter the Speed of Sound used, and a section that will allow you to enter your own length, and width into the horn profile generator.

I also fixed a condition that could give a negative last segment length, so it shouldn't happen anymore.

You will notice the new version gives a slightly different output than the last. This is due to the new SoS, and a better mouth correction.

As always questions, comments, bug reports, and criticisms are welcome.
soho54 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
