post #31 of 11165 Old 11-22-2010, 03:33 PM
Member

findbuddha's Avatar

Join Date: Feb 2009
Location: Brisbane, AUS
Posts: 174
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Ponoko now offer 3d printing services: http://www.ponoko.com/
I once made a script for Google sketchup to draw OS waveguides – unfortunately I no longer have it or I would check the pricing of the 3d printing for you folks who lack waveguides.

findbuddha is offline
Sponsored Links
Advertisement

post #32 of 11165 Old 11-23-2010, 06:19 PM

craigsub's Avatar

Join Date: Jan 2004
Posts: 11,328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
PE is going to look into both the QSC option, and also doing a clone if QSC does not want to play ball. Hopefully they will get this done.
craigsub is offline
post #33 of 11165 Old 11-23-2010, 07:27 PM
Advanced Member

ZilchLab's Avatar

Join Date: May 2009
Location: Berkeley, CA
Posts: 944
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Thank you Craig!

It's good to know they are aware of this and working on it for us....

.
....Crank up the SIGNAL ... cut back the noise....
ZilchLab is offline
post #34 of 11165 Old 11-23-2010, 07:40 PM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 128
If someone wanted to get crazy, they could build a asymmetric oblate spheroid 90x60 about 17" wide. I'd buy a bunch of those. It shouldn't be too hard to model with some math.
coctostan is offline
post #35 of 11165 Old 11-23-2010, 09:19 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,404
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked: 988
"Thank you Craig!"

+1

"a asymmetric oblate spheroid 90x60 about 17" wide."

a little narrower in the vertical, perhaps a 90x50, and with nice large smooth transitions from the horn wall to the baffle might be a little better.

this guy did a ton of research and built some really nice horns:
http://www.audioheritage.org/vbullet...s-in-solid-Oak

he might be worth contacting for ideas in order to see what he might choose to do given no limits.

here is a pic of a setup that uses 15"s and a nice big assymetric horn. i forget whose work that is.

LL

Listen. It's All Good.
LTD02 is online now
post #36 of 11165 Old 11-24-2010, 04:58 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Quote:
Originally Posted by coctostan View Post
If someone wanted to get crazy, they could build a asymmetric oblate spheroid 90x60 about 17" wide. I'd buy a bunch of those. It shouldn't be too hard to model with some math.
I definitely would too!

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #37 of 11165 Old 11-24-2010, 05:54 AM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 128
LTD, that pic is along the lines of what I'm thinking although I prefer a baffle mounted version.

Directly copying the QSC is a little questionable ethically IMO. At least if it is done for more than your own use. I think it would be more appropriate to do something similar or improved. Something similar to the 152 horn but with more width would be great, but I think a asymmetric OS WG would be the best.

This is what I'm thinking:

1. Develop the mathematical model to create a graphic representation of the profile.
2. Take that model and create an actual 3D model with the appropriate material thickness, baffle mounting area, and driver mounting area
3. Send it to a 3D printing/rapid prototyping shop for a 1-off
4. Make some casting molds using the 1-off
5. Cast horns using a rigid urethane plastic

Doable?
coctostan is offline
post #38 of 11165 Old 11-24-2010, 05:59 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Sounds like a plan....what kind of funding is needed?

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #39 of 11165 Old 11-24-2010, 09:49 AM
Advanced Member

ZilchLab's Avatar

Join Date: May 2009
Location: Berkeley, CA
Posts: 944
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Yes, doable, but the transition between a round compression driver exit and elliptical flare is critical; that's where the action is, and I think it's also going to vary depending upon the driver exit angle, as well. Doing a two-piece design, throat adapter plus flare, may comprise the most rational course, at least at the prototype stage, until the variable detail is defined....

.
....Crank up the SIGNAL ... cut back the noise....
ZilchLab is offline
post #40 of 11165 Old 11-24-2010, 09:55 AM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,326
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 555
If you guys come up with a definitive design, I'd love to take a crack at making a one piece complete baffle. The easier setup would be a bolt on compression driver.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is offline
post #41 of 11165 Old 11-24-2010, 12:27 PM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 128
Quote:
Originally Posted by ZilchLab View Post

Yes, doable, but the transition between a round compression driver exit and elliptical flare is critical; that's where the action is, and I think it's also going to vary depending upon the driver exit angle, as well. Doing a two-piece design, throat adapter plus flare, may comprise the most rational course, at least at the prototype stage, until the variable detail is defined....

In simple terms this is what I'm thinking:

You determine a specific ellipse shape that is the mouth of the horn. At its tallest and widest extents it is a 90x60 (or whatever flavor you want) horn.

The profile at the widest extent can be calculated as a 90 deg flare at a certain radius plugged into the OS profile formula.

The profile at the tallest extent is similar but with a 60 deg flare and smaller radius.

For all points between the tallest and widest, you can calculate the flare and radius to be used. It will terminate to a circle at the throat because the same throat diameter value is always used.

I could easily be mistaken in my assessment as I haven't tested it thoroughly. Please point out where it is more complex.

Edit: Forgot to address driver exit angle. I agree, each OS profile, in order to be optimal is setup for a specific CD exit angle. IMO, the DE250 is the best exit to go with because I believe it is documented, the driver is readily available, moderately priced and well accepted as a top notch CD.
coctostan is offline
post #42 of 11165 Old 11-24-2010, 12:38 PM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Quote:


Edit: Forgot to address driver exit angle. I agree, each OS profile, in order to be optimal is setup for a specific CD exit angle. IMO, the DE250 is the best exit to go with because I believe it is documented, the driver is readily available, moderately priced and well accepted as a top notch CD.

Someone (mabye edlafontaine on PE) posted a decent list of CDs with exit angles. I will have to look. Its either on PE or DIYaudio.com

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #43 of 11165 Old 11-24-2010, 01:15 PM
Senior Member

LBDiver's Avatar

Join Date: May 2008
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by penngray View Post

Someone (mabye edlafontaine on PE) posted a decent list of CDs with exit angles. I will have to look. Its either on PE or DIYaudio.com

I believe this is what you're looking for:

Here are the exit angles I've collected, but can't vouch for the accuracy. I believe all are overall angles (/2 per side).

18sound:
NSD1095N, ND1090 = 27°
NSD1480N = 10°


B&C

1"
DE250 14.6°
DE10 7.7°
DE12 24°
DE400TN 20.7°
DE400 31°
DE500 17°
DE200 9.9°

2"
DE85TN 34.5°
DE750TN 22°
DE950TN 17°

BEYMA:

CP750Nd - 24º
CP850Nd - 7º
CP755Nd - 12º60'
SMC65Nd - 15º
CP385Nd - 16º30'
SMC225Nd - 13º1'


jbl 2450 10+°
radian 950 20+°
LBDiver is offline
post #44 of 11165 Old 11-24-2010, 05:16 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by coctostan View Post
LTD, that pic is along the lines of what I'm thinking although I prefer a baffle mounted version.

Directly copying the QSC is a little questionable ethically IMO. At least if it is done for more than your own use. I think it would be more appropriate to do something similar or improved. Something similar to the 152 horn but with more width would be great, but I think a asymmetric OS WG would be the best.

This is what I'm thinking:

1. Develop the mathematical model to create a graphic representation of the profile.
2. Take that model and create an actual 3D model with the appropriate material thickness, baffle mounting area, and driver mounting area
3. Send it to a 3D printing/rapid prototyping shop for a 1-off
4. Make some casting molds using the 1-off
5. Cast horns using a rigid urethane plastic

Doable?
Here's a spreadsheet for an elliptical OS to get you started with the math. As usual with my (in)famous spreadsheets, it works but it's butt ugly.

About matching the CD exit angle to the horn, I don't think it's a big deal. You can build the horn for a 0 degree exit angle and a few strokes with a piece of sandpaper wrapped around your finger will smooth the transition well enough for guvment work. Even Earl uses modeling clay at the transition to smooth things out.


LL



Elliptical Geddes.zip 52.1787109375k . file
Attached Files
File Type: zip Elliptical Geddes.zip (52.2 KB, 26 views)

Dennis H
catapult is offline
post #45 of 11165 Old 11-24-2010, 06:22 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,404
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked: 988
90x50 hehe...+1. quick and dirty spreadsheets that work...+1.

given how important the radius is in the throat transition, might it be better to have more resolution on the "slices" in that region. then there is the transition to the baffle. perhaps a large radius roundover would be better (may or may not be needed, at first i thought yes, but so many successful designs that lack it)? nice work d.

Listen. It's All Good.
LTD02 is online now
post #46 of 11165 Old 11-24-2010, 06:34 PM
AVS Special Member

catapult's Avatar

Join Date: Sep 2001
Posts: 3,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Yeah, that was just an experiment in getting the math right when Earl was saying it was so hard. You'd need much thinner slices for a CNC machine and you'd need to deal with the round-over at the mouth too. But it's a start....

Dennis H
catapult is offline
post #47 of 11165 Old 11-24-2010, 06:39 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,404
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked: 988
it is a good start!

Listen. It's All Good.
LTD02 is online now
post #48 of 11165 Old 11-25-2010, 04:55 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Quote:
Originally Posted by LBDiver View Post

I believe this is what you're looking for:

Here are the exit angles I've collected, but can't vouch for the accuracy. I believe all are overall angles (/2 per side).

18sound:
NSD1095N, ND1090 = 27°
NSD1480N = 10°


B&C

1"
DE250 14.6°
DE10 7.7°
DE12 24°
DE400TN 20.7°
DE400 31°
DE500 17°
DE200 9.9°

2"
DE85TN 34.5°
DE750TN 22°
DE950TN 17°

BEYMA:

CP750Nd - 24º
CP850Nd - 7º
CP755Nd - 12º60'
SMC65Nd - 15º
CP385Nd - 16º30'
SMC225Nd - 13º1'


jbl 2450 10+°
radian 950 20+°

Thanks!

There was a discussion about the DE250 angle being different but I couldnt find out the answer.

I should try to measure the angles of my CDs, I have to figure out how to measure them first some have screens over the mouth.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #49 of 11165 Old 11-25-2010, 05:25 AM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 128
Great work Dennis. I'm going to try to implement a Sketchup script that will give us a 3D model for elliptical horns. I might try to implement it with the option of superellipses as well. I'm new to Ruby scripts so don't expect something right away.

Concerning driver exit angles, the two most popular CDs, the DE250 and CP385ND within 1.5deg of each other. Manufacturing margin of error would likely be greater than that. IMO, we could target 15deg and it will perform admirably.

I just don't see multiple molds or plugs being feasible, let along multiple production runs for different drivers. These won't be $15 horns either when you account for tooling cost so you might as well splurge on nice CDs. This isn't frugal DIY, IMO.

I think the project might be feasible.
coctostan is offline
post #50 of 11165 Old 11-25-2010, 05:56 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
What kind of price target? $100?

I agree with setting one throat angle and I like your opinion on doing it for the best CDs ( DE250 and CP385ND ), I should be buying the CP385ND in a bit.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #51 of 11165 Old 11-25-2010, 12:37 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,404
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked: 988

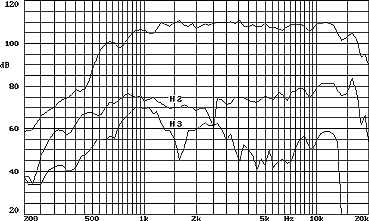

what is the advantage of the CP385ND over the CP380M?

frequency response, distortion, and price look better on the latter.

385
$249


380
$189


i just linked them in from us speaker. i didn't make the 380 image larger.

Listen. It's All Good.
LTD02 is online now
post #52 of 11165 Old 11-25-2010, 12:45 PM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Im not sure. I did just ask which one Augerpro was using because I should be buying the one he built a Passive XO for. I now think that is the CP380/TD12M design.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #53 of 11165 Old 11-26-2010, 04:33 AM
Member

dwomd's Avatar

Join Date: Feb 2010
Location: North Carolina
Posts: 113
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I was really disappointed to hear the news about the QSC waveguides. I had planned to used them for a first DIY build, but this project sounds very interesting. Why 90x60 instead of round (vertical dispersion control)? And about 17" wide, what horn length/flare rate and what low frequency cut off are you thinking about?

Wayne
dwomd is offline
post #54 of 11165 Old 11-26-2010, 06:05 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
There has been discussion about the 17" veritcal distance creating a larger CTC which creates a null in the vertical listening angle.

Of course as you go larger you can go much lower in the XO frequencies and you can use steeper sloped XOs to mitigate that null issue.

I always say pick your compromises

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #55 of 11165 Old 11-26-2010, 06:30 AM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked: 132
If someone can generate an accurate prototype, working in fiberglass is not that difficult.....

JSS
maxmercy is offline
post #56 of 11165 Old 11-26-2010, 06:32 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
put a smiley on that please ....Doing my NOT802D project with fiberglass has convinced me that doing fibreglass is NASTY business.

I think the problem really is getting an accurate prototype.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #57 of 11165 Old 11-26-2010, 06:38 AM
Member

dwomd's Avatar

Join Date: Feb 2010
Location: North Carolina
Posts: 113
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Couldn't using a MTM arrangement (like the photos above) move the vertical null further away from the center and make the on axis lobe larger?

Wayne
dwomd is offline
post #58 of 11165 Old 11-26-2010, 06:40 AM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked: 132
Fiberglass work with polyester and polyurethane resins is NASTY. With epoxies, much nicer. You just have to pick the right resin system....it is still messy, but will not drive you out of the house/shop/garage with the fumes.

The accurate proto will the the butt-kicker. It will not be easy if home-made (need an ellipse generator router jig at the very least to do a laminated version that has to be smoothed BY HAND, then sealed and waxed in order to generate a female mold that will then be used to generate a male mold that will be used to make the horns), and custom fabricating of the proto will be $$$$$.

JSS
maxmercy is offline
post #59 of 11165 Old 11-26-2010, 06:52 AM
AVS Addicted Member

penngray's Avatar

Join Date: Feb 2006
Location: Florida
Posts: 26,779
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 30
Quote:
Originally Posted by maxmercy View Post

Fiberglass work with polyester and polyurethane resins is NASTY. With epoxies, much nicer. You just have to pick the right resin system....it is still messy, but will not drive you out of the house/shop/garage with the fumes.

The accurate proto will the the butt-kicker. It will not be easy if home-made (need an ellipse generator router jig at the very least to do a laminated version that has to be smoothed BY HAND, then sealed and waxed in order to generate a female mold that will then be used to generate a male mold that will be used to make the horns), and custom fabricating of the proto will be $$$$$.

JSS


Definitely, I used HD stuff originally. Now Im spending more $$$ on stuff from online sources like Jamestown distributors. The latest Epoxy I have is ultra clear and orderless, much better!

As for molding using silicone stuff from a source like smooth-on is turning out to be awesome. I just finished using Rebound 25 to create my silicone rubber molding, that stuff is AWESOME. Creating the hardshell around it was not awesome with fibreglass/epoxy because it just does not stick to the silicone

Anyways, sorry about the OT stuff.

FWIW, I do not mind adding funds to a project to get a prototype. I may not have the skills necessary but I can always provide some $$$.



Quote:
Couldn't using a MTM arrangement (like the photos above) move the vertical null further away from the center and make the on axis lobe larger?

Good question, I can not answer that one.

It is not "open-minded" to reject knowledge - Bob Lee
penngray is offline
post #60 of 11165 Old 11-26-2010, 08:16 AM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 128
I see two potential routes:

1. Homemade version from wood used as a plug for a mold. Frankly I don't see this as feasible with an ellipse, but I'm not a woodworker.

2. Build a 3D model and have a plug machined. This would be more expensive and would require a production run to make financial sense. I'd imagine using Smooth-On Urethane Plastic in silicone molds would be best. I have to believe this would need to be treated like a business albeit a small one.

I wouldn't mess with fiberglass cloth and resin. I'd rather do a urethane pour into a mold. I'm playing with Ruby scripts in Sketchup right now.

Are there any opinions on the ellipse shape? We could do a superellipse if that was deemed better. I haven't given the ellipse shape much thought.

Soho, any interest in modeling an elliptical OS in Akabak or Hornresp?

Edit: And the reason I mentioned the CP385ND is because it was in that list. I'd probably go with the ferrite version because I'm not building for portability and I doubt anyone else here is either.
coctostan is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
