post #181 of 464 Old 03-17-2011, 08:48 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

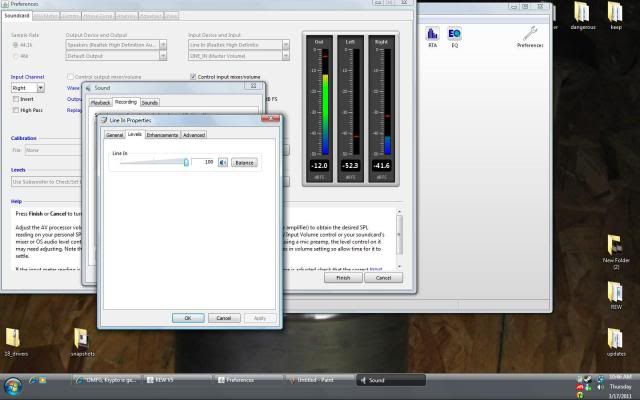

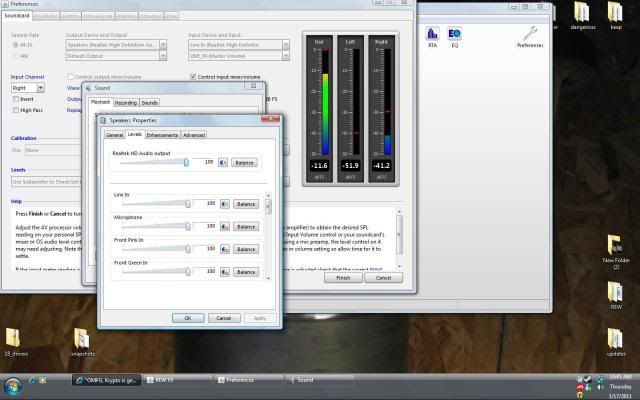

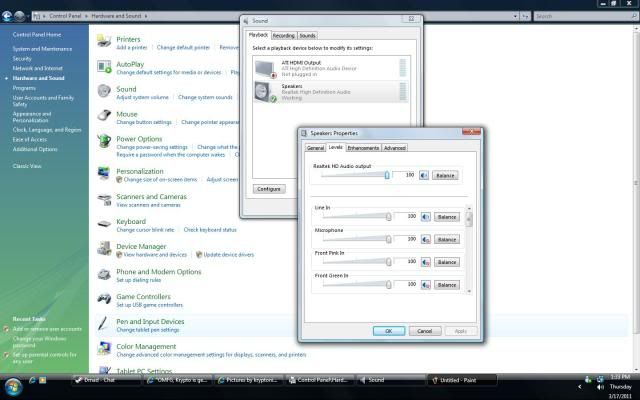

playback line in 100

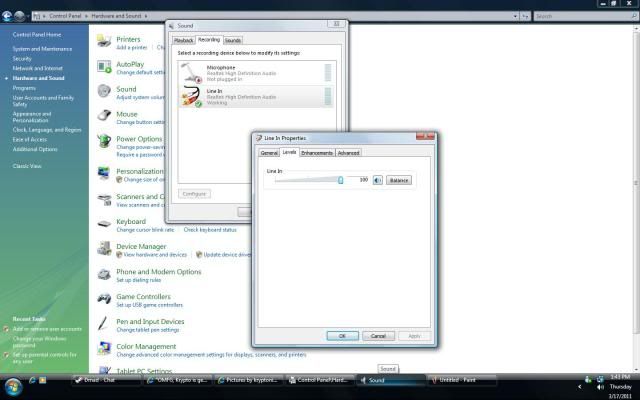

recording line in 100
kryptonitewhite is offline
Sponsored Links
Advertisement

post #182 of 464 Old 03-17-2011, 08:53 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,097
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 338
hook up the meter to mic input instead of line in. I'm pretty sure its higher sensitivity.
notnyt is offline
post #183 of 464 Old 03-17-2011, 10:28 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I havent hooked the mic up yet, just looped line in to line out trying to get 10dB headroom. Should I skip the loop and hook the mic up?
kryptonitewhite is offline
post #184 of 464 Old 03-17-2011, 10:33 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 639
If that FR was accurate, I'd say skip it. But I dunno.

Still gotta get your levels up though.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #185 of 464 Old 03-17-2011, 10:34 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,097
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 338
Quote:
Originally Posted by kryptonitewhite View Post

I havent hooked the mic up yet, just looped line in to line out trying to get 10dB headroom. Should I skip the loop and hook the mic up?

if line in to line out is presenting you with that much of a level difference, something probably isn't right.
notnyt is offline
post #186 of 464 Old 03-17-2011, 10:50 AM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,081
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 186
What sound card do you have? Use those picture and video skills to post a picture of your soundcard. Is it an internal soundcard in your computer? Those almost never work right for REW or audio programs.

Start with the preferences main screen and make sure everything is working before going to anything else. You have a couple of things. Set the SC you are using as default in your control panel. Keep the control panel open while you try to figure this out. In REW you have a couple of things. You have the main measurement channel you can switch between right and left with a check box. You have the drop down box that should show all of your available inputs and outputs. Make sure those are set to what they should be. Try a few of them if you aren't getting a signal. Also you have your output level and your input level. Run the check levels routine until you can get the signal up into the green. You should be able to clip your input with a loopback. (Most any SC can put out more voltage than the input can handle. If you can't get up above -40 or so then something is wrong with the set-up. Did you turn up the output level in REW to the max?

I wouldn't worry about posting max spl #'s below 30hz off of a Ratshack. Anything with a generic cal file with corrections of 30 to 40db which may or may not even be in the ballpark for that particular meter, I wouldn't take too seriously for spl measurements below 20hz. Those correction values seem WAY high to me. I remembered them being about 18 to 20db all the way down at 10hz. I could be wrong though since I never used a RS meter for more than a day. Anyway we want to seem some 3-200hz sweeps at a moderate volume of maybe 95db. Hell I'd like to see some without any correction factor applied for the RS at all first. We can get into loading a cal file into REW later. Also make sure measure with the meter where your head usually is when you watch a movie.
Ricci is offline
post #187 of 464 Old 03-17-2011, 11:19 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
http://www.guru3d.com/article/ati-ra...-512mb-review/

http://www.newegg.com/Product/Produc...82E16814102819

HDMI is delivered on the rear bracket together with DVI and VGA out. So the white serial port lookin deal is DVI
kryptonitewhite is offline
post #188 of 464 Old 03-17-2011, 11:30 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

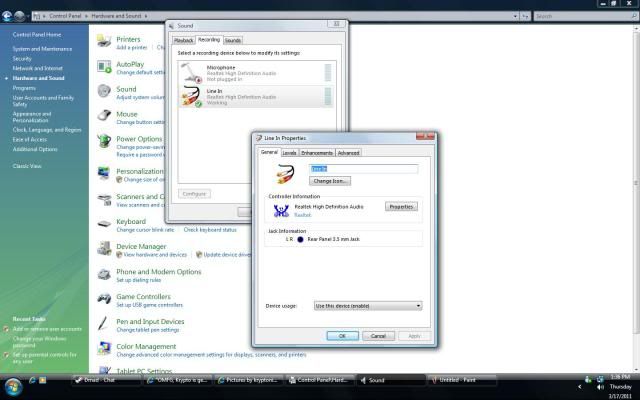

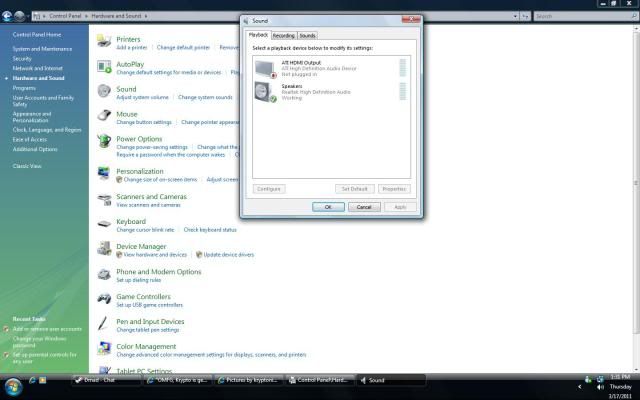

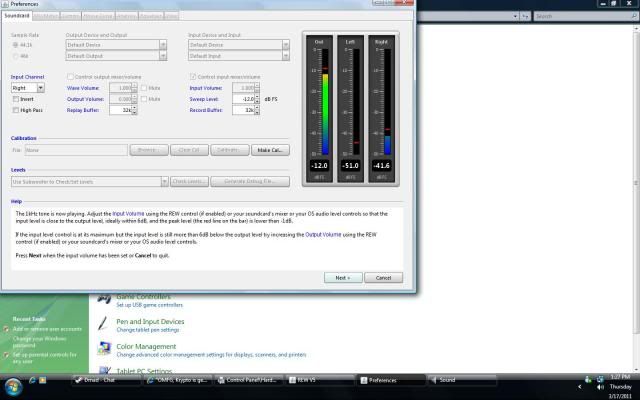

alright, i left the input volume from rew at 1, changed from realtek input and output to default input and output, appears the same or close



kryptonitewhite is offline
post #189 of 464 Old 03-17-2011, 11:35 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
kryptonitewhite is offline
post #190 of 464 Old 03-17-2011, 11:42 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 639
Give that microphone input a try. See how that does.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #191 of 464 Old 03-17-2011, 11:44 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
kryptonitewhite is offline
post #192 of 464 Old 03-17-2011, 12:24 PM
AVS Special Member

gperkins1973's Avatar

Join Date: May 2009
Posts: 1,519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Jordan,

Welcome to the world of REW!!!
gperkins1973 is offline
post #193 of 464 Old 03-17-2011, 03:49 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by gperkins1973 View Post

Jordan,

Welcome to the world of REW!!!

I seem to remember forcasting this...
kryptonitewhite is offline
post #194 of 464 Old 03-17-2011, 04:23 PM
AVS Special Member

gperkins1973's Avatar

Join Date: May 2009
Posts: 1,519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Setting up REW can be a nightmare sometimes. Once you got it right then you start to realise how easy it actually is.

So stick with it buddy.
gperkins1973 is offline
post #195 of 464 Old 03-17-2011, 04:44 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 639
Yup. Very easy once you get past this first part.

Soooo... how bout that mic input?

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #196 of 464 Old 03-17-2011, 05:29 PM
AVS Special Member

CZ Eddie's Avatar

Join Date: Nov 2000
Location: Austin TX, USA
Posts: 7,061
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 12
Here are the screenshots you need to get REW5 working with Realtek HD audio chipset.

http://www.hometheatershack.com/foru...ndows-7-a.html

"The boom is dead, long live the bass"
CZ Eddie is offline
post #197 of 464 Old 03-17-2011, 09:27 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I'd like to wait to hook the mic up till it calibrates properly, I read through that link to HTS as well as read and re-read Ricci's suggestions. I'm still stuck. Id really like to get it through the calibration.
kryptonitewhite is offline
post #198 of 464 Old 03-17-2011, 11:16 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 639
Yeah, so try the loop using the mic input and not the line in. Might help. Might not. Let's find out.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #199 of 464 Old 03-17-2011, 11:20 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Scott Simonian View Post

Yeah, so try the loop using the mic input and not the line in. Might help. Might not. Let's find out.

oh, mic in, not the actual mic... I can do that? alright, after they fall asleep (watchin 24 ) Ill give it a run!
kryptonitewhite is offline
post #200 of 464 Old 03-17-2011, 11:22 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

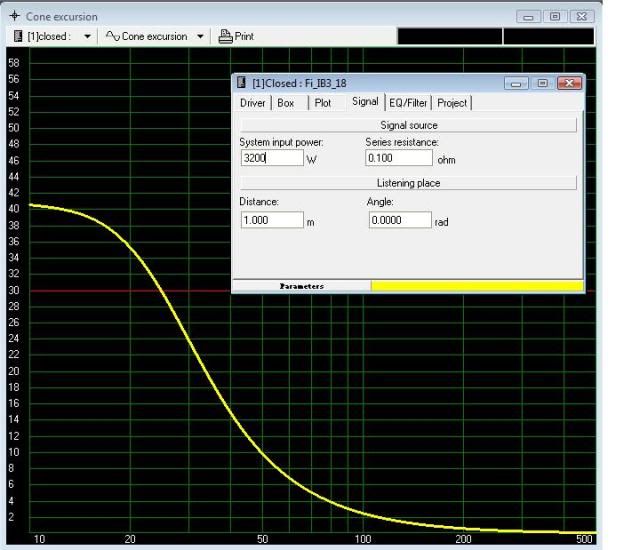

not what I expected: I thought Id simulate 4 IB3 18s in 256 cubes sealed to mimic the tower excursion without port loading. First with 10Hz HP to simulate electronics roll off, took 4kW to get to 40mm, removed HP took 3200 to 40mm



kryptonitewhite is offline
post #201 of 464 Old 03-18-2011, 12:23 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
line out to mic

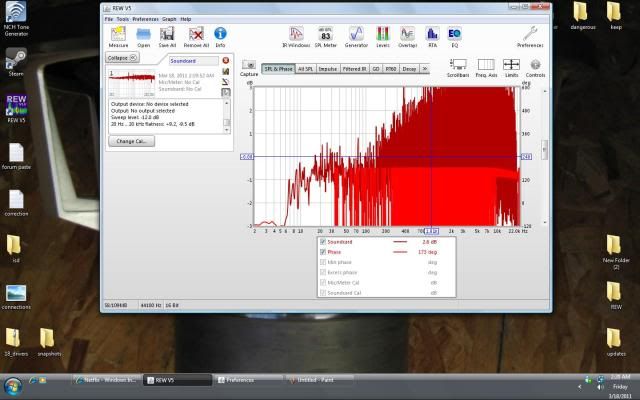

1st run (didnt get snapshot of headroom ran again after this, 2nd time came up green)

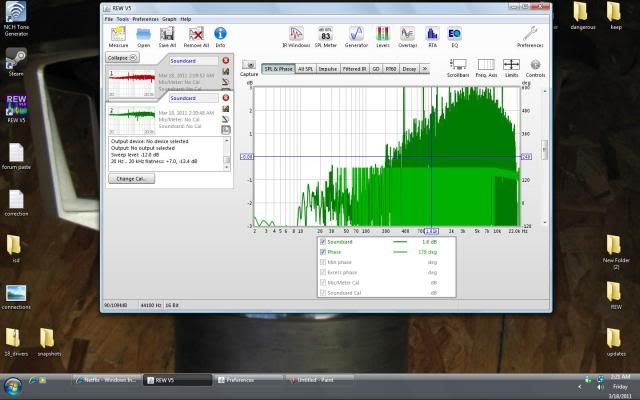

2nd run



kryptonitewhite is offline
post #202 of 464 Old 03-18-2011, 12:25 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

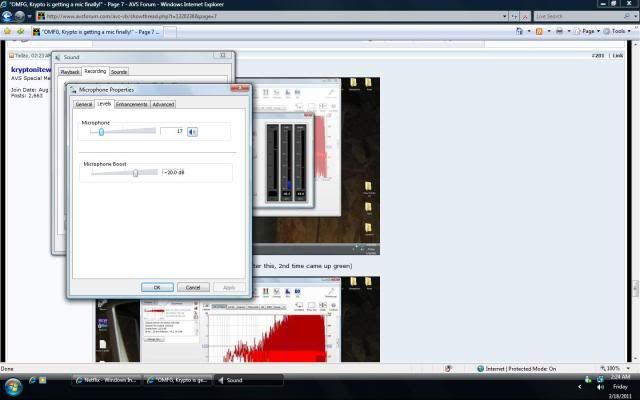

heres the mic level settings, 17 and 20dB boost

kryptonitewhite is offline
post #203 of 464 Old 03-18-2011, 12:35 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,097
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 338
notnyt is offline
post #204 of 464 Old 03-18-2011, 12:59 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by notnyt View Post

dude, raise the input level, drop the boost.

I figured that, but I didnt want to until told to do so, especially after seeing the FR graph off the chart. I don't know that mic in can handle full power from line out. Now that I have it in black and white and can blame you, I'll do what was apparent
kryptonitewhite is offline
post #205 of 464 Old 03-18-2011, 01:07 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

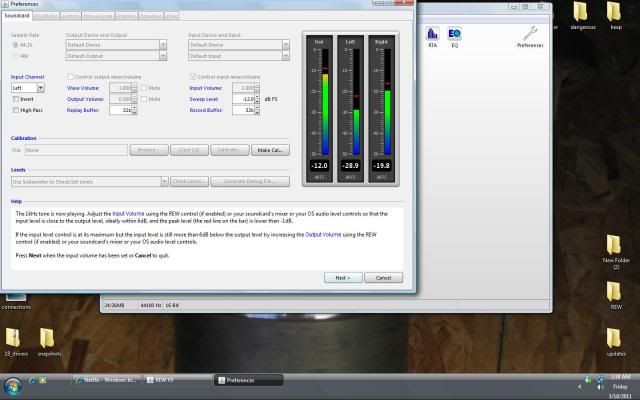

i brought right to red bar 2dB below line in as Help said, which meant 100 with 10dB boost

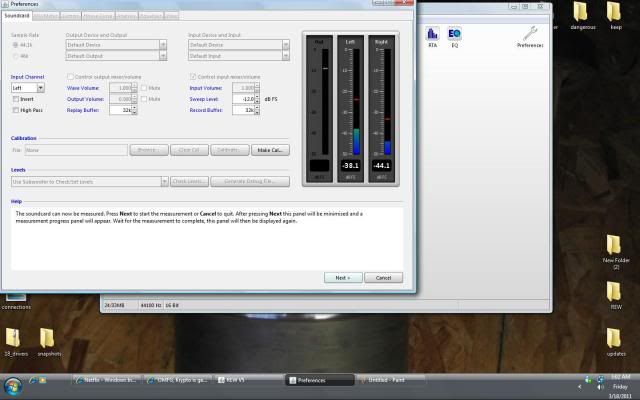

when I click next and everything falls, left and right still have "noise". is that induced (bad) noise?

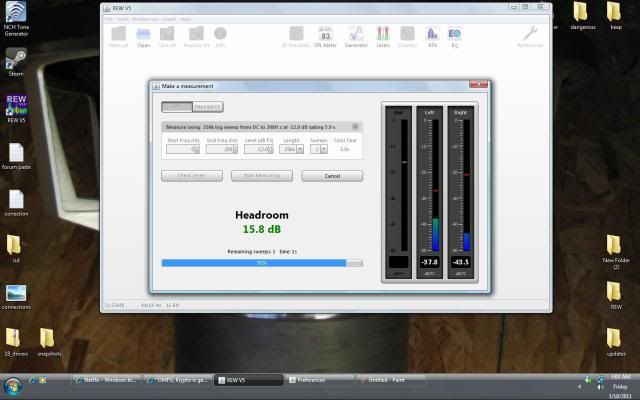

15dB headroom, Ill raise boost to 15dB and shoot for 10dB

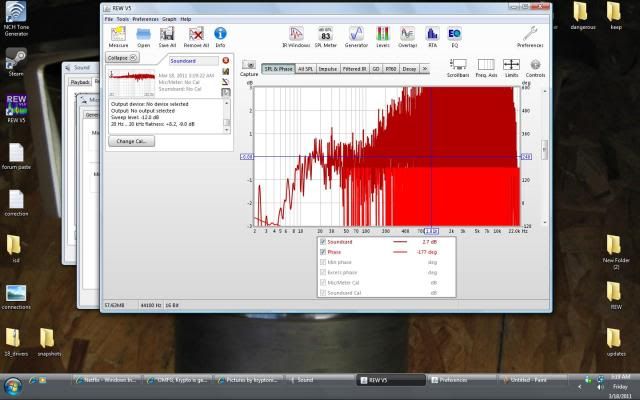

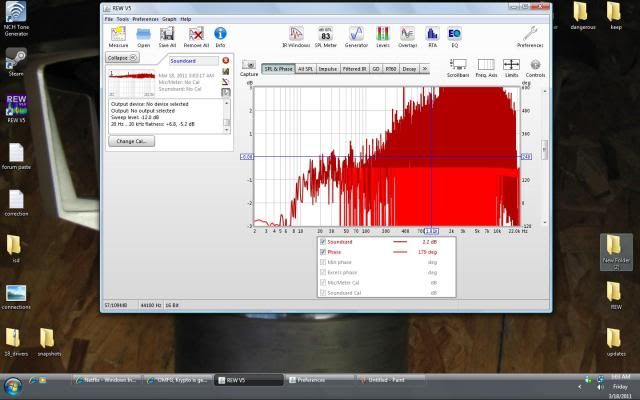

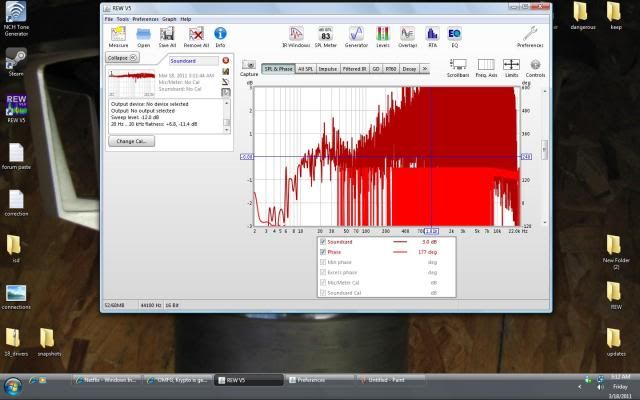

new fr

kryptonitewhite is offline
post #206 of 464 Old 03-18-2011, 01:13 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

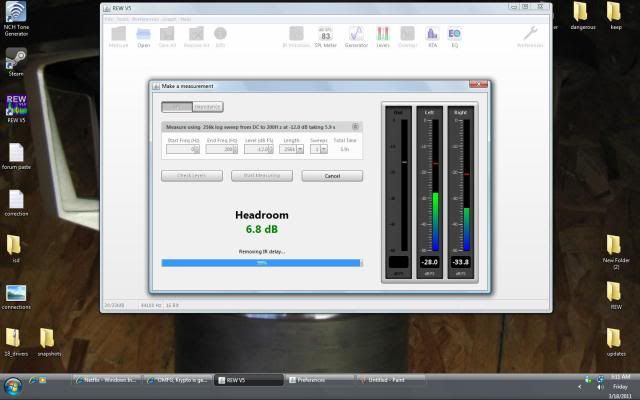

7dB headroom, too much (cant go to 15dB boost, only 10, 20, and 30...Ill lower 100 and try again for 10dB)





kryptonitewhite is offline
post #207 of 464 Old 03-18-2011, 01:20 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

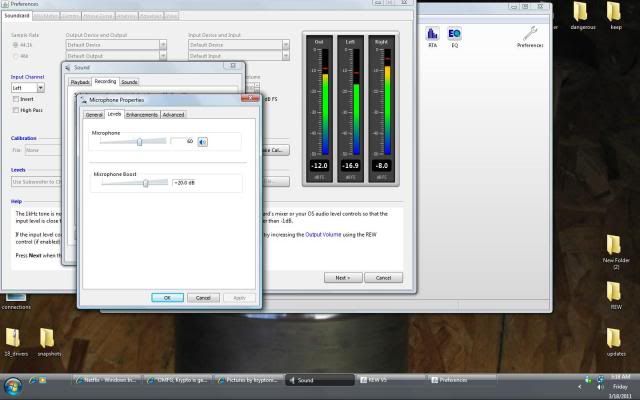

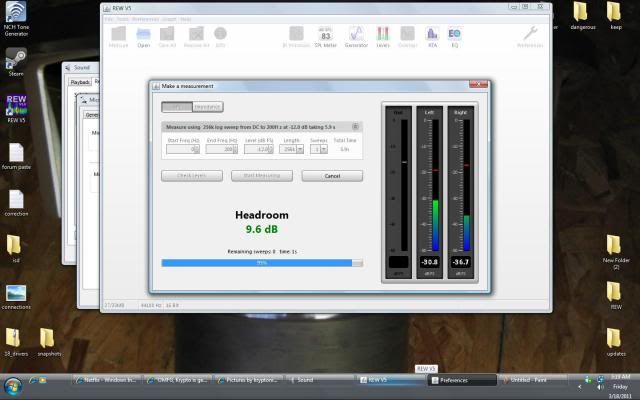

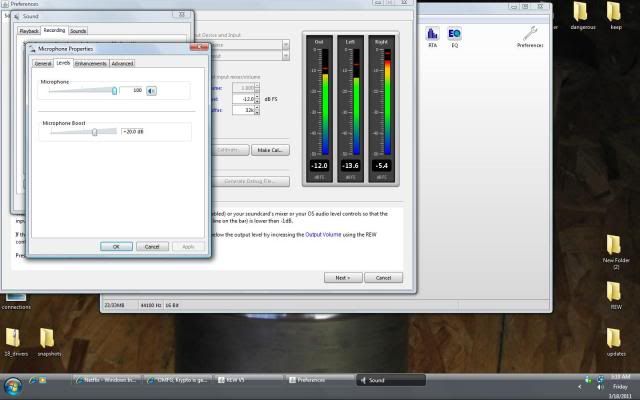

10db




60 +20dB boost



kryptonitewhite is offline
post #208 of 464 Old 03-18-2011, 01:29 AM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,097
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 338
you generally want as little boost as possible, max the level before touching the boost.

Run the check input level stuff. The output level should be about the same as the input. It's ok if the input is a little lower. even 15db headroom is fine.

Still, something is wrong judging by the crazy graphs. That's not supposed to happen. It's either a feedback issue, or something else. Make sure you have any settings for the inputs checked not to play it back out the speakers.

Go to control panel, sound, recording, double click microphone

next, go to listening, make sure listen to this device is unchecked.

go to enhancements, uncheck everything except dc offset cancellation.

In advanced, set it to 2 channel 16 bit 44100hz. See if that helps.
notnyt is offline
post #209 of 464 Old 03-18-2011, 01:38 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked: 639

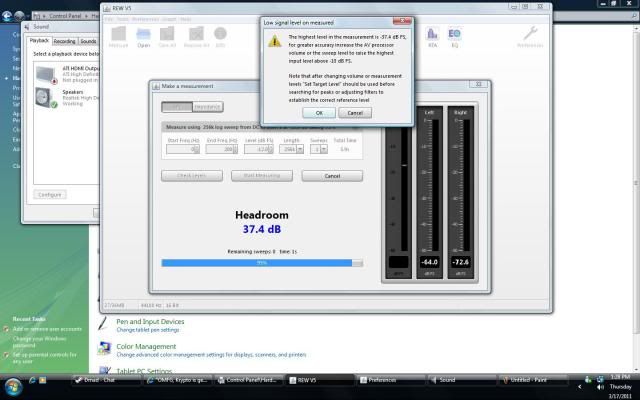

What do you get when you set the mic level to 100 and the boost to nothing? Try that.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #210 of 464 Old 03-18-2011, 02:34 AM
AVS Special Member

gperkins1973's Avatar

Join Date: May 2009
Posts: 1,519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Jordan,

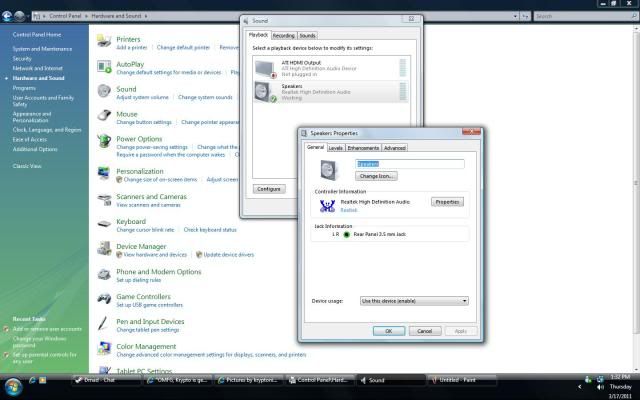

I noticed that your input and output is set to default input. It should be set to the appropriate soundcard whether it be internal or external otherwise surely REW won't know what you are using.

cheers

Graham
gperkins1973 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
