I'm looking to work on a new sub project, and with the MFW-15's available at such a great price, I thought I'd take advantage of that. I just bought a Behringer EP1500 to power the sub(s), and now I'm in the process of deciding what kind of enclosure to build.

My room is about 1500cuft, and I use it for about 80/20 HT/Music. I'm looking to go with 2 drivers (although I'll get away with 1 if I can). The type of subs I'm looking at are, 2 sealed, 1 dual opposed, or 1-2 ported. I like the idea of sealed to make the box construction a bit simpler, and not to have to worry about a high pass filter (hopefully), but if there's enough of a case for a ported alignment I wouldn't have a problem investing in a Minidsp or BFD (I'll probably get one down the line anyway).

Budget is fairly simple. I've already got power, and I'm planning on about $180-190 for the drivers. I'd like to keep material costs under $100, which I don't think should be too much of an issue.

It's a fairly small space, so I don't exactly have room for something like the THT. I listen at about 10-20 below reference, so crazy SPL isn't a priority, although I would like to maintain decent levels when I eventually move to a larger space. Based on my situation, which of the possible choices I listed above would serve me the best? Or would something else entirely be better? I'm open to suggestions.

Sounds Good to Me... keeping track of my audio projects.

Scott C. is offline
Sponsored Links
Advertisement

post #2 of 100 Old 04-12-2011, 11:43 AM
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
i am getting ready to build 2 single sealed MFW-15s.

simple build, and smaller footprint. my room is about 1900cf.

and i just picked up an EP2500.
smokarz is offline
post #3 of 100 Old 04-12-2011, 11:53 AM
Senior Member

smbsocal's Avatar

Join Date: Jan 2008
Location: Mooresville, NC
Posts: 248
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
I just got 4 of the MFW-15's to augment my current SVS subs. The room is about 2500cf.

I was thinking of going with either 4 single sealed subs or 2 dual opposing sealed subs. The single sealed is the easiest to build and would give me more placement flexibility. The dual opposing seems like a popular configuration though, not sure of the benefits over a single sealed though.

I am getting a EP4000 to power them.
smbsocal is offline
post #4 of 100 Old 04-12-2011, 12:01 PM
HOME THEATER CONTRACTOR

BIGmouthinDC's Avatar

Join Date: Jan 2003
Location: Northern VA
Posts: 20,432
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 508
I'm pondering a 4 sealed configuration with the yet to be finalized amp that Mark Seaton and friends are optimizing for such a project.
BIGmouthinDC is online now
post #5 of 100 Old 04-12-2011, 12:07 PM
AVS Special Member

obie_fl's Avatar

Join Date: Nov 2000
Location: SpaceCoast, FL
Posts: 1,949
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 31
I'm leaning towards four single sealed cabinets and one of the Seaton/MotorCity modified SA1000 amps.

I need to get rid of my two working MFWs and SVS 12/2+ but need to find local homes as I really don't want to ship em. I don't want to mix and match ported with sealed.
obie_fl is online now
post #6 of 100 Old 04-12-2011, 02:26 PM
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
I just about finshed 4x 3cuft sealed MFW-15 cabs.
I placed 1 cab in each corner of my HT room (11.8 x17.7)
I'm driving them with an EP4000 in bridged mode at 4 ohms total load.

I'm just now trying all kinds of music and movies to see what it gives.
When cranking the volume...it pounds!!!

I will be putting a build blog up soon.

Today I purchased 4 pillows at Walmart and ripped them open and stuffed one per cab.
I will get 4 more pillows and stuff 1 per cab more. There's room for 2 pillows per cab.
Fatshaft is online now
post #7 of 100 Old 04-12-2011, 03:30 PM - Thread Starter
Member

Scott C.'s Avatar

Join Date: Apr 2011
Location: Dallas, TX
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
As much as I'd like to do 4, 2 is all I have room (or budget) for. What would be the benefits of dual opposed vs. 2 sealed? I like the idea of being able to spread out the 2 subs to even the response a bit, but would I be able to get better extension and/or SPL from a dual opposed setup?

I tried plugging some things into WinISD, and this is what I got. The grey line is a 6cuft ported box tuned to 15Hz (I just took what it initially gave me and changed the box size to 6cuft). Blue is a single 3cuft enclosure, and yellow is a 6cuft dual opposed. (sorry if the colors are a little hard to see)



It looks like the dual opposed is slightly flatter, but it really doesn't extend any further than the single sealed. Also note that there is a 15 Hz HPF on the ported.

Sounds Good to Me... keeping track of my audio projects.

Scott C. is offline
post #8 of 100 Old 04-12-2011, 04:23 PM
Member

haanjamin's Avatar

Join Date: Jul 2009
Location: Grand Rapids, MI
Posts: 69
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The dual opposed models flatter because WinISD halves the Le when using 2 drivers, as would happen when drivers wired are in parallel. 2 single subs will have the same frequency response as a dual opposed in the same size cabinets. Dual opposed subs simply will have little box movement as the subs move in opposite directions and I think that's pretty much the only benefit. If you are using 2 drivers, I would go with 2 singles to help even FR around the room.
haanjamin is offline
post #9 of 100 Old 04-12-2011, 05:39 PM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,316
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 42
I also have 4 drivers and will build 4 x 2.5^3 boxes. I am waiting to see what mark and kevin develop amp wise before I purchase an amp since their amp is supposed to drive 4 of these drivers perfectly with 4 2.5 to 3 cubic boxes or dual opposed etc.

Eqpmt: Denon AVR-4520CI, EP 4000's, Sony BDP-S5100, Old Rear Projection DLP.

Builds: Maelstrom 21 Ottoman Build, Dual Opposed MFW's x 2, Statements, SEOS-12/TD12M x 5.

On Deck: TD6M's/SEOS Surrounds x 6, Finalists (maybe)

pgwalsh is offline
post #10 of 100 Old 04-12-2011, 06:40 PM

mjg100's Avatar

Join Date: Dec 2006
Posts: 9,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by BIGmouthinDC View Post

I'm pondering a 4 sealed configuration with the yet to be finalized amp that Mark Seaton and friends are optimizing for such a project.

I was all hot to get four of these since they are so cheap and place all four up front in place of what I have now. Figuring my current displacement is equal to 7.5 of the MFW -15's, I think I am going to stay with what I have since what I have takes up less space in my small room. But man is it tempting.
mjg100 is offline
post #11 of 100 Old 04-12-2011, 07:00 PM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,316
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 42
Quote:
Originally Posted by mjg100 View Post

I was all hot to get four of these since they are so cheap and place all four up front in place of what I have now. Figuring my current displacement is equal to 7.5 of the MFW -15's, I think I am going to stay with what I have since what I have takes up less space in my small room. But man is it tempting.

I'm pairing mine with my mal 21. Should be nice.

Eqpmt: Denon AVR-4520CI, EP 4000's, Sony BDP-S5100, Old Rear Projection DLP.

Builds: Maelstrom 21 Ottoman Build, Dual Opposed MFW's x 2, Statements, SEOS-12/TD12M x 5.

On Deck: TD6M's/SEOS Surrounds x 6, Finalists (maybe)

pgwalsh is offline
post #12 of 100 Old 04-13-2011, 05:08 AM

mjg100's Avatar

Join Date: Dec 2006
Posts: 9,112
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Quote:
Originally Posted by smbsocal View Post
I just got 4 of the MFW-15's to augment my current SVS subs. The room is about 2500cf.

I was thinking of going with either 4 single sealed subs or 2 dual opposing sealed subs. The single sealed is the easiest to build and would give me more placement flexibility. The dual opposing seems like a popular configuration though, not sure of the benefits over a single sealed though.

I am getting a EP4000 to power them.
A dual opposed sub will be either 2 ohm or 8 ohm depending how you wire it. 2 ohm is hard for many amps to drive and 8 ohm means your amp has less power. You can do two dual opposed subs and wire them so that they represent a single 8 ohm load.
mjg100 is offline
post #13 of 100 Old 04-13-2011, 05:22 AM
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Quote:
Originally Posted by mjg100 View Post
A dual opposed sub will be either 2 ohm or 8 ohm depending how you wire it. 2 ohm is hard for many amps to drive and 8 ohm means your amp has less power. You can do two dual opposed subs and wire them so that they represent a single 8 ohm load.
I don't think that's possible unless you meant a 4 ohm load.
I have 4 single subs and cannot see how to get an 8 ohm load.

Maybe I can't see it.

Edit: I think you mean per cab...sorry
Fatshaft is online now
post #14 of 100 Old 04-13-2011, 10:37 AM
Member

tjk002's Avatar

Join Date: Feb 2002
Location: St. Louis
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
What kind of an amp are they considering? Is it a plate amp? Or a rack amp? I'm building dual opposed.
tjk002 is offline
post #15 of 100 Old 04-13-2011, 10:41 AM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,316
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 42
Quote:
Originally Posted by tjk002 View Post

What kind of an amp are they considering? Is it a plate amp? Or a rack amp? I'm building dual opposed.

Not a plate amp, I believed a rack amp. You can drive 4 MFW's with it in various configurations.

Eqpmt: Denon AVR-4520CI, EP 4000's, Sony BDP-S5100, Old Rear Projection DLP.

Builds: Maelstrom 21 Ottoman Build, Dual Opposed MFW's x 2, Statements, SEOS-12/TD12M x 5.

On Deck: TD6M's/SEOS Surrounds x 6, Finalists (maybe)

pgwalsh is offline
post #16 of 100 Old 04-13-2011, 10:48 AM
AVS Special Member

Mark Seaton's Avatar

Join Date: Jul 2000
Location: Chicago, IL, USA
Posts: 5,968
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 187
Quote:
Originally Posted by tjk002 View Post

What kind of an amp are they considering? Is it a plate amp? Or a rack amp? I'm building dual opposed.

A significantly modified/optimized SA-1000 as seen at Parts Express, similar to what we offer with the MFW Turbo kit and with the plate amps in the upgrade kits for the UFW-12.

Mark Seaton
Seaton Sound, Inc.
"Make no little plans; they have no magic to stir men's blood..." Daniel H. Burnham
Mark Seaton is offline
post #17 of 100 Old 04-13-2011, 11:27 AM
Member

tjk002's Avatar

Join Date: Feb 2002
Location: St. Louis
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Thanks for the response. I'm building the boxes without the drivers on hand, does anyone know what the cutout should be?
tjk002 is offline
post #18 of 100 Old 04-13-2011, 11:36 AM
Senior Member

louisdamani's Avatar

Join Date: Jan 2004
Location: MI
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
I've seen 13 13/16"or 13 7/8".
louisdamani is offline
post #19 of 100 Old 04-13-2011, 11:41 AM
AVS Special Member

pgwalsh's Avatar

Join Date: Feb 2008
Location: Colorado Springs
Posts: 1,316
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked: 42
Driver cutout: 13 15/16"
Driver Outside: 15 1/4

Eqpmt: Denon AVR-4520CI, EP 4000's, Sony BDP-S5100, Old Rear Projection DLP.

Builds: Maelstrom 21 Ottoman Build, Dual Opposed MFW's x 2, Statements, SEOS-12/TD12M x 5.

On Deck: TD6M's/SEOS Surrounds x 6, Finalists (maybe)

pgwalsh is offline
post #20 of 100 Old 04-14-2011, 01:01 PM
Member

tjk002's Avatar

Join Date: Feb 2002
Location: St. Louis
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Mark Seaton View Post

A significantly modified/optimized SA-1000 as seen at Parts Express, similar to what we offer with the MFW Turbo kit and with the plate amps in the upgrade kits for the UFW-12.

Mark,

Where can I order one of these amps? Are they available now?
tjk002 is offline
post #21 of 100 Old 04-14-2011, 01:18 PM
AVS Special Member

Mark Seaton's Avatar

Join Date: Jul 2000
Location: Chicago, IL, USA
Posts: 5,968
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 187
Quote:
Originally Posted by tjk002 View Post

Mark,

Where can I order one of these amps? Are they available now?

We are still working out the last of the customizations. We have the response dialed in, and now we need to do some final testing with a full set of 4 drivers which we are currently building some boxes for. Sandbagger (Kevin) will be doing the modifications and offering them through Motor City Custom Audio. There is a sub forum on my user forum for MCCA where you can find some threads like this one showing the progress.

Mark Seaton
Seaton Sound, Inc.
"Make no little plans; they have no magic to stir men's blood..." Daniel H. Burnham
Mark Seaton is offline
post #22 of 100 Old 04-14-2011, 09:04 PM - Thread Starter
Member

Scott C.'s Avatar

Join Date: Apr 2011
Location: Dallas, TX
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
At the moment I'm leaning toward 2 sealed at about 3cuft. My question now is about box construction.

Is it necessary to double the front baffle? Also, how extensive should the bracing be? Would some strips of MDF (8-9" wide) top/bottom, front/back, and side/side be sufficient?

Sounds Good to Me... keeping track of my audio projects.

Scott C. is offline
post #23 of 100 Old 04-15-2011, 06:56 AM
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
i am also in the process of building 32 cf sealed boxes.

i won't be doing double baffle. i will have one piece of mdf with a big circle in the middle of the box for bracing.
smokarz is offline
post #24 of 100 Old 04-15-2011, 08:47 AM
AVS Special Member

obie_fl's Avatar

Join Date: Nov 2000
Location: SpaceCoast, FL
Posts: 1,949
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 31

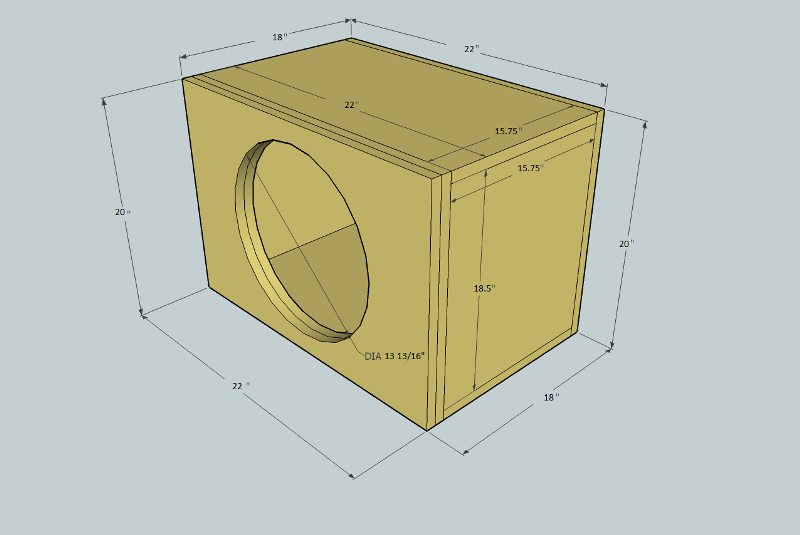

Wembley has a PDF drawing of a single sealed box in his dual opposed MFW thread.
obie_fl is online now
post #25 of 100 Old 04-15-2011, 11:34 AM
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Here's my approx. 3cuft boxes I just finshed building.

Fatshaft is online now
post #26 of 100 Old 04-15-2011, 07:33 PM - Thread Starter
Member

Scott C.'s Avatar

Join Date: Apr 2011
Location: Dallas, TX
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Another quick question. Supposing I want to end up at 3 cuft, and I'm planning on using some kind of stuffing, should I still build it so it has an internal volume of 3 cuft? Or should I make it a little less since the stuffing supposedly increases the apparent volume?

Sounds Good to Me... keeping track of my audio projects.

Scott C. is offline
post #27 of 100 Old 04-16-2011, 11:57 AM - Thread Starter
Member

Scott C.'s Avatar

Join Date: Apr 2011
Location: Dallas, TX
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Sorry for the double post, but the modeling I've done in winISD makes me wonder about going the sealed route. I should have mentioned in the first post that I'd like to get usable output into the low 20's if possible. From winisd it seems like the only way to do that would be with a ported design. Is this actually the case? WinISD shows -3dB in the mid 30's for a 3cuft sealed box. Would room gain help it extend much more?

Sounds Good to Me... keeping track of my audio projects.

Scott C. is offline
post #28 of 100 Old 04-16-2011, 12:29 PM
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
a lot here reccomeneded mutiple sealed boxes. that's what i am doing.

building 2 right now, and maybe 2 more if desire.
smokarz is offline
post #29 of 100 Old 04-16-2011, 01:07 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,821
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked: 808
for folks modeling in winisd for the first time, one thing to keep in mind is that it is 2 pi space (i.e. as if you measured your subwoofer out in an open field).

in room, you will benefit from two effects. the first is boundary gain. this comes from the walls and ceiling. it changes 2 pi space into a much smaller space, so you get more spl.

the other effect is pressure vessel gain. this occurs when the long diagonal dimension of the room is less than about 1/2 wavelength. for medium sized rooms this occurs somewhere in the 25hz ballpark. below this point there is 12 db / octave of free gain, theoretically. in practice it is closer to 6-9db per octave. you will see this in how seaton will e.q. the subwoofer. it will appear to rolloff significantly in 2 pi space, but then will be pretty flat down to single digits in room.

so, again for the first time winisd guys, don't feel that you need to make your model flat in winisd to be flat in room. a -3db point in the twenties will provide a pretty flat response in a medium sized room.

the single driver per enclosure solution is good if you build your enclosures heavy. also, it is very important to get them sealed up. air leaks are the most common failure point that i've seen with these builds.

Listen. It's All Good.
LTD02 is offline
post #30 of 100 Old 04-16-2011, 01:15 PM
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
LTD02, thanks for the info for us new guys.

could you elaborate on this?

"the single driver per enclosure solution is good if you build your enclosures heavy"

what is your definition of heavy? how much does it need to weight? and isn't this limited by your enclosure size?

"it is very important to get them sealed up. air leaks are the most common failure point that i've seen with these builds."

how would you suggest sealing up the box? from what i've seen from the builds here, simply run glue inside along the edges/corners?

thanks
smokarz is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
