post #91 of 101 Old 07-13-2011, 11:57 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Gonna drop the Alpine FR125S's to 200Hz too, so Extremis 80Hz-200Hz see if I can't get more from them without clipping. 120Hz bandwidth, these stupid 850.4s better start pulling some weight around here.

Extremis 850.4 80Hz 12dB Alpine 80Hz 30dB 42dB total, 200Hz 30dB top
FR125S 650.4 200Hz 12dB Alpine 200Hz 30dB 42 dB total play with the high transition to tweets
kryptonitewhite is offline
Sponsored Links
Advertisement

post #92 of 101 Old 07-13-2011, 01:01 PM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 129
Well, it looks like you are running your subs 25-30db hot relative to your HF section right?

Given that fact and the fact that your speakers are inches from your face, you are probably well within the bounds of your HF capability then.
coctostan is offline
post #93 of 101 Old 07-13-2011, 01:08 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
MORE POWER! lol Yes, squeezing the last drops. When the subs come on the HF suddenly doesn't seem so loud and wonderfuly unique... just simply trying to keep up.

Set everything back to 24dB, I don't understand the mathmatecal argument about even and odd distortion but it does seem to sound a touch better every time I put it back. The Extremis are up at 400Hz, so the FRs are 200Hz 12dB and 400Hz 24dB. The 850.4s seem to have a touch more headroom this way, but I do seem to have less midbass... sounds a bit hollow. The punches seem a bit more snappy and tight though.
kryptonitewhite is offline
post #94 of 101 Old 07-13-2011, 04:05 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by coctostan View Post

So you want a nice mobile system? There is no need to spend $7500 to do that. It doesn't take much in the way of a subwoofer for starters.

This is what I'd do:

4 MFW-15's in a large sealed box (~13cu ft/driver) with about 100w per driver and a 15hz highpass. I'd imagine in a small space this could get you easily flat to 20hz at ~120db.

A 2-way with a Beyma TPL-150H ($500/ea and 102db sensitive from 1.2khz-20khz) in the kickpanel angled towards the center crossed to a sealed B&C 8NW51. This combo will have sensitivity in the range of 96db and should be capable of over 110db from 250hz-20khz. A 4-channel amp should suffice. Maybe a 4x25w amp. It doesn't need to be fancy and you probably won't use but 5w anyway.

Depending on what you can fit, shove the largest driver you can in your doors to cover below 250hz midbass. Peerless has a good one (http://www.parts-express.com/pe/show...umber=264-1105). Give it about 50w/ch.

For EQ, use 3 MiniDSPs. One for each 3-way and one for the subs.

Doing the math in my head with much rounding, this should be under $3k and will be capable of making you deaf across the entire audible frequency range without breaking a sweat or taxing your alternator. Still crazy, but should be pretty killer. You could do a similar setup in a home theater, bur I do a 2-way with a 12-15" woofer.

I guess I sort of passed this over, when really this is what I was asking for.

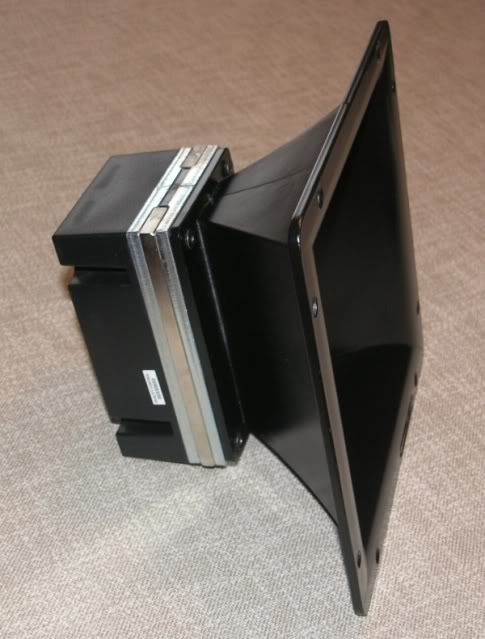

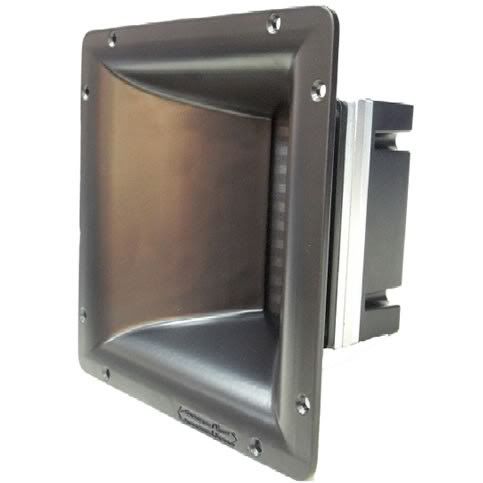

Beyma TPL-150H is 10"x10"x6" deep.. tough to get in the kicks but I suppose doable.

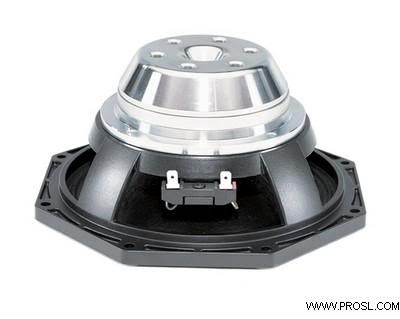

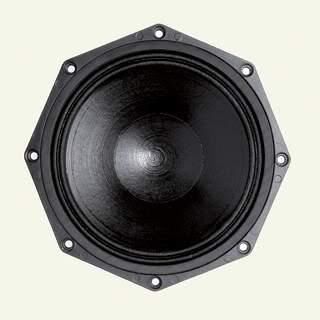

B&C 8NW51 Looks amazing. Much more area than the Extremis for starters.

Peerless 835028 10" XLS Shallow Subwoofer. So all this right here would highly outperform what I have now with less power?
kryptonitewhite is offline
post #95 of 101 Old 07-13-2011, 07:50 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

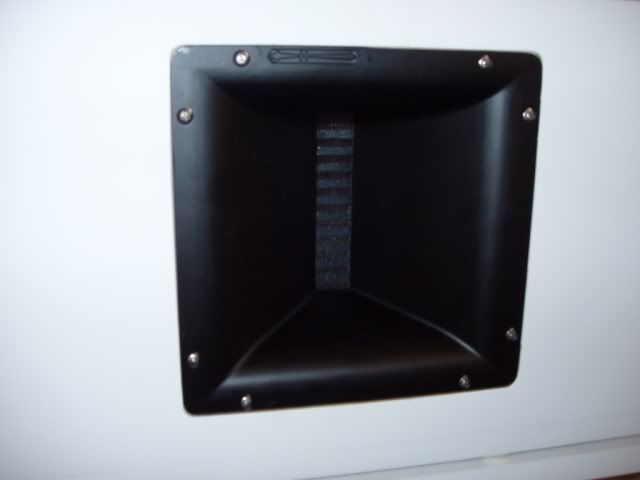

CSS Planar2
Horn loaded planar tweeter
http://creativesound.ca/details.php?model=Planar2

FR125SR is end of life and out of stock. It's been a good 5 1/2 year run and our thanks go out to the worldwide customer and support base.
No more will be ordered but a new FR is in development.

Guess that doesn't really matter though...?
kryptonitewhite is offline
post #96 of 101 Old 07-13-2011, 08:32 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
kryptonitewhite is offline
post #97 of 101 Old 07-13-2011, 09:10 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
kryptonitewhite is offline
post #98 of 101 Old 07-13-2011, 10:00 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

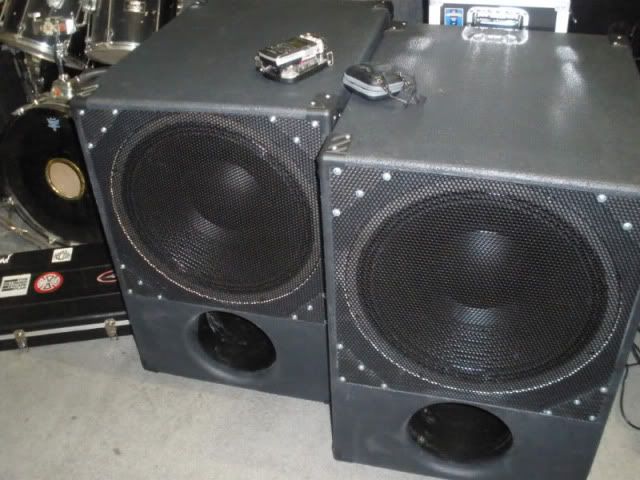

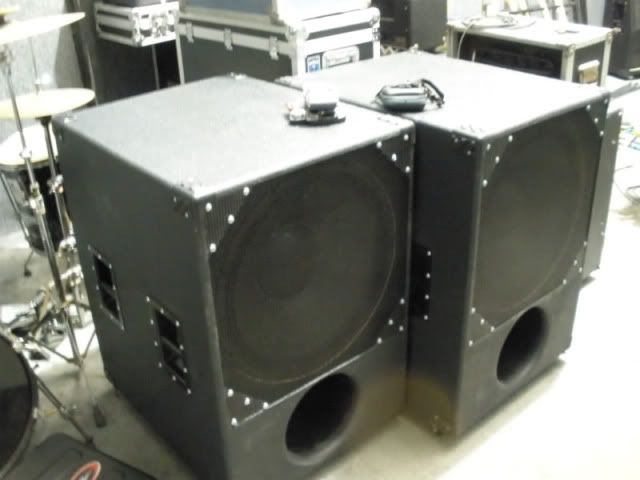

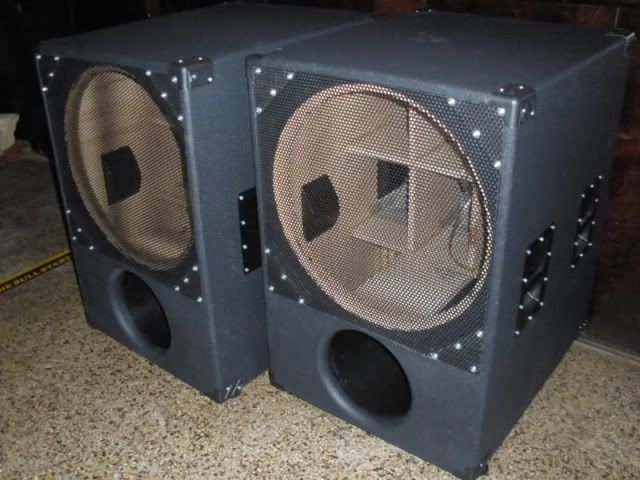

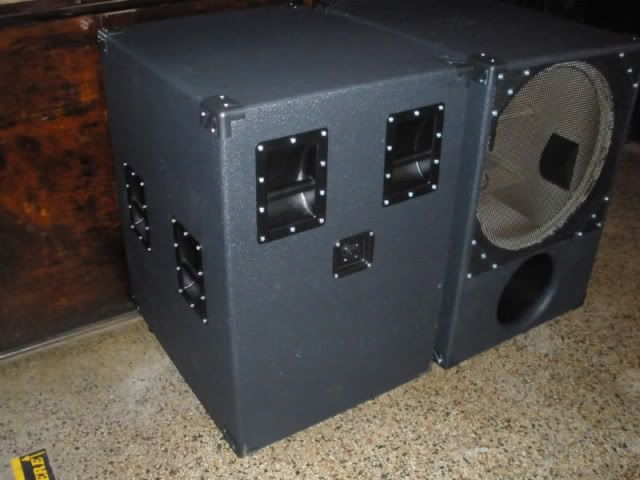

Thanks to Ricci































kryptonitewhite is offline
post #99 of 101 Old 07-14-2011, 03:24 PM
Member

martiandancer316's Avatar

Join Date: Jul 2010
Posts: 129
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
if you could fit 4 of his giant horns in there i think you'd be set for bass. He says they'll do reference level to 15 Hz....outside....at 10 meters. That's NUTS
martiandancer316 is offline
post #100 of 101 Old 07-14-2011, 07:29 PM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Ive been thinking if 4 could be squeezed into the wall, it is 49" taLL 63" wide IIRC.

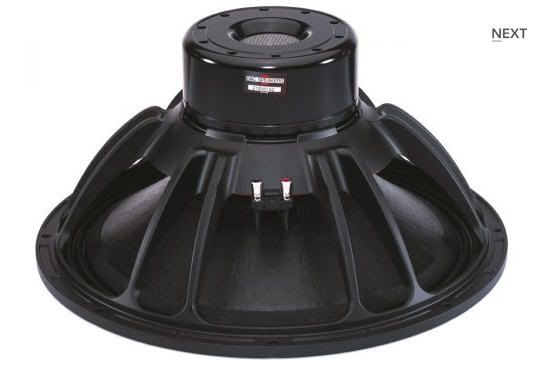

It throws me that the Maelstrom-X has the same Sd but so much more Xmax and Xmech based on Ricci's observations of the B&C having 20mm Xmax and 30mm Xmech.
kryptonitewhite is offline
post #101 of 101 Old 07-16-2011, 11:45 AM - Thread Starter
AVS Special Member

kryptonitewhite's Avatar

Join Date: Aug 2008
Posts: 4,602
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by profundus-sanus View Post

4 slenium st324's= 100$

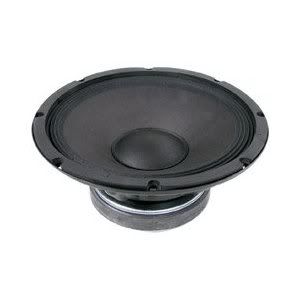

6 selenium 10pw3's= 300$

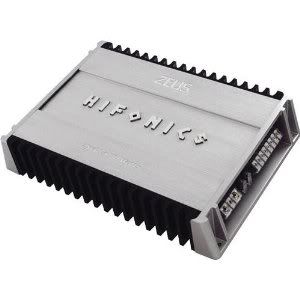

2 hifonics zxi80.4 = 300$

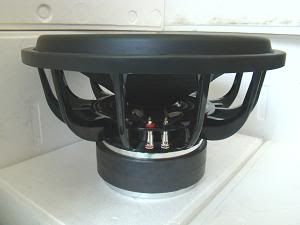

12 obsidian 15's = 1700$

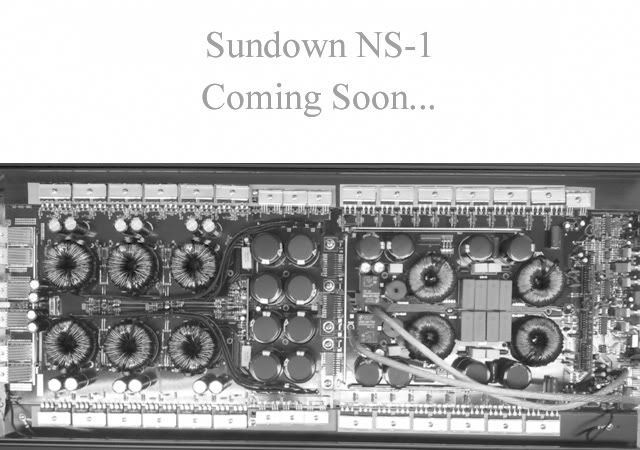

1 sundown ns-1 @ .66 = 1500-2000$(pricing not yet determined)
35 cube ported clam shell tuned in the lower teens = 1000 in materials.
8 deka 9a31's = 1200
100 feet of welding supply.com 2/0 = 350$
350a mechman alt= 700$

that puts you at 7650 and definately what i would do.

Looks pretty good Prof!























http://www.parts-express.com/pe/show...number=264-360

http://www.amazon.com/Selenium-10PW3.../dp/B000MN0VC2

http://www.amazon.com/Hifonics-ZXi80.../dp/B0036B8UTI

http://obsidiancaraudio.com/index.php?id=6

http://forum.realmofexcursion.com/su...w-picture.html

http://www.batteryprice.com/deka-9A3...1-battery.aspx
kryptonitewhite is offline
