post #151 of 176 Old 12-14-2011, 09:02 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by nube View Post

No doubt your system sounds great, Luke. Thanks for the vids.

I do have a comment on the most recent slomo video of all four subs. I think it may be optical illusion, but depending on where I focus during the video, I find different things. I've thought the top two drivers were equally out of phase with the bottom two drivers, but in phase with each other, when looking at the top of the center speaker. I've thought the top left driver was out of phase with all the others when staring at the midpoint between the two drivers on the right. I've though the bottom right was out of phase with all the others, and significantly, when focusing on the light reflection on the top right driver.

Maybe I'm crazy, but try it for yourself. If it's of serious concern to you, a good way to see would be a direct-on camera view (from the front, equidistant from the stacks) with strong side lighting.

Interesting.

I'm going to put the cabinets side by side and really get the drivers moving.

From what I've seen so far I'm thinking I might have to RMA one of the baskets in the left cabinet.
lukeamdman is offline
Sponsored Links
Advertisement

post #152 of 176 Old 12-24-2011, 07:58 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113

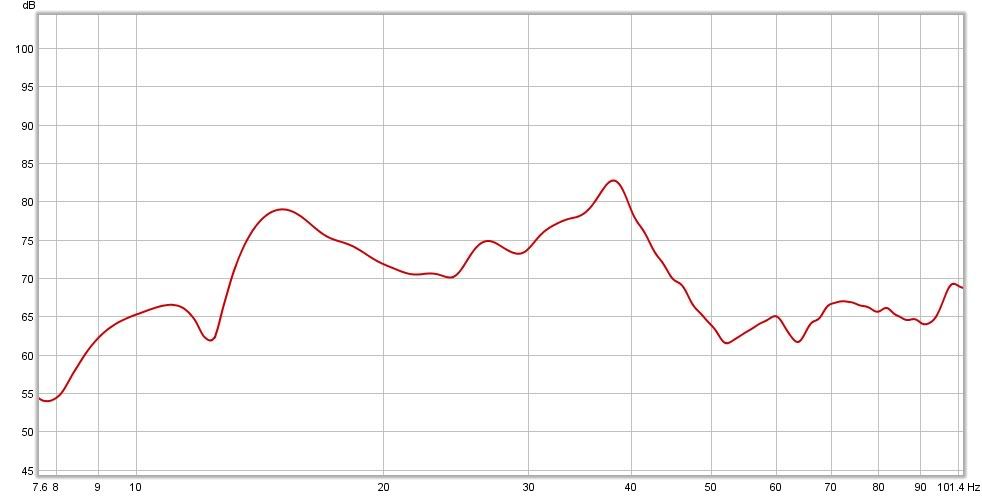

First time using REW, and man the acoustics in my room stink!

lukeamdman is offline
post #153 of 176 Old 12-24-2011, 08:17 PM
Senior Member

RDKing2's Avatar

Join Date: Dec 2010
Location: Ventura County, Ca.
Posts: 365
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Not so bad. With only one cut around 38hz and you have a nice curve into the teens. You have the headroom to pull everything down to get it pretty flat into single digits if you want.
RDKing2 is offline
post #154 of 176 Old 12-31-2011, 01:44 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113

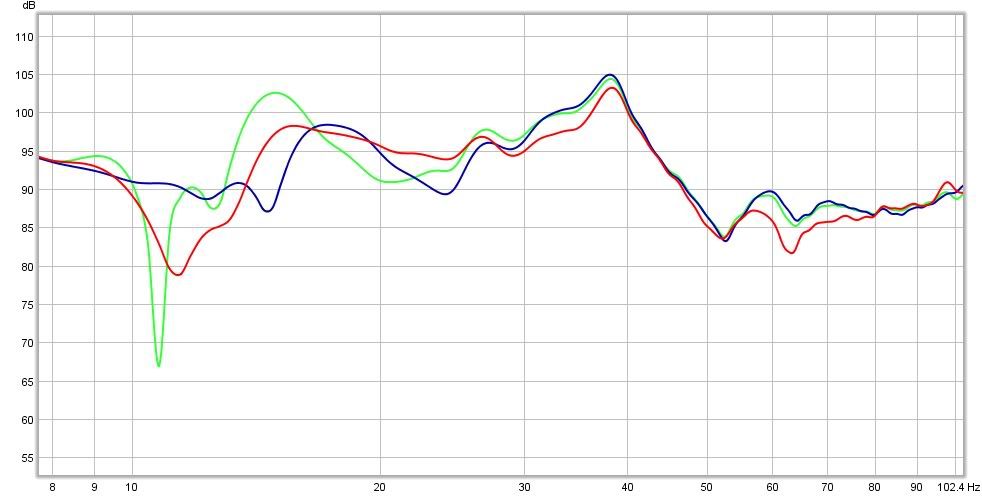

Looks like the HPF was causing that dip around 13hz.

The red line is all HP filters bypassed on the miniDSP.

The green line is a 10hz 48db BW.

The blue line is a 16hz 48db BW.


Why would the 10hz filter cause such a massive drop at 13hz?
lukeamdman is offline
post #155 of 176 Old 12-31-2011, 02:09 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113

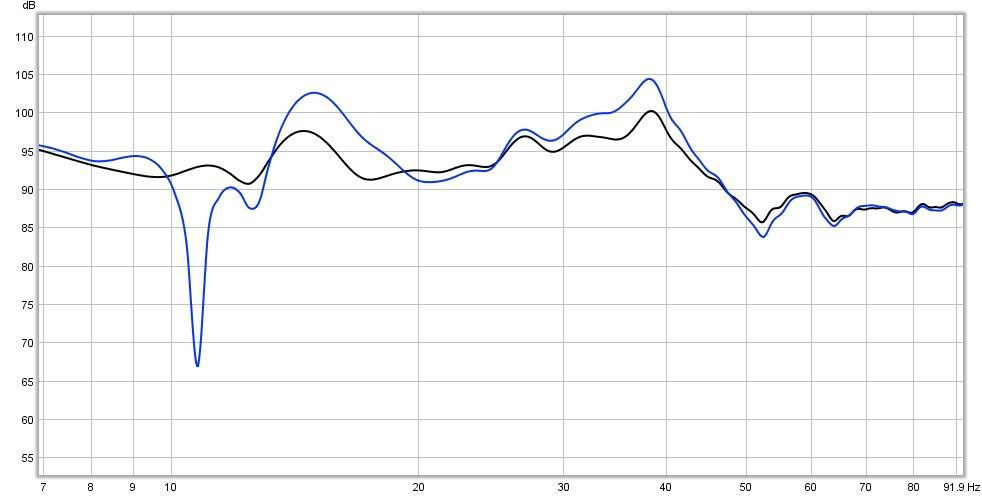

So here's where I am now. The blue line was the 10hz 48db I was blindly running before. The black line is a 10hz 24db LR with EQ in place for 38hz, 52hz, and 64hz.



Who would have thought that such minor changes to the HPF would cause such dramatic changes in the frequency response...
lukeamdman is offline
post #156 of 176 Old 12-31-2011, 02:15 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
lukeamdman is offline
post #157 of 176 Old 12-31-2011, 05:13 PM
AVS Special Member

michael hurd's Avatar

Join Date: Nov 2007
Location: 49th parallel
Posts: 2,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 27
Quote:
Originally Posted by lukeamdman View Post



Looks like the HPF was causing that dip around 13hz.

The red line is all HP filters bypassed on the miniDSP.

The green line is a 10hz 48db BW.

The blue line is a 16hz 48db BW.


Why would the 10hz filter cause such a massive drop at 13hz?

Did you do a loop-through the MiniDSP to verify the results of the filter? It's always a good idea to check to see if the results match the software, or if there is an error in the math.

"You take the blue pill - the story ends, you wake up in your bed and believe whatever you want to believe. You take the red pill - you stay in Wonderland and I show you how deep the rabbit-hole goes."
michael hurd is offline
post #158 of 176 Old 12-31-2011, 05:49 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked: 375
What version of the MiniDSP are you using and what plugin? This is like what I was seeing on the 2x8, which they seemed to have mostly fixed in newer plugins. However, I didn't see these issues with HPF filters. Only parametric EQ settings.

Something isn't right here. You should do some loopback readings straight through the MiniDSP and see if something is actually going on, or if you're having some measurement artifacts.

The best part is, when I brought this up to MiniDSP, certain members of this community jumped all over me saying how nobody uses MiniDSP for this stuff. Oh well.

Also, if you're making changes, you may run into phase issues if you're only making them to one sub, and not to both. I'm not sure how your setup is.
notnyt is offline
post #159 of 176 Old 12-31-2011, 07:14 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
I have the balanced 2x4 with the 4-way advanced plugin.

It is strange, since moving the crossover setting up or down by 1hz dramatically changes the curve, and the result makes no logical sense. The parametric EQ appears to work flawlessly though.

I have a XLR going from the one of the sub outputs on my AV7005 to the miniDSP. Output 1 on the miniDSP is going to one amp, and output 4 is going to another. Whenever I make any XO changes I do both at the same time.

I can re-create the same curve with any XO, and even doing one sub at a time has the same result.

How do I go about the loop test you mention?
lukeamdman is offline
post #160 of 176 Old 12-31-2011, 07:22 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
I assume the loop test is:

Sound card output -> miniDSP -> Sound card input?
lukeamdman is offline
post #161 of 176 Old 12-31-2011, 07:35 PM
AVS Special Member

michael hurd's Avatar

Join Date: Nov 2007
Location: 49th parallel
Posts: 2,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 27
Quote:
Originally Posted by lukeamdman View Post

I assume the loop test is:

Sound card output -> miniDSP -> Sound card input?

Yes, this is correct.

"You take the blue pill - the story ends, you wake up in your bed and believe whatever you want to believe. You take the red pill - you stay in Wonderland and I show you how deep the rabbit-hole goes."
michael hurd is offline
post #162 of 176 Old 12-31-2011, 07:38 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked: 375
Make sure you're running the latest plugin. If you're still having the issues, you're basically running into the same problems I did with the 2x8. No fun there.
notnyt is offline
post #163 of 176 Old 12-31-2011, 07:49 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by notnyt View Post

Make sure you're running the latest plugin. If you're still having the issues, you're basically running into the same problems I did with the 2x8. No fun there.

I just checked and the release date on the plugin is 2/17/11, and I bought the miniDSP around September I think. File name is also the same.

How did you get around your issues with the 2x8?
lukeamdman is offline
post #164 of 176 Old 12-31-2011, 08:05 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 4,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked: 375
Quote:
Originally Posted by lukeamdman View Post

I just checked and the release date on the plugin is 2/17/11, and I bought the miniDSP around September I think. File name is also the same.

How did you get around your issues with the 2x8?

They published a newer plugin that had fixes in it and a different filter type for low end EQ. Go update your plugin to one that's newer, as I believe they have published newer ones since then.
notnyt is offline
post #165 of 176 Old 02-19-2012, 06:13 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113

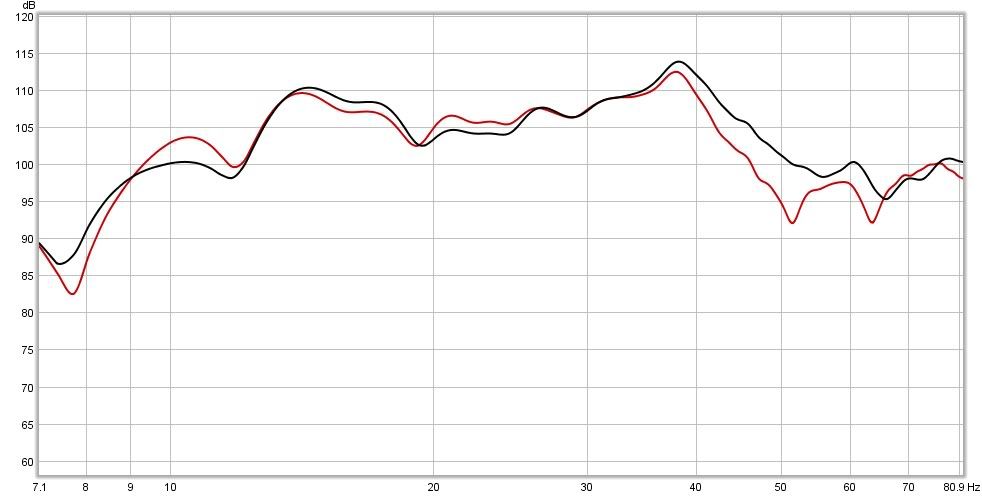

Using OC 703 I put bass traps in all four corners of the room. Red line is before, black line is after:



Since it changed the response I had to re-EQ, but music sounds a lot better without that nasty 51hz null I had before.
lukeamdman is offline
post #166 of 176 Old 12-24-2012, 02:14 AM
AVS Special Member

pokekevin's Avatar

Join Date: Jun 2011
Location: Huntington Beach, CA
Posts: 5,064
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 101
Read this thread all the way from the beginning. Awesome job!

No subwoofer I've heard has been able to produce the bass I've experienced in the Corps!

Must..stop...buying...every bluray release...
pokekevin is offline
post #167 of 176 Old 12-24-2012, 07:05 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by pokekevin View Post

Read this thread all the way from the beginning. Awesome job!

Thanks!

And in case anyone was wondering, yes, I still have my tiny TV!

lukeamdman is offline
post #168 of 176 Old 12-24-2012, 07:07 AM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,709
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 159
Quote:
Originally Posted by lukeamdman View Post

Using OC 703 I put bass traps in all four corners of the room. Red line is before, black line is after:



Since it changed the response I had to re-EQ, but music sounds a lot better without that nasty 51hz null I had before.

Great build! Congrats!



Just curious...is this your preferred curve for your listening tastes (as opposed to flat)? I'm guessing yes, as the minidsp would give you the flexibility to eq to your preference?

dominguez1 is online now
post #169 of 176 Old 12-24-2012, 07:25 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by dominguez1 View Post

Great build! Congrats!

Just curious...is this your preferred curve for your listening tastes (as opposed to flat)? I'm guessing yes, as the minidsp would give you the flexibility to eq to your preference?

I've done more EQ since then, but I think I only brought down the 37hz peak a little more. Trying to raise 65hz does nothing, so it's just wasted amp.

I've heard theaters that were EQ'd to completely flat, but didn't like it. Probably because our own ears don't have a flat response, which really throws a wrench into "flat" since everyone hears something different.
lukeamdman is offline
post #170 of 176 Old 12-24-2012, 08:01 AM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,709
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 159
Quote:
Originally Posted by lukeamdman View Post


I've done more EQ since then, but I think I only brought down the 37hz peak a little more. Trying to raise 65hz does nothing, so it's just wasted amp.
I've heard theaters that were EQ'd to completely flat, but didn't like it. Probably because our own ears don't have a flat response, which really throws a wrench into "flat" since everyone hears something different.

Do you have a variable phase for each sub? Adjusting that mix between the subs may help out the 65hz...or at least your ability to raise it.

dominguez1 is online now
post #171 of 176 Old 12-24-2012, 03:40 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by dominguez1 View Post

Do you have a variable phase for each sub? Adjusting that mix between the subs may help out the 65hz...or at least your ability to raise it.

The phase between the two is slightly different, since the sub on the right is further from the LP. I looked up my graphs and EQ settings, and the sub on the right didn't have as much of a dip, and I did EQ that sub to have a slight gain at that point.
lukeamdman is offline
post #172 of 176 Old 12-24-2012, 04:41 PM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,709
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 159
Quote:
Originally Posted by lukeamdman View Post


The phase between the two is slightly different, since the sub on the right is further from the LP. I looked up my graphs and EQ settings, and the sub on the right didn't have as much of a dip, and I did EQ that sub to have a slight gain at that point.

Do you have the equipment to adjust each sub's phase anywhere from 0-180? In my experience, playing with the phase has resulted in drastically different FRs, as well as your ability to EQ your response.

dominguez1 is online now
post #173 of 176 Old 12-24-2012, 07:55 PM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by dominguez1 View Post

Do you have the equipment to adjust each sub's phase anywhere from 0-180? In my experience, playing with the phase has resulted in drastically different FRs, as well as your ability to EQ your response.

Yes, I can adjust the phase of each.

Getting a sweep from each cabinet individually, the responses look very similar, and playing them together doesn't cause any voids. Both by themselves still have a void at 65hz, it's just that one has less of a void than the other, but it's only 2-3db difference.
lukeamdman is offline
post #174 of 176 Old 12-24-2012, 09:03 PM
AVS Special Member

michael hurd's Avatar

Join Date: Nov 2007
Location: 49th parallel
Posts: 2,118
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 27
Do you have any sweeps with the mains and the subs together>? When running the sweep, were the amps on for the main speakers? Try re-running the sweep with the speaker wires for the mains disconnected from the amplifier end, and shorted.

"You take the blue pill - the story ends, you wake up in your bed and believe whatever you want to believe. You take the red pill - you stay in Wonderland and I show you how deep the rabbit-hole goes."
michael hurd is offline
post #175 of 176 Old 12-31-2012, 08:57 AM - Thread Starter
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 1,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked: 113
Quote:
Originally Posted by michael hurd View Post

Do you have any sweeps with the mains and the subs together>? When running the sweep, were the amps on for the main speakers? Try re-running the sweep with the speaker wires for the mains disconnected from the amplifier end, and shorted.

I'll politely ask you guys to ignore those graphs for now:)

Those are pretty old and don't apply much now since I've changed a lot in the system since then.

Within the next couple months i'm going to be completely remodeling my basement, and my theater room is moving to a different area. Right now it's in an 11x29 space, and it's new home will be 12x25.
lukeamdman is offline
post #176 of 176 Old 12-31-2012, 09:01 AM
AVS Special Member

Sibuna's Avatar

Join Date: Apr 2010
Location: Western NY
Posts: 1,901
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked: 255
Quote:
Originally Posted by lukeamdman View Post

Thanks!
And in case anyone was wondering, yes, I still have my tiny TV!

nice
you should tell people that that is a normal and you just have giant speakers biggrin.gif
Sibuna is online now
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
