The Curvomatic.




Rick's design used the PE 0.75 Cubic Foot Curved cabinet.
I don't have one, but I will try to make mine pretty close to theirs.
Here I experimented with curves and offsets until I found a look that I liked.

PassingInterest is offline
Sponsored Links
Advertisement

post #32 of 356 Old 02-29-2012, 10:23 AM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,472
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
Quote:
Originally Posted by PassingInterest View Post



I am shocked you can make such beautiful subs out of cardboard, your a true artist

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #33 of 356 Old 02-29-2012, 10:24 AM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,472
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
Oh wait, this isn't the mini-gun build!

I meant beautiful speakers.

I got confused which PI build I was following.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #34 of 356 Old 03-01-2012, 02:22 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Quote:
Originally Posted by mjaudio View Post

Oh wait, this isn't the mini-gun build!

I got confused which PI build I was following.

Haha! I just hope I don't get them confused when I try to install the drivers. Just kidding.
PassingInterest is offline
post #35 of 356 Old 03-01-2012, 02:46 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
At first I thought I might try something a bit more wavy for the cabinet sides, but I decided to go the easy route for this build and just do a simple curve.

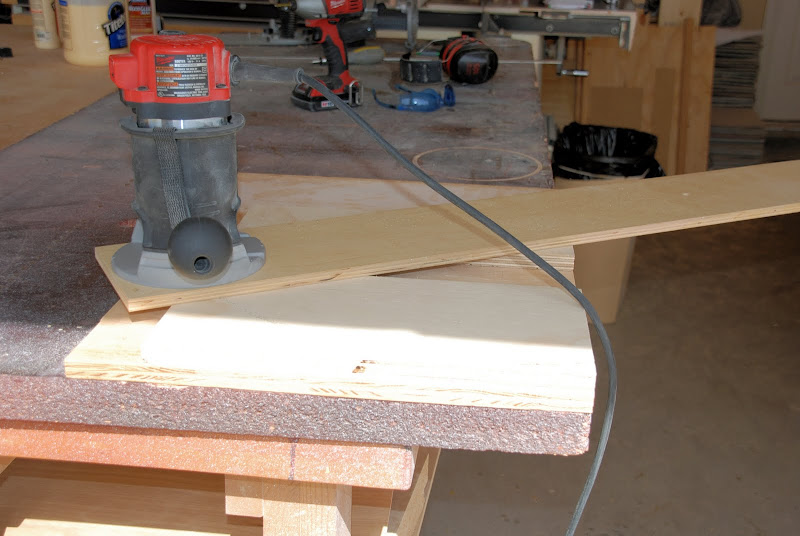

I cut a curved form.

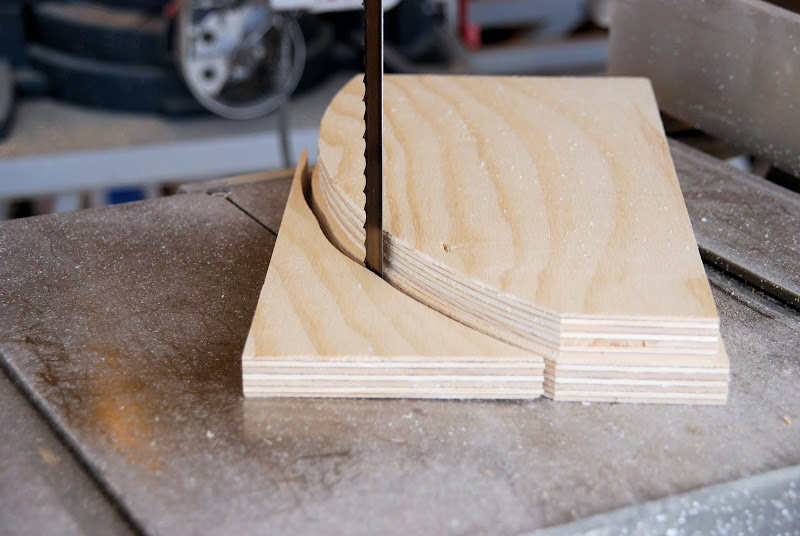

Then duplicated it.





The layout.

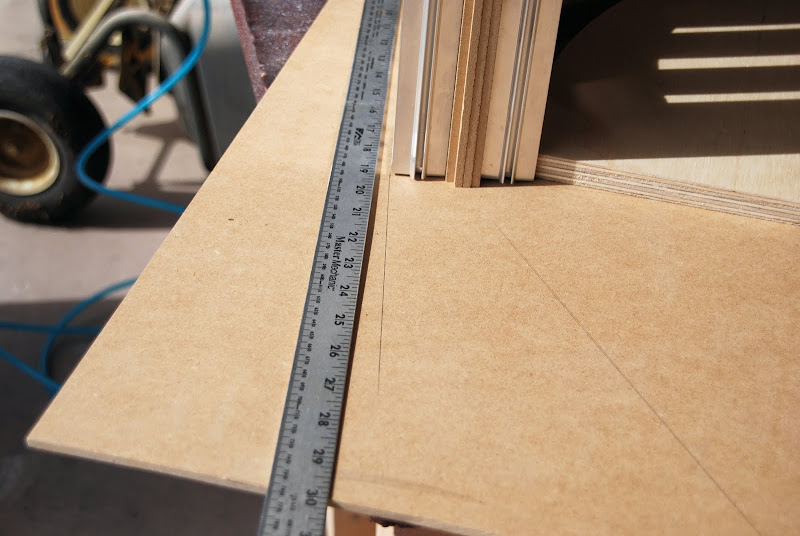

Draw a line tangent to the curve at both ends. (All this is in the instructions at the Curvomatic site in both video and text).



Draw a line between 20-30 degrees from the previous line (I went with 25).



The reason for the second line is to position the straps at the best location for pulling at the angle that works best.

I now know the length I need for the 2x4s the forms mount to.




I was out of 2x4 stock, so I ripped a 2x8.
Round the ends so the straps can slide easily as needed.
I doubted the strength of 1.5" thick pine under pressure, but I wanted to try it anyway.

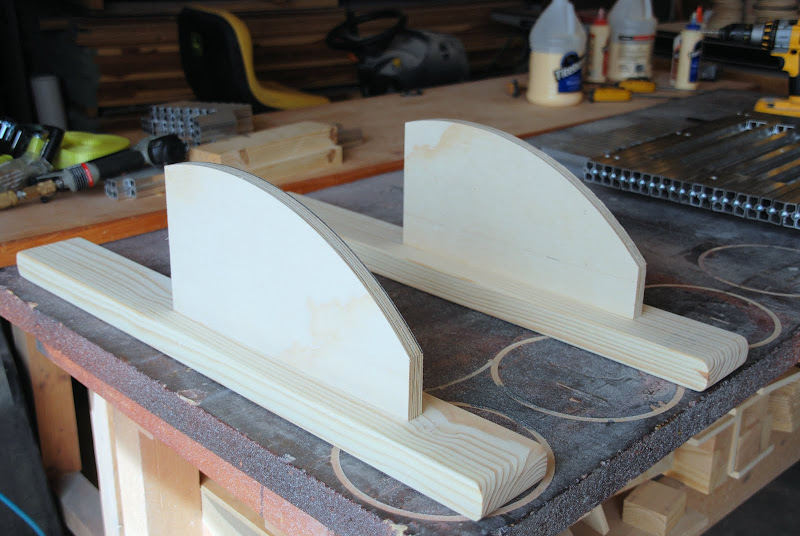

Forms ready for the first dry run.




Secure the bottom cheek.




The pine flexed rather a lot, but I still got a nearly perfect front edge curve.
The top cheek needed a little repositioning and the pine needs to be made stronger, because it is too thin for this much pressure.




The trailing edge needs work. I need to add another section or two on the top cheek.




This was my first dry run test (no glue) and I am pleased with what I see.
After some adjustments, I will try again tomorrow.
PassingInterest is offline
post #36 of 356 Old 03-01-2012, 03:18 PM
Member

Jstslamd's Avatar

Join Date: Nov 2011
Posts: 55
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Looking good
Jstslamd is offline
post #37 of 356 Old 03-03-2012, 02:52 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Quote:
Originally Posted by Jstslamd View Post

Looking good

Thanks, man.


The pine 2x that bowed under pressure--I made them into I-beams and they're pretty solid now. I know it's overkill, but I wanted to use up some plywood scraps I had.

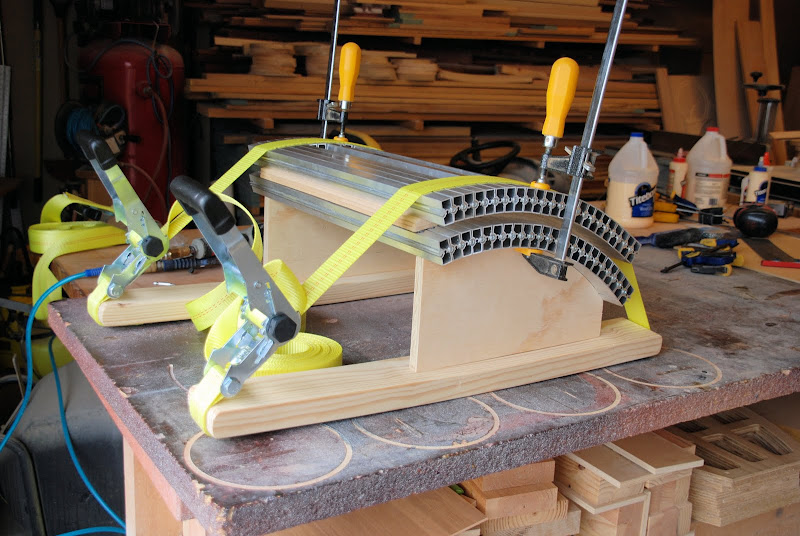

Here's the first glue-up and it's looking good. I used a stack of three 1/4" MDF.



PassingInterest is offline
post #38 of 356 Old 03-03-2012, 03:04 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,472
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
I can't even get one project started and I think you have 3 going on at the same time. I get so exhausted watching your progress that I am too tired to start up my own

Your builds are world class Dan! Always my favorite threads to follow.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #39 of 356 Old 03-03-2012, 04:32 PM
Advanced Member

lowpolyjoe's Avatar

Join Date: Aug 2010
Posts: 503
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 11
Even your clamping rigs are a thing of beauty. Great demo for the Curvomatic. Great stuff!

All this work going on and your shop still looks tidy! My garage is an absolute pig sty during a build (and usually for a few weeks afterwards)
lowpolyjoe is offline
post #40 of 356 Old 03-03-2012, 05:08 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Thanks guys.
MJAudio--You're right. I actually do have three different projects going on at the same time in the garage.
PassingInterest is offline
post #41 of 356 Old 03-07-2012, 11:32 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
I wondered how much spring-back I would get, once the straps were removed.
It didn't move much at all.

PassingInterest is offline
post #42 of 356 Old 03-08-2012, 09:02 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
For the first curved panel, I wrestled a bit with positioning the top cheek along the front edge of the panel. Tightening the straps pushed the top cheek back from the edge. I went back and forth a few times before I got it right--loosen the straps, realign, re-tighten, oops, loosen again. I got it right on the fourth try. With a little more experience, I'm sure I could get it right on the first try.

But, I tried a slightly different approach with the second panel.
I began by applying clamps on the front edge to lock everything in place.




Then I tightened the straps.
Tightening the straps is easier if you push downward to tighten, because you can put your body weight into it. It's pretty effortless, really.

PassingInterest is offline
post #43 of 356 Old 03-08-2012, 09:09 AM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,841
Mentioned: 6 Post(s)
Tagged: 1 Thread(s)
Quoted: 415 Post(s)
Liked: 590
Very cool.

Watching your builds makes me want to build. Gotta do something.
tuxedocivic is offline
post #44 of 356 Old 03-08-2012, 01:59 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Thanks, TC.

Encouraged by how well the second panel glue-up went, I decided to try applying the veneer at the same time that I glue-up the third panel.
It will be a neat trick if I can shape a curved panel and veneer it in a single step.

Again, I'm gluing three 1/4" MDF panels, using Titebond II.
Since I've had some trouble with water-based glues wrinkling the veneer in the past, I decided to use some 60 minute epoxy for the veneer on this panel.

Later, I will experiment with other glues.

Some waxed paper acts as a barrier to prevent glue seepage from getting on the top MDF sheet, permanently gluing it over the veneer.




The top MDF sheet is 1/8" thick. It was a pallet protector. I was in the right place at the right time and Home Depot let me have it for 51 cents.




Again, I clamped the front edge first to keep things aligned and then applied pressure with the straps.

PassingInterest is offline
post #45 of 356 Old 03-08-2012, 02:44 PM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,074
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by PassingInterest View Post

The top MDF sheet is 1/8" thick. It was a pallet protector. I was in the right place at the right time and Home Depot let me have it for 51 cents.

Alright, where is the 'green-with-envy' emoticon?

Looking good PI, I am looking forward to see how your new 'veneer press' measures up to your T100*.

* for those who didn't read PI's previous builds, he once used his Toyota T100 pickup as a veneer press.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #46 of 356 Old 03-09-2012, 11:01 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
You're a funny guy, Chris! Thanks.

I looked really close and I don't see any veneer bubbles.
I believe I got good adhesion for the veneer and curved the panels at the same time. Obviously, I haven't sanded yet, but this looks very good to me.

I over-sized the panels a bit, but it shouldn't be a problem at all.

PassingInterest is offline
post #47 of 356 Old 03-10-2012, 07:45 PM
Member

Square88's Avatar

Join Date: Jan 2011
Posts: 41
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Looking great PI. I really like reading your threads. They are always making me wish I had more woodworking tools and time to use them.
Square88 is offline
post #48 of 356 Old 03-20-2012, 10:32 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Thanks, Square88!
I needed to take a week off.

Found this waiting for me in the garage. Soon after, he wasn't feeling very well.

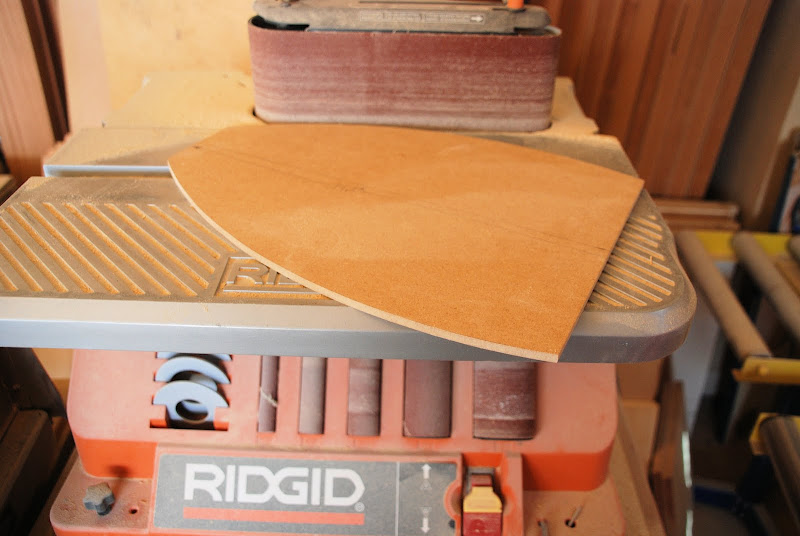

Now for the tops and bottoms.














And some braces.



PassingInterest is offline
post #49 of 356 Old 03-20-2012, 01:27 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49



Aah! Clamps at last!
PL Premium construction adhesive was used on the vertical braces, TiteBond II elsewhere and 18 gauge brads were used to pin it.

PassingInterest is offline
post #50 of 356 Old 03-20-2012, 02:21 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,841
Mentioned: 6 Post(s)
Tagged: 1 Thread(s)
Quoted: 415 Post(s)
Liked: 590
Ahhh, I was going through withdrawl. No more breaks
tuxedocivic is offline
post #51 of 356 Old 03-22-2012, 09:48 AM
Member

johngalt47's Avatar

Join Date: Nov 2007
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
PI,
What is the volume of the box?
johngalt47 is offline
post #52 of 356 Old 03-22-2012, 12:58 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Thanks, TC!
JohnGalt47--It should be real close to 0.75 cubic feet.

I just got back in town and should be back on this project tomorrow.
PassingInterest is offline
post #53 of 356 Old 03-23-2012, 09:59 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Clamps off.








Trim a little off.

PassingInterest is offline
post #54 of 356 Old 03-23-2012, 10:34 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
PI - Too sweet as always!

You should name these after your new 8 legged "friend". Widow Maker comes to mind.


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #55 of 356 Old 03-23-2012, 10:59 AM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Quote:
Originally Posted by dbldare View Post

PI - Too sweet as always!

You should name these after your new 8 legged "friend". Widow Maker comes to mind.


dbl

Great name! I may have to use it. And thanks for the compliment.
PassingInterest is offline
post #56 of 356 Old 03-23-2012, 11:46 AM
Member

BP1Fanatic's Avatar

Join Date: Jan 2010
Location: Columbus, Oh
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by mjaudio View Post

i can't even get one project started and i think you have 3 going on at the same time. I get so exhausted watching your progress that i am too tired to start up my own:d

your builds are world class dan! Always my favorite threads to follow.

exactly, lol!!!
BP1Fanatic is offline
post #57 of 356 Old 03-23-2012, 12:51 PM - Thread Starter
AVS Special Member

PassingInterest's Avatar

Join Date: Nov 2006
Location: Dallas, Tx
Posts: 1,676
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
BP1Fanatic--Thanks!



PassingInterest is offline
post #58 of 356 Old 03-23-2012, 01:54 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,472
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
That veneer is so good looking, you have an excellent sense of what looks good.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #59 of 356 Old 03-23-2012, 02:07 PM
AVS Special Member

BeerParty's Avatar

Join Date: Jun 2008
Location: New Hampshire, USA
Posts: 1,074
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 17
Quote:
Originally Posted by PassingInterest View Post


Nice! It looks like those Curvomatic pre-curved sides made things much easier at this stage of the build.

Chris

"It hurts to admit when you make mistakes - but when they are big enough, the pain only lasts a second."
--Despair, Inc. "Regret"

My AviaTrix TM Build
BeerParty is offline
post #60 of 356 Old 03-23-2012, 02:17 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,472
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 33
Your right, that Curvomatic is one slick tool. Your user name being BeerParty I have a natural inclination to agree with anything you say anyway

Looks like PassingInterest is going to cost me more money in tools for a Curvomatic. He just has a way of showing how to properly use a tool and making me want one. Now if I only had his skills

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
