post #31 of 48 Old 10-24-2011, 04:48 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,824
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked: 808
or use the "text to columns" command in excel and then choose "delimited" and check "space"

Listen. It's All Good.
LTD02 is online now
Sponsored Links
Advertisement

post #32 of 48 Old 10-24-2011, 08:53 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
Ah, thanks again. See all these things we learn. Hopefully someone can learn from this:

Ok, here we go.

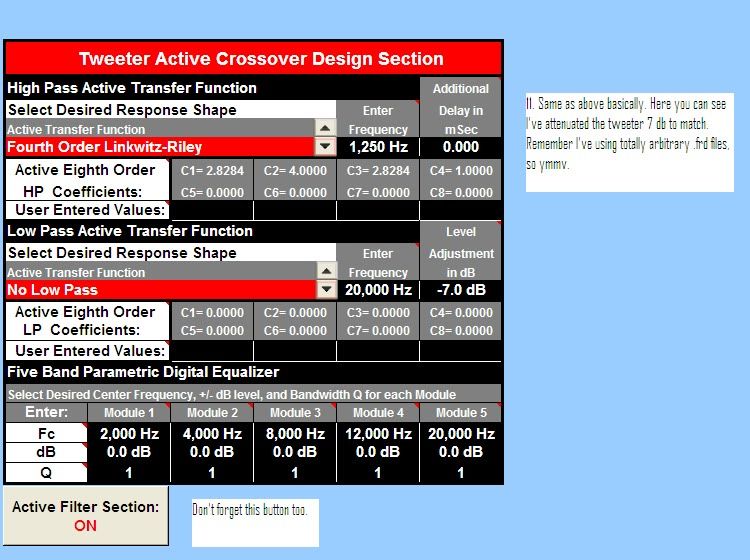

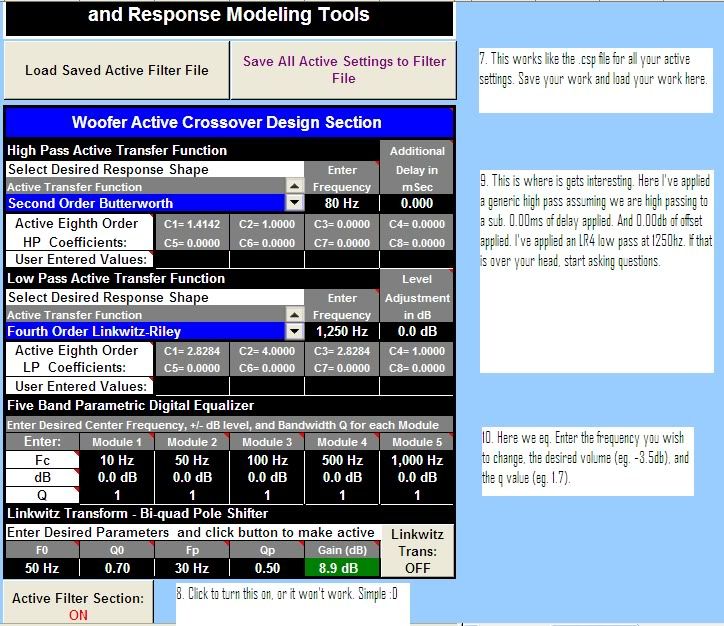

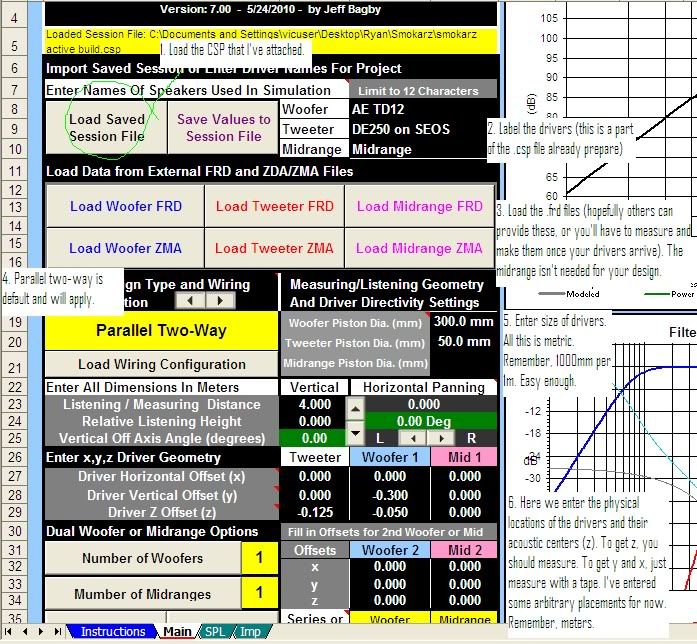

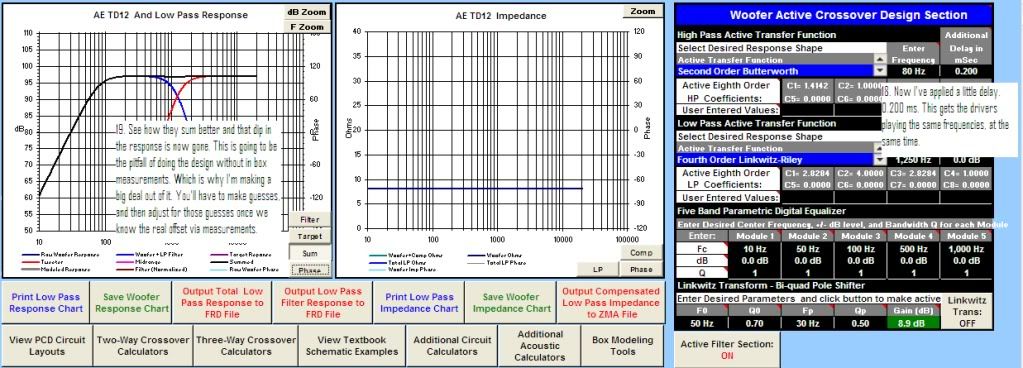

Start up PCD and follow these instructions.

PS. I'm trying to use the avsforum image management system. Not sure I got it right.
LL
LL
LL
LL
LL
tuxedocivic is online now
post #33 of 48 Old 10-24-2011, 08:55 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
Ah shoot. I can't attached the .csp and .ftr.

If you want them, pm me. Or you can just follow the steps and create your own.
tuxedocivic is online now
post #34 of 48 Old 10-24-2011, 09:00 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
Those look terrible. Photobucket is just plain easier.

These might not last forever though.









tuxedocivic is online now
post #35 of 48 Old 10-24-2011, 11:42 PM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,147
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 41
Quote:
Originally Posted by coctostan View Post

Give some more details like room dims and setup. Maybe we can make something work. I highly recommend using a toe-in where the axes cross in front of the primary listeners. This can be made to less box width at the expense of more depth.

Visual serving suggestion for smokarz.

A9X-308 is offline
post #36 of 48 Old 10-25-2011, 02:49 AM
AVS Special Member

coctostan's Avatar

Join Date: Oct 2005
Location: Indy
Posts: 1,960
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 127
Quote:
Originally Posted by tuxedocivic View Post

Ah shoot. I can't attached the .csp and .ftr.

If you want them, pm me. Or you can just follow the steps and create your own.

You should be able to put them in a ZIP file and upload them to an AVS post.

A9X, that is the look I'm thinking. It kills two birds with one stone. You get the toe-in you need and reduced width. It can be built to fit the dimensions of your room.
coctostan is offline
post #37 of 48 Old 10-25-2011, 06:21 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
Quote:
Originally Posted by A9X-308 View Post

Visual serving suggestion for smokarz.


that looks great.

but it seems a bit difficult to build, for someone who is very deficient in woodworking skills.
smokarz is online now
post #38 of 48 Old 10-28-2011, 04:02 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
How is this coming? Do my instructions make any sense
tuxedocivic is online now
post #39 of 48 Old 10-29-2011, 11:24 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
sorry tux, haven't even got a chance to try it out.

hopefully sometimes soon.
smokarz is online now
post #40 of 48 Old 10-31-2011, 07:47 PM
Senior Member

orcarola25's Avatar

Join Date: Dec 2006
Location: So. Cal.
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Smokarz,

I could have missed it in an earlier post but were you planning on running these as mains (front three)? If so, what amplifiers were you planning on using?
orcarola25 is offline
post #41 of 48 Old 12-16-2011, 06:21 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
Quote:
Originally Posted by orcarola25 View Post

Smokarz,

I could have missed it in an earlier post but were you planning on running these as mains (front three)? If so, what amplifiers were you planning on using?

i am running only 2 fronts. my mains are roughly 8ft apart, so no need for a center really. imaging is pretty dead centered with them toe-in.

i have a seven channel amps 125wpc, Emotiva UPA-7.

might pick up a 2-channel amp (around 50wpc) to run the DE250s.
smokarz is online now
post #42 of 48 Old 12-17-2011, 06:16 AM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
Everyone is still waiting on the GB stuff eh!
tuxedocivic is online now
post #43 of 48 Old 12-17-2011, 07:36 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
pretty much.

honestly, i won't be doing much until may/june when the parts arrive.

waiting on the AE drivers, and Erich is still working on putting the DE250 and SEOS stuff together.
smokarz is online now
post #44 of 48 Old 06-21-2012, 06:46 AM
Member

bg40403's Avatar

Join Date: Feb 2007
Location: where the appallachians rise from the bluegrass
Posts: 107
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Things are coming together. I have received my parts from Erich today and AE has the parts.

AE GB $$$ sent 10-18-11; TD15M arrive 01-16-13, ...454 days
bg40403 is offline
post #45 of 48 Old 06-21-2012, 07:34 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
Yes. Got the stuff from Erich.

Waiting on the AE drivers.

Almost forgot this pet project. Was busing working on screen/pj.
smokarz is online now
post #46 of 48 Old 06-21-2012, 12:17 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,263
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 400
I'm looking forward to seeing what you guys come up with for these big designs biggrin.gif

Are you still going active Smokarz? Or have you decided to just go with a design.
tuxedocivic is online now
post #47 of 48 Old 06-22-2012, 08:09 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 62
i am hoping one of the designers can cook up something.

if not, then i'll have to get a minidsp and start taking lessons. biggrin.gif
smokarz is online now
post #48 of 48 Old 06-22-2012, 10:02 AM
Member

bg40403's Avatar

Join Date: Feb 2007
Location: where the appallachians rise from the bluegrass
Posts: 107
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I'm in the fray, as well. FYI, rumor has it that PE will begin carrying mini DSP in the product line. I have solicited a start date with no results. Wait and see.

AE GB $$$ sent 10-18-11; TD15M arrive 01-16-13, ...454 days
bg40403 is offline
