post #1 of 66 Old 01-19-2012, 11:55 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
While currently waiting for results of some of the 18's being tested (using better judgement, gaa I hate waiting), I've decided to hold onto my two tempests and I was planning on just fashioning up two 5 cuft sealed enclosures that I could later use for whatever 18 I decide to go with until I thought, "I'd like to try a sonotube for fun!"

Wit that said this build would be a quick and dirty install. Going behind the screen with no needs of waf or beauty in general, think i (with no knowledge of llt type setup) could fashion up a pair of these guys in a single Saturday afternoon or a long Friday night tomorrow night? I don't even understand the anatomy of how they work, other than sub fires down and port fires up .

If its too big of an undertaking then I'll simply just build the sealed deals, heck might do both anyways. Lemme know your thoughts of the feasibility and where I even get the stuff needed thanks dudes

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
Sponsored Links
Advertisement

post #2 of 66 Old 01-19-2012, 06:48 PM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Hey dudes, a little help here!!! Im gonna start te build tomorrow if I can locate the stuff close by. I've got wood, plenty of it, screws,pl, and tools to get the job done, just need a little guidance.

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #3 of 66 Old 01-19-2012, 07:03 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
At the movies. Will post some help when I get home.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #4 of 66 Old 01-19-2012, 07:03 PM
AVS Special Member

maxmercy's Avatar

Join Date: Nov 2008
Posts: 2,365
Mentioned: 0 Post(s)
Tagged: 1 Thread(s)
Quoted: 39 Post(s)
Liked: 140
http://www.subwoofer-builder.com/sonosub.htm

Enter data, get specific answers. Good site for lots of diy topics.

JSS
maxmercy is offline
post #5 of 66 Old 01-19-2012, 07:22 PM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Sweet ill check it out!!!

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #6 of 66 Old 01-19-2012, 08:55 PM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
If you sweet talk Neo Dan, he may be able to help you out. He's a master.


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #7 of 66 Old 01-20-2012, 12:48 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
An LLT isn't really any harder to design than any other of the popular alignments. It's just a larger than usual vented system.

First of all... which Tempest? The older style from Adire or the newer Exodus Tempest-X? You mention that you have two drivers. Did you want them each in their own enclosure or separate? How large of diameter and height are we looking at here?

Fill me in on this stuff and if you think you've got the chops, you could start building soon and be done for the weekend.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #8 of 66 Old 01-20-2012, 08:38 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

An LLT isn't really any harder to design than any other of the popular alignments. It's just a larger than usual vented system.

First of all... which Tempest? The older style from Adire or the newer Exodus Tempest-X? You mention that you have two drivers. Did you want them each in their own enclosure or separate? How large of diameter and height are we looking at here?

Fill me in on this stuff and if you think you've got the chops, you could start building soon and be done for the weekend.

Thanks scott! I have a pair of tempest x-2's (the last two I think Kevin had) so they are the most recent exodus line. each in the own enclosure would be the deal, and I guess diameter would be whatever size tube I could get my hands on, I dont know where to find tubes like that. I have at the most, 7 feet of height to play with and size doesnt matter (contrary to popular belief)

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #9 of 66 Old 01-20-2012, 09:26 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
Also, what kind of extension are you seeking? What kind of amp will you use?

Call up a local contractor of wood and concrete. See if they can help you. I called a general building contracting company back when I needed 8" sonotube for the ports in my current LLT's.

I'll start doodling with some sims, you find out where you can get some sonotube.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #10 of 66 Old 01-20-2012, 10:20 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

Also, what kind of extension are you seeking? What kind of amp will you use?

Call up a local contractor of wood and concrete. See if they can help you. I called a general building contracting company back when I needed 8" sonotube for the ports in my current LLT's.

I'll start doodling with some sims, you find out where you can get some sonotube.

Got a 12 foot 18 or 24 inch internal diameter tube that I can pick up before 4:30. cutting directly in half would yield two 6 foot sections I could utilize, thus only having to buy a single tube, i can cut to length once you have a good model up

Kevin suggested a 340L (12 cuft) 12hz tuning on the LLT he outlined in his white papers for the tempest x-2

alright so I need to just get some pegs for the bottom and some 6 inch pvc for the port and I should be good to go.

EDIT: that 12 hz tuning should get me flat to 10hz in room @ 115db

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #11 of 66 Old 01-20-2012, 10:28 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
That's a good start and pretty much what I was simming with. Get which ever one you want to use but that 24" one will have the most volume per foot of height. Obviously. I'd go with that size cuz a 6' 18"dia sonotube will barely get to 300liters of net airspace. A 24"dia tube could get up to 500liters at 6' tall.

What kind of amp are you going to use with these?

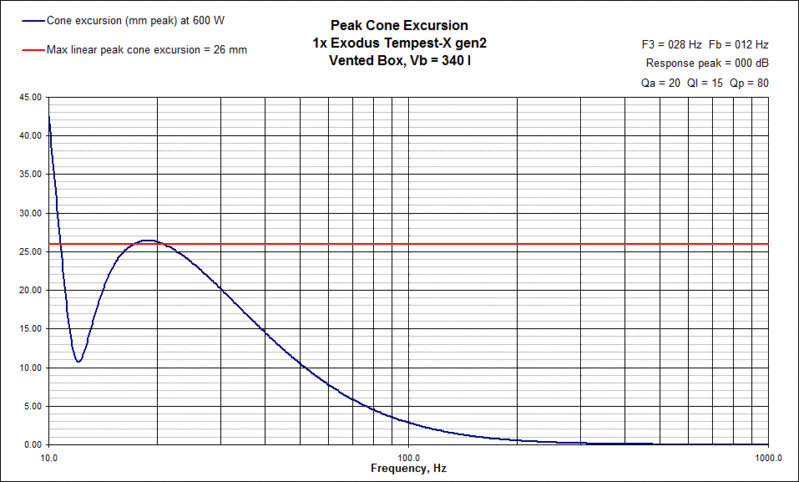

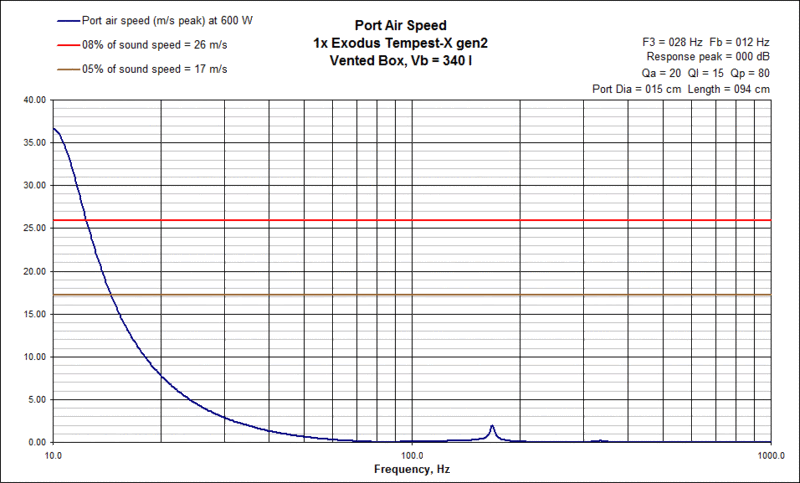

This is what that models like @ 600w a piece.






My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #12 of 66 Old 01-20-2012, 10:35 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

That's a good start and pretty much what I was simming with. Get which ever one you want to use but that 24" one will have the most volume per foot of height. Obviously.

What kind of amp are you going to use with these?

with the 18 inch tube the full 6 foot section would only yield 10 cuft, I wish that would work, if it does id rather do that. if not, ill go with the 24 inch diam.

Ill be powering with my epx4000 but can downsize to the crown xls2000 I have on standby if need-be, although the epx should be a perfect fit for two cabs.

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #13 of 66 Old 01-20-2012, 10:41 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
OOO thanks for the sims!! would going to that 300L sonotube bring the corner up significantly? I want the lowest tune possible but still seems we go over xmax above 10hz and barely over near 20. Makes me a little nervous but the 20hz is so little over it should be ok right?

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #14 of 66 Old 01-20-2012, 10:46 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
I wouldn't shink these anymore than the sim'd 340liter, imo. Wouldn't be much of an LLT. My vote goes for the 24" diameter tube if you can fit it.

Yeah, I sim'd with an ep4k equivalent 600w per channel so your epx would be perfect. You would be okay. That sim shows not even a full millimeter over Xmax. More like .5mm over. Lol, you'll be fine.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #15 of 66 Old 01-20-2012, 10:54 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

I wouldn't shink these anymore than the sim'd 340liter, imo. Wouldn't be much of an LLT. My vote goes for the 24" diameter tube if you can fit it.

Yeah, I sim'd with an ep4k equivalent 600w per channel so your epx would be perfect. You would be okay. That sim shows not even a full millimeter over Xmax. More like .5mm over. Lol, you'll be fine.

going to switch out for the truck and make a run to the concrete shop right now. This might break records for the fastest build in AVS history...although Dusty Shopfloor did bang those stentorians out aweful quick. I want to have these done by tonight. with the 24 inch diam, to yield 340l, i would need a 4 foot section pipe, sound about right? that leaves about .25 cuft after driver displacement. what length 6 inch port would I need at that point?

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #16 of 66 Old 01-20-2012, 10:54 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
I could go 5 feet on the tube length if need be

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #17 of 66 Old 01-20-2012, 10:57 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
You're looking at a full length, three foot long tube for the port. Start there and if need be you can cut it down. I had to do the same with mine... but I never cut them down. Kept the low, low tune.

While you're there, get that or use the PVC pipe. Get the 24" tube and have them cut it down to anything between 4-5ft in length. I'd swing towards to the higher end of that range but it's not completely necessary.

Good luck!

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #18 of 66 Old 01-20-2012, 11:05 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
alright then, ill stick with 4 foot pipes, 3foot port. regardless im out the door to scoop supplies...Scott, you are the man

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #19 of 66 Old 01-20-2012, 11:06 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
Gonna be a tight fit that port in a 4ft tube.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #20 of 66 Old 01-20-2012, 11:09 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

Gonna be a tight fit that port in a 4ft tube.

well as close as I can get then I am 100% ok with going to 5 foot tubes, Ill have the supplies to do so and the space is fine.

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #21 of 66 Old 01-20-2012, 11:15 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
I'd push for the larger tube, myself but it's your call. Sounds like a fun build!

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #22 of 66 Old 01-20-2012, 11:19 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Quote:
Originally Posted by Scott Simonian View Post

I'd push for the larger tube, myself but it's your call. Sounds like a fun build!

what would that get me to go a foot taller with a longer port? Lower tuning but higher breakpoint for excursion on 600 watts?

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #23 of 66 Old 01-20-2012, 11:25 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
Just makes room for the port without butting up against the driver on the other side. Better to have too much room than not enough in a ported alignment. The extra excursion is minimal. Like, one more millimeter used up. You'll be good.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #24 of 66 Old 01-20-2012, 12:35 PM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Two tubes ready for some work.
LL

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #25 of 66 Old 01-20-2012, 09:10 PM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Getting there, but I'm running out of beer!!!
LL

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #26 of 66 Old 01-20-2012, 09:30 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,077
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked: 915
Good stuff!!

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #27 of 66 Old 01-21-2012, 12:07 AM
Advanced Member

goku14139268520's Avatar

Join Date: Jun 2008
Location: Wichita, Kansas
Posts: 585
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Massive sono-subs! Strapped in for this one...
goku14139268520 is offline
post #28 of 66 Old 01-21-2012, 12:12 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Against my instinct, I decided to paint before completion so these big guys didn't sit in my theater unpainted for 3 months. They shall be dubbed "Das Tubatrons"

Need more pl and the job will be done in less than 24 hours.
LL

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #29 of 66 Old 01-21-2012, 12:30 AM
Advanced Member

goku14139268520's Avatar

Join Date: Jun 2008
Location: Wichita, Kansas
Posts: 585
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Nice! Are those 5'-ers?
goku14139268520 is offline
post #30 of 66 Old 01-21-2012, 12:35 AM - Thread Starter
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 7,797
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked: 882
Every bit of it!!!! 24" diameter housing a pair of tempest X-2's

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
