Well I just decided to make my 5.1 theater system bass worthy. I already have a set of Polk Monitor 40s as fronts a nice CS2 center and Monitor 30s as surround. I sold my Klipsch sub 12 to release funds for a nice sub. Ordered the following:



4x T3 Audio T.400 12s (400w rms each)

Behringer EP4000 amp (2400w rms @ 4 ohms) (Not in yet)

MDF (lol) (Box will be sealed 1.5 Cu.Ft per sub)



Here is my set-up as-is:





The subs:





Random AQ amp because my BTL is being reconed





Will update when I get my amp and get started building the enclosure
andale927 is offline
Sponsored Links
Advertisement

post #2 of 11 Old 02-27-2012, 11:33 AM
AVS Special Member

dbldare's Avatar

Join Date: Jan 2001
Location: Broomfield, CO USA
Posts: 2,518
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 15
Have fun with it man! I can tell you that you may not need MDF for your build. 3/4" ply may do just fine. Are you planning on 4 separate boxes or combining them somehow?


dbl

Let's all go to the lobby
....Let's all go to the lobby
........Let's all go to the lobby
............To get ourselves a treat!
dbldare is offline
post #3 of 11 Old 02-27-2012, 12:22 PM - Thread Starter
Member

andale927's Avatar

Join Date: Oct 2010
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Too late :P I already ordered the MDF, and I plan on building a tall tower with each sub separately chambered 1.5 cubic feet per sub. I have a quick question, when I look at the manufacturer recommended specs it says the recommended sealed volume is 1 cubic foot. How will having 50% more volume affect the sound? Idk if this will help but here are the available t/s parameters:

*Power handling: 400 watts RMS/800 watts peak *VCdia: 2" *Le: 2.35 mH *Impedance: 4 ohms *Re: 4.25 ohms *Frequency response: 30-1,000 Hz *Fs: 33 Hz *SPL: 88.10 dB 1W/1m *Vas: 1.58 cu. ft. *Qms: 8.52 *Qes: 0.84 *Qts: 0.76 *Xmax: 16.5 mm *Dimensions: Outside diameter: 12.70 in
andale927 is offline
post #4 of 11 Old 02-27-2012, 08:34 PM - Thread Starter
Member

andale927's Avatar

Join Date: Oct 2010
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Also do you guys think these will get low (as in 22-25hz)? I tried to pick the speakers with the highest xmax within my very small budget.
andale927 is offline
post #5 of 11 Old 02-28-2012, 05:02 PM
Member

atomicmist's Avatar

Join Date: Jul 2007
Location: Near Ottawa, Ontario, Canada
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by andale927 View Post

Also do you guys think these will get low (as in 22-25hz)? I tried to pick the speakers with the highest xmax within my very small budget.

4 of these in a sealed cab will do just over 110db down to 20hz with less than 100 watts. And thats without any room gain. Should be decent.

If I ever die of a heart attack, I hope it will be from listening to a movie too loud!
atomicmist is offline
post #6 of 11 Old 03-01-2012, 09:02 PM - Thread Starter
Member

andale927's Avatar

Join Date: Oct 2010
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10

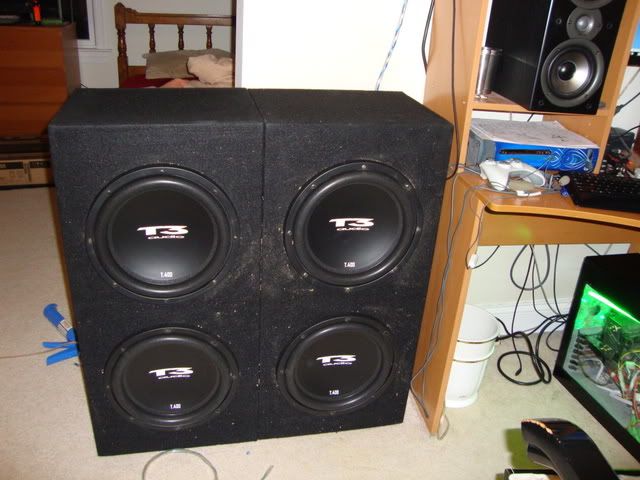

Well I was trying to enjoy my install when I was interrupted by cops... I guess that's a good sign.
...Haven't gotten a chance to clean the sawdust off yet
andale927 is offline
post #7 of 11 Old 03-01-2012, 09:31 PM
Member

whiskey_face's Avatar

Join Date: Feb 2012
Posts: 77
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 19
Looks great! how do they sound? im really close to pullin the trigger on a few of these.
whiskey_face is offline
post #8 of 11 Old 03-01-2012, 09:53 PM - Thread Starter
Member

andale927's Avatar

Join Date: Oct 2010
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
The sound qualities way better than I expected from car audio subs but then again I may be easily impressed because I am used to car audio SPL subs. Honestly sounds amazing.
andale927 is offline
post #9 of 11 Old 03-01-2012, 09:55 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,518
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked: 1046
"Well I was trying to enjoy my install when I was interrupted by cops..."

just for consideration...maybe somebody else was trying to enjoy their sleep and not all folks have the luxury of sleeping during common hours. big bass is awesome...all the way up to the point that it starts disturbing the peace, then it's not cool. i don't know your situation and i'll admit that sometimes there is a "constant complainer" or "neighborhood nanny", but as a first pass, the cops didn't interrupt your enjoyment for their pleasure, they showed up because you were wrecking somebody elses ambience (watching television, homework night, etc).

wouldn't things be so much better if neighbors just talked to neighbors instead of calling the police? imho, calling the police should be a last resort, not a first frick'n phone call. e.g., if your neighbor said to you that you were keeping her child from sleeping, you'd turn the stuff down. problem solved. no cops.

sorry for the rant guys.

Listen. It's All Good.
LTD02 is online now
post #10 of 11 Old 03-01-2012, 10:04 PM - Thread Starter
Member

andale927's Avatar

Join Date: Oct 2010
Posts: 35
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
That is true. I agree 100% I just wasn't expecting it when the house nearest me is over 70ft away. How do you guys enjoy your sound system when people complain?

Yeah it would awesome if people communicated instead of instantly picking up a phone and dialing a number.
andale927 is offline
post #11 of 11 Old 03-01-2012, 11:00 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,518
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 378 Post(s)
Liked: 1046
well, i once had a next door neighbor who liked to blast his stuff as much as i liked to blast mine. but that was in college and i was shooting for grades, so sunday night through wednesday night, i had to study hard and the bass was very distracting. i simply shared with him my situation and he actually apologized even though he hadn't done anything wrong and for the whole time that we were neighbors, he kept it turned down sunday through wednesday nights and i never complained when he cranked it at any other time. that used to be called a give-and-get solution, now we call it a win-win.
