post #31 of 65 Old 03-22-2012, 10:14 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Thanks, it's nice to have confirmation that I'm interpreting winISD correctly.

Now on to figuring out REW.
halo0 is offline
Sponsored Links
Advertisement

post #32 of 65 Old 03-22-2012, 11:42 PM
Senior Member

LINEARX's Avatar

Join Date: May 2007
Location: Pottsboro, Texas
Posts: 323
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
The response curves in WinIsd are theoretical and do NOT represent the resultant curve when the box is placed in a closed space indoors. The larger box will generally have less of a peak at the room mode frequencies compared to the smaller box.
Although WinIsd predicts that cone excursion will go out of limit faster in a larger box, the in-room gain will not require as much power to achieve the same spl at lower Hzs and consequently with less power less cone excursion. You DO have to make a educated compromise about the box size no matter what.
You can also achieve SOME degree of acoustical compromise by stuffing a smaller box with pillows or the like, to make the box "appear" larger to the driver.
LINEARX is offline
post #33 of 65 Old 03-23-2012, 07:28 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I do plan on throwing a few pillows in there. I do realize that winISD is theoretical, which is why I plan on testing and EQing the sub once it's built.

As far as EQ, will the DSP1124P get me in the ballpark?
djbachelor likes this.
halo0 is offline
post #34 of 65 Old 03-23-2012, 03:13 PM
AVS Special Member

HuskerOmaha's Avatar

Join Date: Sep 2010
Location: Omaha
Posts: 2,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
Quote:
Originally Posted by notnyt View Post

the uxl 18 seems to do best in about a 3.5cuft sealed box. bigger than that and excursion goes nuts.

Quote:
Originally Posted by halo0 View Post

Thanks, it's nice to have confirmation that I'm interpreting winISD correctly.

Now on to figuring out REW.

Quote:
Originally Posted by LINEARX View Post

The response curves in WinIsd are theoretical and do NOT represent the resultant curve when the box is placed in a closed space indoors. The larger box will generally have less of a peak at the room mode frequencies compared to the smaller box.
Although WinIsd predicts that cone excursion will go out of limit faster in a larger box, the in-room gain will not require as much power to achieve the same spl at lower Hzs and consequently with less power less cone excursion. You DO have to make a educated compromise about the box size no matter what.
You can also achieve SOME degree of acoustical compromise by stuffing a smaller box with pillows or the like, to make the box "appear" larger to the driver.


After I saw NDOGGs comments, I had to go back and recheck as well to make sure I didn't just have a bunch of 20" cubes built that would be wrong...everything looks fine.

If you are okay with a 20" cube you might get it cheaper from eD if you have them build it according to the design they did for me.

I'd have them find an upgraded speakon with the larger flange and the more heavy duty poles on the driver side.
HuskerOmaha is offline
post #35 of 65 Old 03-23-2012, 04:02 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,664
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 270
Well. I guess my face is red lol I was looking over my plots a few mins ago and couldn't for the life of me, figure out why in my sims, the 6cf box did the best but far, then I dug a bit deeper and realized that the data for the UXL 18 was in fact the data for the FTW 21 but names UXL 18. I guess I meant to change it to the FTW21 and forgot to change the name............. so ya, I'm an idiot LOL

Just a FYI, the FTW-21 models best in a 6-7 cf box and not so good in a 3.5 cf box

My bad to the op.

Blasting brown notes for 10 years and counting!

N8DOGG is offline
post #36 of 65 Old 03-23-2012, 09:31 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Haha! No worries, at least the source of the discrepancy has been uncovered.

Quote:
Originally Posted by HuskerOmaha View Post

After I saw NDOGGs comments, I had to go back and recheck as well to make sure I didn't just have a bunch of 20" cubes built that would be wrong...everything looks fine.

If you are okay with a 20" cube you might get it cheaper from eD if you have them build it according to the design they did for me.

I'd have them find an upgraded speakon with the larger flange and the more heavy duty poles on the driver side.

I might ask about that. Never got a chance to call today. I was thinking I'd just have them build it with no connector and get the metal speakon jack from the link in your thread and install it myself. I'm a little hesitant about requesting special order parts based on some of the stories I've read.
halo0 is offline
post #37 of 65 Old 03-28-2012, 06:47 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Well I ordered the box on Monday. 21"W x 21"H x 19"D. Triple front baffle, with the mounting surface recessed by 3/4". I was assured there would be ample internal bracing, at least one horizontal and one vertical. Now the wait begins.
halo0 is offline
post #38 of 65 Old 04-02-2012, 12:43 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I found an open box BFD from Beach Camera via Amazon for $79.99 shipped, so I picked that up. I also grabbed an RCA->XLR adapter to get me from receiver to BFD, and an XLR patch cable to go from BFD to EP4000.

Found out from Mark that my driver failed QC so he is building me another one. Supposed to ship out tomorrow.

I think about the last thing left I have to figure out is what speakon cable/connector to get for the sub. Leaning towards just using this with some clear-jacketed 12AWG OFC I have laying around. It won't look as nice as the cables you can buy but it seems like most of those are not true 12AWG. (also I believe with a bridged EP4000 I'd have to rewire the amp-side speakon anyway, so why not just use bare wire or bananas on that end with the binding posts...)
http://www.parts-express.com/pe/show...number=092-192

Planning on using this jack for the cab. All connections will be soldered.
http://www.parts-express.com/pe/psho...number=092-340
halo0 is offline
post #39 of 65 Old 04-09-2012, 04:03 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11

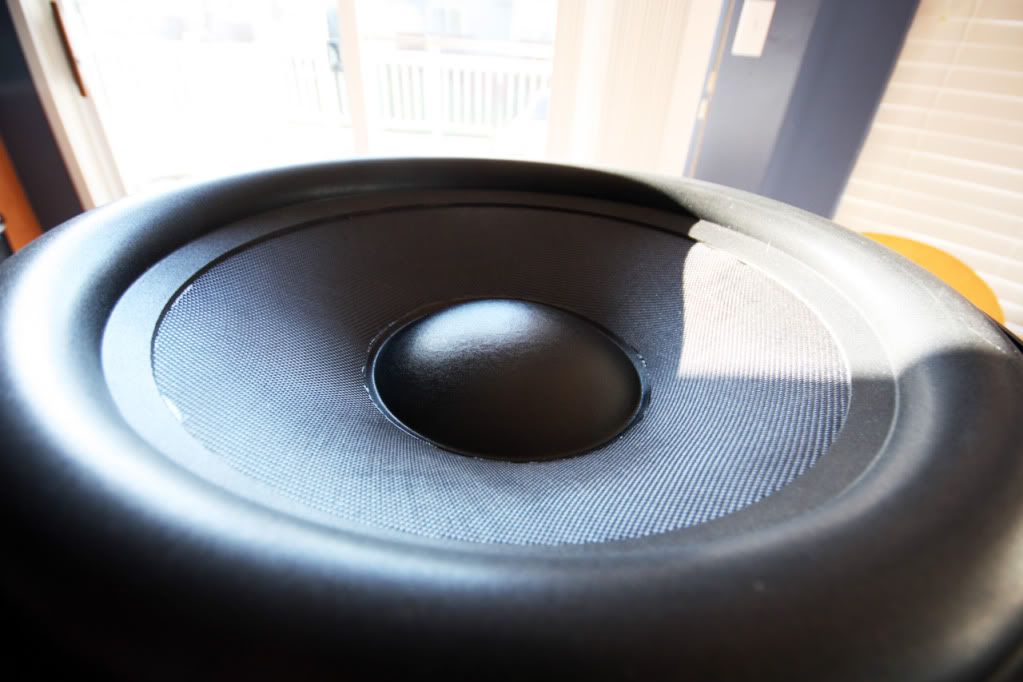

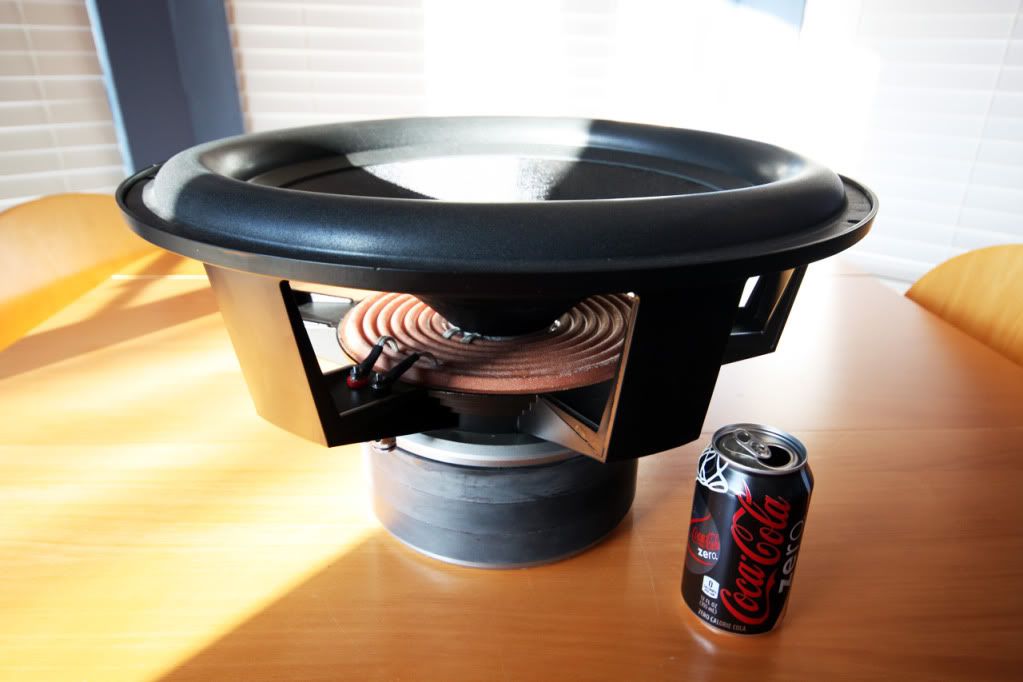

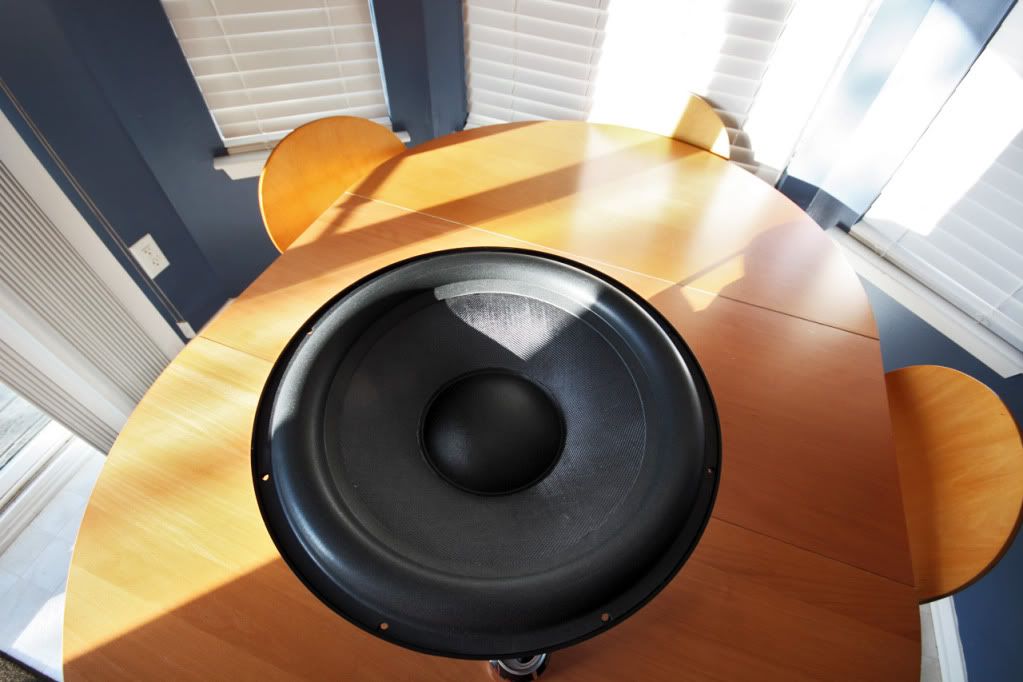

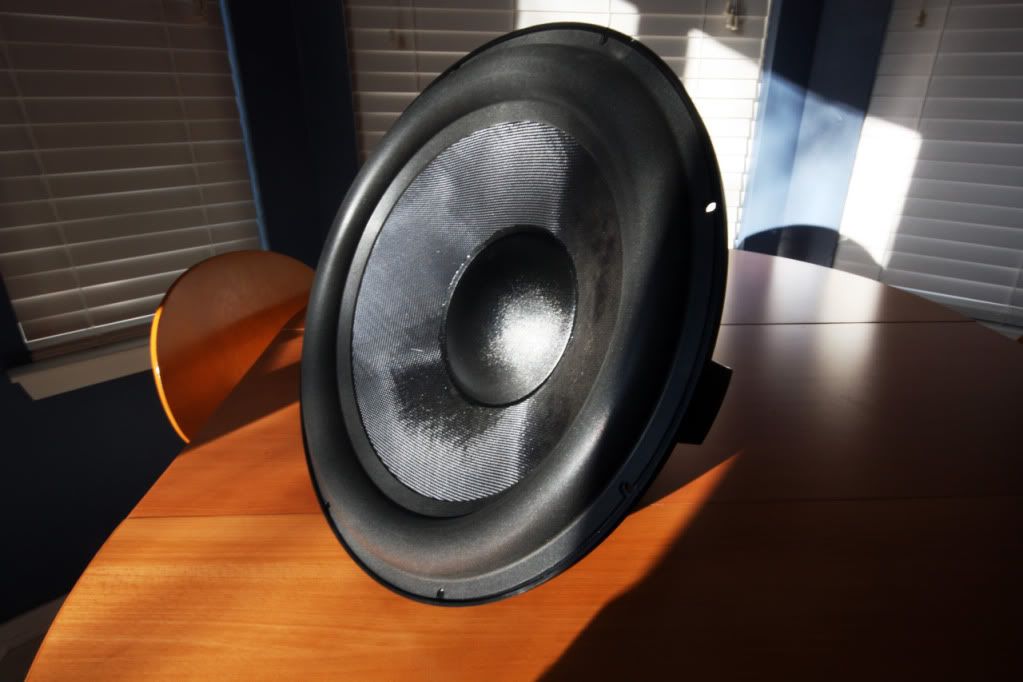

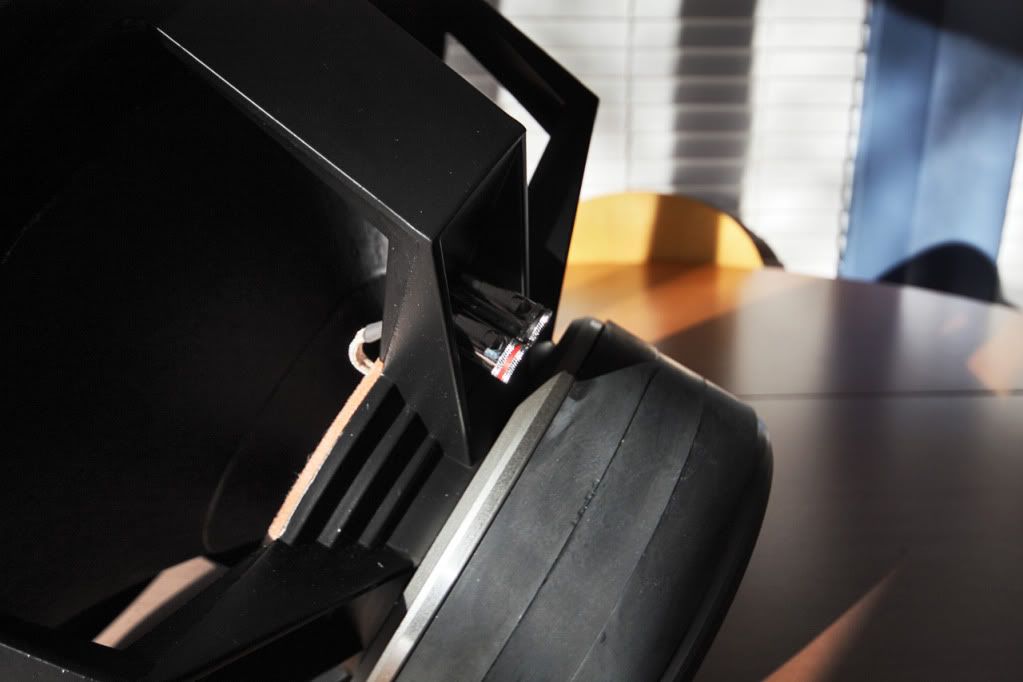

I'm sure this has been done, but the UXL arrived and I couldn't resist taking some unboxing pics/woofer pr0n.

















halo0 is offline
post #40 of 65 Old 04-09-2012, 06:51 PM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,710
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked: 159
Love that driver! Awesome pics!
dominguez1 is online now
post #41 of 65 Old 04-10-2012, 06:27 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
halo0 is offline
post #42 of 65 Old 04-10-2012, 06:46 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Does anyone have a recommendation for some good screws to use? Ideally they would be black, about 1.5" long and have a hex head. The screw holes on the UXL are 1/4" in diameter. Wood screws or hurricane nuts?
halo0 is offline
post #43 of 65 Old 04-10-2012, 07:07 AM
AVS Special Member

HuskerOmaha's Avatar

Join Date: Sep 2010
Location: Omaha
Posts: 2,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
Quote:
Originally Posted by halo0 View Post

Does anyone have a recommendation for some good screws to use? Ideally they would be black, about 1.5" long and have a hex head. The screw holes on the UXL are 1/4" in diameter.

Go to your hardware store and look for Spax #10x 1 1/2 inch zinc construction screws. Work and fit great on my UXL
HuskerOmaha is offline
post #44 of 65 Old 04-10-2012, 07:16 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I've never heard of spax, what type of head is it? It seems that some recommend something stronger than wood screws, I was thinking maybe this kit.

http://www.parts-express.com/pe/show...number=260-778

I don't want to have issues if I need to remove and reinstall the driver.
halo0 is offline
post #45 of 65 Old 04-10-2012, 07:29 AM
AVS Special Member

desertdome's Avatar

Join Date: Aug 2004
Location: Elkhorn, NE
Posts: 1,716
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 204
You can find more about Spax on their website. I use their products on everything from installing kitchen cabinets to building a treehouse. They save a lot of time by not needing pilot holes and they never split the wood.
desertdome is offline
post #46 of 65 Old 04-10-2012, 07:51 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
They don't appear to come in black.
halo0 is offline
post #47 of 65 Old 04-10-2012, 08:15 AM
AVS Special Member

HuskerOmaha's Avatar

Join Date: Sep 2010
Location: Omaha
Posts: 2,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
Quote:
Originally Posted by halo0 View Post

They don't appear to come in black.

Black spray paint works wonders!
HuskerOmaha is offline
post #48 of 65 Old 04-10-2012, 02:14 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Does 2 walmart type pillows sound about right for stuffing? 3? I am trying to make sure I have everything on hand when the box arrives from eD.
halo0 is offline
post #49 of 65 Old 04-10-2012, 02:26 PM
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,207
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked: 116
Where does one purchase these UXL-18 subs?
Thanks in advance
Fatshaft is offline
post #50 of 65 Old 04-10-2012, 02:27 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
http://www.istonline.ca/

They are out of stock at the moment.
halo0 is offline
post #51 of 65 Old 04-10-2012, 02:28 PM
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,207
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked: 116
Do you have any idea when they will be available?
thanks
Fatshaft is offline
post #52 of 65 Old 04-10-2012, 02:31 PM
AVS Special Member

HuskerOmaha's Avatar

Join Date: Sep 2010
Location: Omaha
Posts: 2,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
I've read one pound per cubic ft. Need to go buy mine as well.
HuskerOmaha is offline
post #53 of 65 Old 04-10-2012, 03:10 PM
AVS Special Member

tundrSQ's Avatar

Join Date: Nov 2006
Location: Vermont
Posts: 2,217
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Madisound sells the exact screw you are looking for...i am using it on my IXL-18

http://www.madisoundspeakerstore.com/screws/

Nice pics by the way!!

Tim
tundrSQ is offline
post #54 of 65 Old 04-16-2012, 10:15 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by HuskerOmaha View Post

Go to your hardware store and look for Spax #10x 1 1/2 inch zinc construction screws. Work and fit great on my UXL

Do you have any pics of these on your uxl? I'm just wondering if the screws sit relatively flat or not since they have a tapered countersink head.
halo0 is offline
post #55 of 65 Old 04-16-2012, 10:37 AM
AVS Special Member

HuskerOmaha's Avatar

Join Date: Sep 2010
Location: Omaha
Posts: 2,156
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 31
Quote:
Originally Posted by halo0 View Post

Do you have any pics of these on your uxl? I'm just wondering if the screws sit relatively flat or not since they have a tapered countersink head.

I can take close ups but they seat and fit perfectly in the holes.
HuskerOmaha is offline
post #56 of 65 Old 04-16-2012, 04:19 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,664
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 270
I use #12-2" robertson head wood screws in mine. They aree the perfect size for the holes and sit flush. you don't need anything fancy. Just go to your local hardware store and get some (no bigger than #14) wood screws.

Blasting brown notes for 10 years and counting!

N8DOGG is offline
post #57 of 65 Old 05-30-2012, 09:28 PM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Well it's been quite a while and I'm still waiting on eD for my box. :\\ Finally Alex told me last week that if it doesn't ship out this week he will give it to me for free.
halo0 is offline
post #58 of 65 Old 06-06-2012, 06:55 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
So of course he shipped it out on Friday at the end of the day, so no freebie.

Box arrived yesterday and my buddy helped me manhandle the UXL in and out to mark and drill the holes. The thing fits TIGHT. As in even the 65ish lb weight of the driver itself won't pull it down into the hole. We had to be careful it didn't get stuck. Glued on my plywood blocks with hurricane nuts last night. Going to get pillows today and should have it assembled tonight.

Oh, and I specifically told Alex to NOT put binding posts in as I was going to put in my own speakon. He put in binding posts. mad.gif
halo0 is offline
post #59 of 65 Old 06-06-2012, 09:17 AM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,465
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 31
Quote:
Originally Posted by halo0 View Post

So of course he shipped it out on Friday at the end of the day, so no freebie.
Box arrived yesterday and my buddy helped me manhandle the UXL in and out to mark and drill the holes. The thing fits TIGHT. As in even the 65ish lb weight of the driver itself won't pull it down into the hole. We had to be careful it didn't get stuck. Glued on my plywood blocks with hurricane nuts last night. Going to get pillows today and should have it assembled tonight.
Oh, and I specifically told Alex to NOT put binding posts in as I was going to put in my own speakon. He put in binding posts. mad.gif

Your better off with the binding posts. Speakons are great but I have heard more times than I can remember of having air leaks around the speakon stall projects. Alex probably saved you some frustration;)

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #60 of 65 Old 06-06-2012, 09:47 AM - Thread Starter
Advanced Member

halo0's Avatar

Join Date: Jul 2004
Location: Ann Arbor, MI
Posts: 576
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I really can't fathom what would be so hard about sealing a speakon plug. It's a moot point now though. I just wish I hadn't wasted the money buying all the speakon crap that I now have no use for.
halo0 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
