post #121 of 679 Old 05-01-2012, 02:17 PM
AVS Special Member

Mrkazador's Avatar

Join Date: Jun 2005
Posts: 3,846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked: 250
The boxes will have a roundover on the baffle? The prototypes don't have it, just wondering if you're still going to do that.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Mrkazador is offline
Sponsored Links
Advertisement

post #122 of 679 Old 05-01-2012, 07:04 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Quote:
Originally Posted by Mrkazador View Post

The boxes will have a roundover on the baffle? The prototypes don't have it, just wondering if you're still going to do that.

The boxes posted don't show the outer baffle, only the first layer baffle that drops into the box. The 2nd layer outer baffle will have roundovers. The only reason I didn't show the outer baffles on the larger boxes is because they'll have to be cut from the second sheet of MDF and I didn't want to waste prototype money just showing a baffle.


I took photos of the new sealed box for the 18". I just have to download them and post.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #123 of 679 Old 05-01-2012, 07:15 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Quote:
Originally Posted by jakedsnk View Post

Erich,
Is there a dual opposed 15 box in the future?

Thanks.
Jake


I can look into some bigger boxes between 6 cu ft and 7 cu ft but they'd have to be shipped in 2 separate boxes. I'd be guessing to say they'd likely be pushing around $175-$200 counting shipping for something that large and heavy. In reality, I'm not sure that's a bad price figuring 2 sheets of mdf and shipping around 100+lbs.

I'll find out though, but it will likely be a week or so before a prototype can be cut.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #124 of 679 Old 05-01-2012, 07:16 PM
AVS Special Member

Mrkazador's Avatar

Join Date: Jun 2005
Posts: 3,846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked: 250
The outer layer will sit on the baffle? How are we going to line up the outer baffle so the edges are perfectly sqaure?


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Mrkazador is offline
post #125 of 679 Old 05-01-2012, 07:33 PM
Advanced Member

auburnu008's Avatar

Join Date: Jun 2004
Location: Auburn, AL
Posts: 846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 26
What about some boxes built for some 21's? Any possibility of that?

War Eagle!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
auburnu008 is offline
post #126 of 679 Old 05-01-2012, 08:03 PM
Advanced Member

omegaslast's Avatar

Join Date: Sep 2007
Posts: 881
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Quote:
Originally Posted by auburnu008 View Post

What about some boxes built for some 21's? Any possibility of that?

The baffle sizes and weight of the box might be sort of cost prohibitive.

//////////////////////////////////////////////////////////////

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
omegaslast is online now
post #127 of 679 Old 05-01-2012, 08:11 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Quote:
Originally Posted by Mrkazador View Post

The outer layer will sit on the baffle? How are we going to line up the outer baffle so the edges are perfectly sqaure?

The same way you would with any other baffle you'd install on the front of a speaker. On these, you'd put glue between the 2 layers, and then clamp it in place. I don't think it will be too hard.

Some people might prefer to use screws and pilot holes along with the glue.


I'm thinking about having the outer baffle cut about 1/32" bigger in both directions so the edges could be lightly sanded if needed. Or have enough of a lip to match up with some veneer that someone might add later.



CNC machines are accurate to 1/1000 of an inch. I've taped these boxes up and they line up real nice, but even the thickness of glue or PL adhesive could cause you to need some light sanding. Basically they can be lined up perfect, but if you run your finger over a seam, it could still need some very light sanding. There's no way around human interaction causing the need for light sanding when dealing with wood.

A clamp too tight, or not as tight as the next one can cause a seam to be off by about the thickness of your fingernail. There's no way around that. But sandpaper will knock that down in a minute. These will be far more accurate than things cut on table saws or other home gear.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #128 of 679 Old 05-01-2012, 08:16 PM
Advanced Member

wth718's Avatar

Join Date: Jun 2009
Posts: 899
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked: 218
Any chance for a slightly smaller 18 box? Some drivers (lms, uxl) work well in 3.5-4 cubes, depending on the power they're being fed. I know if I get one, that would be the size I need.
wth718 is offline
post #129 of 679 Old 05-01-2012, 08:53 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,466
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
Quote:
Originally Posted by wth718 View Post

Any chance for a slightly smaller 18 box? Some drivers (lms, uxl) work well in 3.5-4 cubes, depending on the power they're being fed. I know if I get one, that would be the size I need.

There isn't much of a difference between 4 and 4.5 cuft, the LMS or UXL would work just fine in either size. If you wanted to decrease the internal volume you could always glue added panels to the inside which would also strengthen the walls.

I know the only reason we benefit from such a low cost is because of the group buys Erich has put together, significant savings due to high volumes. I would suppose if he tried to quote smaller runs then the price would increase per unit.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #130 of 679 Old 05-01-2012, 08:59 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553

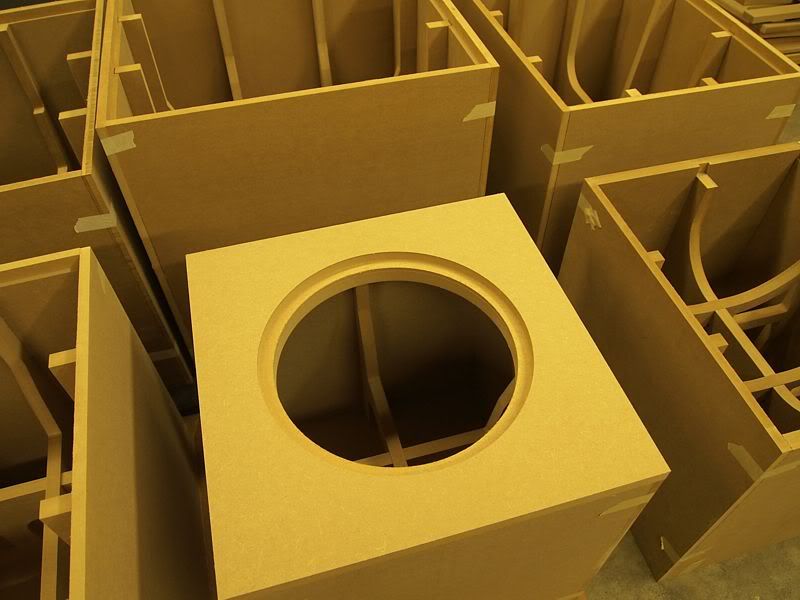

Okay, the new box is on the right. Notice how it was made taller so that the bracing could be shifted closer towards the middle and still leave room for the big magnets. This new design seems to make more sense. The "shelf" for an extra window brace was removed because I'm not sure it's necessary with the new design. Maybe I could put that shelf idea back in the braces so that people have an option to add it if they really wanted to. Let me know what you think.




This photo shows the height difference. Basically the one on the left went from 23x23x20 to the 22x22x22 on the right. The ole switcheroo.




To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #131 of 679 Old 05-01-2012, 09:11 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Quote:
Originally Posted by wth718 View Post

Any chance for a slightly smaller 18 box? Some drivers (lms, uxl) work well in 3.5-4 cubes, depending on the power they're being fed. I know if I get one, that would be the size I need.



There will be a box between 3.5 and 4 cu ft. I figured it would be more used for 15's. I don't have my notebook, so I can't recall the sizes I wrote down. Believe it or not, to get around 3.75 - 4 cu ft would only make the box shrink 1" to a 21" cube versus 22". So it's a very minimal difference and I'd rather just get one or the other made up. I don't care which you guys decide on.


The 22" cube with the double baffle comes in at 4.8 cu ft gross. But after you subtract off bracing, it's closer to 4.5 - 4.6. I'm not sure how much volume those big drivers take up, but I'm guessing the volume the driver sees would be around 4.25?? Any ideas?


I only had 5 of the 22" cube models done for prototypes, so if you guys think a 21" cube makes more sense, please let me know before a bigger number is made.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #132 of 679 Old 05-01-2012, 10:41 PM
Advanced Member

auburnu008's Avatar

Join Date: Jun 2004
Location: Auburn, AL
Posts: 846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 26
I think the 22" cube is perfect for the "large" box. Don't change a thing. Any idea what they are going to cost? Would shipping 8 of them save with shipping?

War Eagle!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
auburnu008 is offline
post #133 of 679 Old 05-01-2012, 11:06 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Quote:
Originally Posted by auburnu008 View Post

I think the 22" cube is perfect for the "large" box. Don't change a thing. Any idea what they are going to cost? Would shipping 8 of them save with shipping?

Some of those big horns in the Autotech group buy from Poland need to be shipped on a pallet once I get them. Most of the pallets were between $175 - $200. I think I've helped with about 5 or 6 of those. One did come in around $250 because they lived in an unusual place.

A pallet would be the only way to save on shipping a larger number of these because I don't think FedEx gives discounts just because 8 packages get shipped to the same location. At least I don't think so. But I can always make a quick 5 minute phone call to find out, no big deal.

I wouldn't have to package them in shipping boxes, so that could save a little there.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #134 of 679 Old 05-01-2012, 11:17 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,466
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
I think a 4.5cuft box is just fine. I just ran the sims with an LMS Ultra in 4 and 4.5cuft and the only difference is the smaller 4cuft can handle a whopping 300 watts more but even with the less wattage the spl is virtually the same due to the slight increase in efficiency with the 4.5cuft box. The box Q goes from .597 to .576, essentially the same thing.

If there is going to be an outer baffle than a 21" cube would only have about 1 1/8" on the sides because of the LMS Ultra's 18.52" outside diameter. With a roundover that is cutting it close and you might run into shipping damage as 1 1/8" MDF is not hard to snap. Not like an extra 1/2" each side is a lot but it should be a little more sturdy.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #135 of 679 Old 05-01-2012, 11:23 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,466
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
Quote:
Originally Posted by Erich H View Post

I'm not sure how much volume those big drivers take up, but I'm guessing the volume the driver sees would be around 4.25?? Any ideas?

I would have to guess the LMS Ultra takes up about .50ft3, it's gotta be pretty close to that.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #136 of 679 Old 05-02-2012, 04:43 AM
Senior Member

tgse3's Avatar

Join Date: Oct 2010
Location: Indy
Posts: 333
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by mjaudio View Post

I would have to guess the LMS Ultra takes up about .50ft3, it's gotta be pretty close to that.

The SP418 has .26 cu ft displacement. It has a similar basket to the LMS so I would imagine they are very similar. Most 18's are in the .2-.25cu range
tgse3 is offline
post #137 of 679 Old 05-02-2012, 05:18 AM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
If that's the case, then the 22" cube should give about 4.25 cu ft net for the LMS and other big 18" drivers.

If anyone wants to be the guinea pig and try one out, let me know.

Besides the current shape for the other subwoofer boxes, I'll try to get some regular cubes for the 12" and 15" models by the end of the week.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #138 of 679 Old 05-02-2012, 05:23 AM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
By the way, if anyone has any recommendations for boxes designed around certain drivers, please let me know so I can get that done too. I'm close enough to PE that I can drive there and pick them up to make sure it all fits properly. Maybe even get some kits going?

Does anyone have any designs for smaller boxes with slot ports?


Having specific designs would help out at this point because I'm not much of a sub designer.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #139 of 679 Old 05-02-2012, 06:31 AM
AVS Special Member

vinodk's Avatar

Join Date: Nov 2003
Location: Camarillo, California
Posts: 2,232
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 19
Ready to order two sub cabs for 15" drivers. Planning to use LMS-R15. I guess the wait is finally coming to end soon. Thanks Erich for all your hard work.

Vinod
vinodk is online now
post #140 of 679 Old 05-02-2012, 07:00 AM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Anyone good enough to draw up 2 slot port designs? I don't know enough about slot ports to figure anything up right now.

Maybe a 4 cu ft and 3.5 cu ft? Tuned around 18hz or so? Would it be better to port out the back or the front?

I read that the Dayton 315HF 12" and the Lab15 would work good in a slot port design around 3.5 - 4 cu ft.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #141 of 679 Old 05-02-2012, 09:53 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,392
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked: 984
it may have already been mentioned, but what about grills?

the old mfw ported was pretty popular. i think it was five cubes tuned to around 20hz for use with a 15" driver. it could probably be scaled up or down a little for other drivers and/or tunings.





http://www.avsforum.com/avs-vb/showp...5&postcount=72
LL
LL

Listen. It's All Good.
LTD02 is online now
post #142 of 679 Old 05-02-2012, 11:16 AM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,466
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
Quote:
Originally Posted by tgse3 View Post

The SP418 has .26 cu ft displacement. It has a similar basket to the LMS so I would imagine they are very similar. Most 18's are in the .2-.25cu range

I was thinking the magnet on the LMS being so big it would take up more space, your probably right though.

I just hit the wayback machine.......

And from that it shows the LMS 5400 at only .16ft3 displacement:

http://web.archive.org/web/200611120...om/lms5400.htm

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #143 of 679 Old 05-02-2012, 11:31 AM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,466
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 32
Quote:
Originally Posted by Erich H View Post

If that's the case, then the 22" cube should give about 4.25 cu ft net for the LMS and other big 18" drivers.

If anyone wants to be the guinea pig and try one out, let me know.

Besides the current shape for the other subwoofer boxes, I'll try to get some regular cubes for the 12" and 15" models by the end of the week.

Ooohh Ooohh, me me me, I will be your guinea pig but I would like to be referred to as guinea swine instead, has a more refined sound to it

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #144 of 679 Old 05-02-2012, 12:25 PM
Member

JasonGinWV's Avatar

Join Date: Jun 2009
Location: WV
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Erich H View Post

If that's the case, then the 22" cube should give about 4.25 cu ft net for the LMS and other big 18" drivers.

If anyone wants to be the guinea pig and try one out, let me know.

Besides the current shape for the other subwoofer boxes, I'll try to get some regular cubes for the 12" and 15" models by the end of the week.

I would also. But I only plan on an ed 190v.2 18" in it. Not sure it's big enough to judge size like some other 18's. lol But I am in WV and it'd get here quick.

JasonG
JasonGinWV is offline
post #145 of 679 Old 05-02-2012, 12:28 PM
Advanced Member

Sepen's Avatar

Join Date: Feb 2001
Location: Rochester, NY
Posts: 713
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 17
I am in NY.


Quote:
Originally Posted by JasonGinWV View Post

I would also. But I only plan on an ed 190v.2 18" in it. Not sure it's big enough to judge size like some other 18's. lol But I am in WV and it'd get here quick.

JasonG

Sepen is online now
post #146 of 679 Old 05-02-2012, 05:34 PM
Advanced Member

auburnu008's Avatar

Join Date: Jun 2004
Location: Auburn, AL
Posts: 846
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 26
Quote:
Originally Posted by vinodk View Post

Thanks Erich for all your hard work.

I second that. Your contributions around here are stuff legends are made of. Thank you very much.

War Eagle!
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
auburnu008 is offline
post #147 of 679 Old 05-02-2012, 06:22 PM
Member

bluestang's Avatar

Join Date: Sep 2011
Location: NE Ohio
Posts: 104
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Really nice! Fellow Ohioan very interested in the boxes for a 12" sub. Might have to get me a pair.
bluestang is offline
post #148 of 679 Old 05-02-2012, 06:32 PM
Advanced Member

cookieattk's Avatar

Join Date: Jun 2011
Posts: 562
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked: 59
when u going to start selling these i would really like 4 of the 18'' and my vote goes to 22'' cubes
cookieattk is online now
post #149 of 679 Old 05-02-2012, 10:39 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
I want to get 2 more prototypes done, then get a price for each one. Reason being that the enclosures that need part of an extra sheet could have the rest of the sheet used for a 10" enclosure. So that will likely change prices and keep them lower. I want to make sure everything is accurate before putting out the numbers.

The 19.5" cube should be done tomorrow. With the double baffle and the same cross braces as the larger 22" cube, it should be right at 3 cu ft net volume.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
post #150 of 679 Old 05-03-2012, 08:50 PM - Thread Starter
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,324
Mentioned: 2 Post(s)
Tagged: 1 Thread(s)
Quoted: 263 Post(s)
Liked: 553
Okay, here's photos of the first 7 prototypes along with the 2 new ones I said I'd get taped up today. I had to get up on a ladder for this photo.

The first 2 on the top are about 4.25 and 4.5 cu ft net volume. The 3rd one on the top is about 3.5 net. Middle row: First and second were taped up today. 3 cu ft and 2 cu ft net. Next is 2.5 cu ft. The bottom one is 1.25 cu ft net.





I like this following one a lot. Not extremely heavy, but very strong. It's a 3 cu ft cube. Outer dimensions are 19.5" with a double baffle. Taped up in less than 5 minutes.




Here's the 2 cu ft cube. 17.5" with a double baffle:




Here's the double baffle on the 2 cf. THERE WILL BE ROUNDOVERS This one has the driver recessed only .5", so there's a full 1" behind the frame.




I dropped in a Dayton 12" driver to see how it looked.



To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


Twelve 10" NHT subwoofer build.
Cloning of a NHT VR-3.
2 ACI 15" subwoofers.

Erich H is online now
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
