post #1 of 31 Old 05-06-2012, 02:44 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,928
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked: 836
Just saw that they were on special while looking at some other things.

Not sure how long the sale will last.

http://www.parts-express.com/pe/show...number=295-190

Listen. It's All Good.
LTD02 is online now
Sponsored Links
Advertisement

post #2 of 31 Old 05-06-2012, 05:07 PM
Senior Member

ovrrdrive's Avatar

Join Date: Feb 2008
Posts: 227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
It's in the summer sale circular. According to the front cover it will last until 6/30. At least the sale will, it will probably be sold out and backordered by then of course.

Of interest to some others, the RS180s-8 midwoofers are also in the ad for $36. I'm going to try to stock up on a few of those for sure. That's almost as low as it was in all of the threads they use them in from years ago...
ovrrdrive is offline
post #3 of 31 Old 05-07-2012, 10:50 PM
Senior Member

Thatsnasty's Avatar

Join Date: Nov 2008
Location: Niagara Falls, Ontario
Posts: 435
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 27
Quote:
Originally Posted by ovrrdrive View Post

It's in the summer sale circular. According to the front cover it will last until 6/30. At least the sale will, it will probably be sold out and backordered by then of course.

Of interest to some others, the RS180s-8 midwoofers are also in the ad for $36. I'm going to try to stock up on a few of those for sure. That's almost as low as it was in all of the threads they use them in from years ago...

http://www.parts-express.com/pe/show...number=299-030

These are on sale as well. I heard a mention of someone modeling them as a SEOS center.
Thatsnasty is online now
post #4 of 31 Old 05-09-2012, 07:49 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,928
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked: 836
for nine bucks, that is crazy.

two of them side by side with a seos 12 on top would seem to be a nice medium sensivity build, but again, the pricepoint seems crazy.
LL

Listen. It's All Good.
LTD02 is online now
post #5 of 31 Old 05-09-2012, 10:24 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,194
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 637
Line array

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #6 of 31 Old 05-09-2012, 11:42 PM
Senior Member

Thatsnasty's Avatar

Join Date: Nov 2008
Location: Niagara Falls, Ontario
Posts: 435
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 27
Quote:
Originally Posted by Scott Simonian View Post

Line array

Or flanking subs
Put 10 behind you for mid-bass, haha.
Thatsnasty is online now
post #7 of 31 Old 05-10-2012, 12:33 AM
AVS Special Member

maxcooper's Avatar

Join Date: Jul 2003
Location: Silicon Valley, CA
Posts: 1,646
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
Quote:
Originally Posted by Thatsnasty View Post

http://www.parts-express.com/pe/show...number=299-030

These are on sale as well. I heard a mention of someone modeling them as a SEOS center.

Is it just me or does the product description seem oddly suggestive?

"Aura's NRT motor design arranges eight precisely arced neodymium magnets in a circle surrounding the vented pole piece, creating an exceptionally deep and strong magnetic gap. The deeply set, underhung voice coil keeps more wire in the gap during operation than conventional designs, delivering astonishing low-distortion bass capability far in excess of what the driver's nominal Xmax rating would suggest."

-Max
maxcooper is offline
post #8 of 31 Old 05-10-2012, 07:43 AM
Senior Member

rajacat's Avatar

Join Date: Jan 2006
Location: Washington State
Posts: 298
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
Quote:
Originally Posted by LTD02 View Post

for nine bucks, that is crazy.

two of them side by side with a seos 12 on top would seem to be a nice medium sensivity build, but again, the pricepoint seems crazy.

I'm tempted to buy 6 of these and use 3 a side with the SEOS 18.
rajacat is offline
post #9 of 31 Old 05-14-2012, 09:54 PM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Does anyone have a link to a build using one of these Daytons? I have a PE Bash 500 I'd like to finally use.
dave-n-kelly is offline
post #10 of 31 Old 05-15-2012, 02:15 AM
Senior Member

ovrrdrive's Avatar

Join Date: Feb 2008
Posts: 227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
If you have the room you can build a lilmike Cinema F20 with that combo that will blow your doors off...
ovrrdrive is offline
post #11 of 31 Old 05-15-2012, 06:45 AM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,928
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked: 836
+1 for the f20 suggestion. full plans are available, just perform a search.

otherwise, a slot ported enclosure that is 5-6 cubic feet and tuned to 20hz is probably the next best plan. i'm pretty sure that your amp has some sort of high pass filter around 20hz, so tuning any lower really won't do much. i'm not familiar with any "plans" for such a sub, but it would be trivial to design and you could customize the dimensions based on what you think works/looks best. if you need some help with the design, just ask.

Listen. It's All Good.
LTD02 is online now
post #12 of 31 Old 05-15-2012, 06:49 AM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Too big for the WAF. Plus, I have two cats that would get lost in that port. Thanks for the link though. I really need something that could be disguised as an end table. Even if it's not this driver, something in this price range would be nice.
dave-n-kelly is offline
post #13 of 31 Old 05-15-2012, 10:51 AM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Searching around I found this page: http://www.avsforum.com/avs-vb/showthread.php?t=646455

Would that first, sealed box work well? If so what size would it need to be? Sorry to be such a newb.
dave-n-kelly is offline
post #14 of 31 Old 05-15-2012, 10:52 AM
AVS Special Member

zamboniman's Avatar

Join Date: Dec 2001
Location: Chicago, IL - Far NW Burbs
Posts: 1,143
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
One of my favorite woofers
zamboniman is offline
post #15 of 31 Old 05-15-2012, 11:29 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Quote:
Originally Posted by dave-n-kelly View Post

Searching around I found this page: http://www.avsforum.com/avs-vb/showthread.php?t=646455

Would that first, sealed box work well? If so what size would it need to be? Sorry to be such a newb.

Sure it will work, your low end will just be dependent on your room.
Jay1 is offline
post #16 of 31 Old 05-15-2012, 12:07 PM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
This is what I need to replace: http://www.soundsgoodtomehouston.com/sw8.htm

It's a 20+ year old 8" Klipsch sub with 65 watts, so I'm guessing a 15" sub with 500 watts would be more gooder.

Thanks everyone!
dave-n-kelly is offline
post #17 of 31 Old 05-15-2012, 04:10 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,928
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked: 836
attached is what jay is saying, but using pictures.

green line is my best guess at what you have now. a small 8" with 100 watts.

red line is the dvc 15" in 3 cubic feet, sealed, 500 watts.

white line is the dvc 15" in 6 cubic feet, ported, tuned to 20hz 500 watts.

edit: the light blue line at the top is a very rough approximation of the f20 output with 500 watts. you can see why it was suggested earlier.

all with a 2nd order high pass filter at 20hz (your plate amp probably has something like that built in).

depending on how large the room is, you will get some boost below about 25-30hz or so.

so the small sealed 15" with 500 watts is 'more gooder', but if you can figure out a way to make a larger ported enclosure blend into your room, it is 'more more gooder' and if you can handle the shear size of the f20 horn sub, it is 'more more more gooder'. these are the tradeoffs.
LL

Listen. It's All Good.
LTD02 is online now
post #18 of 31 Old 05-15-2012, 06:37 PM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Wow man, thanks for figuring all of that up. That graph does help a lot. 6 cu.ft. would be no problem, but that 60 inch long box won't happen.
My amp does have high pass filter, but I've found this .pdf detailing how to mod it: http://www.parts-express.com/pdf/300-752.pdf Once I figure out what that means I will swap them out.

Stupid question for today: If everything is tuned to 20Hz and a there's a 16Hz tone in a movie what happens?
dave-n-kelly is offline
post #19 of 31 Old 05-15-2012, 07:07 PM - Thread Starter
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,928
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 114 Post(s)
Liked: 836
no problem.

every system has tradeoffs. for each person one design may be better or worse.

if you cook up a rough set of dimensions for your cab based on what you think looks good or works in your setup, allowing for some extra area for the port, someone or i can help you narrow down the specifics of the port dimensions.

"Stupid question for today: If everything is tuned to 20Hz and a there's a 16Hz tone in a movie what happens?"

it will be reduced by a few decibels and the content much below that will kind of fade away fairly quickly. i would tune a ported enclosure to around 16hz, but that actually produces a worse model when running a 20hz high pass filter than tuning at 20hz. without knowing the specific eq/high pass of any given amp, it isn't really possible to optimize.

by the way, the 15" dvc, in the ported cab, with 500 watts and a 20hz highpass, will be a tremendous bang-for-the-buck sub.

Listen. It's All Good.
LTD02 is online now
post #20 of 31 Old 05-17-2012, 07:53 AM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I just ordered the sub. Would 22"T x 22"W x 28"L work? That gives me ~6.4 cuft. I'll try to get some room measurements and pictures tonight if that would help?
dave-n-kelly is offline
post #21 of 31 Old 05-17-2012, 09:13 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,194
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked: 637
Quote:
Originally Posted by dave-n-kelly View Post

I just ordered the sub. Would 22"T x 22"W x 28"L work? That gives me ~6.4 cuft. I'll try to get some room measurements and pictures tonight if that would help?

Yup! Plan on staying sealed or you going with a vented design?

I own a Adire Tempest (nearly identical to the DVC15) in a 7cuft box tuned to 15.4hz. It's awesome.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #22 of 31 Old 05-17-2012, 10:14 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Quote:
Originally Posted by dave-n-kelly View Post

I just ordered the sub. Would 22"T x 22"W x 28"L work? That gives me ~6.4 cuft. I'll try to get some room measurements and pictures tonight if that would help?

If you want to go ported pick up some 4" ABS/PVC and run two 23" long ports, it will get you right around 20hz tune. Not sure what you're running for power, but everything looks good with 300 watts.
Jay1 is offline
post #23 of 31 Old 05-17-2012, 10:53 AM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I'm using a PE Bash 500
dave-n-kelly is offline
post #24 of 31 Old 05-17-2012, 11:02 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
You'll still be fine. Just dont plan on running full power continuously, the drivers only rated for 350 watts. You might encounter slight port noise at full blast, but it shouldn't be a deal breaker.
Jay1 is offline
post #25 of 31 Old 05-17-2012, 03:43 PM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I won't ever have it full power. I'm replacing an old POS 8" sub that rattles and distorts at any big action sequence. I just want to cover anything that comes up without it taking a crap and pulling my attention from the movie. I had to turn the volume down to a whisper during the War of the Worlds sequence just to keep the sub from coming apart.

Do I need the rounded end pieces for the port or will straight pvc pipe work? Also, should the ports and sub face the room or the wall?

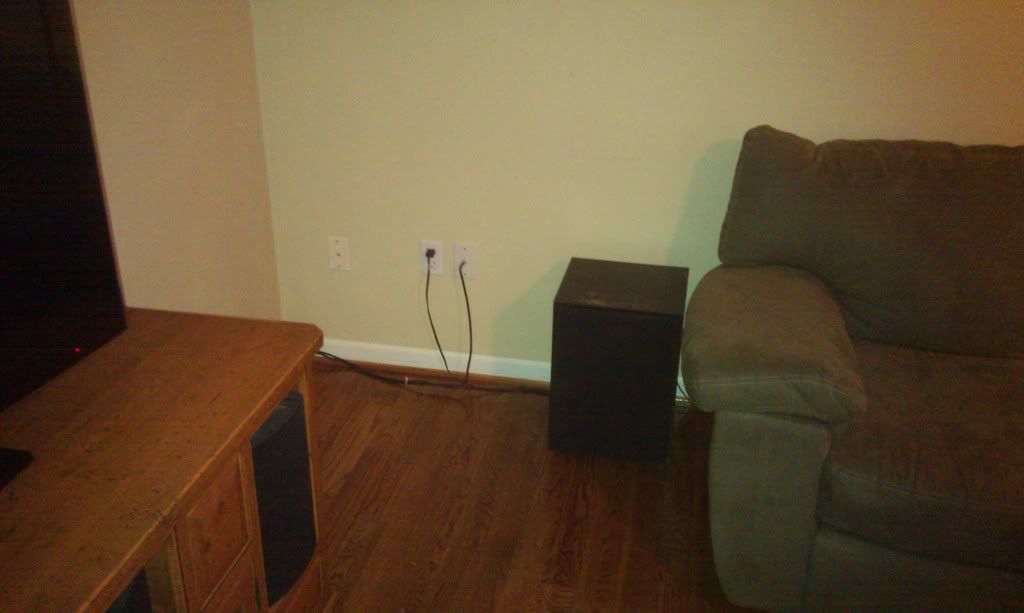

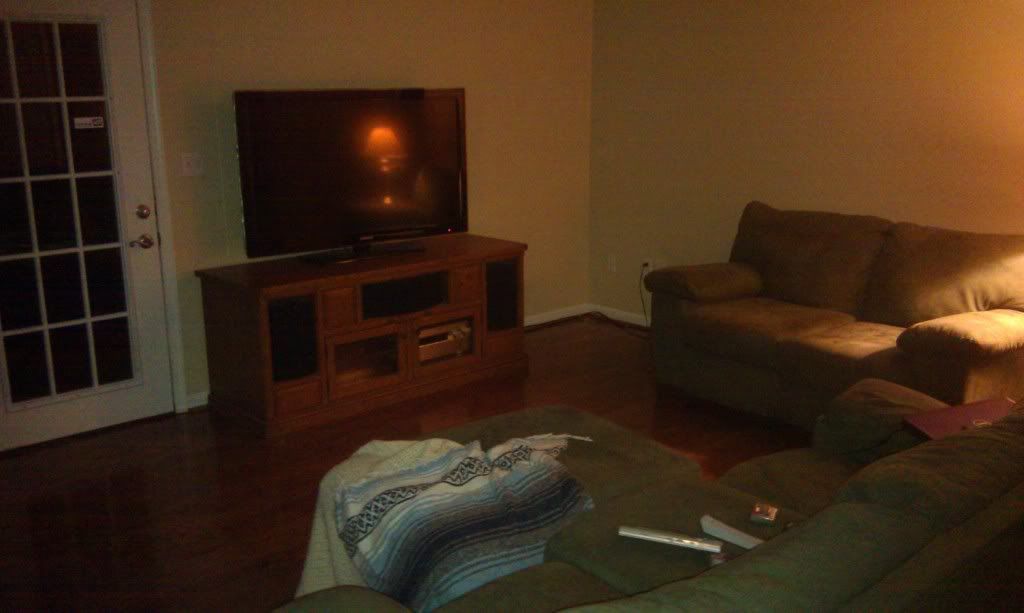

I'll post pics of the room and dimensions in a few hours.
dave-n-kelly is offline
post #26 of 31 Old 05-17-2012, 03:58 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Quote:
Originally Posted by dave-n-kelly View Post

I won't ever have it full power. I'm replacing an old POS 8" sub that rattles and distorts at any big action sequence. I just want to cover anything that comes up without it taking a crap and pulling my attention from the movie. I had to turn the volume down to a whisper during the War of the Worlds sequence just to keep the sub from coming apart.

Do I need the rounded end pieces for the port or will straight pvc pipe work? Also, should the ports and sub face the room or the wall?

I'll post pics of the room and dimensions in a few hours.

If you dont have one already pick up a roundover bit. Place the round over on the baffle side of the port, and you can also cut out small pieces of wood to attach to the inside end of the port and put roundovers there too. You can face the driver and ports however you like, just give a 4" port at least 4" of clearance from boundaries, and the woofer enough clearance to freely operate.

The port kits only come in 17" length, and who knows how well those flares match up with ABS or PVC found at lowes/HD?
Jay1 is offline
post #27 of 31 Old 05-17-2012, 04:02 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,600
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked: 256
I have 6 sitting in my garage from the last time they went on sale lol I keep telling myself I don't need a paradigm sub 2 clone but it may happen sooner than later
For $129, I don't think there is a whole lot better out there.

Also the driver is rated 350 watts RMS per coil, 600 total as per parts express's site.

Blasting brown notes for 10 years and counting!

N8DOGG is offline
post #28 of 31 Old 05-17-2012, 05:29 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Quote:
Originally Posted by N8DOGG View Post


Also the driver is rated 350 watts RMS per coil, 600 total as per parts express's site.

Ahh ok, guess I just glanced over that
Jay1 is offline
post #29 of 31 Old 05-17-2012, 08:54 PM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
I didn't even think to just use a round over bit. I have a cabinet shop next door to my business, so I have access to all kinds of good stuff. They actually helped build the entertainment center in the pics here. We are going to build the sub to match. The room is 16x20 with 8ft ceilings.

dave-n-kelly is offline
post #30 of 31 Old 05-22-2012, 08:56 AM
Member

dave-n-kelly's Avatar

Join Date: Feb 2009
Location: Boones Mill, VA
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Jay, just to clarify:
just give a 4" port at least 4" of clearance from boundaries
is this from the sides of the box or just the end of the port? Also, should I do a small plate with a roundover inside the box on the other end of the port?
dave-n-kelly is offline
Reply DIY Speakers and Subs

Tags
Dayton Audio Dvc385 88 15 Dvc Series Subwoofer
Gear in this thread

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
