I'm planning to use a single Dayton Audio DCS450-4 18" Classic Subwoofer 4 Ohm with a 300W BASH plate amp to power the LFE for my home theater. I'd like to build a simple enclosure for it, and my room has a cubby which is 28"x32"x35" where I'll put it. I'm not too concerned about huge volume, but I would like it to be very clean and have good low end extension. Would you please make suggestions on the type and size of enclosure I should build? My thoughts were large sealed, but I thought I'd ask the experts, thanks smile.gif
miahallen is offline
Sponsored Links
Advertisement

post #2 of 34 Old 06-28-2012, 07:15 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
That cubby size would actually make for a nice ported box with the dcs450. Take an inch off your cubby dimensions for a 27"x31"x34" box and you're at 14ft3 with 3/4" material. All you would need is a pair of 4" x 10" ports and you'd end up with a tune just under 20hz after accounting for some bracing. 300 watts is to much power, you would be better with a 200 watt amp at most.

If you just want a simple, smaller sealed sub, you should go with an amp that has boost, like this Yung SD300-6. The box has to be 3ft3 or less in size to handle 300 watts without exceeding xmax. 21"x21"x16" would get you 3.2ft3, allowing bracing and the woofer to drop the volume.


This is a comparison of the ported (green) vs sealed (blue).
304
miahallen likes this.
Jay1 is offline
post #3 of 34 Old 06-28-2012, 10:47 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Thanks for the comments Jay....the ported box sounds great. But I'd rather do a slot port, could you convert the port dimensions for a slot? Or is it just simple math?....like 4*3.14*10 = port volume....so a slot with 10" depth would require 4*3.14=12.56in2 cross section?

Anyhow, I already own the Bash amp...so I'd like to stick with that for now. But I'd be OK with another woofer suggestion within a similar budget if that would be better.

On another thought...is the space big enough for a horn? Anybody want to try to fold one into that space I have? I'd love to try a horn someday smile.gif
miahallen is offline
post #4 of 34 Old 06-28-2012, 11:02 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
You could do a 3"H x 10" W x 11"D slot port. You wont damage the driver with 300 watts, you will just be capable of exceeding xmax by about 2mm, so it isn't really a huge deal. You would also be pushing out 115db from the sub at that point.
miahallen likes this.
Jay1 is offline
post #5 of 34 Old 06-29-2012, 05:08 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Awesome, thanks a bunch for the help Jay smile.gif
miahallen is offline
post #6 of 34 Old 07-03-2012, 10:54 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Jay1 View Post

You could do a 3"H x 10" W x 11"D slot port. You wont damage the driver with 300 watts, you will just be capable of exceeding xmax by about 2mm, so it isn't really a huge deal. You would also be pushing out 115db from the sub at that point.

Jay, I'm assuming that the port dimensions you listed here are based on the enclosure size you posted in your first reply:
27"H x 31"W x 34"D - box
3"H x 10" W x 11"D - slot port
....is that right?

I ordered the sub today, and I'm expecting delivery in about two weeks (I live in Japan)...then I'll get to work on the enclosure.
miahallen is offline
post #7 of 34 Old 07-03-2012, 11:35 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Yes, and those are outer dimensions, use 3/4" thick material. Make sure to add some bracing too, window pane style takes up very little volume.
miahallen likes this.
Jay1 is offline
post #8 of 34 Old 07-05-2012, 08:07 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

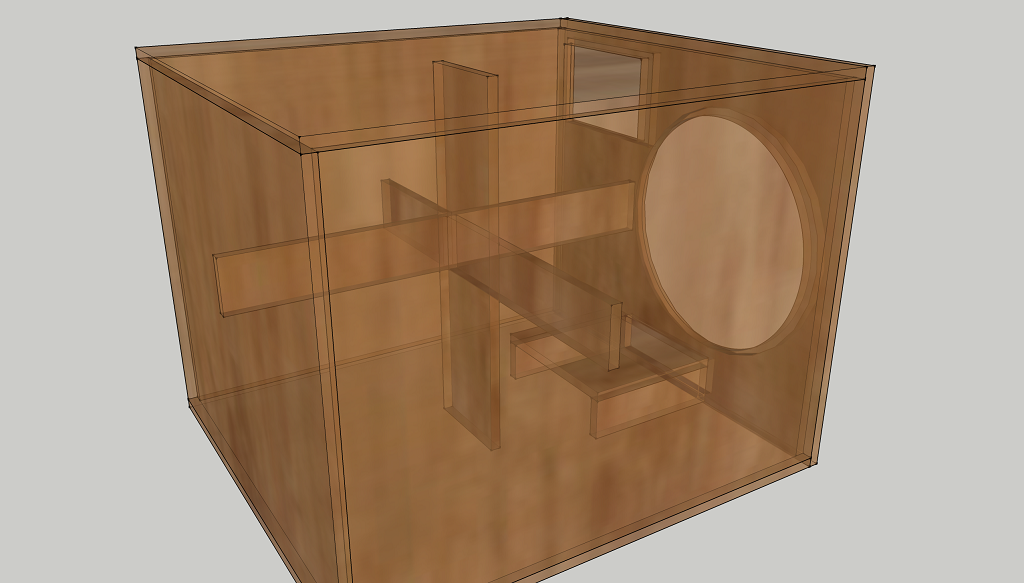

So, I worked up a sketchup model tonight and it looks pretty good. But unfortunately, I think I'm going to need three sheets of 18mm plywood...which sucks cause it runs about $60 a sheet here. But such is life in Japan frown.gif


The port is at the bottom, and the cutout at the top is for the amp....I still have to work out my bracing. Any other suggestions?
miahallen is offline
post #9 of 34 Old 07-05-2012, 09:28 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Usually MDF is cheaper if you're worried about costs, it is heavier of course. Make sure you take a round over bit to the port opening.
miahallen likes this.
Jay1 is offline
post #10 of 34 Old 07-09-2012, 04:50 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

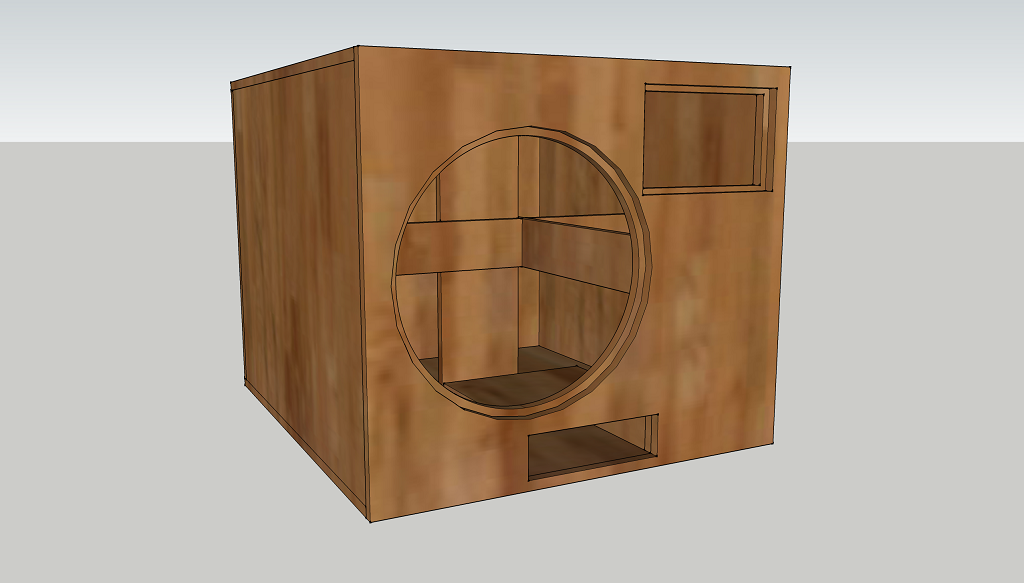

Alright, I worked on the model a bit more tonight and I think I'm satisfied with the results....but I'd like some confirmation, especially with the bracing. Its pretty rudimentary, but I don't want to buy another sheet of wood if I can help it. Plus, we're not talking about a whole lot of pressure with this setup....so I think it'll do...thoughts?


I also added a front baffle, which should clean up the front side a bit, and add a little more rigidity.

miahallen is offline
post #11 of 34 Old 07-09-2012, 06:55 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
That should work pretty well.

You could also consider building a small external housing box for the amp, so you only have to put binding posts on the sub.
miahallen likes this.
Jay1 is offline
post #12 of 34 Old 07-09-2012, 04:29 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Jay, is the slot port going to change the tuning freq? Or will it still be about the same as the graph you made in your first reply? Thanks agian smile.gif
miahallen is offline
post #13 of 34 Old 07-09-2012, 05:41 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Yes, the response will be virtually identical. Your box will be tuned between 19-20hz. depending on the final volume. Either way, large boxes allow for slight variations to have minor effects.
miahallen likes this.
Jay1 is offline
post #14 of 34 Old 07-10-2012, 01:12 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,903
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked: 831
i plopped the numbers in winisd in order to doublecheck jay's numbers and they are good--size, port dimensions, tuning, etc.

the bracing looks good too. the only thing that some folks might suggest is rotating the vertical brace that is behind the port 90 degrees, so it will be less likely to interrupt the air flow in the port.
miahallen likes this.

Listen. It's All Good.
LTD02 is online now
post #15 of 34 Old 07-10-2012, 11:44 AM
Member

dRwOOD73's Avatar

Join Date: Jan 2012
Location: Southeast PA
Posts: 134
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Nice looking sketches, that is a large mother..cool.gif
miahallen likes this.

dRwOOD73 is offline
post #16 of 34 Old 07-10-2012, 12:38 PM
AVS Special Member

Mrkazador's Avatar

Join Date: Jun 2005
Posts: 3,828
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 248

You could place the port on one of the three corners so the bracing won't affect it. You will also save a few inches of wood because you can use the side wall for part of the port.

miahallen likes this.
Mrkazador is offline
post #17 of 34 Old 07-10-2012, 04:41 PM
Member

Maxjr's Avatar

Join Date: Dec 2010
Posts: 179
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Nice sketches! The only thing i would change is moving the amp to the back and centering the 18" Dayton on the baffle. Unless you really want to see your speaker wires going to the amp near the speaker itself.
miahallen likes this.
Maxjr is offline
post #18 of 34 Old 07-10-2012, 07:10 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Quote:
Originally Posted by Maxjr View Post

Nice sketches! The only thing i would change is moving the amp to the back and centering the 18" Dayton on the baffle. Unless you really want to see your speaker wires going to the amp near the speaker itself.

I'm stuffing this into a cubby in my room, and only the front panel will be accessible....so the amp, woofer, and port all have to be exposed on the front face. I'll post up pictures with progress soon smile.gif
miahallen is offline
post #19 of 34 Old 07-12-2012, 01:41 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I purchased the wood today...I ended up getting 21mm thick multi-ply because 18mm just looked too skinny. It cost me over $200....but I'd rather pay the extra and be happy with it, then cheap out and be disappointed with the result.

Anyhow, I recalculated the total volume minus the bracing and port and I'm just over 12 ft3....so it should be about 12ft3 after you factor in the woofer displacement. Is that still gonna work out?
miahallen is offline
post #20 of 34 Old 07-12-2012, 06:55 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
It will still be fine. You will be tuned to just under 21hz, -3db point 24hz.

I agree with everyone else about adjust the brace in front of the port so that the width of the brace is running front to back.
miahallen likes this.
Jay1 is offline
post #21 of 34 Old 07-12-2012, 05:05 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Will do (about the bracing), thanks again.

Looks like my measurements were a little off, the box will only be 750mm wide (instead of 786mm as cut)....which is where I came up with the 12ft3 figure I mentioned yesterday. So I've got to fix the cuts and then I can start putting this thing together!
miahallen is offline
post #22 of 34 Old 07-12-2012, 06:44 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12

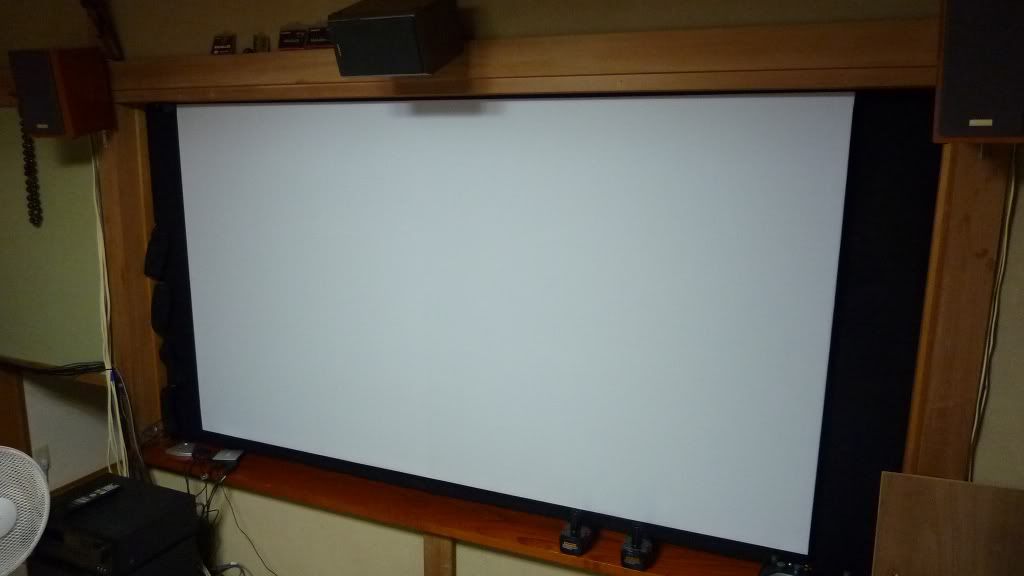

Here is my screen wall....you can see the cubby hole in the lower left area:

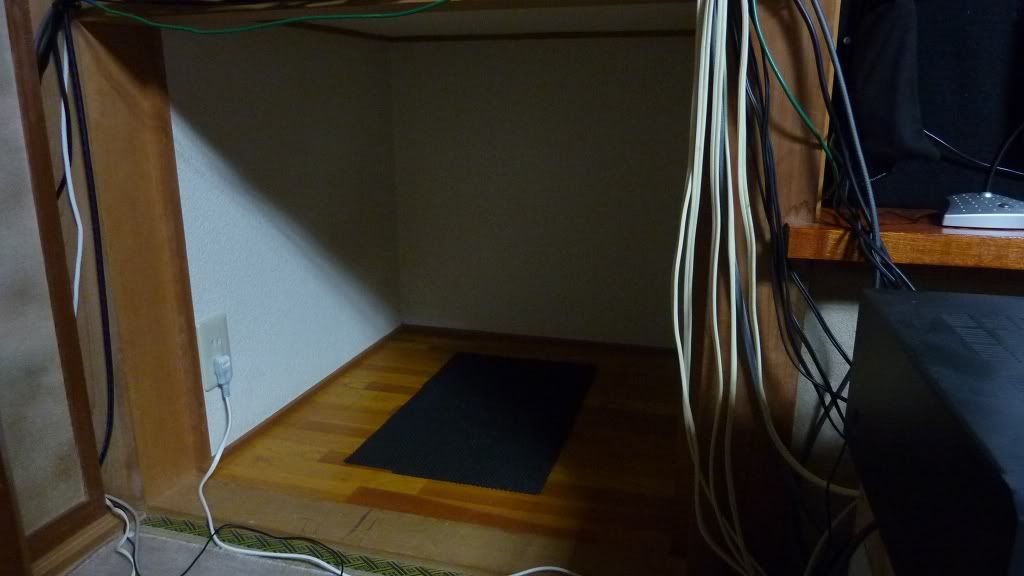

Here is a closer view....its quite large smile.gif I have no idea what its for (I rent this house).

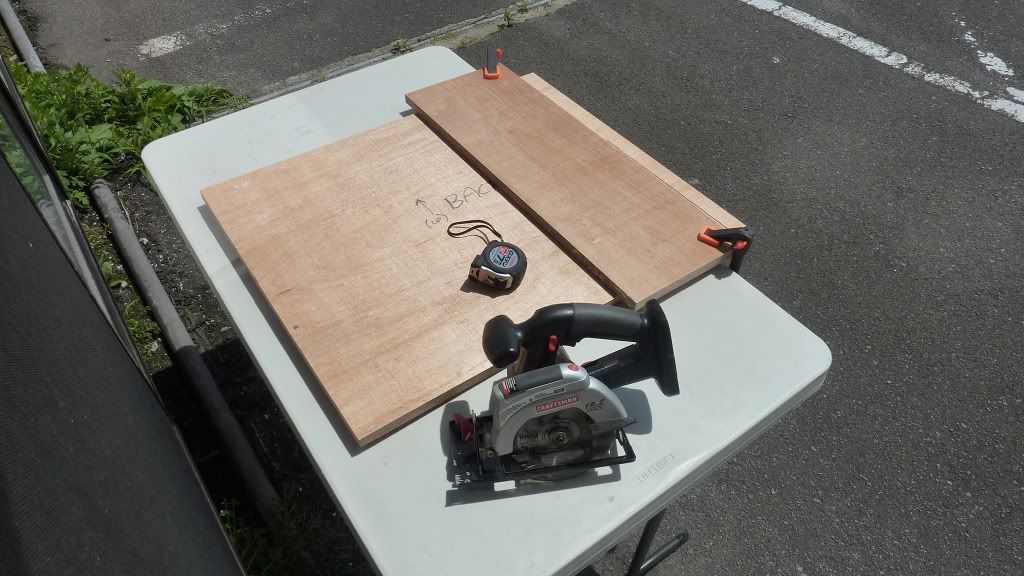

Waiting for batteries to charge:


***tip*** don't use a cheap battery powered skillsaw to cut a lot of thick wood rolleyes.gif ***tip***
miahallen is offline
post #23 of 34 Old 07-12-2012, 07:48 PM
Member

adio's Avatar

Join Date: Dec 2005
Location: baltimore, md
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
see how it sounds if you aim the sub into the cubby hole smile.gif
adio is offline
post #24 of 34 Old 07-12-2012, 08:57 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
The fit will be too tight for that, the sound would not have enough room to escape (less than the port cross section).

Here some pictures for today's progress:

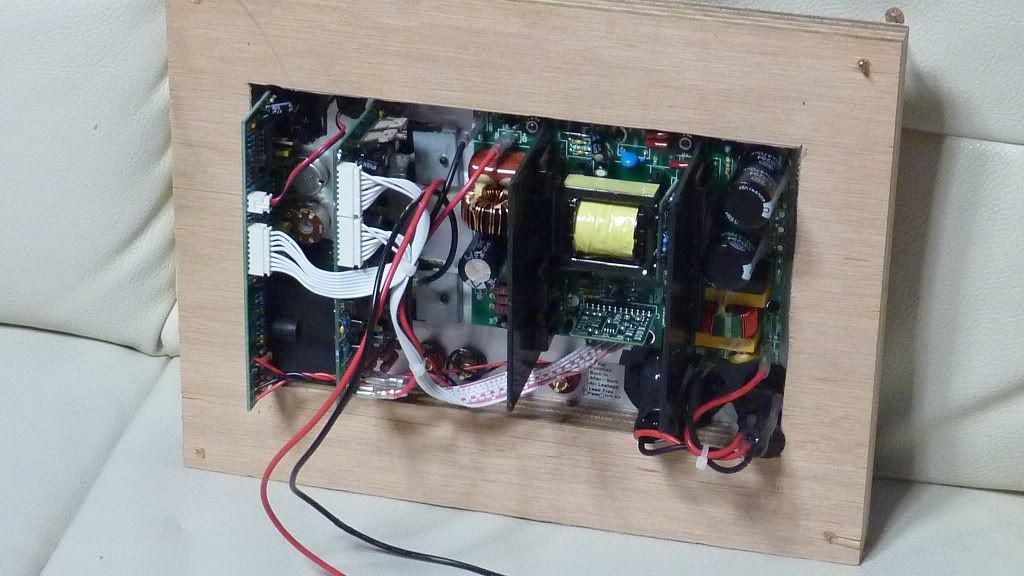

This is the back of the BASH 300W amp in case anyone wanted to see it...its mounted in a wood panel I used to mount it to the Klipsch sub.

Front panel marked off:

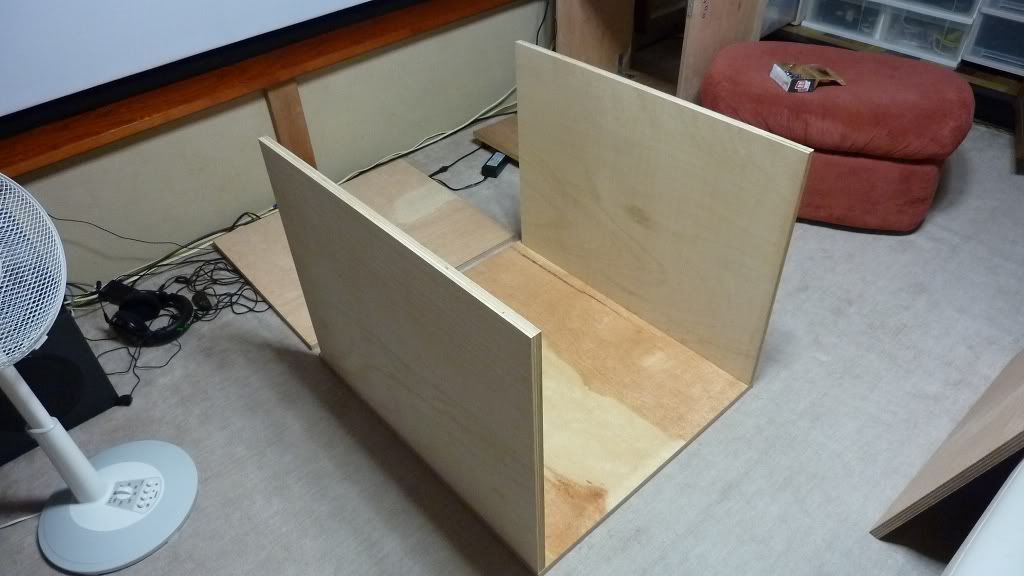

Dry fitting pieces:

Four sides glued & screwed (its a small upgrade biggrin.gif)

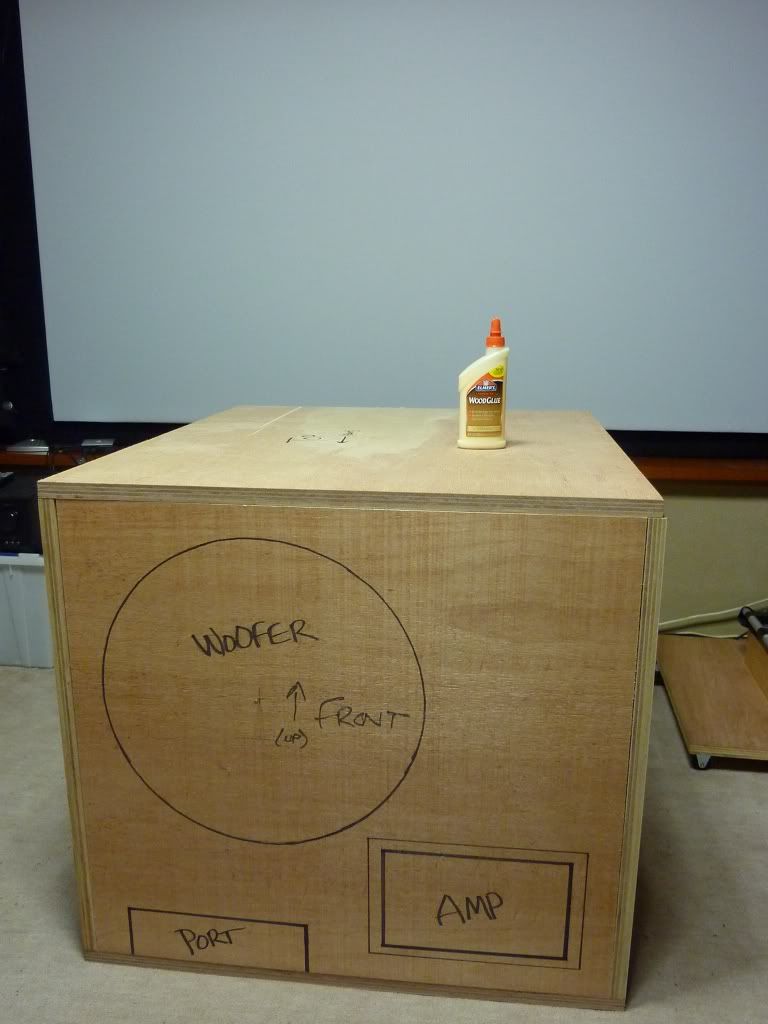

Front and top pieces dry fitted....all measurements confirmed to be pretty tight fit...looks good smile.gif

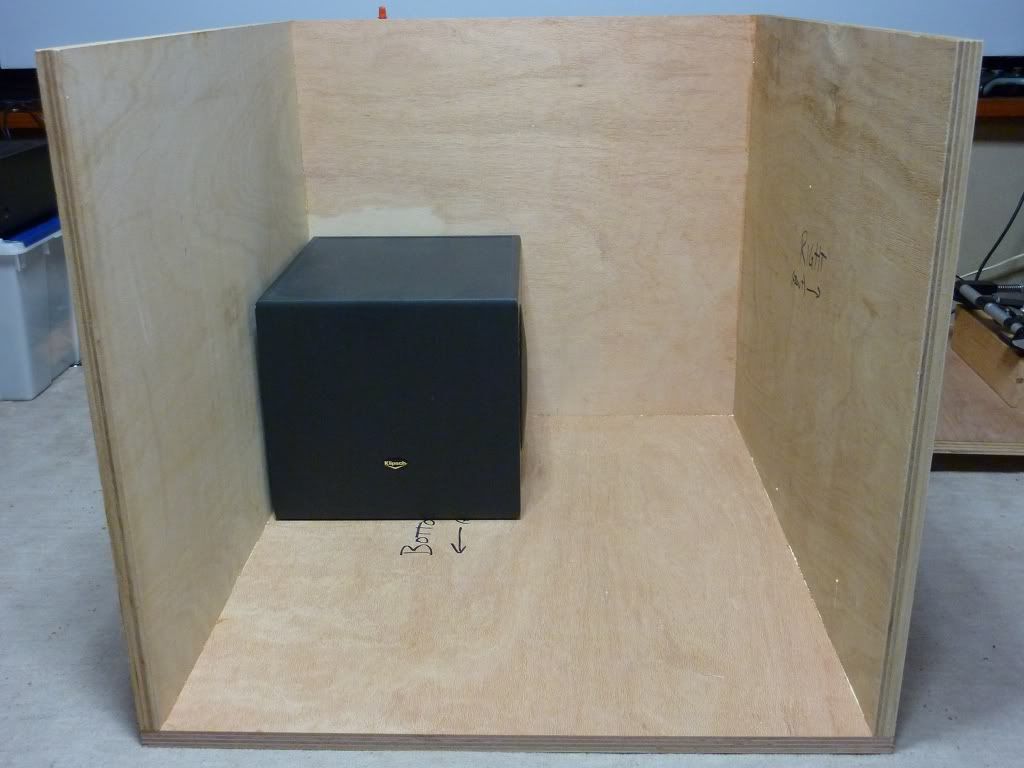

Amp shown for scale:
miahallen is offline
post #25 of 34 Old 07-13-2012, 06:28 PM
Advanced Member

Denon_Kid's Avatar

Join Date: Dec 2005
Posts: 685
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Quote:
Originally Posted by Jay1 View Post

That cubby size would actually make for a nice ported box with the dcs450. Take an inch off your cubby dimensions for a 27"x31"x34" box and you're at 14ft3 with 3/4" material. All you would need is a pair of 4" x 10" ports and you'd end up with a tune just under 20hz after accounting for some bracing. 300 watts is to much power, you would be better with a 200 watt amp at most.
If you just want a simple, smaller sealed sub, you should go with an amp that has boost, like this Yung SD300-6. The box has to be 3ft3 or less in size to handle 300 watts without exceeding xmax. 21"x21"x16" would get you 3.2ft3, allowing bracing and the woofer to drop the volume.
This is a comparison of the ported (green) vs sealed (blue).
304

could you run #'s for the Dayton PA460-8

Specifications: • Power handling: 500 watts RMS/1,000 watts continuous program • VCdia: 3" • Le: 3.31 mH • Impedance: 8 ohms • Re: 5.3 ohms • Frequency response: 26-2,000 Hz • Fs: 26.2 Hz • SPL: 98.5 dB 2.83V/1m • Vas: 16.72 cu. ft. • Qms: 6.90 • Qes: 0.28 • Qts: 0.27 • Xmax: 6.0 mm • Dimensions: Overall diameter: 18", Cutout diameter: 16-3/4", Depth: 8"

i found that at around 169l (~6cu.ft.) tuned to 40Hz it was real flat with a nice steep rolloff around 35Hz(-3db). but i need validation and proper port size if using the flared Dayton ports from post #1, or, proper slot port size (i like look of the round flares better, but either will work for me). no onboard amp for mine.

i am building diy subs for what i call tailgating at the park.
Denon_Kid is offline
post #26 of 34 Old 07-13-2012, 06:45 PM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Denon_Kid, I'll send you a PM to keep this thread on track
miahallen likes this.
Jay1 is offline
post #27 of 34 Old 07-16-2012, 04:38 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Alright, I've got a small update tonight. My sub arrived...and I sealed the first four sides of the box and put in two of the three braces:

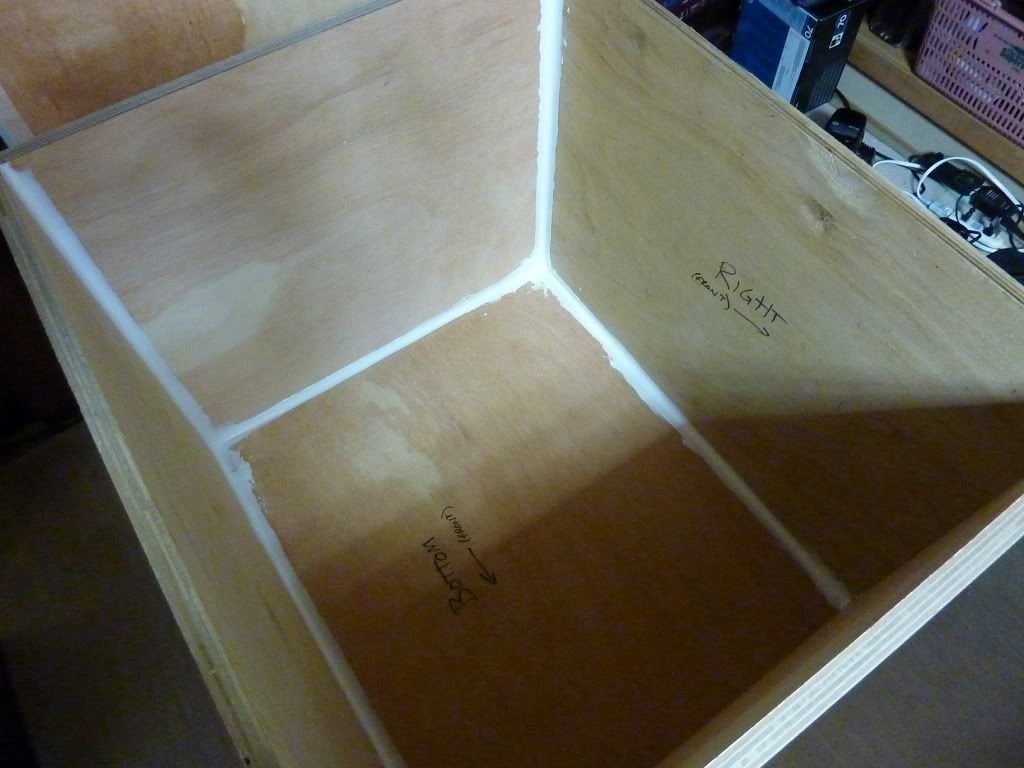

Sealed:

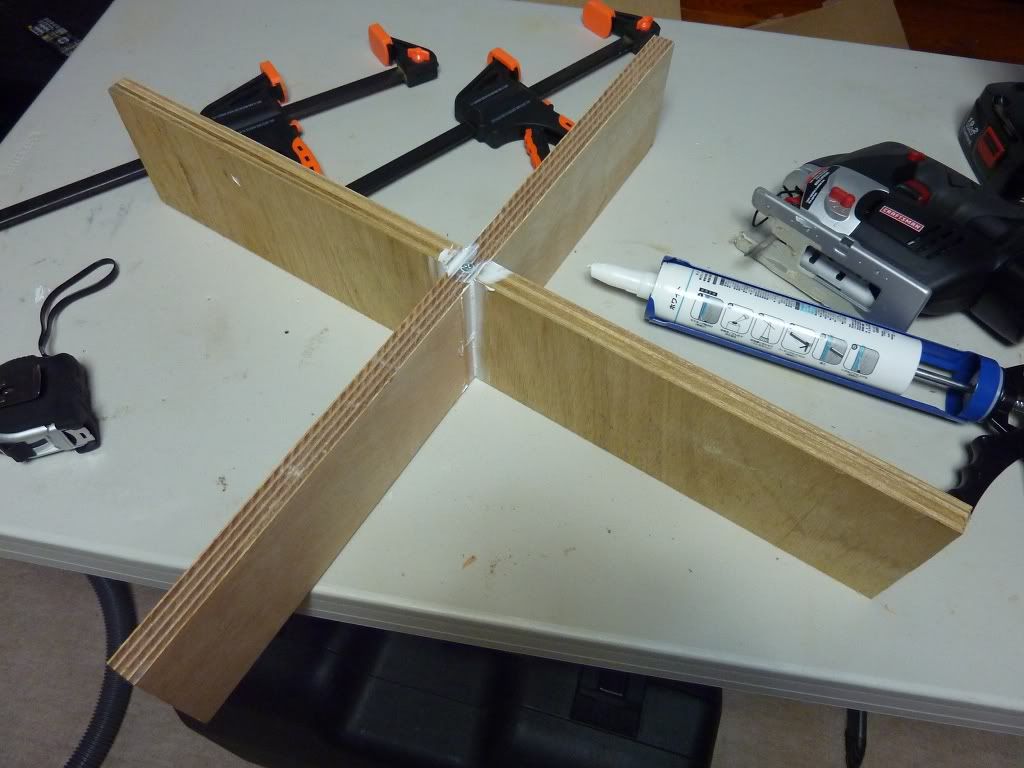

braces cut and combined, they are each full length with a notch cut out so they fit together like puzzle pieces:

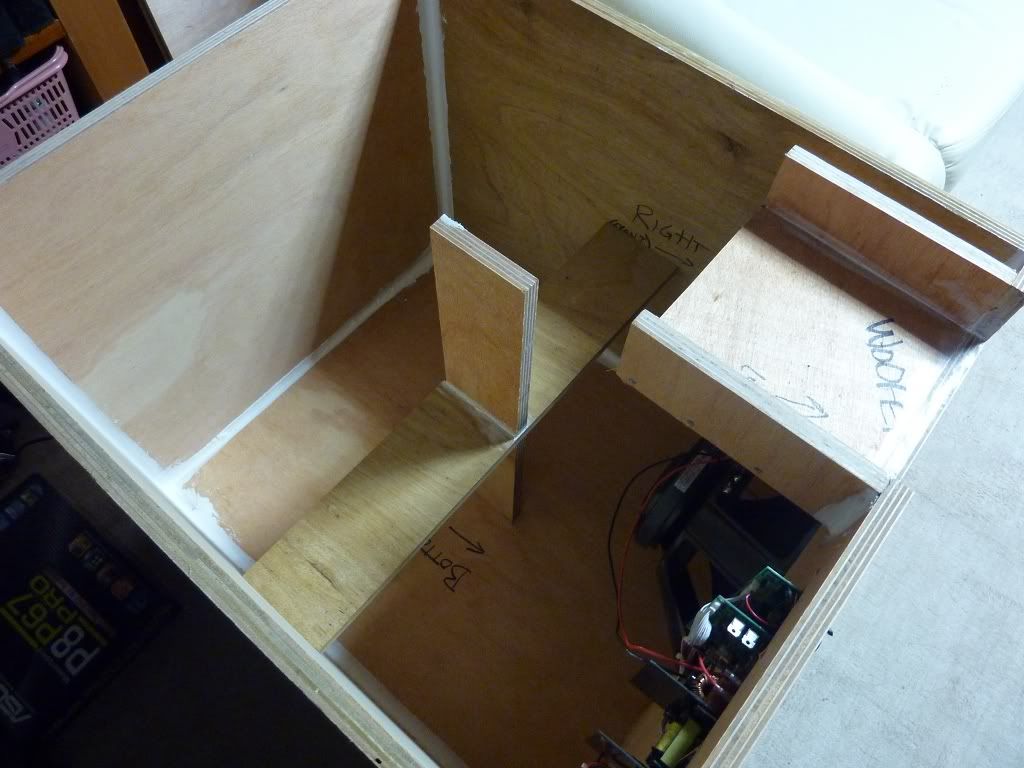

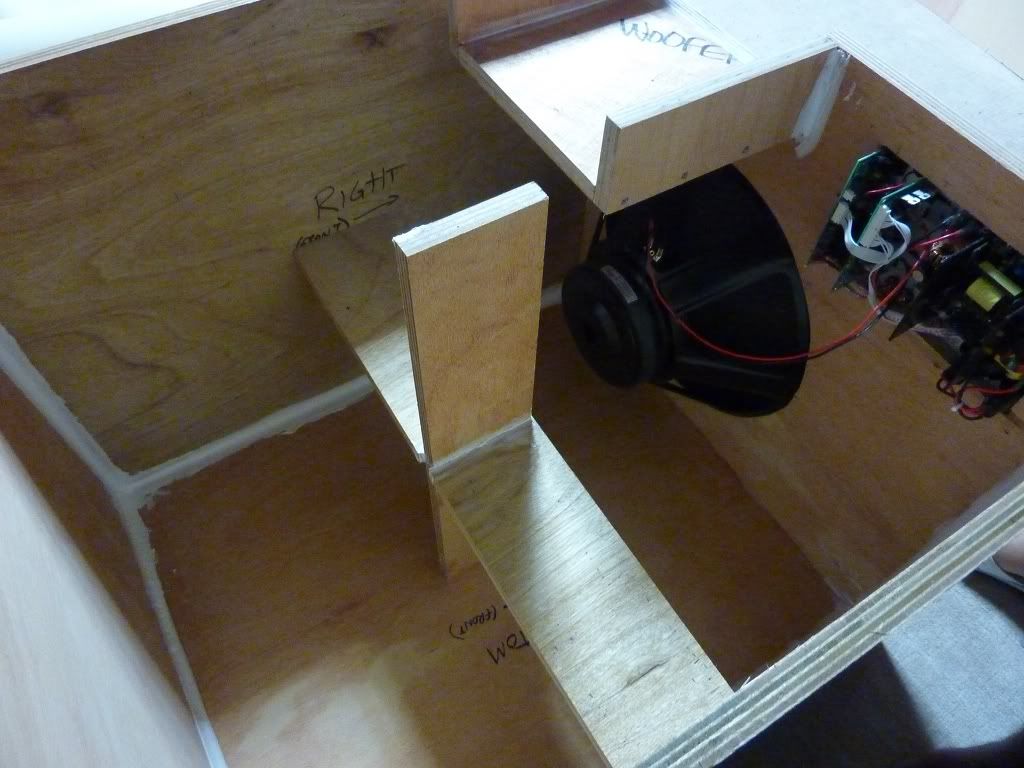

braces installed:

My four year old wanted to help out wink.gif
miahallen is offline
post #28 of 34 Old 07-17-2012, 06:15 AM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Alright, I've got another quick update...

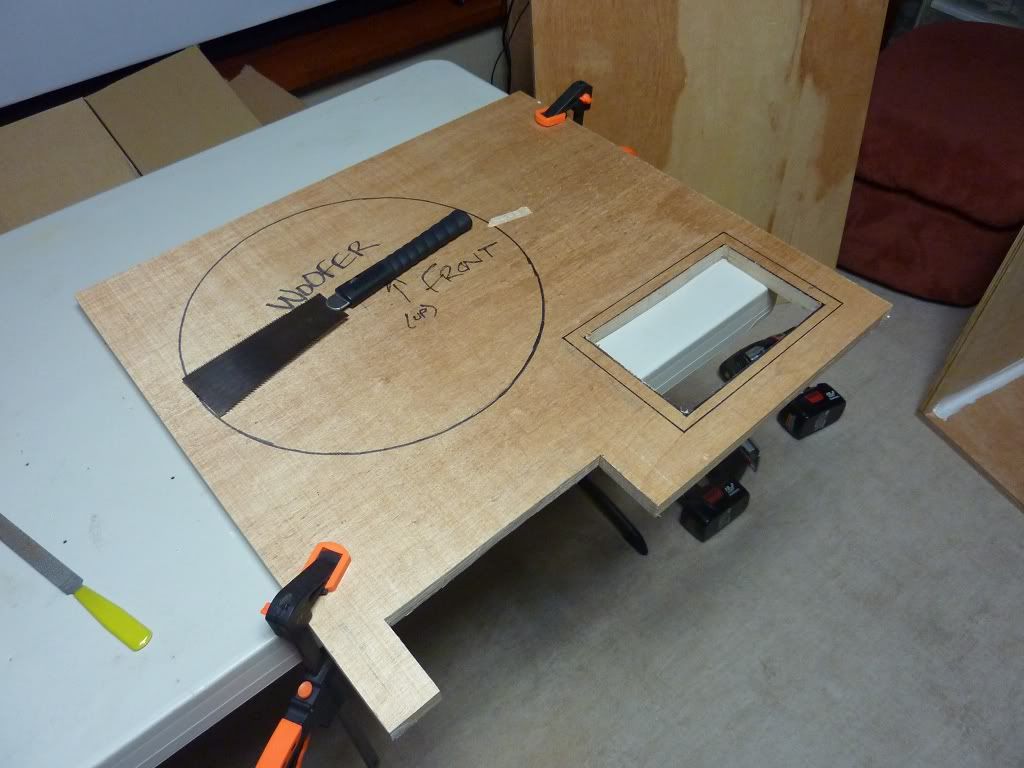

amp and port holes cut in the front baffle (jigsaw):

subwoofer hole cut (jigsaw):

port assembled:

and attached:

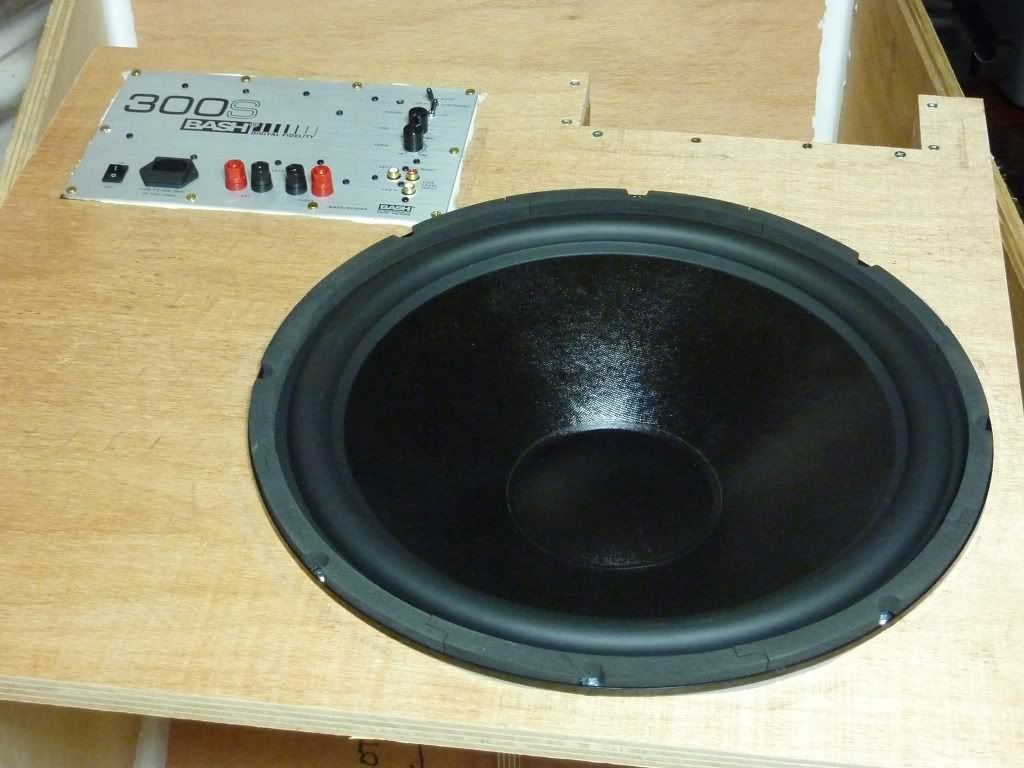

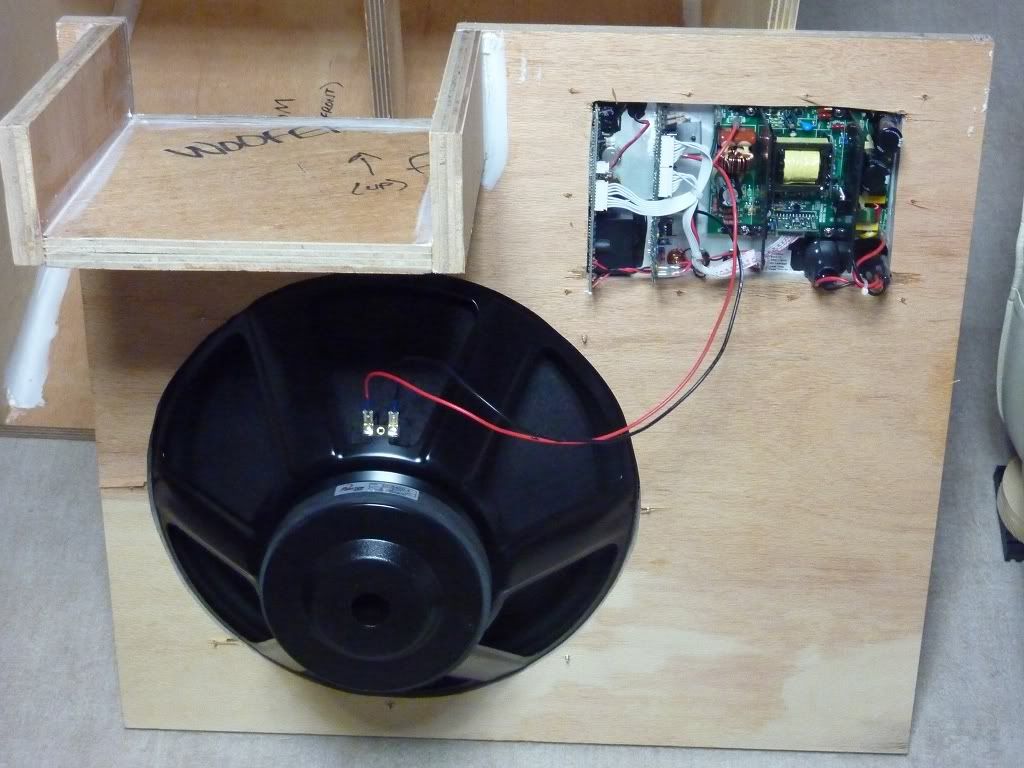

amp mounted:

sub mounted:

backside:

front baffle mounted:

two more angles:


Still to come; I have to put in the front/rear brace, attach the top side, and attach an extra 12mm thick front baffle which will hopefully be more aesthetically pleasing with routed corners and some sort of finish.
miahallen is offline
post #29 of 34 Old 07-17-2012, 07:16 AM
AVS Special Member

Jay1's Avatar

Join Date: Aug 2002
Location: AZ
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 102
Nice progress! Did you use that Japanese hand saw for those cut outs?
miahallen likes this.
Jay1 is offline
post #30 of 34 Old 07-17-2012, 01:51 PM - Thread Starter
Senior Member

miahallen's Avatar

Join Date: Jul 2007
Location: PNW
Posts: 260
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
I've used the hand saw several times now, last night I used it to clean up the upper area of the port after the rough cut with the Jigsaw. The Japanese hand saw is actually very nice to use smile.gif
miahallen is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
