post #1 of 25 Old 07-21-2012, 06:17 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
I picked up two of these 15" drivers when they were on sale. Driver #2 will be going into a F-20 (some pieces for that box cut already, that's the next build!).

I really just wanted to try my hand at making an enclosure. I sized it to fit behind my screen wall, but it will also tuck in nicely to my living room.

Overall outside dimensions will be 18"W x 35"D x 29"H.

Total volume is 7.86 cu.ft., less the driver which I guessed at .5 cu.ft. (7.36 cu.ft. net)

Two slot ports 2.125H x 7.125W x 32.75D (~18 Hz)

This is what it modeled at (500W):




I build the ports as a completely separate unit. When I put the baffle on I wanted 1.5" at the bottom rather than just a skinny .75" piece of MDF between the port opening and the floor:



I used half-lap joint on the braces, which are biscuited into the walls of the enclosure:


Mounting the ports in the enclosure (I remembered to paint them before I glued them!):

Caulk on there is Green Glue sound dampening stuff:

All glued and clamped:

That's it for today. I cut the back too short (miscalculated by .375" when I forgot to account for a rabbit joint), but I have enough to cut it again. Hopefully I'll get it wrapped up and ready for paint tomorrow.

Tim
Mr.Tim is offline
Sponsored Links
Advertisement

post #2 of 25 Old 07-21-2012, 06:21 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Tools used:

Portable table saw
Circular saw
Plunge router
Plate jointer
Paslode finish nailer
Titebond on the biscuits, Gorilla glue on all the other joints

Lot of clamps!
Mr.Tim is offline
post #3 of 25 Old 07-22-2012, 08:15 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
I need some help mounting the driver.

I had originally planned on mounting the driver flush with the front. Upon examination of the driver, it has a cork gasket applied to the face-- presumably for mounting the driver to the back of the baffle.

Is one method preferred over the other? I can obviously just pull the gasket off and mount from the front as originally planned. However, it's not much more trouble to mount to the backside of the baffle.

Thanks!

Tim

edit: gasket now removed. Hole OD 15-3/16", ID 14". Rabbit depth 0.355", which should allow for the gasket tape.
Mr.Tim is offline
post #4 of 25 Old 07-22-2012, 12:13 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Got the front baffle done:


Here you can see the rabbit joints:

Unfortunately I don't have a 3/8" roundover bit, so I'll have to wait to finish out the corners. The rabbit joints are 3/8", so it should make for some nice corners. I also need to order a terminal cup.
Mr.Tim is offline
post #5 of 25 Old 07-24-2012, 04:41 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,852
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked: 1170
that is looking great.

in this case, rear or front mounting the driver provides no difference in performance. choose whatever looks best.

btw, biscuit joinery isn't necessary on something like this.

the 1x2 and 2x4 inside the belt to focus the pressure on the middle of the board is clever. i'll keep that one in mind.

Listen. It's All Good.
LTD02 is offline
post #6 of 25 Old 07-24-2012, 04:50 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Quote:
Originally Posted by LTD02 View Post

that is looking great.
in this case, rear or front mounting the driver provides no difference in performance. choose whatever looks best.

Thanks, LTD.

I went with the front mount. I modeled the 15" HF in this enclosure and it looks good, so I may swap it out if I decide to build a second F-20 with this driver. Front mount will make that a lot easier!
Mr.Tim is offline
post #7 of 25 Old 07-24-2012, 04:56 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
After I dry fit the front baffle and trimmed to size, I had to unscrew the plywood from the MDF so I could Green Glue it.

While the two pieces were screwed together I drilled 1/4" holes through the plywood and about 3/8" into the MDF. I used 1/4" wood dowels as witness pegs so I can line things up again perfectly:


Used a 3/8" roundover on everything, looks great! I was going to use 5/8" on the front baffle (vertically), but I had some tearout on the MDF with the 3/8 (note epoxy filler in top left).. so I figured why press my luck. It won't be seen anyway:

As expected, there was some tearout on the plywood from the 3/8" roundovers. I used West System two part epoxy with polyester filler to fill the imperfections. The epoxy will soak into the corners and harden them up. Not sure if I am going to hit them with a sanding sponge or hit them with the router again.. will have to see how hard it gets:


Tim
Mr.Tim is offline
post #8 of 25 Old 07-29-2012, 02:15 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Moving right along...

Experimented on the bottom of the box. Mixed some filler in with the epoxy and tried troweling it on. Didn't work that great:

On this side I applied straight epoxy with a foam roller. More even, but there is still some filling to do. You can also see the front has a second coat of epoxy. When the epoxy is sanded, it is smooth as glass:

Hopefully I'll be ready to shoot some finish next weekend. In the meantime I need to order the terminal cup. I think I'm also going to order a speaker grille.

Tim
Mr.Tim is offline
post #9 of 25 Old 09-10-2012, 11:35 AM
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 623
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
I like how you have the slot vent separated. That looks like a good design. Do you have it up and running now? If so, how does it sound?
Jon_B is offline
post #10 of 25 Old 09-10-2012, 03:24 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Quote:
Originally Posted by Jon_B View Post

I like how you have the slot vent separated. That looks like a good design. Do you have it up and running now? If so, how does it sound?

Hi Jon,

No, It's not up and running yet. It needs a coat of paint and everything after that. I got some speakon connectors and rubber feet from PE.

I also got the "noname" HVLP sprayer, which I used the other day... and it rocks.

I had to order General Finishes Black Underbody and Satin Polyurethane, which I just tried out with the HVLP on some wainscoting I am making. The sub is next in the queue for spraying.

I think I will probably paint this weekend. I try to line up a bunch of projects to be sprayed... being in the middle of my home theater build as well.. it looks like I will have plenty to spray on Sunday. I also have my F-20 that has to be painted but I have some bracing and sanding to do first.

Tim
Mr.Tim is offline
post #11 of 25 Old 09-16-2012, 05:36 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
A little bit of progress.. put the speakon connector in the rear of the box. Dunno what size hole it required (edit: yes, I do, actually.. it mic'd out at .92"), it needed more than 7/8 but less than an inch. I drilled a 7/8 hole then used the dremel to make it a little bit bigger, which worked well.

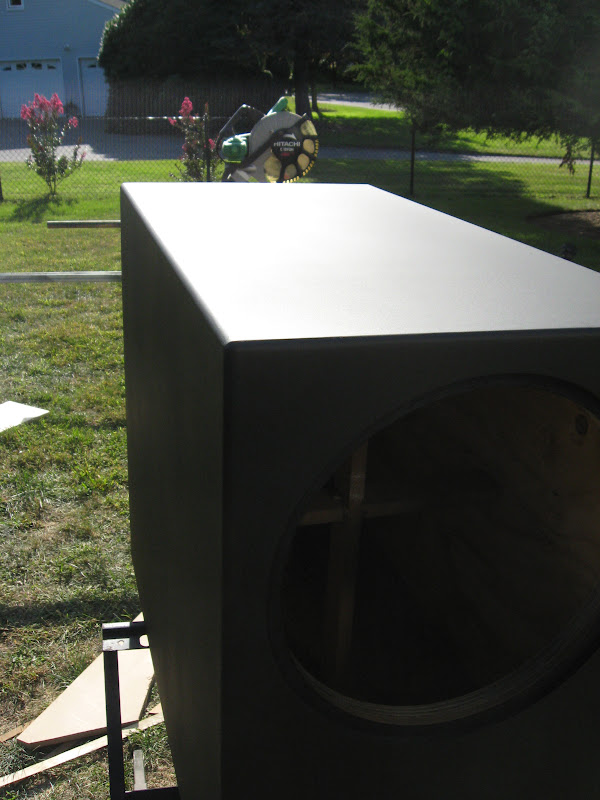

I also put 3 coats of General Finishes Black Underbody on:

It looks like you can't see any detail.. but it's really just smooth.. there's nothing to see. I wasn't going to get crazy doing the finish on this, but after the underbody went on it was almost perfect.. I filled the few blemishes and blocked the whole thing again. Going to spray the underbody again and finish with a satin poly. Next weekend.. hopefully.

Tim
Mr.Tim is offline
post #12 of 25 Old 12-09-2012, 08:01 PM
Member

krakhen's Avatar

Join Date: Nov 2009
Location: Panama
Posts: 163
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 18
Hi Mr. Tim!

These look very nice. Did you ever get to finish 'em?

__________

Krakhen

krakhen is offline
post #13 of 25 Old 12-10-2012, 04:28 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Cabinet is finished, but I don't have the room to install it yet. I also built an F-20 and have been using that smile.gif Too many projects going on!

Thanks for inquiring biggrin.gif

Tim
Mr.Tim is offline
post #14 of 25 Old 12-10-2012, 06:28 AM
AVS Special Member

Gorilla83's Avatar

Join Date: Aug 2011
Location: Delaware County, PA
Posts: 3,588
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 268 Post(s)
Liked: 404
Tim - that cabinet looks great, some really nice work there. Looking forward to reading your impressions when you get it hooked up.
Gorilla83 is online now
post #15 of 25 Old 12-10-2012, 03:07 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Thanks! It will probably be a while yet.. The F-20 is in my living room (yes, the wife is thrilled!). When I move the F-20 into the theater I'll replace it with this one.

Tim
Mr.Tim is offline
post #16 of 25 Old 04-22-2013, 02:07 PM
Advanced Member

djkest's Avatar

Join Date: Nov 2007
Location: Colorado Springs, CO
Posts: 677
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked: 25
Any update on this? Listening impressions, final pics, etc?
djkest is offline
post #17 of 25 Old 04-22-2013, 03:27 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
No, sorry, it is still aging (like fine wine) in the basement. I am finalizing my sub choices (which determines what driver I am putting in there.. looks like it will be the dvc385 as originally planned) for my theater so it shouldn't be long now. I purchased a u-mik so I will get some measurements when I get it online. I would say another month or so.

Tim
Mr.Tim is offline
post #18 of 25 Old 04-24-2013, 06:35 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Okay, so you shamed me into finishing it up. It came out at 7.36 cu.ft and tuned to 17.5Hz. I'm a real beginner at measuring (these measurements are taken inside), but regardless of how I am screwing up the measurements I figured having the F-20 to compare to would at least give you some sense of how it performs:




(this is how it modeled)


Yeah, the F-20 is the reigning king in my house, but for the size this one is not bad at all. No EQ on these, mic was 3' away.

Think I should stuff it or put some insulation in there?

Tim
Mr.Tim is offline
post #19 of 25 Old 04-24-2013, 06:54 PM
AVS Special Member

brian6751's Avatar

Join Date: Mar 2006
Location: Canton, MI
Posts: 3,443
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked: 129
Not sure. Need finished pics to determine that.

I acccept all friend requests with AVS in the message. Add me!!

PS4 PSNID = The-Barbeerian

Xbox One = The Barbeerian
brian6751 is offline
post #20 of 25 Old 04-24-2013, 07:03 PM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Quote:
Originally Posted by brian6751 View Post

Not sure. Need finished pics to determine that.

I knew I couldn't get away without photos biggrin.gif

Mr.Tim is offline
post #21 of 25 Old 04-24-2013, 08:12 PM
Advanced Member

Jon_B's Avatar

Join Date: Aug 2001
Location: Land of the Shining Mountains, US
Posts: 623
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 16
That looks very nice. Good work
Jon_B is offline
post #22 of 25 Old 04-25-2013, 10:23 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Quote:
Originally Posted by Jon_B View Post

That looks very nice. Good work

Thanks smile.gif

Looking for input on whether or no I should stuff this or put some insulation in there.

Tim
Mr.Tim is offline
post #23 of 25 Old 04-25-2013, 10:37 AM
Advanced Member

mtg90's Avatar

Join Date: Aug 2011
Location: Millbrook, IL
Posts: 913
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 79 Post(s)
Liked: 243
Finally done huh? biggrin.gif

Looks great!


I partially lined mine with denim insulation, would have lined to whole thing but because of all the bracing I put in them I could not reach the back half of the enclosure.
mtg90 is online now
post #24 of 25 Old 07-15-2013, 06:38 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 24,220
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
Liked: 1016
Have you got a chance to enjoy this bad boy yet ?

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is offline
post #25 of 25 Old 07-16-2013, 04:20 AM - Thread Starter
AVS Special Member

Mr.Tim's Avatar

Join Date: Jul 2004
Location: SC
Posts: 2,216
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 66
Quote:
Originally Posted by Mfusick View Post

Have you got a chance to enjoy this bad boy yet ?

Other than to run the sweeps, no. I have both it and the F20 in my living room. It doesn't hold a candle to the F20. The sweeps might not look too different, but 7dB at 20Hz is a lot. In person the F20 rocks the house.

Tim
Mr.Tim is offline
Reply DIY Speakers and Subs

Tags
Dayton Audio Dvc385 88 15 Dvc Series Subwoofer
Gear in this thread - Dvc385 by PriceGrabber.com

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
