I've been wanting these for a while now and can't believe I pulled the trigger BUT I did finally.
Here's my 2 cabs I'm building for my 2x FTW21's.

Going with this design...

This is the cut sheet for the FTW21

Day 1: Cutting all the pieces to their respected dimensions...

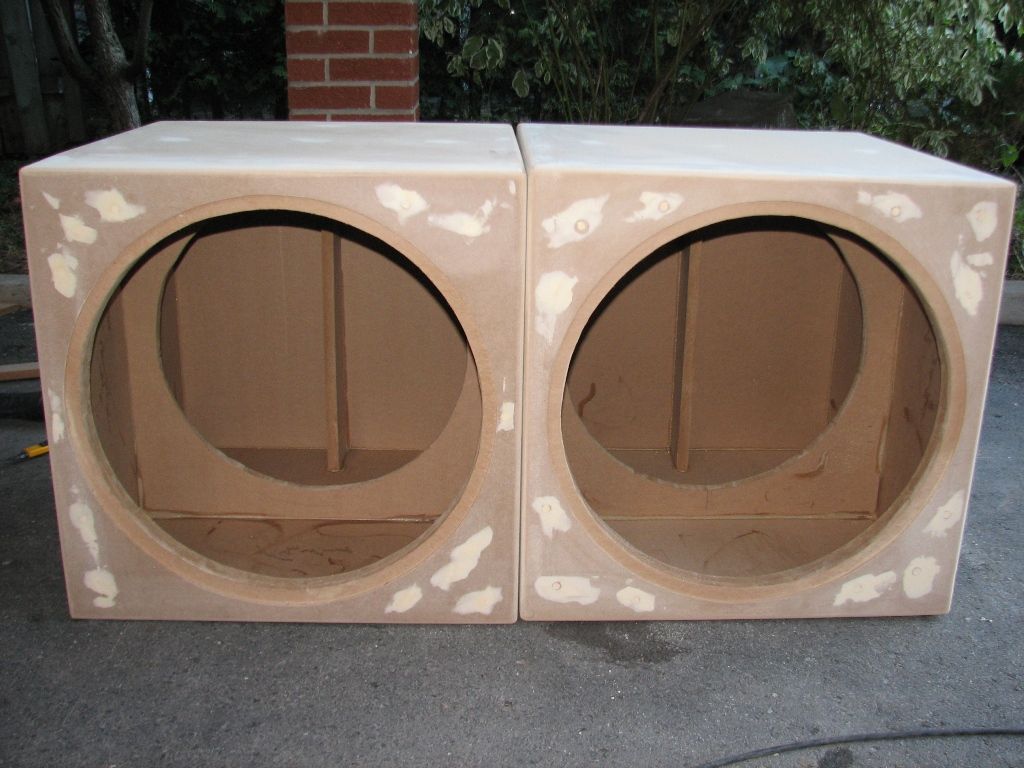

And assembling begins on DAY 1

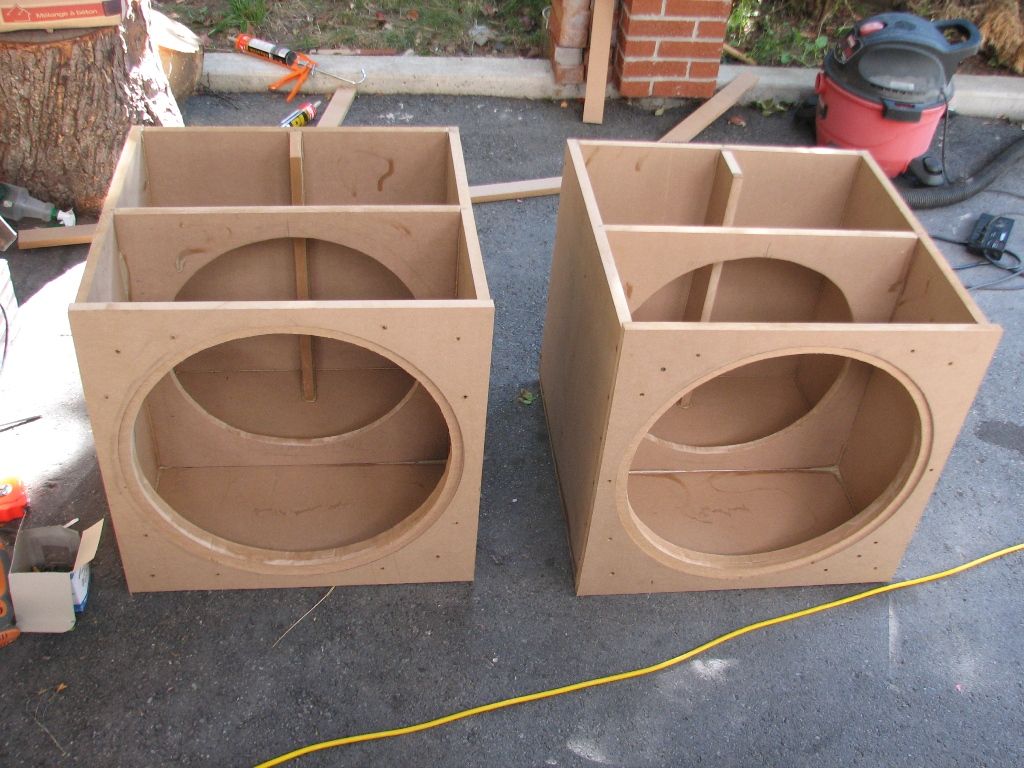

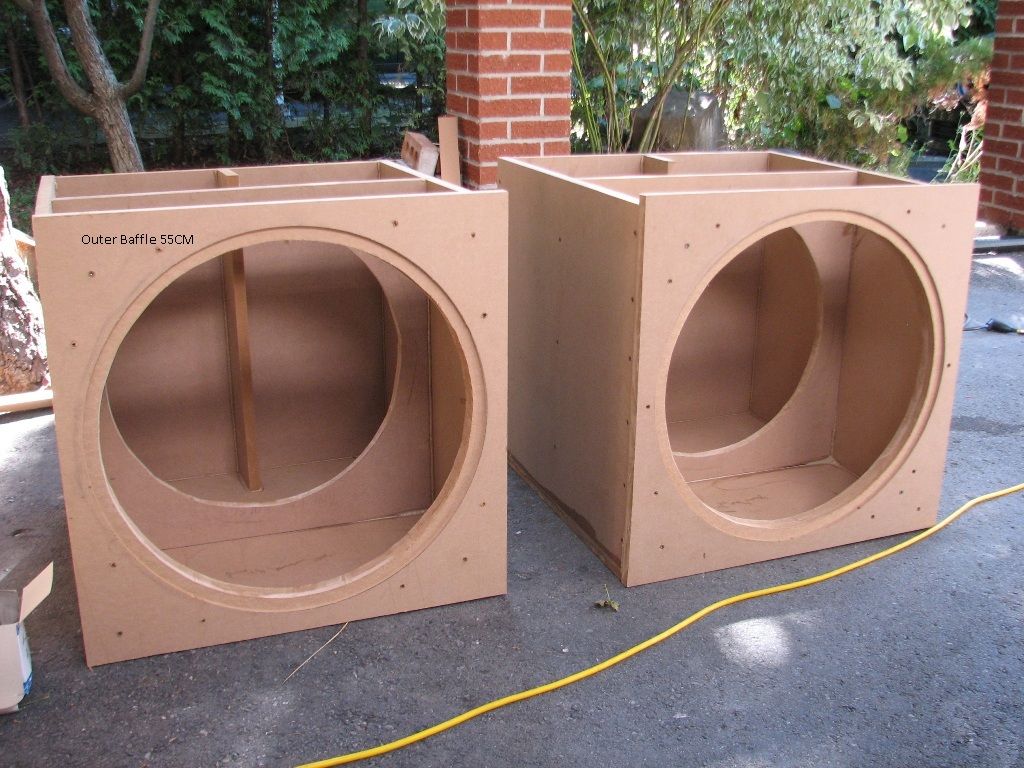

Cab 1

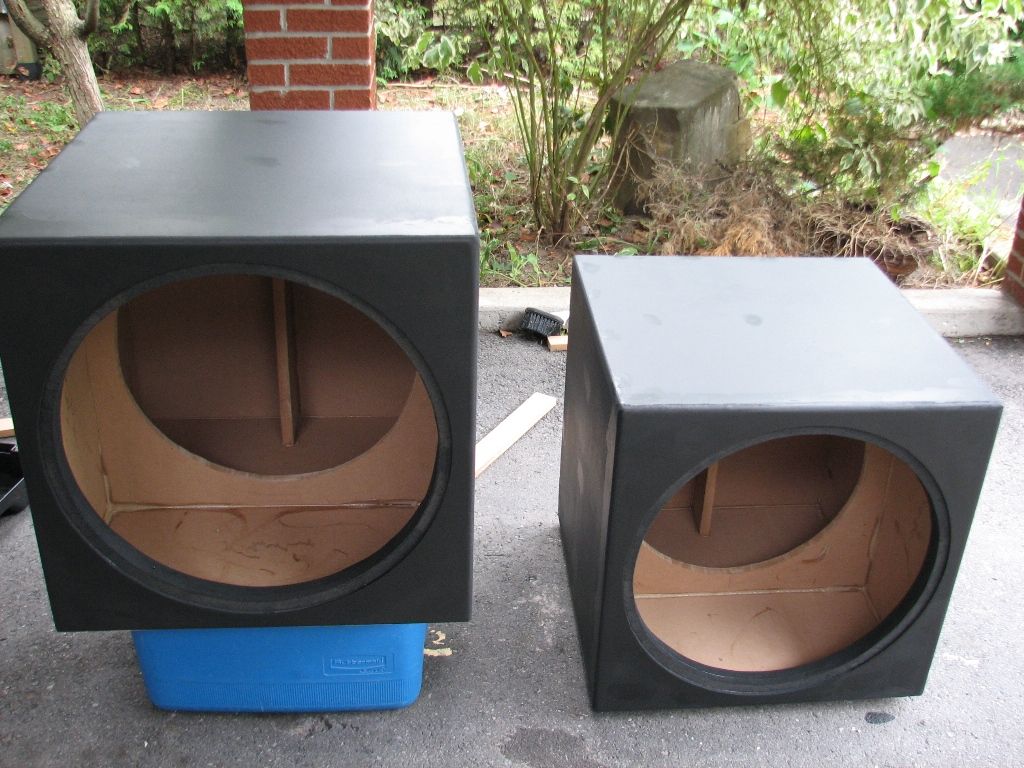

Cab 2


Assembling continue on DAY 2
1 picture for day 2 completed...

Much more to do...
Fatshaft is offline
Sponsored Links
Advertisement

post #2 of 356 Old 08-28-2012, 05:27 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,837
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 808
congratulations on pulling the trigger.

Listen. It's All Good.
LTD02 is online now
post #3 of 356 Old 08-28-2012, 06:20 PM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,659
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked: 155

Looking good....you're gonna love them! Subscribed...



When do the drivers come in?

dominguez1 is online now
post #4 of 356 Old 08-28-2012, 06:34 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Quote:
Originally Posted by LTD02 View Post

congratulations on pulling the trigger.

Thanks LTD02...I've been saying it for a while now but I finally did it!

Quote:
Originally Posted by dominguez1 View Post

Looking good....you're gonna love them! Subscribed...

When do the drivers come in?

dominquez1, this is ALL YOUR FAULT! After discovering your thread and reading the whole thing, it was the
final straw for me. Your thread completely convinced me of pulling the trigger!
Yes, I completely blame you for this purchase.
I can't wait to get them and hear them "IN MY HOME"!

Mark said I should be getting them in about 2 1/2 weeks.

I can't wait to get some more work done tomorrow.
Fatshaft is offline
post #5 of 356 Old 08-28-2012, 06:38 PM
AVS Special Member

edoggrc51's Avatar

Join Date: Jun 2007
Location: Fontana, CA
Posts: 1,341
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 49
Very cool! cool.gif

Cant wait to see these all finished and setup. Youre gonna be in for a real treat! CONGRATS!!!
edoggrc51 is offline
post #6 of 356 Old 08-28-2012, 06:41 PM
AVS Special Member

dominguez1's Avatar

Join Date: Dec 2008
Posts: 1,659
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked: 155
Quote:
Originally Posted by Fatshaft View Post

dominquez1, this is ALL YOUR FAULT! After discovering your thread and reading the whole thing, it was the
final straw for me. Your thread completely convinced me of pulling the trigger!
Yes, I completely blame you for this purchase.
I can't wait to get them and hear them "IN MY HOME"!
Mark said I should be getting them in about 2 1/2 weeks.
I can't wait to get some more work done tomorrow.

LOL!



Just wait till you see these drivers in person...I went from an 18 to the 21in and couldn't believe how much bigger they were! You're going from 15's, correct? You'll be grinning for days just from their imposing size....

dominguez1 is online now
post #7 of 356 Old 08-28-2012, 06:51 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Quote:
Originally Posted by edoggrc51 View Post

Very cool! cool.gif
Cant wait to see these all finished and setup. Youre gonna be in for a real treat! CONGRATS!!!

Thanks edoggrc51, I sure hope soo!

Quote:
Originally Posted by dominguez1 View Post

LOL!

Just wait till you see these drivers in person...I went from an 18 to the 21in and couldn't believe how much bigger they were! You're going from 15's, correct? You'll be grinning for days just from their imposing size....

Yes, I have 4x MFW15's which will all go in the front and I'll be putting the FTW21's in the back.
That's another thing...I think I'm going to freak out when I actually see them and their size. eek.gif
Fatshaft is offline
post #8 of 356 Old 08-28-2012, 08:02 PM
AVS Special Member

edoggrc51's Avatar

Join Date: Jun 2007
Location: Fontana, CA
Posts: 1,341
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 49
Well I went from 5 MFW's and an Epik Phoenix to (eventually) dual LMS's (which then turned to 4 biggrin.gif) so I'm ABSOLUTELY POSITIVE that'll be very happy with your build.
edoggrc51 is offline
post #9 of 356 Old 08-28-2012, 09:35 PM
AVS Special Member

BassThatHz's Avatar

Join Date: Apr 2008
Location: East side of NW Cascades
Posts: 2,491
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked: 288
Quote:
Originally Posted by Fatshaft View Post

I have 4x MFW15's. I'll be putting the FTW21's in the back.
I think I'm going to freak out when I actually see them and their size. eek.gif

Freaking-out time is now Fatshaft biggrin.gif Here is a coke vs 6 vs 15 vs 21!!!

BassThatHz is online now
post #10 of 356 Old 08-28-2012, 09:42 PM
Member

VEXXD's Avatar

Join Date: Oct 2007
Location: Canada
Posts: 147
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Good stuff man. It's been four weeks since placing my order so I'm hoping any day now. Not a big deal as I'm still in the process of building my boxes. Pretty similar to your dimensions and design. The race is on!
VEXXD is offline
post #11 of 356 Old 08-29-2012, 03:10 AM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,148
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 41
Good stuff, I'll watch with interest.

I've just ordered 2 FTW21 and should get them in a week or two. Still unsure whether to do a modest pair sealed of a pair of large LLT with a 13Hz tune.
A9X-308 is offline
post #12 of 356 Old 08-29-2012, 07:44 AM
AVS Special Member

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 6,832
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked: 507
Quote:
Originally Posted by A9X-308 View Post

Good stuff, I'll watch with interest.
I've just ordered 2 FTW21 and should get them in a week or two. Still unsure whether to do a modest pair sealed of a pair of large LLT with a 13Hz tune.

With 21's??? Wouldnt that be about 30 cuft?

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is offline
post #13 of 356 Old 08-29-2012, 08:21 AM
AVS Special Member

gperkins1973's Avatar

Join Date: May 2009
Posts: 1,519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
I am designing a 30 cu ft FTW21 ported sub tuned to 13hz for a chap in the states. Models 120db right down to 13hz without room gain with 2000 watts input power. Probably mid 120's from a single driver which is pretty impressive.

I though10 cu ft was better for a single sealed sub. Not sure what qtc a 6 would be.
gperkins1973 is offline
post #14 of 356 Old 08-29-2012, 05:32 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Quote:
Originally Posted by VEXXD View Post

Good stuff man. It's been four weeks since placing my order so I'm hoping any day now. Not a big deal as I'm still in the process of building my boxes. Pretty similar to your dimensions and design. The race is on!

Post you impressions once you get them...race is on!
Quote:
Originally Posted by A9X-308 View Post

Good stuff, I'll watch with interest.
I've just ordered 2 FTW21 and should get them in a week or two. Still unsure whether to do a modest pair sealed of a pair of large LLT with a 13Hz tune.

Please post your impressions once you get them installed...thanks

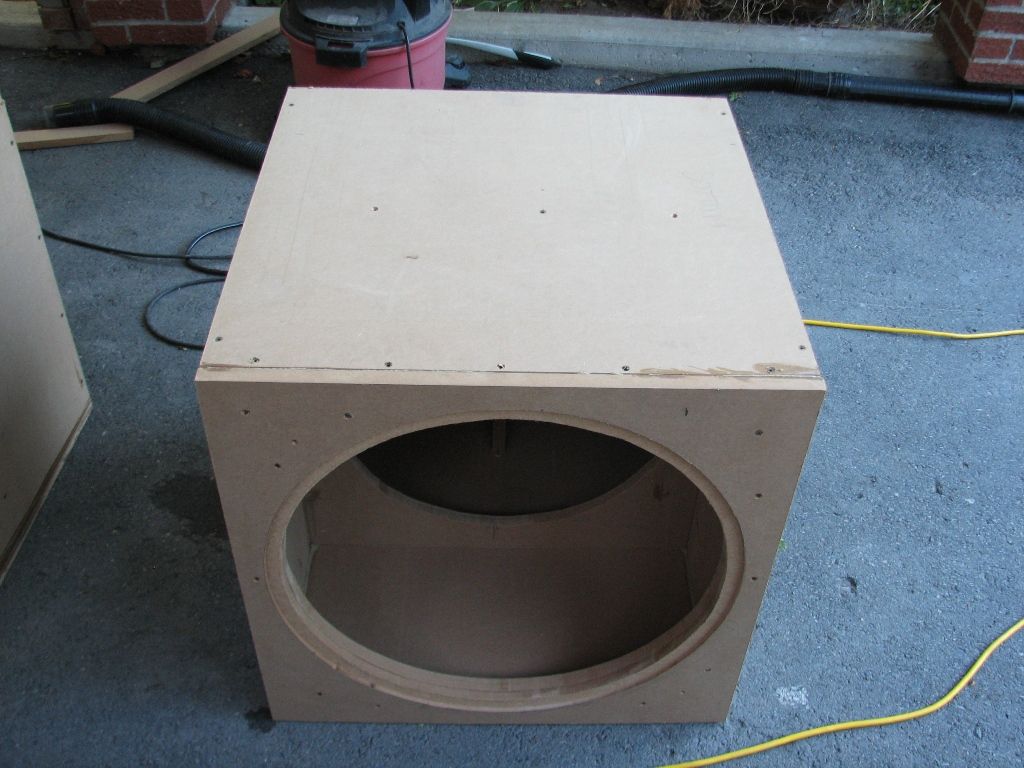

OK now, more work has been done...this is this morning.



and finally with the top on...

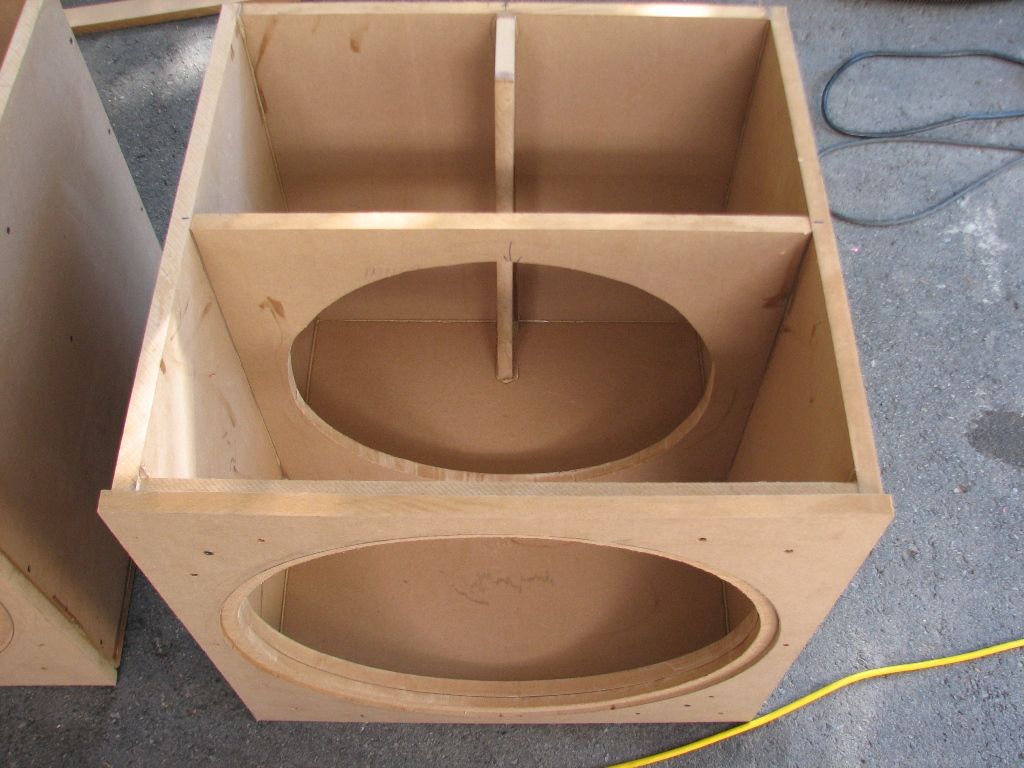

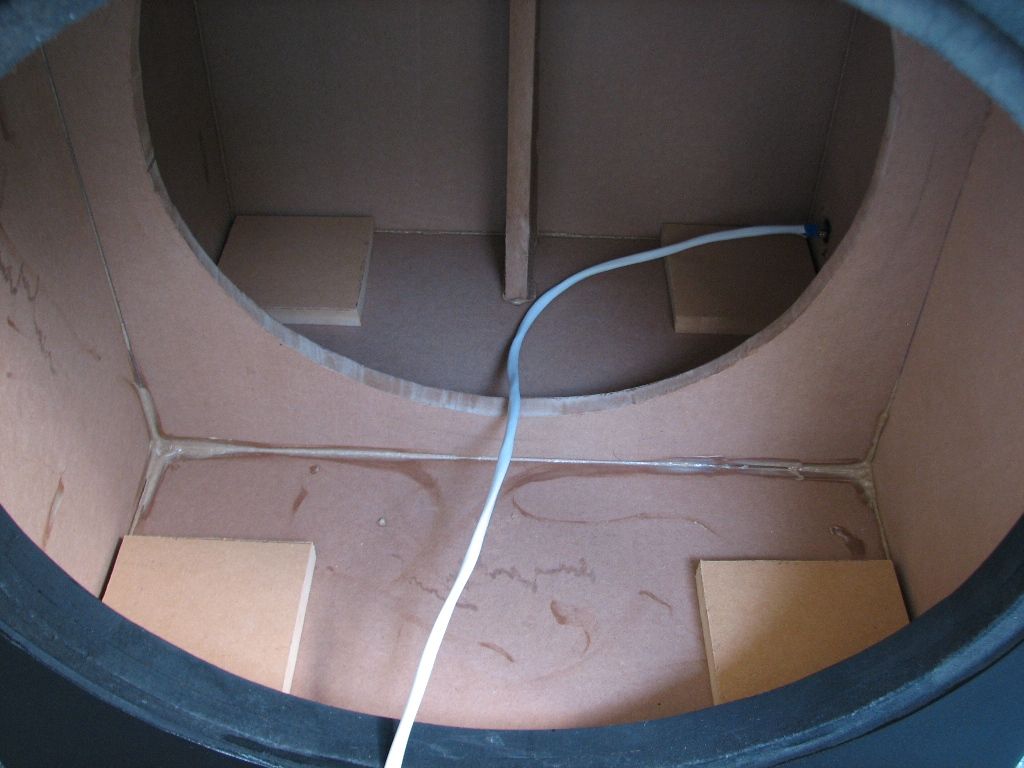

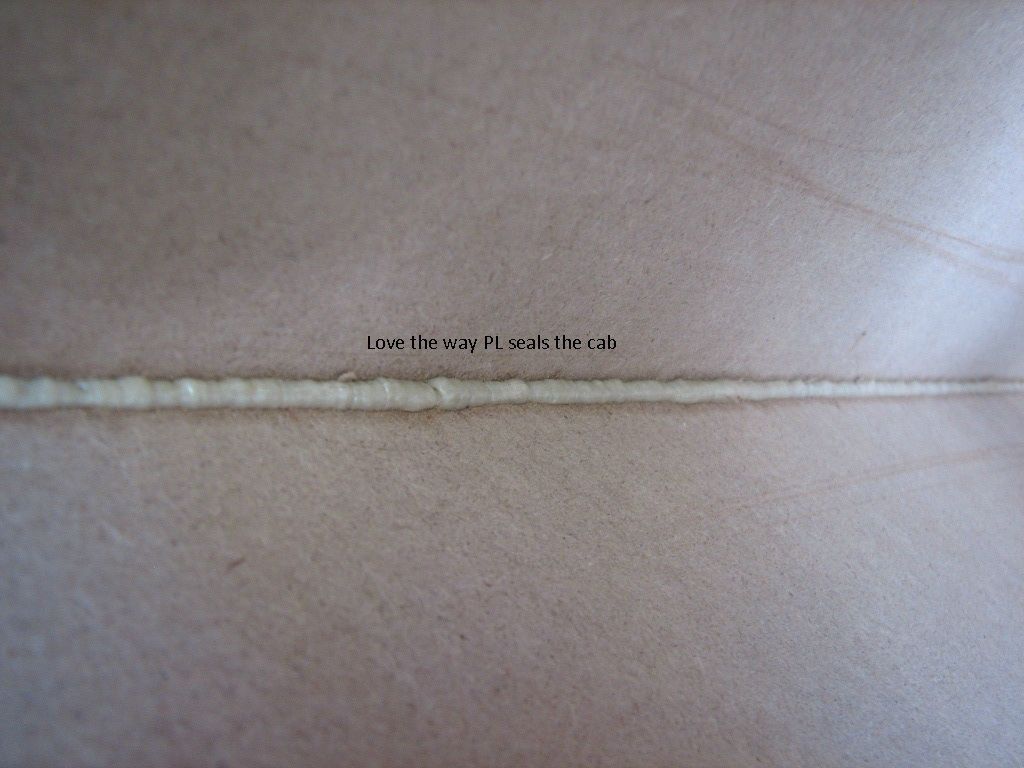

I love PL!!!!!! This is a photo of the inside of the box...

Man,

I was starring at the front baffle for a while before I could conitnue...I couldn't believe how big the opening is.

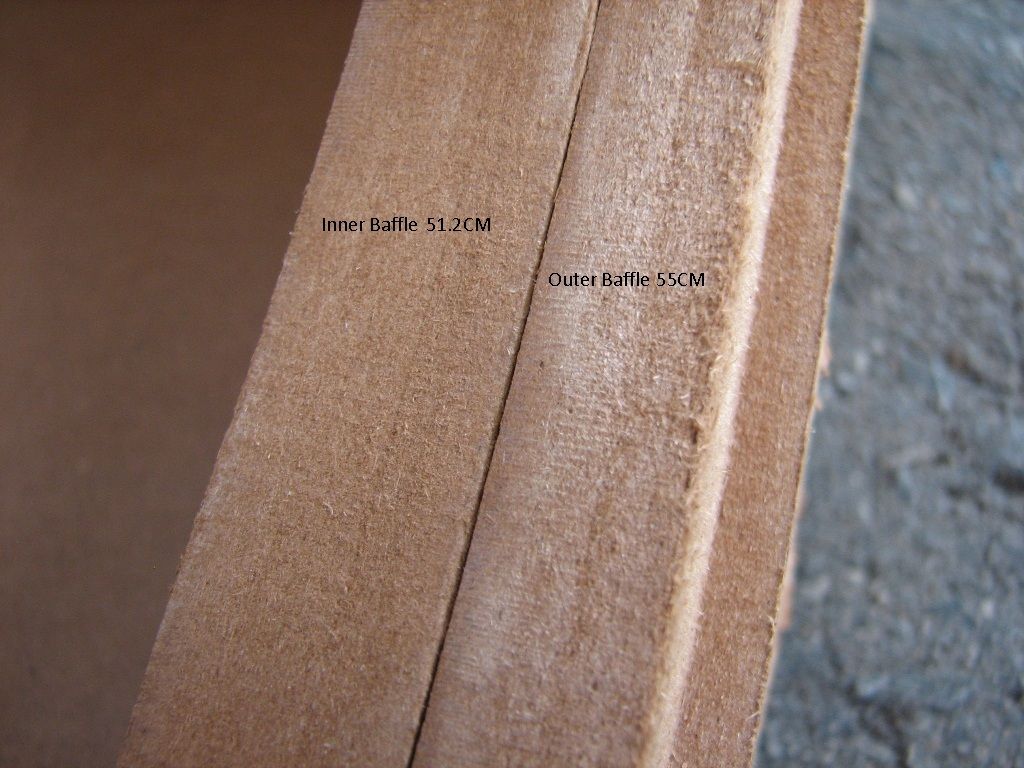

It's so close to the edge and thought it wouldn't be solid enough...but what do I know!

Can't do anything tomorrow cause I'll be out all day. Huge golf tournament.
Could win lots of cash so I can buy more IF I do!

Will only be able to continue on Friday.
Fatshaft is offline
post #15 of 356 Old 08-30-2012, 02:05 AM
AVS Special Member

A9X-308's Avatar

Join Date: Mar 2008
Location: Australia; now run by adults.
Posts: 5,148
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 41
Quote:
Originally Posted by beastaudio View Post

With 21's??? Wouldnt that be about 30 cuft?
500L looks OK, but I could go to 850L.

Quote:
Originally Posted by Fatshaft View Post

Please post your impressions once you get them installed...thanks
I won't even get to start on them for 6 weeks until I have holidays. I'm hoping to use your impressions, and hopefully measurements to help decide which way to go.
A9X-308 is offline
post #16 of 356 Old 08-30-2012, 04:36 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,581
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 240
I always like this pic to compare a 15" dayton to the FTW 21 lol


Blasting brown notes for 10 years and counting!

N8DOGG is online now
post #17 of 356 Old 08-30-2012, 08:14 PM
AVS Special Member

chrapladm's Avatar

Join Date: Mar 2010
Posts: 2,454
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 51
What is the cutout dimension for the 21"
chrapladm is offline
post #18 of 356 Old 08-30-2012, 10:01 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,581
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 240
It's in the first post on the cutout sheet lol

Blasting brown notes for 10 years and counting!

N8DOGG is online now
post #19 of 356 Old 08-31-2012, 12:25 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
BIG day today...but...

Here are some more pictures of today's work.

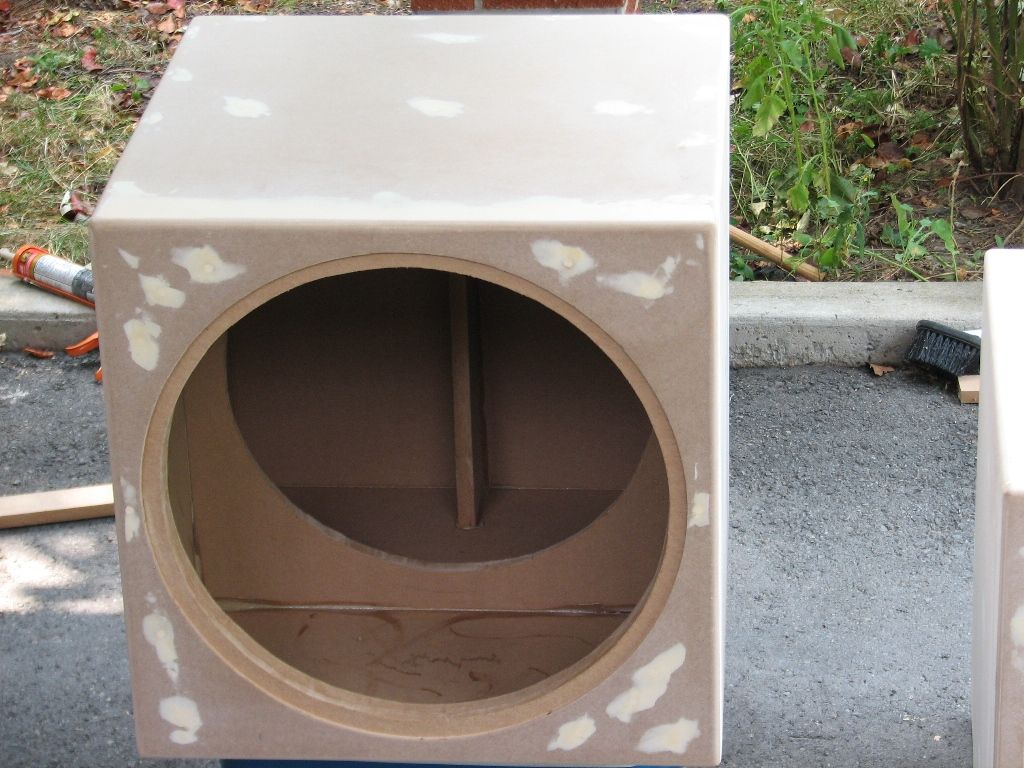

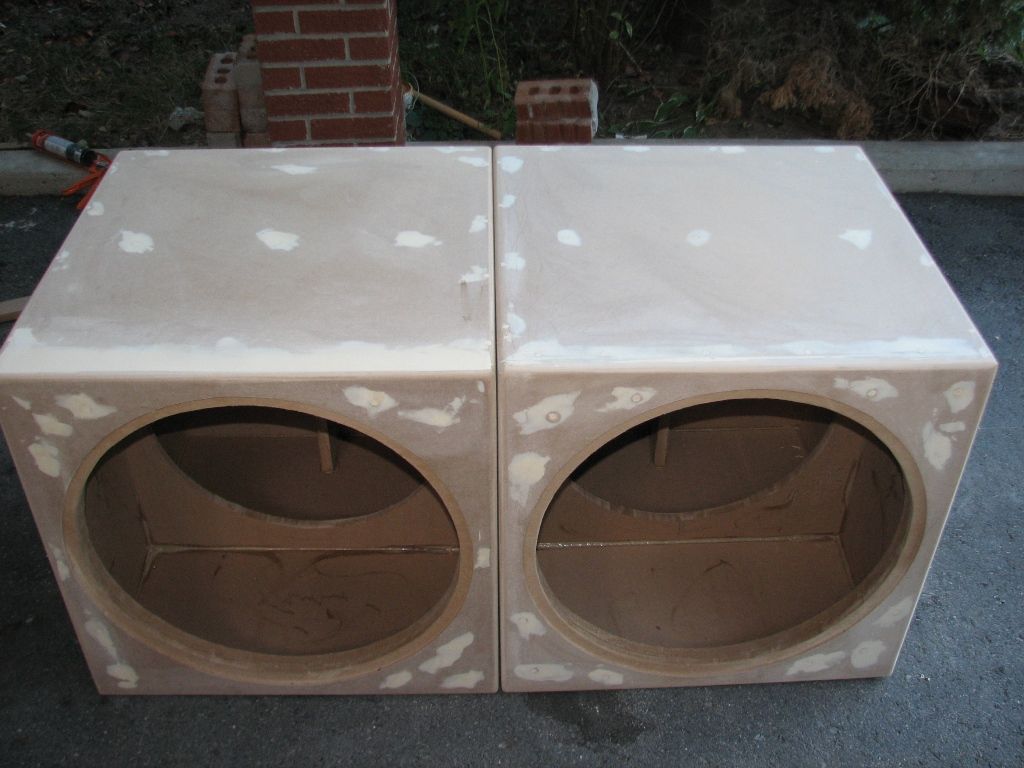

Filled all holes with wood filler

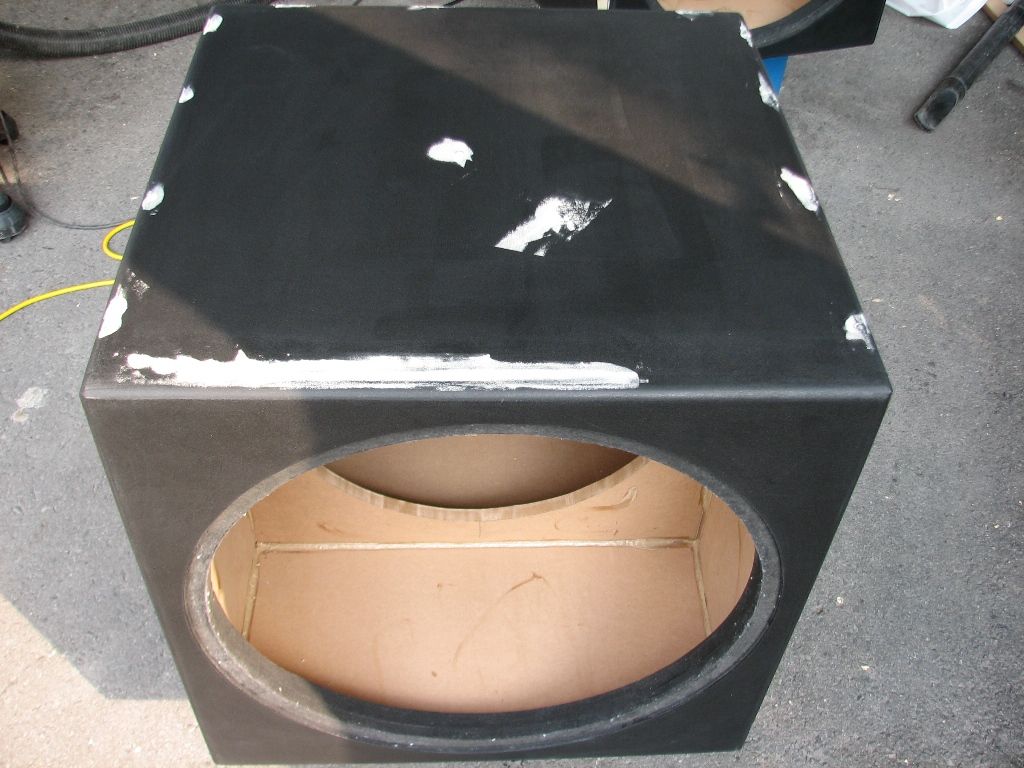

Now the cabs sanded down

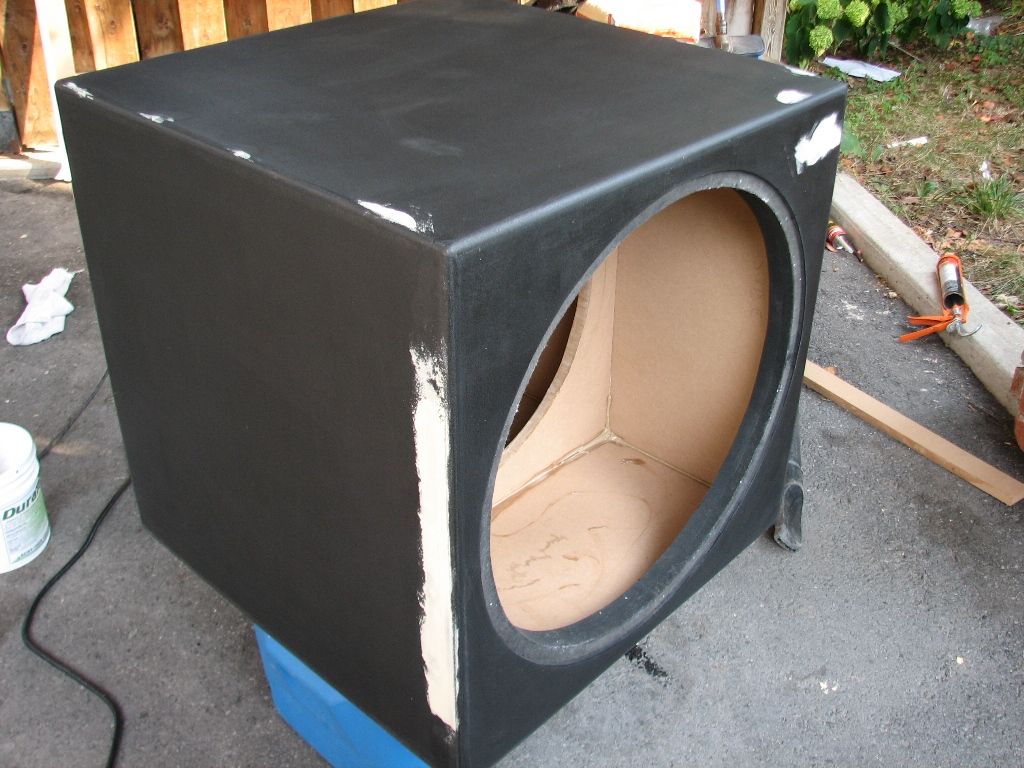

Here I applied a flat black paint BEFORE putting the Duratex.

OK now I need some help..

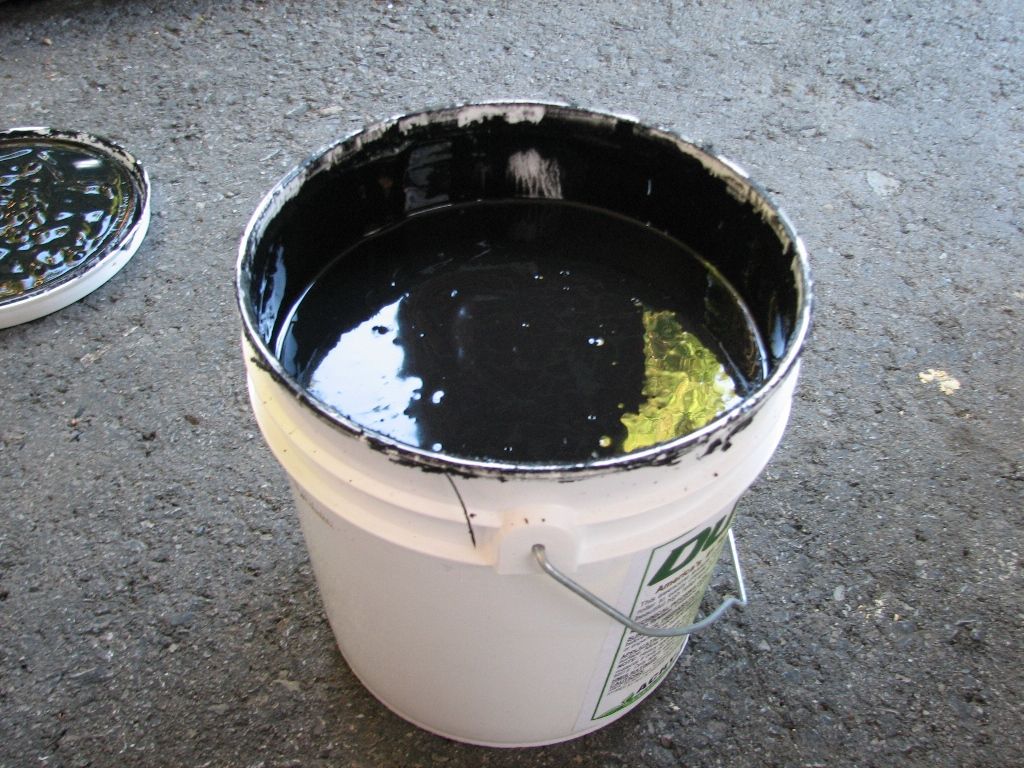

I put the first coat of Duratex and am completely discouraged.
I saw the YouTube video on how to apply it and it really seemed easy.
I'm completely discouraged how it looks!
I can see all kinds of brush strokes and it looks terrible.

Did I do something wrong? Is it because I'm doing it outside?
I applied it the same way the guy with the white beard does it. I did his exact steps finishing very lightly.
Yes I used a sponge roller...
This stuff dries REALLY QUICK!!!!!!

I will put a second coat and pray it looks better.

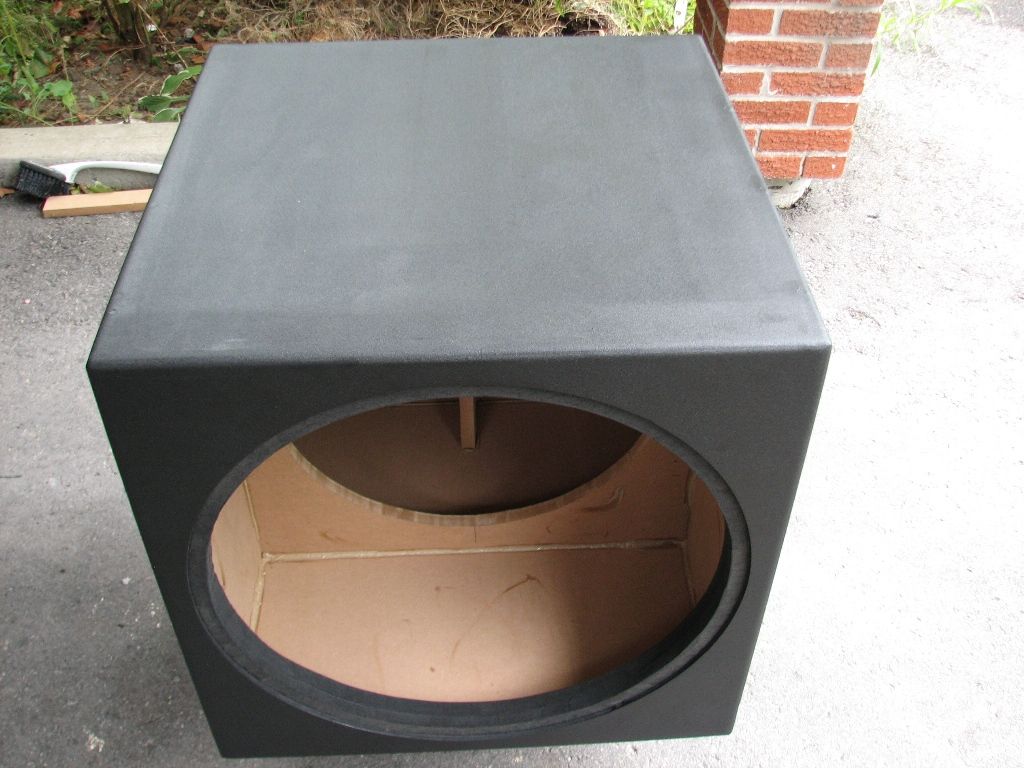

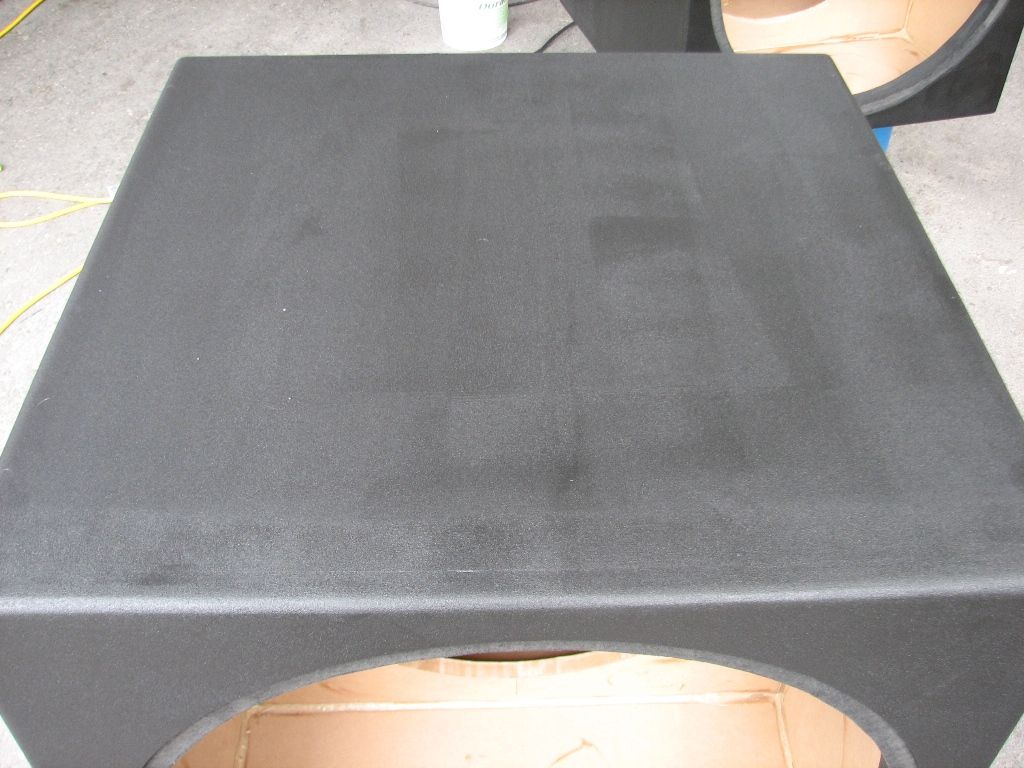

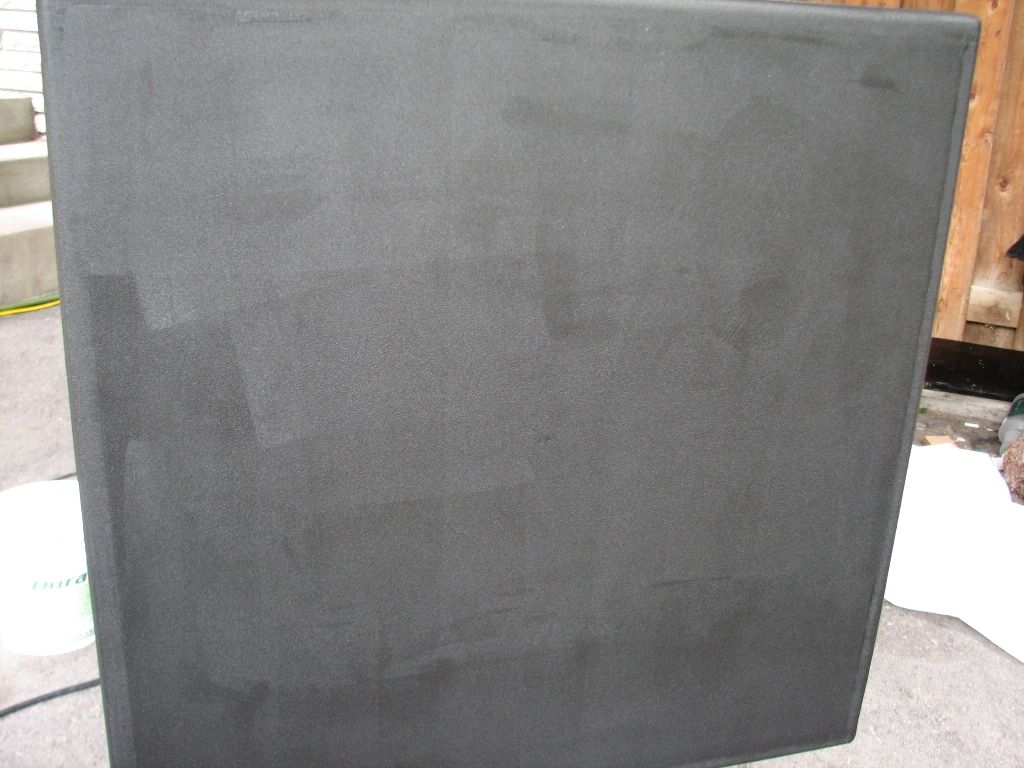

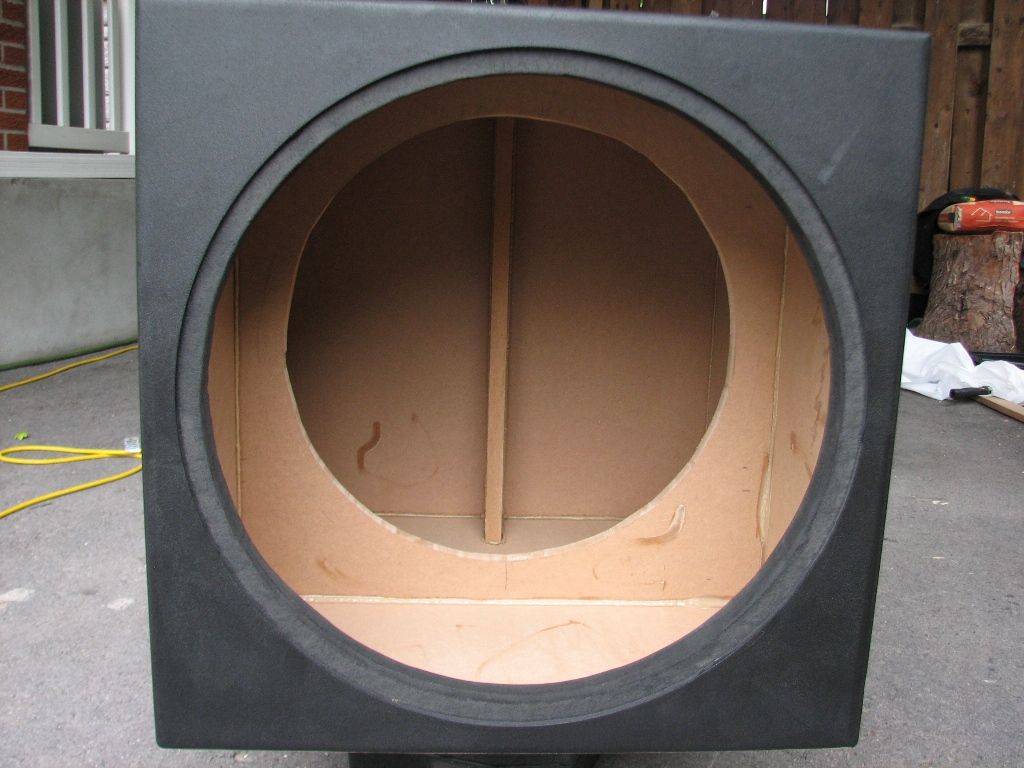

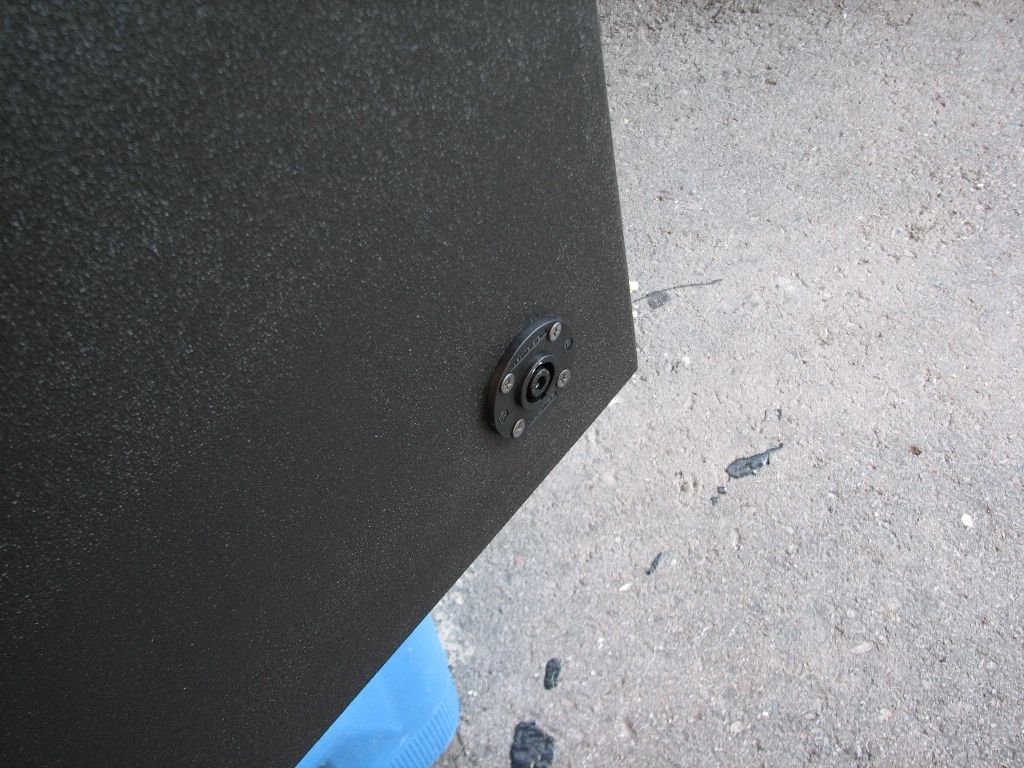

Here's what it looks like now...

Please feel free to give me tips!

Thanks
Fatshaft is offline
post #20 of 356 Old 08-31-2012, 01:31 PM
Member

VEXXD's Avatar

Join Date: Oct 2007
Location: Canada
Posts: 147
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
That's a little discouraging. I'll likely be applying some Duratex later tonight. You used a sponge roller or did you buy the blue textured roller?

I'm not going to prime with black first...I'll let you know how it turns out.
VEXXD is offline
post #21 of 356 Old 08-31-2012, 02:38 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
OK guys,

I'll put pictures up tomorrow...am in a rush right now...

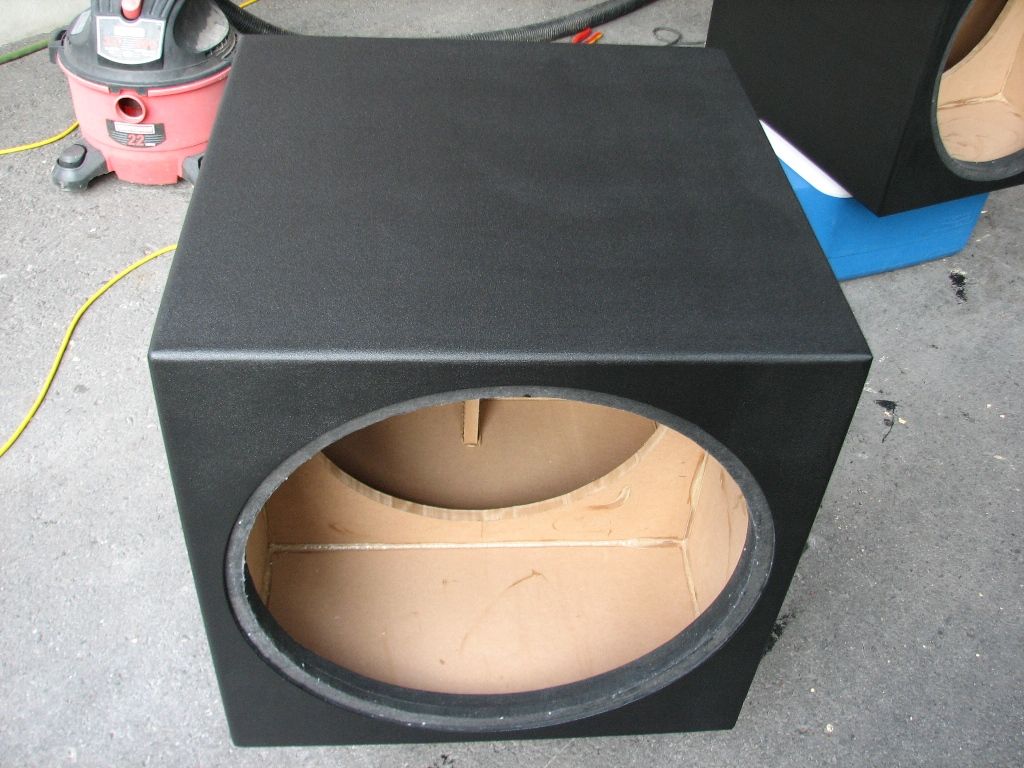

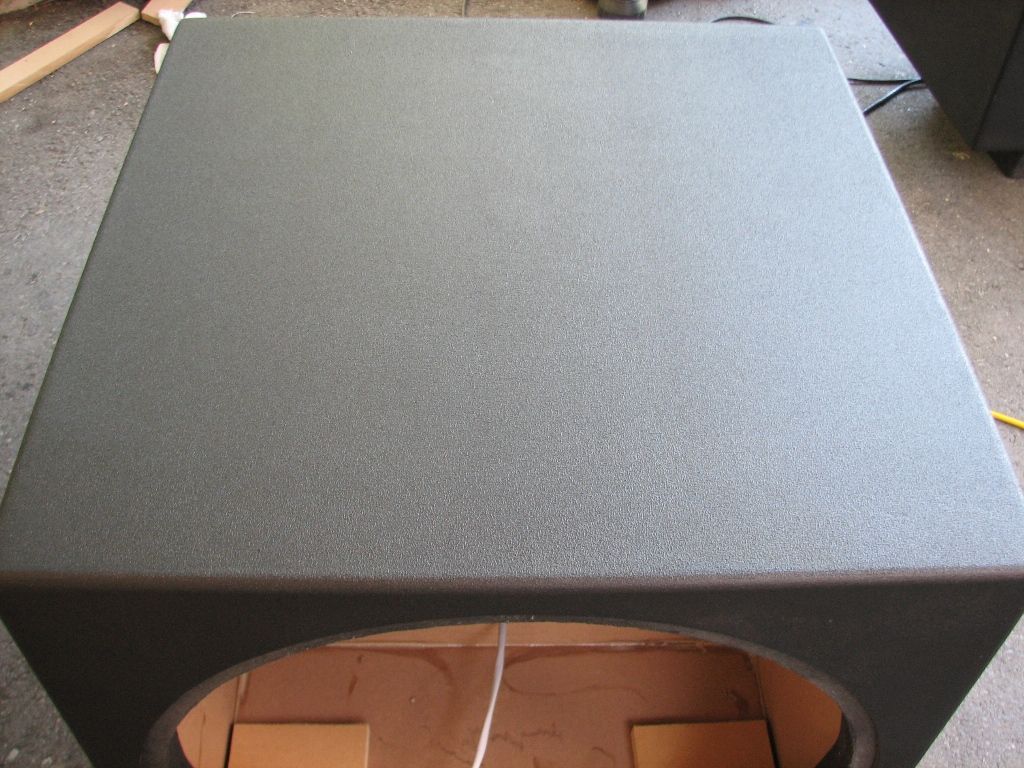

I put a 2nd and then a 3rd coat and it's making a BIG difference.

Man, this stuff is amazing!
The funny thing is the qty in the container is not going down! It sure doesn't feel like it is!
I'll be doing all my speakers in my HT room with it and am VERY SURE I'll have some left!

More details coming later

Regards,
Fatshaft is offline
post #22 of 356 Old 08-31-2012, 02:58 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,144
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked: 619
Quote:
Originally Posted by A9X-308 View Post

Good stuff, I'll watch with interest.
I've just ordered 2 FTW21 and should get them in a week or two. Still unsure whether to do a modest pair sealed of a pair of large LLT with a 13Hz tune.

Hey, cool!!!

Quote:
Originally Posted by A9X-308 View Post

500L looks OK, but I could go to 850L.
I won't even get to start on them for 6 weeks until I have holidays. I'm hoping to use your impressions, and hopefully measurements to help decide which way to go.


These days, I'm pretty much into sealed but an honest LLT will do tons of damage. If it works for you, a simple copy of my LLT (in sig) would perfect for the FTW-21 with just a modification of the driver cutout. Models real well. smile.gif

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #23 of 356 Old 08-31-2012, 07:18 PM
AVS Special Member

N8DOGG's Avatar

Join Date: Dec 2003
Location: Canada
Posts: 5,581
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked: 240
The trick I've learned with duratex, is to use the the biggest roller you can get. Pretty much 3 swipes and the entire surface is coated, roll across you first roll and it leaves an extremely nice finish. Though i'm lucky in that I can use all my spreay EQ at work and spray the bed liner we use on truck boxes.

Blasting brown notes for 10 years and counting!

N8DOGG is online now
post #24 of 356 Old 08-31-2012, 09:41 PM
AVS Special Member

Kanaris's Avatar

Join Date: Nov 2006
Location: Montreal,Canada
Posts: 1,223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Great work FS!!! I just saw your build thread.If all else fails grab a coupla cans of Premium Rubberized Rocker Panel paint.... from Canadian Tire. They dry in 30 minutes.I can't wait to see your drivers installed.

Kanaris is offline
post #25 of 356 Old 09-01-2012, 05:29 AM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Thanks for the tip N8DOGG...
Kanaris, as you know you were an inspiration to me for building my own box...you do beautiful work!

Well after the 1st coat of Duratex, I decided to do some more repairs to my boxes.
I sanded the 1st coat of Duratex and applied some more wood filler to repair some minor flaws.

I then sanded the boxes again (120grit paper) and applied a 2nd and then a 3rd coat of Duratex.
WHAT A DIFFERENCE!!!

I'll be sanding the whole cabs again today and will apply another coat of Duratex.
This is how much Duratex I have left after doing 3 coats everywhere...
Fatshaft is offline
post #26 of 356 Old 09-01-2012, 05:58 AM
Advanced Member

btinindy's Avatar

Join Date: Aug 2010
Posts: 820
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked: 49
Thank you for the great pictures. I am getting ready to finish my first set of speakers (no build thread yet) and I am planning on using the duratex roll on product. When you get a chance I am most interested I. What has worked and what has not. Is it the multiple coats or sand in between coats that have helped the results?

Thanks again for sharing.
btinindy is offline
post #27 of 356 Old 09-01-2012, 08:22 AM
AVS Special Member

TnTBigman's Avatar

Join Date: Mar 2008
Location: South Florida
Posts: 1,167
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Nice build. And thanks for the pics and tips. This is going to be a big help in my first build (dual Aura NS 18 per cab). Duratex is definetly the way to go.

You'll rarely hear anyone say, "I wish I'd gotten less Sub."

$ubwoofer$ and premium mango tree cultivar$

TnTBigman is offline
post #28 of 356 Old 09-01-2012, 10:06 AM
AVS Special Member

Kanaris's Avatar

Join Date: Nov 2006
Location: Montreal,Canada
Posts: 1,223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 12
Hey FS, I expect an invite when you fire them up....cool.gif

Kanaris is offline
post #29 of 356 Old 09-01-2012, 03:57 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
Quote:
Originally Posted by btinindy View Post

Thank you for the great pictures. I am getting ready to finish my first set of speakers (no build thread yet) and I am planning on using the duratex roll on product. When you get a chance I am most interested I. What has worked and what has not. Is it the multiple coats or sand in between coats that have helped the results?
Thanks again for sharing.

Unfortunately I don't know if the sanding is helping or not...what I know is that's the way I did it.
I'm more than happy to share my experience...I have learned so much from this place over the years and if I do help someone than that's a great thing.
Quote:
Originally Posted by TnTBigman View Post

Nice build. And thanks for the pics and tips. This is going to be a big help in my first build (dual Aura NS 18 per cab). Duratex is definetly the way to go.

I'm happy to do it...good luck with your build
Quote:
Originally Posted by Kanaris View Post

Hey FS, I expect an invite when you fire them up....cool.gif

Kanaris,

you are more than welcome and that at anytime!!!
Whenever you're free give me a Shout.

BTW, I had no time to do any work today...I'll be doing another coat of Duratex tomorrow after I sand the whole cab before.
I'll probably be done tomorrow but have no subs to put in till who knows when redface.gif
Fatshaft is offline
post #30 of 356 Old 09-03-2012, 10:46 AM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,139
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked: 92
A little more progress done...

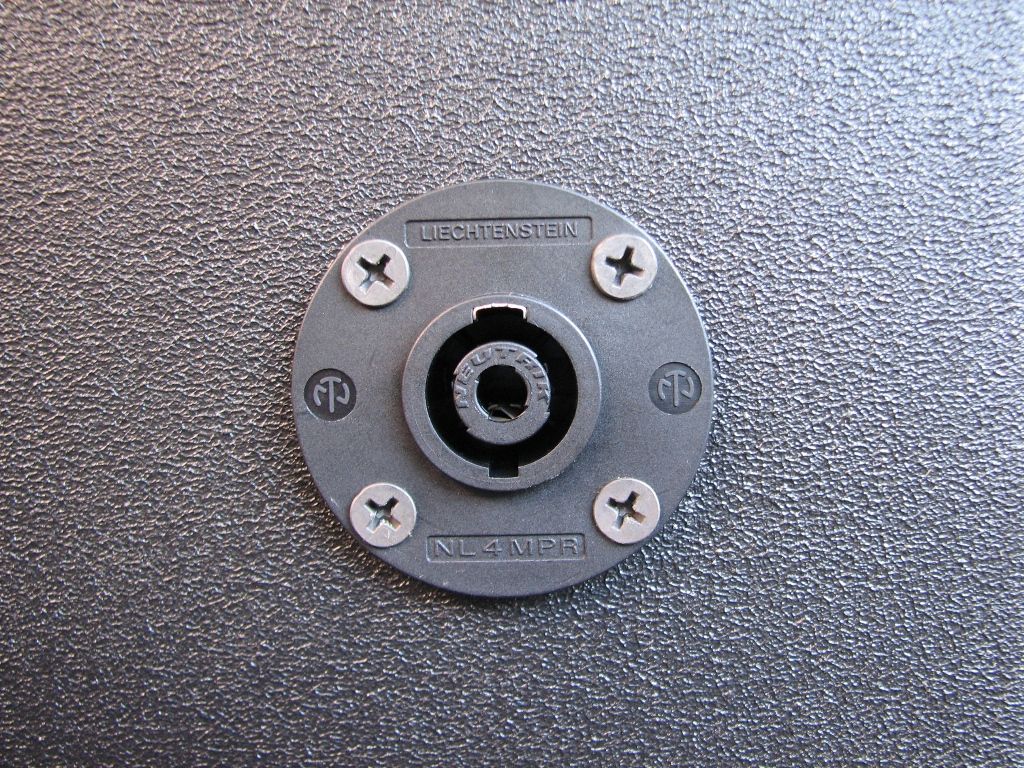

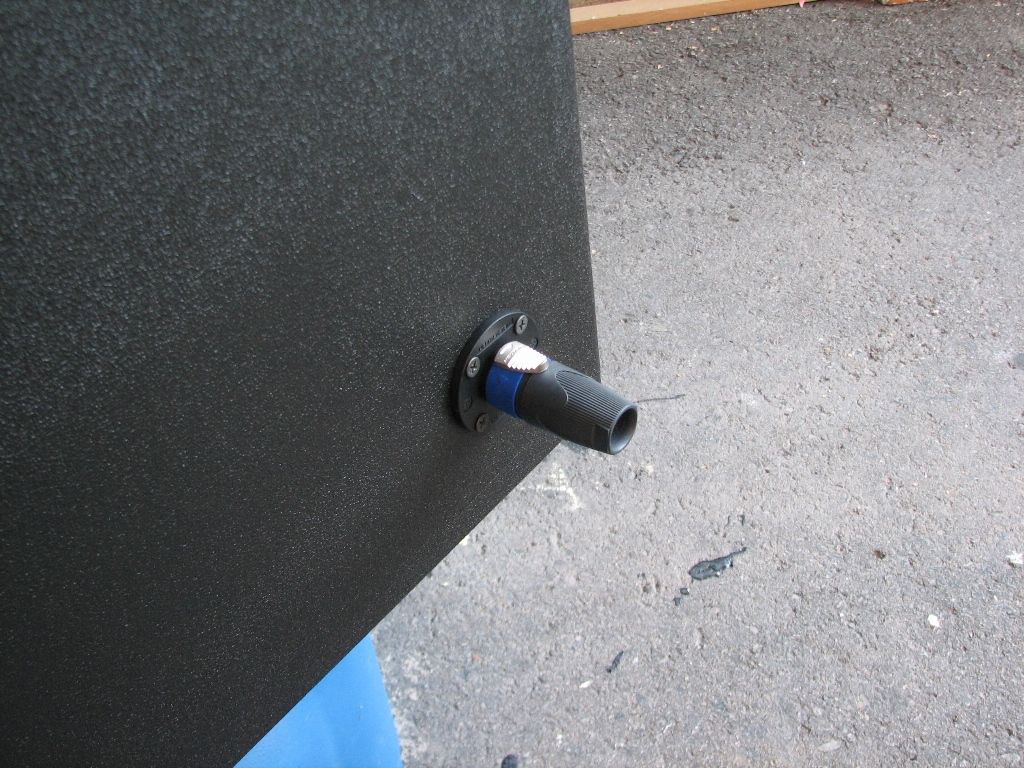

I installed the speakon on the side of the cabs so I can put the cabs closer to the back wall.
I measured 3 inches from the back and 3 inches from the bottom and drilled a 1" hole

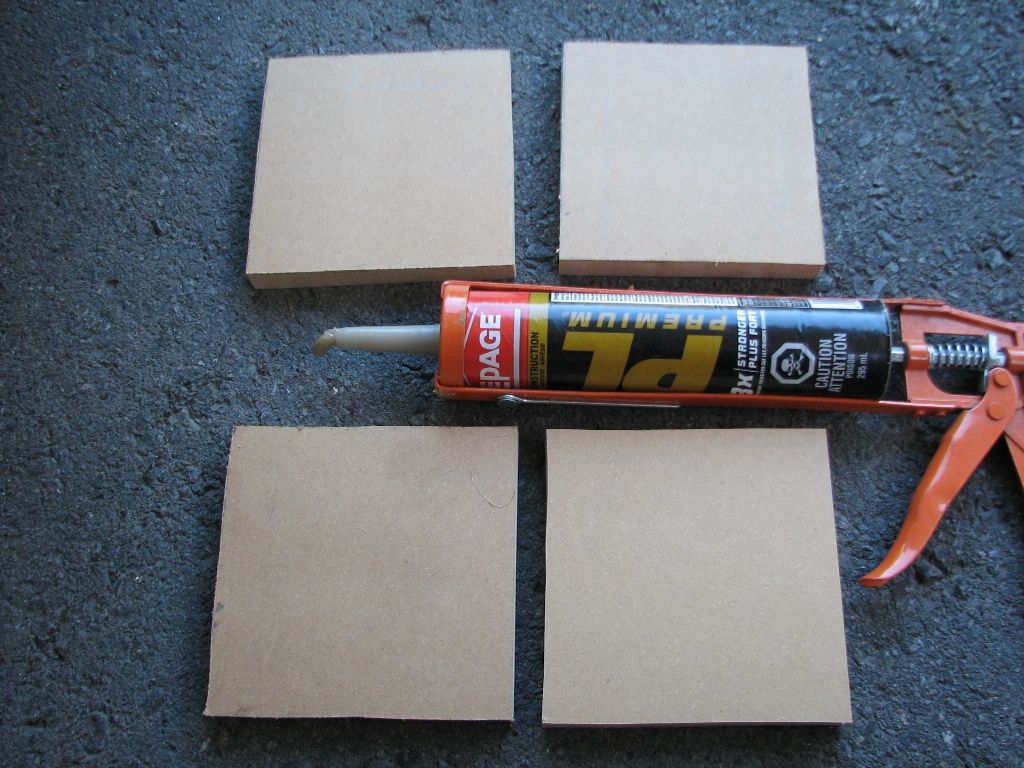

I then cut 4 squares of 5" and put one per corner in the cab cause that's where the screws will be going through for the legs I'll be putting tomorrow.
Now all glued and placed inside the cabs

BTW I will be putting some Canadian legs!


And finally...this is what the 4th coat of Duratex looks like...
Fatshaft is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
