NEW SUB FROM PARTS EXPRESS DAYTON 18 HO" - AVS Forum
Forum Jump:
Reply

Thread Tools
post #1 of 103 Old 09-20-2012, 11:02 AM - Thread Starter
Member

Ryan45872's Avatar

Join Date: Jun 2006
Posts: 107
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Just thought I would share this info with the DIYer's
Ryan

http://www.parts-express.com/pe/showdetl.cfm?Partnumber=295-472&utm_source=Retail&utm_medium=Email_Newsletter&utm_content=295-472&utm_campaign=email092012
Ryan45872 is offline
Sponsored Links
Advertisement

post #2 of 103 Old 09-20-2012, 11:12 AM
Senior Member

SilentJ20's Avatar

Join Date: Jun 2007
Location: Graham, WA
Posts: 258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
COOL. I wonder if an HF variant will follow? Too bad about keeping the same xmax, though (I'm guessing the same motor?). For a $250 sub, it seems lacking compared to others similar in price.
SilentJ20 is offline
post #3 of 103 Old 09-20-2012, 11:19 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
F**K YES!!! Thank you Dayton and PE!

Now make the HF version. biggrin.gif

*scrambles to Unibox*

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #4 of 103 Old 09-20-2012, 12:15 PM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,131
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 241
The price is right, it cosmetically looks great and the triple shorting ring should mean that the top end is clean and efficient. Xmax rating isn't much at 13mm but it may be an over achiever in that dept. like the rest of the RS/RF line. Judging from the pics the suspension is certainly capable of more. A relatively clean 20mm may not be out of the question. Maybe they will do a HF version with more xmax. I wish they would post the coil wind height and gap dimensions so we could atleast see what the geometric xmax is. One of these might have to end up on the DB test bench at some point.
Ricci is offline
post #5 of 103 Old 09-20-2012, 12:15 PM
Advanced Member

omegaslast's Avatar

Join Date: Sep 2007
Posts: 885
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 18
Actually lower xmax.. kinda disappointing. Maybe theyre conservative about their xmax ratings. just has to beat the xmax ratings of pro woofers near that price
omegaslast is offline
post #6 of 103 Old 09-20-2012, 12:22 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
Quote:
Originally Posted by Ricci View Post

The price is right, it cosmetically looks great and the triple shorting ring should mean that the top end is clean and efficient. Xmax rating isn't much at 13mm but it may be an over achiever in that dept. like the rest of the RS/RF line. Judging from the pics the suspension is certainly capable of more. A relatively clean 20mm may not be out of the question. Maybe they will do a HF version with more xmax. I wish they would post the coil wind height and gap dimensions so we could atleast see what the geometric xmax is. One of these might have to end up on the DB test bench at some point.

I was really hoping you'd come in and post your thoughts on this Josh. I know I promised you some 15hf's in the past but this might be the one I'll have to send you or throw in on. I'd really like your take on it.

Quote:
Originally Posted by omegaslast View Post

Actually lower xmax.. kinda disappointing. Maybe theyre conservative about their xmax ratings. just has to beat the xmax ratings of pro woofers near that price

20mm would make this thing so super awesome as it would easily add an additonal 3dB of output across the board but yeah, I'm hoping like what Josh said that it is a bit underrated but I won't hold my breath. I will however for a possible HF model though. biggrin.gif

I've been hoping for an 18" version of these since they came out.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #7 of 103 Old 09-20-2012, 12:24 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,475
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 35
13mm xmax for an 18" is good if it's a Pro sub, home theater sub your probably better off getting the Titanic 15" with 20.5mm xmax and saving $50.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #8 of 103 Old 09-20-2012, 12:39 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
This guy sims well in multiples. Four of them in about 3.25cuft with 400w each model within a 1dB of my proposed dual RLp18 (4cuft and 2,200w per driver) system. Imho, that's pretty awesome! These would be great for someone who doesn't want to use a lot of super expensive amps and has room for the total system size which really isn't that large anyway. A single ep4k could make four of these keep up with one of my dual-opposed high power monsters.

At a glance, yeah, these seem kind of underwhelming but.... I like em. tongue.gif

Just don't look at them in singles. Multiples is the key with these guys. Are there more affordable choices? Of course. Total displacement isn't everything about a subwoofer system though, imo. It's just a really important part. biggrin.gif

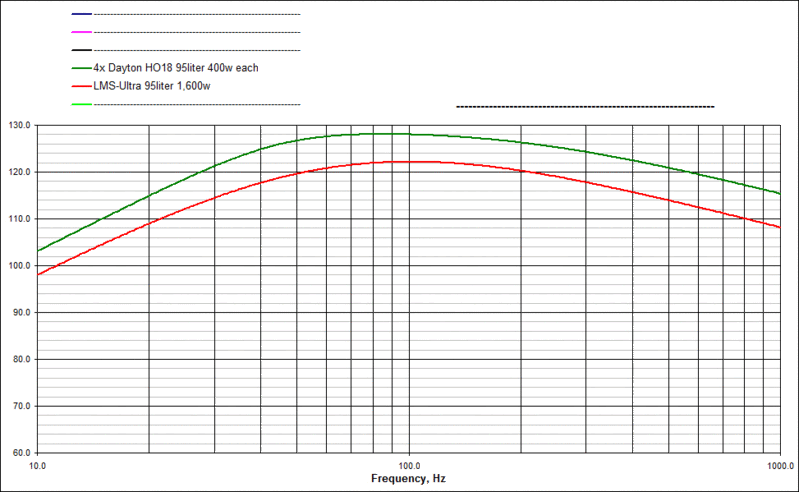

EDIT: Here. I made a comparison of four of these new guys from Dayton and compared the four of them to a single LMS-Ultra as the price for four is roughly as much as a single LMS-U. Now...obviously the LMS-U is the superior driver and blah blah blah. I would not say that these are better drivers than it. However, if one can fit the space and just wants to use a single and simple ep4k... the choice looks obvious to me. tongue.gif


My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #9 of 103 Old 09-20-2012, 01:55 PM
AVS Special Member

edoggrc51's Avatar

Join Date: Jun 2007
Location: Fontana, CA
Posts: 1,415
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 62
Quote:
Originally Posted by mjaudio View Post

13mm xmax for an 18" is good if it's a Pro sub, home theater sub your probably better off getting the Titanic 15" with 20.5mm xmax and saving $50.

So you order 8 of them yet?? Come on man, dont fight the feeling. You know youre gonna do it. biggrin.gif
edoggrc51 is online now
post #10 of 103 Old 09-20-2012, 02:12 PM
AVS Special Member

Mark Seaton's Avatar

Join Date: Jul 2000
Location: Chicago, IL, USA
Posts: 6,085
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked: 321
Quote:
Originally Posted by Ricci View Post

The price is right, it cosmetically looks great and the triple shorting ring should mean that the top end is clean and efficient. Xmax rating isn't much at 13mm but it may be an over achiever in that dept. like the rest of the RS/RF line. Judging from the pics the suspension is certainly capable of more. A relatively clean 20mm may not be out of the question. Maybe they will do a HF version with more xmax. I wish they would post the coil wind height and gap dimensions so we could atleast see what the geometric xmax is. One of these might have to end up on the DB test bench at some point.

The pictures suggest it's a 3" VC variant of the 10/12/15" versions. I suspect it's the same ~0.375-0.4375" thick top/back plates and the Xmax is probably the geometric overhang. I'd bet 15mm is a safe guess for lower distortion, and probably 20+ for audibly good/acceptable range.

Again, a shame as it's sooo close to being something quite impressive vs. just pretty nice.

Mark Seaton
Seaton Sound, Inc.
"Make no little plans; they have no magic to stir men's blood..." Daniel H. Burnham
Mark Seaton is offline
post #11 of 103 Old 09-20-2012, 02:45 PM
Member

Ghani99's Avatar

Join Date: Mar 2011
Posts: 57
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Stereo Integrity is getting into HT subs, their 18" has 20 mm Xmax, much better performance compared to the Dayton 18.

http://stereointegrity.com/index.php?id=60
Ghani99 is offline
post #12 of 103 Old 09-20-2012, 03:03 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,475
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 35
Quote:
Originally Posted by edoggrc51 View Post

So you order 8 of them yet?? Come on man, dont fight the feeling. You know youre gonna do it. biggrin.gif

I don't order 8 of "everything" sheesh, your making me sound nuts wink.gif

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #13 of 103 Old 09-20-2012, 03:04 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,475
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 35
Quote:
Originally Posted by Mark Seaton View Post

Again, a shame as it's sooo close to being something quite impressive vs. just pretty nice.

Well said

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #14 of 103 Old 09-20-2012, 03:14 PM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
I have been out of the DIY building for a bit but wouldn't an eD 19Ov.2 be a better buy? Are they still around? Their website isn't up anymore. From what I recall its around the same price with a little more than twice the Xmax.
brandonnash is offline
post #15 of 103 Old 09-20-2012, 03:14 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
Quote:
Originally Posted by mjaudio View Post

I don't order 8 of "everything" sheesh, your making me sound nuts wink.gif

Well then I will! tongue.gif

Quote:
Originally Posted by mjaudio View Post

Well said

Yeah, agreed. This would be a pretty good stand out driver had it had more throw I think and definitely would compete with the new Stereo Integrity 18" that is coming out sometime in the next century.

Quote:
Originally Posted by Ghani99 View Post

Stereo Integrity is getting into HT subs, their 18" has 20 mm Xmax, much better performance compared to the Dayton 18.
http://stereointegrity.com/index.php?id=60

....aanndd pretty much this. However, this is the current leader in displacement for the dollar now, I believe. Except.... it doesn't exsist. *sigh* I hate that but the pre-order on these starts next week but the owner says it could be 100 days until he gets them. There is no saying that one could end up waiting forever for these like all the poor guys who got in on the AE group buy. The Dayton's are available now. With fastest shipping possible someone here could have a finished product next week. This doesn't mean much to some people but it is something to think about. Also, the Reference series in general have SUPER low distortion and inductance traits which we know nothing about wrt the SI 15's/18's.

All that being said, I've simmed the SI's and I wouldn't mind having them either. biggrin.gif

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #16 of 103 Old 09-20-2012, 03:18 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,475
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 35
Quote:
Originally Posted by brandonnash View Post

I have been out of the DIY building for a bit but wouldn't an eD 19Ov.2 be a better buy? Are they still around? Their website isn't up anymore. From what I recall its around the same price with a little more than twice the Xmax.

eD is no longer in business.

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #17 of 103 Old 09-20-2012, 03:21 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1164
"Stereo Integrity is getting into HT subs, their 18" has 20 mm Xmax, much better performance compared to the Dayton 18."

they look reasonably good and very reasonably priced, and there is a dearth of xbl drivers, BUT...none of them can be ordered.

"I wish they would post the coil wind height and gap dimensions so we could atleast see what the geometric xmax is."

looks like 10mm is the top plate in the pdf. also, the pdf has different specs for qes/qts than the sales page. i'd guess a 30mm hc, but that is just a w.a.g.

"Again, a shame as it's sooo close to being something quite impressive vs. just pretty nice."

yeah, they seem to have kind of figured out the inductance piece and the frequency response suggests no nastiness/resonances anywhere near the bass region (even though i have no idea what "under 200hz is not representative" means in a frequency response plot of a subwoofer). if the suspension is there, why not just a little more coil?

Listen. It's All Good.
LTD02 is offline
post #18 of 103 Old 09-20-2012, 03:22 PM
AVS Special Member

mjaudio's Avatar

Join Date: Nov 2002
Posts: 2,475
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked: 35
Quote:
Originally Posted by mjaudio View Post

I don't order 8 of "everything" sheesh, your making me sound nuts wink.gif

Quote:
Originally Posted by Scott Simonian View Post

Well then I will! tongue.gif

YES!

"Half the world is looking for Jesus, and the other half is looking for more bass..."
mjaudio is offline
post #19 of 103 Old 09-20-2012, 03:31 PM
Member

Ghani99's Avatar

Join Date: Mar 2011
Posts: 57
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Scott Simonian View Post

Well then I will! tongue.gif
However, this is the current leader in displacement for the dollar now, I believe. Except.... it doesn't exsist. *sigh* I hate that but the pre-order on these starts next week but the owner says it could be 100 days until he gets them. There is no saying that one could end up waiting forever for these like all the poor guys who got in on the AE group buy.

Good point. I've been waiting 2 years for the CSS SDX15 MKII. Believe it when you see I guess.
Ghani99 is offline
post #20 of 103 Old 09-20-2012, 03:32 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
Made another sim that includes the SI 18's in the exact same size enclosure (trying to keep it apples to apples) and same power and another with more power than it could be powered at with it's extra throw.

Oh ... just a simple fyi for you guys, a ~95liter box is equivalent to a 20" cube using 3/4" stock.


My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #21 of 103 Old 09-20-2012, 03:46 PM
AVS Addicted Member

noah katz's Avatar

Join Date: Apr 1999
Location: Mountain View, CA USA
Posts: 20,736
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 368 Post(s)
Liked: 180
Quote:
Originally Posted by omegaslast View Post

Actually lower xmax.. kinda disappointing. Maybe theyre conservative about their xmax ratings. just has to beat the xmax ratings of pro woofers near that price

Sensitivity is way short of pro woofers.

Noah
noah katz is online now
post #22 of 103 Old 09-20-2012, 06:26 PM
Advanced Member

kemist1117's Avatar

Join Date: Apr 2007
Posts: 552
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 12
Didn't know about the SI HT woofers when i ordered the obsidian 18's, not that it matters much since they will be IBed, oh well.

Going from the build quality on the obsidians, those SI's will be an amazing value. Also i know Nick had mentioned sending samples to Ricci for testing. Would love to see the results of both the Obsidian and the SI.
kemist1117 is offline
post #23 of 103 Old 09-20-2012, 06:35 PM
AVS Special Member

baniels's Avatar

Join Date: Oct 2006
Location: 52556
Posts: 1,023
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Liked: 47
Quote:
Originally Posted by Scott Simonian View Post


....aanndd pretty much this. However, this is the current leader in displacement for the dollar now, I believe. Except.... it doesn't exsist. *sigh* I hate that but the pre-order on these starts next week but the owner says it could be 100 days until he gets them. There is no saying that one could end up waiting forever for these...

Somebody has one. biggrin.gif

baniels is online now
post #24 of 103 Old 09-20-2012, 07:49 PM
AVS Special Member

Looneybomber's Avatar

Join Date: Sep 2006
Location: Lawrence, KS
Posts: 4,668
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 23
Quote:
Originally Posted by Ghani99 View Post

Stereo Integrity is getting into HT subs, their 18" has 20 mm Xmax, much better performance compared to the Dayton 18.
http://stereointegrity.com/index.php?id=60
Ouch. Nearly 1mH/ohm! Repurposed car audio motor for "HT use"?

Quote:
Originally Posted by mjaudio View Post

eD is no longer in business.
Whoa, when did this happen? I spend very little time on this form in comparison to what i used to, so this is all news to me.
*edit* Google search provided the answer. Mismanagement.

YID DIY
Looneybomber is offline
post #25 of 103 Old 09-20-2012, 09:40 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,279
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 839 Post(s)
Liked: 1018
Quote:
Originally Posted by baniels View Post

Somebody has one. biggrin.gif

That's right. Okay, so one dude on the internet named baniels has one but that's it til sometime in 2013. wink.giftongue.gif

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #26 of 103 Old 09-21-2012, 07:40 AM
AVS Special Member

brandonnash's Avatar

Join Date: Jul 2003
Location: murfreesboro, tn
Posts: 3,942
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 25
Quote:

eD is no longer in business.

That sucks. I liked them as a company. One that was always trying to put out new products at decent prices like that doesn't come along often. I guess there is a reason.
brandonnash is offline
post #27 of 103 Old 09-21-2012, 01:29 PM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,131
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked: 241
Quote:
Originally Posted by kemist1117 View Post

Didn't know about the SI HT woofers when i ordered the obsidian 18's, not that it matters much since they will be IBed, oh well.
Going from the build quality on the obsidians, those SI's will be an amazing value. Also i know Nick had mentioned sending samples to Ricci for testing. Would love to see the results of both the Obsidian and the SI.

Indeed this occurred. I have an Obsidian 18 sitting on a workbench in my garage. The SI HT driver will be sent later.
Ricci is offline
post #28 of 103 Old 09-21-2012, 02:16 PM
Advanced Member

kemist1117's Avatar

Join Date: Apr 2007
Posts: 552
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked: 12
Awesome looking forward to it.
kemist1117 is offline
post #29 of 103 Old 09-21-2012, 04:42 PM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 10,128
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 661 Post(s)
Liked: 630
Quote:
Originally Posted by Mark Seaton View Post

The pictures suggest it's a 3" VC variant of the 10/12/15" versions. I suspect it's the same ~0.375-0.4375" thick top/back plates and the Xmax is probably the geometric overhang. I'd bet 15mm is a safe guess for lower distortion, and probably 20+ for audibly good/acceptable range.
I have to say I'm impressed by your ability to visually dissect a driver's internal structure from a few pictures. You must do this for a living. biggrin.gif
Stereodude is offline
post #30 of 103 Old 09-21-2012, 06:18 PM
AVS Special Member

NicksHitachi's Avatar

Join Date: Jul 2007
Location: Wilmington, NC
Posts: 3,731
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked: 166

Maybe a titanic version will follow......  who knows.



xmax is underwhelming indeed as smarter dudes have stated but who sells a superior 18 with that low of a Fs for $250 I don't know of any......

NicksHitachi is online now
Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
