Ok, I have got some great advise from other forums on IB setups. But, I have being trying to get an answer out of Ficar audio for them to send me 4 of their infinite baffle subs IB318 with no luck. I have 4 LMS ultras 18"s sitting in my room (Need to order a new motor for one though).

#1, I want to know ultimately if I could use the Ultras for an infinite baffle setup?
#2, Which would end up being the better setup?

I tried modeling these in winISD, but I keep screwing something up and I can't do it. I would really appreciate if someone could model both these drivers at their full power/excursion and show the results.

Cheers Dave

______________________________________________________________________________________


Thread Updates,

First set of Subs arrive,










________________________________________________________________________________________

Pics of getting the wall solid enough for the IB subs,



A pic of the H beam anchored to the floor.



And I also recieved the brand new Lab Gruppen 10000Q as well.





________________________________________________________________________________________

First driver in,








________________________________________________________________________________________

Measurements of the first 4 drivers,

This was getting close to max SPL, but still they had a bit left in them. Did not want to break anything so I stopped here. (I already broke a LMS Ultra through my ignorance)



With EQ applied,





Finally starting to work on the house curve, Non Max SPL after room EQ applied.




_________________________________________________________________________________________


Next set of 3 drivers arrive,








My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
Sponsored Links
Advertisement

post #2 of 540 Old 10-05-2012, 04:19 PM
AVS Special Member

lennon_68's Avatar

Join Date: Jul 2006
Location: All alone in northern MN...
Posts: 1,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
I don't think there's any question that the Ultras would be the better setup and would be awesome in an IB setup. I didn't model but make the statement based on past experience with the Ultra. If you didn't have the ultras already there could be a discussion about whether they would be worth the higher price of admission over the FiCar but since you already have the Ultras this seems like a real no brainer smile.gif
lennon_68 is offline
post #3 of 540 Old 10-05-2012, 04:20 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 639

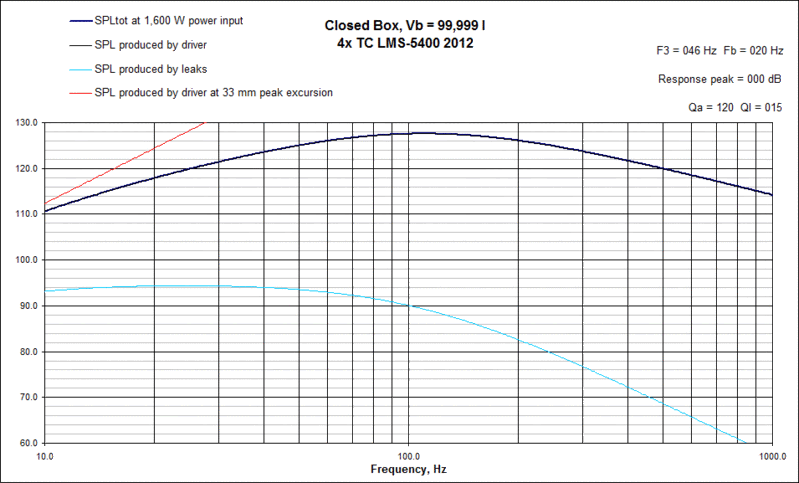

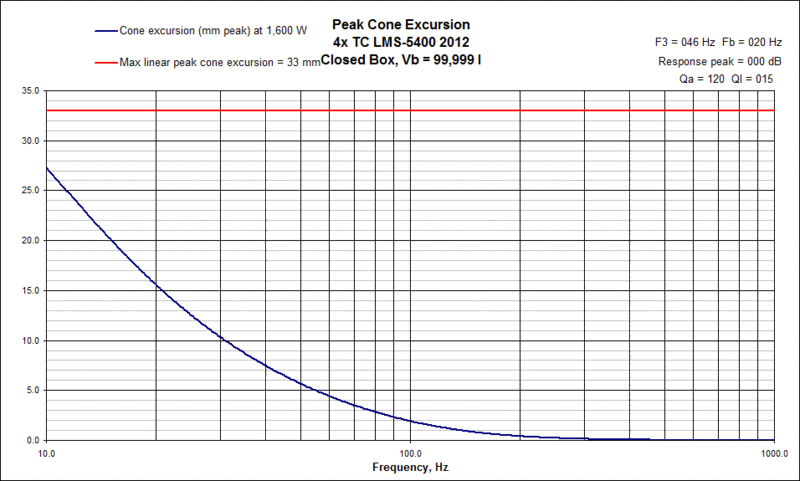

The LMS-Ultra isn't the most ideal driver for IB use but it can be used for such. I would highly recommend a rather small amplifier for the job or you'll be bottoming out like crazy.

400-600w per driver looks good.



You would stand to get a lot more output if used in small, high powered sealed enclosures.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #4 of 540 Old 10-05-2012, 04:30 PM
Advanced Member

cookieattk's Avatar

Join Date: Jun 2011
Posts: 525
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked: 56
the lms will model better but they cost 4x the price. about 2db difference @ 10hz
cookieattk is online now
post #5 of 540 Old 10-05-2012, 08:03 PM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Scott, is that the result of 4 drivers combined?

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #6 of 540 Old 10-05-2012, 09:13 PM
FOH
AVS Special Member

FOH's Avatar

Join Date: Apr 2010
Location: Midwest
Posts: 4,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 208
Hey Dave,

Without question, if you want a IB alignment, and you already have the LMS drivers, go for it.

Why not?

The LMS are more tolerant to a less than theoretical ideal 10x VAS,so any needed boosting to regain whatever is rolled off due to the backspace volume, you;ve got all the motor strength needed to do so. The modestly motored Fi IB3-18s, do roll off a bit too soon in use, even in full infinite back space loading.

The LMS would have lower distortion numbers, audible, I don't know, ... probably somewhat. Just size your amplification prudently, as to not damage the LMS drivers. As you likely know, the IB requires dramatically less power as the octaves plunge. So essentially zero compression with those robust motors, very responsive.

I'd do it.

------------------------------------
Flat, Deep, Clean, Linear, and Loud
------------------------------------
Active 16.8kw, 7.3 system
(3)Seaton Cat12C up front, (4)QSC K8 sides/rears
(2)Seaton SubM-HP, (4)18" IB
FOH is offline
post #7 of 540 Old 10-06-2012, 12:05 AM
AVS Special Member

Bigus's Avatar

Join Date: Feb 2003
Location: The South
Posts: 4,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
Quote:
Originally Posted by Scott Simonian
You would stand to get a lot more output if used in small, high powered sealed enclosures.
Not sure I understand this comment. As output is determined by displacement, unchanged in IB vs small sealed, I can only gather you are talking about higher frequencies that are power limited? Why would someone want to pursue such a non-flat frequency response?

Bigus is offline
post #8 of 540 Old 10-06-2012, 03:04 AM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Quote:
Originally Posted by FOH View Post

Hey Dave,
Without question, if you want a IB alignment, and you already have the LMS drivers, go for it.
Why not?
The LMS are more tolerant to a less than theoretical ideal 10x VAS,so any needed boosting to regain whatever is rolled off due to the backspace volume, you;ve got all the motor strength needed to do so. The modestly motored Fi IB3-18s, do roll off a bit too soon in use, even in full infinite back space loading.
The LMS would have lower distortion numbers, audible, I don't know, ... probably somewhat. Just size your amplification prudently, as to not damage the LMS drivers. As you likely know, the IB requires dramatically less power as the octaves plunge. So essentially zero compression with those robust motors, very responsive.
I'd do it.
Considering I only have 6 times the Vas of the IB318's , this could prove to be useful due to the fact that I will have almost 10 the Vas of the LMS.(9.6 times the Vas to be exact)
Again, please forgive the stupid question, but would it be possible to wire two LMS ultras to 16 ohms? Or is 8 ohms the limit for 2 drivers? At 8 ohms the FP14000 will still be sending 2300w of power to the two drivers. Or would I be reasonably safe with 1150w for each driver?
Quote:
Originally Posted by Bigus View Post

Not sure I understand this comment. As output is determined by displacement, unchanged in IB vs small sealed, I can only gather you are talking about higher frequencies that are power limited? Why would someone want to pursue such a non-flat frequency response?

It was my understanding that IB subs configuration allows lower frequency efficiency? Or does that not work with these subs?

And will 4 drivers give me a 12db gain over 1 driver?

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #9 of 540 Old 10-06-2012, 05:29 AM
FOH
AVS Special Member

FOH's Avatar

Join Date: Apr 2010
Location: Midwest
Posts: 4,745
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 208
Quote:
Originally Posted by Bigus View Post

Not sure I understand this comment. As output is determined by displacement, unchanged in IB vs small sealed, I can only gather you are talking about higher frequencies that are power limited? Why would someone want to pursue such a non-flat frequency response?

Bigus,

The IB being excursion limited, and the small sealed being thermally limited, the approach to powering associated with each is quite unique.

It's a typical IB power conundrum. With a sealed you have an acoustic limiter, and you can have more power on tap above the knee, without concern below the knee. With the IB, you power according to excursion capability, with the sealed you power more according to thermal capability.

You could easily hit Xmech with the IB, yet still be way under the thermal limitations. This is good and allows a very low compression, highly responsive system. But typically you make up for the lower power handling with additional drivers. With a small sealed you have all the power availed to the driver both above and below the knee. This is due to the back-pressure associated with the lowest frequencies, inherently limiting the driver. This must be overcome with a strongly EQ'd response, boosting the power needed below the knee to overcome the incredible pressure involved with the excursions encountered with the deepest frequencies. Thus, properly designed, the thermal limits are encountered prior to the physical limits. Exactly opposite of the IB, whereby the physical limits of excursion are easily encountered at quite modest power levels.

Bigus, I'm aware that most or all of that is merely review for you, however many may not fully grasp the relative considerations associated with the two sub-sets.


"Why would someone want to pursue such a non-flat frequency response?"

Will you elaborate? Both systems can be shaped to reproduce whatever essentially whatever response needed. The IB possessing a more linear power transfer perhaps, absent whatever compression effects occur. Audible? Depends on how over-engineered the subwoofer system is relative to playback level.


Interesting nonetheless.

Thanks

------------------------------------
Flat, Deep, Clean, Linear, and Loud
------------------------------------
Active 16.8kw, 7.3 system
(3)Seaton Cat12C up front, (4)QSC K8 sides/rears
(2)Seaton SubM-HP, (4)18" IB
FOH is offline
post #10 of 540 Old 10-06-2012, 06:20 AM
AVS Special Member

Bigus's Avatar

Join Date: Feb 2003
Location: The South
Posts: 4,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 50
[quote name="FOH"[/I]
Will you elaborate? Both systems can be shaped to reproduce whatever essentially whatever response needed.[/quote]
Sure. Speaking sealed, as that is the context of this thread, maximum spl is a direct function of available displacement, doesn't matter if that is small sealed or ib. You can see that in the red line in the graphs above. Since displacement rises as frequency drips for a given spl, the desired low frequency knee sets the limit on maximum flat spl for the sub.

Say you want to be flat to 15hz. You look at your available displacement with your chosen drivers, and know you can generate xxx DB. Lets say 100db. Doesn't matter if you put that driver in a little box with gobs of power it an ib with relatively little power. X displacement buys 100db at 15hz. Now you figure out how much power it will require in the enclosure size you want for full excursion at 15hz. Big box, little power, small box gobs. You want flat response, right? So you apply the correct eq for the enclosure size (linkwitz transform). Lots of eq on the small enclosure, little or perhaps none on the ib.

Say your calculations showed you needed 100watts for the ib, and 1000watts for the small box. Does that now mean you have 10x more power on hand for higher frequencies in the small box? Not really, because the LT circuit is going to be applying lots of boost down low (or alternatively viewed as lots of cut up high, same thing). If the ib is drawing 100 watts at 100hz, guess hoe much the little box is going to be drawing at 100hz? That's right, about the same 100hz.

But you could play the little box a lot louder up high if you wanted since you have the extra power on hand, right? Well, how would you do that? If you turn the volume up enough to draw more than 100watts at 100hz, the low frequencies are going to clip the amp. Or if you oversized the amp, you will over excurt the driver. The only way to avoid this behavior is to eq the system non flat, so that spl gradually rolls off with frequency. Not exactly what you wanted. The only possible solution is to use limiting so that the response is flat at low volumes and low frequencies become progressively more limited as volume increases. Very few would do that, nor should they want to... the whole purpose of a sub system like this is so that the sub sub gets loud as you turn up the volume, not relatively softer.

Which is why I asked who would want to pursue such a non flat frequency response. Who cares if by having more power on the lms you could theoretically hit higher spl at midbass frequencies? You can't actually do that without designing a non flat system.

In other words, the whole purpose of the big box is that you don't need the big power (and all the baggage that entails). The fact that you then don't have the big power is in no way limiting compared to the alternative.
YourConfused likes this.

Bigus is offline
post #11 of 540 Old 10-07-2012, 05:04 AM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Quote:
Originally Posted by JapanDave View Post

Scott, is that the result of 4 drivers combined?

Never mid Scott, I just re-read your graphs title. Sorry for the stupid question.

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #12 of 540 Old 10-07-2012, 06:51 PM
AVS Special Member

BassThatHz's Avatar

Join Date: Apr 2008
Location: East side of NW Cascades
Posts: 2,624
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked: 311
That's a strong wall to support 400lbs of high excursion. Lot's of bracing to keep it steady.
Yes it would be 2-ch of 8-ohm 2350w per side.
You don't need a small amp, the FP14k is fine, then there will be no clipping wink.gif just don't bottom out the subs, keep the gain low until you've seen what 10hz does at max volume.
BassThatHz is online now
post #13 of 540 Old 10-07-2012, 08:17 PM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Quote:
Originally Posted by BassThatHz View Post

That's a strong wall to support 400lbs of high excursion. Lot's of bracing to keep it steady.
Yes it would be 2-ch of 8-ohm 2350w per side.
You don't need a small amp, the FP14k is fine, then there will be no clipping wink.gif just don't bottom out the subs, keep the gain low until you've seen what 10hz does at max volume.

The wall is not a problem. It is very heavily braced as I have about 350lbs of Quseted speakers in the wall as well. It was designed have as little movement as possible as it is a sealed baffle wall.

Thanks for the advise on the Amp.

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #14 of 540 Old 10-07-2012, 09:00 PM
AVS Special Member

Brad Horstkotte's Avatar

Join Date: Dec 2005
Location: Torrance, CA
Posts: 5,116
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked: 57
Re: strong wall - If you put them in a pair of dual opposed manifolds, most of the vibration cancels out, no?
Brad Horstkotte is offline
post #15 of 540 Old 10-08-2012, 12:29 AM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Will 4 LMS 18 drivers be enough? Or should I make it 6 or 8 drivers? I am sick of having to worry about blowing a driver due to a sub 10hz signal.

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #16 of 540 Old 10-08-2012, 01:06 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,972
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked: 852
"I am sick of having to worry about blowing a driver due to a sub 10hz signal."

put a high pass filter on at 10hz. worries gone.

if you have the space to do it, you can get about 8 of these for one lms-ultra:
http://www.parts-express.com/pe/showdetl.cfm?partnumber=295-455

10x more sensitive, so 1/10th the amp will get the same results.

Listen. It's All Good.
LTD02 is online now
post #17 of 540 Old 10-08-2012, 02:28 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 639
Quote:
Originally Posted by JapanDave View Post

Will 4 LMS 18 drivers be enough? Or should I make it 6 or 8 drivers? I am sick of having to worry about blowing a driver due to a sub 10hz signal.

This is pretty easy to accomplish and it doesn't require $1k drivers to do so. Especially not 6-8 of them. wink.gif
Quote:
Originally Posted by LTD02 View Post

"I am sick of having to worry about blowing a driver due to a sub 10hz signal."
put a high pass filter on at 10hz. worries gone.
if you have the space to do it, you can get about 8 of these for one lms-ultra:
http://www.parts-express.com/pe/showdetl.cfm?partnumber=295-455
10x more sensitive, so 1/10th the amp will get the same results.

This is not a bad idea. Again, the LMS-Ultra is a very nice driver however unsuited for IB use. I would consider using something else unless you plan to use them in small sealed or PR enclosures.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #18 of 540 Old 10-08-2012, 04:18 AM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
I really appreciate the help guys. But it is not a money problem. I already have 2 SubMersive's that I can't use use due to the amps as well as 3 Catalyst speakers, that I am waiting for Mark to give me a refund on(Taking a very long time to get any response from Mark as to how I can get this sorted). They are just sitting in my spare room room waiting for his(Mark's) response. Seeming as though I already have the 4 LMS drivers and I don't see anything that will prevent me from getting another 4 drivers, what will it take me realistically to get a flat response to 5 hz at 105 db?

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
post #19 of 540 Old 10-08-2012, 07:31 AM
AVS Special Member

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 6,989
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked: 570
Quote:
Originally Posted by JapanDave View Post

I really appreciate the help guys. But it is not a money problem. I already have 2 SubMersive's that I can't use use due to the amps as well as 3 Catalyst speakers, that I am waiting for Mark to give me a refund on(Taking a very long time to get any response from Mark as to how I can get this sorted). They are just sitting in my spare room room waiting for his(Mark's) response. Seeming as though I already have the 4 LMS drivers and I don't see anything that will prevent me from getting another 4 drivers, what will it take me realistically to get a flat response to 5 hz at 105 db?

While you are able to accomplish what you are aiming for, it is slightly unrealistic to persue. Even the guy with the most capable system on this DIY, Notnyt, with 8 LMS and his own power plant to run them high passes his system at 7hz. A) movies, even summed dont have response that is 0dbfs at 5hz, two with Not's system cranked, he said by 5 hz he couldnt even tell there was content anymore. wanna make it flat still? a rotary sub sounds like a good plan.

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is online now
post #20 of 540 Old 10-08-2012, 07:36 AM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Chantilly, VA
Posts: 3,271
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked: 499
Quote:
Originally Posted by JapanDave View Post

Will 4 LMS 18 drivers be enough? Or should I make it 6 or 8 drivers? I am sick of having to worry about blowing a driver due1 to a sub 10hz signal.

Dave, just go ahead and do this. You can wire 4 drivers per side for a 4 ohm load to better utilize your clone. Notynt is flat at 120db down to 10Hz with his 8 sealed Ultras. Throwing 8 LMS-U's in an IB sounds like uncharted territory around these parts, but I can't envision anything negative coming about by giving it a shot.

Besides... We all know what these are capable of in sealed applications, so if you don't like your IB setup, just beef up your amplification and switch it around again.



popalock is offline
post #21 of 540 Old 10-08-2012, 09:41 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 639
Quote:
Originally Posted by JapanDave View Post

I really appreciate the help guys. But it is not a money problem. I already have 2 SubMersive's that I can't use use due to the amps as well as 3 Catalyst speakers, that I am waiting for Mark to give me a refund on(Taking a very long time to get any response from Mark as to how I can get this sorted). They are just sitting in my spare room room waiting for his(Mark's) response. Seeming as though I already have the 4 LMS drivers and I don't see anything that will prevent me from getting another 4 drivers, what will it take me realistically to get a flat response to 5 hz at 105 db?

Again. Very easy. Just put them in 3-4cuft sealed boxes, don't use a HPF or too much power. No more than 2,000w per driver is ideal.

Quote:
Originally Posted by beastaudio View Post

While you are able to accomplish what you are aiming for, it is slightly unrealistic to persue. Even the guy with the most capable system on this DIY, Notnyt, with 8 LMS and his own power plant to run them high passes his system at 7hz. A) movies, even summed dont have response that is 0dbfs at 5hz, two with Not's system cranked, he said by 5 hz he couldnt even tell there was content anymore. wanna make it flat still? a rotary sub sounds like a good plan.

Yeah but Notnyt has an awesome looking system though he is overpowering the LMS-Ultras in too large of a net enclosure space. The Xmax is not controlled and continues to rise rapidly with lower frequency. He says he doesn't notice the deep bass ~5hz anyway and prefers being able to just go loud everywhere else ...which is fine. Using a rotary system is completely not needed to get loud output down to 5hz.

Quote:
Originally Posted by popalock View Post

Dave, just go ahead and do this. You can wire 4 drivers per side for a 4 ohm load to better utilize your clone. Notynt is flat at 120db down to 10Hz with his 8 sealed Ultras. Throwing 8 LMS-U's in an IB sounds like uncharted territory around these parts, but I can't envision anything negative coming about by giving it a shot.
Besides... We all know what these are capable of in sealed applications, so if you don't like your IB setup, just beef up your amplification and switch it around again.

IB will not use up the excursion efficiently and will be severely excursion limited down low.

LMS-U drivers are not ideal for IB use. Make two or four sealed cabs, use 1-2kw per driver. Don't high pass. I don't see why that is so difficult to grasp. confused.gif

One does not use a Ferrari to do the job of a Bulldozer.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #22 of 540 Old 10-08-2012, 10:08 AM
AVS Special Member

popalock's Avatar

Join Date: Jul 2009
Location: Chantilly, VA
Posts: 3,271
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked: 499
I just like Ferrari's...

Never said it would be ideal or efficient. I let the idea of owning 8 LMS-U's cloud my commonsense judgement.

Sorry Dave. Listen to these guys and go for the bulldozer.



popalock is offline
post #23 of 540 Old 10-08-2012, 10:14 AM
AVS Special Member

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 6,989
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 243 Post(s)
Liked: 570
Want a big bass pump that will get you do 5hz with redicluous excursion. 4 RE XXX18's and you should be good to go, do an IB setup with two facing the other two in a manifold type design and call it a day. They move some serious air and are technically the happiest in super large boxes or IB setups.

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is online now
post #24 of 540 Old 10-08-2012, 10:26 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 639
Quote:
Originally Posted by popalock View Post

I just like Ferrari's...
Never said it would be ideal or efficient. I let the idea of owning 8 LMS-U's cloud my commonsense judgement.
Sorry Dave. Listen to these guys and go for the bulldozer.

Everyone loves a Ferrari. That doesn't mean hitching a trailer to one is a good idea. tongue.gif

Quote:
Originally Posted by beastaudio View Post

Want a big bass pump that will get you do 5hz with redicluous excursion. 4 RE XXX18's and you should be good to go, do an IB setup with two facing the other two in a manifold type design and call it a day. They move some serious air and are technically the happiest in super large boxes or IB setups.

This would be much MUCH more ideal. Great idea, Beast.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #25 of 540 Old 10-08-2012, 10:28 AM
AVS Special Member

lennon_68's Avatar

Join Date: Jul 2006
Location: All alone in northern MN...
Posts: 1,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by Scott Simonian View Post

IB will not use up the excursion efficiently and will be severely excursion limited down low.
LMS-U drivers are not ideal for IB use. Make two or four sealed cabs, use 1-2kw per driver. Don't high pass. I don't see why that is so difficult to grasp. confused.gif
One does not use a Ferrari to do the job of a Bulldozer.

I disagree wholeheartedly. IB will use excursion extremely efficiently (that's kind of its' "thing" actually). Whether or not that's how you want the excursion to be utilized is something entirely different though. Fortunately that can and should be controlled via EQ (actually that's true for any setup). I fail to see what advantage a smaller enclosure would have over the IB other than acting as a high pass that may or may not be desirable.

Oh, and that's a really poor analogy smile.gif Although the LMS would be overkill it's certainly capable of doing the job of IB specific drivers, a Ferrari isn't really capable of doing the job of a Bulldozer though wink.gif
lennon_68 is offline
post #26 of 540 Old 10-08-2012, 10:36 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,201
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked: 639
Quote:
Originally Posted by lennon_68 View Post

I disagree wholeheartedly. IB will use excursion extremely efficiently (that's kind of its' "thing" actually). Whether or not that's how you want the excursion to be utilized is something entirely different though. Fortunately that can and should be controlled via EQ (actually that's true for any setup). I fail to see what advantage a smaller enclosure would have over the IB other than acting as a high pass that may or may not be desirable.
Oh, and that's a really poor analogy smile.gif Although the LMS would be overkill it's certainly capable of doing the job of IB specific drivers, a Ferrari isn't really capable of doing the job of a Bulldozer though wink.gif

Actually, you just made my point. A Ferrari is nice and overkill but not suited for all jobs. You could pull a trailer with one. *shudders* But there are other vehicles suited for doing things like that and could do it better than the Ferrari. Ugh....audio/car analogies get awkward quickly. tongue.gif

And no, sorry. Read post #15 and #18. He wants extension to 5hz and useful output and doesn't want them to self destruct down low. That will be tougher when you will require a high pass filter just to not explode the drivers. Kind of defeats the purpose and a real waste of a bunch of LMS drivers.

I'm not saying he can't do it. There are just better options. This is DIY however. Do what you want. I'm out.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is online now
post #27 of 540 Old 10-08-2012, 10:50 AM
AVS Special Member

lennon_68's Avatar

Join Date: Jul 2006
Location: All alone in northern MN...
Posts: 1,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by Scott Simonian View Post

Actually, you just made my point. A Ferrari is nice and overkill but not suited for all jobs. You could pull a trailer with one. *shudders* But there are other vehicles suited for doing things like that and could do it better than the Ferrari. Ugh....audio/car analogies get awkward quickly. tongue.gif
And no, sorry. Read post #15 and #18. He wants extension to 5hz and useful output and doesn't want them to self destruct down low. That will be tougher when you will require a high pass filter just to not explode the drivers. Kind of defeats the purpose and a real waste of a bunch of LMS drivers.
I'm not saying he can't do it. There are just better options. This is DIY however. Do what you want.

Meh, still disagree. Your analogy and subsequent explanation make it sound like the IB specific drivers would be better in an IB than the LMS which just isn't the case. The LMS might not be *much* better in an IB than the IB specific drivers but that's irrelevant as he already has the LMS drivers. Obviously in a conventional alignment the LMS would really have an advantage over an IB specific driver but I digress.

I'm confused. The fact that he wants extension to 5hz is an argument for IB over small sealed not against? Unless, as Bigus points out, he doesn't want it to be flat to 5hz which I doubt is the case. The only advantage a smaller enclosure would provide would be a built in acoustic high pass filter but that would need to be undone via EQ to achieve flat to 5hz. This doesn't provide any additional protection to the driver it only requires sending more power to the driver for the same output at any given frequency.

Although there may be more efficient options from a $/performance perspective I don't believe they'll actually out perform an equivalent number of LMS in the same IB.
lennon_68 is offline
post #28 of 540 Old 10-08-2012, 11:06 AM
AVS Special Member

Ricci's Avatar

Join Date: Mar 2007
Location: Louisville KY
Posts: 5,081
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 186
I agree with Scott. I would never IB 5400's personally. Dave already crushed one by slamming it too hard as have a lot of others. An IB (free-air) only makes it that much easier to bottom them out or damage one. Efficiency and distortion aren't the problems with these drivers it is the danger of damaging one. Due to the strong motor on the 5400 it gains a lot less than other drivers by increases in box volume. They can work in IB but it would be my last choice of alignment for them since you will need to severely restrict the available power going to them or risk mechanical damage. Either that or high pass at which point why not just go vented in the 15Hz range? 5400's are the wrong tool for an IB. My two cents.
its phillip likes this.
Ricci is online now
post #29 of 540 Old 10-08-2012, 11:45 AM
AVS Special Member

lennon_68's Avatar

Join Date: Jul 2006
Location: All alone in northern MN...
Posts: 1,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 20
Quote:
Originally Posted by Ricci View Post

I agree with Scott. I would never IB 5400's personally. Dave already crushed one by slamming it too hard as have a lot of others. An IB (free-air) only makes it that much easier to bottom them out or damage one. Efficiency and distortion aren't the problems with these drivers it is the danger of damaging one. Due to the strong motor on the 5400 it gains a lot less than other drivers by increases in box volume. They can work in IB but it would be my last choice of alignment for them since you will need to severely restrict the available power going to them or risk mechanical damage. Either that or high pass at which point why not just go vented in the 15Hz range? 5400's are the wrong tool for an IB. My two cents.

Interesting. Seems I've underestimated the potential for damage.
lennon_68 is offline
post #30 of 540 Old 10-08-2012, 05:57 PM - Thread Starter
AVS Club Gold

JapanDave's Avatar

Join Date: Jul 2009
Posts: 2,326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked: 98
Thanks for all the great responses guys. As I keep saying , I am rather new to all this and I still don't know which way is up, so I really do appreciate the help. I am not trying to make ridiculous claims, but it does seem that 5hz flat is a pretty difficult thing to do.
Quote:
Originally Posted by beastaudio View Post

Want a big bass pump that will get you do 5hz with redicluous excursion. 4 RE XXX18's and you should be good to go, do an IB setup with two facing the other two in a manifold type design and call it a day. They move some serious air and are technically the happiest in super large boxes or IB setups.
Where could I see some specs and more importantly where and how much are they sold for? I would need to know the Vas to see if I could IB them in my space.

My build thread

My 8 x RE XXX 18" Subwoofers, IB build
Couldn't pour water out of a boot with instructions on the heel.

Do you know what Nemesis means?

JapanDave is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
