post #1 of 87 Old 11-02-2012, 06:47 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I want to start off by saying this subwoofer or these subs are wife approved, atleast somewhat. When I brought my THT home my wife almost killed me. This time I kind of ran it by her. With that being said I'm a builder coming out of the closet ready to build my first true DIY sub(one that someone else didn't desing, sort of).

I was thinking of building either a single dual 15" ported sub or 2 single ported subs. I'm 95% sure I'm going to build 2 singles unless I"m convinced otherswise?

I don't have much experience with driver parameters and what they mean or WinSD, so I'm hoping to read up tonight and find other builds that us the HO. So if you have a good HO build thread please post it.

My first question is what is a good tuning frequency to start with using these subs.
Evolvo is offline
Sponsored Links
Advertisement

post #2 of 87 Old 11-02-2012, 07:41 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
since it is a 50/50 performance/waf build:

5 cubic feet net internal
20 hz tuning
2 x 4" ports (flared) 31" long

the shape of the enclosure doesn't really matter so long as the net internal volume doesn't change.

inuke 3000dsp for power and high pass filtering.

best,

Listen. It's All Good.
LTD02 is offline
post #3 of 87 Old 11-02-2012, 07:47 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Does the flare in the ports matter, I was thinking of using PVC. Thats probably the only thing I could use given the length I guess. How many braces would you suggest? How much do I have to work with as far as the 5 cu ft. Say if I can't calculate the brace right because of the holes in it? I bet I sound like a total newb, lol.
Evolvo is offline
post #4 of 87 Old 11-02-2012, 08:01 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"Does the flare in the ports matter"

sure. it cuts down the point of chuffing. http://www.subwoofer-builder.com/flare-testing.htm

"How many braces would you suggest?"

a simple 1x2 mounted from the center of each panel that is larger than 12"x12". in other words, use a simple stick brace where ever you have a panel that is larger than 12"x12" with no bracing on it.

"How much do I have to work with as far as the 5 cu ft. Say if I can't calculate the brace right because of the holes in it?"

don't worry about it. a few stick braces don't take up much room at all.

outer dimensions of 18"x20"x36" will net you about 5 cubic feet internal and allow you to run your ports with no bends.

Listen. It's All Good.
LTD02 is offline
post #5 of 87 Old 11-02-2012, 08:12 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
1x2's that's great it cuts down the amt of work in building the sub.

Do both ends of the ports need to be flared?

I don't want a super long sub so I will probably curve the ports up.

Should I use MDF, or Birchplywood, or something else and how thick would you suggest?
Evolvo is offline
post #6 of 87 Old 11-02-2012, 09:33 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"Do both ends of the ports need to be flared?"

turbulence in your sub will be less audible than outside. as to how much it matters, who knows?

"Should I use MDF, or Birchplywood, or something else and how thick would you suggest?"

3/4" plywood would be just fine, the more layers the merrier. mdf is fine, but it is hard on tools and your lungs.

Listen. It's All Good.
LTD02 is offline
post #7 of 87 Old 11-03-2012, 03:24 AM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
If I chose to go with a slotted port are there any rules of thumb for not getting port chuff. I've been using WinISD pro and a box calculator from to figure out what the length and width needs to be. I calculated that I should be able to do a port that is 17" X 1.75" and about 30" long. Would the 1.75" Height of the slot port cause chuffing.

Also I'm using Winisd and when I use the files from the shack for the HO and HF driver, the graph shows the HF dominating in SPL, I thought the HO was suppose to be the one with higher SPL's, maybe I'm doing something wrong.

If I wanted to build the box 6 cu ft and tune to 18hz would this cause any sound quality issues or would it just be sacrificing DB's for LF?

I stayed up late but learned a lot tonight. That Winisd is pretty sweet.

Evolvo is offline
post #8 of 87 Old 11-03-2012, 11:00 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"If I wanted to build the box 6 cu ft and tune to 18hz would this cause any sound quality issues or would it just be sacrificing DB's for LF?"

just sacrificing DB's for LF as you said. that is the tradeoff that i was talking about.

"Would the 1.75" Height of the slot port cause chuffing."

the rough rule of thumb is 17 meters/second at around 20-25hz (rear port air velocity in winisd), but there are folks with higher velocities that don't complain at all.

Listen. It's All Good.
LTD02 is offline
post #9 of 87 Old 11-03-2012, 11:04 AM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I'm almost ready to begin designing the panels.

Does the size of the enclosure affect sound quality, if I opt for 6 cu ft and 18hz tuning will that make the sub sound boomy?

Would I even truly notice the extra 2 DBs in lfe from going bigger and tuning lower?
Evolvo is offline
post #10 of 87 Old 11-03-2012, 11:43 AM
Advanced Member

AI Limited's Avatar

Join Date: May 2005
Location: CA
Posts: 690
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Quote:
Originally Posted by Evolvo View Post

I'm almost ready to begin designing the panels.
Does the size of the enclosure affect sound quality, if I opt for 6 cu ft and 18hz tuning will that make the sub sound boomy?
Would I even truly notice the extra 2 DBs in lfe from going bigger and tuning lower?

My bet is that you would notice the extra 1 cubic foot the most, then the 2dB, then the 2Hz in tuning.

AI Limited
AI Limited is offline
post #11 of 87 Old 11-03-2012, 11:45 AM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
So in other words just forget about it, probably not worth it unless I go to 7 cu ft or something.
Evolvo is offline
post #12 of 87 Old 11-03-2012, 12:14 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"Does the size of the enclosure affect sound quality"

no.

"...if I opt for 6 cu ft and 18hz tuning will that make the sub sound boomy?"

no.

"Would I even truly notice the extra 2 DBs in lfe from going bigger and tuning lower?"

yes, but not a night and day type difference.

each time that you tap on the key of a piano, the lower you go, you can tell the difference. that is the same idea.

Listen. It's All Good.
LTD02 is offline
post #13 of 87 Old 11-03-2012, 12:17 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Just when I was creating the dimensions, now I'm second guessing my size and how deep I want to go rolleyes.gif. You should have just lied to me, Lol
Evolvo is offline
post #14 of 87 Old 11-03-2012, 12:21 PM
Senior Member

louisdamani's Avatar

Join Date: Jan 2004
Location: MI
Posts: 328
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 14
Evolvo are you building ported subs to go with the THT? Or replacing it?I thought I read it was a bad idea to use ported and horn subs together.
louisdamani is online now
post #15 of 87 Old 11-03-2012, 12:22 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
The hell with it I'm going 6 cu ft 18hz tune.
Evolvo is offline
post #16 of 87 Old 11-03-2012, 12:24 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I'm selling the THT.
Evolvo is offline
post #17 of 87 Old 11-03-2012, 01:08 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Ok so dimensions are going to be 30" Tall 20" Wide and 23" Deep. The port length is 32.5".

My panel sizes are Front Baffle 30" Tall X 20" Wide, this is for front and back panels.

The side panels will be 30" Tall X 21.5" Deep.

The top and bottom panels will be 18.5" wide X 21.5" Deep.

I calculated this to be 5.887 Cu Ft with driver volume and port volume. Bracing might bring it down a bit.

Let me know if you guys see any problems with the calculations, I'm about to head to lowes.
Evolvo is offline
post #18 of 87 Old 11-03-2012, 07:57 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
seems like a good plan from over here.

Listen. It's All Good.
LTD02 is offline
post #19 of 87 Old 11-04-2012, 02:09 AM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Ok, the build is under way but I need a high pass filter and I have no idea, what this really means other than it's something that will roll off sound below a given point and will only allow sound over the HPF.

My question is what are rules or calculations when it comes to what your HPF should be and were do I find this info?

Secondly, what are my options when it comes to getting a HPF? I own a behringer ep2500 and a feedback destroyer, I'm not sure if these can assist me in being setup to be a Highpass Frequency?

Also do you absolutely need a HPF, what if I don't plan on pushing sub super hard?

Is there another term for HPF, because I run searches and don't seem to see many electronics associated with being a HPF?
Evolvo is offline
post #20 of 87 Old 11-04-2012, 08:28 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852

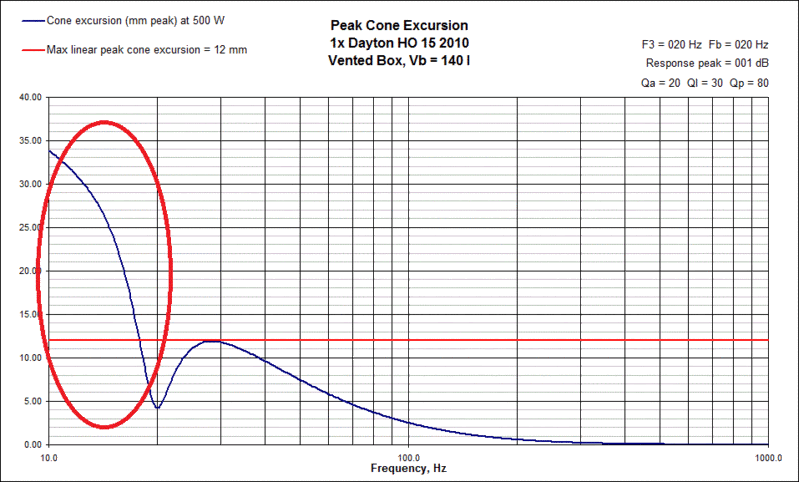

below the tuning point of the sub, the driver will "unload" which means that it will behave more or less as though it is in free air and can easily be damaged.

plate amps typically have one built in even if they don't make mention of it.

the least expensive option that i am aware of is the behringer mic2200, about a hundred bucks. it has an adjustable high pass filter that can go down to 10hz iirc. if you tune your enclosure to 18hz, then you will want to place the filter point at or just below that point.

your amp has one built in, but i think it is around 35hz, which is too high for your purpose.

Listen. It's All Good.
LTD02 is offline
post #21 of 87 Old 11-04-2012, 09:03 AM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
I see, that's why you reccommend the Inuke because it has built in adjustable high pass filter. I guess I need an amp anyway, because the behringer I have is not mine even though I've been using it for almost 2 years. I'm using someone's who's sub blew a couple years ago and they haven't take the time to replace the driver.

I'm also wondering would using 1 4" Port cause Chuffing. Winisd shows the port velocity at 6. I was thinking of maybe doing 2 X 3" ports which also show about 6, I kind of don't want to deal with the curve.
Evolvo is offline
post #22 of 87 Old 11-04-2012, 09:29 AM
AVS Special Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 9,734
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 380 Post(s)
Liked: 410
I'd double check, but I believe the HPF in the iNuke only goes down to 20Hz.
Stereodude is online now
post #23 of 87 Old 11-04-2012, 01:22 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"I'd double check, but I believe the HPF in the iNuke only goes down to 20Hz."

that's right, but you can fudge it a little in combination with the shelf filters.

Listen. It's All Good.
LTD02 is offline
post #24 of 87 Old 11-04-2012, 01:26 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"I see, that's why you reccommend the Inuke because it has built in adjustable high pass filter."

yeah...in the dsp models.

Listen. It's All Good.
LTD02 is offline
post #25 of 87 Old 11-04-2012, 03:57 PM
AVS Special Member

mayhem13's Avatar

Join Date: Jan 2008
Location: nj
Posts: 3,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 12
A little hint where slot ports are used.......max suggested height/width ratio is 1:8 so a 2" high port should be no wider than 16".
mayhem13 is offline
post #26 of 87 Old 11-04-2012, 04:03 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"A little hint where slot ports are used.......max suggested height/width ratio is 1:8 so a 2" high port should be no wider than 16"."

that seems reasonable, but do you have any data or a source on that?

Listen. It's All Good.
LTD02 is offline
post #27 of 87 Old 11-05-2012, 12:41 PM - Thread Starter
Senior Member

Evolvo's Avatar

Join Date: Jan 2008
Location: West Michigan
Posts: 229
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 11
Ok, so I finished one up last night and man does that bass sound absolutely incredible. Things were shaking that had never shook before and bass was tighter and hit harder, and that was only 1 of the 2. It sounded deep and thunderous. Here's the kicker I had the EP2500 set with the high pass at 30hz and it still rumbled I cannot imagine what's going to happen when I get that fitler down to 18hz.

I used 2 18.5" ports and so far haven't heard any chuffing either. I'm hoping that once I get the lower frequencies I won't hear anything but my port velocity should only be around 8ft per second at max or 2.8 m/s, I thinks that sounds right.

One question that I have is exactly what happens if you have no High Pass Filter, how is it that the woofer could burn out. If the DB's are rolling off naturally at 18hz due to box tuning why would the sub reach Xmax. Is there a point at which the air will not be compressed inside the sub anymore and the woofer moves freely. It just seems that the graph predicts a rollof that is close to second order anyway, so I don't understand why the sub could fry? It seems like if the subs can't play below the tuning frequency very loudly why would you need high pass, does the high pass filter just rollofff the DB's quicker the winisd curve shows. With my Tuba HT I never used a HPF.

I'll post pics later.
Evolvo is offline
post #28 of 87 Old 11-05-2012, 03:36 PM
AVS Special Member

mayhem13's Avatar

Join Date: Jan 2008
Location: nj
Posts: 3,946
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked: 12
Quote:
Originally Posted by LTD02 View Post

"A little hint where slot ports are used.......max suggested height/width ratio is 1:8 so a 2" high port should be no wider than 16"."
that seems reasonable, but do you have any data or a source on that?

Been a rule of thumb for a few decade. Severe compression results.
mayhem13 is offline
post #29 of 87 Old 11-05-2012, 03:47 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 13,197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked: 638
Quote:
Originally Posted by Evolvo View Post

Ok, so I finished one up last night and man does that bass sound absolutely incredible. Things were shaking that had never shook before and bass was tighter and hit harder, and that was only 1 of the 2. It sounded deep and thunderous. Here's the kicker I had the EP2500 set with the high pass at 30hz and it still rumbled I cannot imagine what's going to happen when I get that fitler down to 18hz.
I used 2 18.5" ports and so far haven't heard any chuffing either. I'm hoping that once I get the lower frequencies I won't hear anything but my port velocity should only be around 8ft per second at max or 2.8 m/s, I thinks that sounds right.
One question that I have is exactly what happens if you have no High Pass Filter, how is it that the woofer could burn out. If the DB's are rolling off naturally at 18hz due to box tuning why would the sub reach Xmax. Is there a point at which the air will not be compressed inside the sub anymore and the woofer moves freely. It just seems that the graph predicts a rollof that is close to second order anyway, so I don't understand why the sub could fry? It seems like if the subs can't play below the tuning frequency very loudly why would you need high pass, does the high pass filter just rollofff the DB's quicker the winisd curve shows. With my Tuba HT I never used a HPF.
I'll post pics later.

The natural acoustic response of a vented alignment will roll off at that rate but that doesn't mean teh signal has been attenuated. That's what HPF's are for. wink.gif Below Fb the box and woofer unload and the excursion skyrockets.

This is why you have to use a high pass filter:


My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #30 of 87 Old 11-05-2012, 05:58 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 15,965
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked: 852
"I used 2 18.5" ports and so far haven't heard any chuffing either."

those seem a little short. what diameter? also, post a couple pics. :-)

Listen. It's All Good.
LTD02 is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
