Think I should start building my TD12M speaker. Looking at Bunny's build keep giving me the itch. smile.gif

I'll be putting it all in a 1.5cf BB box, with a vertical/horizontal brace. My woodworking skills are pretty amateurish, so my builds are quite simple.

The box will be tuned to around 49hz with an f3 at roughly 62hz using a 3" round port tube 3" in length.

Attached, is my crack at WinISD.

Could you guys glance over and see let me know if you have suggestions (changes)?

As far as port tubes go, what do you recommend?




smokarz is offline
Sponsored Links
Advertisement

post #2 of 50 Old 11-10-2012, 09:56 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1165
ideally, you want your -3db point to be right around your crossover point because your receiver will slap a 2nd order highpass and a 4th order low pass on that point.

-3 natural rolloff + -3 from the crossover give -6db for the tops. -6db from the crossover gives -6db at the crossover point for the bottom.

decreasing cab volume to about 1.25 moves the f3 to 80hz, if that is what you intend to use for a crossover point.

since you have good subs, if you have a separate crossover for the subs, you could run the mains in sealed 0.75 cubic feet "full range" and put a second order low pass on the subs, flip the polarity, and have something similar to what bag end does (which minimizes group delay, thus keeping as much sound as possible all in phase).

now that i think about it, dr. geddes also employs this same approach.

Listen. It's All Good.
LTD02 is offline
post #3 of 50 Old 11-11-2012, 06:20 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Thanks LT,

I do like the sealed boxes. Much simpler to build and easier to integrate with the rest of the system.

However, I heard that it's better to put the TD12M in a ported box?

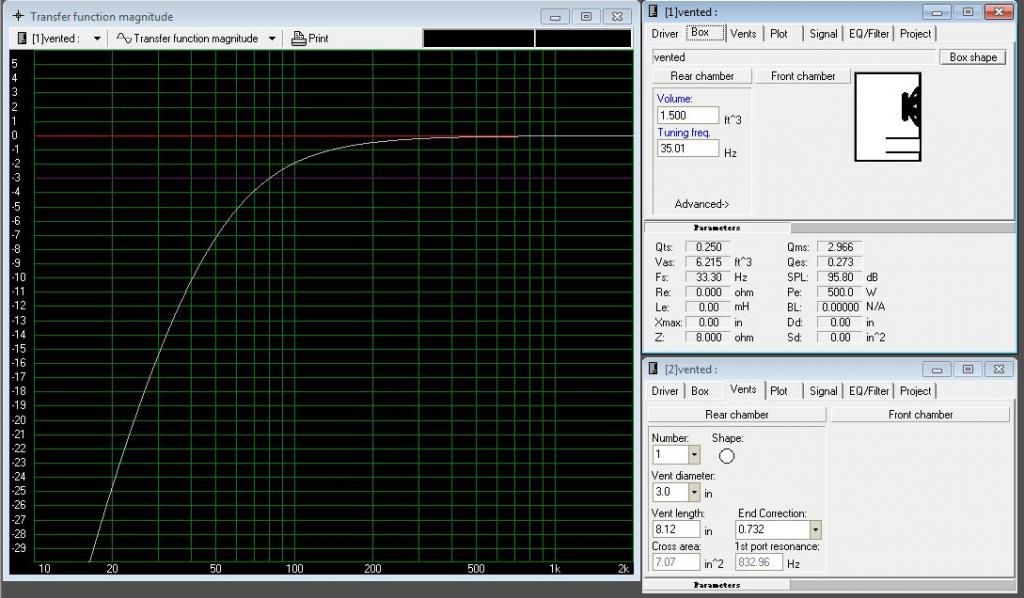

I've adjusted the port length and diameter (3" by 8" length) to get it tuned to 35hz with f3 at 80hz while keeping the box volume at 1.5cf.

I am afraid a smaller box won't have enough room for both the waveguide and woofer. Unless I want the waveguide outside, or a completely separate chamber within the box for the woofer.



Photobucket
smokarz is offline
post #4 of 50 Old 11-11-2012, 08:05 AM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 5,101
Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 572 Post(s)
Liked: 659
I understand the theoretical -3db for a -6db point. But it's always easier to reduce output than increase it. If the box size is fine, I wouldn't throw away SPL. Also, -6db cross overs are bad in theory in the bass range IMO. Ya, I'll disagree with Dolby and thx and bag end. I'm more interested in sound power at those frequencies. Not phase and direct sound level. I'm not sure in a multi sub system you can ever be sure you'll be in phase by doing the model a certain way. For a speaker, I use -6db cross overs 99% of the time. For subs, I maximize output on both the sub and speaker, then start working in the room taking measurements and adjustments until I get a flat response at the LP, while avoiding any boost.

I do agree running mains full range ain't such a bad idea IF sealed and IF it won't run out of xmax. Geddes does do this, but not cause of any phase kind of thing afaik. He uses badpass subs doesn't he? Bag end... I'm not familiar with their philosophy. I'd appreciate a link or something about that LTD.
tuxedocivic is online now
post #5 of 50 Old 11-11-2012, 08:07 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1165
"Geddes does do this, but not cause of any phase kind of thing afaik. He uses badpass subs doesn't he?"

the slope of a sealed enclosure is 12db/oct from the mains.

he uses bandpass subs which have a natural 12db/oct low pass slope on the subs.

12db/oct slopes give a lower group delay as the transition is made from the mids to the bass.

"Bag end... I'm not familiar with their philosophy. I'd appreciate a link or something about that LTD."

i don't have one off hand. i just recall that they use a similar approach, in their case 2nd order slopes crossed in at 90hz. a reviewer mentioned that while it didn't seem 'louder' per se, it seemed to hit harder configured this way.

part of the magic of the danley horns is minimizing phase changes across the bandwidth. to the extent that dr. g's approach and bag end's approach also minimizes phase changes, i'm inclined to believe that there may be an effect there.

Listen. It's All Good.
LTD02 is offline
post #6 of 50 Old 11-11-2012, 11:21 PM
AVS Addicted Member

noah katz's Avatar

Join Date: Apr 1999
Location: Mountain View, CA USA
Posts: 20,739
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked: 180
Quote:
Originally Posted by LTD02 View Post

ideally, you want your -3db point to be right around your crossover point because your receiver will slap a 2nd order highpass and a 4th order low pass on that point.

The chances of the actual in-room -3 dB freq being the same as predicted by modeling is fairly remote, so I wouldn't base design decisions on that expectation.

And I expect EQ wilo be available to smooth things out.

Noah
noah katz is online now
post #7 of 50 Old 11-12-2012, 12:02 AM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1165
"The chances of the actual in-room -3 dB freq being the same as predicted by modeling is fairly remote, so I wouldn't base design decisions on that expectation."

i agree. however, the electronics in almost every receiver make the assumption about the speakers that i was referencing. if you build to another specification and it works for you, great, and many have. i was just going on the stanard thx model for what they call sattelites and subs, but around here what we would call mains and subs.

Listen. It's All Good.
LTD02 is offline
post #8 of 50 Old 11-12-2012, 12:51 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Anyone know the complete T/S parameters for the TD12M?

Trying to enter them into Jeff B. Excel spreadsheet. Thanks
smokarz is offline
post #9 of 50 Old 11-13-2012, 02:21 PM
Senior Member

JackNC's Avatar

Join Date: Aug 2011
Posts: 230
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked: 18
TD12M - 8ohm
Fs: 38.1Hz
Qms: 2.99
Qes: .27
Qts: .25
Vas: 140L
Cms: .35mm/N
Mms: 50g
Sd: 531sqcm
Rms: 4kg/s
Bl: 17Tm
Re: 6.6
Le: .2mH
Z: 8ohm
Pe: 500W

1W SPL: 96.5dB
Xmax: 6mm
JackNC is offline
post #10 of 50 Old 11-24-2012, 01:03 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Question on slot port.

If I cut a 1" height by 10" wide port opening in the baffle, but then I have a 2" height by 10" deep inside the box.

Does my port count as 2" x 10" x 10" because my port en-closer is 2" tall?

Or would it be counted as 1" x 10" x 10" because the port opening is 1"?

The reason I ask is that I wan to cut a 1" tall slot port, 1" above the bottom so my port won't sit all the way at the bottom of baffle.

Does this make sense?
smokarz is offline
post #11 of 50 Old 11-24-2012, 01:12 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1165
i understand what you are asking and do not think that it is a good idea. you are effectively just blocking off half your port. that will create lots of turbulence and i'm not even sure how to calculate the tuning that you would end up with.

Listen. It's All Good.
LTD02 is offline
post #12 of 50 Old 11-24-2012, 01:47 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
thanks.

perhaps i should stick with round port. or perhaps sealed just to make things easier.
smokarz is offline
post #13 of 50 Old 11-24-2012, 01:55 PM
AVS Club Gold

AV Science Sales 5's Avatar

Join Date: Sep 2011
Location: A beautiful view of a lake
Posts: 8,333
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 526
Just place a piece of 3/4" plywood or MDF on the bottom and locate the slot flush with the 3/4" material. If you have to have it up 1", then tack a piece of 1/4" material on each end of the 3/4" plywood or MDF false bottom. Lots of easy ways to accomplish what you want to do. it does cost you some interior volume.

Mike Garrett, AV Science Sales Call Me: 585-671-2968
Email Me: Mike@AVScience.com
Brands we sell: http://avscience.com/brands/
Call for B-stock projectors
Stewart, Seymour, SE, SI, Falcon, DNP & more.
RBH, Martin Logan, Triad, Atlantic Tech., MK Sound, BG Radia, SVS & Def Tech, Denon, Marantz & Yamaha .
AV Science Sales 5 is offline
post #14 of 50 Old 11-24-2012, 02:16 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 16,841
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked: 1165
^^^ a reasonable solution.

Listen. It's All Good.
LTD02 is offline
post #15 of 50 Old 11-24-2012, 04:54 PM
Advanced Member

Face2's Avatar

Join Date: Mar 2007
Location: Long Island, NY
Posts: 776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked: 58
What's wrong with a sealed box?

Mike
Face2 is online now
post #16 of 50 Old 11-24-2012, 05:28 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Don't feel like building 2 separate chambers. tongue.gif

Or I have to work on a mounting bracket to mount the waveguide above the box.
smokarz is offline
post #17 of 50 Old 11-24-2012, 05:33 PM
Advanced Member

Face2's Avatar

Join Date: Mar 2007
Location: Long Island, NY
Posts: 776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked: 58
The piece to separate the two chambers will also act as a brace.

Mike
Face2 is online now
post #18 of 50 Old 11-25-2012, 07:28 AM
AVS Club Gold

AV Science Sales 5's Avatar

Join Date: Sep 2011
Location: A beautiful view of a lake
Posts: 8,333
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 526
Building the box with two sealed sections is the easiest build. You need to have a brace any way and placing it between the woofer and tweeter is a logical place to put it. Making it solid is easier than building a brace. Once again, it costs you internal volume for the mid-woofer.

Mike Garrett, AV Science Sales Call Me: 585-671-2968
Email Me: Mike@AVScience.com
Brands we sell: http://avscience.com/brands/
Call for B-stock projectors
Stewart, Seymour, SE, SI, Falcon, DNP & more.
RBH, Martin Logan, Triad, Atlantic Tech., MK Sound, BG Radia, SVS & Def Tech, Denon, Marantz & Yamaha .
AV Science Sales 5 is offline
post #19 of 50 Old 11-25-2012, 09:17 AM
Senior Member

mobeer4don's Avatar

Join Date: Feb 2010
Posts: 476
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 49
Quote:
Originally Posted by AV Science Sales 5 View Post

Building the box with two sealed sections is the easiest build. You need to have a brace any way and placing it between the woofer and tweeter is a logical place to put it. Making it solid is easier than building a brace. Once again, it costs you internal volume for the mid-woofer.

Going off on a tangent here...no need to seal the horn section. Leaving it open in the back is an easy way to make the crossover accessible for future tweaking.
mobeer4don is offline
post #20 of 50 Old 11-25-2012, 12:11 PM
Advanced Member

Face2's Avatar

Join Date: Mar 2007
Location: Long Island, NY
Posts: 776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked: 58
Quote:
Originally Posted by mobeer4don View Post

Going off on a tangent here...no need to seal the horn section. Leaving it open in the back is an easy way to make the crossover accessible for future tweaking.
I wouldn't leave it open, due to the possibly of cabinet resonances. Sealed with a removable back would be a better approach.

Mike
Face2 is online now
post #21 of 50 Old 11-25-2012, 12:14 PM
AVS Special Member

brian6751's Avatar

Join Date: Mar 2006
Location: Canton, MI
Posts: 3,443
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked: 129
or you can insulate it with Mortite or something similar. thats what i used on my Fatail Pro LTH142's and it seemed to work well.

I acccept all friend requests with AVS in the message. Add me!!

PS4 PSNID = The-Barbeerian

Xbox One = The Barbeerian
brian6751 is offline
post #22 of 50 Old 11-25-2012, 12:39 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Ok...I am going sealed.

0.71ft^3 for a qtc value of 0.702 f3 at about 110hz

need to pick up a 5x5 sheet BB to start going.




smokarz is offline
post #23 of 50 Old 01-26-2013, 03:22 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Well, it's about time I get going on this.

X-over parts ordered.





smokarz is offline
post #24 of 50 Old 07-15-2014, 04:07 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Wow....I can't believe I've been sitting on this for nearly a year and half.

I got two sheets of 5x5 BB collecting dust on the garage.

I am going to have to get it done this summer.

Is 0.7 cubic feet the optimal enclosure size for the TD12M sealed?

I understand that the driver takes up about .2cf?

Thanks.
smokarz is offline
post #25 of 50 Old 07-15-2014, 04:19 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 5,101
Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 572 Post(s)
Liked: 659
smokarz: the slowest build on record

Nice to see you back here
tuxedocivic is online now
post #26 of 50 Old 07-15-2014, 04:53 PM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Quote:
Originally Posted by tuxedocivic View Post
smokarz: the slowest build on record

Nice to see you back here

Hey Tux, good to see you bud.

Yeah, I decided to just enjoy what I have for a while I guess I got lazy building speakers and screens and just wanna kick back have a few drinks with family and friends and watch a few movies.

Any suggestion on a closed box Tux? I see quite a few ported builds, figure I might do something a little different. I am hoping to crossover to the subs at around 80hz, is that possible with a sealed version? I am relying on in-room to play a factor in the lower cross over point to subs.
smokarz is offline
post #27 of 50 Old 07-15-2014, 08:19 PM
AVS Special Member

Martycool007's Avatar

Join Date: Jun 2011
Posts: 3,692
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 280 Post(s)
Liked: 172
Quote:
Originally Posted by smokarz View Post
Hey Tux, good to see you bud.

Yeah, I decided to just enjoy what I have for a while I guess I got lazy building speakers and screens and just wanna kick back have a few drinks with family and friends and watch a few movies.

Any suggestion on a closed box Tux? I see quite a few ported builds, figure I might do something a little different. I am hoping to crossover to the subs at around 80hz, is that possible with a sealed version? I am relying on in-room to play a factor in the lower cross over point to subs.
If crossing over at 80hz, then I see no reason NOT to do a sealed enclosure as there are multiple benefits to going with sealed mains when it comes to integrating the entire setup, and with the subs covering 80hz and below, you won't need to worry about the mains extending that low. I believe that time aligning your LCR's and subs will be easier with sealed. Not sure about the other factors, such as phase or optimal group delay, (have not read up enough on those topics to really say one way or the other).
Martycool007 is offline
post #28 of 50 Old 07-16-2014, 07:14 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
I currently have sealed mains and I really light the tightness of the sound.

Now, I just need to know the optimal size for a sealed cabinet for the TD12M.

I recalled reading a post where John at AE provided the enclosure size for sealed box, but I couldn't find that post.

Have to do some forum searching.
smokarz is offline
post #29 of 50 Old 07-16-2014, 07:20 AM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 5,101
Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 572 Post(s)
Liked: 659
Do you have winisd or unibox? Sealed is pretty flexible. Hard to screw it up. Even an online box calculator would work!
tuxedocivic is online now
post #30 of 50 Old 07-16-2014, 07:24 AM - Thread Starter
AVS Special Member

smokarz's Avatar

Join Date: Feb 2007
Location: Hartford, CT USA
Posts: 3,282
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Liked: 69
Quote:
Originally Posted by tuxedocivic View Post
Do you have winisd or unibox? Sealed is pretty flexible. Hard to screw it up. Even an online box calculator would work!

I had WinISD before, but uninstalled it since I haven't use it for a while. I will download it and give it another crack.

What should I be looking for in a sealed design?
smokarz is offline
Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
