post #361 of 409 Old 03-24-2015, 09:44 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 20,461
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4892 Post(s)
Liked: 3814
It's too bad nobody seems to care about this amp. Does anyone even own one? Haven't even heard the name spoken for a year now.
Scott Simonian is offline
Sponsored Links
Advertisement

post #362 of 409 Old 03-24-2015, 09:47 PM

Swolephile's Avatar

Join Date: Sep 2013
Posts: 2,273
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 896 Post(s)
Liked: 345
Quote:
Originally Posted by Scott Simonian View Post
It's too bad nobody seems to care about this amp. Does anyone even own one? Haven't even heard the name spoken for a year now.
Me either. I wanted to see a non DSP version tested. I didn't care about the DSP version because I knew it would have software bugs and limiter problems. I'm still curious to see what the non-dsp version can do.
Swolephile is offline
post #363 of 409 Old 03-25-2015, 07:37 AM
AVS Special Member

rhodesj's Avatar

Join Date: Apr 2005
Posts: 1,730
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 803 Post(s)
Liked: 449
Quote:
Originally Posted by Scott Simonian View Post
It's too bad nobody seems to care about this amp. Does anyone even own one? Haven't even heard the name spoken for a year now.
Well, final word on the performance was unimpressive, right? Marginally more power than a NU6000 though 2-ohm capable, but much more expensive...
rhodesj is offline
post #364 of 409 Old 03-25-2015, 08:50 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 20,461
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4892 Post(s)
Liked: 3814
What was found is that the software was limiting the full amount of voltage swing it could possibly produce.

Nothing ever came of that 'fix'.
Scott Simonian is offline
post #365 of 409 Old 05-29-2015, 10:54 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 31,871
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked: 2604
So what does it make into 4 ohms x2?
Mfusick is offline
post #366 of 409 Old 05-29-2015, 03:10 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 6,797
Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1588 Post(s)
Liked: 1586
notnyt is offline
post #367 of 409 Old 05-29-2015, 03:14 PM
Assoc. Editor @ AVS *****

imagic's Avatar

Join Date: Dec 2005
Location: Philadelphia, PA
Posts: 10,114
Mentioned: 132 Post(s)
Tagged: 0 Thread(s)
Quoted: 4469 Post(s)
Liked: 7410
Quote:
Originally Posted by notnyt View Post
I'll test one if someone wants to send it
And I'd head over to your place to check the process out, were that to happen.

Mark Henninger
imagic is online now
post #368 of 409 Old 05-29-2015, 03:18 PM
AVS Special Member

notnyt's Avatar

Join Date: Dec 2008
Location: Long Island, NY
Posts: 6,797
Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1588 Post(s)
Liked: 1586
Quote:
Originally Posted by imagic View Post
And I'd head over to your place to check the process out, were that to happen.
Whenever you want. If you want to bring something I'll test it out. I'm finishing up some testing on the QSC PL236 and NU4-6000 this weekend. Also have an NU1000DSP, mini-x a100, and some other crap amp to test.

I want someone with an FP14k, newer version, to bring it by at some point. Friggen health issues set me back :/
coolrda likes this.
notnyt is offline
post #369 of 409 Old 05-29-2015, 04:25 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 31,871
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked: 2604
I'm curious about the new clone
Mfusick is offline
post #370 of 409 Old 05-29-2015, 05:43 PM
Senior Member

Join Date: May 2015
Posts: 254
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked: 90
Thats alot of power for sure. Can't imagine needing that much in a home situation.
nix4me is offline
post #371 of 409 Old 05-29-2015, 06:02 PM
AVS Special Member

Samps's Avatar

Join Date: Feb 2014
Location: Pittsburgh, PA
Posts: 1,644
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked: 352
Quote:
Originally Posted by nix4me View Post
Can't imagine needing that much in a home situation.
In a few months this will seem normal to you.
schmidtwi, Kubbie and Boomassiv like this.
Samps is offline
post #372 of 409 Old 05-29-2015, 07:24 PM
Advanced Member

Kubbie's Avatar

Join Date: Oct 2007
Location: Burbs of Chicago
Posts: 512
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked: 214
Quote:
Originally Posted by nix4me View Post
Thats alot of power for sure. Can't imagine needing that much in a home situation.
How else will you drive sixteen 18"s?
Sixteen HST-18's Build

And Auburnu008's recent thread is just one of legions of bass-loco's around here. From dedicated drops from transformers, to dual G-horns in the attic...nothing surprises me here anymore. In awe, jealous, impressed, blown away by some - but not surprised.


SI HST-18 DIY Subwoofer / Sony VPLHW40ES / Onkyo TX-NR636 /
Kubbie is offline
post #373 of 409 Old 05-29-2015, 07:46 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 20,461
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4892 Post(s)
Liked: 3814
Quote:
Originally Posted by nix4me View Post
Thats alot of power for sure. Can't imagine needing that much in a home situation.
Ah ha. I see you're new around here.
notnyt likes this.
Scott Simonian is offline
post #374 of 409 Old 05-29-2015, 09:04 PM
AVS Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 2,709
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Liked: 510
Quote:
Originally Posted by notnyt View Post
I'll test one if someone wants to send it
What have you tested and Doc'd so far? I saw that you were getting the gear together and starting up but never heard anything. Definitively interested and wouldn't mind sending you some gear if the turn around was fairly quick. We need this with so many choices today.

Last edited by coolrda; 05-30-2015 at 10:17 PM.
coolrda is offline
post #375 of 409 Old 05-29-2015, 09:11 PM
AVS Special Member

coolrda's Avatar

Join Date: Nov 2002
Location: Bakersfield, CA
Posts: 2,709
Mentioned: 104 Post(s)
Tagged: 0 Thread(s)
Quoted: 680 Post(s)
Liked: 510
Quote:
Originally Posted by nix4me View Post
Thats alot of power for sure. Can't imagine needing that much in a home situation.

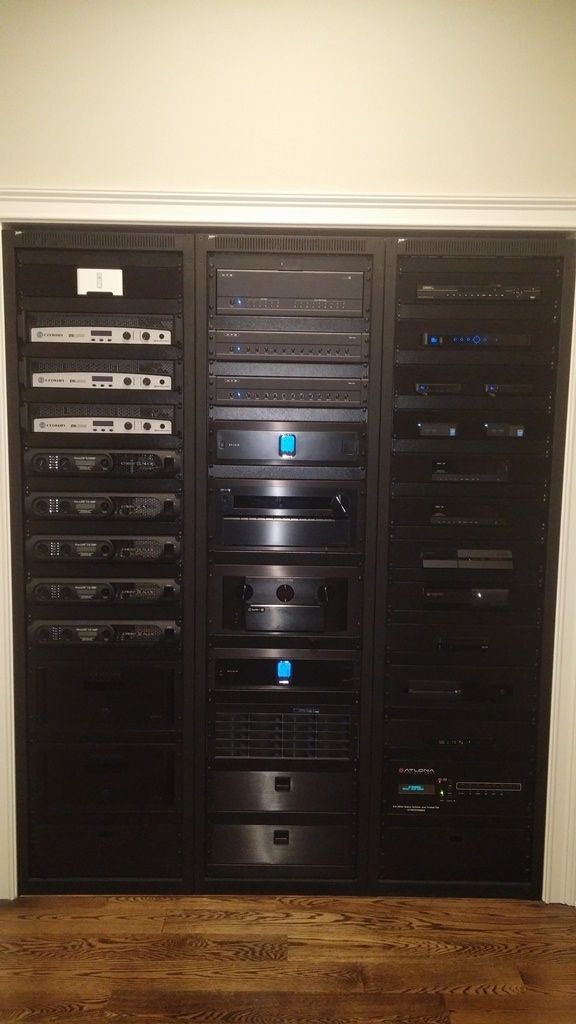

Auburn's is a dual purpose theater. When he's not using it to watch movies, Chevron uses it for Hydraulic Fracking.
coolrda is offline
post #376 of 409 Old 06-05-2015, 02:27 PM

Swolephile's Avatar

Join Date: Sep 2013
Posts: 2,273
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 896 Post(s)
Liked: 345
Price on Inuke 12000DSP has dropped to $800

Price on INUKE 12000 has dropped to $700.

I don't give a hoot's nanny about DSP because it places more things which can go wrong on a already cost compromised unit. So the testing of the DSP version of the 12000 holds no bearing to me. However I am thinking about purchasing the non-DSP version of the 12000 if someone can test it. I still want to know what this amp puts out without any voltage limiter bs or any other DSP software related issues.

Last edited by Swolephile; 06-05-2015 at 02:30 PM.
Swolephile is offline
post #377 of 409 Old 06-05-2015, 04:05 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 31,871
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 603 Post(s)
Liked: 2604
You buy it Notnyt tests it
Mfusick is offline
post #378 of 409 Old 06-05-2015, 04:07 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 20,461
Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4892 Post(s)
Liked: 3814
Quote:
Originally Posted by Swolephile View Post
Price on Inuke 12000DSP has dropped to $800

Price on INUKE 12000 has dropped to $700.

I don't give a hoot's nanny about DSP because it places more things which can go wrong on a already cost compromised unit. So the testing of the DSP version of the 12000 holds no bearing to me. However I am thinking about purchasing the non-DSP version of the 12000 if someone can test it. I still want to know what this amp puts out without any voltage limiter bs or any other DSP software related issues.
I and others would like to know as well.


I'm with you on the DSP thing. It just makes things more simple and clean for those that want the power but simplicity. I, on the other hand, have a ton of external DSP power (3x DCX's) and I don't really care for built-in DSP either but... there are reasons for them existing.
Scott Simonian is offline
post #379 of 409 Old 06-05-2015, 05:44 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 20,134
Mentioned: 330 Post(s)
Tagged: 1 Thread(s)
Quoted: 2184 Post(s)
Liked: 2402
from the spec sheets.


6000 which bench at about 1800 watts both channels at 30hz



12000, if it clocks the same multiple, could be 3900 watts both channels driven at 30hz
then again, that implies something like 65 amps on 120v, hhmmm.
Attached Thumbnails
Click image for larger version

Name:	6000-8.png
Views:	347
Size:	24.5 KB
ID:	758305   Click image for larger version

Name:	12000-8.png
Views:	341
Size:	16.2 KB
ID:	758313

Listen. It's All Good.
LTD02 is offline
post #380 of 409 Old 06-06-2015, 06:05 AM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 13,605
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2904 Post(s)
Liked: 2085
Quote:
Originally Posted by LTD02 View Post
6000 which bench at about 1800 watts both channels at 30hz
Not according to notynt's results. He got 1200w x 2 into 4 ohms (two pairs of bridged channels).
Stereodude is offline
post #381 of 409 Old 06-06-2015, 06:26 AM
AVS Special Member

Samps's Avatar

Join Date: Feb 2014
Location: Pittsburgh, PA
Posts: 1,644
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 664 Post(s)
Liked: 352
The 3000 was tested http://www.diyaudio.com/forums/class...surements.html
to get around 2000 bridged into 4 ohms.

Isn't the 6000 just two 3000s built into the same skin? If it really only puts out 1200 then we might be better off getting two 3000s instead. And that would give you many more configuration options.

With current pricing, and that 1200 watt rating, the 3000 offers 7.14 watts per dollar, and the 6000 offers 6 watts per dollar.

The 6000 would need to deliver around 1500 watts per channel to equal the value of the 3000, assuming that 3000 test was done properly.
Samps is offline
post #382 of 409 Old 06-06-2015, 06:33 AM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 13,605
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2904 Post(s)
Liked: 2085
It's possible the power supply in the 6000 isn't really double the capacity of the one in the 3000. notynt indicated he plans to measure the 3000 so we'll see how it compares soon enough.
Stereodude is offline
post #383 of 409 Old 06-06-2015, 02:53 PM
AVS Special Member

rhodesj's Avatar

Join Date: Apr 2005
Posts: 1,730
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 803 Post(s)
Liked: 449
And someone else's tests said the NU6K was good for 1800W in subs, not 1200W.

Meh.

I somehow doubt the 3K will do 2000W.
rhodesj is offline
post #384 of 409 Old 06-06-2015, 03:07 PM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 13,605
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2904 Post(s)
Liked: 2085
Quote:
Originally Posted by rhodesj View Post
And someone else's tests said the NU6K was good for 1800W in subs, not 1200W.

Meh.
I haven't seen that test. Did that tester drive two 4 ohm loads, or just one? Notynt was using all 4 channels (bridged to 2 channels). Both driving 4 ohm loads. He measured one of the two. It's possible if he was only using 1 channel he would have gotten more power.
Stereodude is offline
post #385 of 409 Old 06-06-2015, 04:08 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 20,134
Mentioned: 330 Post(s)
Tagged: 1 Thread(s)
Quoted: 2184 Post(s)
Liked: 2402
Quote:
Originally Posted by Stereodude View Post
Not according to notynt's results. He got 1200w x 2 into 4 ohms (two pairs of bridged channels).
yeah...different testing methods yield different results. i was referencing the 33% duty cycle 30hz number.

"Now if these amps were class-AB/H/G etc. with 50Hz transformer based supplies then measuring power output is normally easy, just use a continuous tone and measure what you get. As we know amps with switching power supplies sometimes restrict the output power under sinusoidal tone conditions as they do not have the thermal capacity or overload capacity to suck it up for a minute or so whilst the engineer measures it. In anticipation of this happening here I choose to make two measurement types. Continuous sinusoidal output for 1 minute (i.e. the traditional way) and output under 33% duty cycle conditions, which is a kind of burst rating but where the burst is repeated so as to deliver 33% maximum output. This is similar to saying that an amplifier must deliver 33% of its power indefinitely so that music signals with a low crest factor can still be reliably produced. 1/8th power is typical used for domestic equipment but 1/3rd seems safer for professional use where those dub bass lines can get quite demanding.


Speaking of bass, we also know that amplifiers cannot always deliver the same power at low frequencies as they do at 1KHz so I also measured both the conditions above at 31Hz and 1KHz. In order for the burst rating not to take a unfair advantage of the energy stored in the capacitors I chose the repetition rates for the burst to be relatively long so that the power output is what the power supply can sustain, not what it can do for 1ms!


So the 33% duty test signal used was as follows:
For the 1KHz measurement the signal is on for 70ms and off for 140ms.
For the 31Hz measurement the signal is on for 450ms and off for 900ms.

If the output power was kept below 1.7kW per channel then the amp would not trip. To leave a margin I left the amp running at 1.5kW per channel to see if I could get a 1 minute figure. Unfortunately after 15 seconds the circuit breaker opened, not surprising at it was drawing 22A from the mains at the time. So in the end I didn't get a 1 minute figure for 4 Ohms running but I expect it will be around the 1.2kW per channel mark as that produces a current draw of 15A which would eventually trip the breaker.


...

To summarise, for music signals, both channels driven, you can expect an output of:

Behringer:
1.37kW into 8 Ohms, 2.05kW into 4 Ohms for full-range or mid-top duty
1.16kW into 8 Ohms, 1.80kW into 4 Ohms for Bass duty"


http://forum.speakerplans.com/behrin...opic69202.html

Listen. It's All Good.
LTD02 is offline
post #386 of 409 Old 06-06-2015, 07:03 PM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 13,605
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2904 Post(s)
Liked: 2085
Quote:
Originally Posted by LTD02 View Post
yeah...different testing methods yield different results. i was referencing the 33% duty cycle 30hz number.
That still doesn't jive with notynt's burst numbers. His CEA burst tones did not yield that level of power. The 6.5 cycles "burst" tone at 30Hz is only 217ms. That's less than half the 450ms signal teslaman used at 31Hz. Yes notynt measured only 1476W with a 217ms 30Hz tone burst. Teslaman measured 1.8kW using 450ms on, 900ms off (1/3rd duty) at 30Hz. However, teslaman is in the UK, so he's not testing with 120V into the amp like notynt. That probably explains the difference in power measurements.
Stereodude is offline
post #387 of 409 Old 06-06-2015, 07:17 PM

More is Better's Avatar

Join Date: May 2013
Location: USA
Posts: 1,389
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked: 337
You guys are assuming that:

NU4-6000=NU6000DPS

There is no reason that they have to be the same.
More is Better is offline
post #388 of 409 Old 06-06-2015, 07:19 PM
AVS Addicted Member

Stereodude's Avatar

Join Date: Jan 2002
Location: Detroit Metro Area
Posts: 13,605
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2904 Post(s)
Liked: 2085
Quote:
Originally Posted by More is Better View Post
You guys are assuming that:

NU4-6000=NU6000DPS

There is no reason that they have to be the same.
No, but if adding a DSP drops the power output of the amp by several hundred watts, something is very wrong.
Stereodude is offline
post #389 of 409 Old 06-06-2015, 08:03 PM

More is Better's Avatar

Join Date: May 2013
Location: USA
Posts: 1,389
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 620 Post(s)
Liked: 337
Quote:
Originally Posted by Stereodude View Post
No, but if adding a DSP drops the power output of the amp by several hundred watts, something is very wrong.
They are different amps. Regardless of dsp or no dsp.

One is 4 channels and one is 2.

Same product line and manufacturer, but no reason they have to be the same.
More is Better is offline
post #390 of 409 Old 06-06-2015, 10:30 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 20,134
Mentioned: 330 Post(s)
Tagged: 1 Thread(s)
Quoted: 2184 Post(s)
Liked: 2402
Quote:
Originally Posted by Stereodude View Post
That still doesn't jive with notynt's burst numbers. His CEA burst tones did not yield that level of power. The 6.5 cycles "burst" tone at 30Hz is only 217ms. That's less than half the 450ms signal teslaman used at 31Hz. Yes notynt measured only 1476W with a 217ms 30Hz tone burst. Teslaman measured 1.8kW using 450ms on, 900ms off (1/3rd duty) at 30Hz. However, teslaman is in the UK, so he's not testing with 120V into the amp like notynt. That probably explains the difference in power measurements.

iirc, not's test rig is 4.4 ohms, so that's half the difference right there. there may be some differences between the 6000's as well (2ch vs. 4ch).

Listen. It's All Good.
LTD02 is offline
Sponsored Links
Advertisement

Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
