As I have started to build my zephyrs, I figured it was about time to start my own build thread. This is my first attempt at DIY speakers, and so feel free to point out errors or provide ideas along the way!

First, I would like to thank Erich, and all of the people who have contributed to the SEOS project. I would have NEVER attempted to build my own speakers without Erich's work (and flat packs). He has also been patient with my insane questions, of which there have been many. And its true, his packing job is outstanding. It shows a serious pride in his work.

I live in a small apartment that is slowly being overtaken by home theater gear. My current room is ~12x15, and serves as my living room and kitchen. I have a 100" screen set up with an Epson 5010. I cant make any serious modifications to the room, so I have to make a lot of compromises. I am at least a year away from home ownership (wife out of the country, not going to buy a house without her input!), so my room is what it is for now.

I am upgrading from an older Paradigm studio setup, which has served me well for several years, but its time to pass them along to a friend who is starting up a home theater, and give myself an upgrade.

So... On to the speakers.... I ordered the Zephyr kits and flatpacks, and they just arrived yesterday.

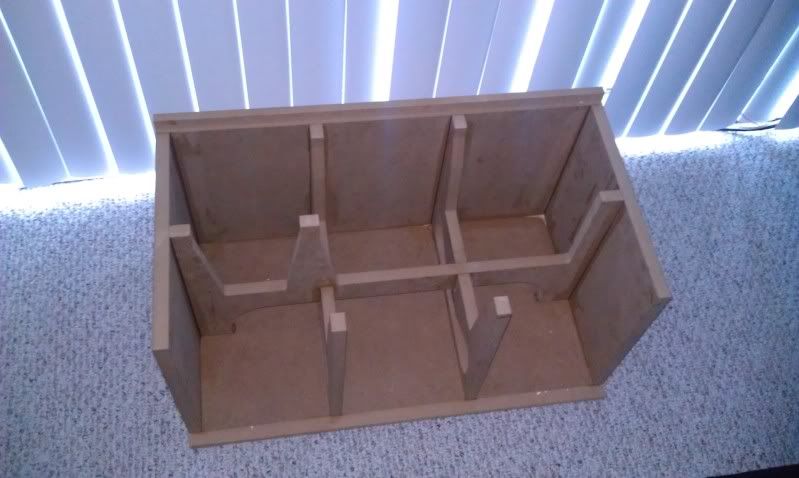

And of course, I dug right in...






And I could not resist a quick mock up...



Tonight I should be able to make more progress on gluing up the flatpacks. Java's video was a huge help as an assembly guide.

The plan is to add a third as soon as these two are built, and then add a pair of dayton 18's with flatpacks, and then most likely the alchemy's as surrounds.

The speakon connectors are on their way (thanks Gorilla83 for the part number help), and the duratex will be ordered today.
nater1 is offline
Sponsored Links
Advertisement

post #2 of 53 Old 01-30-2013, 05:58 AM
AVS Special Member

Sibuna's Avatar

Join Date: Apr 2010
Location: Western NY
Posts: 1,967
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 276
sweet more SEOS builds. I thought of going with the zephs but decide don the tempests. You are doing a very similar thing to what i am. except im using the fusion 10s as surrounds.
Cant wait to see how these measure


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sibuna is offline
post #3 of 53 Old 01-30-2013, 06:15 AM
AVS Special Member

Gorilla83's Avatar

Join Date: Aug 2011
Location: Delaware County, PA
Posts: 3,501
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked: 375
You should get some really great extension with these. Can't wait to hear your impressions.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Gorilla83 is online now
post #4 of 53 Old 01-30-2013, 06:15 AM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,697
Mentioned: 5 Post(s)
Tagged: 1 Thread(s)
Quoted: 319 Post(s)
Liked: 542
It's amazing how many people are building these saying they would have never gone DIY if it weren't for these kits. Awesome.

Good luck on the build. I think you're gonna be pleased.
tuxedocivic is online now
post #5 of 53 Old 01-30-2013, 06:48 AM
Member

MrSmithers's Avatar

Join Date: Jan 2012
Posts: 143
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 13
Looking good! Very much looking forward to hearing your impressions. Do you have any measuring gear?
MrSmithers is online now
post #6 of 53 Old 01-30-2013, 08:28 AM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Quote:
Originally Posted by MrSmithers View Post

Looking good! Very much looking forward to hearing your impressions. Do you have any measuring gear?

I do not, I have been looking at an omnimic package, but I also have a friend with one here in town, so I could always attempt to borrow his. If I end up going all out as I plan to do with multiple subs, etc, I will have to get some measurement gear to get the most out of all of it.
nater1 is offline
post #7 of 53 Old 01-30-2013, 01:30 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
if anyone is on the fence about using Erich's flat packs, get them! It is clear a lot of thought went into the design, and they go together so easily

nater1 is offline
post #8 of 53 Old 01-30-2013, 02:13 PM
AVS Special Member

ChopShop1's Avatar

Join Date: Apr 2010
Location: CT
Posts: 1,917
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked: 168
Quote:
Originally Posted by tuxedocivic View Post

It's amazing how many people are building these saying they would have never gone DIY if it weren't for these kits. Awesome.

Good luck on the build. I think you're gonna be pleased.

Agreed, I think its absolutely awesome how they have given so many folks the ability to feel some pride in building(assembeling really) our own stuff, as well as experience a level of eprformance not attainable otherwise within our budgets.

Very interested in you rimpressions of the zephyr when complete. Good luck


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
ChopShop1 is online now
post #9 of 53 Old 01-31-2013, 06:58 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
No pictures as I am still at work, however each enclosure has one side glued on, and I will be adding the front baffle's tomorrow morning before I head to work. At this rate, I believe I can finish the two enclosures in about 3 days (it could be done quicker, but I have limited clamps, and limited time with my work schedule). Either way, it is significantly faster than I could have ever done without the flatpacks.

One question, I am torn between Jeff B's Alchemy for surrounds, or one of the 10" kits. Any thoughts if I have the room for either? Part of me thinks the alchemy's may match the zephyrs a bit more since they are from the same designer, however there are clear advantages (efficiency , bass extension) with the larger 10" models.
nater1 is offline
post #10 of 53 Old 02-01-2013, 05:33 AM
AVS Special Member

Martycool007's Avatar

Join Date: Jun 2011
Posts: 3,570
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 202 Post(s)
Liked: 154
I would go with one of the Seos 10" flat packs. What is that thing in the last post up? That looks like a complicated mess or a DIY virgins nightmare! Do the Seos flat pack kits come with all of the very extensive bracing? I was considering building the boxes on my own with out the use of a flat pack, but if the flat packs actually contain all of that extensive bracing, I may have to reconsider.
Martycool007 is offline
post #11 of 53 Old 02-01-2013, 05:39 AM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
The included bracing is awesome, and there is a double front baffle that gives you a 1.5" thick front.

nater1 is offline
post #12 of 53 Old 02-01-2013, 05:42 AM
AVS Special Member

Sibuna's Avatar

Join Date: Apr 2010
Location: Western NY
Posts: 1,967
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 276
as I’m also building 2 of the same flatpacks, the bracing is great, goes in easy and will be super strong when finished. the larger boxes 2 CUFT that the zephyr and tempest use are a little more tricky because of their size, but its still pretty easy to put together. and Erich is not kidding when he said you could glue and use tape to hold them together while they dried


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sibuna is offline
post #13 of 53 Old 02-04-2013, 11:57 AM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
The enclosures are all but done being glued up. now to sand, fill, sand, and paint...

nater1 is offline
post #14 of 53 Old 02-11-2013, 07:51 AM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
The duratex is scheduled to arrive today, so I spent some time prepping the enclosures for paint yesterday. One is ready to go, the other needs the final coat of fillter sanded IMAG0103_zps06759705.jpg
nater1 is offline
post #15 of 53 Old 02-11-2013, 09:17 AM
AVS Special Member

bhazard's Avatar

Join Date: Nov 2006
Location: NY
Posts: 2,413
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 36
Looking good. I'm thinking of Zephyrs for surrounds. Looking forward to hearing impressions.
bhazard is offline
post #16 of 53 Old 02-12-2013, 07:46 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Does anyone have any tips for Duratex painting if I am looking for minimal texture. From what I have read, I will want to use a wide, smooth foam roller with thinner coats, perhaps lightly sanding between coats? Orange peel is what I am looking for...
nater1 is offline
post #17 of 53 Old 02-12-2013, 07:59 PM
AVS Special Member

bass addict's Avatar

Join Date: Dec 2003
Location: A padded room
Posts: 3,815
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked: 222
I had good luck with a foam roller, loading roller via paint tray. I actually used quite a bit of pressure when rolling it on as it seems to produce less texture. The lighter I rolled the more visible the texture was. Sanding between coats would help if required.

Thinning the mixture a bit with water would probably help a bit as well.

Achievement Unlocked

Psychotic Episode Averted

bass addict is online now
post #18 of 53 Old 02-14-2013, 05:48 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Securing the driver to the enclosure, are people using the supplied wood screws? Should I use T Nuts? Thoughts? MDF scares me (in its ability to hold threads tightly over time), but if everyone says it is ok, i will go for it!
nater1 is offline
post #19 of 53 Old 02-14-2013, 05:51 PM
AVS Special Member

Sibuna's Avatar

Join Date: Apr 2010
Location: Western NY
Posts: 1,967
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 276
i just screwed mine in with the provided screws.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sibuna is offline
post #20 of 53 Old 02-14-2013, 09:24 PM
AVS Special Member

brian6751's Avatar

Join Date: Mar 2006
Location: Canton, MI
Posts: 3,357
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked: 112
These as surrounds?! Hahaha. What are we becoming? DIY is turning into Do Your Own Overkill!!

Xbox One Gamertag = The Barbeerian

PS4 PSNID = The-Barbeerian
brian6751 is online now
post #21 of 53 Old 02-14-2013, 09:30 PM
AVS Special Member

bhazard's Avatar

Join Date: Nov 2006
Location: NY
Posts: 2,413
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 36
Quote:
Originally Posted by brian6751 View Post

These as surrounds?! Hahaha. What are we becoming? DIY is turning into Do Your Own Overkill!!

Well, they have to keep up with SEOS full range towers getting ~200watts each. Why not overdo it with full range surrounds too? lol
bhazard is offline
post #22 of 53 Old 02-14-2013, 09:50 PM
AVS Special Member

bass addict's Avatar

Join Date: Dec 2003
Location: A padded room
Posts: 3,815
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked: 222
Quote:
Originally Posted by nater1 View Post

k.

I live in a small apartment

OK, someone has to say it. Your neighbors are going to hate you. biggrin.gif

Achievement Unlocked

Psychotic Episode Averted

bass addict is online now
post #23 of 53 Old 02-15-2013, 05:24 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Quote:
Originally Posted by bass addict View Post

OK, someone has to say it. Your neighbors are going to hate you. biggrin.gif

Yes, yes they will, especially as I am about to pull the trigger on a third Zephyr (for the center), as well as 2x 4 cubic foot enclosures for some dayton 18's! I am lucky in that I work 2nd shift, so that most of my neighbors are gone during the day when I am up and watching movies. That alone may save me from eviction.
nater1 is offline
post #24 of 53 Old 03-03-2013, 12:14 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16

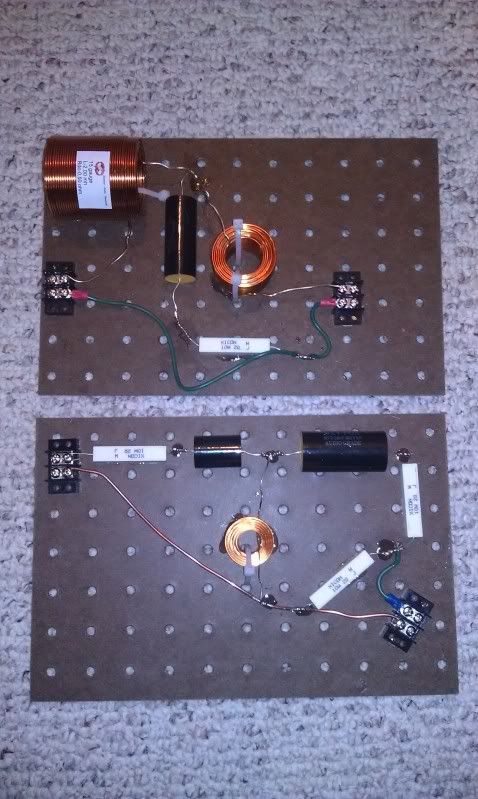

Anyone see any issues with these?
nater1 is offline
post #25 of 53 Old 03-03-2013, 05:17 PM
Advanced Member

hometheaterdoc's Avatar

Join Date: Feb 2004
Location: Durham, North Carolina
Posts: 515
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 29
Looks correct to me....

Only possible suggestion.... if you have that much room on the pegboard and it fits in your boxes, stretch the inductors as far apart as you can..... you could stretch the smaller inductor on the bass circuit to the top right corner as an example... and pivot the big inductor on the left 90 degrees.... Not a big deal... but if you've got the space, might as well use it.

Looks like you'll be making noise soon...

Shane
hometheaterdoc is offline
post #26 of 53 Old 03-03-2013, 06:52 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16
Just finished these. They are game changing good. I'm off to go listen more, but I will write more tomorrow
nater1 is offline
post #27 of 53 Old 03-03-2013, 07:00 PM
AVS Special Member

bhazard's Avatar

Join Date: Nov 2006
Location: NY
Posts: 2,413
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 36
Quote:
Originally Posted by nater1 View Post

Just finished these. They are game changing good. I'm off to go listen more, but I will write more tomorrow

Awesome
bhazard is offline
post #28 of 53 Old 03-03-2013, 07:55 PM
AVS Special Member

bass addict's Avatar

Join Date: Dec 2003
Location: A padded room
Posts: 3,815
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked: 222
What the heck. Don't you know the rules?

You must post pics within 30 minutes of a claim regarding a finished build.

Ban Him!!!!!!!!!!!!!!!!!!!!!!!!!





Rebel975 likes this.

Achievement Unlocked

Psychotic Episode Averted

bass addict is online now
post #29 of 53 Old 03-03-2013, 08:03 PM - Thread Starter
Member

nater1's Avatar

Join Date: Dec 2012
Posts: 106
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 16

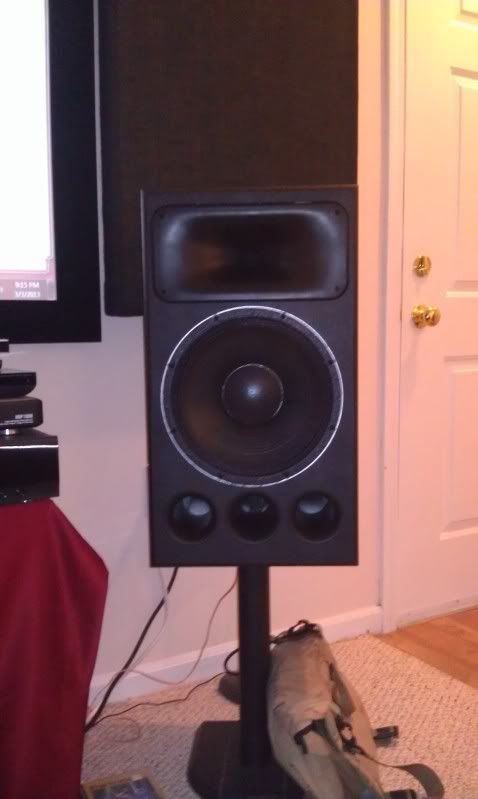

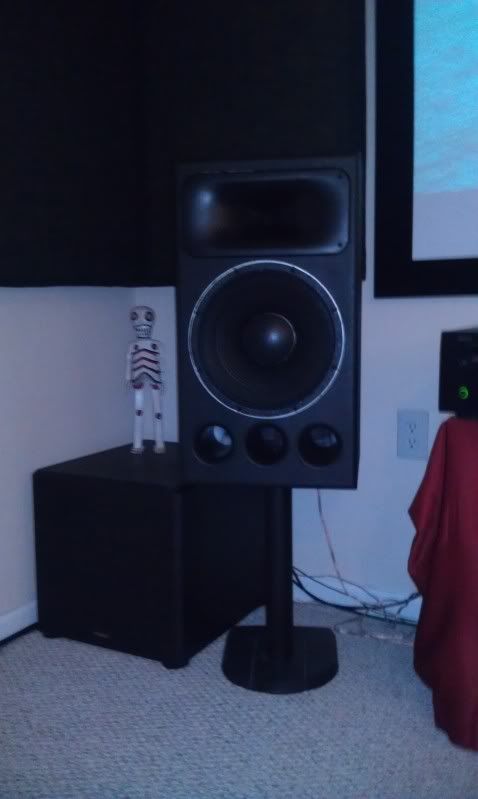

Terrible pics, but hey, I'm busy listening wink.gifIMAG0137_zps66471c6a.jpgIMAG0134_zps027ec441.jpg

You know how everyone says that the volume is deceving on these? For the first time in two years the lady upstairs pounded on the floor for me to be quiet... The low end is no joke on these things, I am running them full range, and they are making my 12" paradigm sub look bad.
nater1 is offline
post #30 of 53 Old 03-03-2013, 08:24 PM
AVS Special Member

Sibuna's Avatar

Join Date: Apr 2010
Location: Western NY
Posts: 1,967
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Liked: 276
awesome
im curious how those measure and how much lower they play vs the Tempests


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sibuna is offline
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
