OK, so I ran through some of my movies last night and I noticed some extra low end but the levels seemed lower or equal to than what I had before overall. So I started to investigate and remembered what LTD told me a while ago. My sub system is massive and my room is not that big in comparison so if I add a port which side of the wall will be the enclosure? The IB shoots in both directions and I figured out why my measurements are just like my sealed. It is because my tune did not come out to be 7-8hz like I wanted, it came out to be 3.5hz! This seems awesome BUT my signal chain rolls off starting at 5hz so it ends up being just like the sealed in spl. I started modeling the ported IB with 1460 cubes as the enclosure size. So for me to have a 6.5 hz tune I need to cut the ports down to 1 inch! I knew something was wrong. So I have to cut the ports to 1 inch, 1 INCH! A one inch port will give me 32 SI's at 5hz, 96 SI's at 6hz, and 28 SI's at 10hz. Back to work again. Anyways, if I had a signal chain strong to 3hz this thing would be a monster down low.
MKtheater is offline
Sponsored Links
Advertisement

post #1052 of 1115 Old 08-04-2014, 11:20 AM
AVS Special Member

Pain Infliction's Avatar

Join Date: Jun 2010
Location: Houston Texas
Posts: 3,220
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 419 Post(s)
Liked: 247
So what exactly are you going to do? Get rid of the 12" ports for 1" ports?
Pain Infliction is online now
post #1053 of 1115 Old 08-04-2014, 11:24 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
Not 1 inch round, 1 inch long 12 inch round ports. I already modeled and what I need is to cut my existing 24 inch ports in half and then have 4 12 inch round, 12 inch long ports and this gets me a 6.5 hz tune with hardly any port velocity. Better than what I have now except there is hardly any signal where the ports are so I would never know!
MKtheater is offline
post #1054 of 1115 Old 08-04-2014, 11:31 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,661
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1114 Post(s)
Liked: 1154
Quote:
Originally Posted by MKtheater View Post
OK, so I ran through some of my movies last night and I noticed some extra low end but the levels seemed lower or equal to than what I had before overall. So I started to investigate and remembered what LTD told me a while ago. My sub system is massive and my room is not that big in comparison so if I add a port which side of the wall will be the enclosure? The IB shoots in both directions and I figured out why my measurements are just like my sealed. It is because my tune did not come out to be 7-8hz like I wanted, it came out to be 3.5hz! This seems awesome BUT my signal chain rolls off starting at 5hz so it ends up being just like the sealed in spl. I started modeling the ported IB with 1460 cubes as the enclosure size. So for me to have a 6.5 hz tune I need to cut the ports down to 1 inch! I knew something was wrong. So I have to cut the ports to 1 inch, 1 INCH! A one inch port will give me 32 SI's at 5hz, 96 SI's at 6hz, and 28 SI's at 10hz. Back to work again. Anyways, if I had a signal chain strong to 3hz this thing would be a monster down low.

Lol yeah, James. You don't want it tuned that low. All you'll get is a sealed-like response but with all the nasties a resonant system will introduce. In otherwords, a downgrade from what you had.

So a simple chop of them tubes and you'll be in SPL land.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #1055 of 1115 Old 08-04-2014, 11:34 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
Yup, I am making 4 12 inch by 12 inch ports and it will be a monster I expect.
MKtheater is offline
post #1056 of 1115 Old 08-04-2014, 11:47 AM
AVS Special Member

Reddig's Avatar

Join Date: Jun 2009
Location: Hays, KS
Posts: 1,689
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked: 181
96 SI's at 6 hz...

JBL Pro Cinema
Reddig is online now
post #1057 of 1115 Old 08-08-2014, 10:12 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
I just ordered 4 SI 18HT's to go into the rear boxes, should add 16 SI's at 10hz! For about $100 more it should add 2 dBs from my single IB318. Anyways, it will give me a chance to hear the SI's for the first time.


BTW, I am taking out the ports and just leaving the opening without the ports. If the sims are correct this will give me either a 6.88hz tune or 14hz tune, I will experiment and get this right. The rear subs will be double 18's tuned to 11hz.
MKtheater is offline
post #1058 of 1115 Old 08-08-2014, 11:33 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,661
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1114 Post(s)
Liked: 1154
Aawwwwww s**t!!!!

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #1059 of 1115 Old 08-08-2014, 04:58 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 7,040
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1558 Post(s)
Liked: 1312
Quote:
Originally Posted by Scott Simonian View Post
Aawwwwww s**t!!!! my pants

LOL....


haha Sorry Scott I had too....lol
jbrown15 is offline
post #1060 of 1115 Old 08-08-2014, 05:22 PM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,661
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1114 Post(s)
Liked: 1154
Hahaha! I set myself up for that one.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #1061 of 1115 Old 08-08-2014, 05:25 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 7,040
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1558 Post(s)
Liked: 1312
haha I was almost in tears laughing when I posted that, my wife was looking at me like I'm an idiot!..lol


I often get that look from her though.
jbrown15 is offline
post #1062 of 1115 Old 08-08-2014, 06:29 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
Women are universal!

The sims are showing 112 dBs at 10hz for each sub so I will have 118 dBs from them and 123 dBs from the front wall, then add in my 22 dBs of room gain at 10hz and I should be OK for a while.
MKtheater is offline
post #1063 of 1115 Old 08-12-2014, 09:45 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
I don't know what is going on but I need advise!

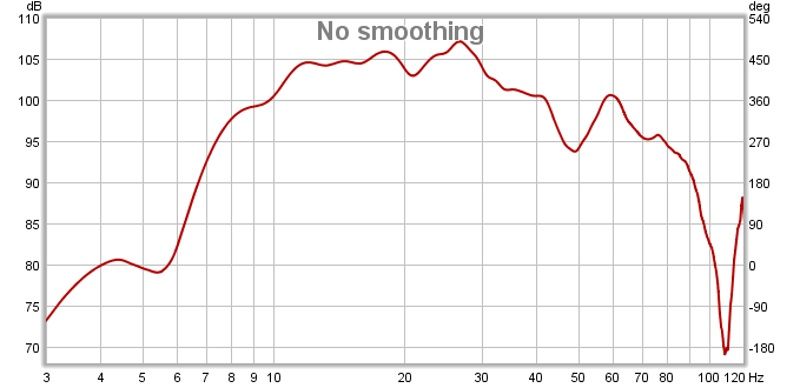

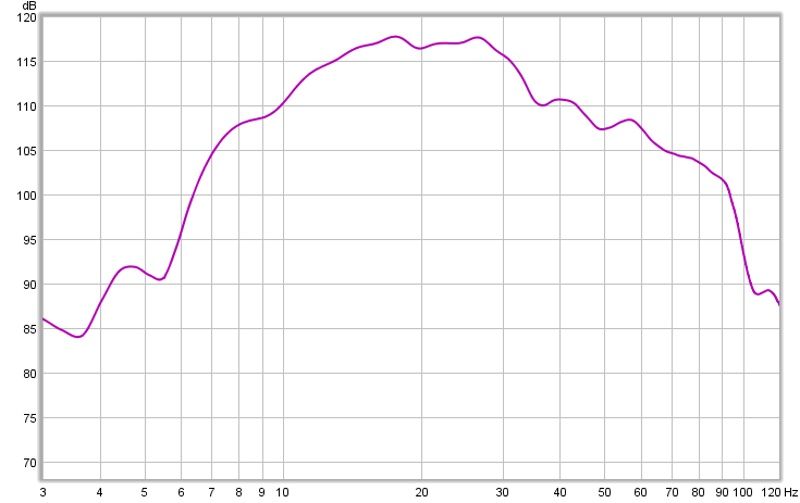

Here are the raw sealed and then ported responses. WTF.


Sealed





Ported





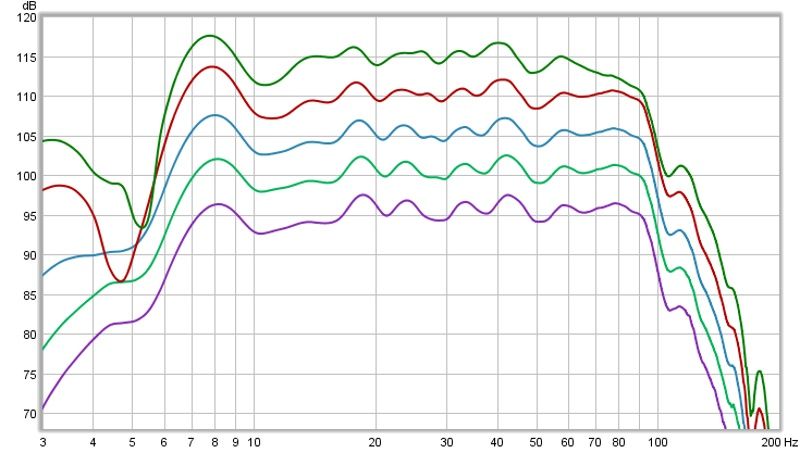

I EQ'd the ported response to 7hz and the bottom sweep is the result, I then turned it up.





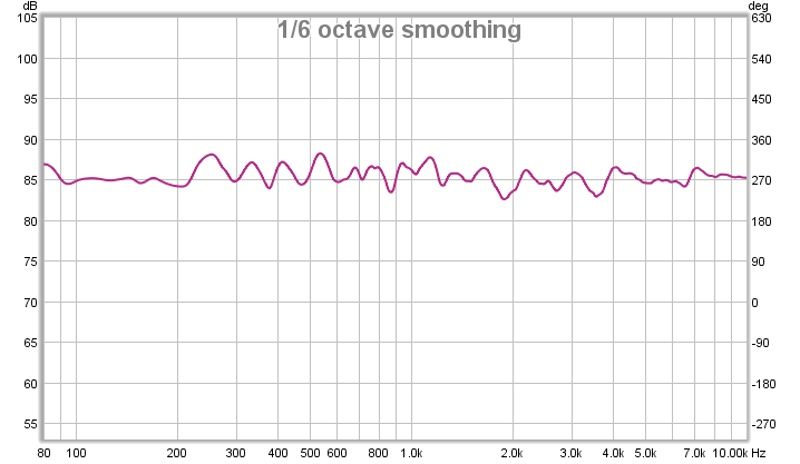

The Nano AVR has a new bass management dsp and REW now added the nanoAVR to the EQ portion and here is my center channel at 20 dB below reference.


MKtheater is offline
post #1064 of 1115 Old 08-12-2014, 01:57 PM
Say No to Auto EQ

beastaudio's Avatar

Join Date: Dec 2010
Location: Western NC
Posts: 8,372
Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1085 Post(s)
Liked: 1033
How many boosts or cuts are you putting on the ported method?

(European models do not accept banana plugs.)



"If you done it, it ain't bragging." ~ Walt Whitman



AE TD12x SEOS12 Build

Beast's DIY Master Measurement Thread

DIY Emminence Coaxial Surround Thread

beastaudio is online now
post #1065 of 1115 Old 08-12-2014, 02:43 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
All cuts but the NanoAVR does it all, 9 filters in all.
MKtheater is offline
post #1066 of 1115 Old 08-12-2014, 02:52 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
BTW, I tried running some scenes with that response(EQ'd) and the bass is back big time! The 24 inch long ports were choking the system in comparison with the same response. The bass is massive again. I am running two 12 inch holes in the 1.5 inch thick plywood. I am still confused.
MKtheater is offline
post #1067 of 1115 Old 08-12-2014, 03:32 PM
Okv
Member

Okv's Avatar

Join Date: Jul 2010
Location: Aalesund, Norway
Posts: 197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked: 43
To compare sealed and ported frequency response you could measure first ported, assuming that's what you have now, and then measure sealed, with exactly same mic pos and eq and level, to get comparable measurements.

To make it sealed you just stuff the ports, use towels or something like that, foam will not do as it will leak lf.
Okv is offline
post #1068 of 1115 Old 08-12-2014, 03:34 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
I will do that tonight and check.
MKtheater is offline
post #1069 of 1115 Old 08-12-2014, 03:35 PM
Okv
Member

Okv's Avatar

Join Date: Jul 2010
Location: Aalesund, Norway
Posts: 197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked: 43
Looks like you will need quite large towels..
Okv is offline
post #1070 of 1115 Old 08-12-2014, 03:35 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
Maybe I am leaking LF from the get go? Maybe my mains are leaky and causing the wall to be ported all along? I insulated all around the mains though.
MKtheater is offline
post #1071 of 1115 Old 08-12-2014, 03:37 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
I will just screw in some ply to cover the holes.
MKtheater is offline
post #1072 of 1115 Old 08-12-2014, 03:42 PM
Okv
Member

Okv's Avatar

Join Date: Jul 2010
Location: Aalesund, Norway
Posts: 197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked: 43
That is actually a very good possibility, the chamber needs to be perfectly sealed - part from the ports - or else it will not work as predicted.
A way to measure that could be to measure the port near-field, i.e. mic in the port, to see where the tuning is.
It should not be too far from what (I assume) you have simulated, you can also see this by measuring the drivers near-field, the response will have a noticeable dip at the tuning.
Okv is offline
post #1073 of 1115 Old 08-12-2014, 03:49 PM
Okv
Member

Okv's Avatar

Join Date: Jul 2010
Location: Aalesund, Norway
Posts: 197
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Liked: 43
Quote:
Originally Posted by MKtheater View Post
... I insulated all around the mains though.
If there is a large gap just filled with insulation this could act like a damped port.

If you seal the (intended) ports, you can measure the drivers near-field to see if they have a tendency to dip down at some frequency, which would indicate that the chamber is not behaving like a completely sealed enclosure.
This may be hard to verify reliably, because the damping (insulation?) will reduce the ported effect, and there are also problems with measurement accuracy at these very low frequencies.

Ideally, when sealed, you should measure a smooth roll-off near-field.
Okv is offline
post #1074 of 1115 Old 08-12-2014, 04:20 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544

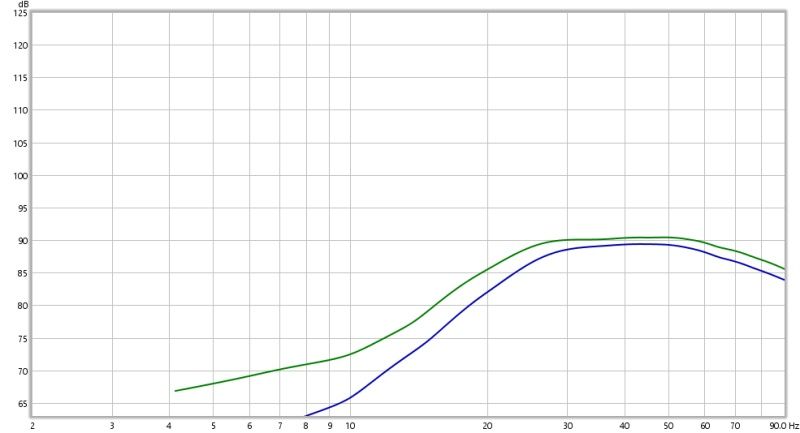

Here are some old attempts.


Quote:Originally Posted by exojam

MK,

When you do the close mic with the bassis engaged I would have everything set to zero.


What do you mean? On the Bassis?

I think what is happening is that the mic is not tracking the low end boost correctly under 10hz. Here is why. This is close mic vs Bassis. I used an Fs 38 Hz and a Qs of .3 since that is the response is matches. No boost and Qb set to .7

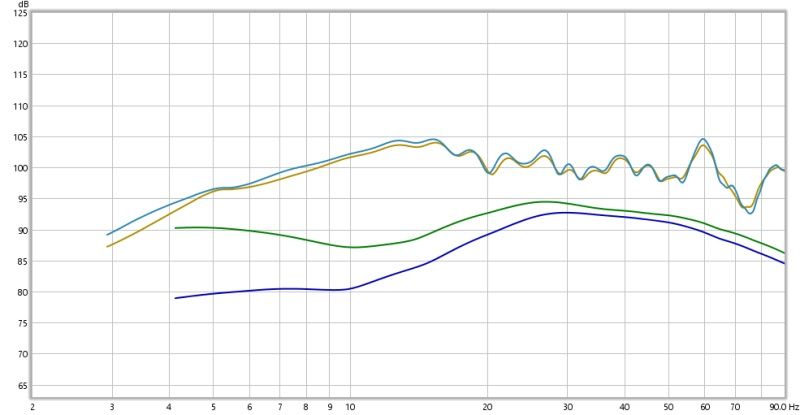

Now here they are compared to LP with nothing changed except added cal files(my cal files look just like C-weighting). The volume was not touched. According to the close mics I am gaining 3 dBs at 20hz, 6 dBs at 10hz, and 12 dBs at 4hz. The LP is not showing that and I bet I am feeling that! I will try another computer tomorrow and also compare the behringer to the RS meter. They are closer than you think.



Finally running graphs with the same volume.

Also EQ off on the sony.

How does one loopback using HDMI since it is the only connection to the AVR? I will do it.
MKtheater is offline
post #1075 of 1115 Old 08-13-2014, 12:49 PM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
My 4 SI 18's came in today waiting for me Friday when I get back.
MKtheater is offline
post #1076 of 1115 Old 08-22-2014, 10:12 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
I have decided to sell my IB3-18's, the enclosure is just too small for them.
MKtheater is offline
post #1077 of 1115 Old 08-22-2014, 10:32 AM
Bass Enabler

Scott Simonian's Avatar

Join Date: Oct 2001
Location: Clovis, CA
Posts: 14,661
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1114 Post(s)
Liked: 1154
Wait, what?!

Do you mean all the drivers up front? IIRC those were all IB18's and then you just got the SI's. Am I correct?

Are you finding that your new resonant IB system is undersized now?

Will need drivers with a lower Qts/Qes if you want to keep the volume of the area behind your screen and have it be a resonant alignment. Easy fix fortunately but unfortunately it will cost ya.

My Dual 18" LLT subs 120dB down to 10hz



Plan9Reloaded Co-host

Listen to the Plan9Reloaded Gaming and Technology Podcast (may contain NSFW language)

https://soundcloud.com/plan9reloaded/sets/podcast - direct pod link

http://plan9reloaded.com/site/ - main website

Scott Simonian is offline
post #1078 of 1115 Old 08-22-2014, 10:51 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
The IB3's need more than twice the volume I am giving them. Ricci tested the RE XXX in a box too small and he still had great output, but, the small enclosure made them very in efficient down low which caused much more power to be used which resulted in too much distortion. This is the only reason the LMS 5400 had more spl down low. Give the RE XXX the proper box and it will shine, same for my drivers, they are awesome, but I have to drive them with too much power which gets me more spl but raises the THD too much. My response is showing they are being choked down low but because I don't use all their potential I can get away with it. I want to feel a proper low end. My front wall enclosure is 178 cubes, I thought it was closer to 300 cubes! I need something that fits 8 drivers nicely into this wall!


I have not opened the SI's yet. Even the boxes back there are too small for a proper ported to 11hz system, 4 sealed drivers in each box would work perfectly. I am not sure what I am doing yet.
MKtheater is offline
post #1079 of 1115 Old 08-22-2014, 11:03 AM
AVS Special Member

Reddig's Avatar

Join Date: Jun 2009
Location: Hays, KS
Posts: 1,689
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked: 181
Multiple SI 24"s????

JBL Pro Cinema
Reddig is online now
post #1080 of 1115 Old 08-22-2014, 11:17 AM - Thread Starter
AVS Addicted Member

MKtheater's Avatar

Join Date: Jul 2006
Location: New Hartford, NY
Posts: 14,903
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked: 544
It would be nice to have 18's fit into the same locations. I am not sure if 24's would fit within my studs.
MKtheater is offline
Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
