1st. This will be slow…will be back at work Monday from knee surgery and need mother nature to calm the f..k down a little for me to get some work done. mad.gif

As usual..Erich packaging is overkill/impeccable.
Everything is super well packed and all pieces are intact.



Received the 4 boxes (2 towers and 1 center kit) yesterday and went to pick them up in the USA, paid $185.00 duty taxes !!! and drove back home (30 minutes away)
Today opened up the boxes so I can start putting the crossover together and have 2 probelms.
1. I received 17 ports so 1 is missing.
2. Opened all 3 crossover parts boxes and no instructions eek.gif
Are there any instructions that come with these kits?

The plan was to start building the crossovers today but can't. frown.gif

Erich, can you please send me the instructions on how to mount the Crossovers?
Thanks


Some pictures in the meanwhile




I've been waiting for these to be available ever since I first saw them and am really looking forward to hear them...
dtsdig and Rebel975 like this.
Fatshaft is offline
Sponsored Links
Advertisement

post #2 of 616 Old 02-22-2014, 11:57 AM
d_c
Advanced Member

d_c's Avatar

Join Date: Feb 2010
Location: KCMO
Posts: 568
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked: 55
I bet TUX has a schematic he would send to you.
Rebel975 likes this.
d_c is offline
post #3 of 616 Old 02-22-2014, 12:04 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 3,761
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked: 711
C'mon fat , you were dying to get them and now your building slow eek.giftongue.gif
Rebel975 likes this.
chalugadp is offline
post #4 of 616 Old 02-22-2014, 12:04 PM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,147
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 429
I only have his hand drawn schematic and was going to see if someone could draw it out on the computer. I'll send you the hand drawn one in the mean time. Not sure how one port was missing, can't recall making such a dumb mistake before. Usually when there's a part missing....it's to someone in another country. rolleyes.gif
Rebel975 likes this.
Erich H is online now
post #5 of 616 Old 02-22-2014, 12:12 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Quote:
Originally Posted by chalugadp View Post

C'mon fat , you were dying to get them and now your building slow eek.giftongue.gif

Ya no kidding!!! I'm thinking I should quit my job to get these done...can't wait to retire!!!
Wish I had received them a week ago...I would've had all week! cool.gif
Quote:
Originally Posted by Erich H View Post

I only have his hand drawn schematic and was going to see if someone could draw it out on the computer. I'll send you the hand drawn one in the mean time. Not sure how one port was missing, can't recall making such a dumb mistake before. Usually when there's a part missing....it's to someone in another country. rolleyes.gif

Anything you have right now I'll take...I'd really like to spent some time today and tomorrow getting the xovers done.
Regarding the missing port...My wife and I went through the boxes 2 times to make sure we didn't miss it...I'm so sorry Erich.
Rebel975 likes this.
Fatshaft is offline
post #6 of 616 Old 02-22-2014, 12:17 PM
AVS Special Member

BassThatHz's Avatar

Join Date: Apr 2008
Location: East side of NW Cascades
Posts: 2,601
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked: 304
You should have some treble now.
Rebel975 likes this.
BassThatHz is offline
post #7 of 616 Old 02-22-2014, 12:18 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Quote:
Originally Posted by BassThatHz View Post

You should have some treble now.

LOL...you have no idea how funny that is biggrin.gifbiggrin.gifbiggrin.gif

But...I already had...thanks
Rebel975 likes this.
Fatshaft is offline
post #8 of 616 Old 02-22-2014, 12:50 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Working on my cut sheet per cab...
Do these measurements make sense?

2x 12.5"x36.25" Front/Back
2x 13"x36.25" Sides
2x 13"x11" Top/Bottom
2x 13"x11" inside Braces

Tux...is this enough volume for the W's? Should I add more to the depth?
Inside volume would be 13x11.5x11 or 0.95cuft without the woofer.
Rebel975 likes this.
Fatshaft is offline
post #9 of 616 Old 02-22-2014, 01:10 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked: 424
Those dimensions look good to me. And the volume is good to. I'm working on a photo tutorial. I'll step up my game. Sorry I've been just a busy mess lately. I've bit off more than I can chew with some projects (non-speaker).
Rebel975 likes this.
tuxedocivic is online now
post #10 of 616 Old 02-22-2014, 01:24 PM
Advanced Member

saabracer23's Avatar

Join Date: Feb 2008
Location: Salem, Oregon
Posts: 548
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Liked: 28
Why was this model removed from the diysoundgroup website, I can't find it.

Dan
Rebel975 likes this.
saabracer23 is offline
post #11 of 616 Old 02-22-2014, 01:26 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 3,761
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked: 711
Quote:
Originally Posted by saabracer23 View Post

Why was this model removed from the diysoundgroup website, I can't find it.

Dan

Price was too low with shipping I believe . It will be back up
Rebel975 likes this.
chalugadp is offline
post #12 of 616 Old 02-22-2014, 01:33 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Erich, Thanks for sending the xover drawing...unfortunately it is overwhelming for me.
If someone can help decrypt it for me, I'd appreciate it.
My brain is just not good enough.

I don't even know where you would put the inputs at.
I would think all the negatives can go together but where would you put the positive input at?
Rebel975 likes this.
Fatshaft is offline
post #13 of 616 Old 02-22-2014, 01:35 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 3,761
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked: 711
This is why I'm letting you be the Guinea pig. I'm waiting for assembled xover.
Rebel975 likes this.
chalugadp is offline
post #14 of 616 Old 02-22-2014, 01:40 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Quote:
Originally Posted by chalugadp View Post

This is why I'm letting you be the Guinea pig. I'm waiting for assembled xover.

Rebel975 likes this.
Fatshaft is offline
post #15 of 616 Old 02-22-2014, 02:03 PM
Advanced Member

wvu80's Avatar

Join Date: Mar 2013
Location: West Virginia
Posts: 503
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked: 98
I feel your pain, Mr. Shaft. It was helpful in my Fusion 10 build to have the Parts Express part numbers right beside the technical symbols. I also had the benefit of a Youtube video which showed how things connected.

My understanding was that part of the "joy" of DIY was figuring out what went where, and each individual could could assemble their own wires, XO board, terminal ends, and wiring that best met their needs. I would have been TEN TIMES ahead in terms of anxiety and parts I needed to find around my town that I could use to complete the XO, if ALL the needed parts would have been included with the kit.

For instance, I used Barrier Terminal Strips which sell at PE for about a buck. I had to buy mine at the local Lowes, and they were $6 each! When I went to buy them, I wasn't even smart enough to know what they were called, and it took a lot of my time to go out to the store to get them. I also had to buy wire, I didn't know what kind to get, solid vs stranded, size, etc etc. It was very frustrating not to have even the first idea of what to buy.

I know DIY is all about keeping costs low, and maybe someone else would have just soldered everything together, but I would have preferred if ALL the needed components were included in a kit, along with A-B-C 1-2-3 written instructions, not just schematics. That way, my first XO might not have come out looking like THIS: eek.gif
Rebel975 likes this.

Symmetry pleases the eye, but it usually offends the ears where low frequencies are concerned. -Yoda Fitzmaurice
wvu80 is offline
post #16 of 616 Old 02-22-2014, 02:07 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked: 424
I have some detailed pics. I just haven't annotated them. Hang on.
tuxedocivic is online now
post #17 of 616 Old 02-22-2014, 02:11 PM
Advanced Member

Anthony_Gomez's Avatar

Join Date: Apr 2002
Location: On the coast
Posts: 705
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 152
I assume only the celestions are reverse polarity?
Anthony_Gomez is offline
post #18 of 616 Old 02-22-2014, 02:13 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked: 424
Red solid wire goes directly to the positive terminal.

Black solid wire goes directly to the negative terminal.

Gold strand speaker wire is positive and goes to positive binding post (or what ever)

Silver stranded speaker wire goes to negative binding post.

Sorry pics are sideways.

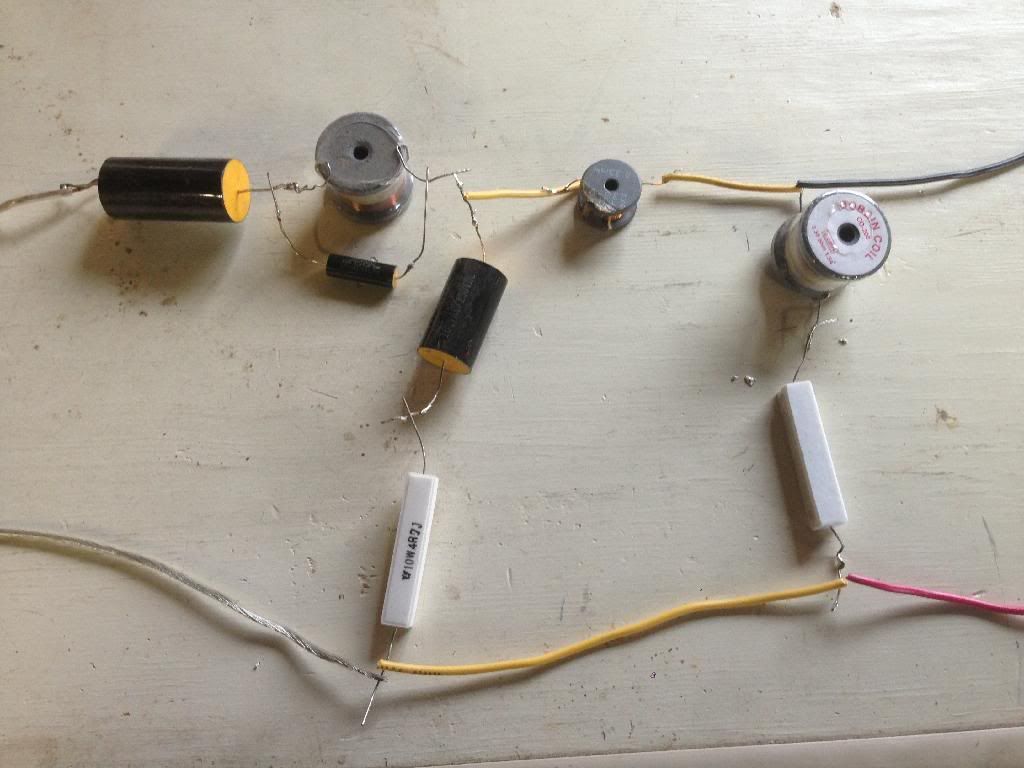

Woofer circuit.

Midrange circuit.

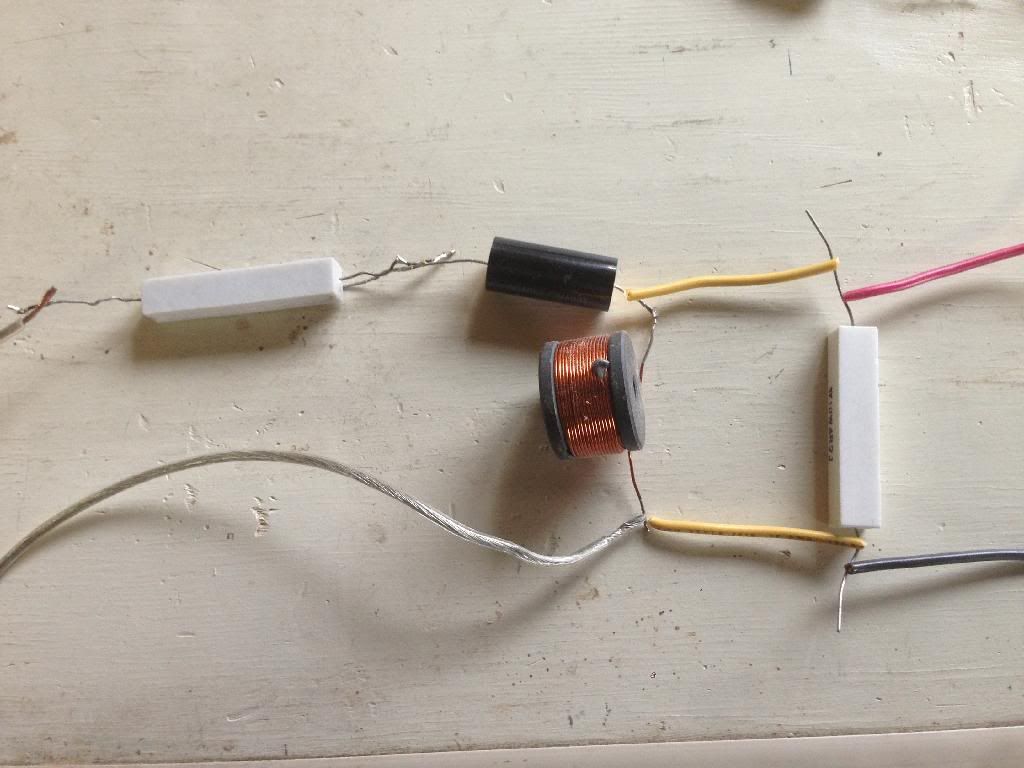

Notice the little capacitor across the inductor. Also notice the black is in the normal red place. This isn't wrong, that does go to the negative midrange terminals. Mids are paralleled together.


Tweeter


Sorry this is really as far as I've gotten. I need to annotate them.
tuxedocivic is online now
post #19 of 616 Old 02-22-2014, 02:42 PM
Advanced Member

Anthony_Gomez's Avatar

Join Date: Apr 2002
Location: On the coast
Posts: 705
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 152
This isn't laid out all pretty, but this should make the images above more clear.
The edited image below is correct. An earlier version (that only a couple people saw) had something reversed.
Fatshaft, brian6751, gpmbc and 5 others like this.
Anthony_Gomez is offline
post #20 of 616 Old 02-22-2014, 02:48 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked: 424
Anthony! That's awesome. Only thing is the woofer circuit is backwards. The wire from the binding post goes to the inductor first. Thanks a ton, I can't do that kind of stuff.

I should also note, I'm not using the same looking parts as what comes in the kit, just in case you're wondering fatshaft.
tuxedocivic is online now
post #21 of 616 Old 02-22-2014, 02:52 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 3,761
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked: 711
Quote:
Originally Posted by Anthony_Gomez View Post

This isn't laid out all pretty, but this should make the images above more clear.


Those type of drawings are really helpful . :thumbup:
wvu80 likes this.
chalugadp is offline
post #22 of 616 Old 02-22-2014, 02:54 PM
Advanced Member

Anthony_Gomez's Avatar

Join Date: Apr 2002
Location: On the coast
Posts: 705
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 152
Oops. We should be good now. ALT Tabbing + scrolling back and forth and I got things upside down :-D

These images are cake to make, so just PM me if you need help with this stuff smile.gif
Anthony_Gomez is offline
post #23 of 616 Old 02-22-2014, 02:55 PM
Advanced Member

Anthony_Gomez's Avatar

Join Date: Apr 2002
Location: On the coast
Posts: 705
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 152
Quote:
Originally Posted by chalugadp View Post

Those type of drawings are really helpful . :thumbup:


:-D NOTE! I updated the image with the right layout. I had something switched. might want to change your post so others don't get confused
Anthony_Gomez is offline
post #24 of 616 Old 02-22-2014, 02:58 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Quote:
Originally Posted by Anthony_Gomez View Post

This isn't laid out all pretty, but this should make the images above more clear.


OMG
Mr Gomez
Absolutely brilliant
Thank you so much
I'll give it a try
Major thumbs up for the help !!!!!!!!!!!!

So my quoted picture is correct?
Anthony_Gomez and Trepidati0n like this.
Fatshaft is offline
post #25 of 616 Old 02-22-2014, 03:30 PM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,147
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 429
Quote:
Originally Posted by chalugadp View Post

Price was too low with shipping I believe . It will be back up

It wasn't because of the price.

There was a slight misunderstanding between Tux and I a couple months ago. I mentioned to him that I was going to look into the possibility of setting these up with just baffles, waveguides, and CD's (like the Cheap Thrills). But wouldn't be sure until I had a chance to add it all up, package and weigh them. He must have thought they were going to be a bare bones kit, so the schematic and parts list were sent around. Of course there was no harm intended, just a misunderstanding. I added everything up and thought it was doable as a kit and purchased just the crossover parts and Celestions for over 30 speakers. I didn't know he had sent out the parts list until after that.

Once listed, I got hit with a lot of emails from people saying they already had the woofers, could I change the price. Or they already had the crossover parts, could I subtract those off. Or they had half the crossover parts from a previous build, didn't need the screws that I add in for $1, could I subtract off these 2 inductors, but leave on those 3 capacitors because they were out of stock at PE.

So I took them down until I can figure out what to do. Plus, there were a good number of Delta 10B woofers in stock about 3 weeks before the kit was ready to go, so I held off on ordering those. The kits went on the site, I ordered the woofers......PE only had 8 left because I guess there was a run on them the previous couple weeks with people buying 6 at a time. rolleyes.gif

It's nearly impossible to track 'custom' kits because I would completely have to refigure the pricing for each one, then package the kit with some parts removed, weigh the boxes, calculate shipping, contact them, wait.....then have them say it was too high because they thought the page says it's free shipping. It's frustrating to do that only to hear "Well, I think I'll pass because that's only $60 less than the whole kit." After about 15 emails last week asking for different things to be subtracted off different kits and then have 2 people in a row cancel after packaging, I had to take some kits down.


Long story short: I'm not sure how to set this kit up right now, or what to do with the parts I currently have.
Rebel975 and wvu80 like this.
Erich H is online now
post #26 of 616 Old 02-22-2014, 03:36 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 3,761
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked: 711
If I was to guess, several people like me are waiting to hear a few people build them before ordering. I say do whatever is easiest for you. 50 emails a day is like my school job eek.gif Wouldn't want that for my hobby:cool:
chalugadp is offline
post #27 of 616 Old 02-22-2014, 03:49 PM
Advanced Member

Anthony_Gomez's Avatar

Join Date: Apr 2002
Location: On the coast
Posts: 705
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked: 152
Quote:
Originally Posted by Erich H View Post

It wasn't because of the price.

.....

Long story short: I'm not sure how to set this kit up right now, or what to do with the parts I currently have.


If I were you, I'd just offer two options
1) Complete kit (as you were planning on doing)
2) bare bones kit (CD/waveguide/baffle) to accommodate those that jumped the gun and pre-ordered parts at PE.

If you just want to do bare bones, then sell #1 till you are out of stock. If you just want to sell complete kits, offer #2 for those who contact you early (now) and once that is resolved, close that hole.

If people are missing a part here or there, they can order it from PE. This should cover most everyone. The only way to make everyone happy is to make you go insane or lose money trying to make up for things. You are already doing us a service, don't make it a nightmare on yourself smile.gif
Anthony_Gomez is offline
post #28 of 616 Old 02-22-2014, 03:53 PM - Thread Starter
AVS Special Member

Fatshaft's Avatar

Join Date: Feb 2001
Location: Montreal, Quebec, Canada
Posts: 1,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 30 Post(s)
Liked: 96
Wow Erich, that's sad
With all the trouble you go through I'd only make them available as kits.

Anyways I am grateful I got these and am looking forward to give my feedback but with that said I apologize in advance to everyone as these will not be done for a while but I can't wait !
Fatshaft is offline
post #29 of 616 Old 02-22-2014, 03:56 PM
AVS Special Member

tuxedocivic's Avatar

Join Date: Feb 2010
Location: Ladysmith, BC
Posts: 4,349
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 149 Post(s)
Liked: 424
I only sent it to 3 maybe 4 people. If anything, I would imagine not all 4 people bought the required parts. I know one guy, HT doc, mentioned he had XO parts but if that's a pain, just don't split it up. He didnt buy anything he didnt already have.

tuxedocivic is online now
post #30 of 616 Old 02-22-2014, 04:07 PM
AVS Special Member

Erich H's Avatar

Join Date: Dec 2007
Location: Cincinnati OH
Posts: 5,147
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 429
Designs spread fast I guess. Obviously not all the emails were about these specific kits, just some. It started to be too much, so I took a couple kits down for now.

Keep in mind not everyone gets mad about it being hard to break things up and they fully understand once I explain how the costs are figured. I have no problem doing a couple kits that way, but once they start adding up, it slows things down and mistakes happen.


It will all get figured out, I'm just not exactly sure how to list them right now.

Either way, on with the build!
Erich H is online now
Reply DIY Speakers and Subs

User Tag List

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
