Alright been messing with the settings in the amp.
Settings i had
HPF 20hz, butterworth, and 12db
Filter 1 -10db, 20hz, hs12

When on these settings i played Blackhawk down. I remember from papalocks video on YouTube the drivers flying back and forth. Mine kinda just moved very little.

I changed the setting to this and got much more movement, but am not sure this was what I should have done.

HPF 20hz ,butterworth, 6db
Filter 1 2.0db, 20hz, hs12

I noticed the biggest difference when changing the db in the HPF, if i went higher like 12 and above, it seemed to be less output..maybe I am just crazy though.

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #93 of 128 Old 08-06-2014, 10:50 AM
Member

SXRDISBEST's Avatar

Join Date: Mar 2006
Location: Phoenix, AZ
Posts: 146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 37
Quote:
Originally Posted by wyattroa View Post
Alright been messing with the settings in the amp.
Settings i had
HPF 20hz, butterworth, and 12db
Filter 1 -10db, 20hz, hs12

When on these settings i played Blackhawk down. I remember from papalocks video on YouTube the drivers flying back and forth. Mine kinda just moved very little.

I changed the setting to this and got much more movement, but am not sure this was what I should have done.

HPF 20hz ,butterworth, 6db
Filter 1 2.0db, 20hz, hs12

I noticed the biggest difference when changing the db in the HPF, if i went higher like 12 and above, it seemed to be less output..maybe I am just crazy though.

Your initial settings with the -10db shelf filter probably brought the hpf down to about 12hz or so. So the activity in that scene would be pretty limited considering it's concentrated around 6-8 hz. You aren't going to be feeling or hearing that low anyway so you might as well keep that setting to protect your drivers.

Just my opinion though!
SXRDISBEST is offline
post #94 of 128 Old 08-06-2014, 11:27 AM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,843
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked: 955
Quote:
Originally Posted by wyattroa View Post
Alright been messing with the settings in the amp.
Settings i had
HPF 20hz, butterworth, and 12db
Filter 1 -10db, 20hz, hs12

When on these settings i played Blackhawk down. I remember from papalocks video on YouTube the drivers flying back and forth. Mine kinda just moved very little.

I changed the setting to this and got much more movement, but am not sure this was what I should have done.

HPF 20hz ,butterworth, 6db
Filter 1 2.0db, 20hz, hs12

I noticed the biggest difference when changing the db in the HPF, if i went higher like 12 and above, it seemed to be less output..maybe I am just crazy though.
Filter 1 should be peq not a hs12.
I wouldn't use bhd as my reference. Try wotw, Tron, Pacific Rim .
chalugadp is offline
post #95 of 128 Old 08-06-2014, 11:35 AM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
Quote:
Originally Posted by chalugadp View Post
Filter 1 should be peq not a hs12.
I wouldn't use bhd as my reference. Try wotw, Tron, Pacific Rim .
Ill change the filter peq on f1. Curious what the difference between them?

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #96 of 128 Old 08-06-2014, 11:50 AM
Member

SXRDISBEST's Avatar

Join Date: Mar 2006
Location: Phoenix, AZ
Posts: 146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 37
Quote:
Originally Posted by wyattroa View Post
Alright been messing with the settings in the amp.
Settings i had
HPF 20hz, butterworth, and 12db
Filter 1 -10db, 20hz, hs12

When on these settings i played Blackhawk down. I remember from papalocks video on YouTube the drivers flying back and forth. Mine kinda just moved very little.

I changed the setting to this and got much more movement, but am not sure this was what I should have done.

HPF 20hz ,butterworth, 6db
Filter 1 2.0db, 20hz, hs12

I noticed the biggest difference when changing the db in the HPF, if i went higher like 12 and above, it seemed to be less output..maybe I am just crazy though.
Quote:
Originally Posted by chalugadp View Post
Filter 1 should be peq not a hs12.
I wouldn't use bhd as my reference. Try wotw, Tron, Pacific Rim .

Why does LTD list it as a hs12 filter on the thread about pushing below 20hz?
SXRDISBEST is offline
post #97 of 128 Old 08-06-2014, 11:59 AM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,843
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked: 955
Quote:
Originally Posted by SXRDISBEST View Post
Why does LTD list it as a hs12 filter on the thread about pushing below 20hz?
I use 6db xo slope and suggest 2dbs boost with peq at 20. This is different then ltd02 workaround. I tried the work around when I had my Minimarty and I preferred it this way. They essentially do the same thing. The peq does eat up see amp power.
chalugadp is offline
post #98 of 128 Old 08-08-2014, 11:40 AM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
Just watched enders game and man is the bass intense. Gave the system and my house a good workout.

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #99 of 128 Old 08-08-2014, 11:51 AM
Advanced Member

PM-Performance's Avatar

Join Date: Oct 2008
Posts: 810
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 127 Post(s)
Liked: 109
Quote:
Originally Posted by wyattroa View Post
Just watched enders game and man is the bass intense. Gave the system and my house a good workout.
Yea those launch sceens are INSANE!!!!!!
wyattroa likes this.

PM-Performance is offline
post #100 of 128 Old 08-08-2014, 02:59 PM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
OK guys, after reading this entire thread and Wyat's reactions I'm very interested in maybe tackling this type of build myself.

Sorry to derail the thread, but only for one small question to the experts - I currently have 4 PSA XS15s (non-SE) in my ~5000 cu. ft. space. How many of these would I have to build to roughly double the output I have now??

Now, back to your regular programming.
Alan P is online now
post #101 of 128 Old 08-08-2014, 03:10 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,843
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked: 955
Quote:
Originally Posted by Alan P View Post
OK guys, after reading this entire thread and Wyat's reactions I'm very interested in maybe tackling this type of build myself.

Sorry to derail the thread, but only for one small question to the experts - I currently have 4 PSA XS15s (non-SE) in my ~5000 cu. ft. space. How many of these would I have to build to roughly double the output I have now??

Now, back to your regular programming.
Two large 10cuft cabs would do it or four smaller ones 4-6 cuft. Jbrown went from two xv30 to two large cabs and big improvement .
chalugadp is offline
post #102 of 128 Old 08-08-2014, 03:34 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 5,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 862
Quote:
Originally Posted by Alan P View Post
OK guys, after reading this entire thread and Wyat's reactions I'm very interested in maybe tackling this type of build myself.

Sorry to derail the thread, but only for one small question to the experts - I currently have 4 PSA XS15s (non-SE) in my ~5000 cu. ft. space. How many of these would I have to build to roughly double the output I have now??

Now, back to your regular programming.

Alan, truthfully its not even fair to compare. I went from dual XS30's to four large ported cabinets that have the equivalent output of 12-14 FV15HP's! All for less then the cost of a single Triax from PSA. I really LOVED my XS30's but it's not even a fair fight. I'm just trying to remember your room layout. You don't have a false wall do you? I don't think you do.


You could run four SI 18's and pick up four flat pack ported subs cabinets from Erich and power all of them from a single Peavey IPR2 7500 or two iNuke 6000DSP's, all for around 2 grand.
LTD02 likes this.
jbrown15 is offline
post #103 of 128 Old 08-08-2014, 03:45 PM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
Thanks guys! Got me thinking seriously now.

Here's my (living) room. I'm thinking I could fit at least 4 in that space behind my chairs. Do you think it's a good idea to put them all in back....I don't think they would fit up front where I have the PSAs now.

Alan P is online now
post #104 of 128 Old 08-08-2014, 03:50 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 5,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 862
Run four of them at the back of your room near field!..lol
jbrown15 is offline
post #105 of 128 Old 08-08-2014, 03:51 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 5,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 862
Room two below your side surrounds and two below your rear surrounds!...lol
Go big or go home
jbrown15 is offline
post #106 of 128 Old 08-08-2014, 04:03 PM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
Quote:
Originally Posted by jbrown15 View Post
Room two below your side surrounds and two below your rear surrounds!...lol
Go big or go home
This is what I was just thinking....now, to find someone to buy my PSAs.
Alan P is online now
post #107 of 128 Old 08-08-2014, 04:24 PM
AVS Special Member

jbrown15's Avatar

Join Date: Nov 2005
Location: Vancouver B.C.
Posts: 5,699
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked: 862
Quote:
Originally Posted by Alan P View Post
This is what I was just thinking....now, to find someone to buy my PSAs.
The ported flat pack cabinet that Erich sells is 30"x30"x16" and has a port tune of 18hz, its a great value if you can make that size work for you.





They work out to be $177ea plus shipping.
Attached Thumbnails
Click image for larger version

Name:	Stonehedge ported_18.jpg
Views:	154
Size:	49.0 KB
ID:	203561
jbrown15 is offline
post #108 of 128 Old 08-08-2014, 05:46 PM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
Quote:
Originally Posted by Alan P View Post
This is what I was just thinking....now, to find someone to buy my PSAs.
glad this thread has inspired you in some shape or form. I love these things. My wife said to me as we watched flight of the phoenix,"if something breaks in this house I am going to kill you"..lol..nothing as of yet, but man a couple of the scenes from enders game had me wondering..lol

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #109 of 128 Old 08-09-2014, 08:17 PM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
Just a random thought I had last night...has anyone converted these to be down-firing? That way they could be stacked 3 or 4 high.

Thinking it would be a pretty easy mod, just put some legs on and BAM!
Alan P is online now
post #110 of 128 Old 08-09-2014, 09:27 PM
Member

SXRDISBEST's Avatar

Join Date: Mar 2006
Location: Phoenix, AZ
Posts: 146
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked: 37
Quote:
Originally Posted by Alan P View Post
Just a random thought I had last night...has anyone converted these to be down-firing? That way they could be stacked 3 or 4 high.

Thinking it would be a pretty easy mod, just put some legs on and BAM!
Or you could make the perfect coffee table/ottoman! Although it better be braced well!


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
SXRDISBEST is offline
post #111 of 128 Old 08-09-2014, 09:53 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,843
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked: 955
LTD02 likes this.
chalugadp is offline
post #112 of 128 Old 08-13-2014, 05:09 PM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
My mic from spectrum got delivered today, so I will do some testing when I get some time and post it up.

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #113 of 128 Old 08-14-2014, 09:18 PM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68

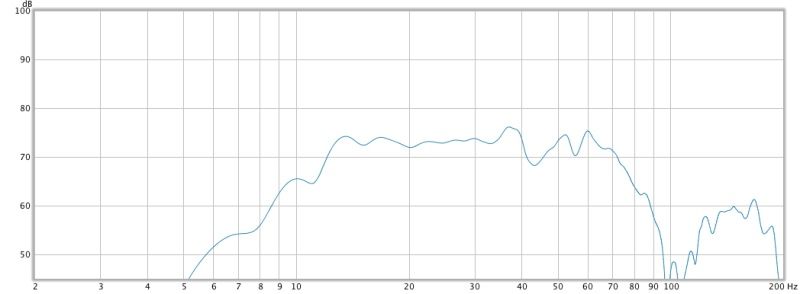

Just messed around with REW real quick. I have no idea if I did any of this right. AVR was set at -20db and matched in rew. This is what I ended up getting out of it. As I said again, I dont trust my setup.


Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #114 of 128 Old 08-14-2014, 09:24 PM
AVS Special Member

chalugadp's Avatar

Join Date: Jan 2013
Location: Vancouver, BC, Canada
Posts: 4,843
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked: 955
Just have to fix 43hz null and 80hz. 43 is minor but 80 is bigger. Even ifyou cross at 80 you want flatter.
chalugadp is offline
post #115 of 128 Old 08-15-2014, 06:04 AM
Advanced Member

Bassment's Avatar

Join Date: Aug 2013
Location: Ontario, Canada
Posts: 806
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 355 Post(s)
Liked: 140
it looks like the crossover is set to 60


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Bassment is offline
post #116 of 128 Old 08-15-2014, 08:08 AM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
Quote:
Originally Posted by wyattroa View Post
Just messed around with REW real quick. I have no idea if I did any of this right. AVR was set at -20db and matched in rew. This is what I ended up getting out of it. As I said again, I dont trust my setup.

That's looking pretty good, but it's hard to tell with your graph settings. Follow these guidelines and repost and we can get a better idea of what's going on. Also, try measuring at a little higher SPL, try -10 MV.

Preferred settings for subwoofer graphs:
VERTICAL = 45dB-105dB
HORIZONTAL = 15Hz-200Hz


Although your lower limit should probably be 10hz because you still have extension down there.
Alan P is online now
post #117 of 128 Old 08-15-2014, 10:24 AM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
If I want to fix that null, do i boost that frequency in the filters? Also what type of eq? Hs12 or peq.

Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #118 of 128 Old 08-15-2014, 10:45 AM
AVS Special Member

Alan P's Avatar

Join Date: Jan 2003
Location: Rapid City, South Dakota
Posts: 2,293
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked: 226
If it's truly a null, you can't boost it out. The only fix is sub or MLP placement adjustments.

You could try boosting it (PEQ) and see what happens, but you'll probably just be pouring watts into a hole.
Alan P is online now
post #119 of 128 Old 08-15-2014, 10:50 AM - Thread Starter
Senior Member

wyattroa's Avatar

Join Date: Jan 2007
Location: Lombard, IL
Posts: 236
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked: 68
Alright messed around again. Here the volume is set at -23db. If I go below -20db REW warns me it hears clipping. Only 2 lights are lighting up on the inuke, so I am not sure about that. ANy tips and suggestions would be welcome for this newb.


Sub build
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Center - JBL LC2
Mains - JBL L820
Surrounds - JBL L820
Sub -Updating to Duals with UXL-18"s A bit different
wyattroa is offline
post #120 of 128 Old 08-15-2014, 10:51 AM
Member

arttu's Avatar

Join Date: Oct 2005
Posts: 74
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 10
Frequency response looks pretty good.

I wouldn't boost anything without seeing also a graph with either L or R included. And also I would check the AVR's crossover setting as mentioned earlier. Try raising it 20Hz? Just my 2 cents...

Just read this whole thread. Awesome result!
arttu is offline
Reply DIY Speakers and Subs
Gear in this thread - UXL-18 by PriceGrabber.com

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
