Soundemons SEOS Fusion 12 Tempest LCR build thread

I'm starting a build currently for an LCR of SEOS Fusion 12 tempest. I've got all the parts currently just waiting on the binding posts and plates.


I'm actually going to update this one while in process, rather than finishing and posting everything after the fact.

The MDF has been cut and I've got the baffles glued up awaiting trim off. (pix to come)


My first question is about box stuffing / box lining. what have others done here? I just cant bear the thought of having bare walls in there!

I think we're the demons.
soundemon is online now
Sponsored Links
Advertisement

Old 07-02-2014, 09:32 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
reserved

I think we're the demons.
soundemon is online now
Old 07-02-2014, 09:32 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
reserved #2

I think we're the demons.
soundemon is online now
Old 07-02-2014, 04:52 PM
Senior Member

Audio Geek's Avatar

Join Date: Feb 2014
Location: San Jose, CA
Posts: 223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked: 41
Quote:
Originally Posted by soundemon View Post
My first question is about box stuffing / box lining. what have others done here? I just cant bear the thought of having bare walls in there!
You don't need stuffing, just damping material.

I used pink fluffy fiberglass in my Tempest LCR. It's cheap and works well. I just used gloves when gluing them down with spray-on glue.
Audio Geek is online now
Old 07-02-2014, 06:13 PM
Advanced Member

WereWolf84's Avatar

Join Date: May 2011
Location: Malaysia
Posts: 727
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked: 31
Quote:
Originally Posted by Audio Geek View Post
You don't need stuffing, just damping material.

I used pink fluffy fiberglass in my Tempest LCR. It's cheap and works well. I just used gloves when gluing them down with spray-on glue.
How thick is the fiberglass you were used to line your Tempests internal wall?
WereWolf84 is offline
Old 07-02-2014, 06:20 PM
Senior Member

Audio Geek's Avatar

Join Date: Feb 2014
Location: San Jose, CA
Posts: 223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked: 41
Quote:
Originally Posted by WereWolf84 View Post
How thick is the fiberglass you were used to line your Tempests internal wall?
2 inches thick. I got a thicker roll (I forgot the R value) and pulled it apart. And used a throwaway pair of scissors from HF to trim it.
Audio Geek is online now
Old 07-03-2014, 04:12 AM
Advanced Member

mobeer4don's Avatar

Join Date: Feb 2010
Posts: 526
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked: 66
I used the Ultratouch denim insulation on a recent project. Much more expensive than fiberglass but that's only a few $ on a pair of speakers. One roll per cabinet should do it.

http://www.homedepot.com/p/UltraTouc...6482/202709974

Good luck and rock on!
mobeer4don is offline
Old 07-03-2014, 06:15 AM
Advanced Member

ClemsonJeeper's Avatar

Join Date: Sep 2003
Location: Ashburn, VA
Posts: 628
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Liked: 92
I built 3 Fusion 12 Tempests for my HT LCR. Details in my build thread.

The Vortex Theater Build

About halfway down.

I used 1.5" acoustic egg crate foam glued in with spray adhesive.

My Home Theater Build: The Vortex Theater Build
ClemsonJeeper is offline
Old 07-03-2014, 06:33 AM
Advanced Member

Bassment's Avatar

Join Date: Aug 2013
Location: Ontario, Canada
Posts: 938
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked: 174
post some pics! What finish are you doing on them? Fiberglass/insulation is the best for speaker lining. I'm using Roxul safe'n'sound. It's not as easy to work with as foam or other "safer/nicer" materials but it has the best damping coefficients by far. Just glue it in with spray adhesive and I'm covering it with cheap speaker grill cloth.
Bassment is offline
Old 07-04-2014, 08:05 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Some initial pix: all table saw cuts are now done, baffles glued and routed for size


I included my sketch of my cutsheet to show how easily 3 speakers fit into 2 4x8 pieces of MDF. I had the guy at home depot cut 2 28" lengths off one piece and 2 26" pieces off the other one. then all the pieces fit with reasonable ease into the back seat of my Altima. (not a huge car) all pieces layed out on the cutsheet are oversized to allow room for error.


the baffles needed to be doubled up. I cut these pieces a little oversized on purpose, and made rough cuts with a jig saw for the cutouts, so the router didn't have to work as hard, and makes (a little) less dust.


the braces I had planned to cut them out rough with jig saw and then finish with router but quickly realized this was overkill. I just drilled out each corner and jigsaw'd the rest. the finish was no where near as rough as I had expected.


Box assembly is up next. Finish will be walnut veneer
Attached Thumbnails
Click image for larger version

Name:	IMG_0805.jpg
Views:	79
Size:	126.5 KB
ID:	147874   Click image for larger version

Name:	IMG_0811.jpg
Views:	64
Size:	98.7 KB
ID:	147882   Click image for larger version

Name:	IMG_0807.jpg
Views:	76
Size:	135.5 KB
ID:	147890   Click image for larger version

Name:	IMG_0808.jpg
Views:	69
Size:	236.6 KB
ID:	147898   Click image for larger version

Name:	IMG_0815.jpg
Views:	77
Size:	289.9 KB
ID:	147906

Click image for larger version

Name:	IMG_0817.jpg
Views:	74
Size:	168.7 KB
ID:	147914   Click image for larger version

Name:	IMG_0824.jpg
Views:	86
Size:	228.6 KB
ID:	147922

I think we're the demons.
soundemon is online now
Old 07-10-2014, 01:43 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Some decent progress to date. driver and wave guide inserts ... inserted.
osed screw ins for the woofer, and tap ins for the wave guide. but I don't tap them in with a hammer, they deform too easily. Instead, I draw them in with a screw and a washer from the opposite side:
Attached Thumbnails
Click image for larger version

Name:	IMG_0826.jpg
Views:	60
Size:	219.5 KB
ID:	155857   Click image for larger version

Name:	IMG_0827.jpg
Views:	55
Size:	202.7 KB
ID:	155865   Click image for larger version

Name:	IMG_0828.jpg
Views:	59
Size:	214.4 KB
ID:	155873

I think we're the demons.
soundemon is online now
Old 07-10-2014, 01:49 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Scalloped the back of the woofer cuttouts to let the woofers breathe a little easier.
proceeded to get the boxes started, one panel at a time for the first one, then realized that was ridiculous so did all 4 at once for the second one:
Attached Thumbnails
Click image for larger version

Name:	IMG_0835.jpg
Views:	62
Size:	222.2 KB
ID:	155881   Click image for larger version

Name:	IMG_0845.jpg
Views:	68
Size:	160.1 KB
ID:	155889

I think we're the demons.
soundemon is online now
Old 07-10-2014, 01:57 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Did a mock-up to make sure my bracing didn't interfere with anything. Also a shot of how I layed out the back panel. Everything from the back is glued and screwed. everything else just glued. this keeps things nice and straight and parallel. I drilled the back on the drill press, and then clamp and ensure everything is lined up perfect, and then drill thru pilot holes into the lateral pieces.
Attached Thumbnails
Click image for larger version

Name:	IMG_0830.jpg
Views:	57
Size:	189.6 KB
ID:	155905   Click image for larger version

Name:	IMG_0832.jpg
Views:	73
Size:	234.8 KB
ID:	155913   Click image for larger version

Name:	IMG_0833.jpg
Views:	103
Size:	239.0 KB
ID:	155921

I think we're the demons.
soundemon is online now
Old 07-21-2014, 04:23 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Crossovers done and ready to go into the box. I tried something different this time, soldering speaker cable directly on to the crossovers. this just eliminates a screwdown or crimp-on junction. Its a bit of a pain because the joints with the speaker wire take a looong time to get hot enough to flow solder. I just played games on my ipod while I waited...
Attached Thumbnails
Click image for larger version

Name:	xover1.jpg
Views:	72
Size:	253.0 KB
ID:	173625   Click image for larger version

Name:	xover2.jpg
Views:	66
Size:	287.2 KB
ID:	173633   Click image for larger version

Name:	xover mount.jpg
Views:	73
Size:	257.0 KB
ID:	173641

I think we're the demons.
soundemon is online now
Old 07-21-2014, 04:33 PM
Newbie

Join Date: Jul 2014
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked: 0
i think so, this just eliminates a screwdown or crimp-on junction. Its a bit of a pain because the joints with the speaker wire take a looong time to get hot enough to flow solder.thank you [IMG]http://*******/mTg8QS[/IMG]
blancrgaza is offline
Old 07-22-2014, 06:13 AM
Advanced Member

Bassment's Avatar

Join Date: Aug 2013
Location: Ontario, Canada
Posts: 938
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked: 174
I do the same thing for my crossovers, if you have a powerful iron it just takes a second to heat up. Even with cheaper irons - make sure you melt some solder on the tip and then use the liquid solder to help transfer the heat to the wire, it shouldn't take that long, definitely not long enough to play a game while waiting! haha
Bassment is offline
Old 07-25-2014, 09:03 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Got the cabinets all lined and crossovers installed. Found a great deal on some 1.5" eggcrate acoustic foam so lined with that:
Attached Thumbnails
Click image for larger version

Name:	IMG_0862.jpg
Views:	99
Size:	251.9 KB
ID:	179650   Click image for larger version

Name:	IMG_0865.jpg
Views:	70
Size:	226.3 KB
ID:	179658

I think we're the demons.
soundemon is online now
Old 07-25-2014, 09:08 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Particularly when using dark components and finishing in a dark finish, I hate that little peek of MDF yellow you can see at certain angles from the sidewalls of the mounting holes. So I spray these black, and masked off so there aren't heavy black areas where I'm trying to veneer
Attached Thumbnails
Click image for larger version

Name:	IMG_0863.jpg
Views:	69
Size:	178.1 KB
ID:	179706

I think we're the demons.
soundemon is online now
Old 08-04-2014, 12:36 AM
Member

Join Date: Jun 2014
Posts: 28
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked: 5
Quote:
Originally Posted by soundemon View Post
Particularly when using dark components and finishing in a dark finish, I hate that little peek of MDF yellow you can see at certain angles from the sidewalls of the mounting holes. So I spray these black, and masked off so there aren't heavy black areas where I'm trying to veneer
How's the build coming along?
Mtrc808 is offline
Old 08-04-2014, 09:45 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Making some good progress. Cabinets are all together, and done with final sand. I'm now in the process of prepping for veneer.
For veneer I do the iron on method, and with raw veneer. I get it in strips, which is harder to work with but a ton cheaper than buying the full sheets of paper backed stuff. (the glue for the veneer job cost more than the veneer itself)

Nice even layer of glue on the speakers, then you do the same on the veneer. rule of thumb is a little more on the speakers and a little less on the veneer, but the aim is a consistent even layer, and good full coverage. I aim to have a little more around the edges, and the most concentration in the corners. otherwise you end up with the most in the middle, and its most needed at the edges.
Attached Thumbnails
Click image for larger version

Name:	IMG_0873.jpg
Views:	54
Size:	143.8 KB
ID:	196241   Click image for larger version

Name:	IMG_0876.jpg
Views:	60
Size:	191.8 KB
ID:	196249   Click image for larger version

Name:	IMG_0877.jpg
Views:	59
Size:	225.5 KB
ID:	196257   Click image for larger version

Name:	IMG_0878.jpg
Views:	63
Size:	178.9 KB
ID:	196265   Click image for larger version

Name:	IMG_0879.jpg
Views:	65
Size:	178.5 KB
ID:	196273

Click image for larger version

Name:	IMG_0882.jpg
Views:	94
Size:	220.8 KB
ID:	196281

I think we're the demons.
soundemon is online now
Old 08-14-2014, 08:37 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
The strips of raw veneer I'm using, a progress pic, and one speaker fully veneered. this is before sand / patch / sand / stain / finish etc. just raw veneer.
Attached Thumbnails
Click image for larger version

Name:	veneer strips.jpg
Views:	70
Size:	265.1 KB
ID:	211785   Click image for larger version

Name:	progress.jpg
Views:	68
Size:	216.1 KB
ID:	211793   Click image for larger version

Name:	veneer.jpg
Views:	99
Size:	151.2 KB
ID:	211801
Audio Geek likes this.

I think we're the demons.
soundemon is online now
Old 08-14-2014, 09:00 AM
Advanced Member

Bassment's Avatar

Join Date: Aug 2013
Location: Ontario, Canada
Posts: 938
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
Liked: 174
Bassment is offline
Old 08-27-2014, 07:33 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Couple more shots - I use a polyurethane with stain mixed in, sand then poly, then sand with 320 grit, then poly, next is a rubdown with steel wool, one more coat of clear poly, another rubdown and final assembly! should be completely together and listening by this weekend. and then I can focus all my efforts on my Ghorn build!
Attached Thumbnails
Click image for larger version

Name:	second last coat.jpg
Views:	89
Size:	220.4 KB
ID:	231689   Click image for larger version

Name:	second last coat 2.jpg
Views:	71
Size:	249.1 KB
ID:	231705
kingpin111 likes this.

I think we're the demons.
soundemon is online now
Old 08-27-2014, 08:18 AM
Member

Bud Heavy's Avatar

Join Date: Feb 2006
Location: KS
Posts: 88
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked: 24
Those look pretty awesome. Nice job on the veneer!
Bud Heavy is offline
Old 08-27-2014, 08:37 AM
Senior Member

Audio Geek's Avatar

Join Date: Feb 2014
Location: San Jose, CA
Posts: 223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked: 41
Sweet!
Audio Geek is online now
Old 09-01-2014, 08:07 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24

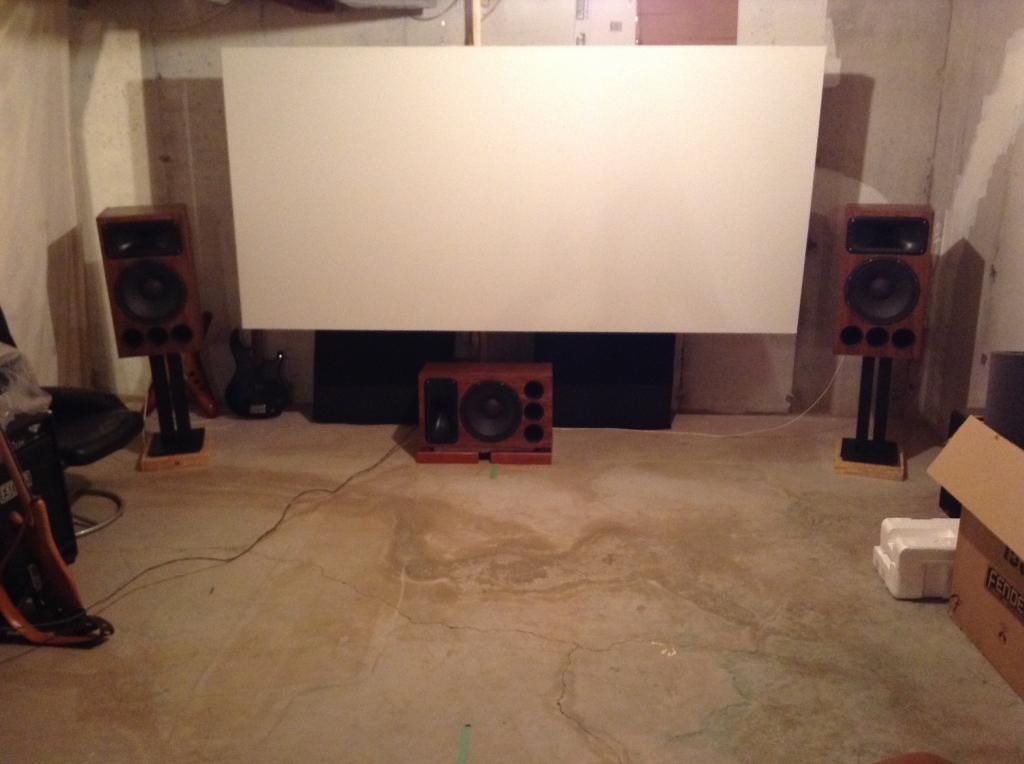

Here they are completed! they sound excellent so far. Stil running them in a bit, but with movies these are amazing, clean and clear, lots of impact which is what I was looking for. for music so far they are very good. not quite as sweet and delicate as the statements, but that is definitely to be expected

I think we're the demons.

Last edited by soundemon; 09-01-2014 at 08:19 AM. Reason: posted full sized image
soundemon is online now
Old 09-01-2014, 08:55 AM
Advanced Member

Jeff in Canada's Avatar

Join Date: Jan 2013
Posts: 621
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Liked: 54
Quote:
Originally Posted by soundemon View Post
Here they are completed! they sound excellent so far. Stil running them in a bit, but with movies these are amazing, clean and clear, lots of impact which is what I was looking for. for music so far they are very good. not quite as sweet and delicate as the statements, but that is definitely to be expected
The center is going to behave oddly on its side. You are going to get lobing toward a side seat (right side) Jeff designed the 99 Special to go with these if you are height limited for the center. I love my Tempests. Others may have other comments but you will get odd bounce off of the floor.

They look absolutely beautiful though.

Audio: Denon AVR-4520, Fusion 12 Tempest (LCR), Fusion 8 Alchemy (4xSurrounds+2xWides+2xHeights),4 x 15" Dayton Ultimax
Video: Sony VPL-HW40ES, Darbee Darblet, SMX 2.35:1 Screen
Seating: Fusion Lagoon Chairs
Theater Build
DIY Speaker / Sub Build
Jeff in Canada is offline
Old 09-01-2014, 09:25 AM
Senior Member

Audio Geek's Avatar

Join Date: Feb 2014
Location: San Jose, CA
Posts: 223
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked: 41
Quote:
Originally Posted by soundemon View Post
Here they are completed! they sound excellent so far. Stil running them in a bit, but with movies these are amazing, clean and clear, lots of impact which is what I was looking for. for music so far they are very good. not quite as sweet and delicate as the statements, but that is definitely to be expected
Have you tried toeing in the speakers (aim left to far right seating position and right to far left seating position)? It should give a bigger sweet spot that way (and should keep less of the sound bouncing off the walls).

Also, can you keep the center vertical? The SEOS waveguide being vertical will lead to a small sweet spot.
Audio Geek is online now
Old 09-01-2014, 09:38 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 425
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked: 24
Thanks for the comments so far guys! I am going to do some playing with the placement in the days and weeks to come, where you see them is right where they plonked down. so far with no adjustments, and in my crappy non-treated unfinished basement they sound great!


I will be seating the center vertically in the future. The screen will be getting shrunk a bit to make way for this. (I only use 5/8 of the screen area as it is - golden ratio seat distance to screen size this screen is way too big as it is)

I think we're the demons.
soundemon is online now

Thread Tools


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
