Soundemons Gjallarhorn 2 build thread

In addition to my Fusion 12 tempest LCR build, I'm starting the build process for the mighty Gjallarhorn version 2.


Starting this thread way early (for me) I've got the wood, just delivered this morning, but not a single cut done as of yet. I'll be using the UXL18, which is back ordered but I've got a deposit down on it.


Pix to come!

I think we're the demons.
soundemon is online now
Sponsored Links
Advertisement

post #2 of 156 Old 07-02-2014, 09:37 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Reserved
LTD02 likes this.

I think we're the demons.
soundemon is online now
post #3 of 156 Old 07-02-2014, 09:37 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Reserved #2

I think we're the demons.
soundemon is online now
post #4 of 156 Old 07-02-2014, 10:12 AM
AVS Special Member

Fatawan's Avatar

Join Date: Nov 2006
Posts: 1,471
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 15
What is the version 2?
Fatawan is offline
post #5 of 156 Old 07-02-2014, 10:41 AM
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 2,089
Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 418 Post(s)
Liked: 379
Quote:
Originally Posted by Fatawan View Post
What is the version 2?
http://data-bass.ipbhost.com/index.p...orn-version-2/
lukeamdman is offline
post #6 of 156 Old 07-02-2014, 10:43 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Quote:
Originally Posted by Fatawan View Post
What is the version 2?
its a re-fold of the original version, with fewer 180 degree turns and a different driver orientation, so that it is more likely to be vertical in its final placement.

I think we're the demons.
soundemon is online now
post #7 of 156 Old 07-02-2014, 03:16 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 28,479
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked: 1740
Quote:
Originally Posted by soundemon View Post
its a re-fold of the original version, with fewer 180 degree turns and a different driver orientation, so that it is more likely to be vertical in its final placement.
Where did you get the plans for it ?

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #8 of 156 Old 07-02-2014, 03:17 PM
Advanced Member

cookieattk's Avatar

Join Date: Jun 2011
Posts: 638
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked: 66
Quote:
Originally Posted by Mfusick View Post
Where did you get the plans for it ?
email or pm ricci ricci is owner of data-bass.com also
cookieattk is online now
post #9 of 156 Old 07-04-2014, 07:41 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
First pic: 4 sheets of 3/4" Baltic birch and 2 sheets of 1/2". shown with my in progress fusion 12 tempest baffles:
Attached Thumbnails
Click image for larger version

Name:	IMG_0819.jpg
Views:	185
Size:	86.9 KB
ID:	147698

I think we're the demons.
soundemon is online now
post #10 of 156 Old 07-04-2014, 07:57 AM
AVS Special Member

jpmst3's Avatar

Join Date: Dec 2005
Location: Davidsville, PA
Posts: 8,379
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Liked: 231
Quote:
Originally Posted by soundemon View Post
First pic: 4 sheets of 3/4" Baltic birch and 2 sheets of 1/2". shown with my in progress fusion 12 tempest baffles:
Let the games begin!

______________________________________________
Joe = LFE Addict
Joe's LOWARHORN build
Dual LMS-5400 Ultra Endtables build
jpmst3 is offline
post #11 of 156 Old 07-25-2014, 09:14 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Driver is in. What a monster this thing is! pictures don't do it justice. Almost to the finishing stages of my tempest 12 LCR build, so cuts starting soon for this!
Attached Thumbnails
Click image for larger version

Name:	IMG_0860.jpg
Views:	279
Size:	83.6 KB
ID:	179722

I think we're the demons.
soundemon is online now
post #12 of 156 Old 07-25-2014, 09:54 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 28,479
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked: 1740
Ghorn FTW ! I am looking forward to hearing your impression of it.

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #13 of 156 Old 08-07-2014, 12:02 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Pix to come, but I've finally started making cuts for this build. funniest thing was wandering around my workshop and garage looking for something long enough and straight enough to use for an edge guide or my initial skillsaw cuts. then it hit me - the next piece of BB in line! lmao

I think we're the demons.
soundemon is online now
post #14 of 156 Old 08-07-2014, 03:59 PM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 28,479
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked: 1740
pics or it didn't happen!

-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #15 of 156 Old 08-14-2014, 08:30 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
a few pics of progress: Basically I found all the cuts looking for the measurement of 22.583". Of course, we cannot get this level of accuracy using a tape measure, this dimension is just the net result of the overall height of the Ghorn minus 2 pieces of 3/4 BB.


The most important thing is that all of these pieces are the EXACT same height, so I used edge guide and skill saw to cut the 5X5 pieces into manageable sections, and then re-cut each piece on the table saw. set up once and cut ALL pieces requiring this measurement.
one pic is of my edge guide, the next is after a pass thru the table saw and the tiny amount of cutoff that I got.
Attached Thumbnails
Click image for larger version

Name:	edge guide.jpg
Views:	1108
Size:	165.6 KB
ID:	211761   Click image for larger version

Name:	trim cut.jpg
Views:	1073
Size:	144.8 KB
ID:	211769

I think we're the demons.
soundemon is online now
post #16 of 156 Old 08-14-2014, 09:31 PM
AVS Addicted Member

LTD02's Avatar

Join Date: Oct 2003
Posts: 18,242
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1235 Post(s)
Liked: 1552
cool.

Listen. It's All Good.
LTD02 is offline
post #17 of 156 Old 08-15-2014, 07:59 AM
AVS Addicted Member

Mfusick's Avatar

Join Date: Aug 2002
Location: Western MA
Posts: 28,479
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked: 1740
[img] + [/img] before and after your URL links makes the pictures full sized.





-

"Too much is almost enough. Anything in life worth doing is worth overdoing. Moderation is for cowards."
Mfusick is online now
post #18 of 156 Old 08-26-2014, 06:08 PM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
I've made all the simple cuts, now down to the tricky ones. lots of 45 degree angles to cut which is fine, but there are some which are listed at 34.7 degrees, which should be simple, however this measurement is off the opposite angle, meaning I'd have to set my table saw to 55.3 degrees, and the maximum my saw will go is 45 degrees. anyone have advice on how to achieve greater than 45 degree angles?

I think we're the demons.
soundemon is online now
post #19 of 156 Old 08-26-2014, 08:11 PM
Newbie

RageFury's Avatar

Join Date: Jul 2009
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked: 22
Quote:
Originally Posted by soundemon View Post
I've made all the simple cuts, now down to the tricky ones. lots of 45 degree angles to cut which is fine, but there are some which are listed at 34.7 degrees, which should be simple, however this measurement is off the opposite angle, meaning I'd have to set my table saw to 55.3 degrees, and the maximum my saw will go is 45 degrees. anyone have advice on how to achieve greater than 45 degree angles?
I might be mistaken as angles are sometimes hard to imagine, but you should be able to flip the piece over (side to side) and cut on the back side at 34.7. When you flip it back over, you will have your desired 55.3 cut.


We want to see more pictures!
RageFury is online now
post #20 of 156 Old 08-27-2014, 06:55 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Quote:
Originally Posted by Mfusick View Post
[img] + [/img] before and after your URL links makes the pictures full sized.








Do I have to store them elsewhere, like photobucket in order to insert this way? I've just been uploading from PC. when I do it that way I cant manipulate the address

I think we're the demons.
soundemon is online now
post #21 of 156 Old 08-27-2014, 07:11 AM
AVS Special Member

chrapladm's Avatar

Join Date: Mar 2010
Location: Adelaide, South Australia
Posts: 3,379
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 418 Post(s)
Liked: 149
Cant wait to see the first version 2 built.
chrapladm is offline
post #22 of 156 Old 08-27-2014, 07:27 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27

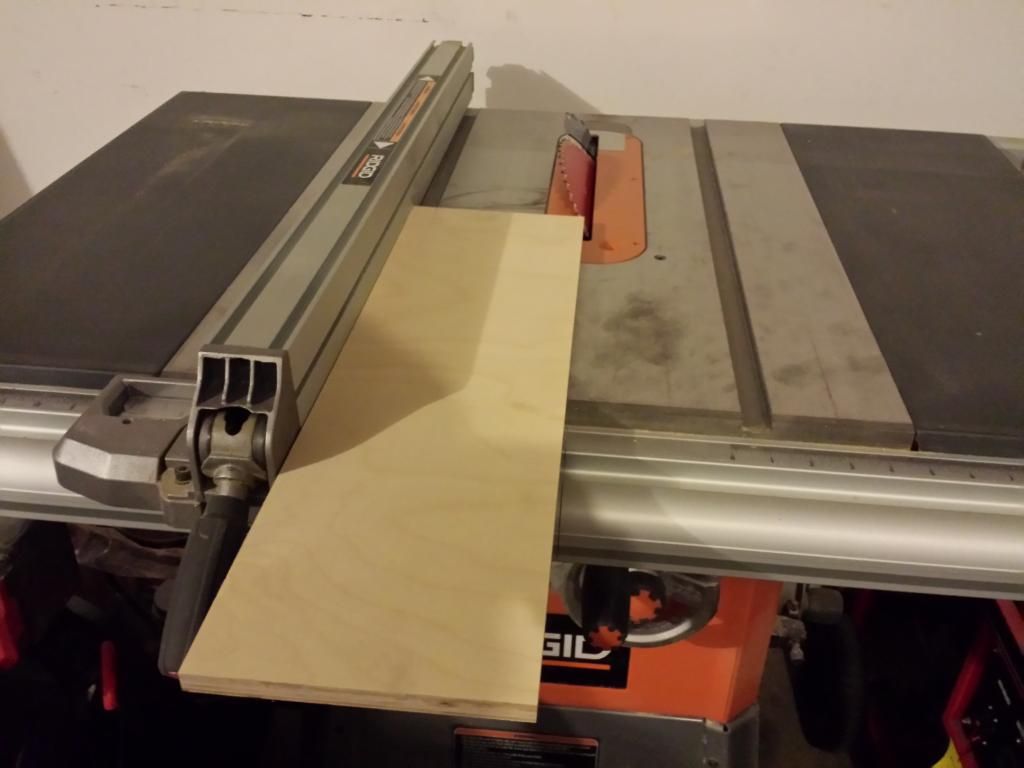

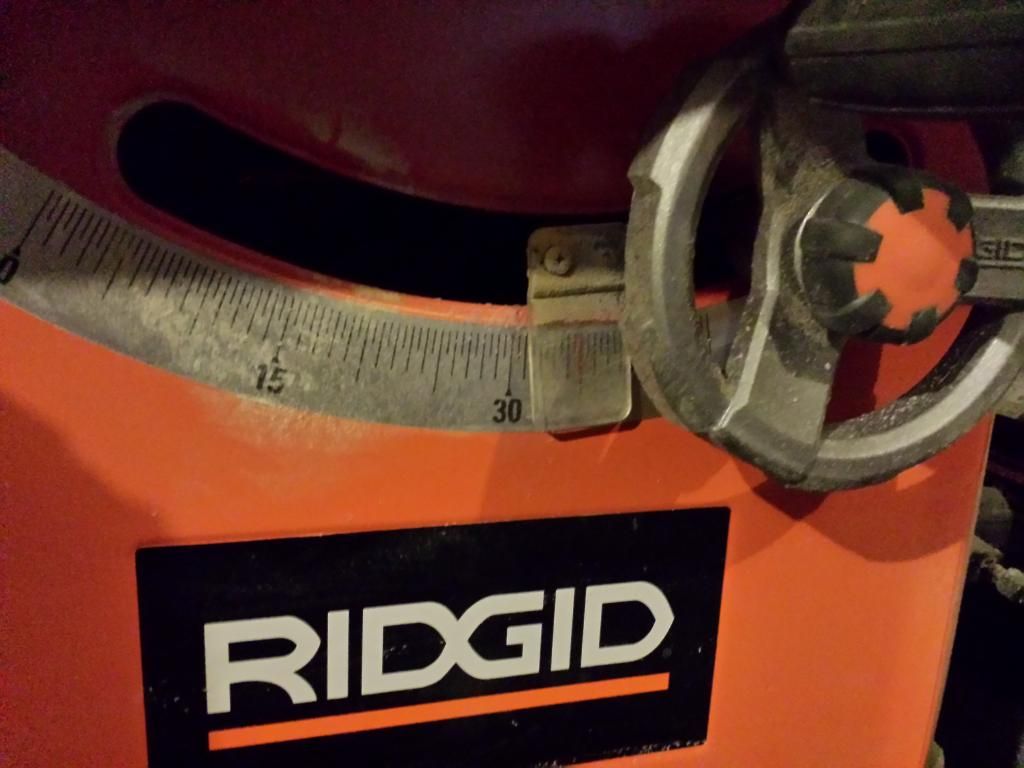

Heres the cutsheet and a couple of pictures about what I'm talking about on my saw.
flipped on either side laying flat, the angle is still wrong, it is less than 45 degrees. Laying flat the angle has to be 55.3. its almost like I'd have to run the piece vertically thru the saw to get the angle needed, and I cant figure out a safe and repeatable way to do this:
Attached Thumbnails
Click image for larger version

Name:	cutsheet.jpg
Views:	154
Size:	157.5 KB
ID:	231649   Click image for larger version

Name:	saw angle.jpg
Views:	117
Size:	80.1 KB
ID:	231657   Click image for larger version

Name:	saw angle 2.jpg
Views:	106
Size:	80.0 KB
ID:	231665   Click image for larger version

Name:	saw angle 3.jpg
Views:	113
Size:	72.0 KB
ID:	231673

I think we're the demons.
soundemon is online now
post #23 of 156 Old 08-27-2014, 07:31 AM
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 2,089
Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 418 Post(s)
Liked: 379
You can't move the wood to the left side of the saw and cut from the left side of the blade?
lukeamdman is offline
post #24 of 156 Old 08-27-2014, 07:32 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,511
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 435 Post(s)
Liked: 358
Is the panel small enough you could build a jig at 55.3 degrees. I'm thinking like a miter sled with the board at the correct angle and the blade at 90 degrees.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #25 of 156 Old 08-27-2014, 07:36 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Quote:
Originally Posted by lukeamdman View Post
You can't move the wood to the left side of the saw and cut from the left side of the blade?
From either side with the wood laying flat the angle has to be 55.3. it has to be standing up to make the angle 34.7. (as far as I can figure)

I think we're the demons.
soundemon is online now
post #26 of 156 Old 08-27-2014, 07:37 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Quote:
Originally Posted by J_P_A View Post
Is the panel small enough you could build a jig at 55.3 degrees. I'm thinking like a miter sled with the board at the correct angle and the blade at 90 degrees.
I may have to do this. there are a couple of 34.7 angles called for in this build.

I think we're the demons.
soundemon is online now
post #27 of 156 Old 08-27-2014, 07:43 AM
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 2,089
Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 418 Post(s)
Liked: 379
Quote:
Originally Posted by soundemon View Post
From either side with the wood laying flat the angle has to be 55.3. it has to be standing up to make the angle 34.7. (as far as I can figure)
If you make a 34.7 degree cut, the other angle will still be 55.3 degress.

Sometimes you have to move the wood to the left side and rotate the piece 180 degrees.
lukeamdman is offline
post #28 of 156 Old 08-27-2014, 07:46 AM
AVS Special Member

J_P_A's Avatar

Join Date: Dec 2008
Location: L.A. - Lower Alabama
Posts: 4,511
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 435 Post(s)
Liked: 358
^^^ What he said. I think Luke has the right idea here.

Dude, are you made of leprechauns? Cause that was awesome!

The Plains Theater Has Begun
J_P_A is offline
post #29 of 156 Old 08-27-2014, 08:13 AM - Thread Starter
Senior Member

soundemon's Avatar

Join Date: Nov 2007
Location: Toronto (Newmarket) Canada
Posts: 439
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked: 27
Quote:
Originally Posted by lukeamdman View Post
If you make a 34.7 degree cut, the other angle will still be 55.3 degress.

Sometimes you have to move the wood to the left side and rotate the piece 180 degrees.
We're not working off of 90 degree base though. its 180 degree base, a flat piece of wood. so if I set my blade to 34.7 degrees, both sides of the cut will have a 34.7 degree angle, and a 142.6 degree angle.
I included a little diagram to try and help explain my thoughts better. I called the second angle 33 for some reason. I meant 34.7:
Attached Thumbnails
Click image for larger version

Name:	angles.jpg
Views:	115
Size:	175.3 KB
ID:	231785

I think we're the demons.
soundemon is online now
post #30 of 156 Old 08-27-2014, 08:20 AM
AVS Special Member

lukeamdman's Avatar

Join Date: May 2011
Location: Burnsville, MN
Posts: 2,089
Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 418 Post(s)
Liked: 379
If I wanted a 34.7 degree cut, here's what I would do:



lukeamdman is offline
Sponsored Links
Advertisement

Reply DIY Speakers and Subs

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page


Forum Jump:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off
