combo "family room + Outdoor HT " curvy Fusion-8 MTM's DIY speakers.

Time flies.....I posted Jan-2014 in the " A 3 way 99db multi configurable SEOS design " thread my desire for combo "family room + Outdoor HT " DIY speakers for the mains R/C/L.
A 3 way 99db multi configurable SEOS design

Now I'm ready to tackle that project, as Aug-29 thru Sept-1 is when we will do the outdoor HT weekend event, so got about 4 weeks to get them done.

My constraints are the size of the 3-way-99db are too big for my family room, the current AT350's are 8" wide x 12" deep x 23" tall, so instead I'm looking at DIY Fusion-8 Alchemy MTM, seems a perfect upgrade.
I'd have 2 vertical as R/L, and 1 horizontal as C.
http://www.diysoundgroup.com/fusion8-mtm-kit.html
I've put 3 in the shopping cart, before I pull the trigger and order I'm open to suggestions/others.
Constraints: size - the 10" x 28" x 12" deep of the Fusion-8 Alchemy MTM are max what I can go

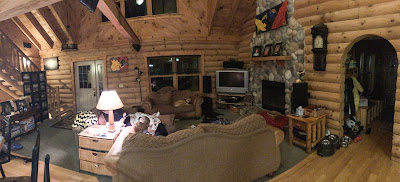

Family room 5.1 set-up, pano via iPhone 5s.
It's open family room, the TV/Audio is corner placed due to fireplace, I know not ideal from sound PQ viewpoint but primary HT is the basement and this is "just" 5.1 for casual TV viewing and music when family gatherings happen.


Like stated these will also see 2nd duty as occasional outdoor HT speakers
Outdoor movie annual fall 2-3 showings/year, I mount the R/L on the walls, and the center goes below the 16ft x 9 ft screen.
The PJ is 29 ft back, people sit between 10 ft and 30 ft, I've had 45 over before
